€4,500 + Vat

Harrison M400 Manual Centre Lathe

1

Cork, Ireland

Sold

Description

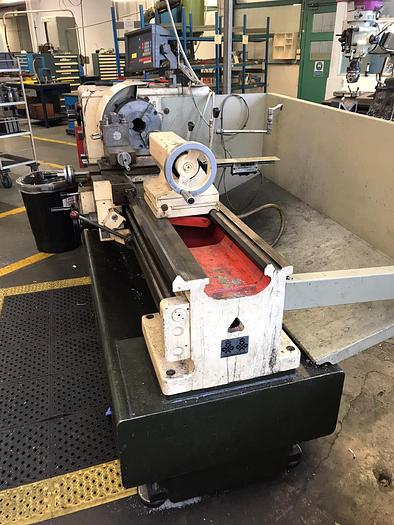

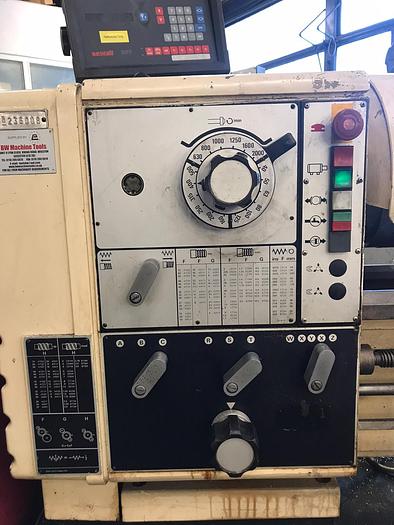

Harrison M400 Manual Center Lathe


Machine Type: Manual Lathe

Condition: Very good condition with "as new" 3 Jaw Chuck with it.


Included Equipment

As New 3 Jaw Chuck & Adapter Plate

Quick Change Tool Post

Tool Holder

Live Center

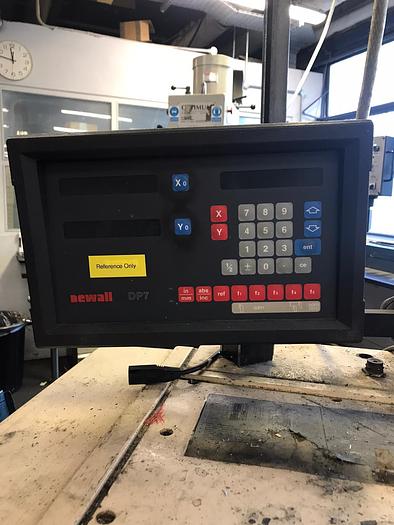

Newall DP7 Digital Read Out

Chuck Guard

Coolant Equipment


Technical Specifications

Centre Height: 200mm

Distance Between Centres: 1000mm

Swing Over Bed: 420mm

Swing Over Cross Slide: 254mm

Swing in Gap: 610mm

Gap Length: 200mm

Spindle Bore: 65mm

Spindle Nose: No. 8 D1 Camlock

Spindle Taper: MT5

Spindle Speed: 40 - 2000rpm

Speed Selections: 18

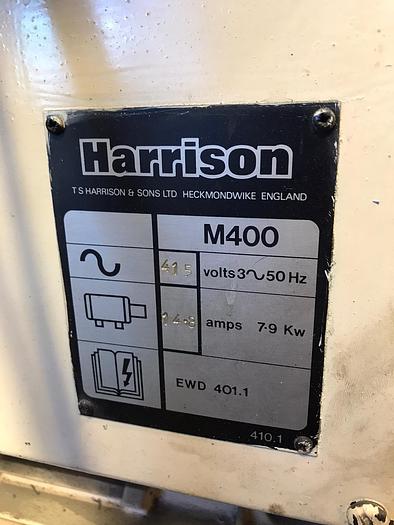

Motor Power: 7.5kw (10hp)

Metric Threads: 0.2 to 4mm Pitch

Imperial Threads: 2 to 72 TPI

Module Threads: 0.2 to 3.5 MOD

Diametrical Threads: 8 to 72 DP

Metric Longitudinal Feeds: 0.04 to 0.71mm/rev

Imperial Longitudinal Feeds: 0.0016 to 0.028in/rev

Metric Cross Feeds: Half Longitudinal Value

Imperial Cross Feeds: Half Longitudinal Value

Bed Width over Slideways: 360mm

Bed Depth under Headstock: 380mm

Cross Slide Travel: 250mm

Cross Slide Width: 195mm

Top Slide Travel: 120mm

Top Slide Width: 115mm

Tool Post: Quick Change Type

Tool Size: Max 32 x 25mm

Tailstock Taper: MT5

Tailstock Quill Travel: 155mm

Tailstock Quill Diameter: 73mm


Machine Dimensions Approx: 2215 x 1000 x 1400mm

Machine Weight Approx: 1753kg

Specifications

ManufacturerHarrison
ModelM400 Manual Centre Lathe
ConditionUsed
Centre Height200mm
Distance Between Centres1000mm
Swing Over Bed420mm
Swing Over Cross Slide254mm
Swing in Gap610mm
Gap Length200mm
Spindle Bore65mm
Spindle NoseNo. 8 D1 Camlock
Spindle TaperMT5
Spindle Speed40 - 2000rpm
Speed Selections18
Motor Power7.5kw (10hp)
Metric Threads0.2 to 4mm Pitch
Imperial Threads2 to 72 TPI
Module Threads0.2 to 3.5 MOD
Diametrical Threads8 to 72 DP
Metric Longitudinal Feeds0.04 to 0.71mm/rev
Imperial Longitudinal Feeds0.0016 to 0.028in/rev
Metric Cross FeedsHalf Longitudinal Value
Imperial Cross FeedsHalf Longitudinal Value
Bed Width over Slideways360mm
Bed Depth under Headstock380mm
Cross Slide Travel250mm
Cross Slide Width195mm
Top Slide Travel120mm
Top Slide Width115mm
Tool PostQuick Change Type
Tool SizeMax 32 x 25mm
Tailstock TaperMT5
Tailstock Quill Travel155mm
Tailstock Quill Diameter73mm
Machine Weight Approx1753kg
