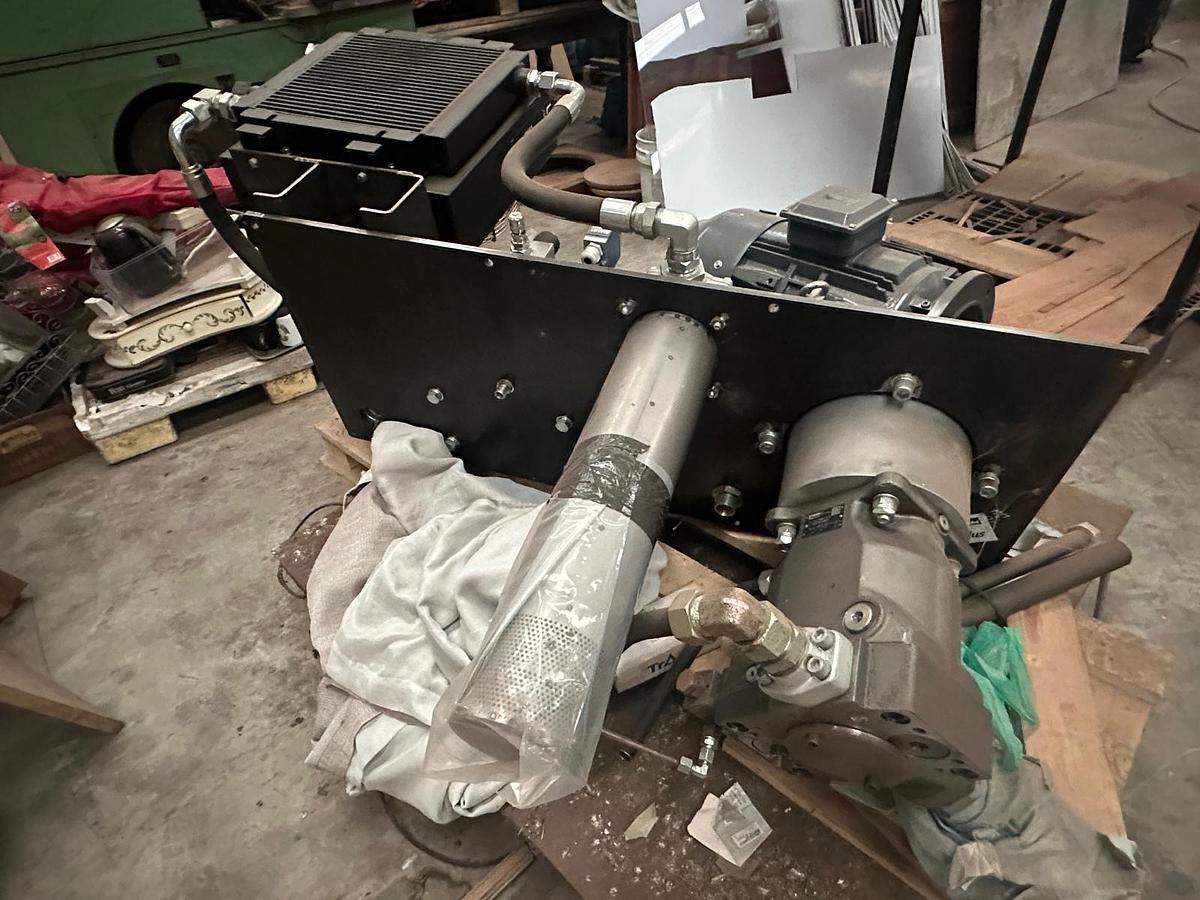

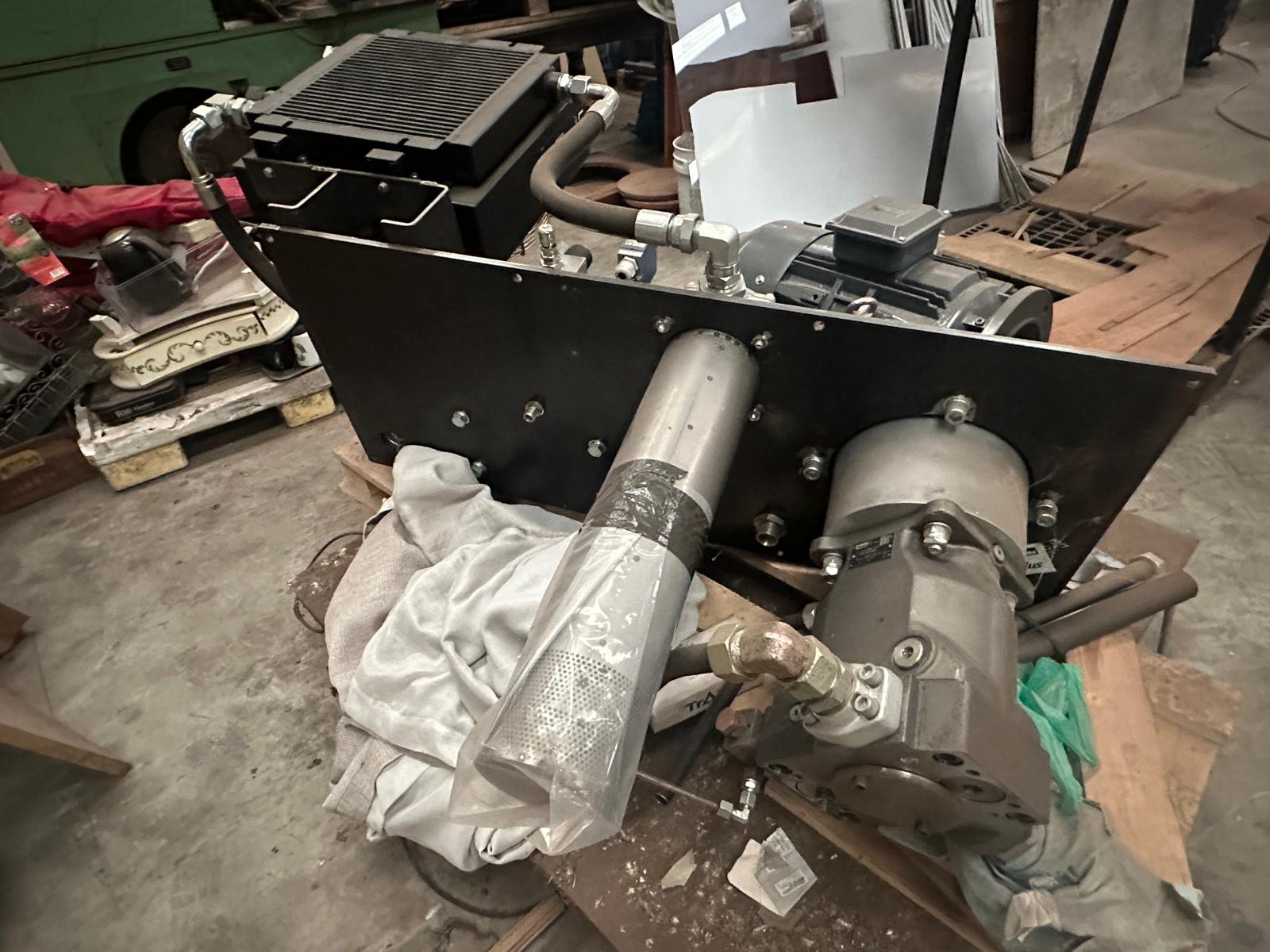

⭐ Hydraulic Powerpack Assembly – Techtop 22 kW Motor + Parker LAC2 Oil Cooler + Hydraulic Pump & Block

Purchased in 2022 – Fully Complete – Never Used – “As New” Condition

This is a high-spec, industrial-grade hydraulic powerpack/drive assembly, originally purchased in 2022 and never put into service. The system is built from premium components, including a Techtop 22 kW 3-phase motor, Parker LAC2 air-oil cooler, heavy-duty hydraulic pump, return filter, and a fully-assembled valve block with pressure control and directional valving.

Suitable for:

• Industrial compactors & balers
• Recycling machinery
• Hydraulic presses
• Conveyors & material handling systems
• Agricultural & mobile machinery
• Any application requiring high-power hydraulic flow and 175–250 bar operating pressure

This unit is essentially brand new, stored indoors, complete with fittings and ready for installation.

🔧 Key Specifications

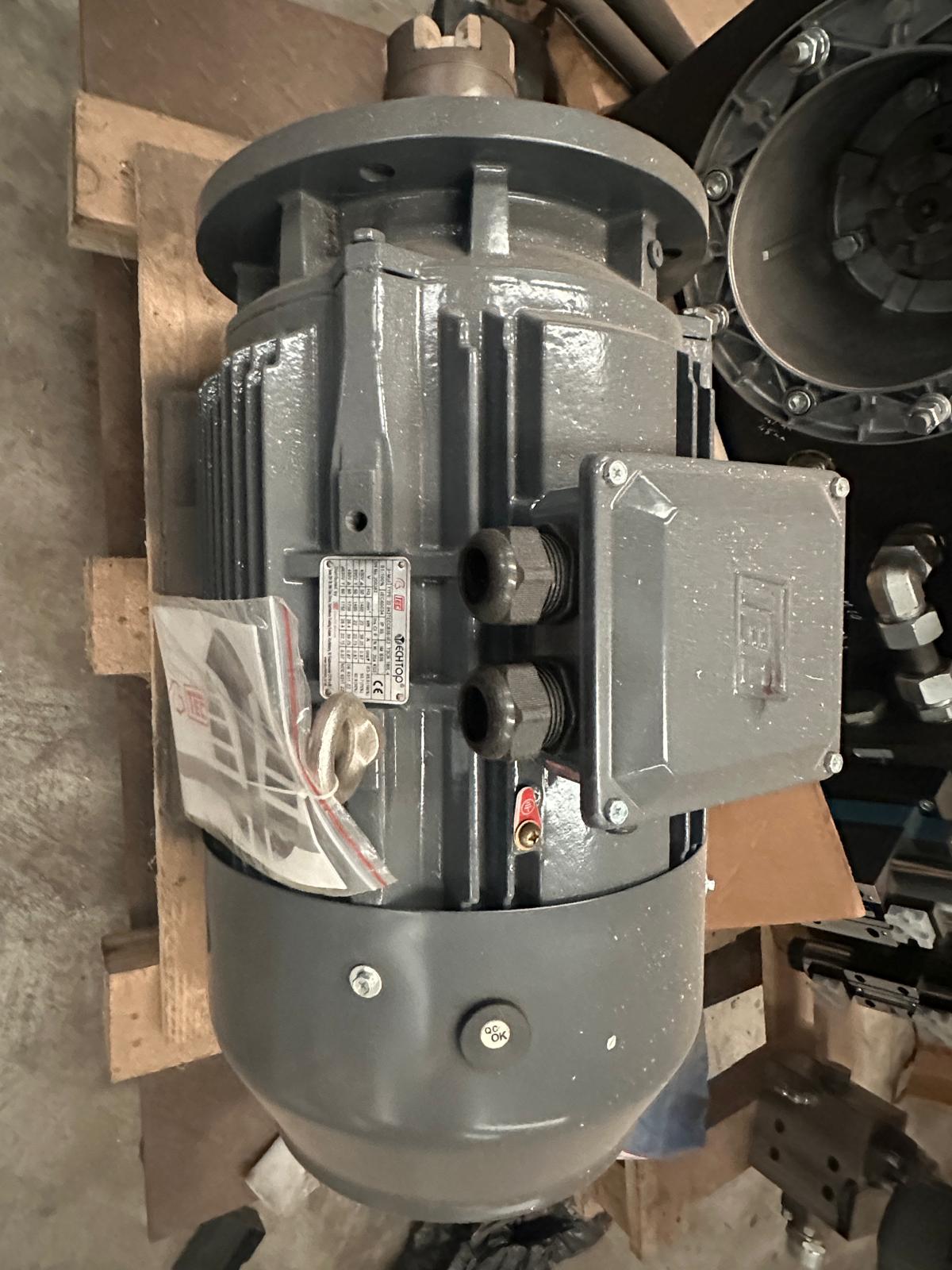

🟦 1. Techtop Industrial Electric Motor

• Brand: Techtop
• Model: T3A 225S (IEC 60034 standard)
• Type: 3-Phase AC Motor
• Power: 22 kW
• Voltage: 400–460 V
• Frequency: 50/60 Hz
• Speed: 1,460 RPM (50 Hz)
• Protection: IP55
• Insulation Class: F
• Construction: Heavy cast-iron housing
• Condition: New/unused (purchased 2022)

This is a large-frame, industrial-duty motor used worldwide in hydraulic systems, compressors, and production machinery.

🟦 2. Parker LAC2 Air-Oil Cooler

• Brand: Parker
• Model: LAC2 (Air Oil Cooler)
• Part No.: LAC2-0014DC50000000SOJB0
• Cooling Method: Forced-air radiator with electric fan
• Typical Cooling Capacity: 5–20 kW depending on configuration
• Serial No.: 6192
• Production Date: 2022-04-12
• Condition: New/unused

This is a high-efficiency cooling system for hydraulic oil circuits to maintain safe operating temperature under continuous duty.

🟦 3. Hydraulic Pump (Bent-Axis or Swashplate Type)

The pump appears to be a heavy-duty variable displacement axial piston pump, suitable for high-flow systems.

Visible characteristics:

• Industrial hydraulic piston pump, likely 200–300 bar rated
• Flanged mounting for direct coupling to the Techtop 22 kW motor
• High-pressure output line with reinforced fittings
• Integrated suction strainer
• Appears unused (no wear marks, factory condition)

While the exact model cannot be confirmed, pumps of this size typically provide:

• 20–60 L/min flow (depending on displacement and RPM)
• Up to 250–300 bar working pressure

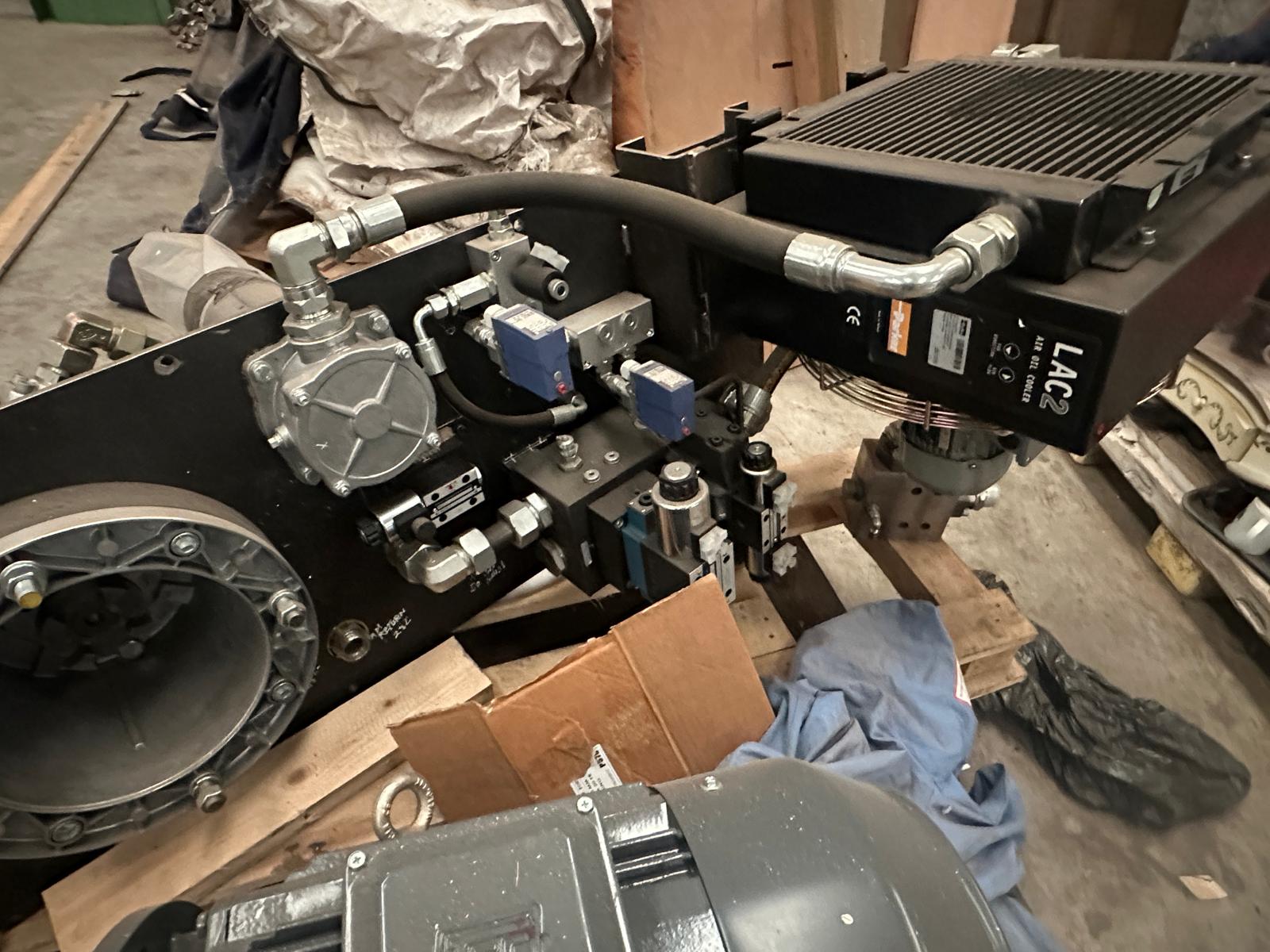

🟦 4. Hydraulic Valve Block Assembly

Visible features:

• Directional control valves
• Relief/pressure valves
• High-pressure lines
• Return filter
• Gauge porting
• Mounting plate and fittings factory installed

The powerpack was purchased as a complete drive/compaction system for an industrial baler/compactor.

🟩 Condition Summary

• Purchased: 2022
• Condition: Like new / never used
• Storage: Indoor workshop storage (visible in photos)
• Wear: None — factory paint intact, fittings unused
• Functionality: All components appear new and operational

This unit is ready for immediate installation.

🏭 Suitable Applications

This hydraulic assembly is ideal for powering:

• Recycling compactors & balers
• Hydraulic power presses
• Injection moulding support equipment
• Conveyor drives
• Industrial plant equipment
• Waste handling systems
• Agricultural hydraulic systems
• Custom machinery manufacturing

A 22 kW motor + piston pump is strong enough to serve medium–large balers and industrial production equipment.

• Hydraulic powerpack for sale Ireland
• Industrial hydraulic motor and pump
• Parker LAC2 air oil cooler
• Techtop 22kW motor for sale
• Unused hydraulic powerpack 2022
• Hydraulic pump assembly
• Industrial machinery spares Ireland
• Balers & compactors hydraulic units
• Recycling machinery hydraulic power unit

Notes: *Specifications are given in good faith but not guaranteed*
