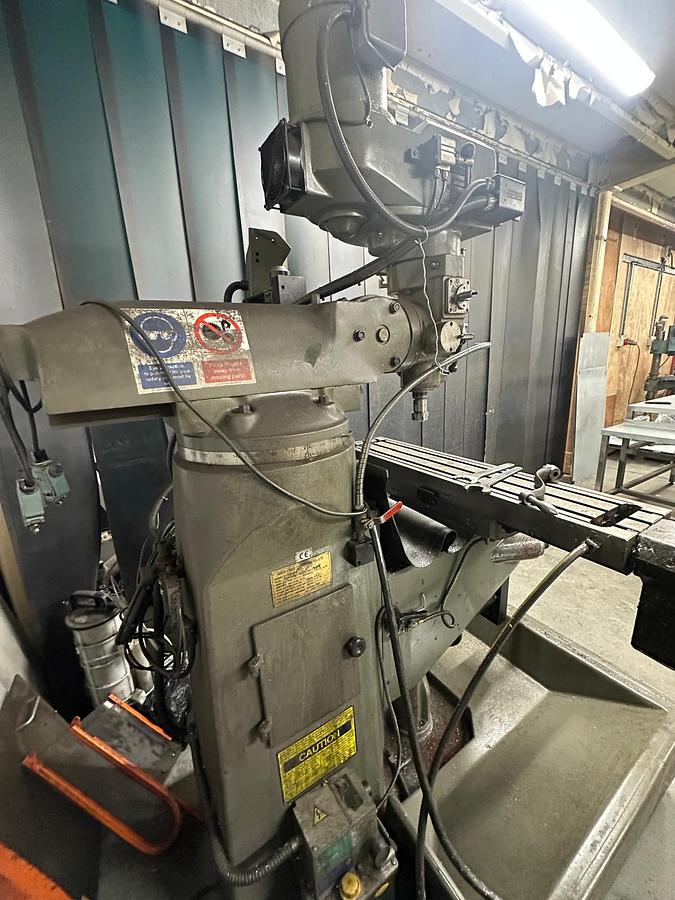

2000 XYZ Edge 1500 Milling Machine

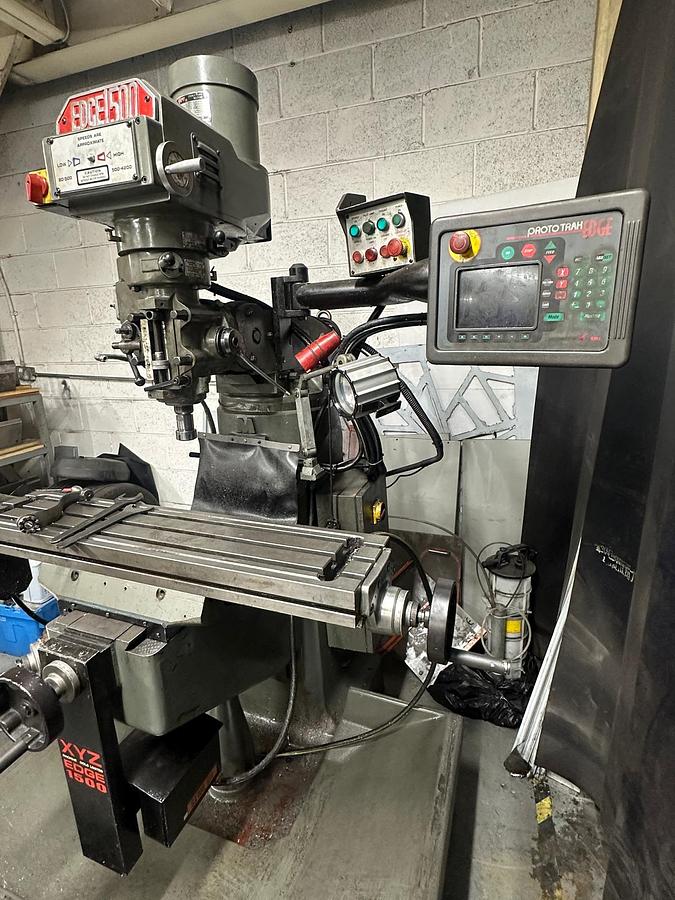

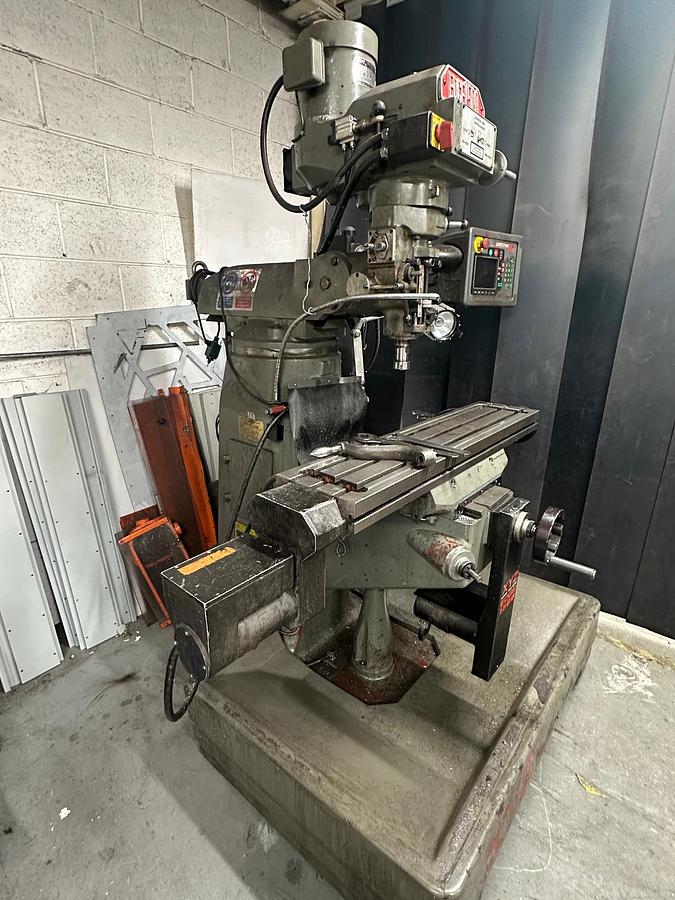

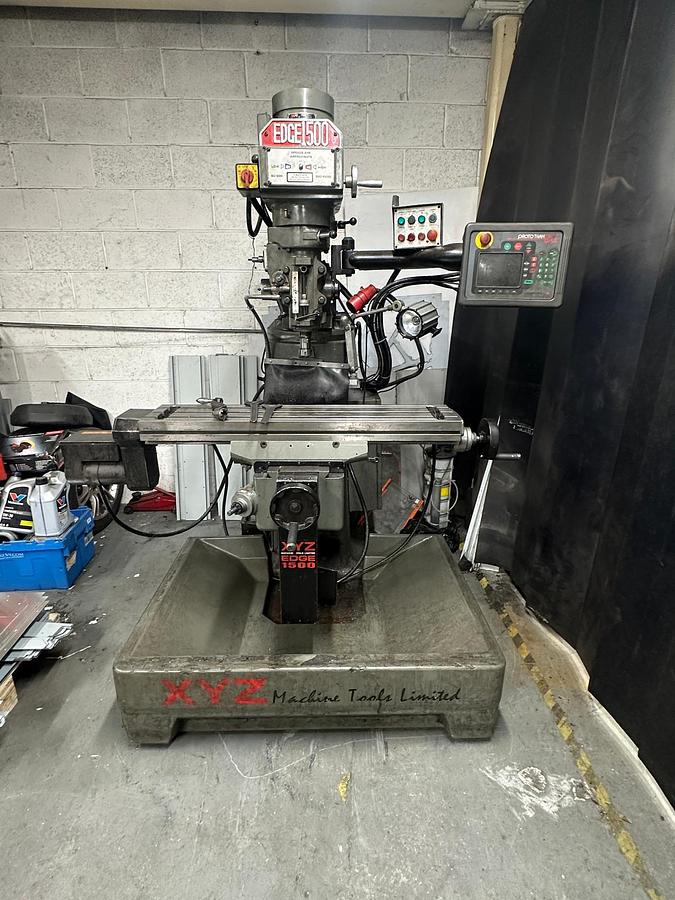

XYZ Edge 1500 Milling Machine with ProtoTRAK EDGE 2-Axis CNC Control

Machine Type: 2 axis Manual/CNC Turret Milling Machine

Year: 2000

Control: Prototrak Edge

Condition: Good

Versatile CNC-Assisted Milling – Ideal for Toolrooms, Workshops & Precision Engineering

For sale: XYZ Edge 1500 Milling Machine, equipped with the ProtoTRAK EDGE 2-Axis CNC control, in good working condition.

This machine delivers the flexibility of manual machining with the productivity advantages of CNC assistance, making it ideal for prototype work, small-batch production, repairs, toolroom applications, and general precision engineering.

⚙️ Technical Specifications – XYZ Edge 1500

Model: XYZ Edge 1500

Control; ProtoTRAK EDGE 2-Axis CNC

Condition; Good

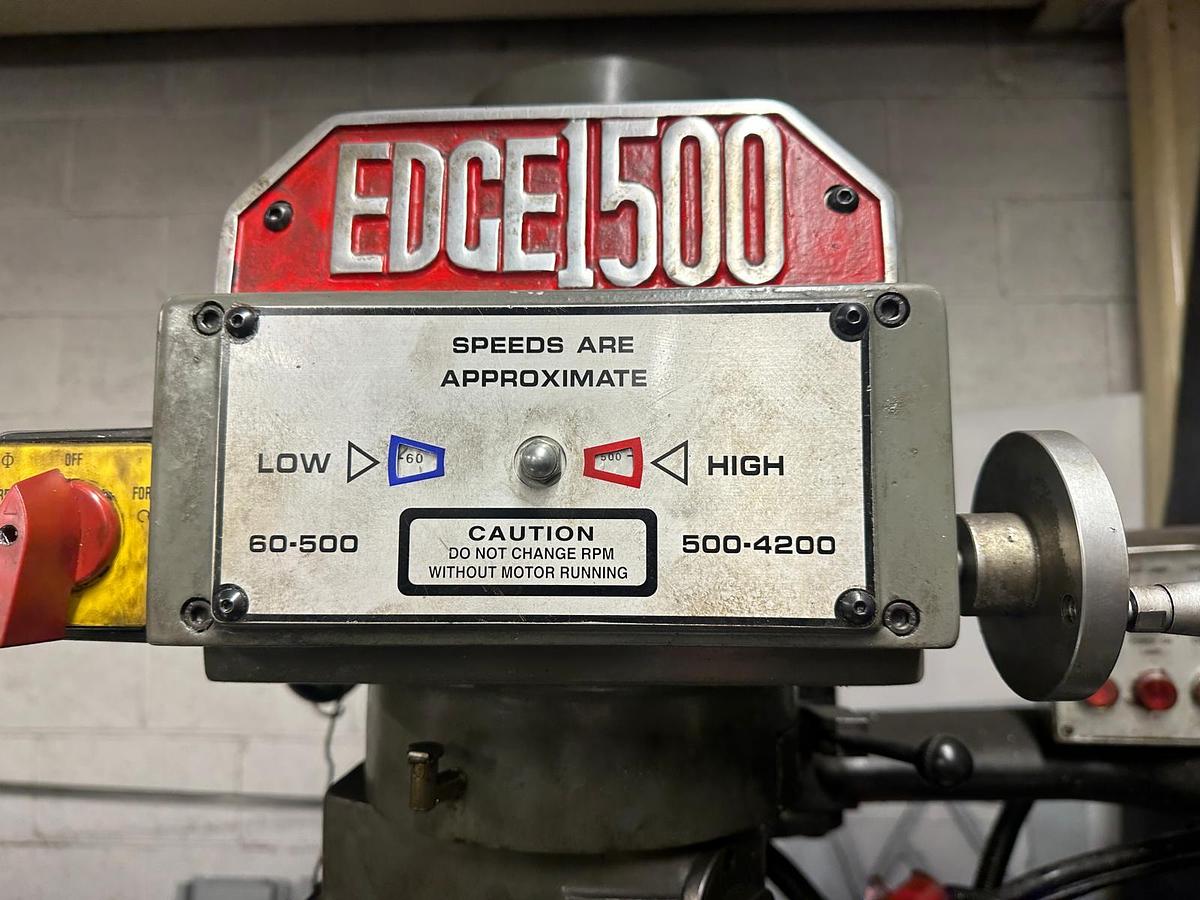

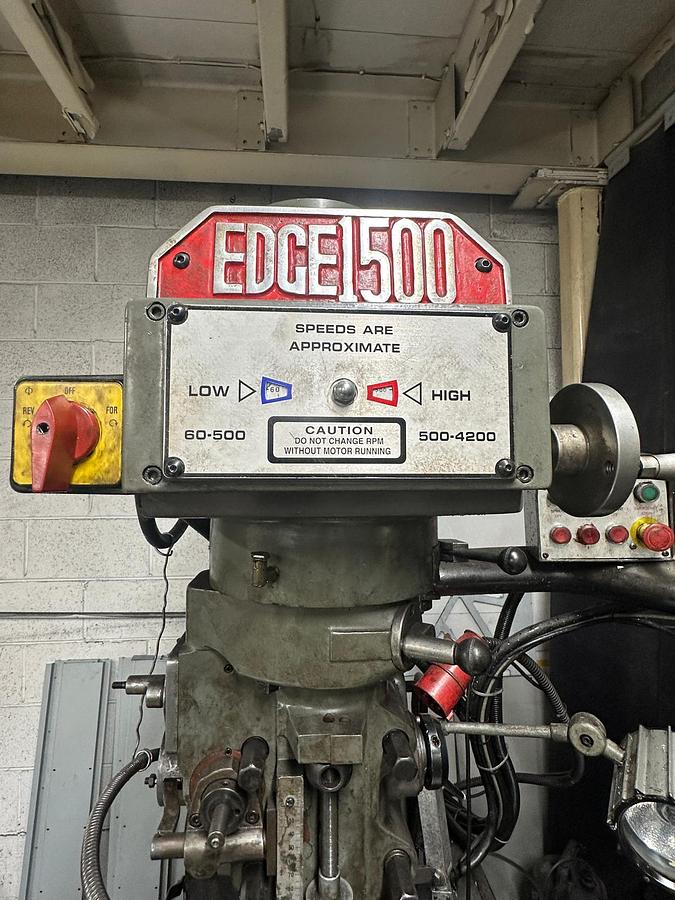

Spindle Speed Range: 60 – 4200 rpm

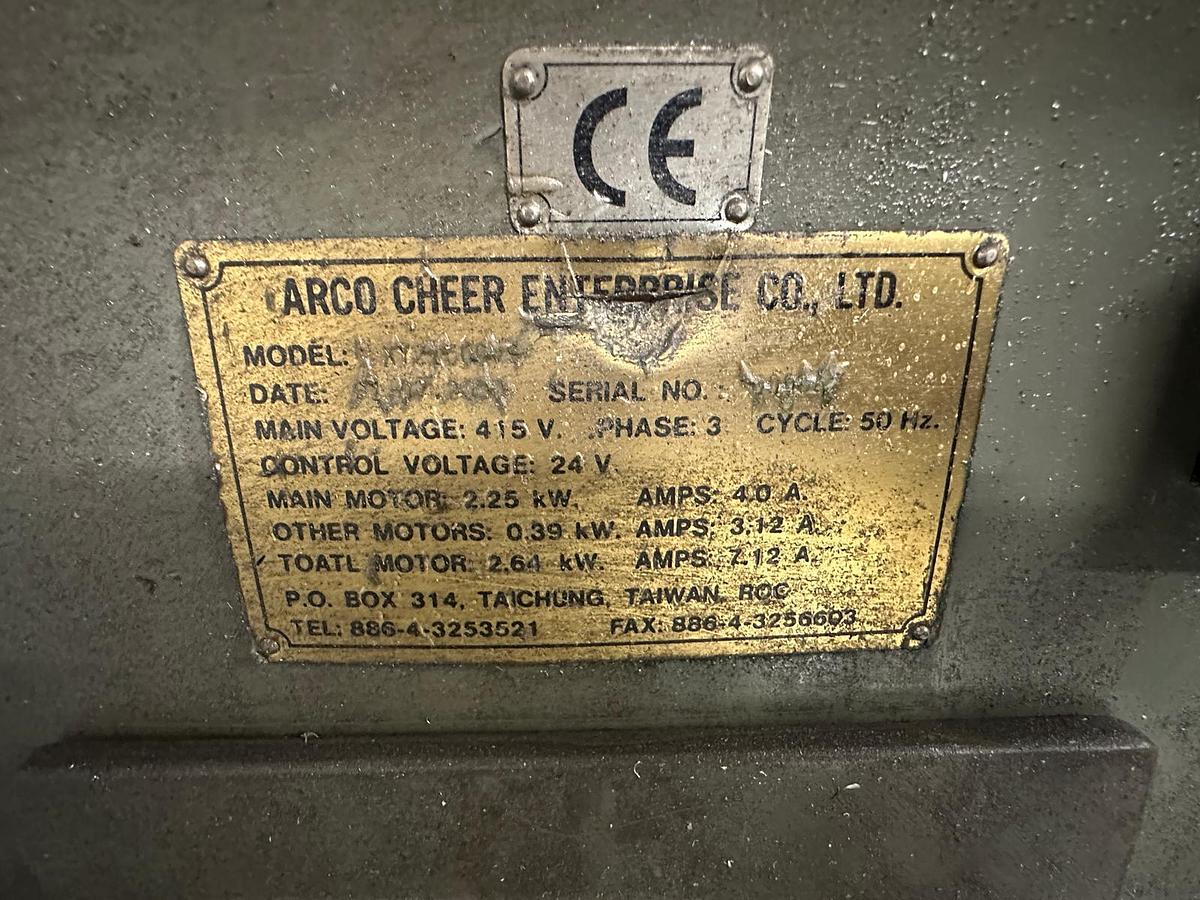

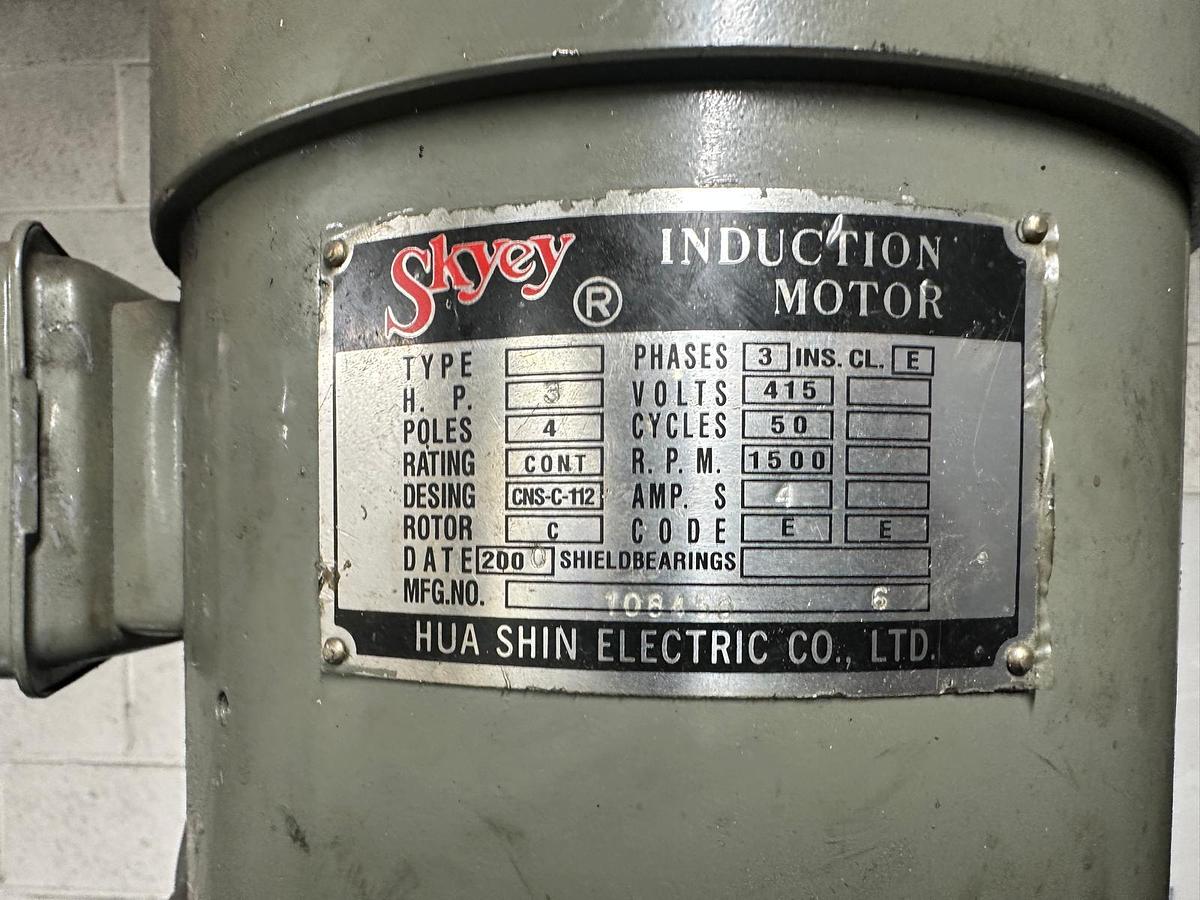

Spindle Drive Motor: 2.25 kW (3 HP)

Spindle Taper: R8

Table Size: 1066 × 228 mm

Maximum Table Load: 350 kg

X / Y / Z Travel: 660 × 330 × 406 mm

Maximum Throat Depth: 571 mm

Quill Diameter: 86 mm

Quill Travel: 127 mm

Quill Power Feed Rates: 0.038 / 0.076 / 0.15 mm per rev

Ram Travel: 330 mm

Turret Swivel: 360°

T-Slots: 3 slots @ 64 mm pitch

T-Slot Size: 15.9 mm

Notes: *Specifications are given in good faith but not guaranteed*

🌟 Key Features & Benefits

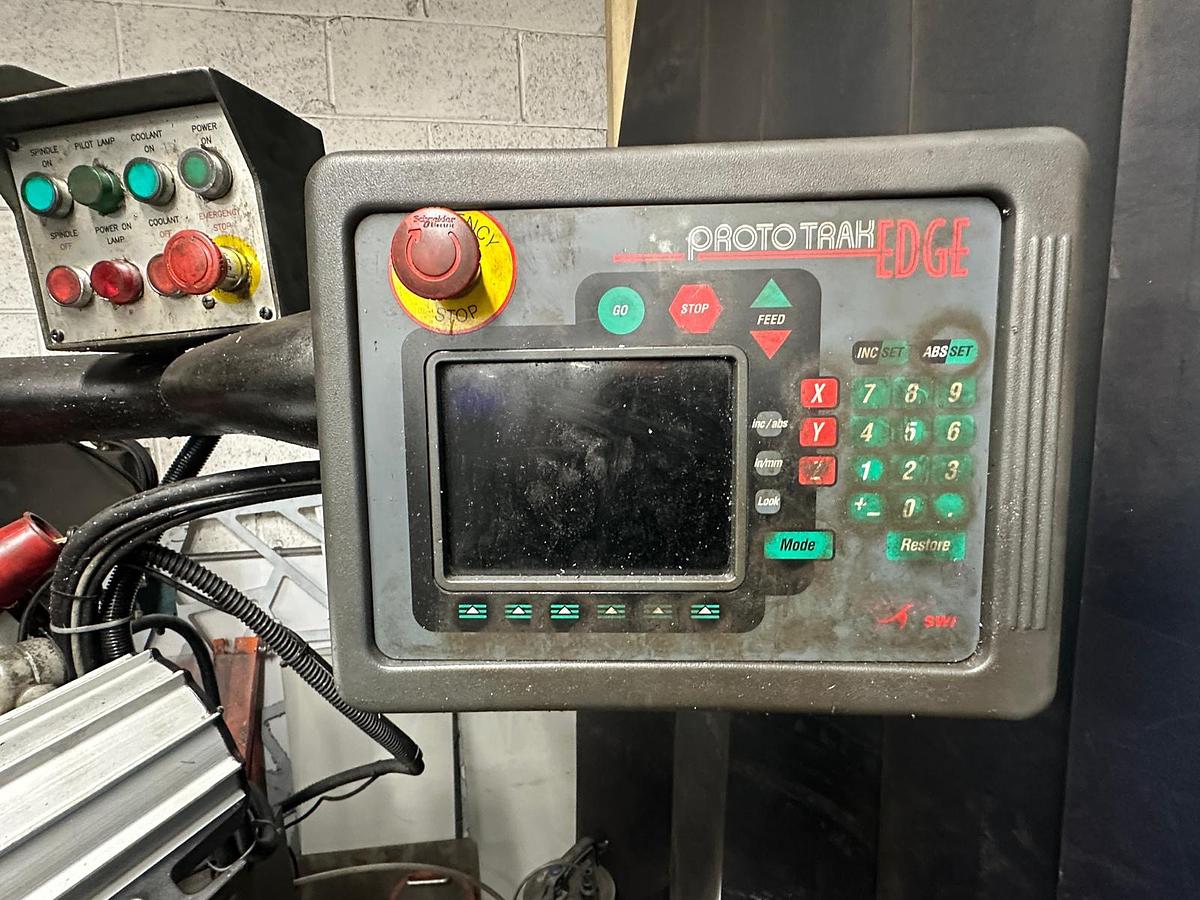

• ProtoTRAK EDGE 2-Axis CNC Control
• Ideal for quick programming, conversational machining, and accurate repeatability.
• High-Torque 3 HP Spindle Motor
• Easily handles steel, aluminium, plastics, and toolroom materials.
• Large Travels with Compact Footprint
• X 660 mm and Z 406 mm provide impressive capacity for a turret-style mill.

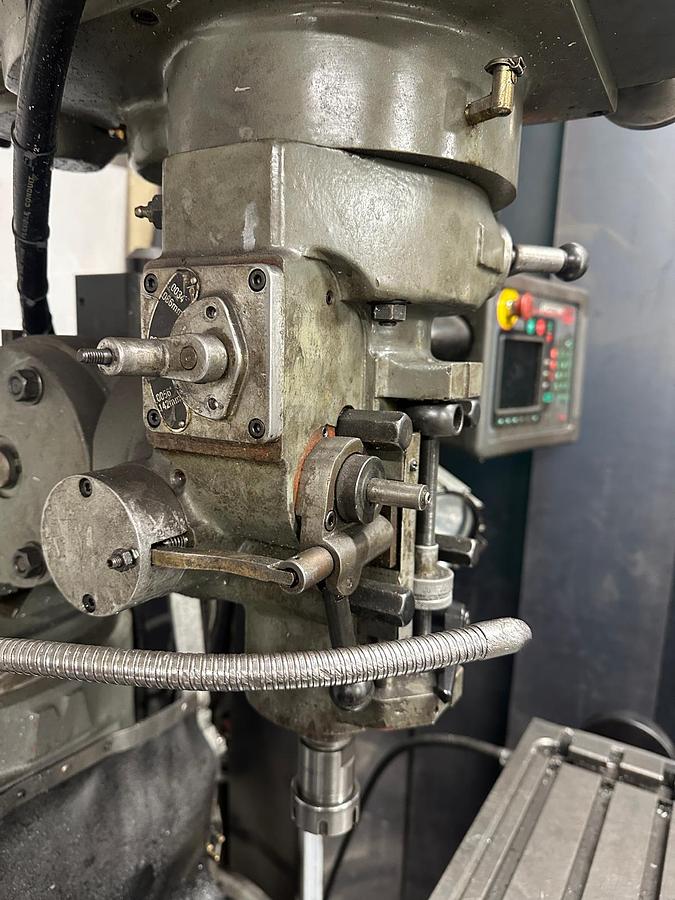

• Quill Power Feed
• Enables precise boring and controlled Z-axis cuts.
• 360° Turret Swivel & 330 mm Ram Travel
• Excellent flexibility for complex part setups and angled machining.
• Rigid, Reliable Build
• XYZ machines are known for strong column construction and smooth slideways for long service life.

🧰 Applications

• Precision milling and slotting
• Toolroom and jig manufacturing
• Small-batch and prototype machining
• Repair and maintenance machining
• Education, R&D and general workshop use

Why Choose This XYZ Edge 1500

• Accurate, versatile and easy to operate
• CNC/manual hybrid efficiency with ProtoTRAK control
• Good condition, workshop-ready
• Ideal upgrade for workshops wanting CNC capability without the footprint of a full VMC
• Available now with delivery across Ireland and the UK at extra cost.

Buy an XYZ Edge 1500 Milling Machine with ProtoTRAK EDGE 2-Axis CNC Control in good condition.

3 HP spindle, 660 × 330 × 406 mm travels, 4200 rpm, 350 kg table load.
