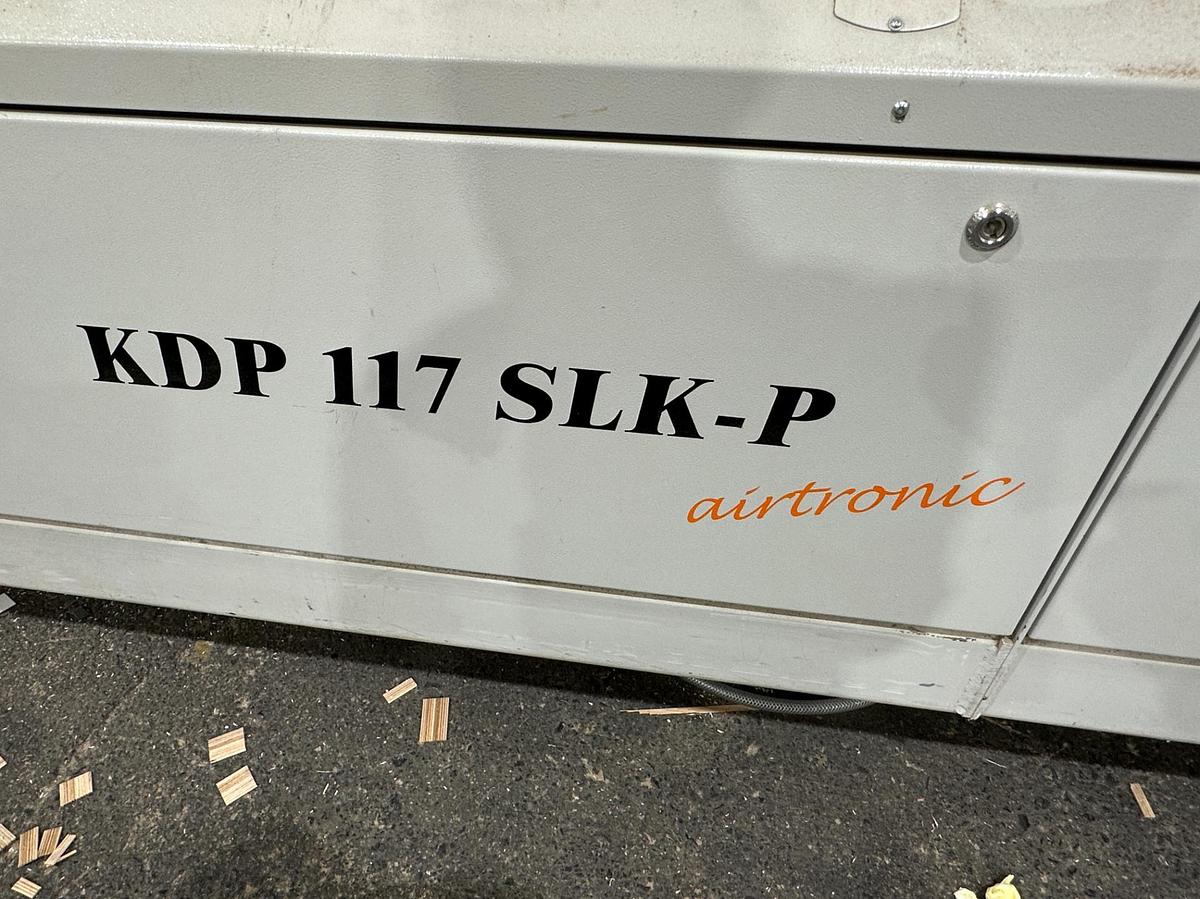

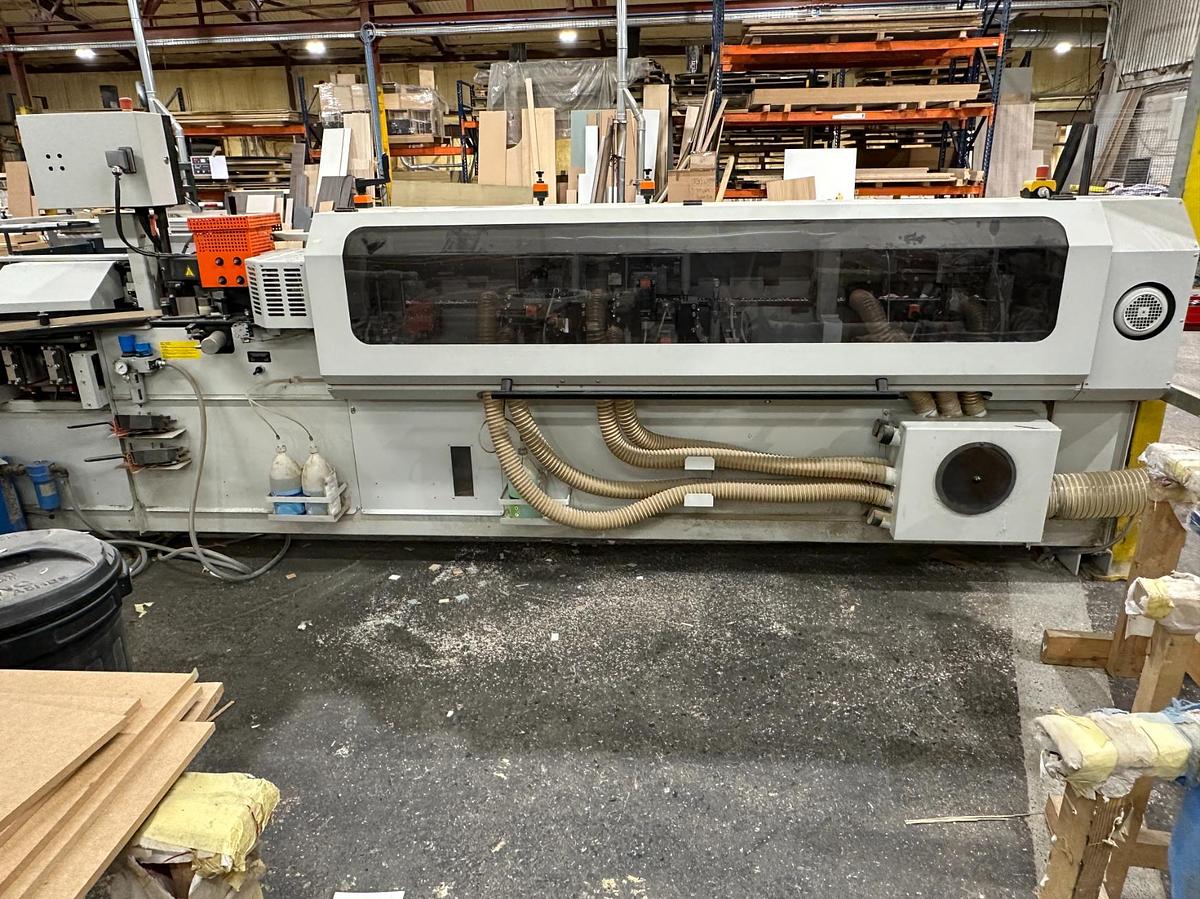

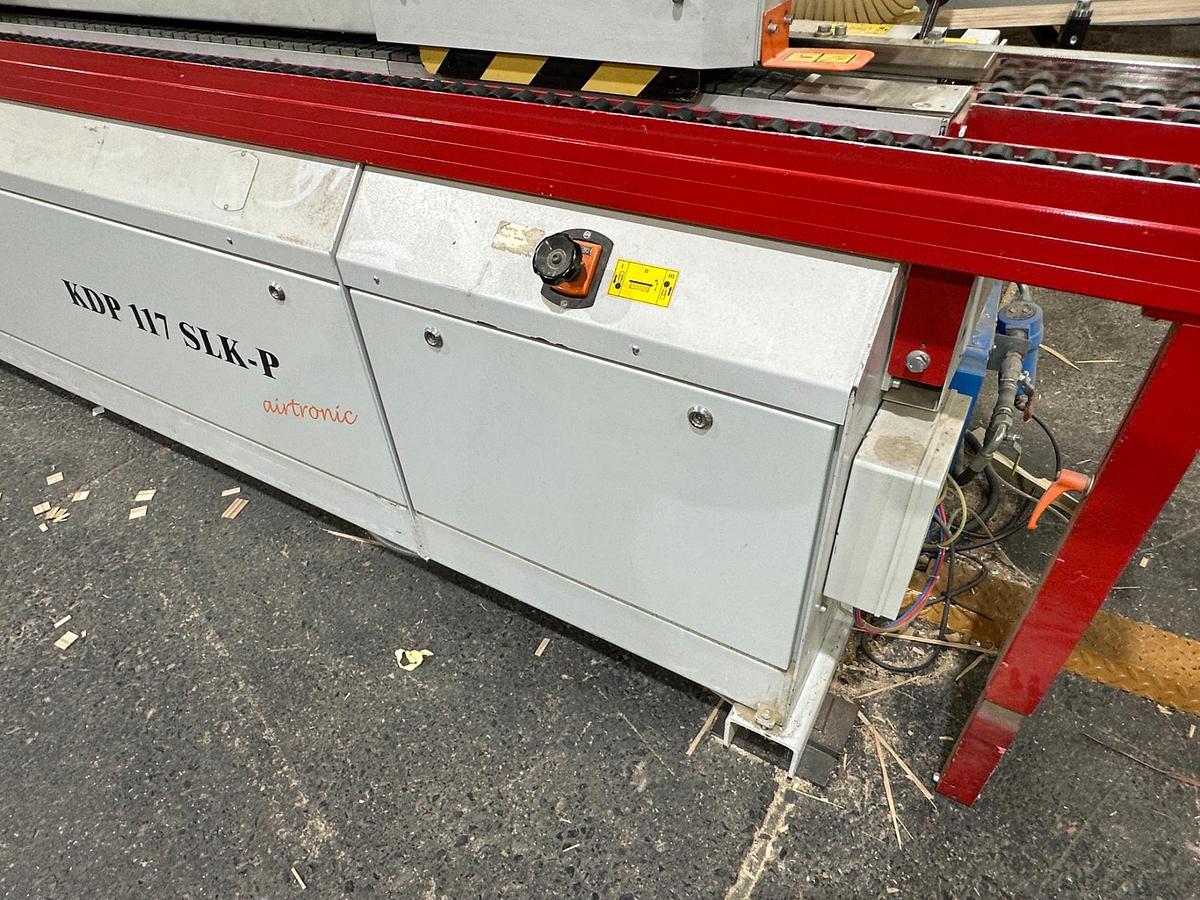

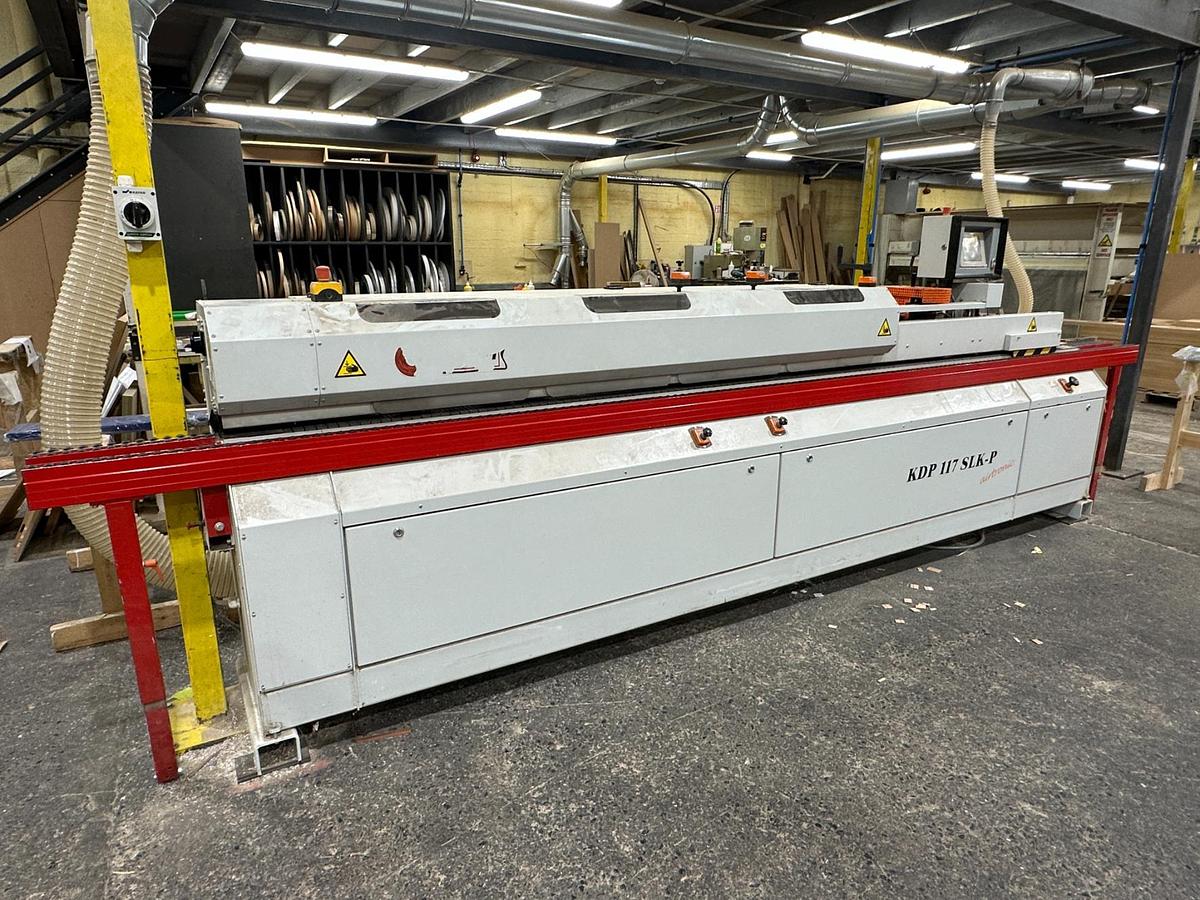

2017 EBM KDP 117 SLK-P Airtronic Edgebanding Machine

2017 EBM KDP 117 SLK-P Edgebanding Machine

Machine Type: Edgebanding Machine

Year: 2017

Condition: Very Good

Precision German Engineering – Complete Edgebanding Solution

For sale: 2017 EBM KDP 117 SLK-P Automatic Edgebanding Machine in very good condition.

Built for precision, durability, and efficiency, this professional edgebander provides perfect edge finishing for panels in wood, MDF, and laminate.

Ideal for kitchen, furniture, and joinery manufacturers, it combines high-frequency trimming, pre-milling, and finishing aggregates for consistent, high-quality results.

⚙️ Equipment and Features

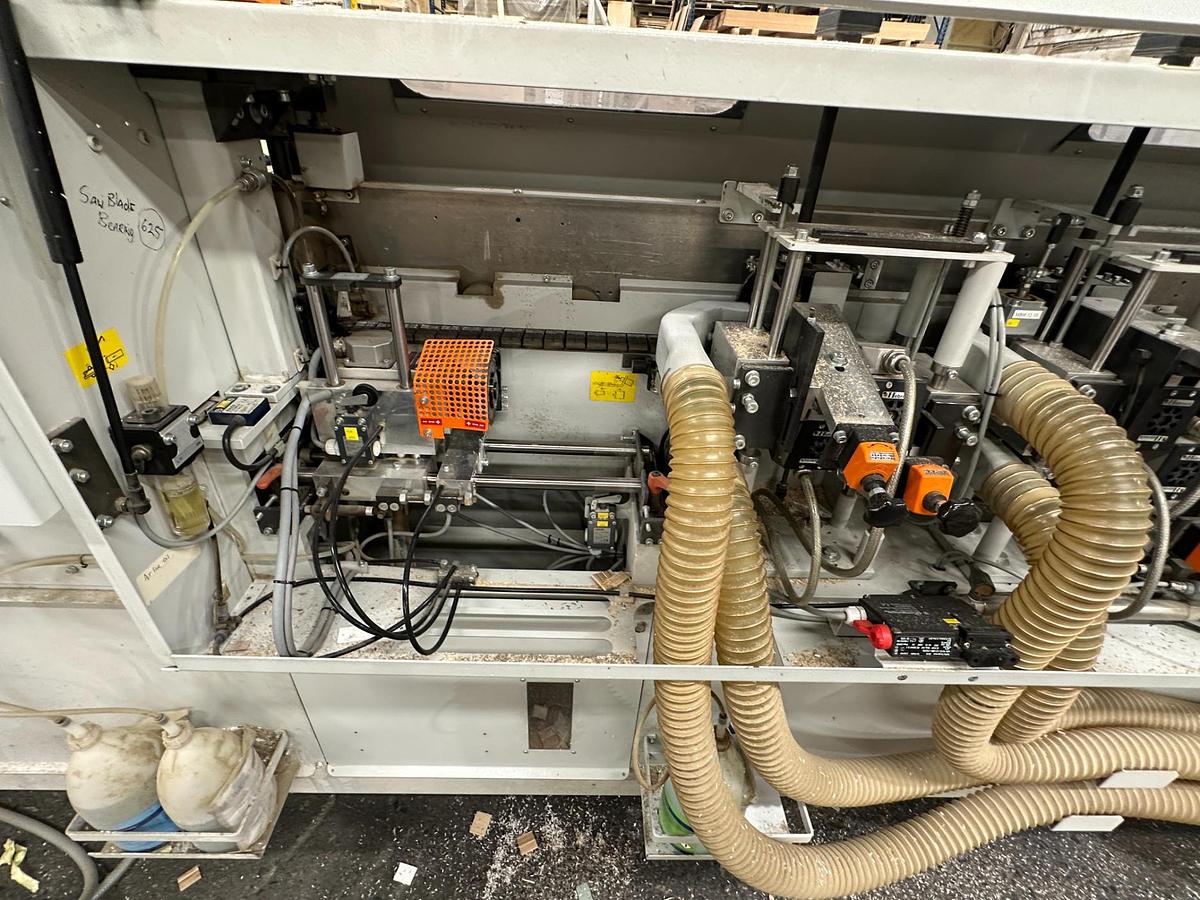

1. Pre-milling aggregate (200 Hz) with DIA tooling included – ensures perfectly clean panel edges.

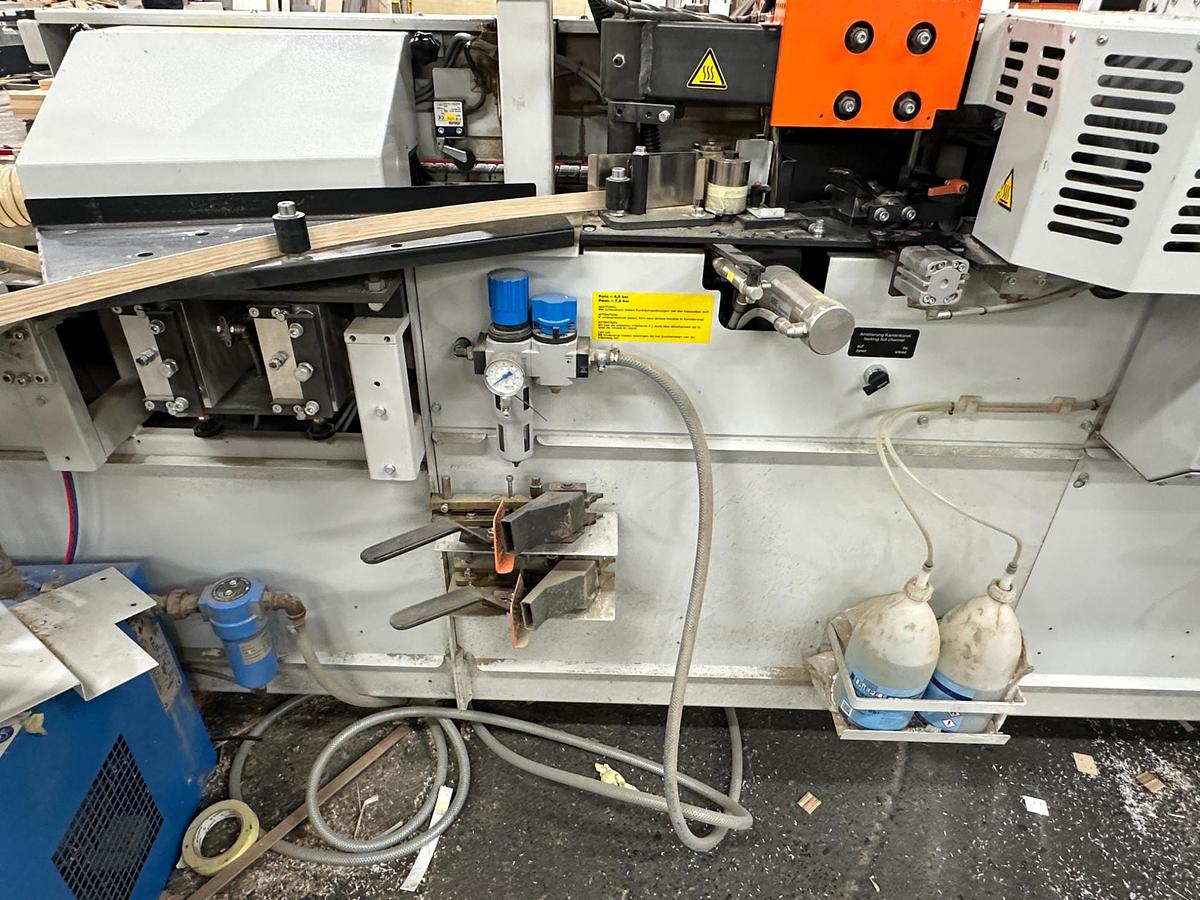

2. Quick-melt glue pot (maintenance-free) – 6-minute preheat, automatic glue feed, synchronized or counter-rotation modes, and self-cleaning stirrer.

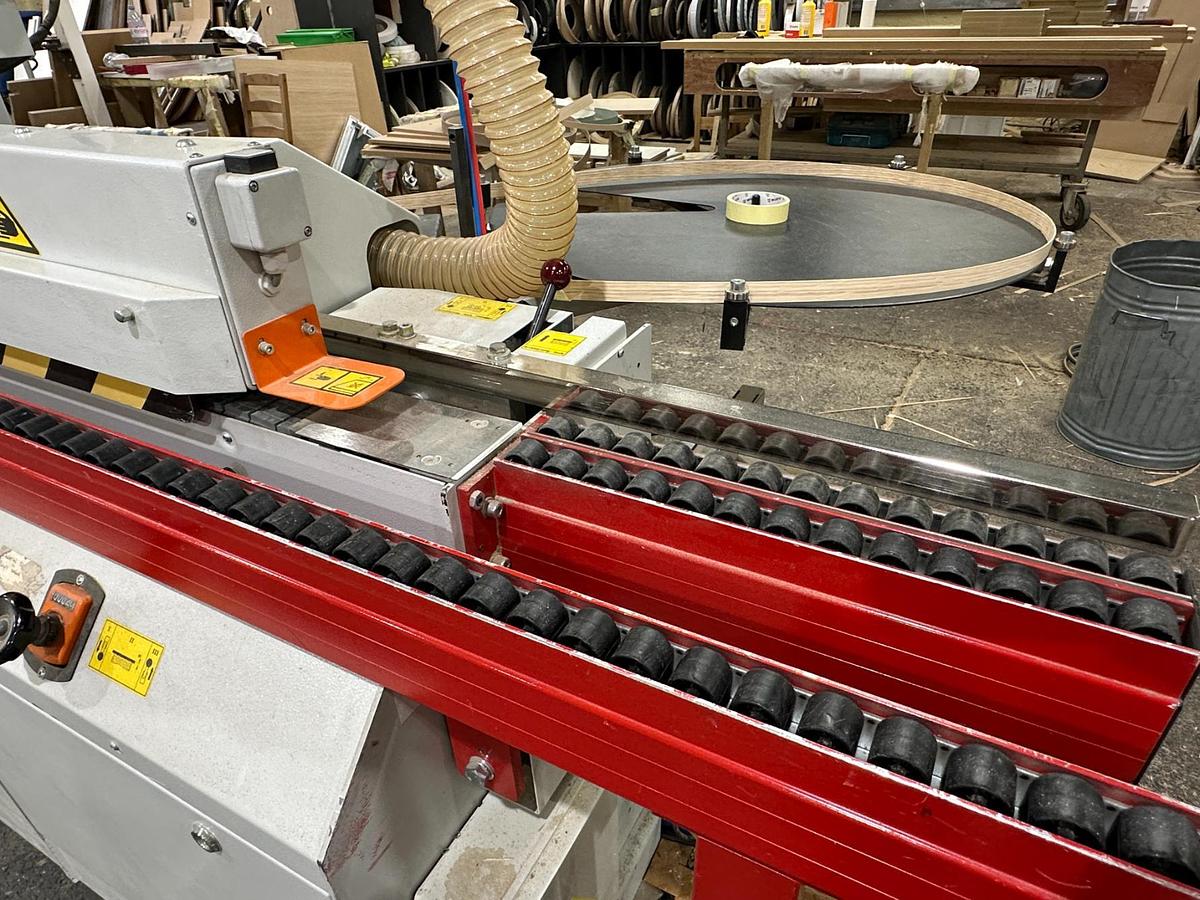

3. Tape table with strip magazine – for thick edge banding material.

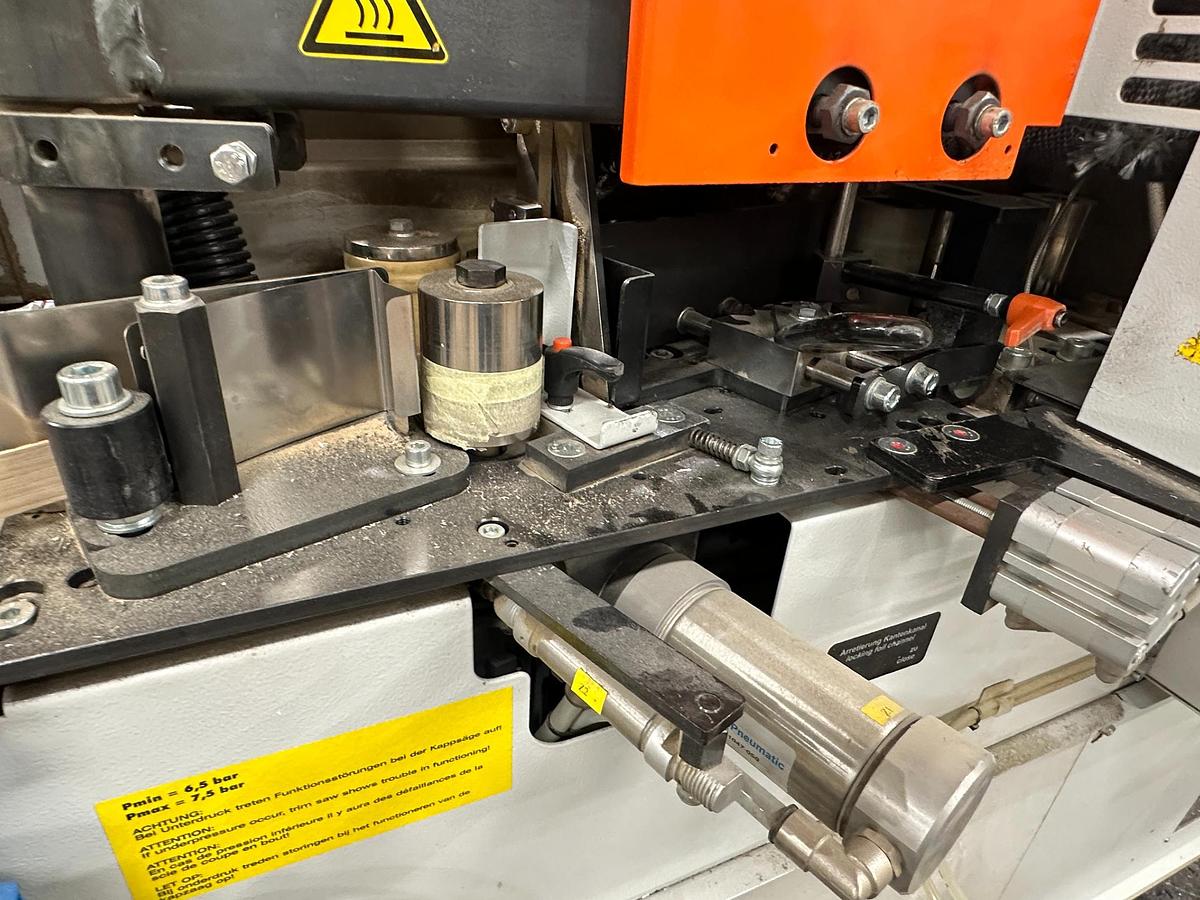

4. Pneumatic roll trimmer – trims edges up to 3 mm thick with clean accuracy.
5. Workpiece distance control lamp – for precise feeding and safe operation.

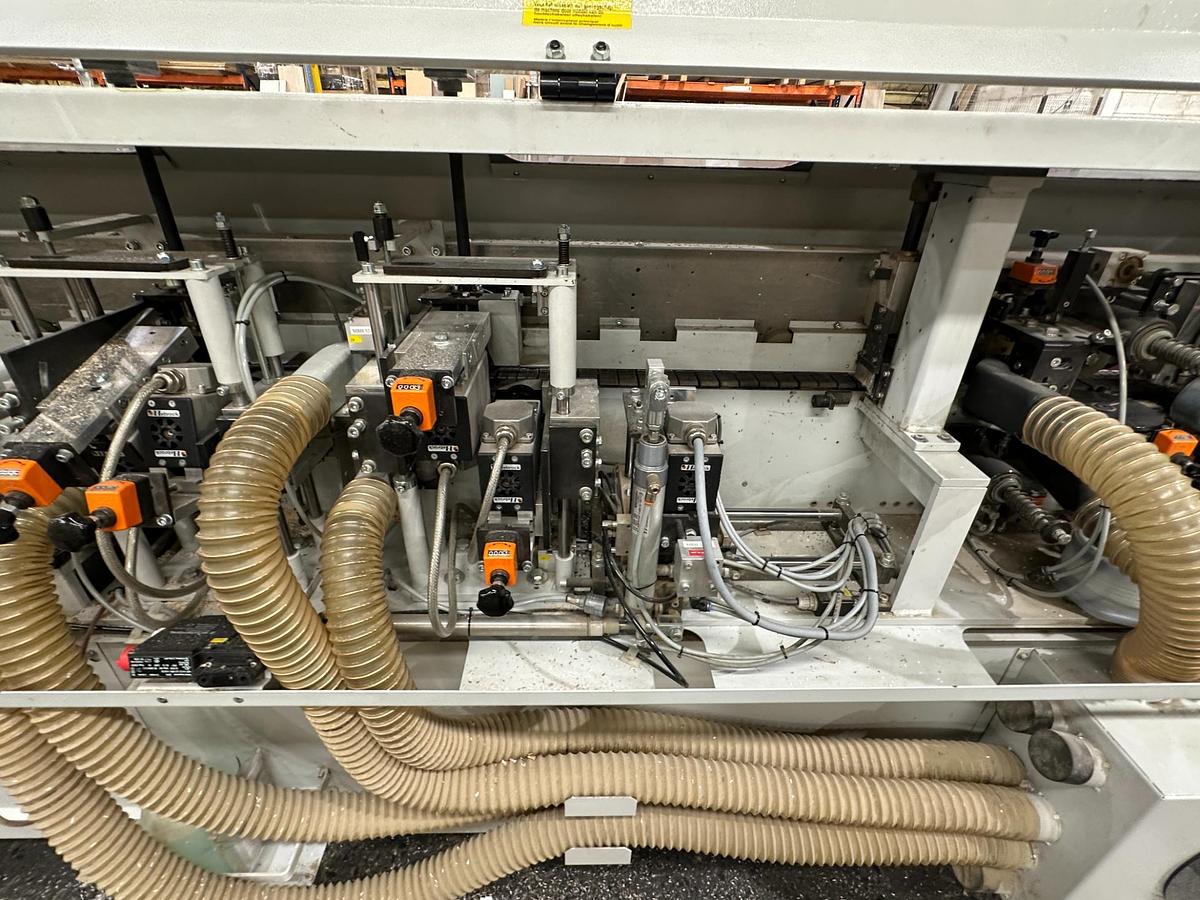

6. HF combined router station (300 Hz) – high-frequency trimming with perfect corner transitions.
7. Safety hood locking – opens only after end-trim saw comes to a complete stop.

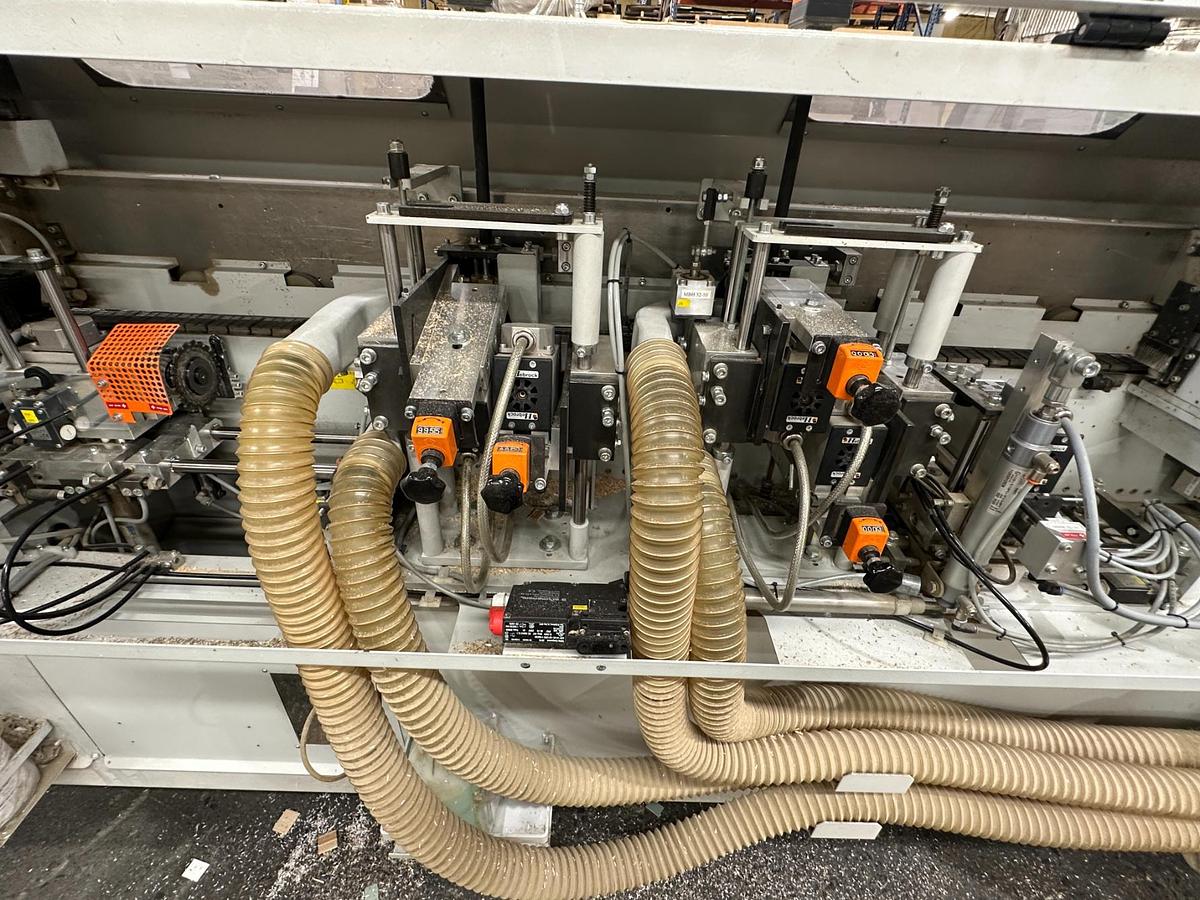

8. HF top/bottom trimming station (300 Hz) – smooth top and bottom finishing.
9. Second top/bottom trimming station – for finer post-processing.
10. Corner chamfering router – for 3D edge corner rounding.
11. Radius scraper – ensures seamless edge transitions.
12. Surface scraper – removes glue residues and imperfections.
13. Buffing station – final polishing for high-gloss edges.
14. Electronic converter – stable speed control for all high-frequency units.

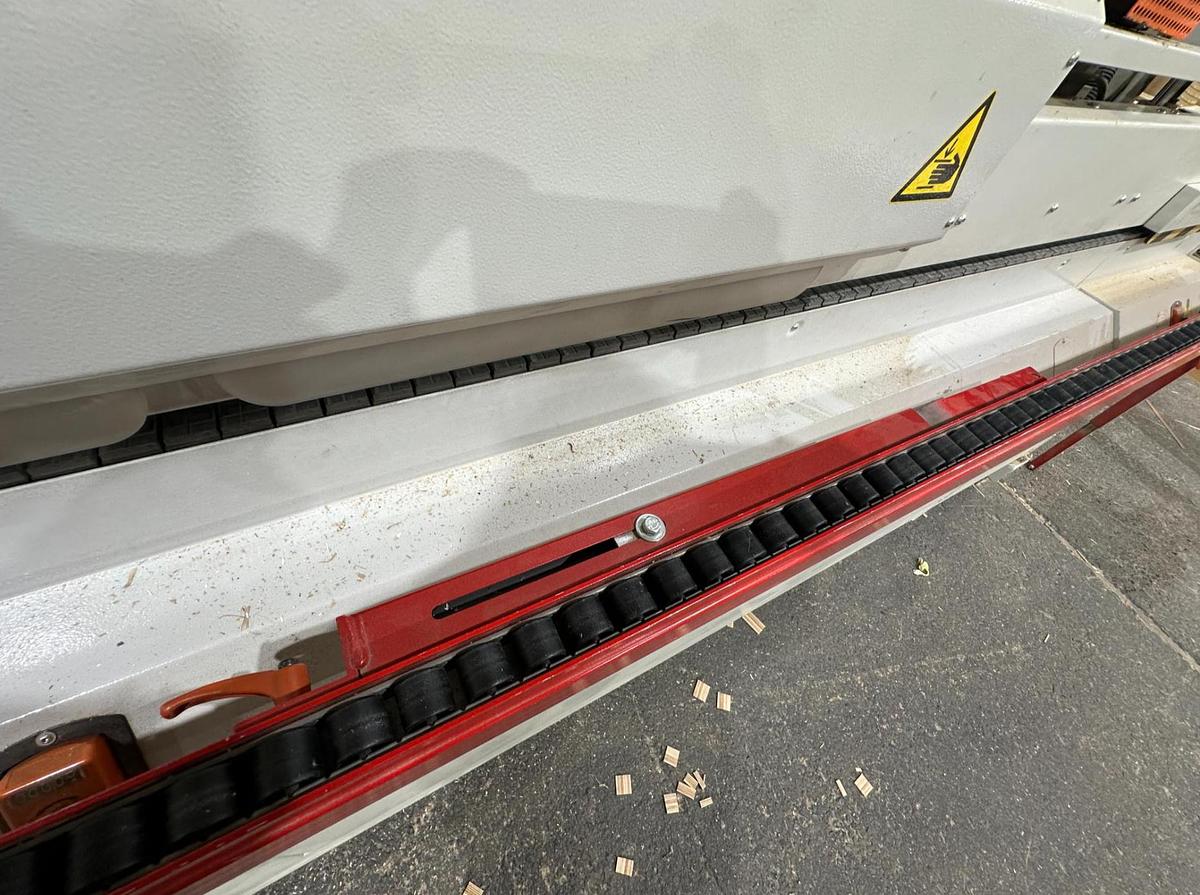

15. Transport chain and double roller top pressure beam – consistent panel feed with perfect alignment.
16. Integrated catch-up container – collects excess edge banding material.
17. Extendable panel support fence – supports large or wide panels.

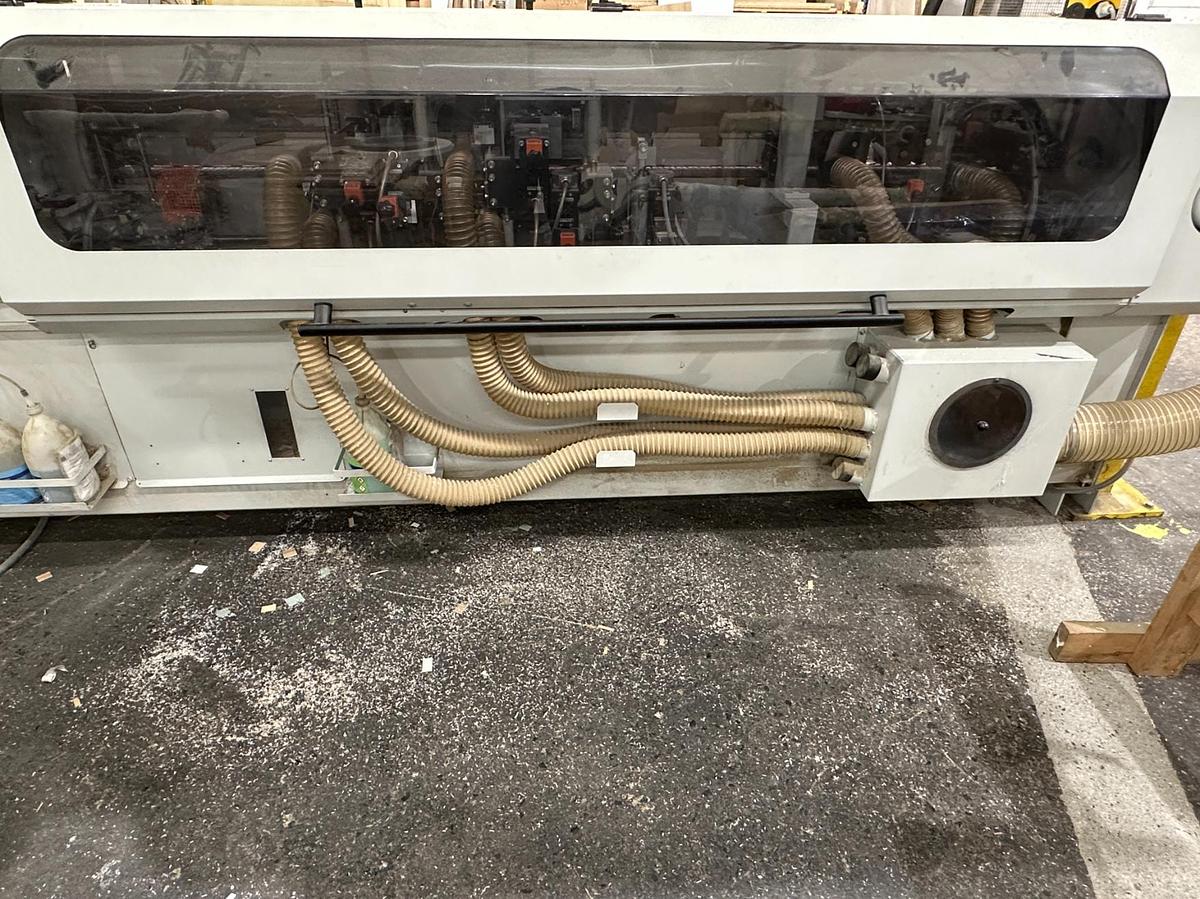

18. Ø 140 mm dust extraction outlet – efficient chip and glue removal.

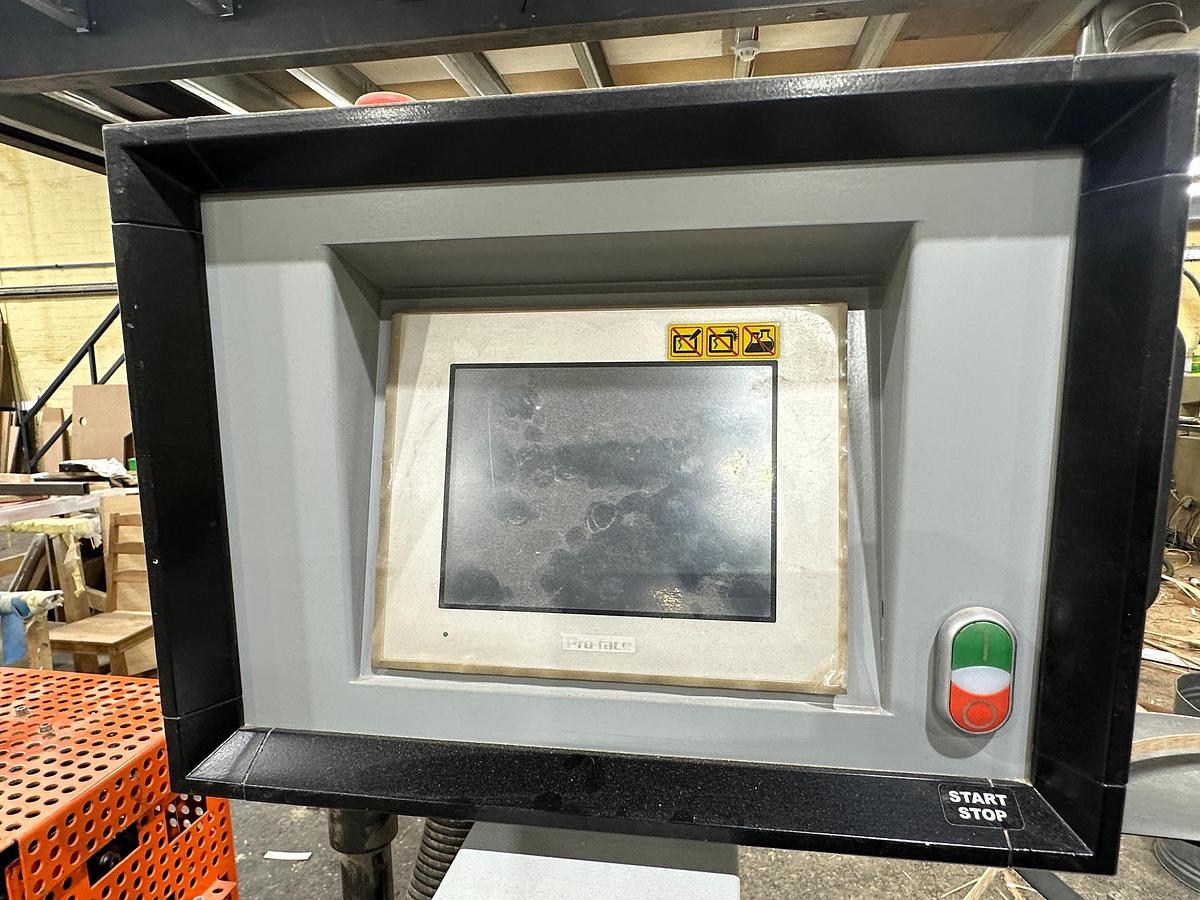

19. Ergonomic control centre – PLC touchscreen interface for easy programming and operation.

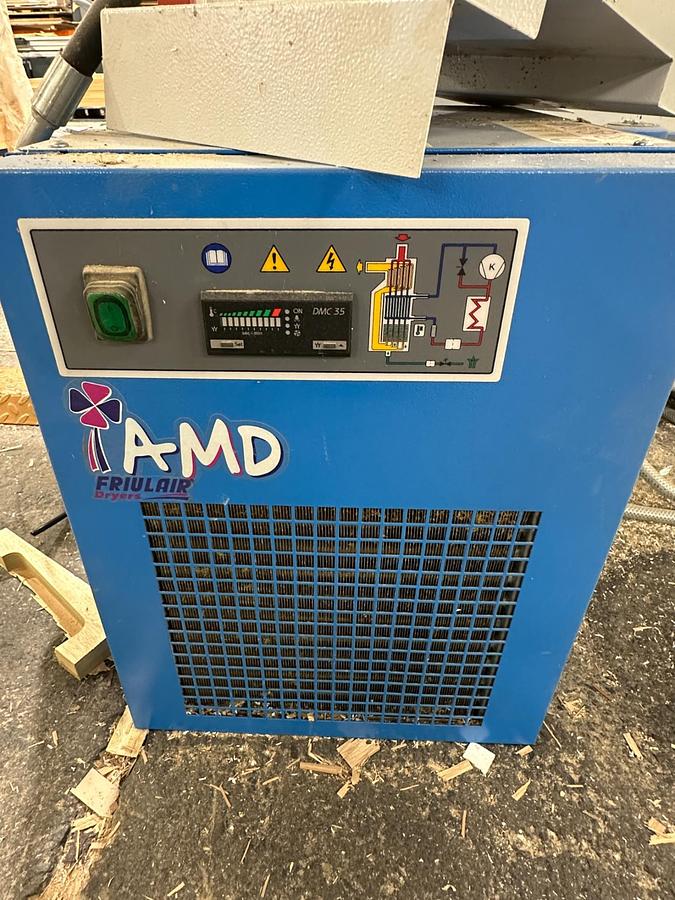

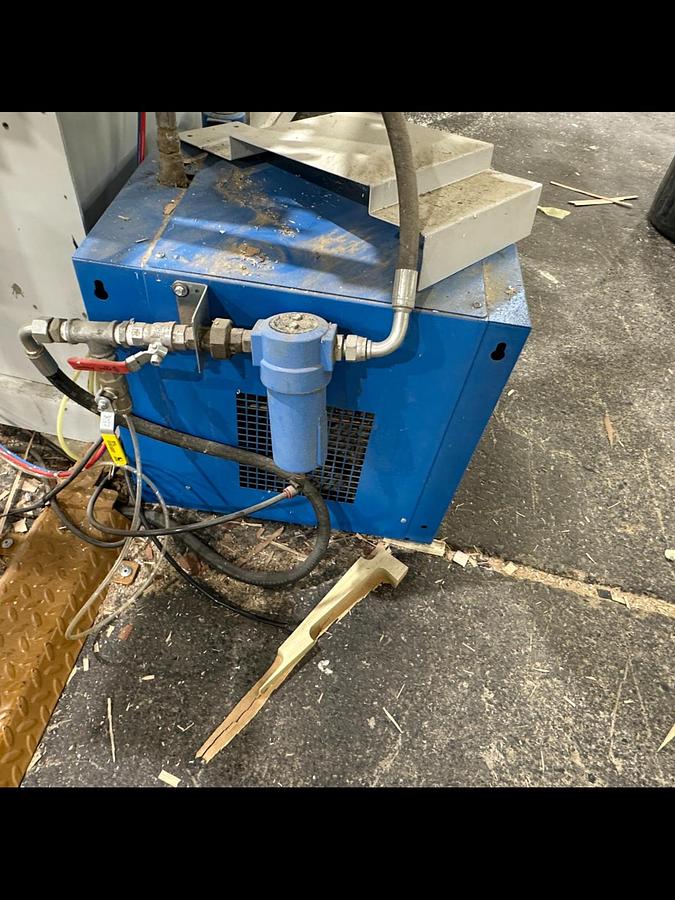

20. AMD Fiulair Air Dryer

📐 Technical Data

Model: EBM KDP 117 SLK-P

Year: 2017

Max. Edge Thickness: 3 mm / 8 mm / 12 mm

Workpiece Height (min./max.): 10 mm / 40 mm

Min. Workpiece Length: 200 mm / 300 mm

Min. Workpiece Width: 80 mm

Feed Speed: approx. 10 m/min

Ready for Operation: in approx. 6 minutes

Power Consumption: 12 kW

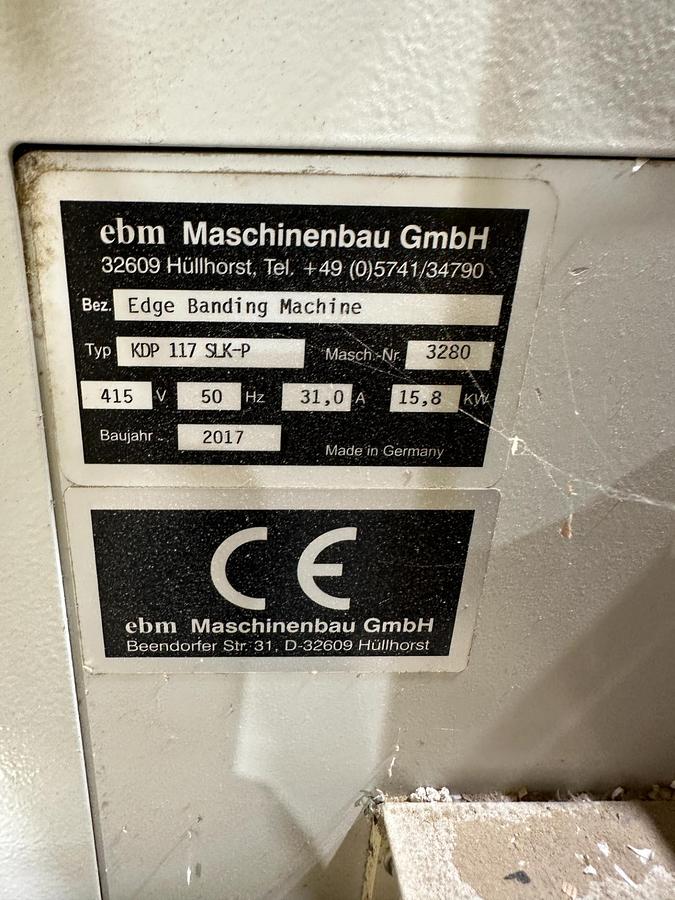

Electrical Connection: 415 V – 50/60 Hz

Work Table Height: 880 mm

Dimensions (L × W × H): 5250 × 1445 × 1600 mm

Weight: approx. 1550 kg

Condition: Very Good

🪚 Key Advantages

• High-performance German design – engineered for precision and longevity.
• Fast warm-up time (6 minutes) – ready for production quickly.
• Full edge processing system – from pre-milling to buffing, in one machine.
• Touchscreen control panel – intuitive operation and fast setup.
• Perfect for ABS, PVC, veneer and solid wood edging.
• Compact footprint – fits efficiently into modern production lines.

🧰 Ideal For

• Furniture and cabinet production
• Kitchen and office panel manufacturers
• Custom joinery workshops
• Panel edge finishing and refurbishment lines

Why Buy This 2017 EBM KDP 117 SLK-P

• Complete edgebanding line from pre-milling to polishing
• Very good condition
• Includes premium aggregates and touchscreen PLC control
• Available for inspection by prior appointment
