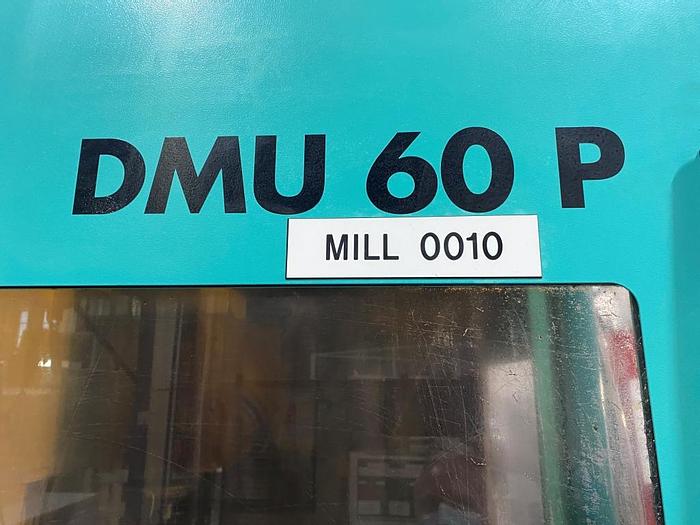

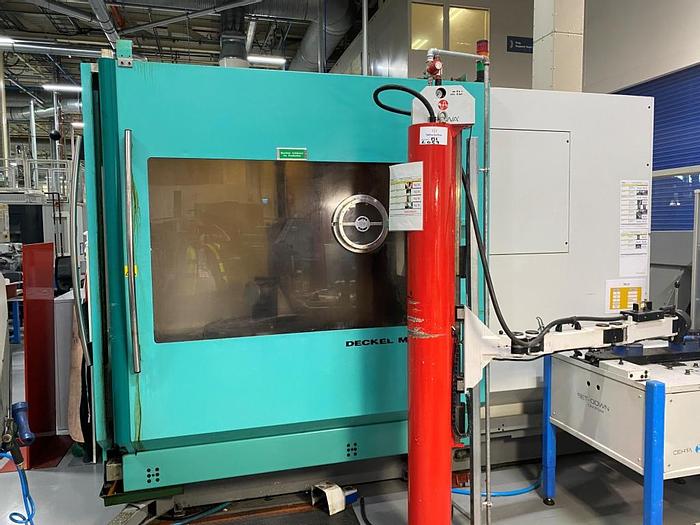

1999 Deckel Maho DMU60P 5 Axis Machining Center
Description
1999 Deckel Maho DMU60P 5 Axis Machining Center
Machine Description
5 Axis Machining Center is excellent condition. Recently under went a partial overhaul. Ex Medical Device Manufacturing Facility.
Machine Type: 5 Axis Machining Center
Year: 1999

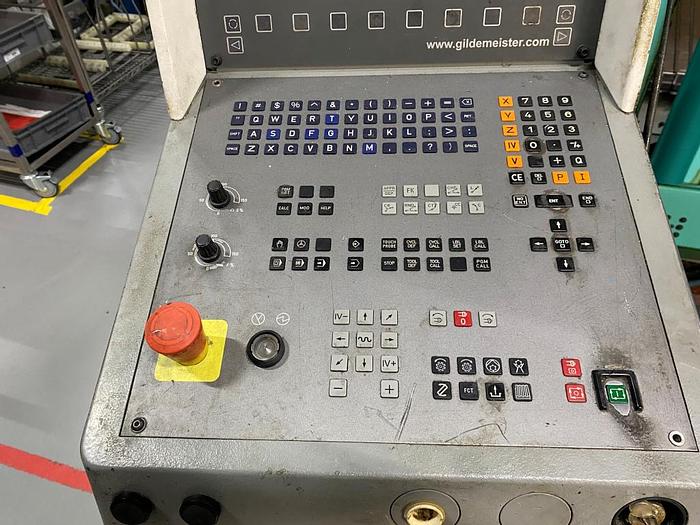

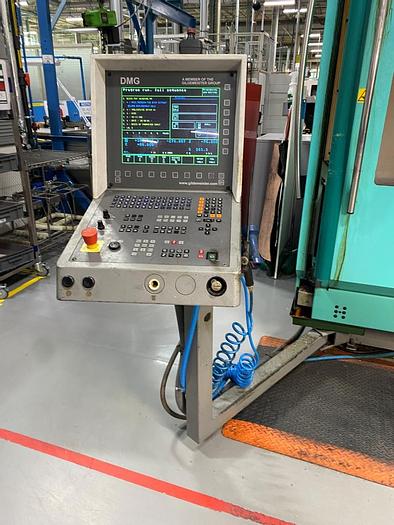

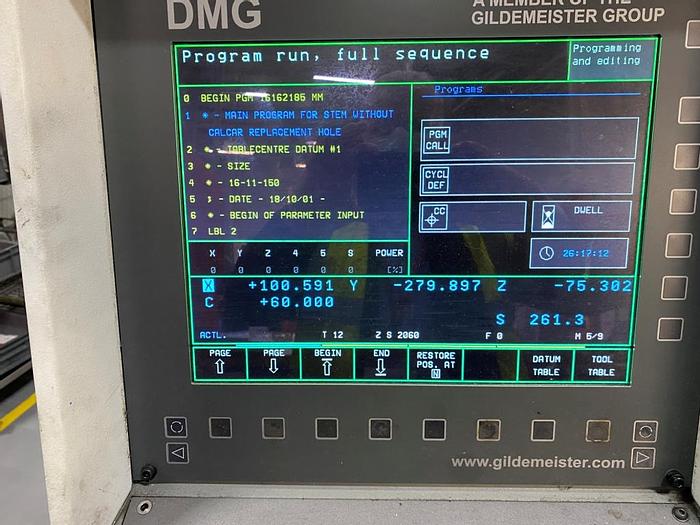

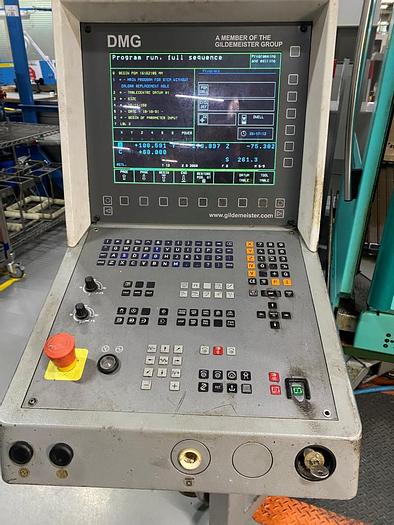

Control: DMG/ Heidenhain

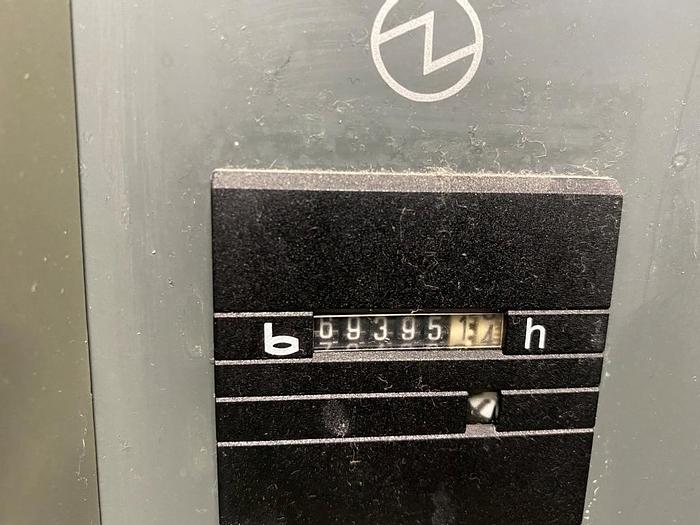

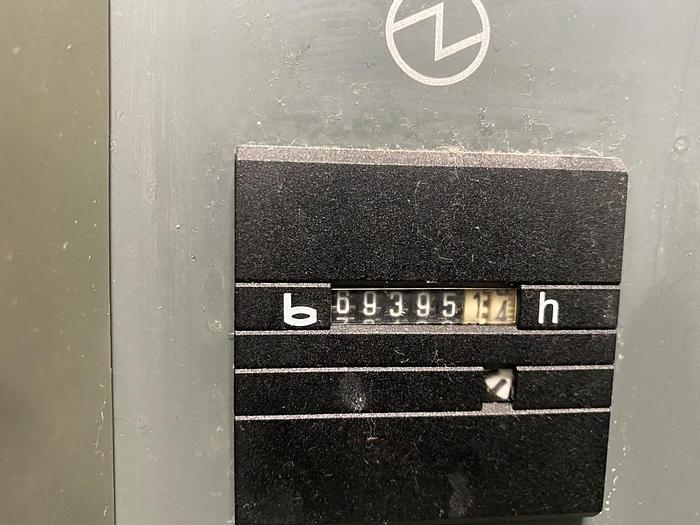

Hours: 69,395 Power On Hours
Includes
Selection of Tool Holders

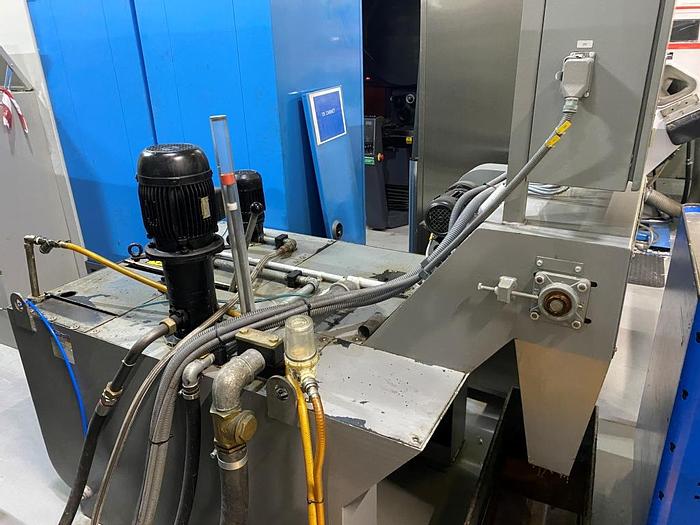

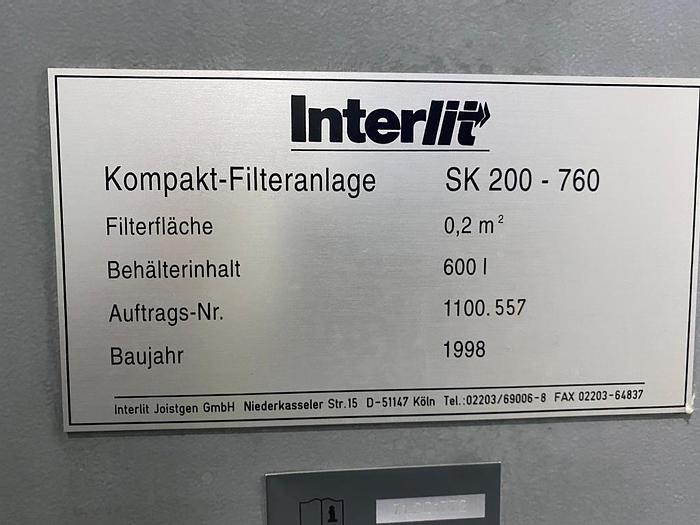

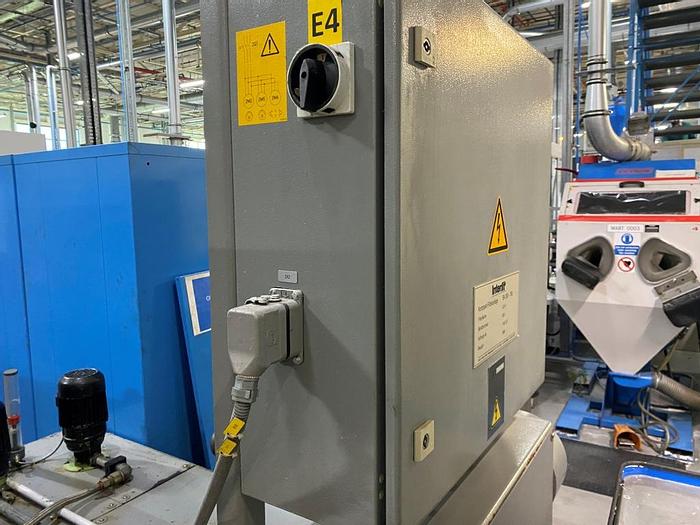

Interlit Coolant Filtration System

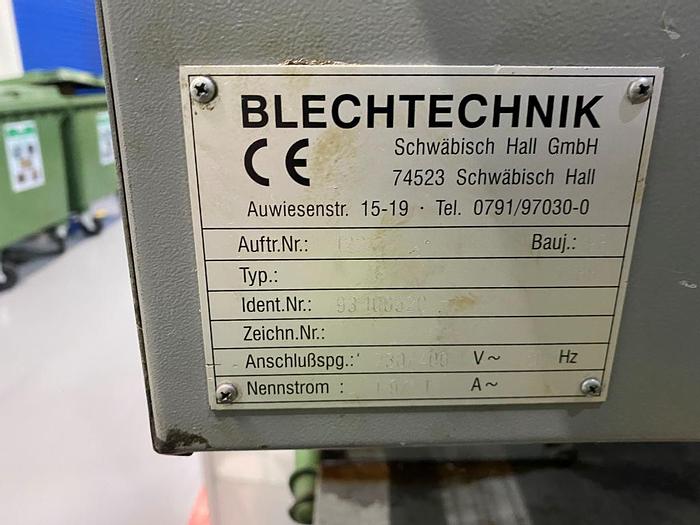

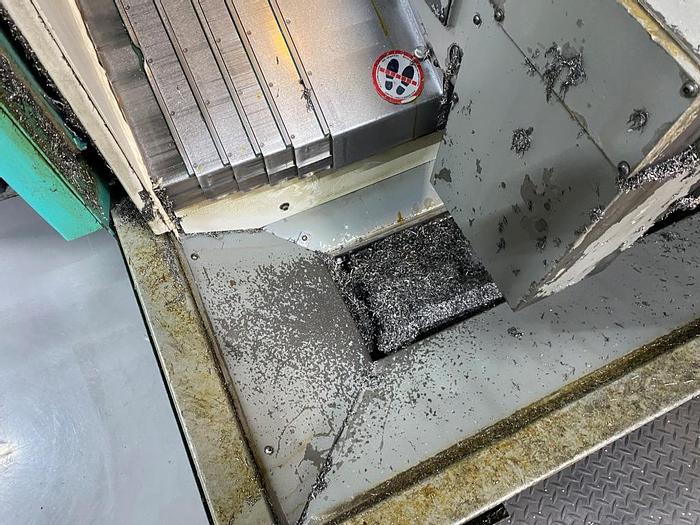

Blechtecnik Swarf Conveyor

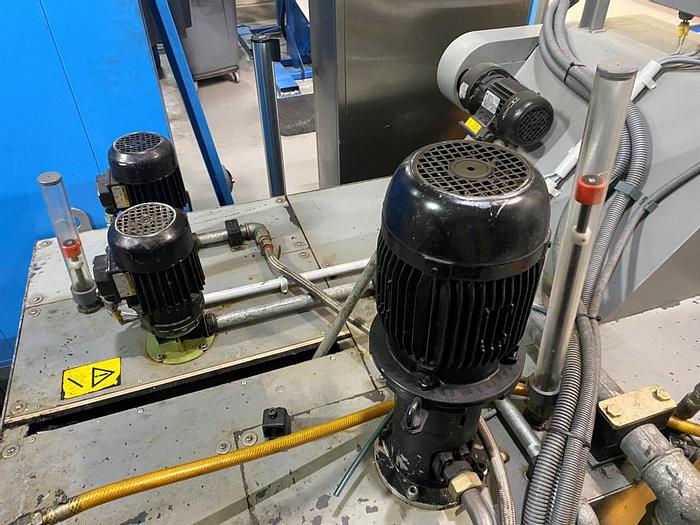

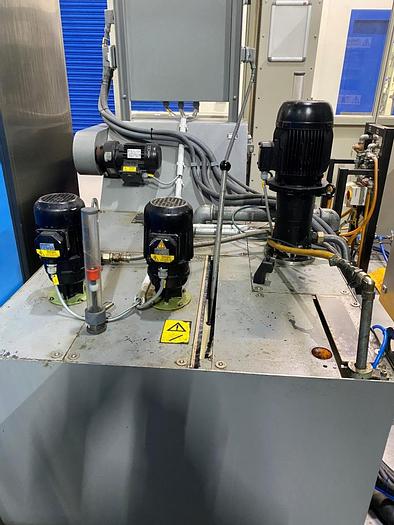

High Pressure Cooling Unit

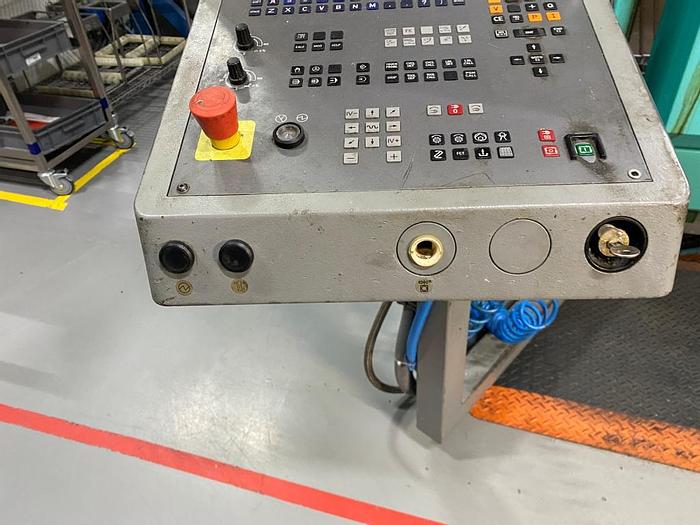

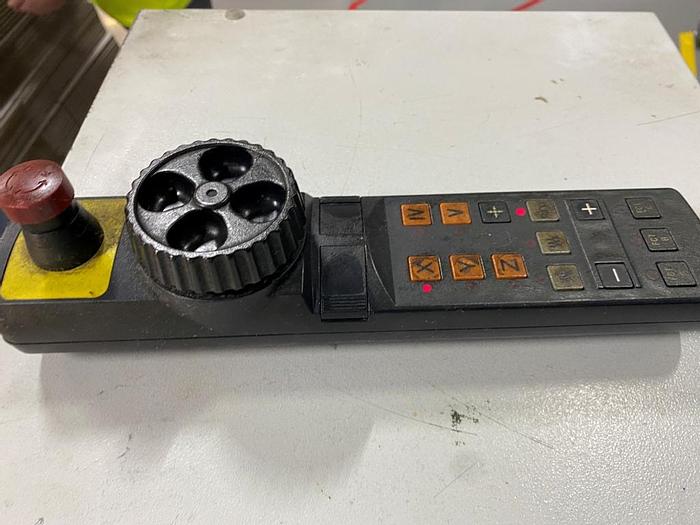

Manual Control Handwheel
Technical Details

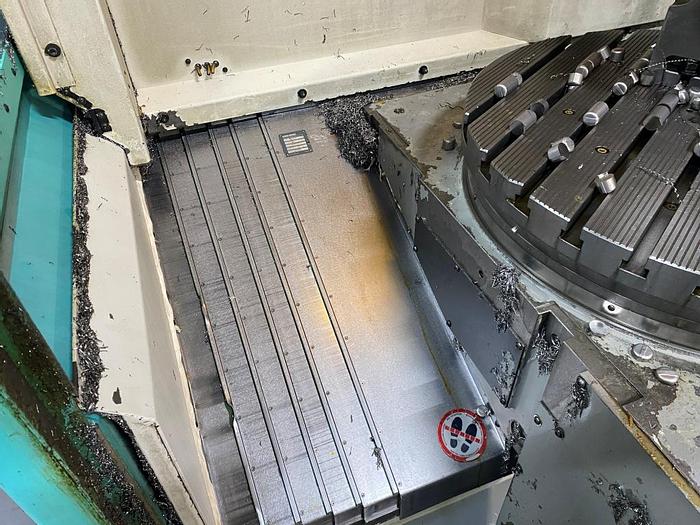

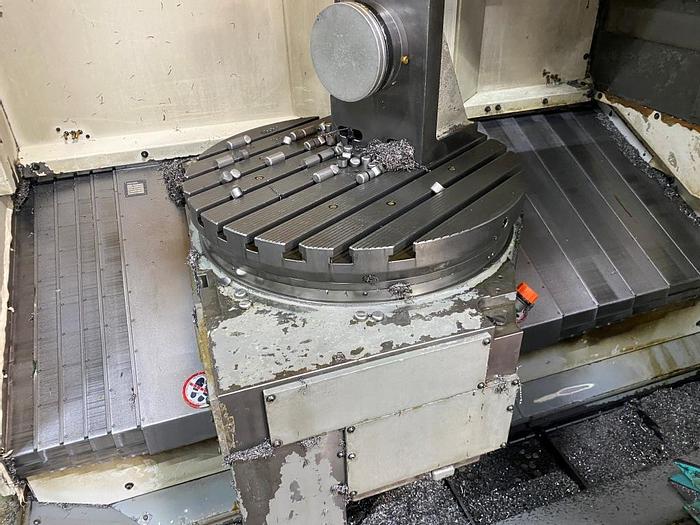

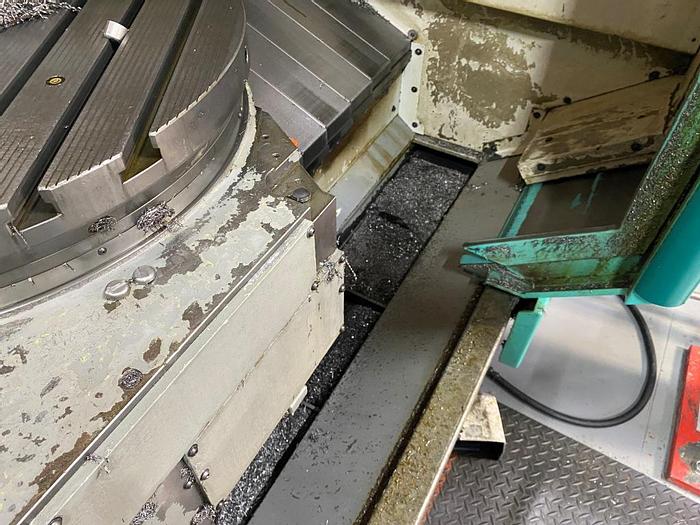

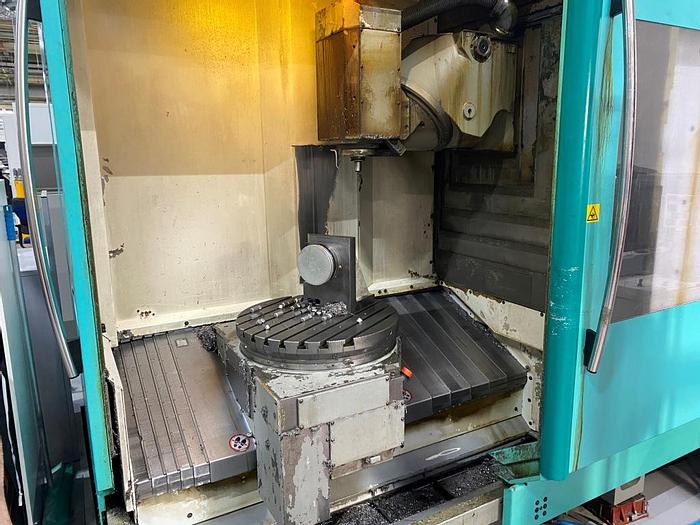

Table Diameter: 630mm
Max Load on Table: 500kg
Max Workpiece Size: 600 x 600 x 500mm

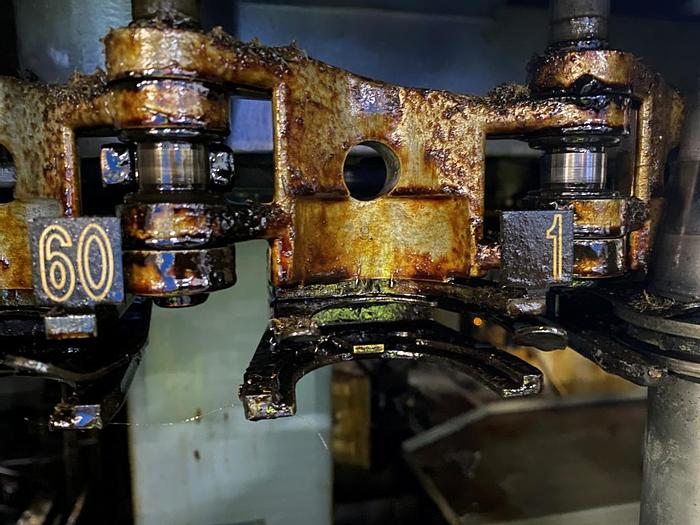

ATC: 60 Station

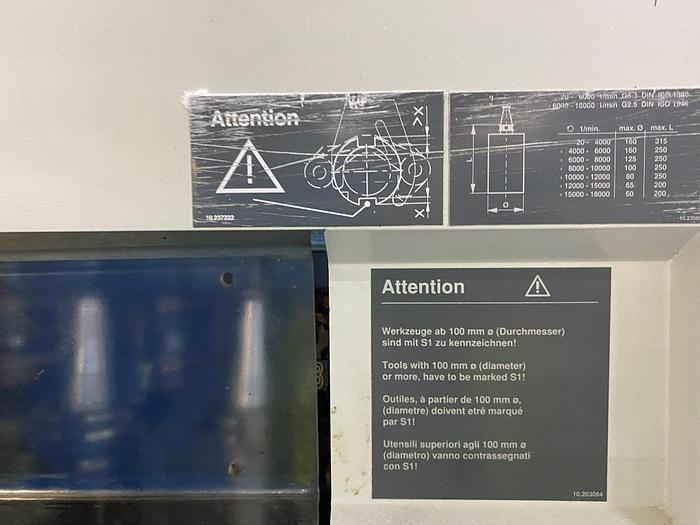

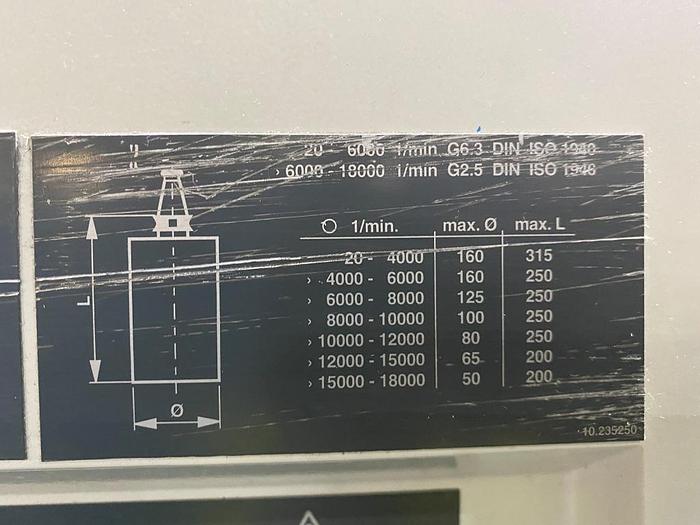

Max Tool Length: 315mm
Max Tool Diameter: 160mm

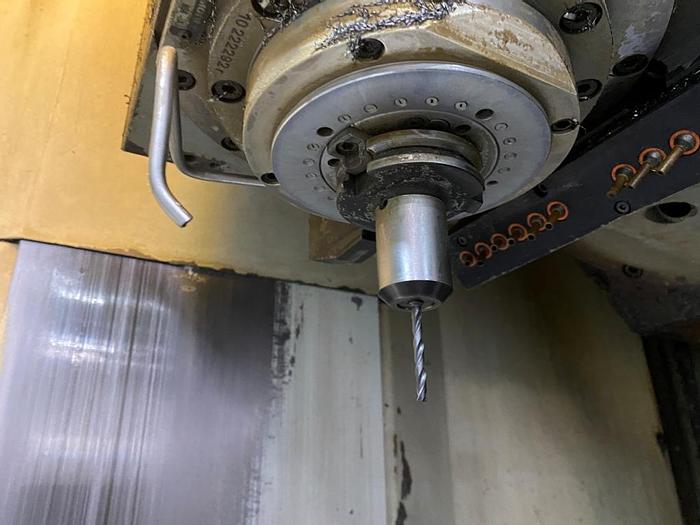

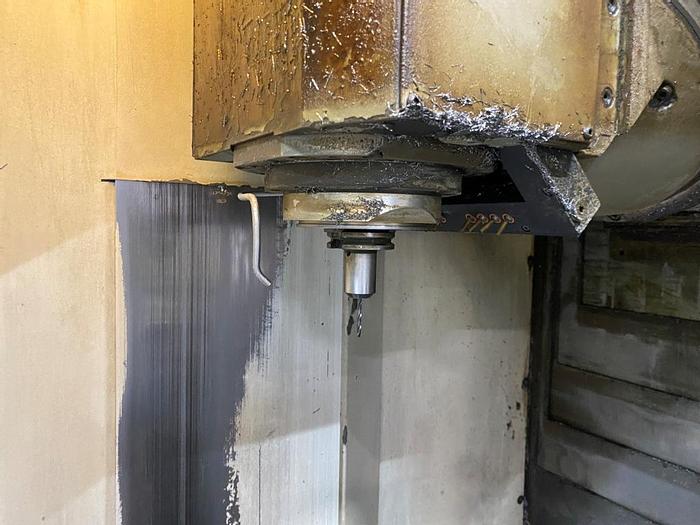

Spindle Speeds: 20-18000rpm
Spindle Taper: ISO 40
Spindle Power: 15kW
X Axis Travel: 600mm
Y Axis Travel: 650mm
Z Axis Travel: 550mm
C Axis Travel: 360°

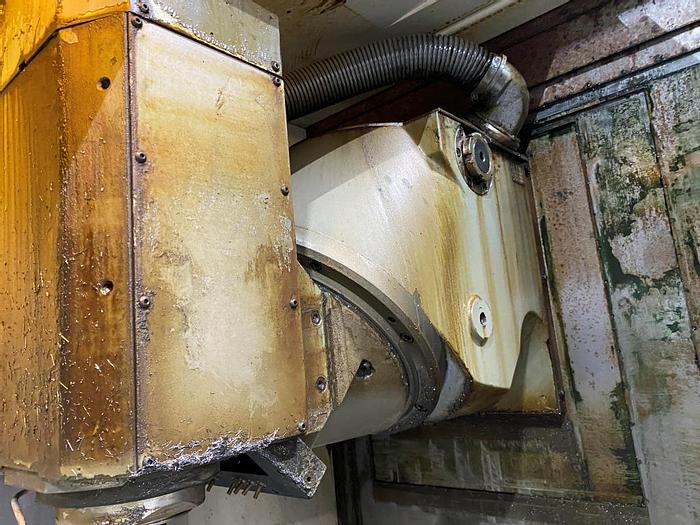

B Axis Travel: 2 x 90°
Table Rotation Rate: 10 rev/min
Max Feed Rate: 10,000mm/min
Max Rapid Traverse: 24,000mm/min

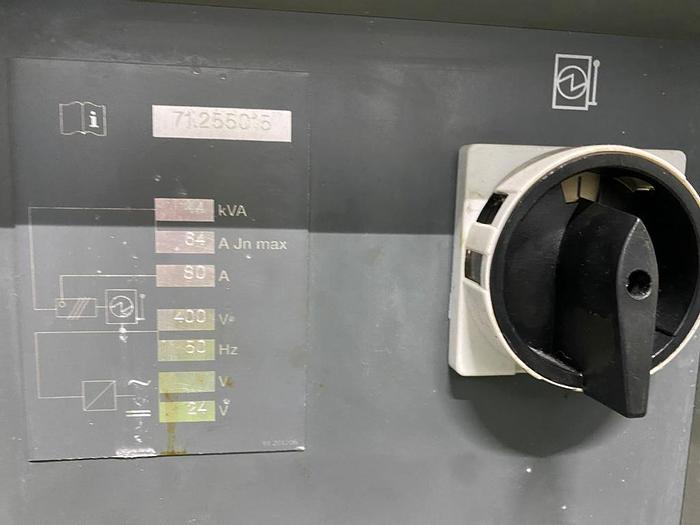

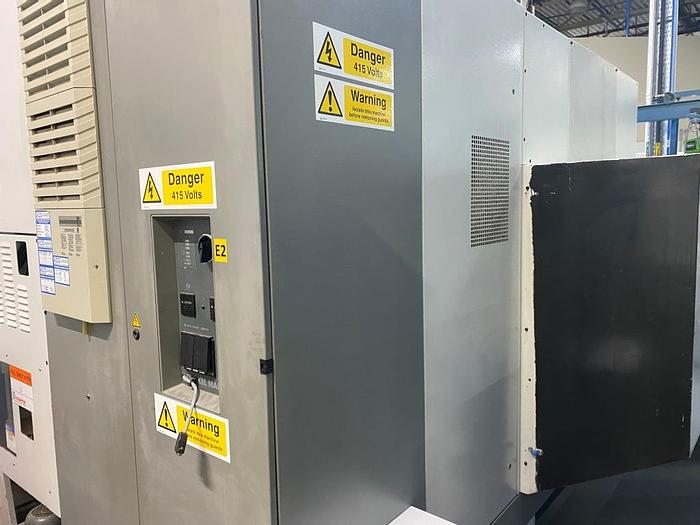

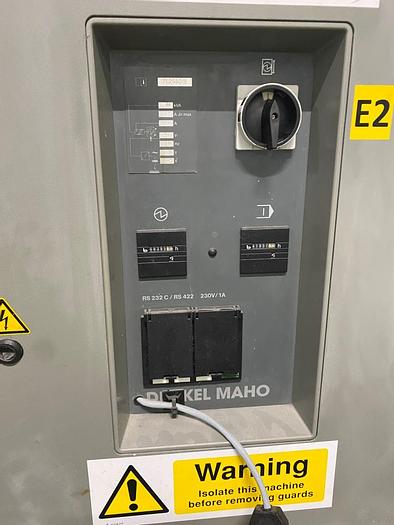

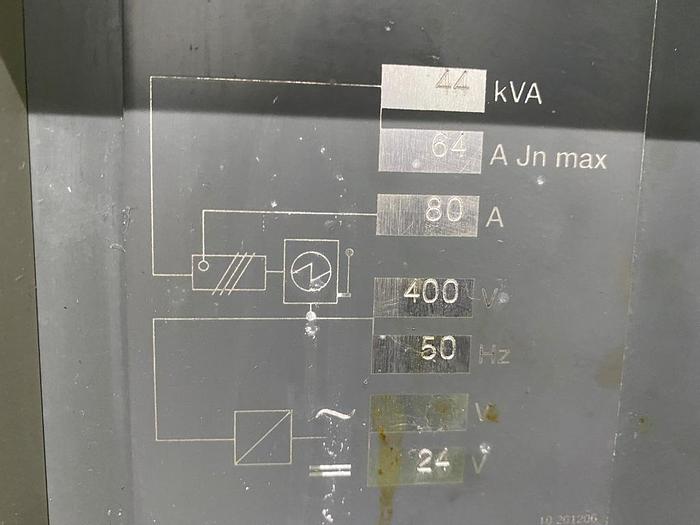

Electrical Connection: 400V 50Hz
Power Requirement: 44kVA
Machine Dimensions: 3900 x 2300 x 3000mm
Machine Weight: 8500kg
Specifications
| Manufacturer | Deckel Maho |
| Model | DMU60P 5 Axis Machining Center |
| Year | 1999 |
| Condition | Used |

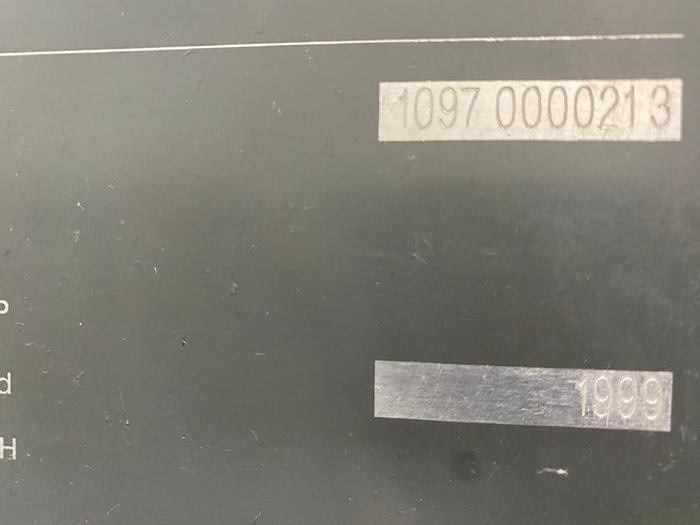

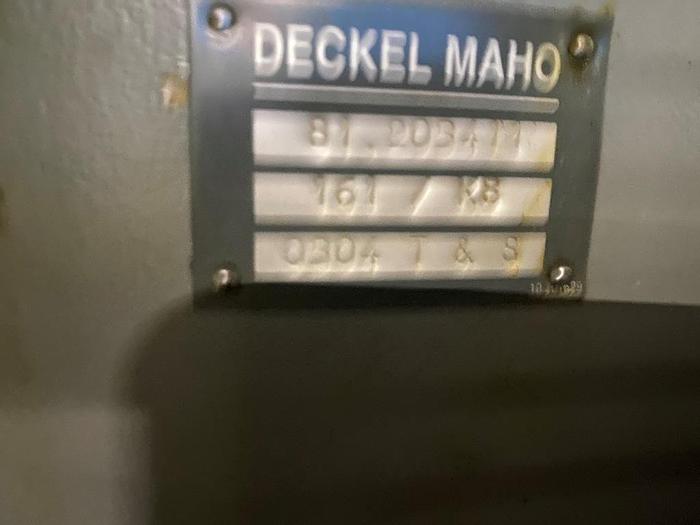

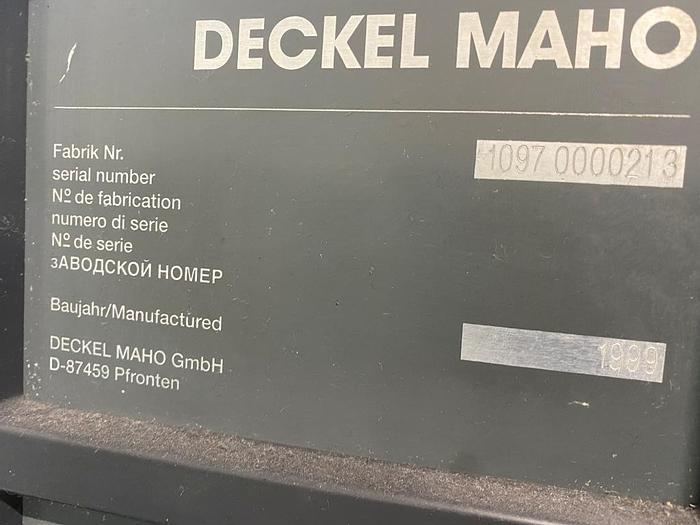

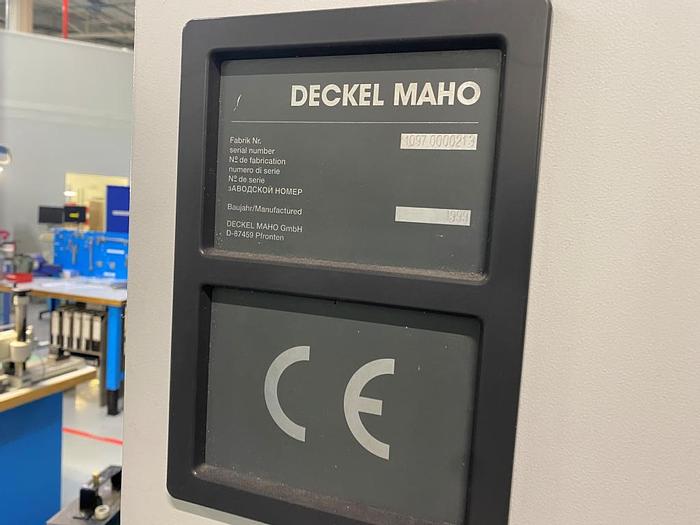

| Serial Number | 1097 0000213 |
| Machine Type | 5 Axis Machining Center |
| Year | 1999 |
| Control | DMG/ Heidenhain |
| Hours | 69,395 Power On Hours |
| Table Diameter | 630mm |
| Max Load on Table | 500kg |
| ATC | 60 Station |
| Max Tool Length | 315mm |
| Max Tool Diameter | 160mm |
| Spindle Speeds | 20-18000rpm |
| Spindle Taper | ISO 40 |
| Spindle Power | 15kW |
| X Axis Travel | 600mm |
| Y Axis Travel | 650mm |
| Z Axis Travel | 550mm |
| C Axis Travel | 360° |
| B Axis Travel | 2 x 90° |
| Table Rotation Rate | 10 rev/min |
| Max Feed Rate | 10,000mm/min |
| Max Rapid Traverse | 24,000mm/min |
| Electrical Connection | 400V 50Hz |
| Power Requirement | 44kVA |
| Machine Weight | 8500kg |
