€8,195 + VAT

Cormak HRBM65 Section Rolls

2

Poland

orCall +353 838108745

Description

Cormak HRBM 65 Hydraulic Section Rolls


Machine Description

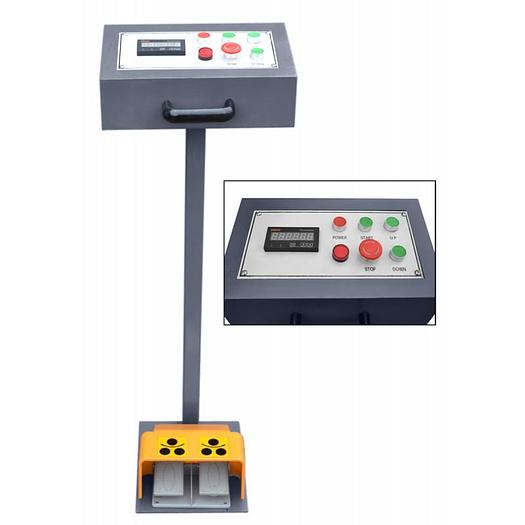

Hydraulic bending machine for bending tubes, profiles, rods and flat bars, dependent on the rollers equipped. This bending machine is also equipped with a mechanical upper roller clamping. Perfect for bending arches, rings, spirals, etc. Used in iron working shops and on construction sites. Maximum tubes bending range up to 100 mm. A foot pedal for left/right control included in the set.


Machine Features

  • The construction of the bending machine made of welded steel sheets
  • Hydraulic bending machine features higher power in comparison to conventional bending machines
  • Both axes of the bending machine are driven by a powerful hydraulic motor, with the upper wheel lifted by the axis of the hydraulic actuator
  • The panel has buttons that ensure reliability of the machine

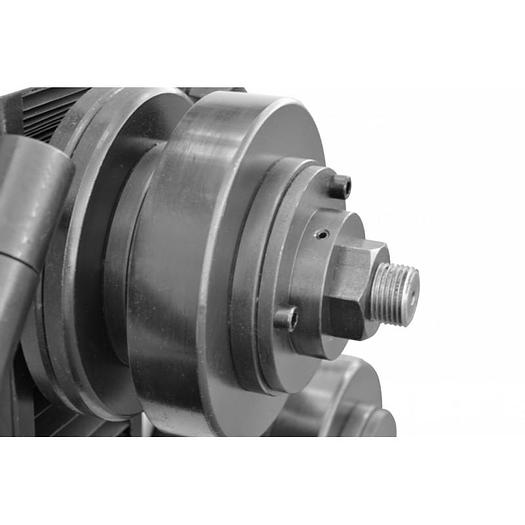

  • Default bending rolls allow for bending materials of various shapes


Technical Details

Shaft diameter: 65 mm

Rollers Diameter: 195mm

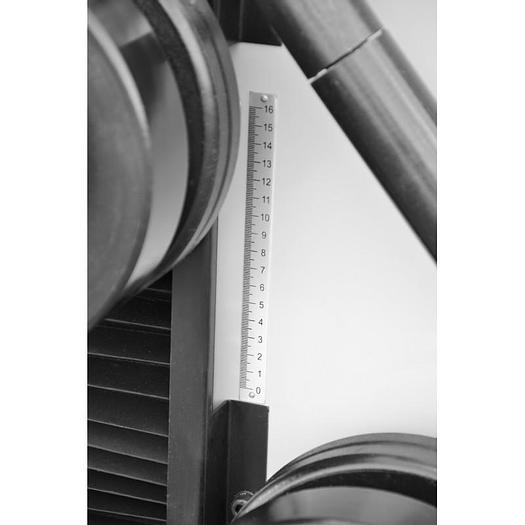

Travel of Upper Roller: 160mm

Distance Between Lower Rollers: 420mm

Motor power: 2.25 kW

Shafts speed: 9.3 rpm

Dimensions: 1250 x 1150 x 1800 mm

Weight: 920 kg

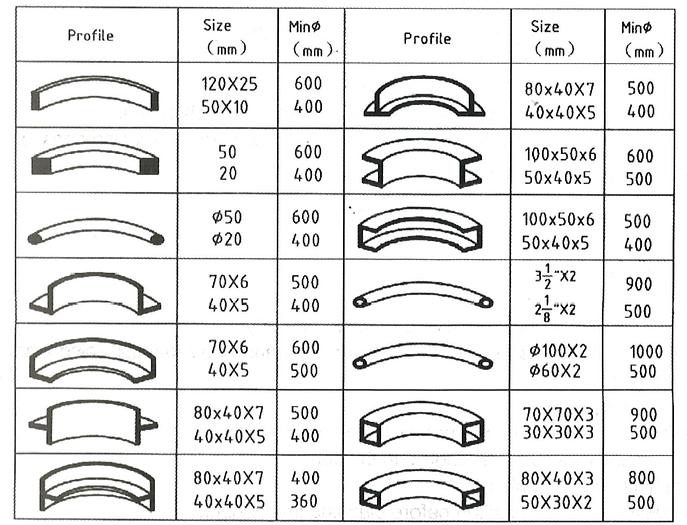

Capacity

Rectangular Solid Bar: 80 x 25mm

Flat Solid Bar: 120 x 25mm

Solid Square Bar: 50 x 50mm

Angle Iron: 70 x 6mm

Solid Round Bar: 50mm Diameter

Tube/Pipe: 100mm Diameter x 2mm Wall

Square Box Section: 70 x 70mm x 3mm Wall

Rectangular Hollow Section: 80 x 40mm x 3mm Wall


Specifications

ManufacturerCormak
ModelHRBM65 Section Rolls
ConditionNew
Shaft diameter65 mm
Rollers Diameter195mm
Travel of Upper Roller160mm
Distance Between Lower Rollers420mm
Motor power2.25 kW
Shafts speed9.3 rpm
Weight920 kg
