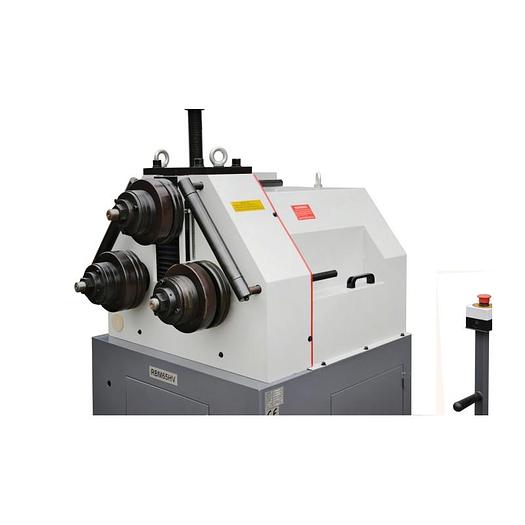

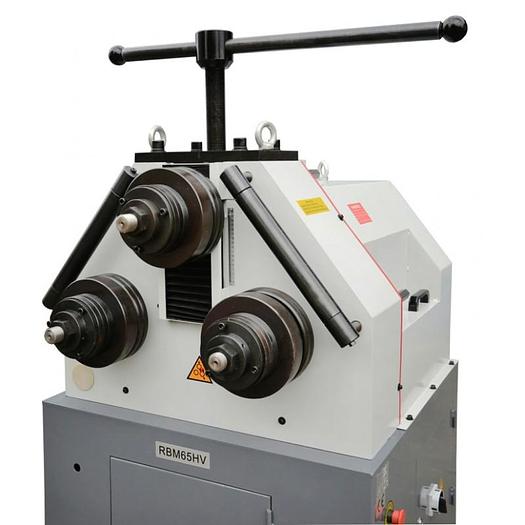

Cormak RBM65HV Section Rolls

Cormak RBM 65HV Section Rolls

Description

Electric bending machine for bending tubes, profiles, rods and flat bars, dependent on the rollers equipped. Perfect for bending arches, rings, spirals, etc. Used in iron working shops and on construction sites. Maximum tubes bending range up to 100 mm. A foot pedal for left/right rotation control included in the set.

Features

Electric bending machine for bending profiles and tubes. Equipped with a mechanically adjustable upper roll clamping. Perfect for bending arches, rings, spirals, etc.

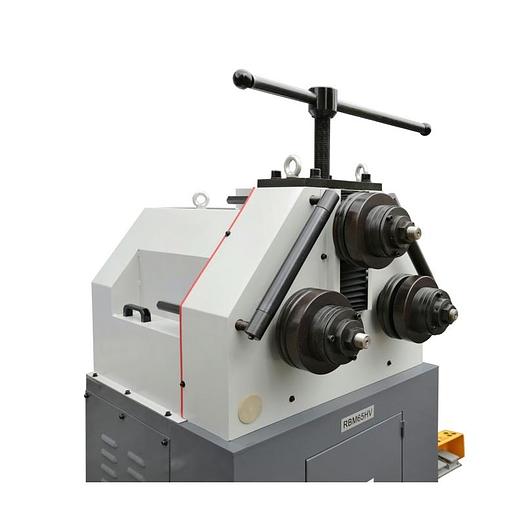

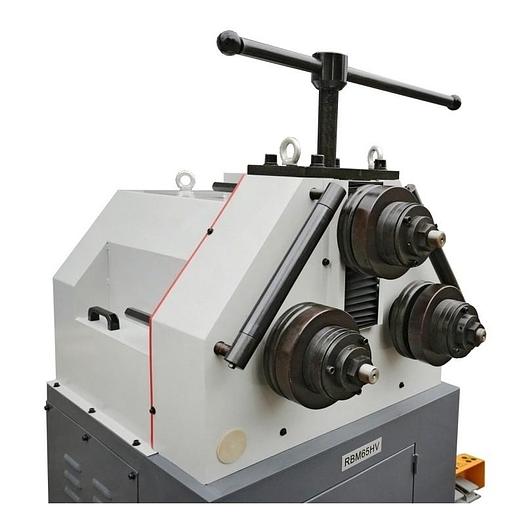

Bending radius adjusted with an installed on the top of the machine clamping device equipped with a Vernier scale

Area of application: bending profiles and tubes bending

Capable of bending various profiles due to its universal rollers

Its bulkiness provides optimum stability

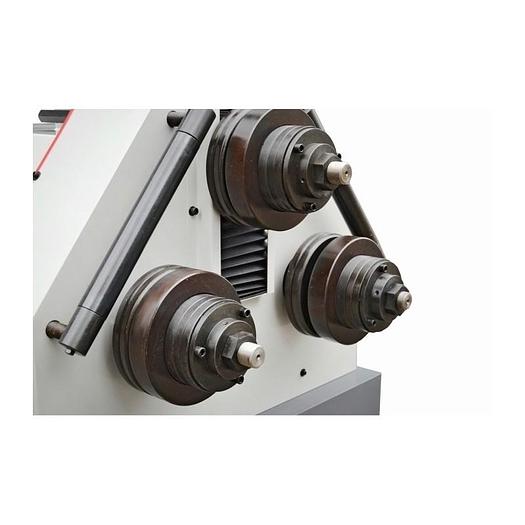

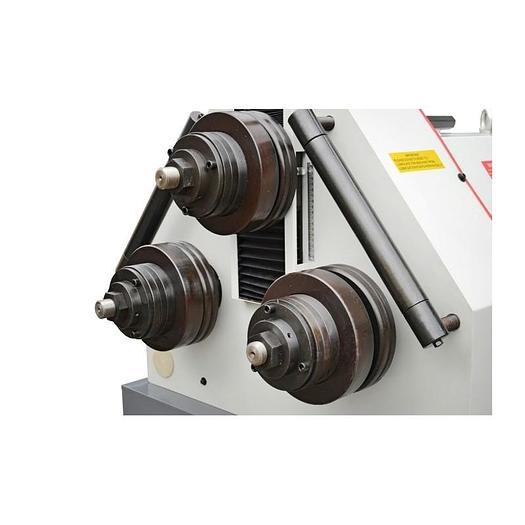

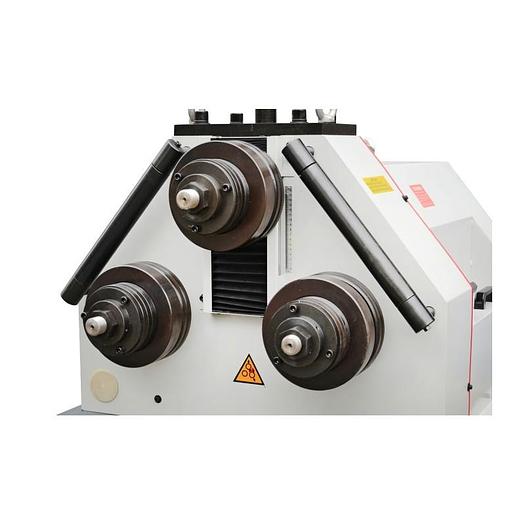

Ground and hardened lateral guiding rollers

Bending shafts of durable and tempered steel

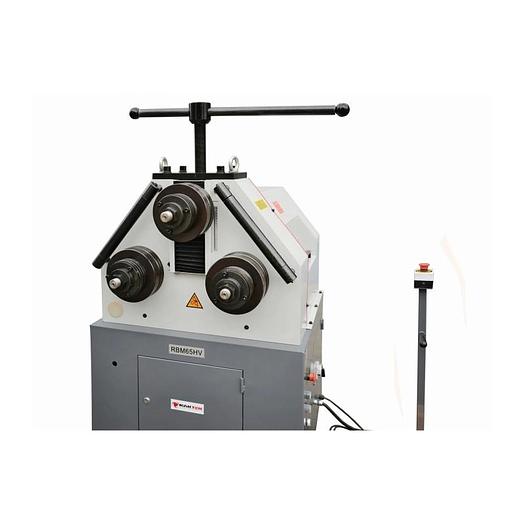

Controlled with a foot pedal

Left/right operation

Using the set of special rollers the bending range increases up to 100 mm

Technical Details

Shafts diameter: 65 mm

Motor power: 3 kW

Spindle speed: 9.3 rpm

Dimensions: 1250 × 1150 × 1800 mm

Weight: 730 kg

Standard Equipment

Lateral guiding rollers

Foot pedal

Various sets of shafts

User manual

EC declaration of conformity

Capacity

Rectangular Solid Bar: 80 x 25mm

Flat Bar: 120 x 25mm

Square Solid Bar: 50 x 50mm

Angle Iron: 70 x 6mm

Box Section: 70 x 70mm x 3mm Wall

Tube/Pipe: 50mm Diameter x 3mm Wall
