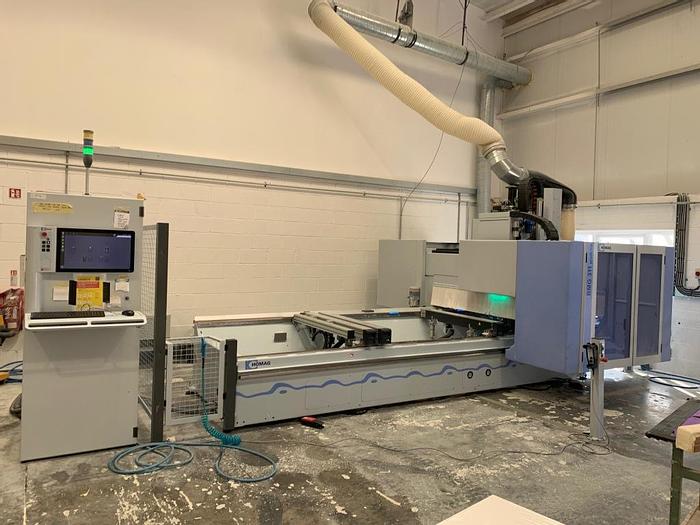

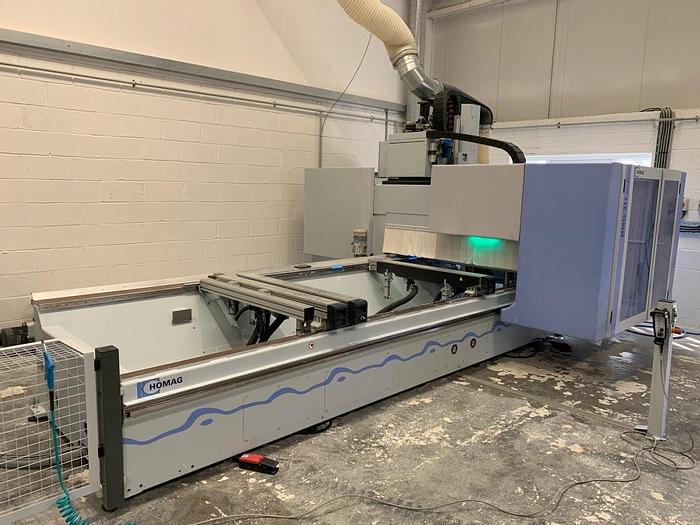

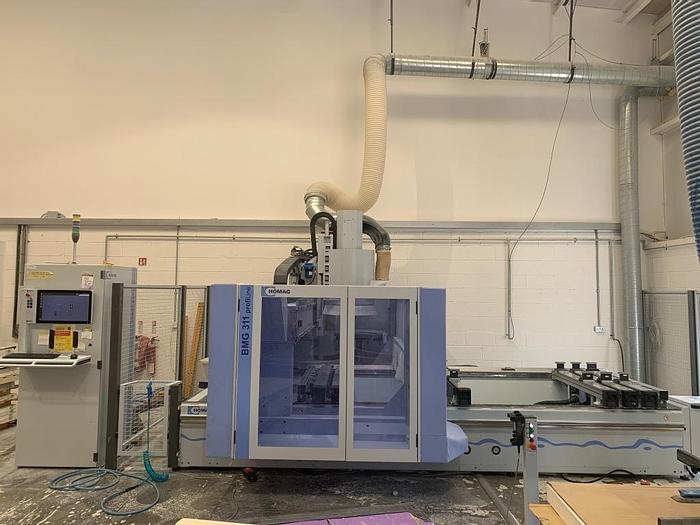

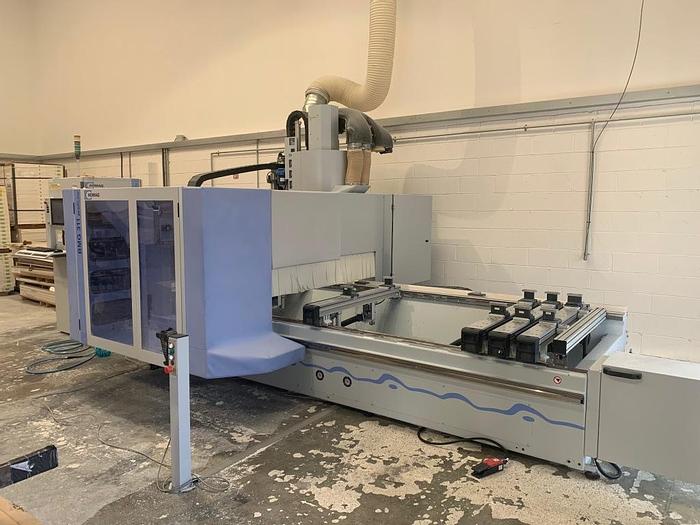

2016 Homag Profi BMG311/33/F/K 5 Axis CNC Router

2016 Homag BMG 311/33/F/K 5 Axis CNC Router

Year: 2016

Type: Moving Gantry 5 Axis CNC Router

Axes: 5 Axis

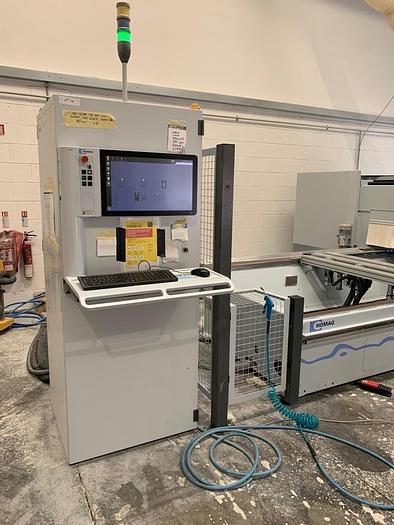

Control: Power Control PC86 Powertouch

ATC: 14 Station

Additional Info: Spindle and A-Axis Gear Box recently replaced

Specifications

Table Type: Console Table (K)

Machine Bed: Stable Steel Frame

Guides: Linear Guides with dust protection

Drives: Rack & Pinion Drives for X & Y Axis

Ball Screw: Recirculating Ball Screws for Z Axis

Drive Technology: Siemens with digital control for high dynamic & exact contours

Included Options

Workpiece thickness up to 270mm

Abrasive materials Kit (ability to machine plastics and composite materials)

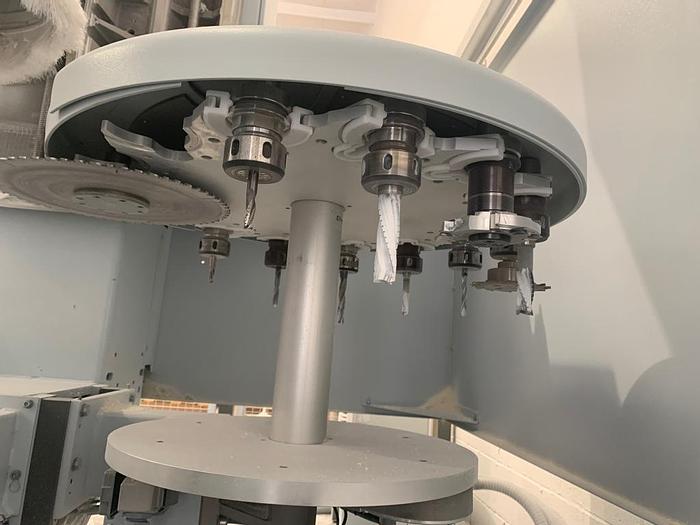

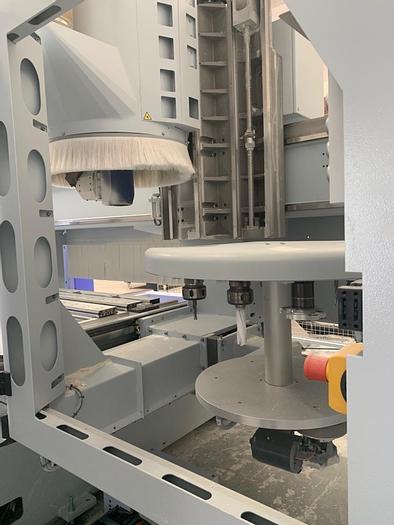

Plate Type 14 Station Tool Changer

12kw Spindle Drive

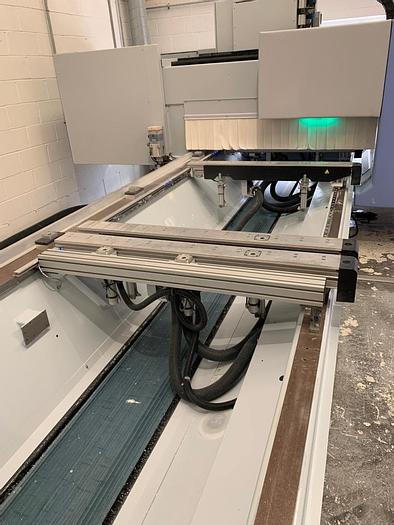

Manual Console Vacuum Table

Carrier Profile for X Stop

Extra Y Axis (1340mm)for Console Table

Lateral & Longitudinal Stop Pins

Lift Off Rail

Dynamic Occupation K/A Table

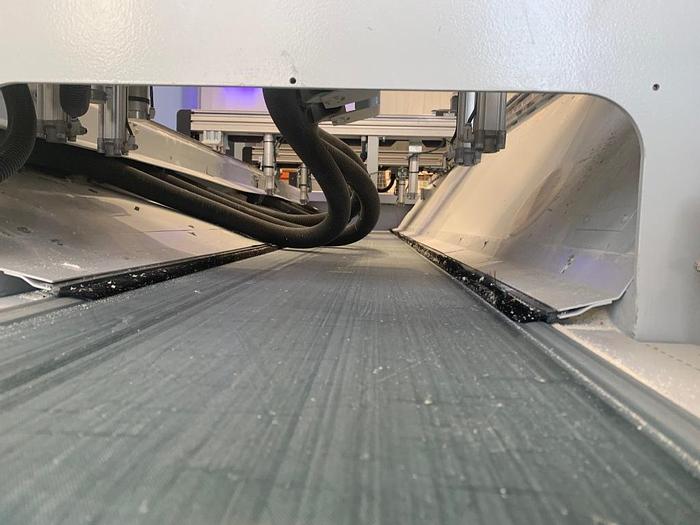

Chip Conveyor

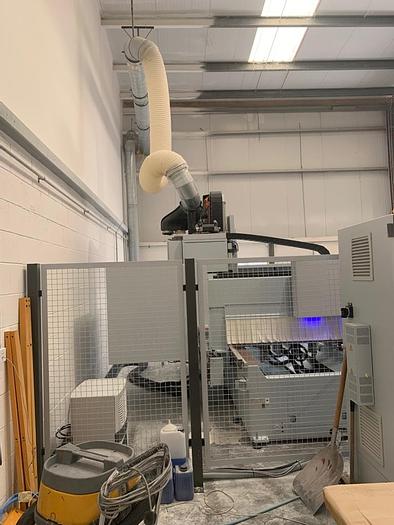

Safety Protection Fences

Technical Details

Max Panel Size: 3300 x 1400mm

Max Workpiece Thickness: 270mm

Rapid Traverse (X,Y,Z): 35/60/25m/min

Tool Changer: 14 Station Plate Type

Spindle Taper: HSKF63

Max Tool Weight: 6Kg

Max Tool Length: 230mm

Max Tool Diameter: 180mm (Trimming Tools)

Max Tool Diameter: 200mm (Sanding Tools)

Max Tool Diameter: 350mm (Saw Blades)

Spindle Power: 12kW

Max Spindle Speed: 12000rpm

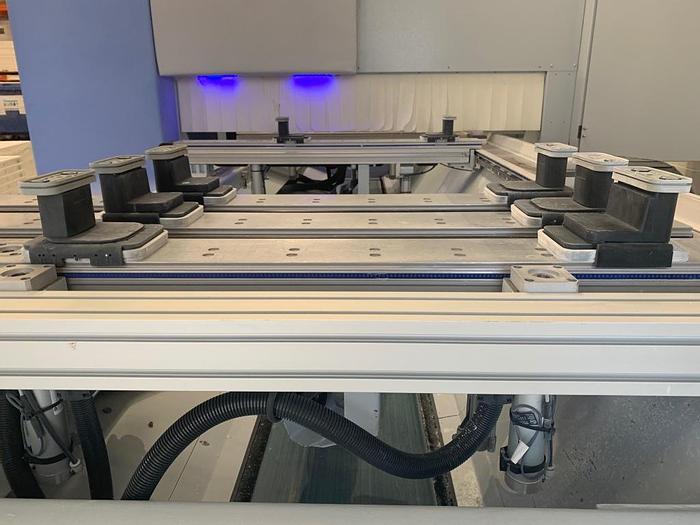

Vacuum Clamps: 12 off 120 x 50mm
