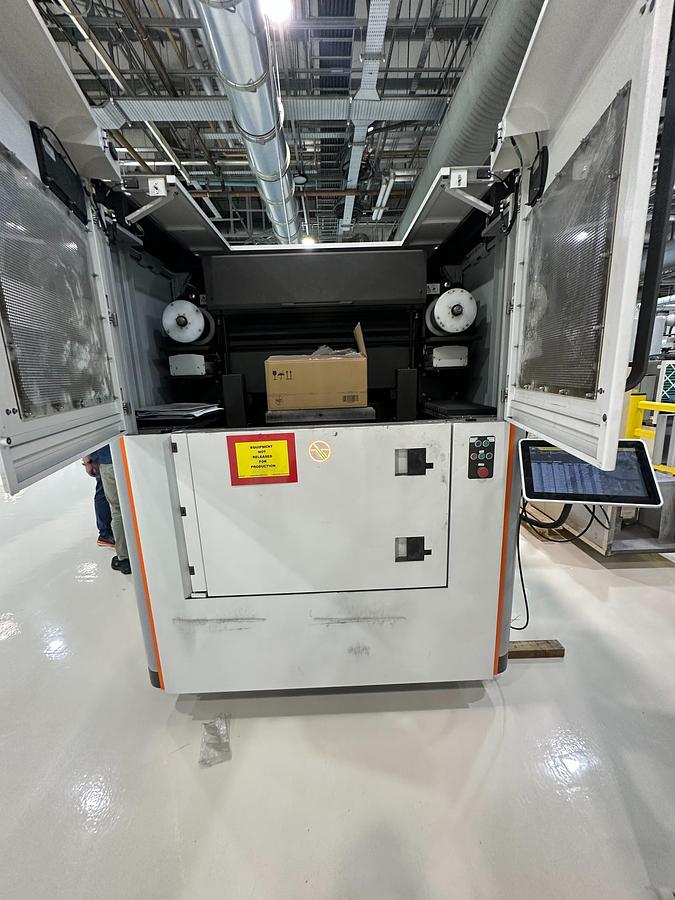

2021 Agie Charmilles CUT AM 500 Wire EDM
Description

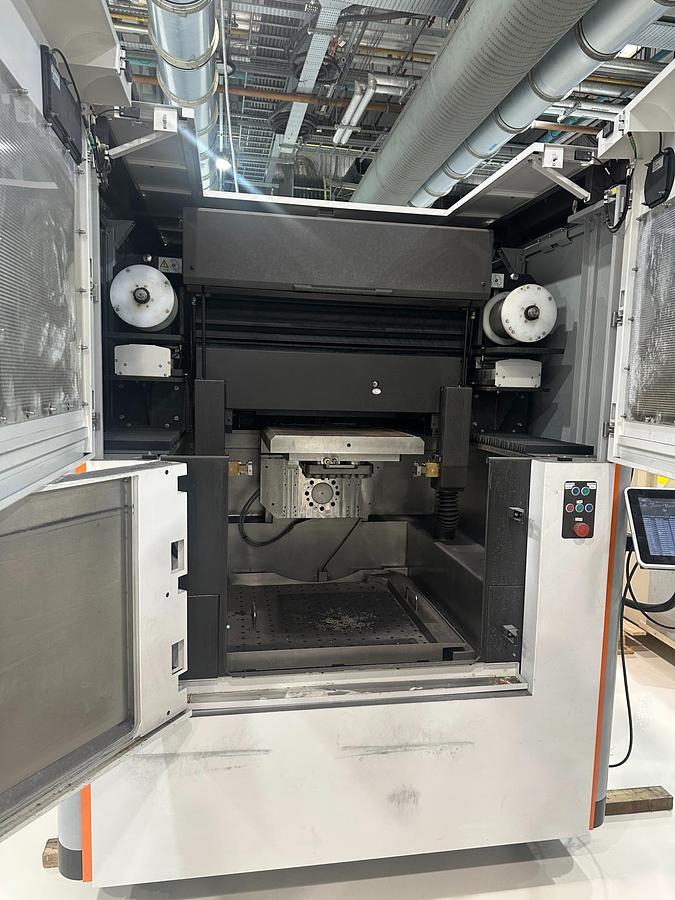

2021 Agie Charmilles CUT AM 500 Wire EDM Machine – Exceptional Condition
Discover premium Swiss precision with this 2021 Agie Charmilles CUT AM 500 CNC Wire EDM Machine, now available exclusively from Used Machine Tools Ireland.
This high-performance wire EDM machine has only 537 erosion hours and comes from a medical device manufacturing environment, ensuring meticulous maintenance and minimal wear. Ideal for high-precision applications in medical, aerospace, automotive, and mold-making industries.
Machine Overview
- Make/Model: Agie Charmilles CUT AM 500
- Machine Type: CNC Wire EDM Machine
- Year: 2021

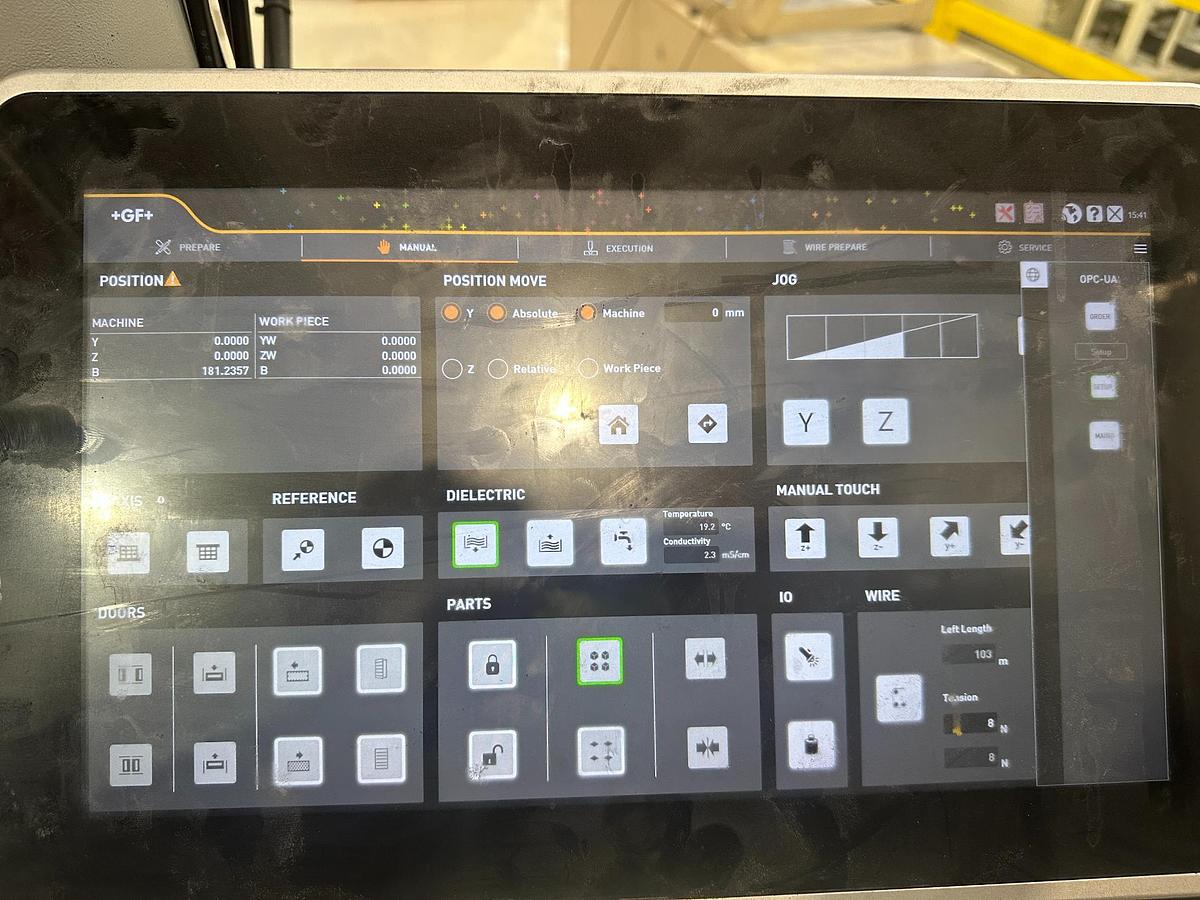

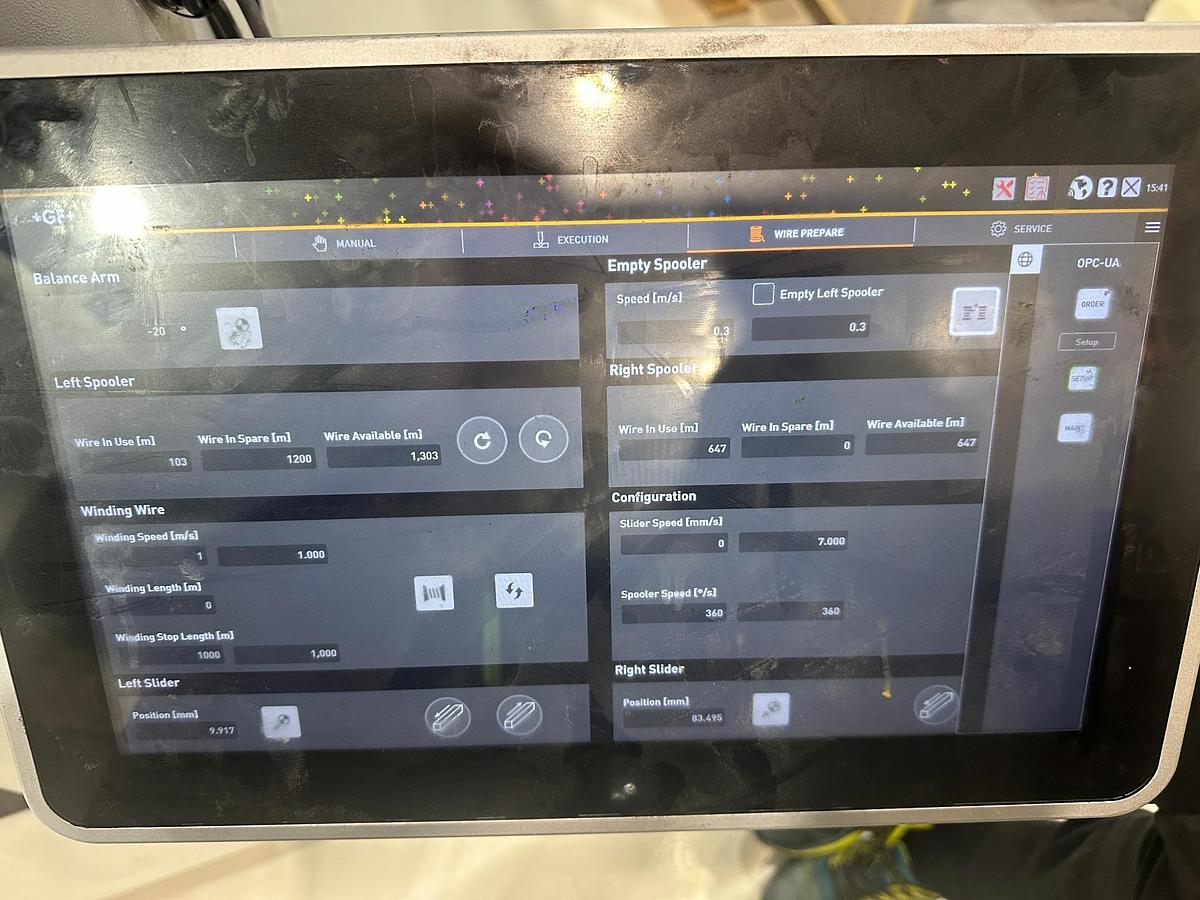

- Control System: GF Control
- Erosion Hours: 537 hrs
- Condition: Excellent – ready for immediate operation
Technical Specifications

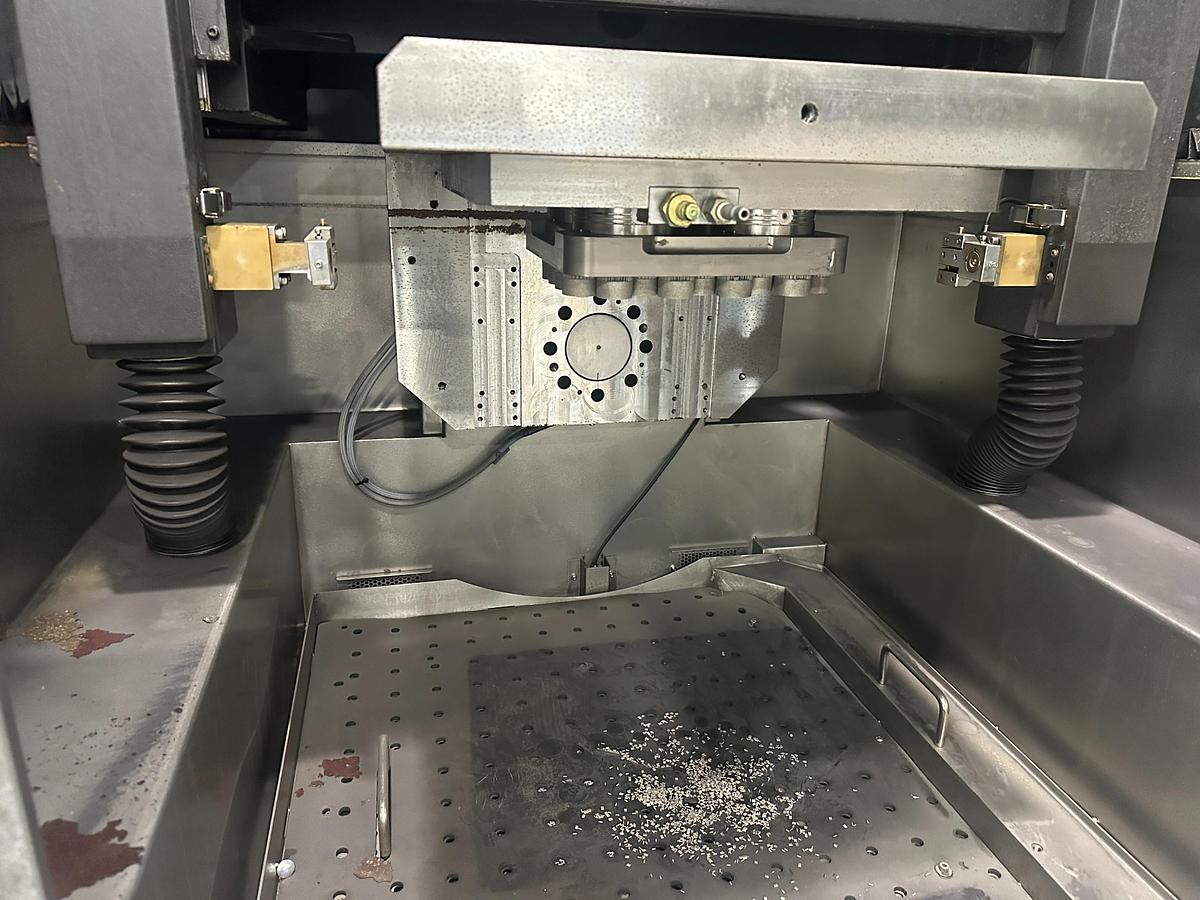

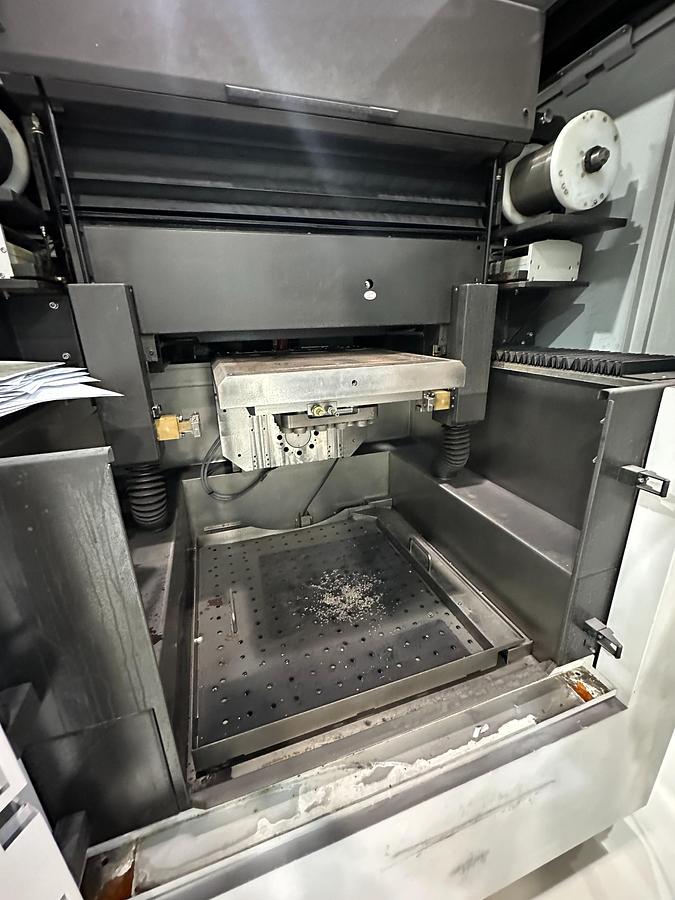

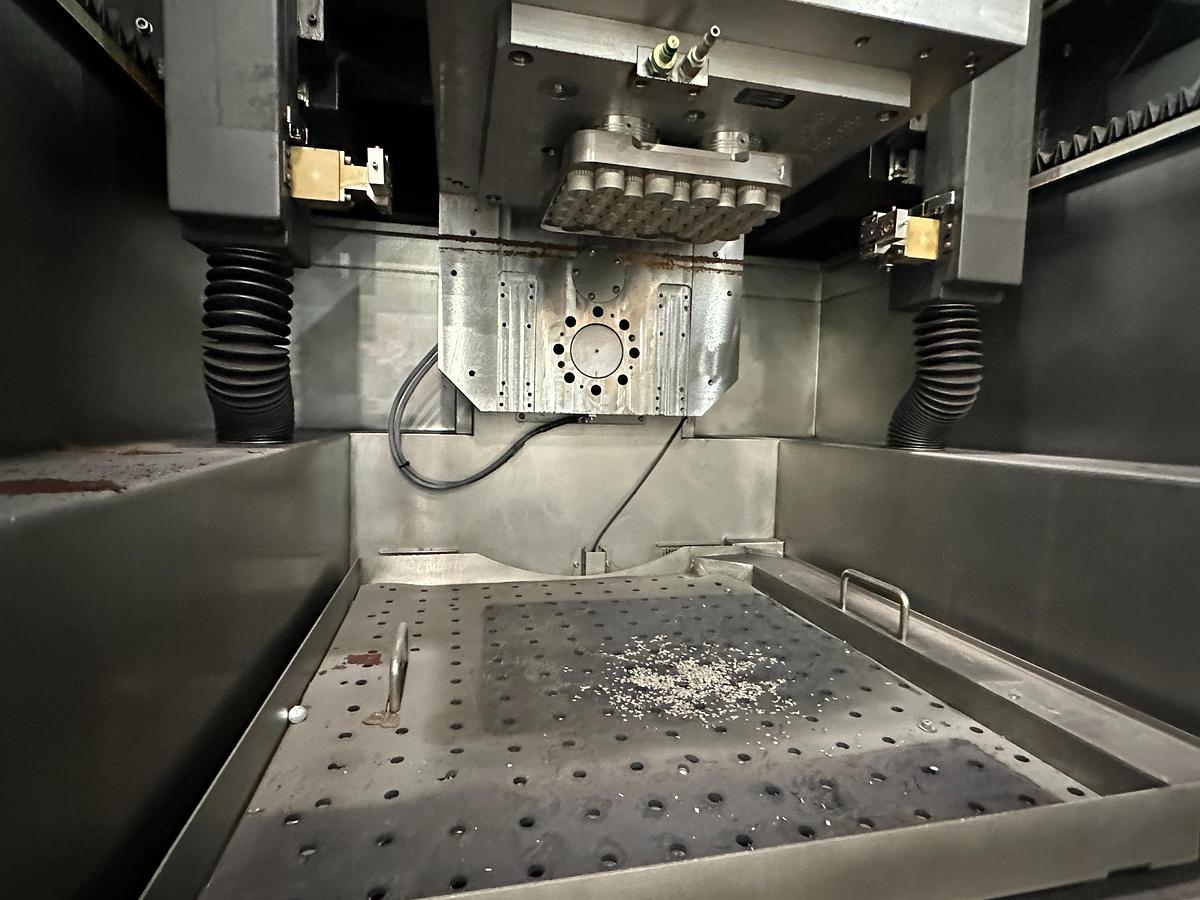

Work Area
- Max. part dimensions: 510 x 510 x 510 mm
- Max. part weight (base + parts): 500 kg
- Dielectric level (min/max): 250–305 mm
Performance
- Max. machining speed: 240 mm²/min
- Surface roughness (Ra): <6 μm
- Accuracy: ±0.1 mm
- Max. machining current: 20 A
Air Supply
- Pressure: 6–8 bar
- Minimum flow: 150 L/min
Axes
- Travel (Y/Z): 650 x 200 mm
- Resolution: 0.1 μm
- Axis speed: 0–2000 mm/min

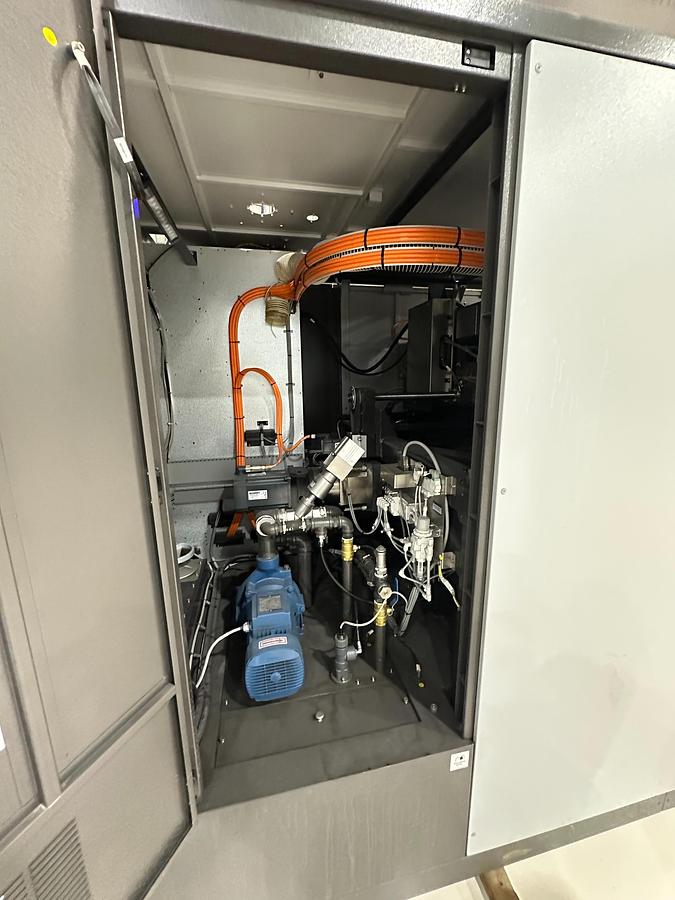

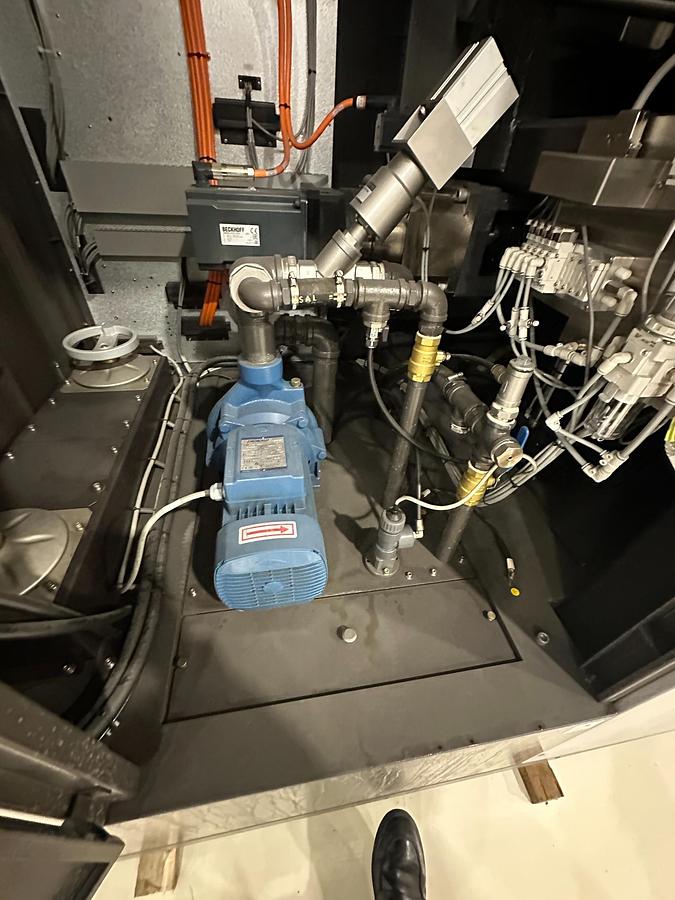

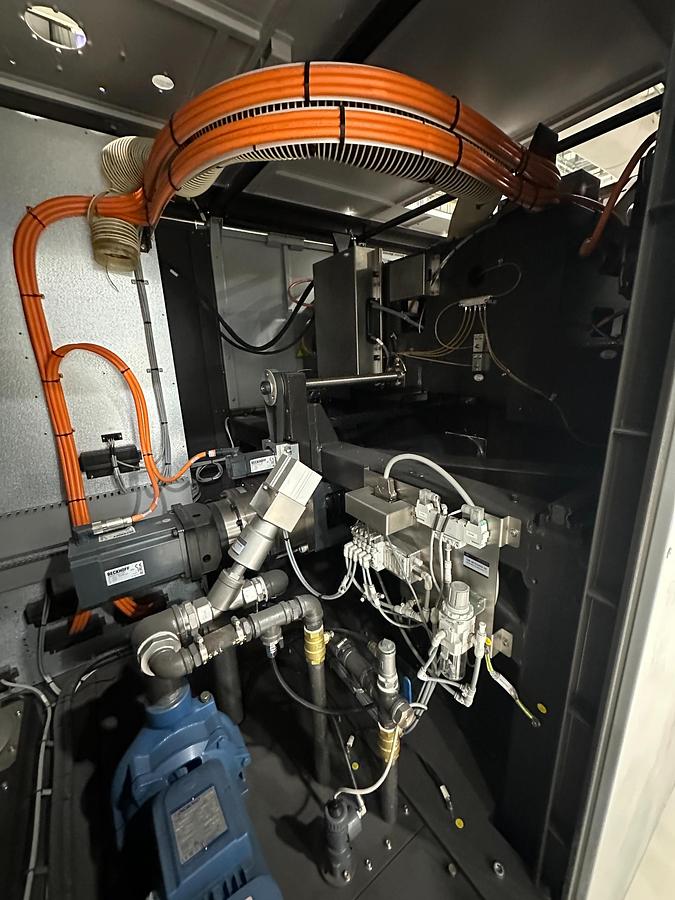

Dielectric
- Type: Deionised water + Ionovit-S concentrate
- Volume: 930 L
- Filtering cartridges: 2

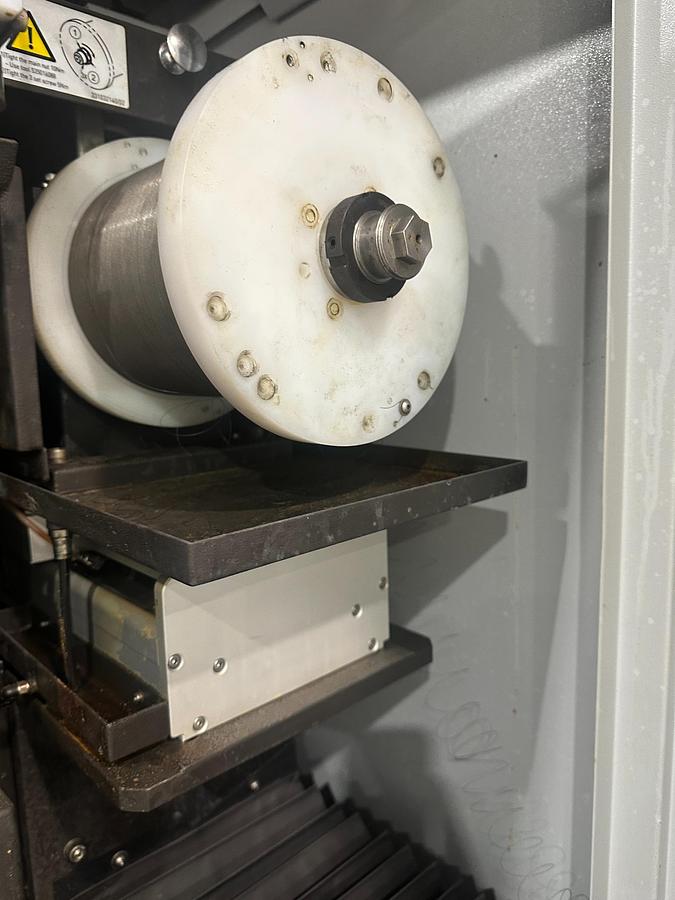

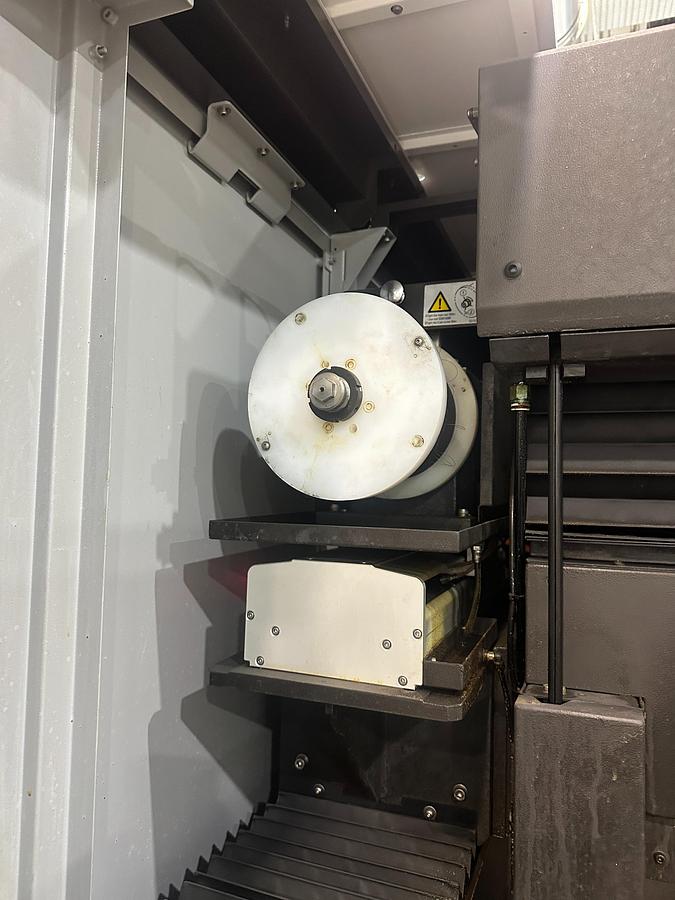

Electrode / Wire
- Wire guide: V type
- Programmable tractive force: 0–20 N
- Wire unspooling speed: 0–20 m/s
- Wire diameter: Ø 0.2 mm
- Drum size: Ø 160 x 160 mm
- Compatible reels: 5000 or 10000 m

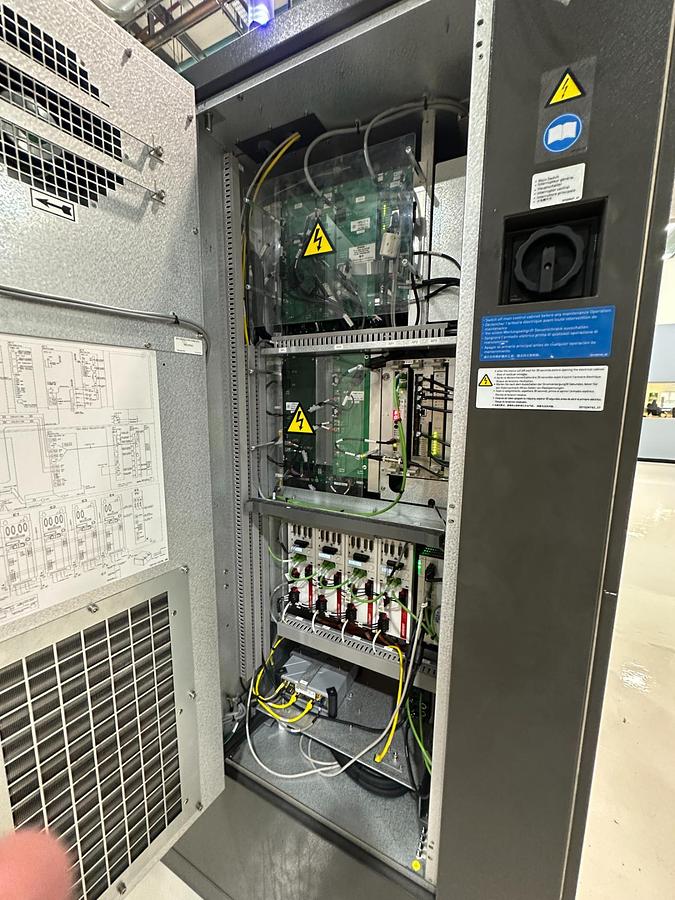

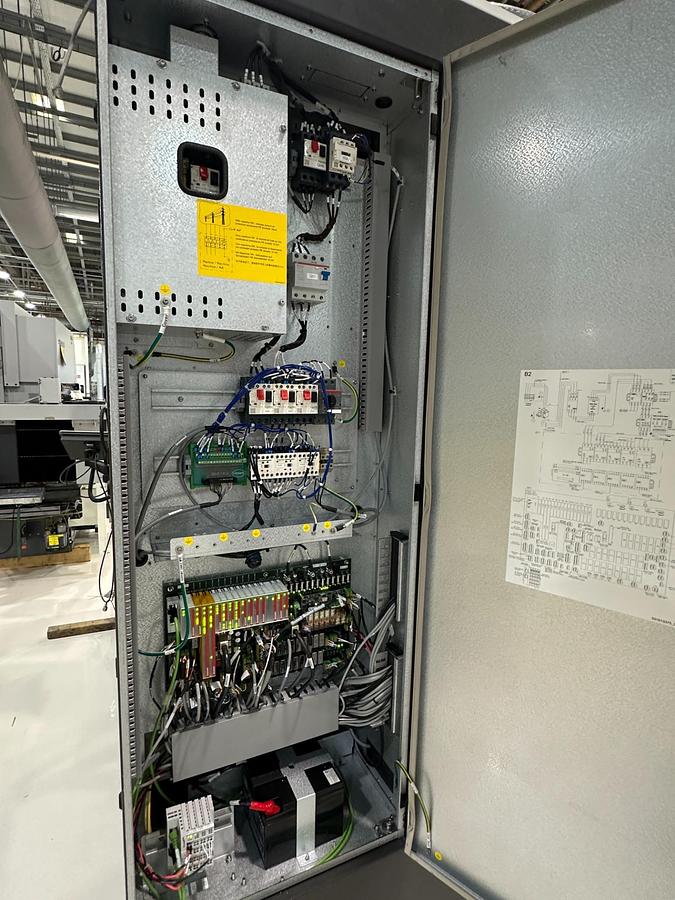

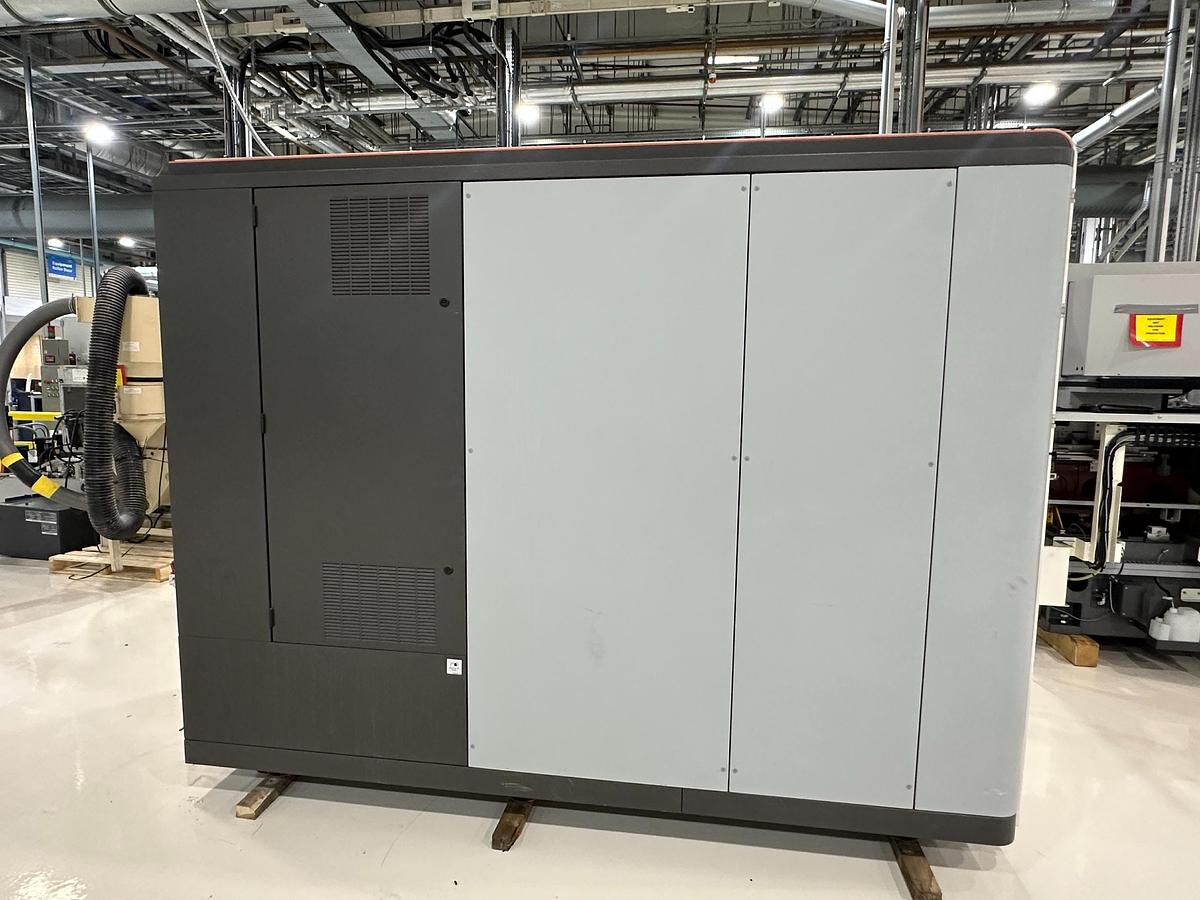

Cabinet
- Input voltage: 400V (three-phase)
- Frequency: 50/60 Hz
- Power: 9.5 kVA
- Current: 13.6 A
- Short-circuit current: 10 kA
- Power factor: 0.8
- Display: 15.6" TFT
- OS: Windows 10
- Ethernet & USB: Yes
Environmental Conditions
- Optimum accuracy temperature: 20 ± 1°C
- Operating range: 15–30°C
- Humidity: 40–80%
- Sound emission: 77.9 dB(A)
- Protection rating: IP43
Safety
- Fume extraction connection: Ø 100 mm
- Minimum extraction volume: 500 m³/h

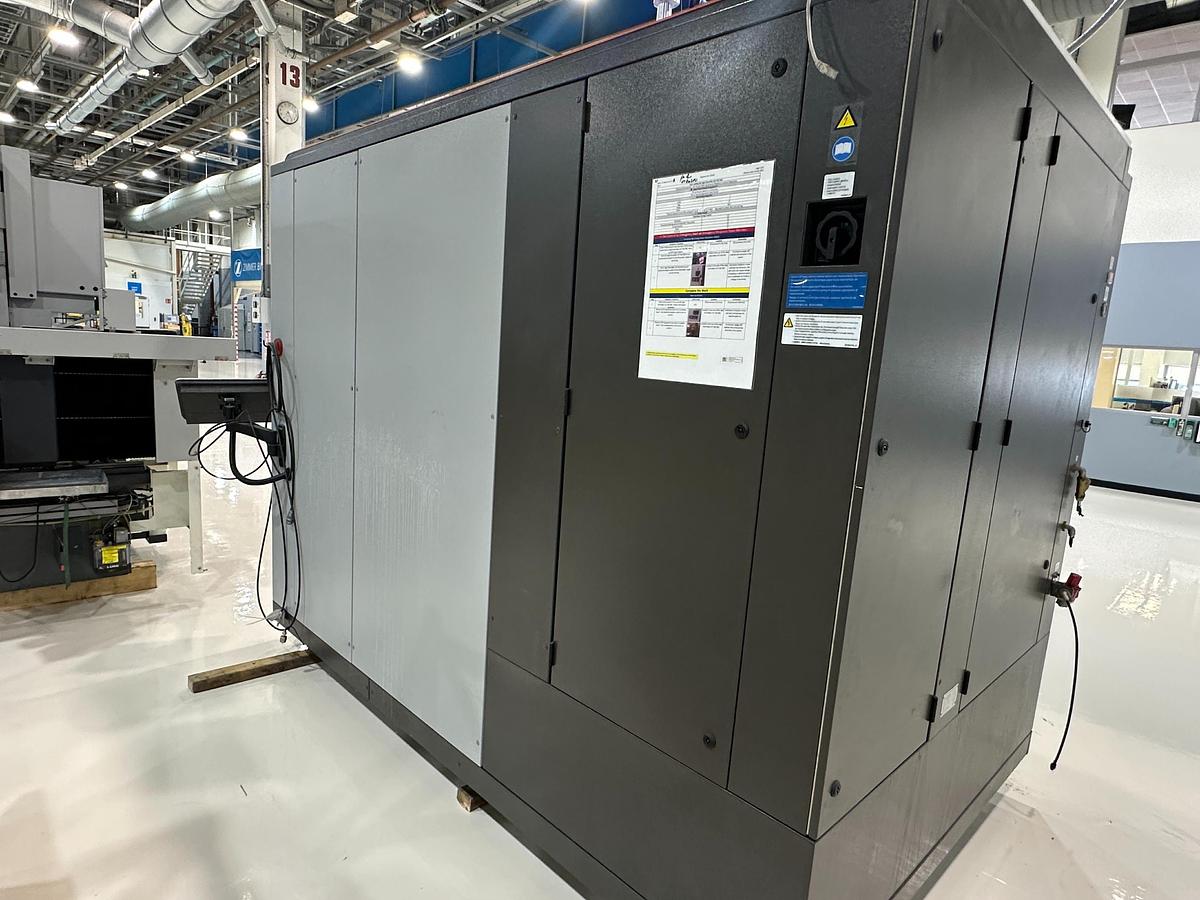

Dimensions & Weight
- Equipment size (W x D x H): 1700 x 2820 x 2215 mm
- Weight (without dielectric): 3220 kg
- Weight (with dielectric): 4120 kg
Key Highlights
- Low hours – only 537 erosion hours
- Ex-medical facility – clean, high-precision usage
- Ready to run – excellent mechanical and electrical condition
- High accuracy and smooth surface finish for critical components
- Ideal for toolmaking, precision parts, and medical device production
Why Choose This Machine?
The Agie Charmilles CUT AM 500 is designed for exceptional precision, reliability, and efficiency. With its advanced GF Machining Solutions control system and intelligent automation compatibility, it offers unbeatable productivity and part quality.
This machine is a rare opportunity to own a like-new 2021 model at a fraction of the cost of a new system.
Agie Charmilles CUT AM 500, Used Agie Charmilles Wire EDM, CNC Wire EDM Machine Ireland, Used EDM Machine for Sale, Precision Wire Cutting Machine, GF Machining Solutions EDM, Medical Device Manufacturing Equipment, CNC EDM Ireland, Used Wire EDM Europe, Agie Charmilles Used Machines, Used CNC Equipment Ireland
Specifications
| Manufacturer | Agie Charmilles |
| Model | CUT AM 500 Wire EDM |
| Year | 2021 |
| Condition | Used |

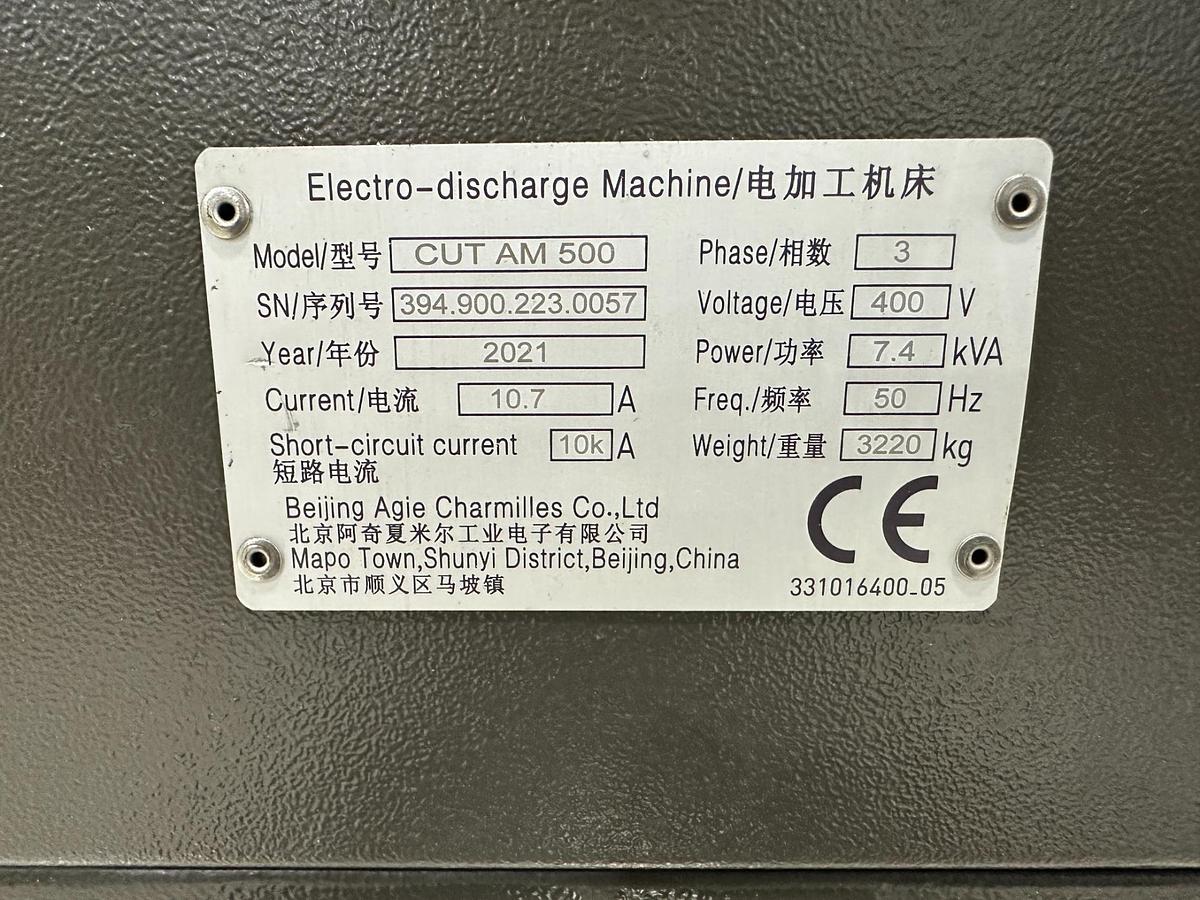

| Serial Number | 394.900.223.0057 |
| Stock Number | 969025 |
| * Machine Type | CNC Wire EDM Machine |
| * Year | 2021 |
| * Control System | GF Control |
| * Erosion Hours | 537 hrs |
| * Dielectric level (min/max) | 250–305 mm |
| * Pressure | 6–8 bar |
| * Minimum flow | 150 L/min |
| * Travel (Y/Z) | 650 x 200 mm |
| * Resolution | 0.1 μm |
| * Axis speed | 0–2000 mm/min |
| * Volume | 930 L |
| * Filtering cartridges | 2 |
| * Wire guide | V type |
| * Programmable tractive force | 0–20 N |
| * Wire unspooling speed | 0–20 m/s |
| * Wire diameter | Ø 0.2 mm |
| * Compatible reels | 5000 or 10000 m |
| * Input voltage | 400V (three-phase) |
| * Frequency | 50/60 Hz |
| * Power | 9.5 kVA |
| * Current | 13.6 A |
| * Short-circuit current | 10 kA |
| * Power factor | 0.8 |
| * Display | 15.6" TFT |
| * OS | Windows 10 |
| * Ethernet & USB | Yes |
| * Optimum accuracy temperature | 20 ± 1°C |
| * Operating range | 15–30°C |
| * Humidity | 40–80% |
| * Sound emission | 77.9 dB(A) |
| * Protection rating | IP43 |
| * Max. machining speed | 240 mm²/min |
| * Surface roughness (Ra) | <6 μm |
| * Accuracy | ±0.1 mm |
| * Max. machining current | 20 A |
| * Fume extraction connection | Ø 100 mm |
| * Minimum extraction volume | 500 m³/h |
| * Weight (without dielectric) | 3220 kg |
| * Weight (with dielectric) | 4120 kg |
