€2,185 + VAT

Cormak ZX 7032G Milling & Drilling Machine

5

Poland

orCall +353 838108745

Description

Cormak ZX 7032G Milling & Drilling Machine


Machine Description

This machine can be used for drilling, reaming and expanding holes up to 32mm in cast iron and threading screws for M12 mm, milling up to 63mm width, and counter boring up to 22mm. It is also suitable for cutting and face milling.


Machine Characteristics Heavy stable cast iron frame

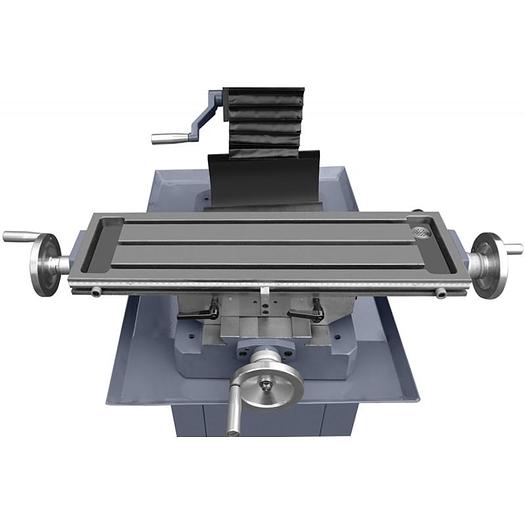

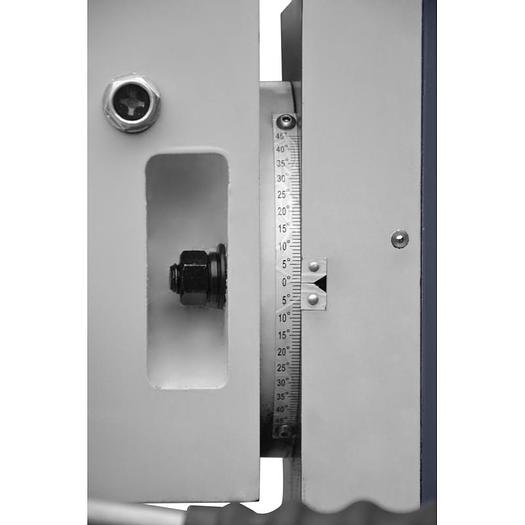

Large cross table with precisely ground surface Quiet operation thanks to ground gear wheels Left and right rotation Rotating head +/- 45 degrees

Height adjustable head

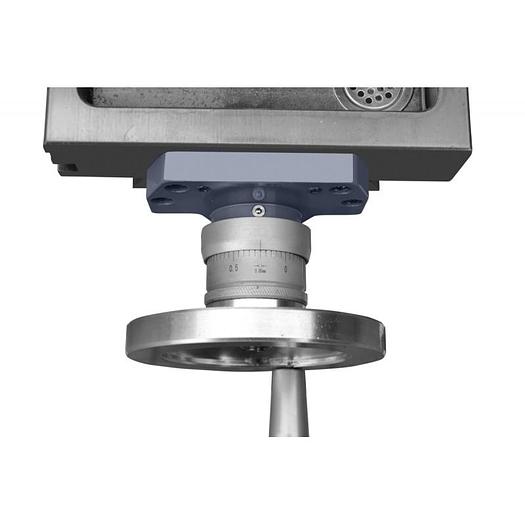

Digital Display for Quill Travel

Technical Details Maximum drilling size (Cast Iron): 32 mm Maximum drilling size (Mild Steel): 25mm Maximum face milling: 63mm Maximum end milling: 16mm

Tapping Capacity: M12 Spindle taper: MT3 Spindle speeds: 95 - 1420 rpm (6 Speeds) Distance of spindle nose from the table: 65 - 460mm Dimensions of Table: 700 x 190mm Travel (x): 460mm Travel (y): 225mm Motor: 0.9kW Machine Dimensions: 1050 x 750 x 1250mm Power: 400V or 230V Net Weight: 185Kg

Note: Machine base in photos is an optional extra

Specifications

ManufacturerCormak
ModelZX 7032G Milling & Drilling Machine
ConditionNew
Maximum Drilling SizeCast Iron/Mild Steel: 32/25mm
Max Face Milling:63mm
Max End Milling16mm
Tapping CapacityM12
Spindle TaperMT3
Spindle speeds95 - 1420 rpm (6 Speeds)
