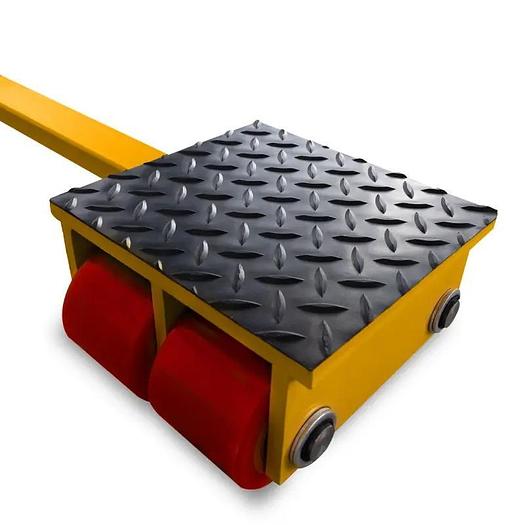

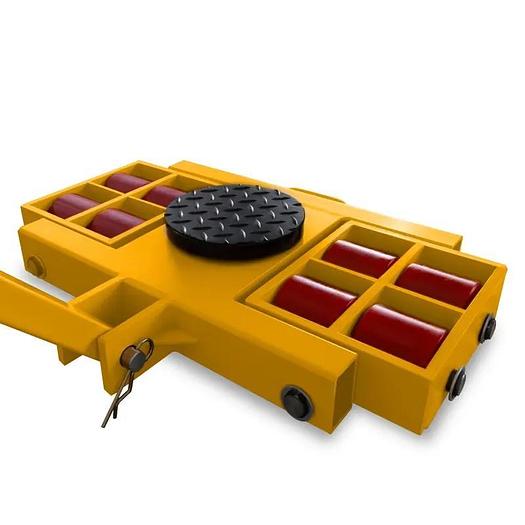

Cormak 18T Transport Skates Set



orCall +353 838108745


Cormak 18Ton Transport Skate Set

Total Load Capacity (WL9 & WF9): 18T

Characteristics A set of transport rollers consisting of a WL9 mobile platform and a WF9 transport chassis. The maximum lifting capacity of the set is 18 tons. Transport rollers enable easy and safe transport of heavy objects. Thanks to the use of polyurethane thread rollers the transported machine and the floor are not damaged. Technical Details - WL9

Rollers size: 85mm

Number of rolls: 12

Capacity: 9000kg

Loading Height: 110mm

Load Bearing Surface: Ø 170mm

Supporting Points: 1

Length of Shaft: 1080mm

Turning Angle of Shaft: ± 90 Degree

Dimensions: 840 x 583 x 110mm

Weight: 59kg Technical Details - WF9

Rollers size: 85mm

Number of rollers: 12

Capacity: 9000kg

Loading Height: 110mm

Load Bearing Surface: 320 x 200mm

Supporting Points: 2

Connector Length: 1000mm

Width distribution of skates: 840-1230mm

Weight: 34kg


Model18T Transport Skates Set
Rollers size85mm
Number of rolls12
Loading Height110mm
Load Bearing SurfaceØ 170mm
Supporting Points1
Length of Shaft1080mm
Turning Angle of Shaft± 90 Degree
Number of rollers12
Load Bearing Surface320 x 200mm
Supporting Points2
Connector Length1000mm
Width distribution of skates840-1230mm
