€495 + VAT

Cormak 6T Transport Skates Set



orCall +353 838108745


Cormak 6Ton Transport Skate Set

Total Load Capacity (WL3 & WF3): 6T

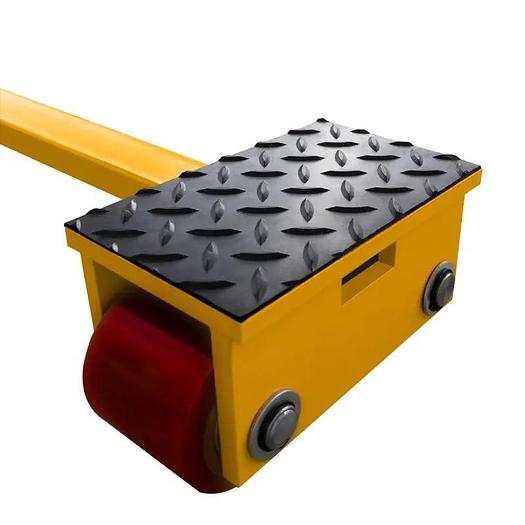

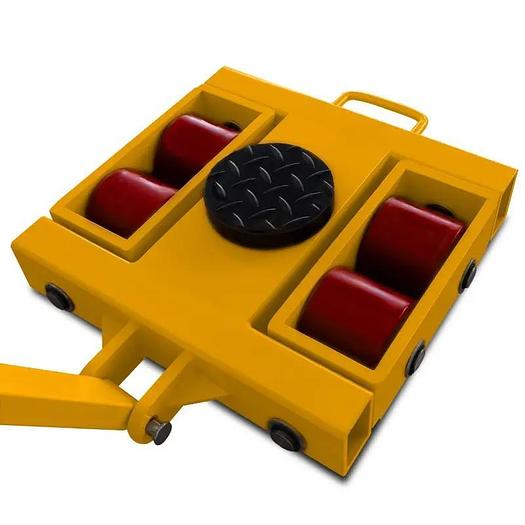

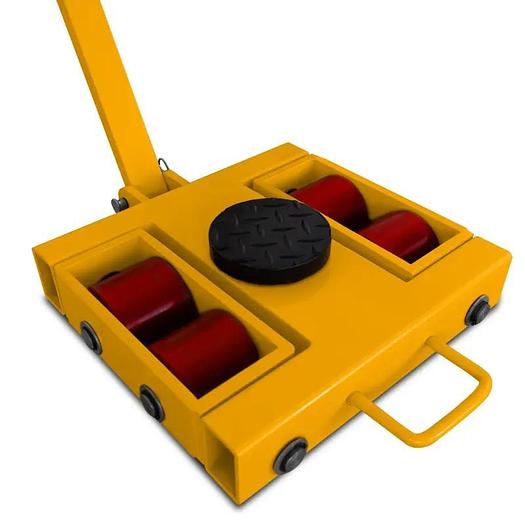

Characteristics A set of transport rollers consisting of a WL3 mobile platform and a WF3 transport chassis. The maximum lifting capacity of the set is 6 tons. Transport rollers enable easy and safe transport of heavy objects. Thanks to the use of polyurethane thread rollers the transported machine and the floor are not damaged. Technical Details - WL3

Rollers size: 85mm

Number of rolls: 4

Capacity: 3000kg

Loading Height: 110mm

Load Bearing Surface: Ø 170mm

Supporting Points: 1

Length of Shaft: 950mm

Turning Angle of Shaft: ± 90 Degree

Dimensions: 270 x 230 x 110mm

Weight: 12kg Technical Details - WF3 Rollers size: 85mm

Number of rollers: 4

Capacity: 3000kg

Loading Height: 110mm

Load Bearing Surface: 150 x 150mm

Supporting Points: 2

Connector Length: 1000mm

Width distribution of skates: 300-1000mm

Weight: 15kg


Model6T Transport Skates Set
Rollers size85mm
Number of rolls4
Loading Height110mm
Load Bearing SurfaceØ 170mm
Supporting Points1
Length of Shaft950mm
Turning Angle of Shaft± 90 Degree
Number of rollers4
Load Bearing Surface150 x 150mm
Supporting Points2
Connector Length1000mm
Width distribution of skates300-1000mm
