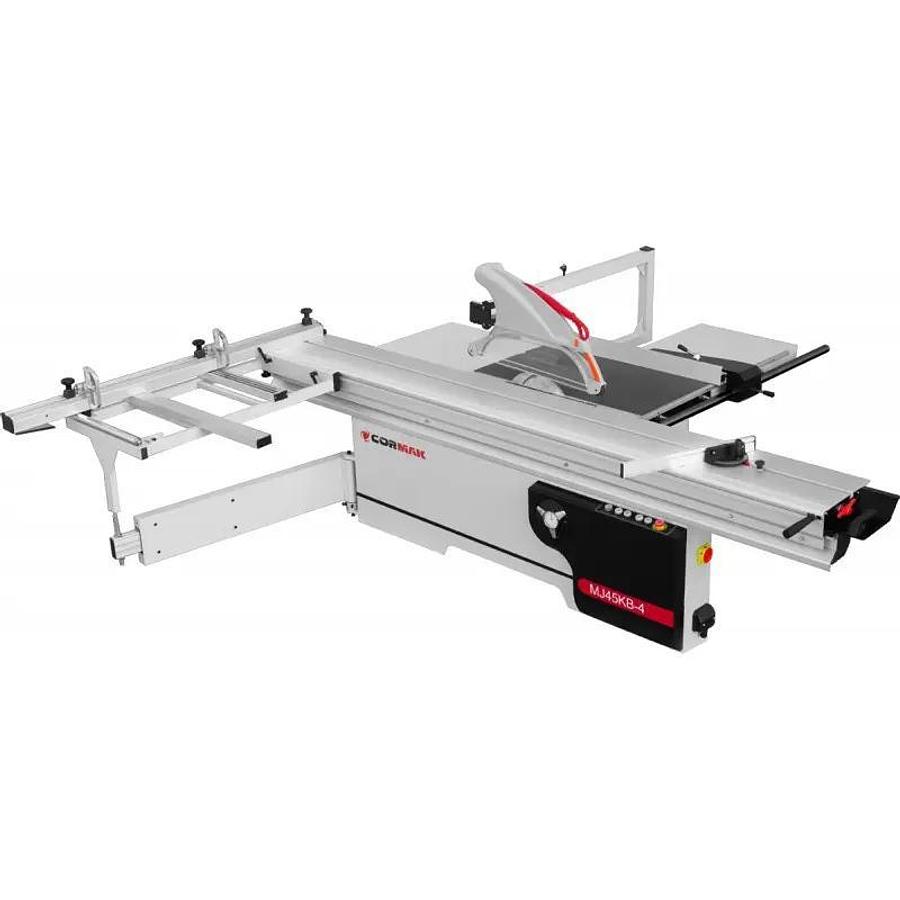

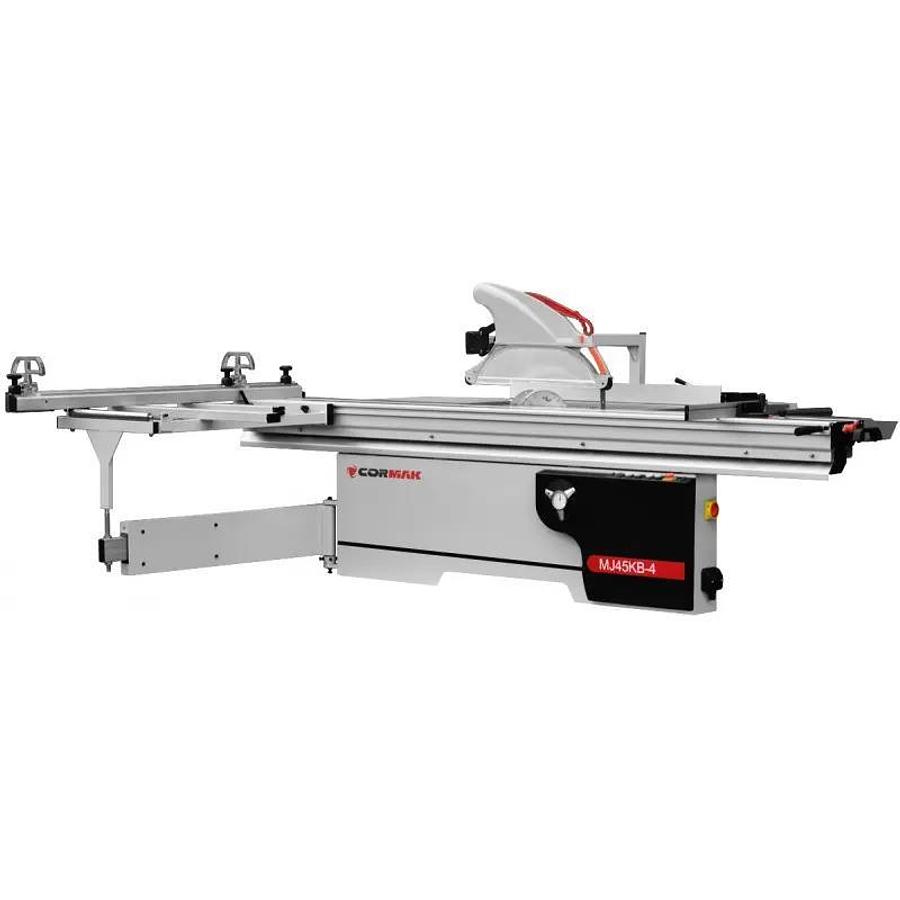

Cormak MJ45-KB4 Sliding Table Panel Saw

Cormak MJ45-KB4 Sliding Table Panel Saw

Machine Type: Sliding Table Panel Saw

Includes: Pneumatic Clamping System

Machine Description

Machine for processing high density boards, MDF boards, ABS panels, PVC, solid wood and other materials based on wood or with a similar structure and hardness. Designed for small and medium-sized carpentry workshops.

Cormak MJ45-KB4 sliding table saw with dual-zone pressure is an advanced tool that stands out for its excellent functionality and precision in cutting various types of materials, mainly wood, chipboard, MDF boards and other wood-based materials.

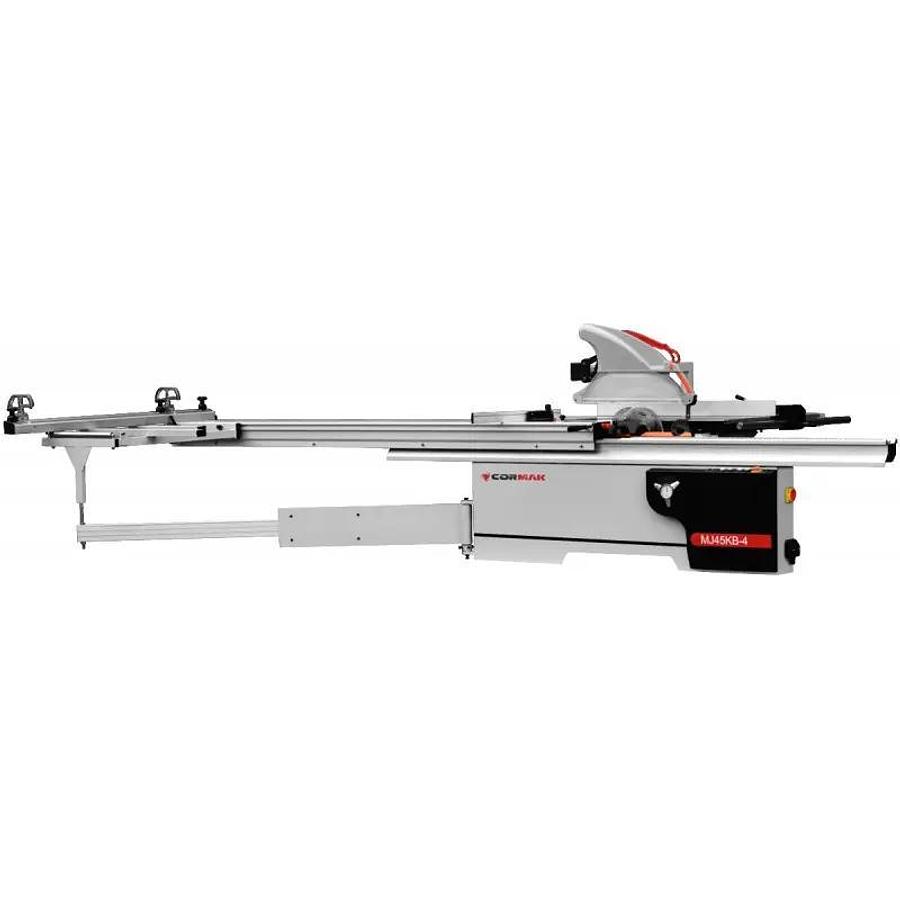

Cormak MJ45-KB4 is a solidly made woodworking machine, with a durable steel frame that ensures stability during work. The large work table with a trolley length of 3200 mm is divided into two zones, with the possibility of independent pressure adjustment. It is equipped with durable, hardened steel rods that guide the cutting tools, ensuring reliability and precision in operation.

Scorer: One of the essential elements of this saw is the scorer, which is equipped with two separate actuators, one for each table zone. The scorer is used to eliminate internal tension in the wood by scoring the bottom of the board. This ensures that the wood is less susceptible to cracking and deformation after cutting. The 0.75 kW power of the scoring motor guarantees reliable cutting and precise adjustment.

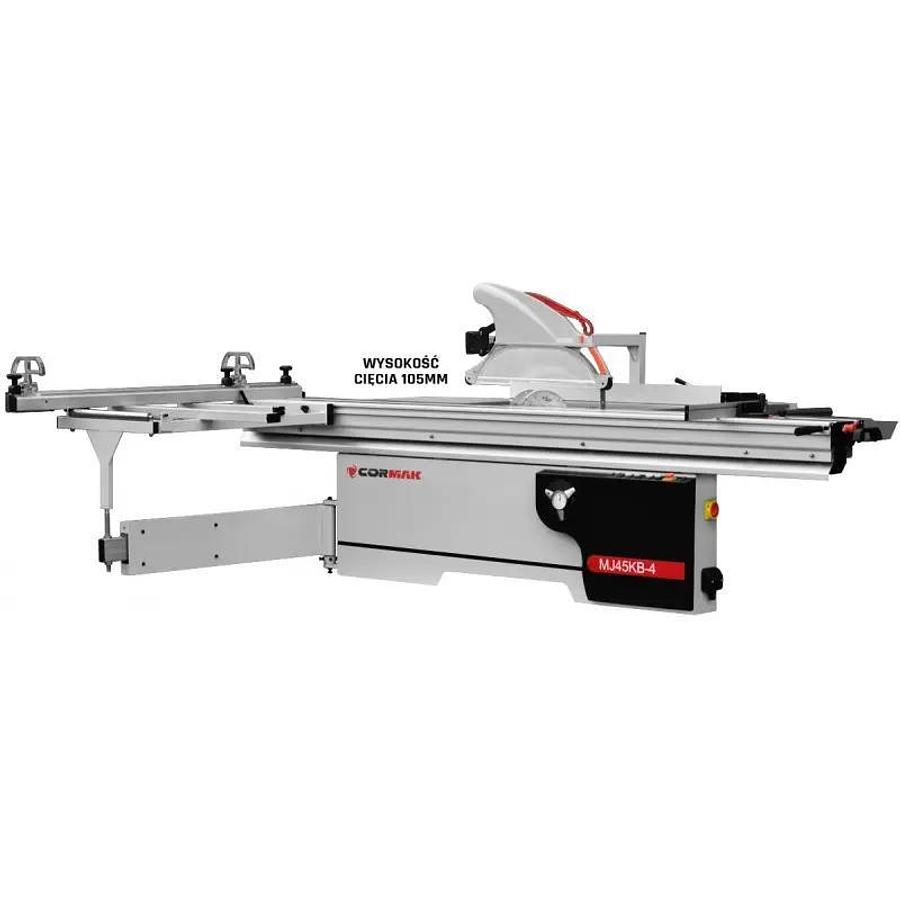

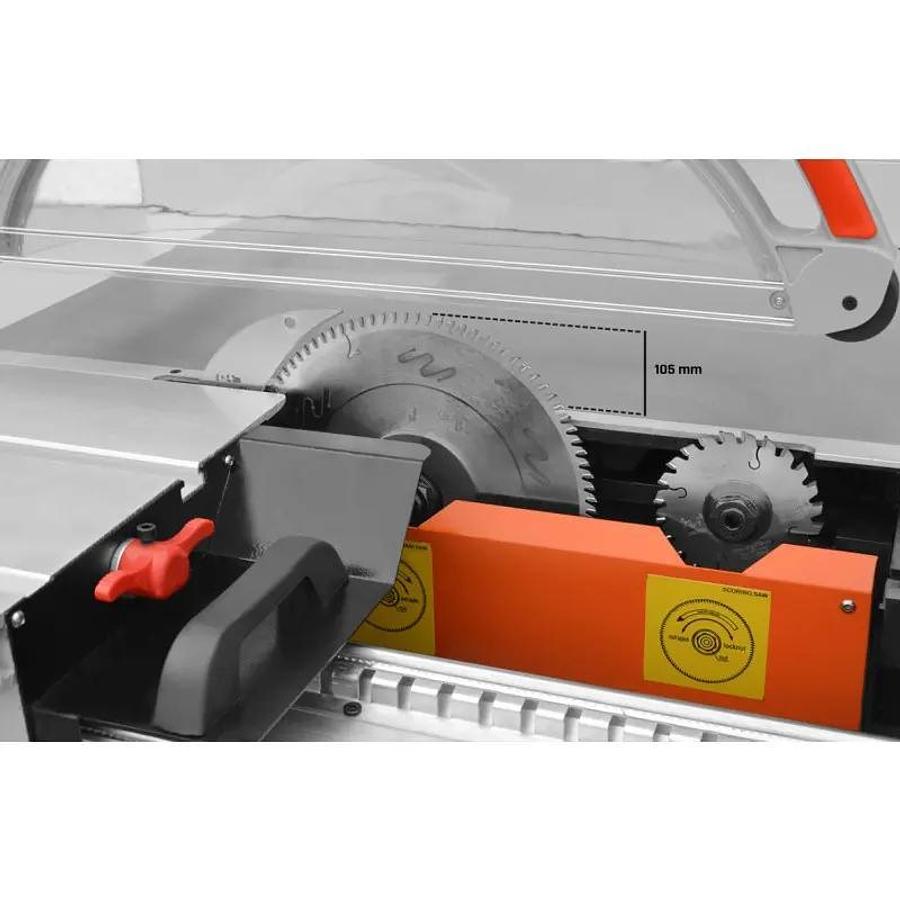

Circular saw: The Cormak MJ45-KB4 sliding table saw is equipped with a circular saw, which is the main cutting tool. The electric motor drives the saw blade, allowing for precise cutting of materials. With a 350 mm diameter blade, the maximum cutting height is 105 mm.

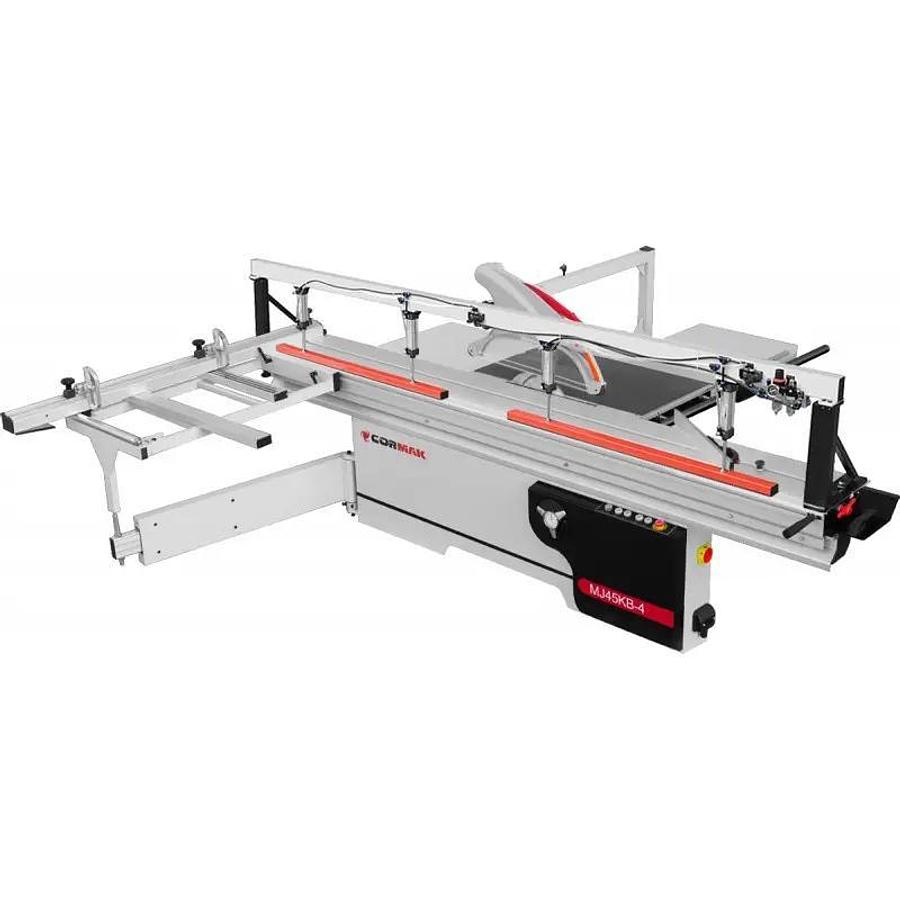

Two zone pressure: The Cormak MJ45-KB4 sliding table saw is equipped with a two-zone pressure, which means that each side of the table can be independently controlled. It has four actuators (two for each zone), which allows for precise pressure adjustment depending on the shape and size of the material being cut. This significantly increases flexibility and accuracy in the cutting process.

Large work surface: The Cormak MJ45-KB4 sliding table saw has a spacious work surface, which makes it easier to handle larger sheets of materials.

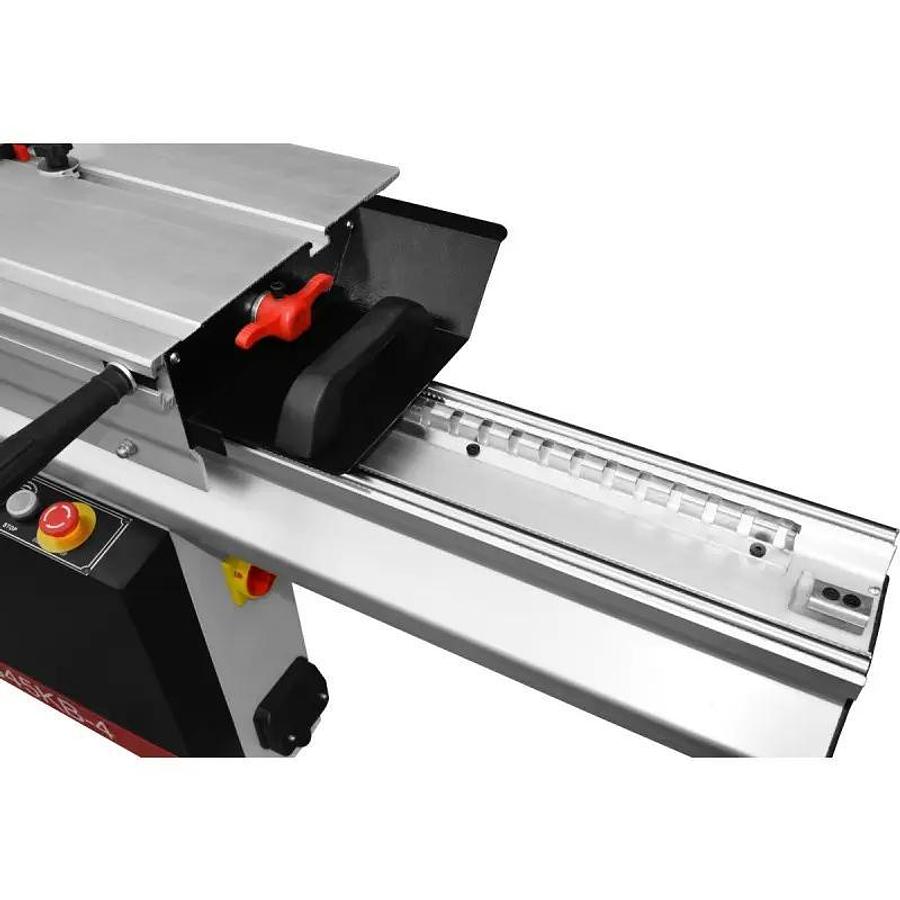

Smooth feed: The feed system uses precise hardened steel guides on which steel balls move, which makes it easier to cut even long sheets of boards or plywood longitudinally.

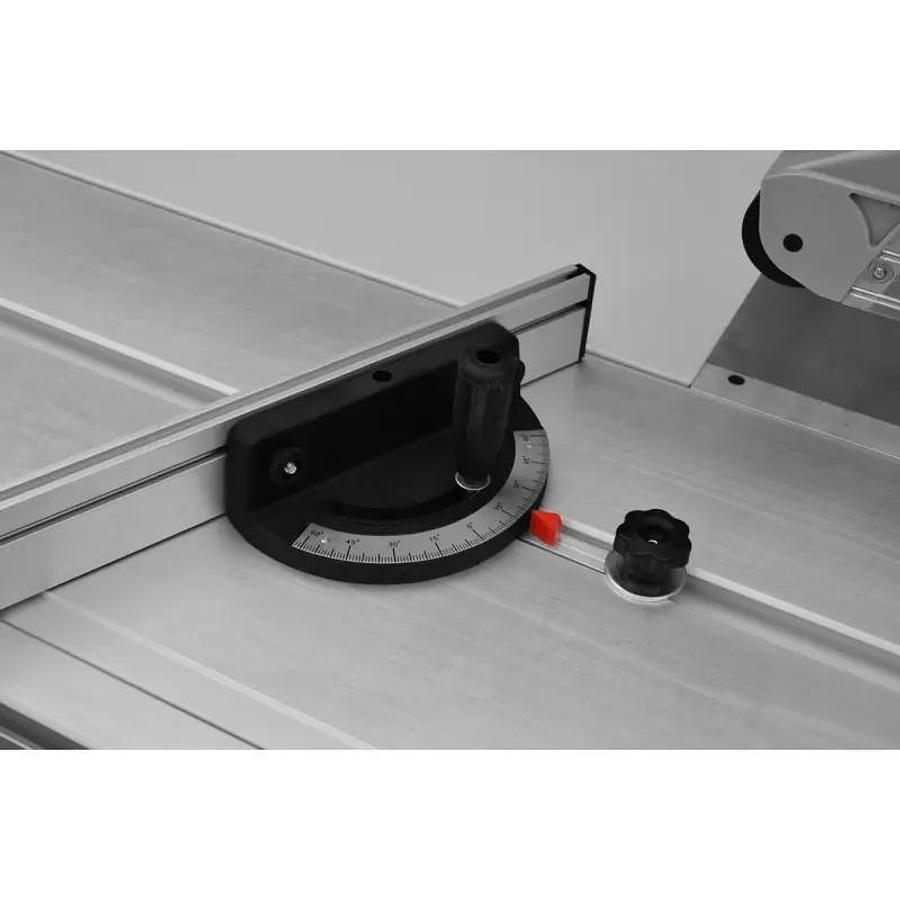

Adjustable cutting angle and depth: The sliding table saw allows for precise adjustment of the cutting angle and depth, which allows you to adapt the tool to various design needs.

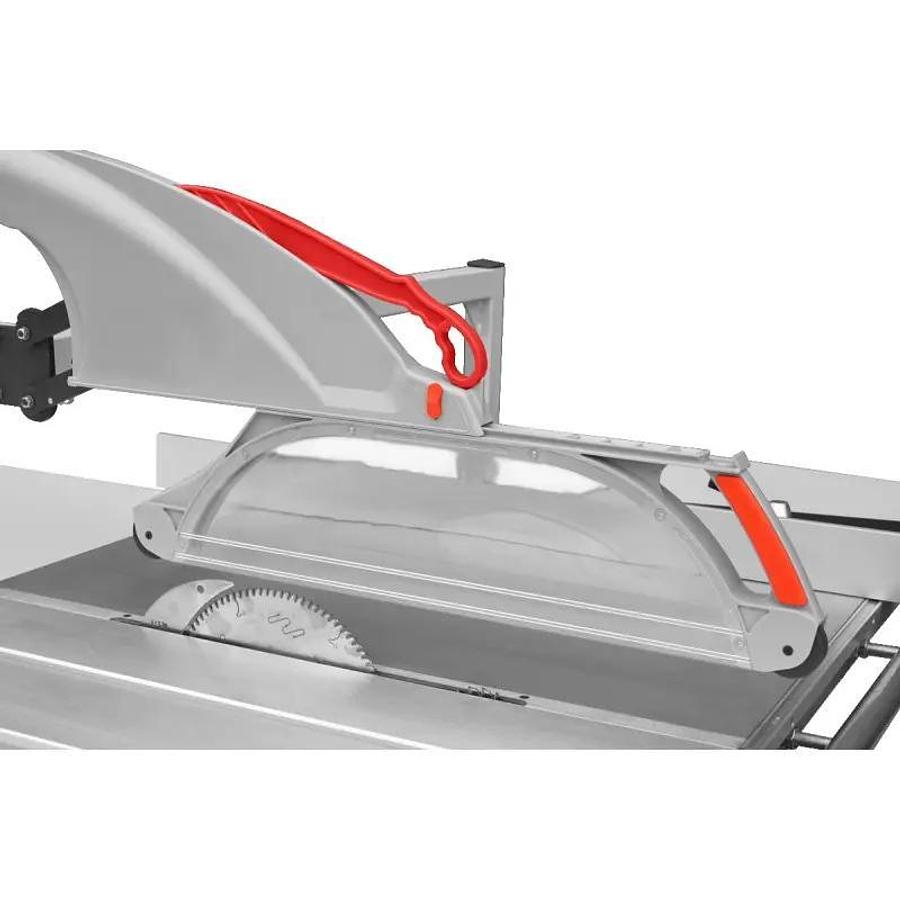

Security system: The Cormak MJ45-KB4 is equipped with safety systems, such as guards and emergency stop mechanisms, which ensure safety during work.

Application of a saw, a wood format saw:

A format saw with a two-zone pressure works great in the carpentry industry, window joinery and in other industries where precision and cutting quality are key. It is ideal for cutting boards, chipboards, MDF panels and other wood-based materials, offering not only excellent precision, but also high efficiency. Cormak MJ45-KB4 is a tool that will meet the expectations of both professionals and industrial plants looking for reliability and accuracy in the cutting process.

Technical Specifications

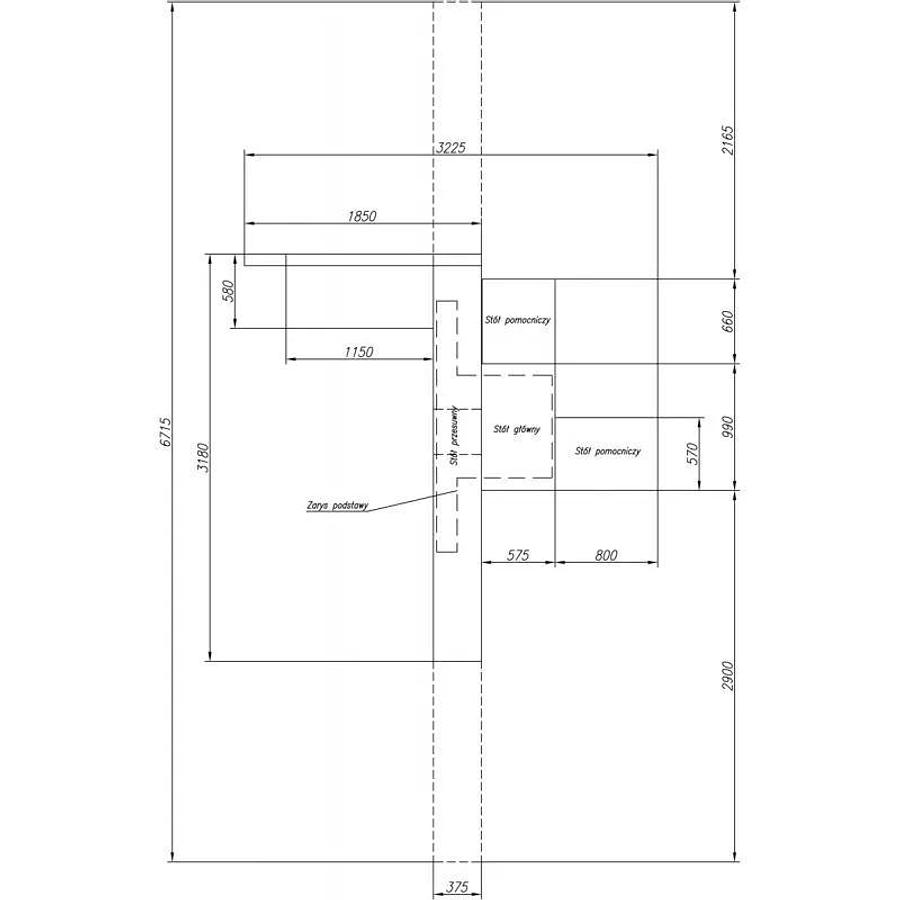

Table dimensions: 990 x 575 mm

Sliding table length: 3200 mm

Cutting width at the guide: 1250 mm

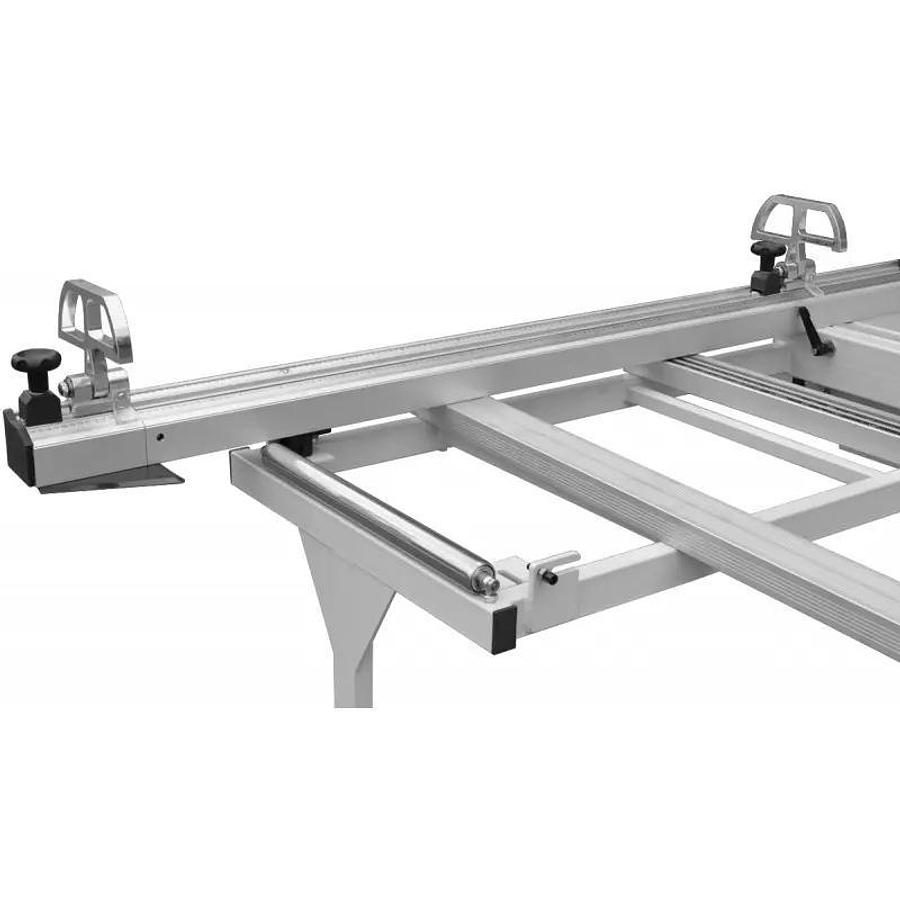

Cross cut at the cross-cutting guide: 3100 mm

Saw tilt: 0° - 45°

Saw diameter: Ø350 mm

Saw bore diameter: Ø30 mm

Saw blade height: 0-105 mm

Saw blade height at: 45° 0-80 mm

Main saw spindle speed: 4000 / 6000 rpm

Scorer saw diameter: Ø125 mm

Scorer saw bore diameter: Ø20 mm

Scorer saw speed: 8000 rpm/min

Main motor power S1/S6: 5.5 kW / 9 HP

Scorer motor power S1/S6: 0.75 kW / 1.2 HP

Suction port diameter under the table: 100 mm

Suction port diameter in the blade guard: 80 mm

Machine weight: 680 kg
