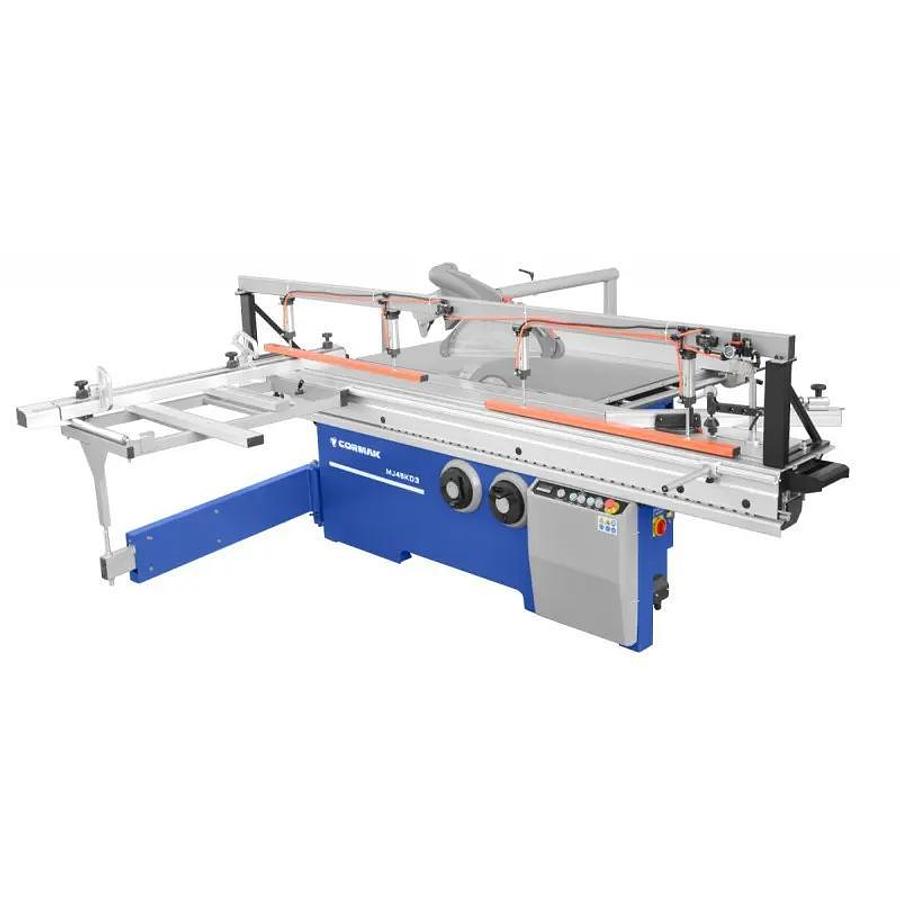

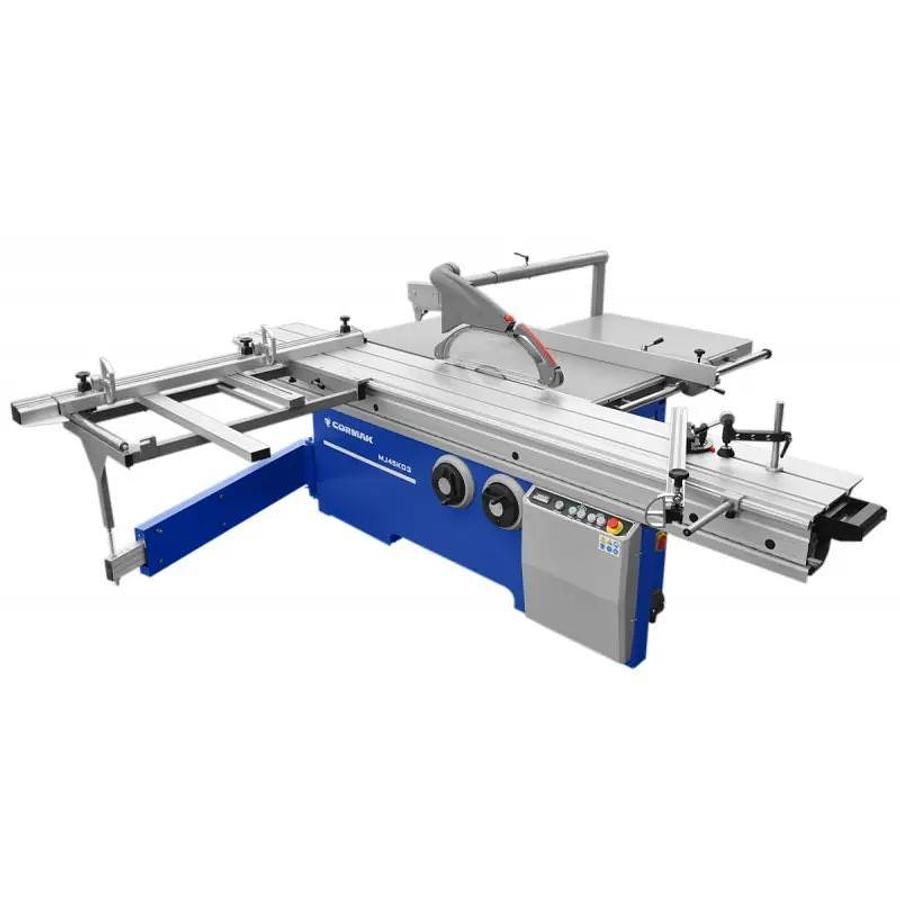

Cormak MJ45-KD3 Sliding Table Saw

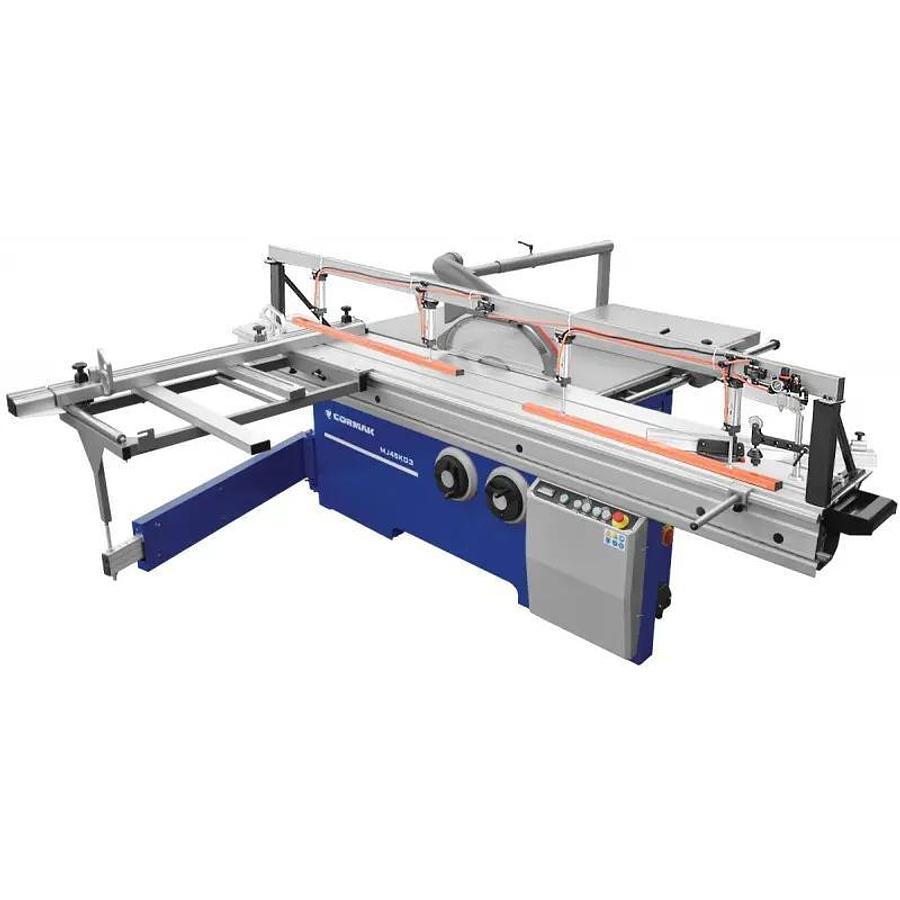

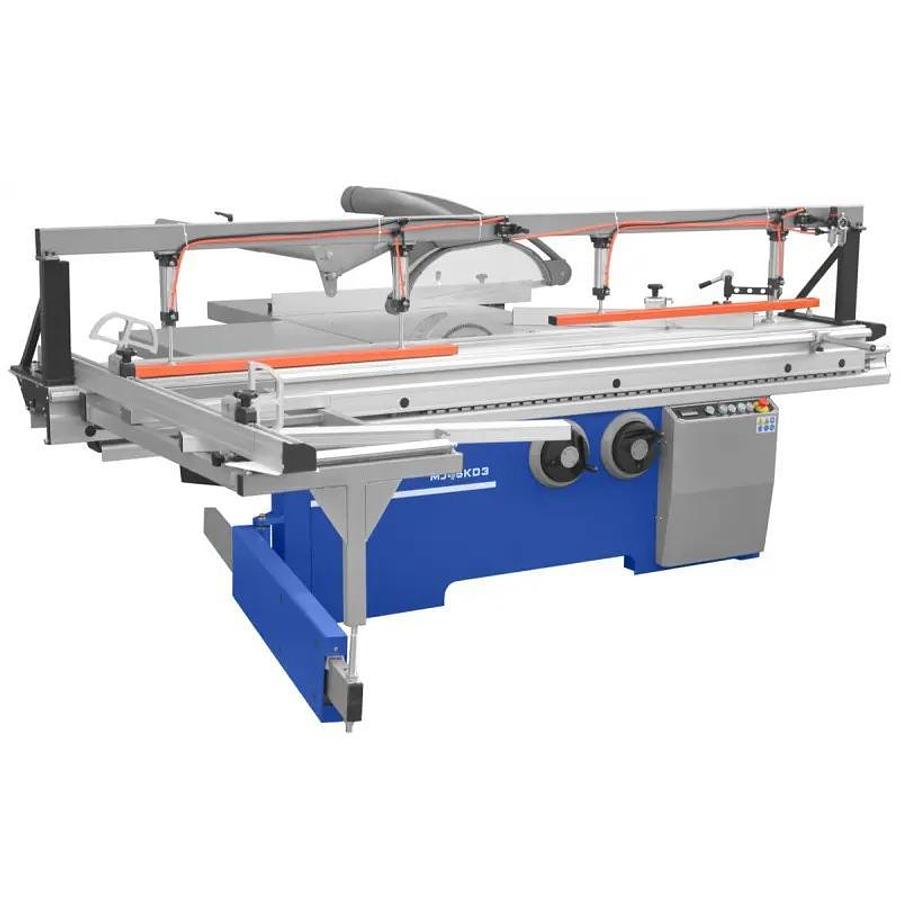

Cormak MJ45-KD3 3200 Sliding Table Saw

Machine Type: Sliding Table Panel Saw with Scoring Blade

Machine Description

Professional machine for processing high density boards, MDF boards, ABS panels, PVC, solid wood and other materials based on wood or similar structure and hardness. In the set with a pneumatic clamp.

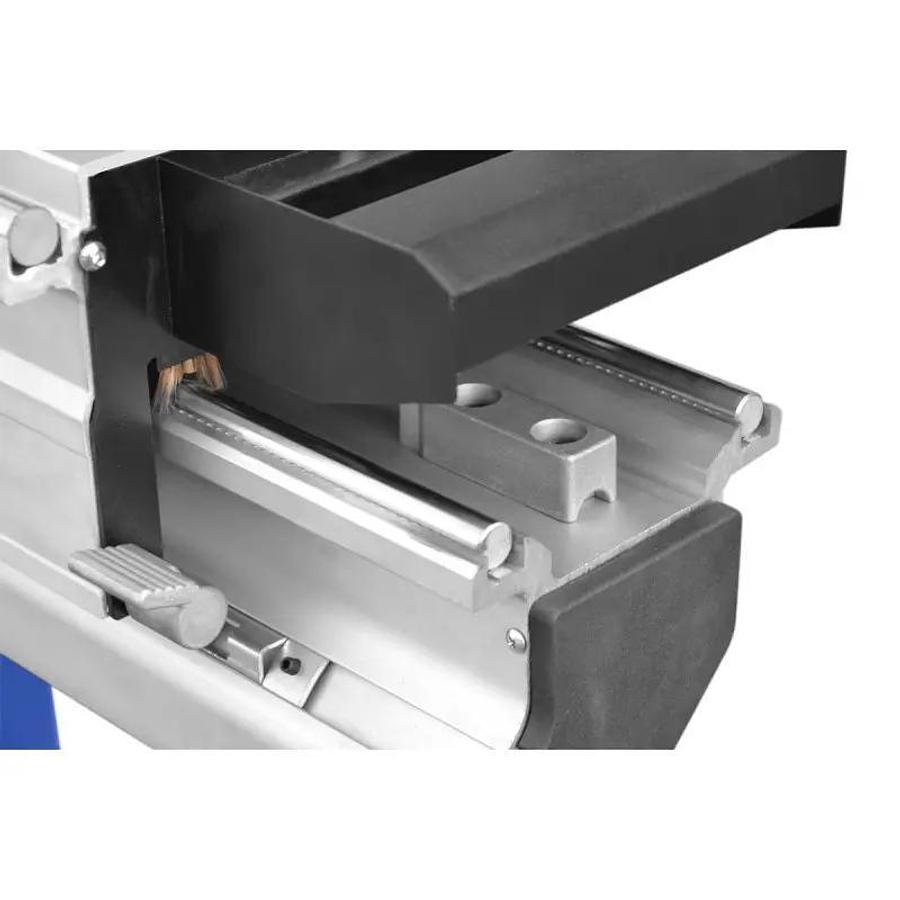

Guided on rails. Large body of the machine based on a closed-profile frame provides rigidity and perfect cutting conditions. Big 3200×420 mm sliding table makes it perfect both for professionals and novices.

Technical Specification

Blade diameter / bore diameter: 350 / 30 mm

Saw blade tilt range: 0–45°

Speed: 2800 / 4000 / 4800 rpm

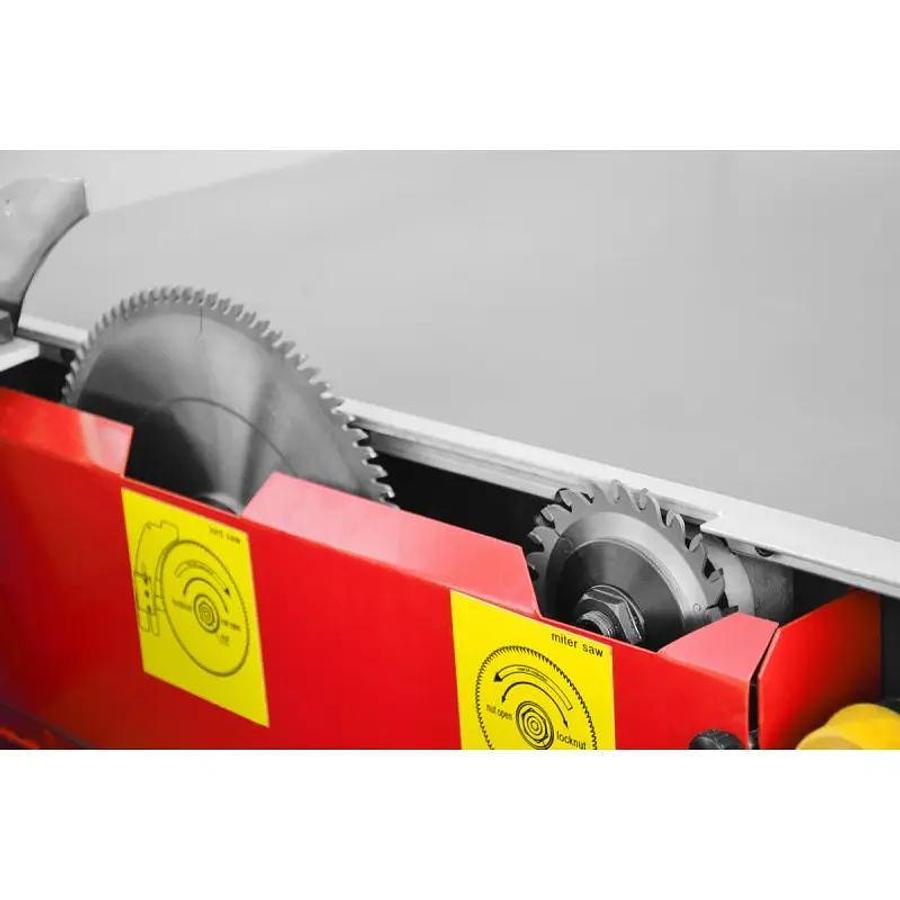

Scoring saw diameter / bore diameter: 120 / 20 mm

Scoring speed: 7500 rpm

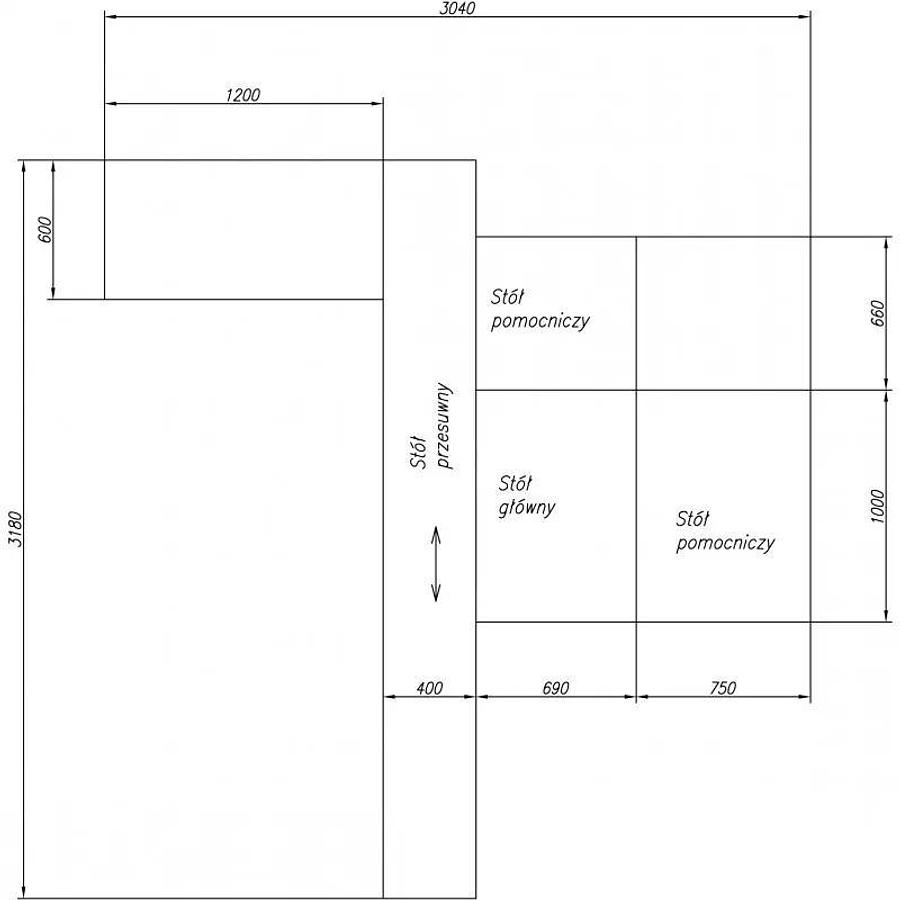

Table dimensions: 945×720 mm

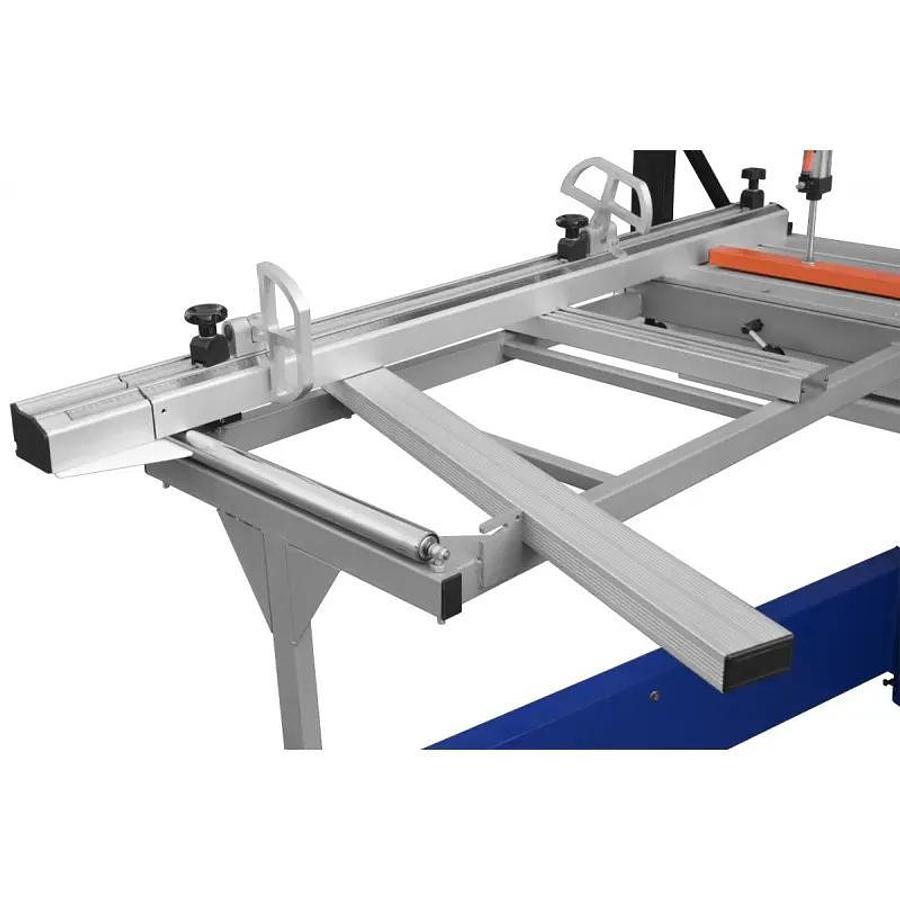

Sliding table: 3200×420 mm

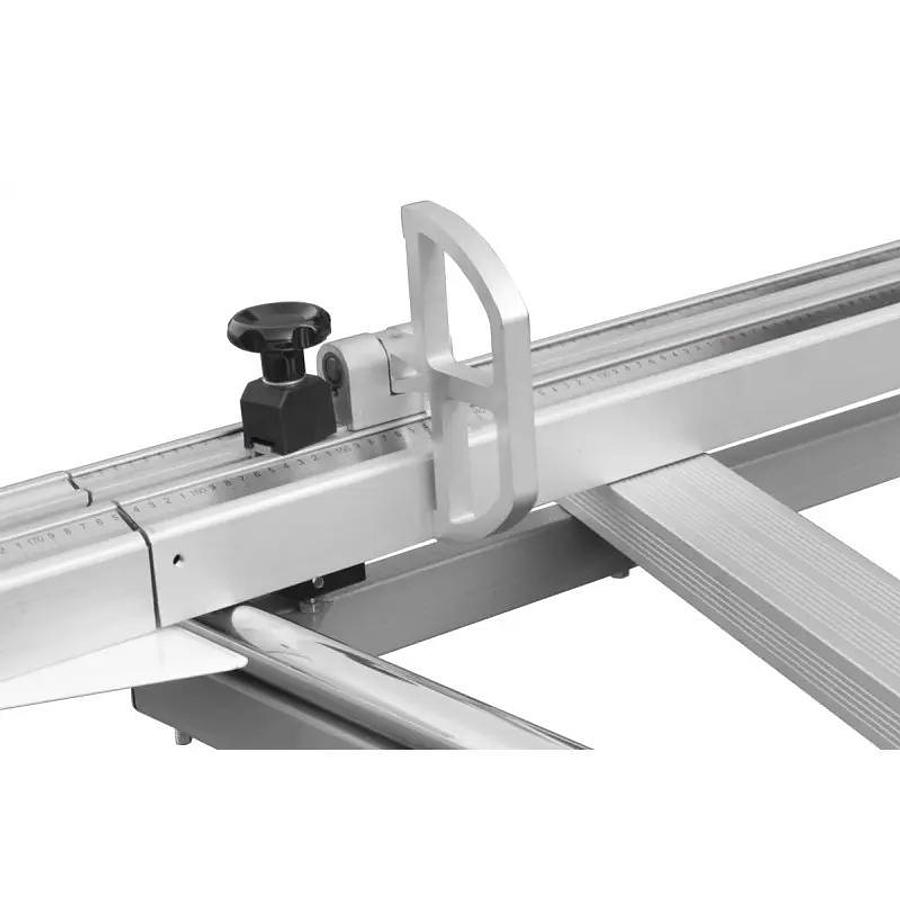

Cutting width by fence: 1200 mm

Transverse cut by the fence for transverse cutting: 3200 mm

Intake connector under table diameter: Ø100 mm

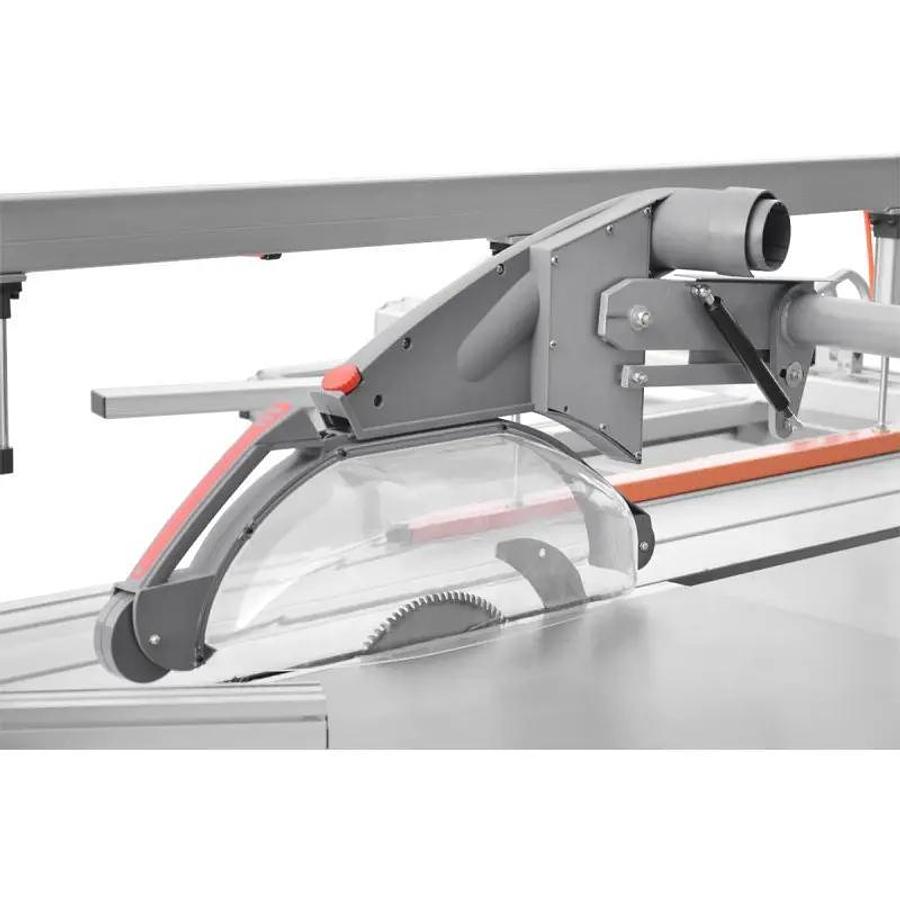

Intake connector diameter in saw guard: Ø80 mm

Minimum air speed: 20 m/s

Minimum airflow: 565 mm³/h

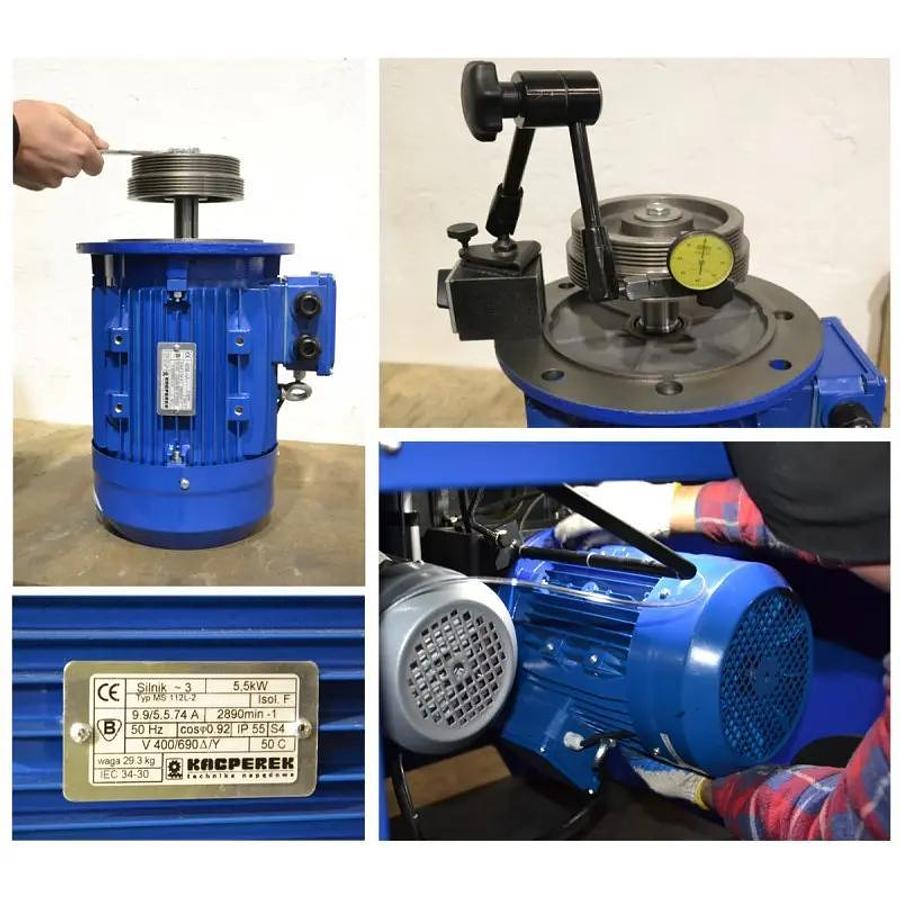

Main motor power: 5.5 kW

Scoring motor power: 1.1 kW

Weight: 850 kg
