2021 MVD A175-3700 Hydraulic Pressbrake – ESA S660W Graphic CNC Control

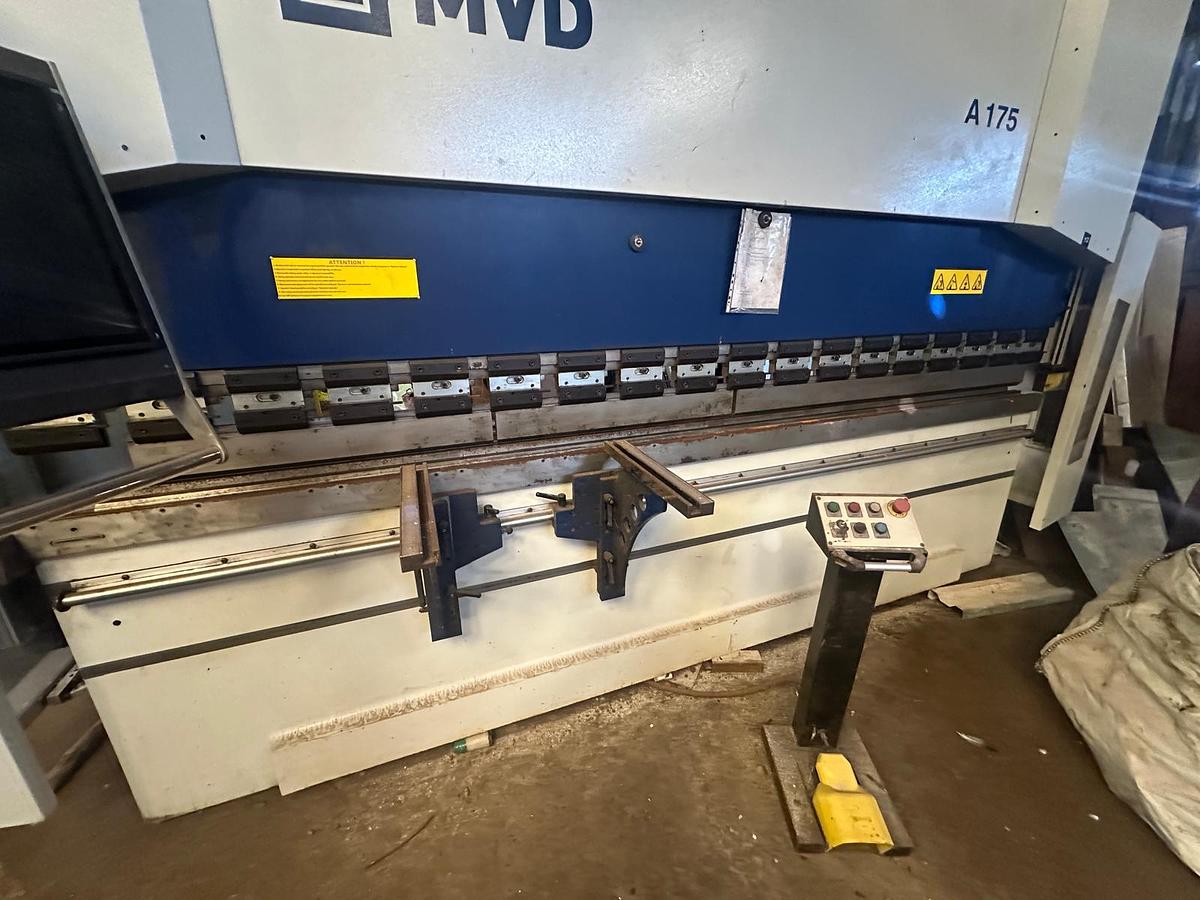

2021 MVD A175-3700 Hydraulic Pressbrake with ESA S660W Graphic Control – Excellent Condition

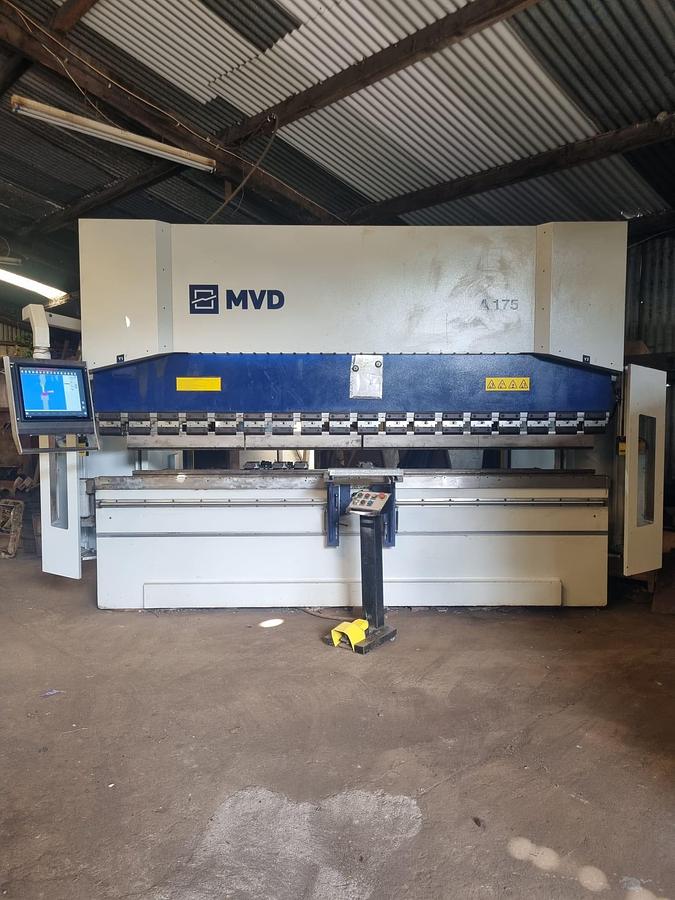

For sale is a 2021 MVD A175-3700 Hydraulic CNC Pressbrake, equipped with the advanced ESA S660W Graphic CNC Control. This machine is in very good condition, and is ready for immediate use in production.

MVD are globally recognised for their high-precision sheet metal forming machinery, combining durability with operator-friendly CNC controls. The A175-3700 offers exceptional performance for fabricators, subcontractors, and manufacturing companies needing reliable and accurate bending of sheet materials.

Machine Make: MVD

Machine Model: A175-3100

Machine Type: CNC Pressbrake

Machine Capacity: 3100 x 175T

Machine Year: 2021

Machine Control: ESA S660W CNC Graphic Control

✅ Key Features

• 175-ton hydraulic pressbrake with 3700 mm bending length

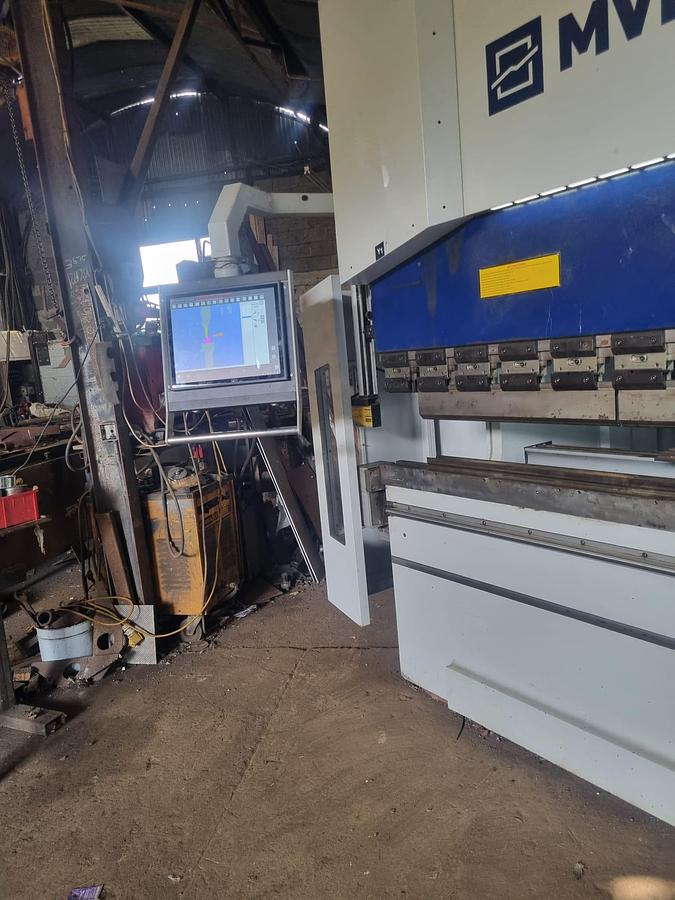

• ESA S660W Graphic CNC Control – intuitive 2D/3D programming, touchscreen interface

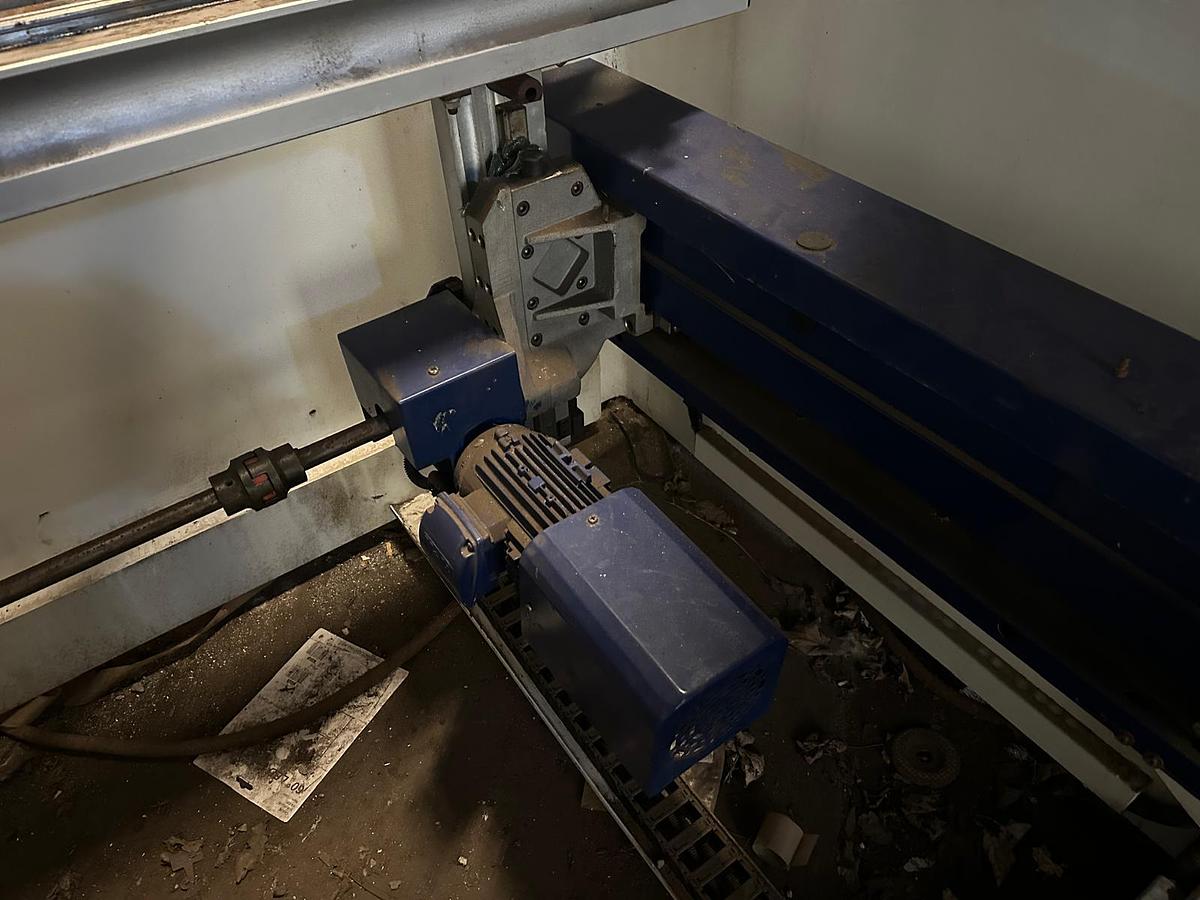

• 4-axis CNC (Y1, Y2, X, R) for flexible production
• High precision crowning system for consistent bending angle
• Heavy-duty welded steel frame for stability and long-term accuracy

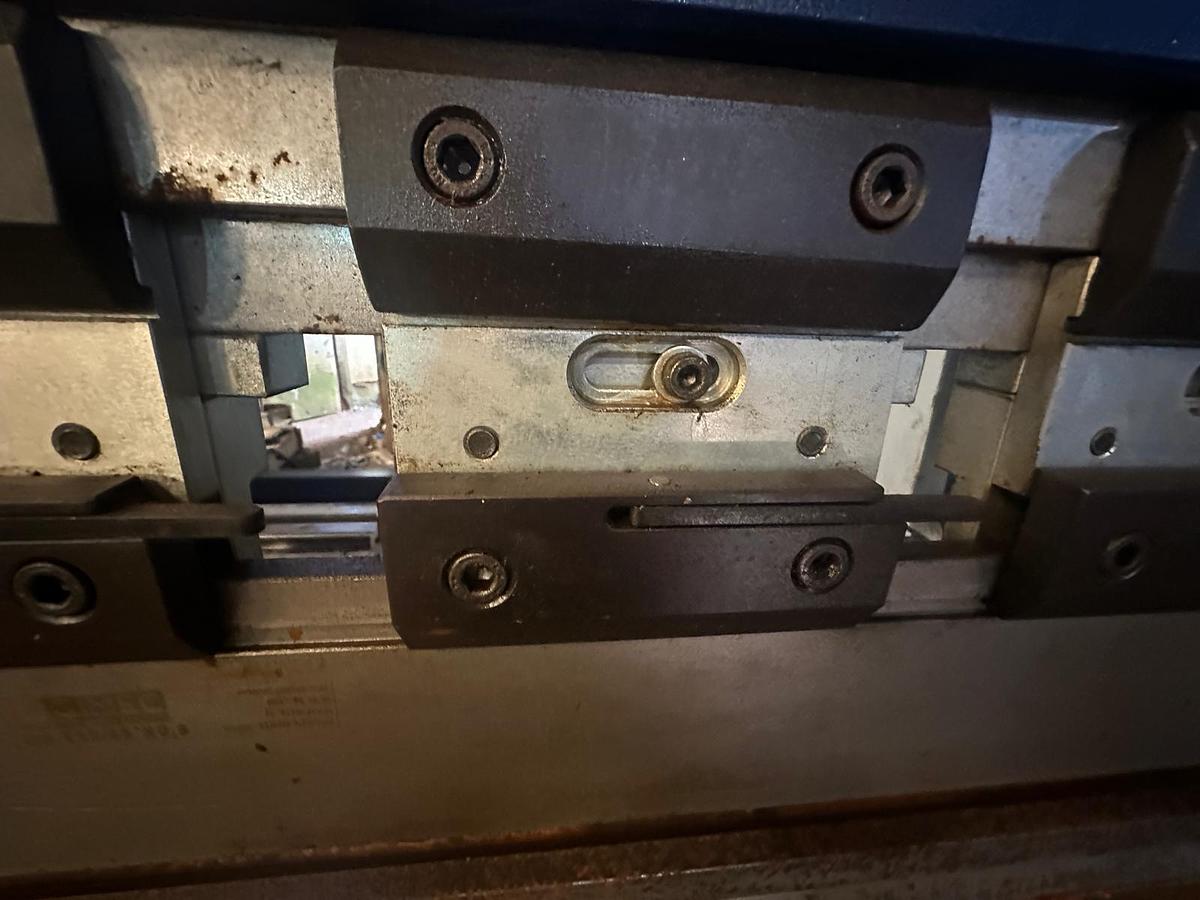

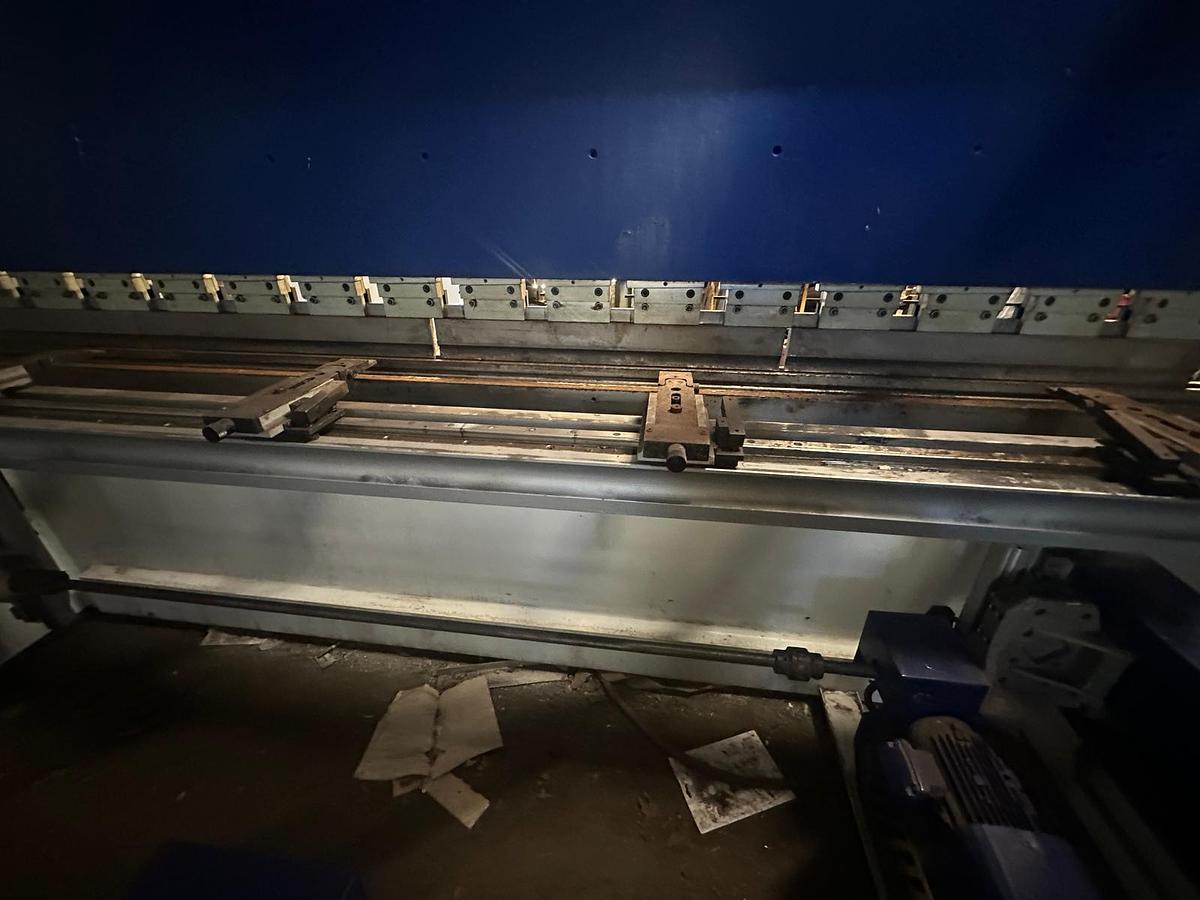

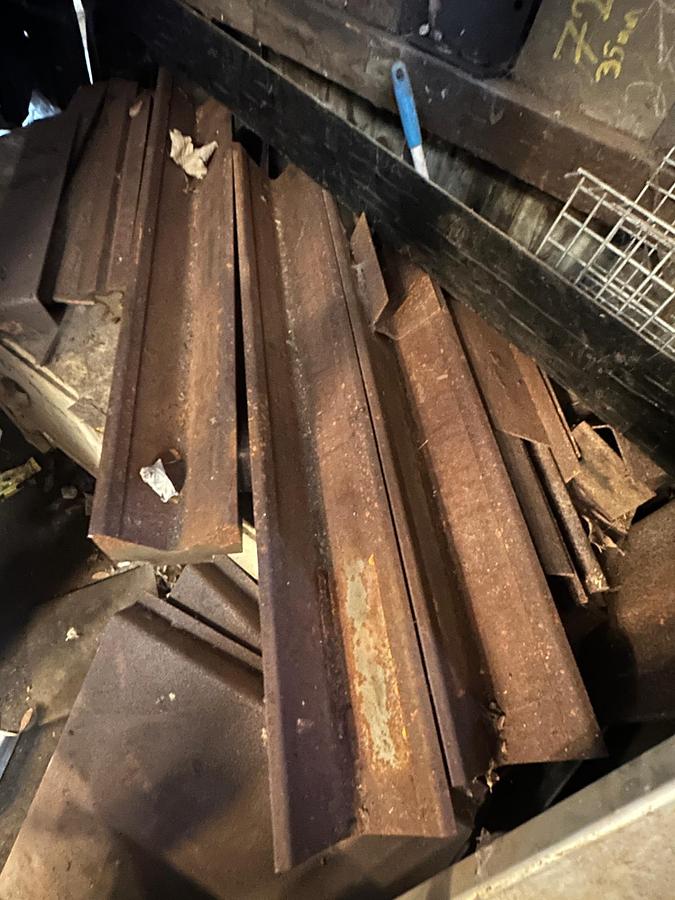

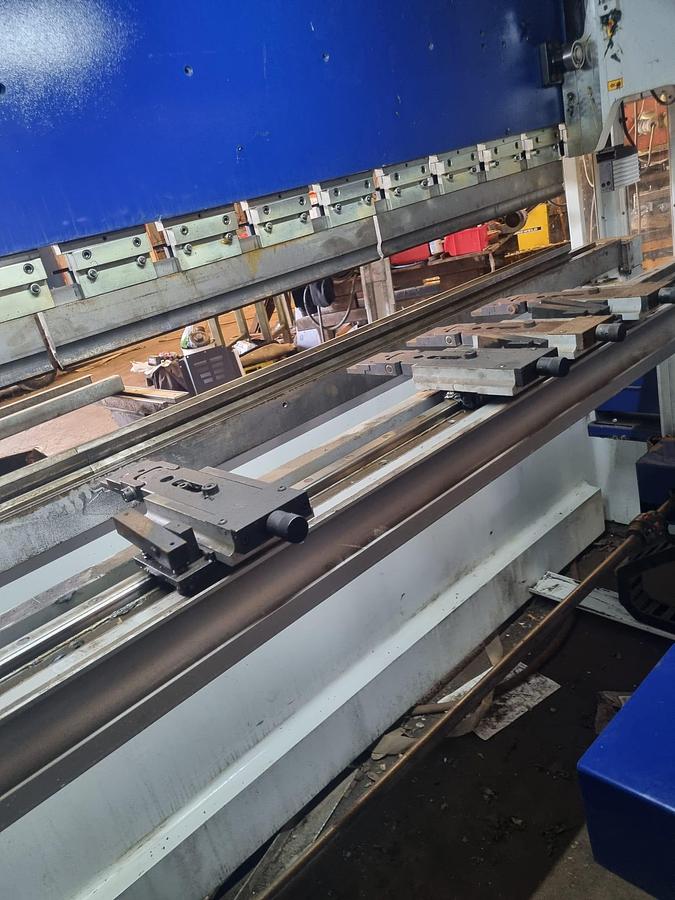

• European-style tooling system – quick and easy tool changes

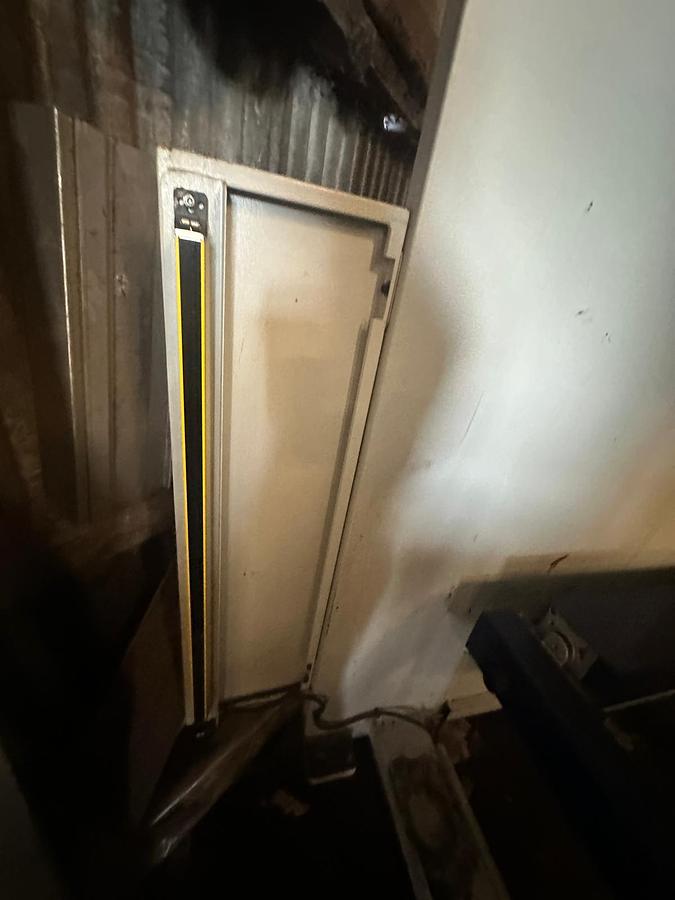

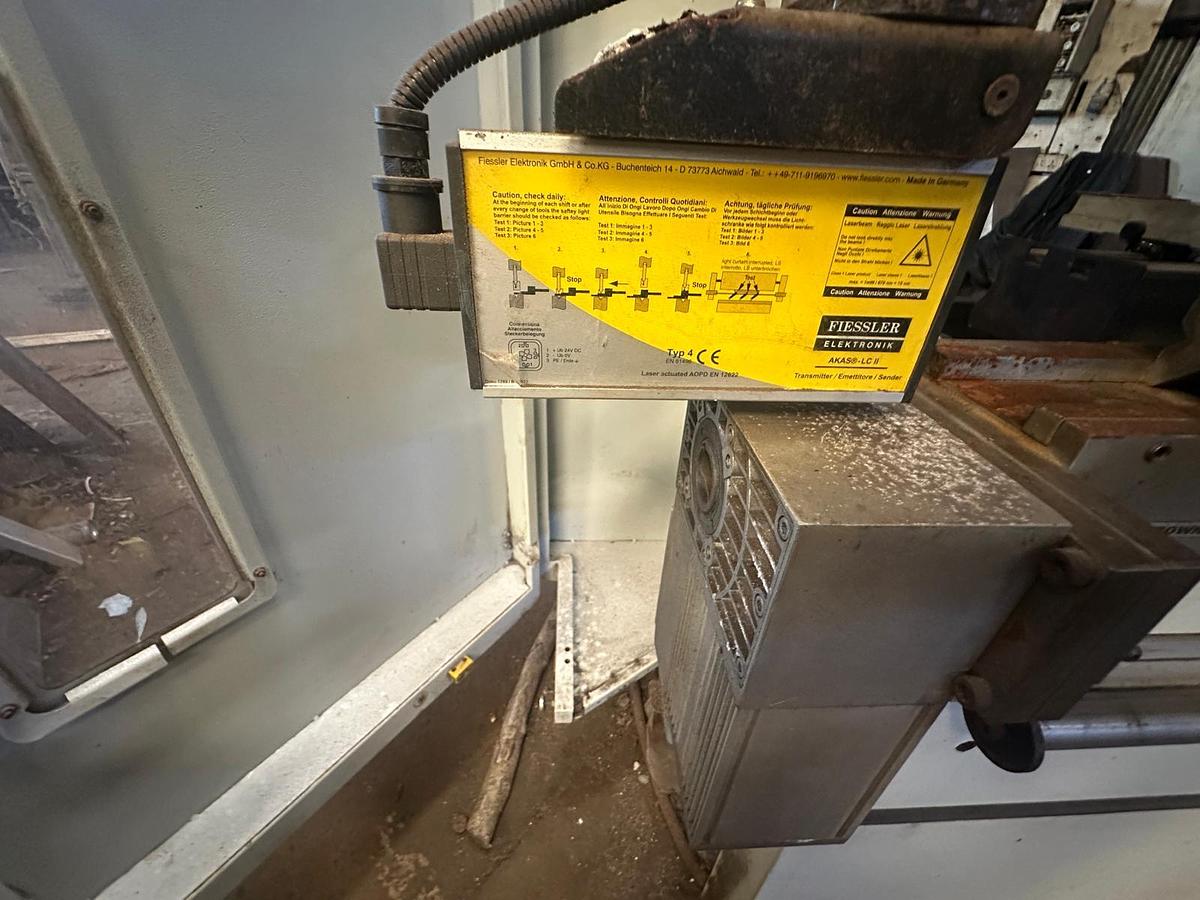

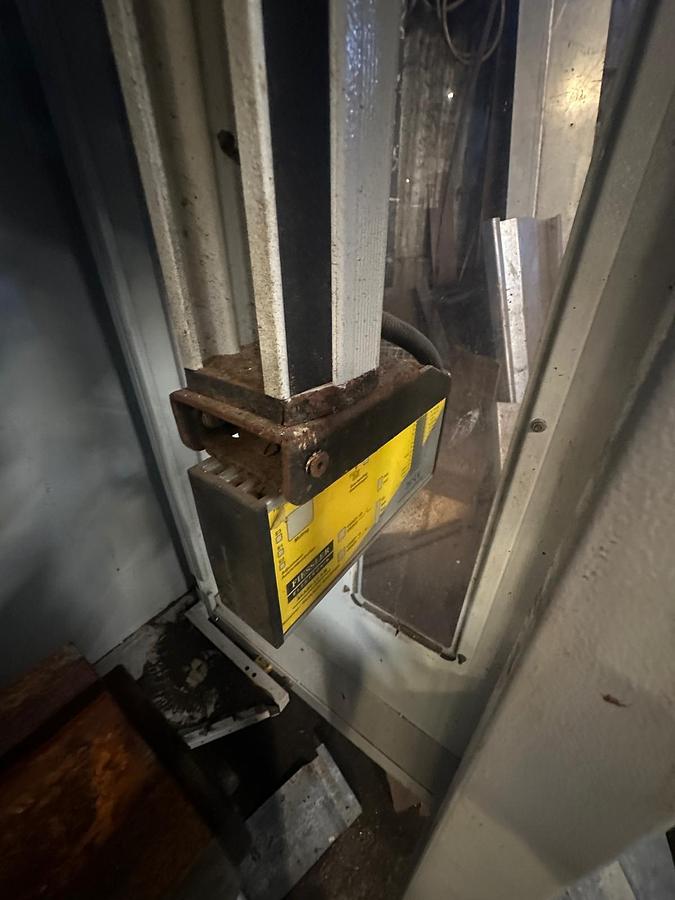

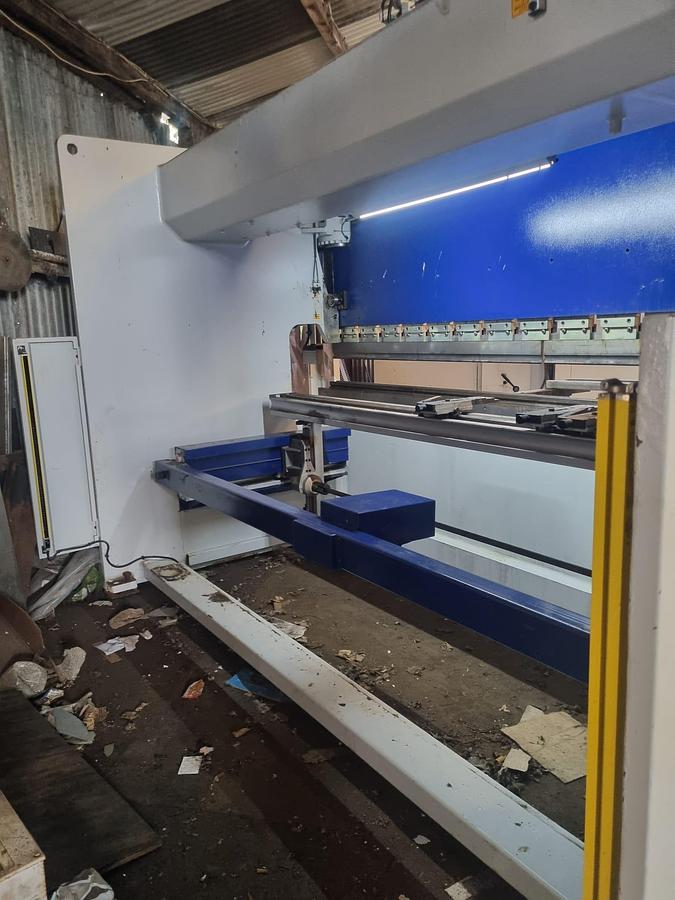

• Safety light guards for operator protection
• Excellent condition – 2021 model, lightly used

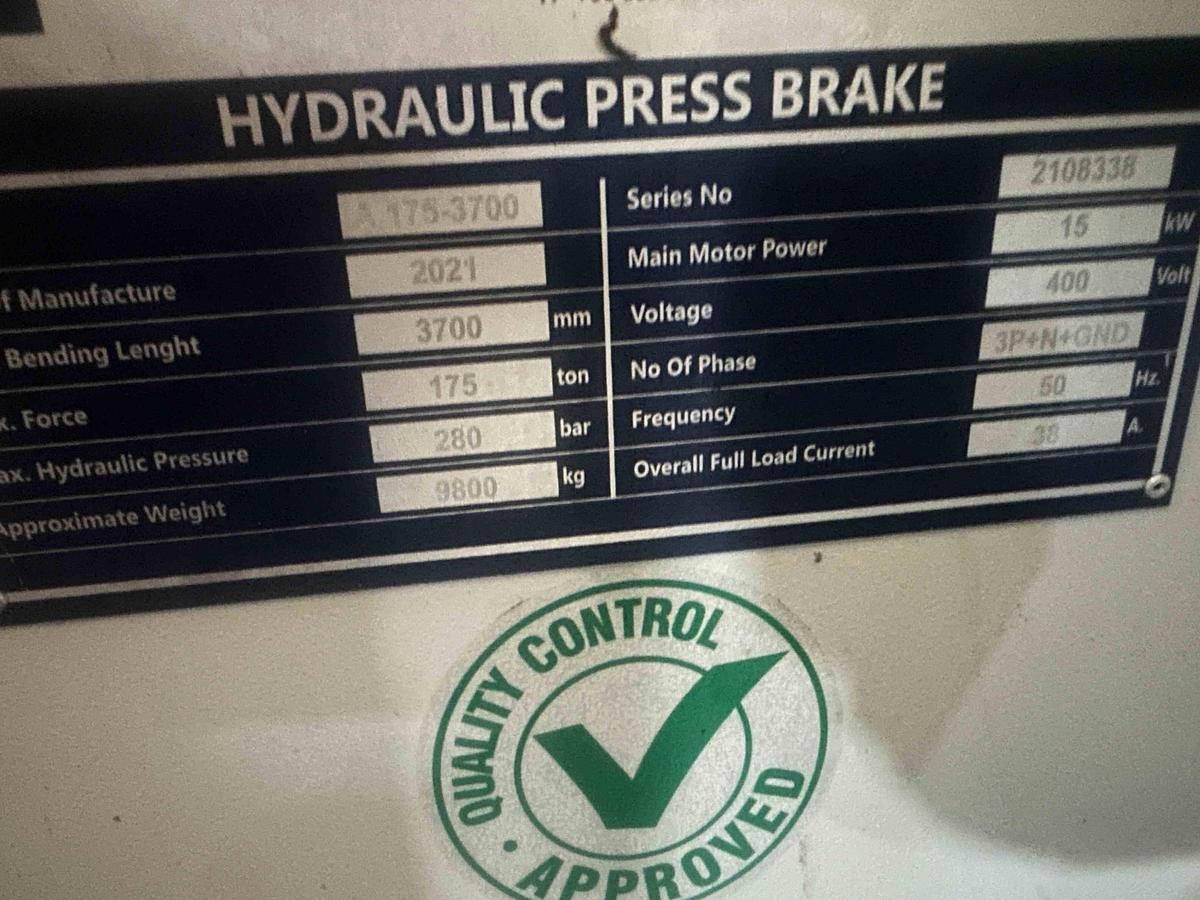

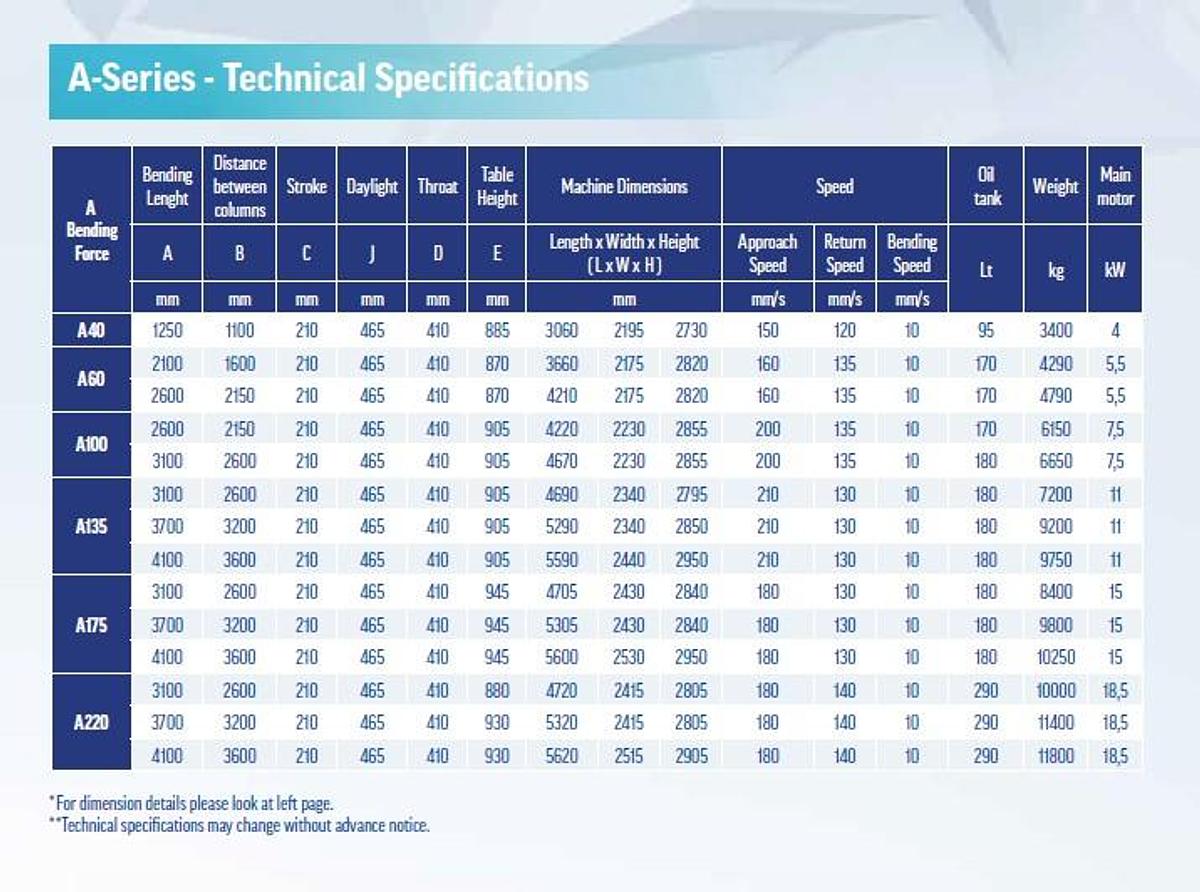

📐 Technical Specifications – MVD A175-3700

• Press Capacity: 175 tonnes
• Bending Length: 3700 mm
• Distance Between Frames: ~3050 mm
• Stroke (Ram Travel): 265 mm
• Daylight Opening: 520 mm
• Throat Depth: 410 mm
• Table Width: 90 mm
• Axis Configuration: Y1, Y2, X, R (4-axis CNC)
• Control: ESA S660W Graphic CNC – touchscreen with 2D/3D programming

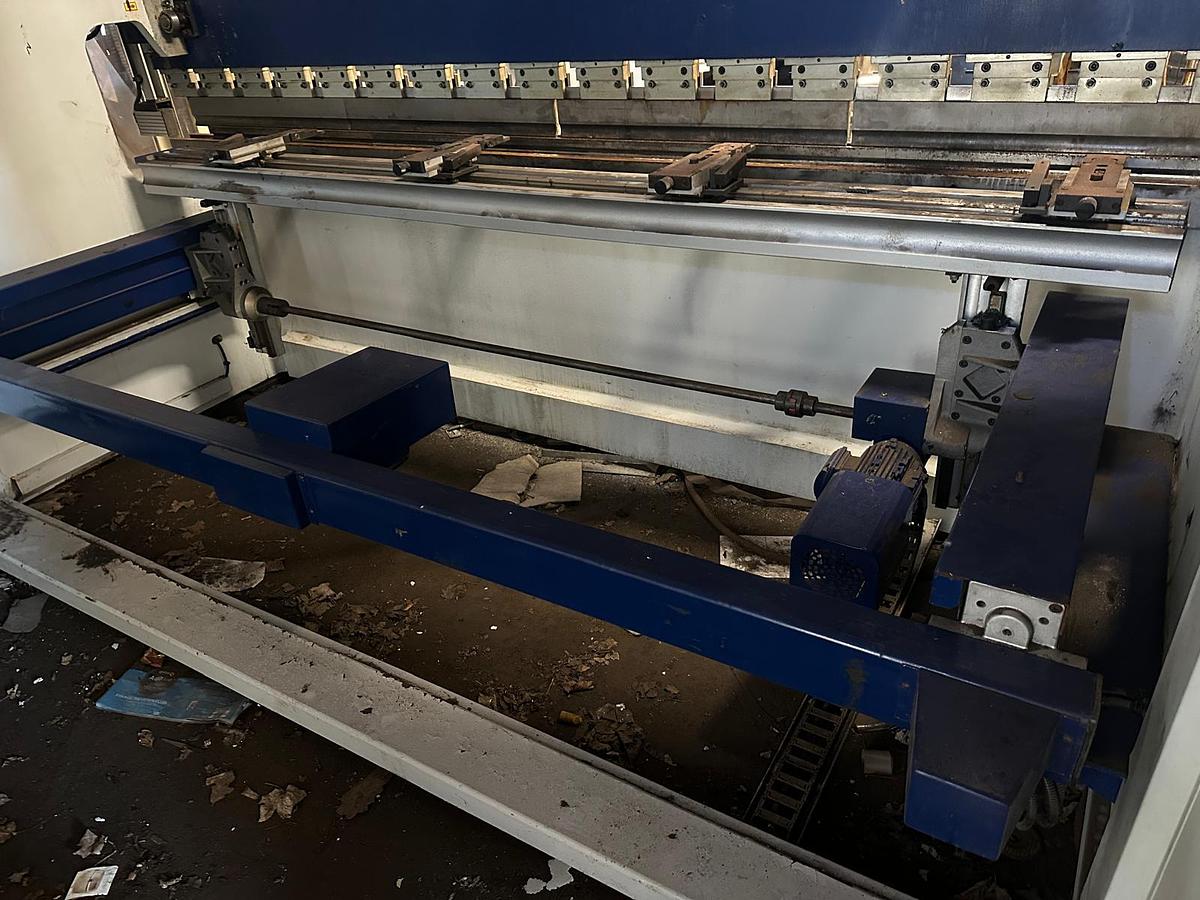

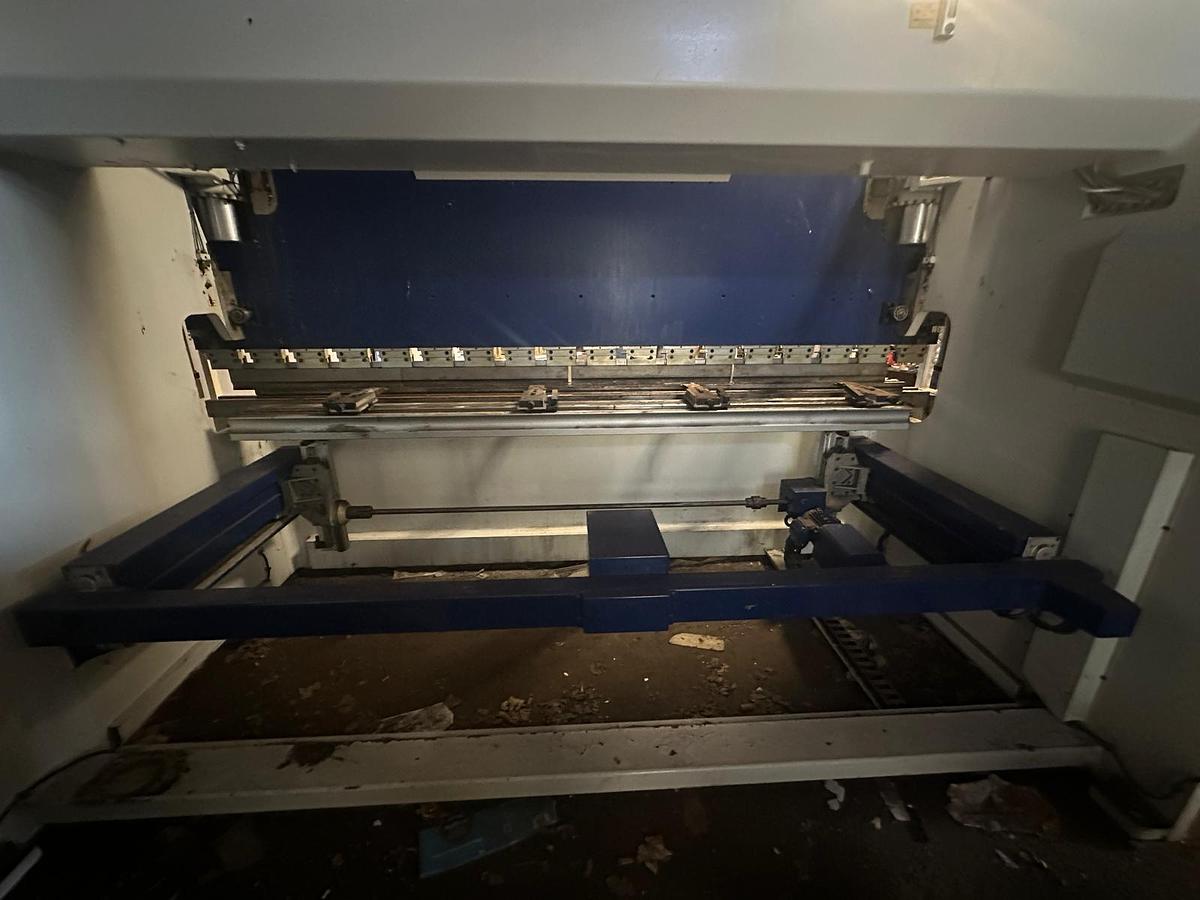

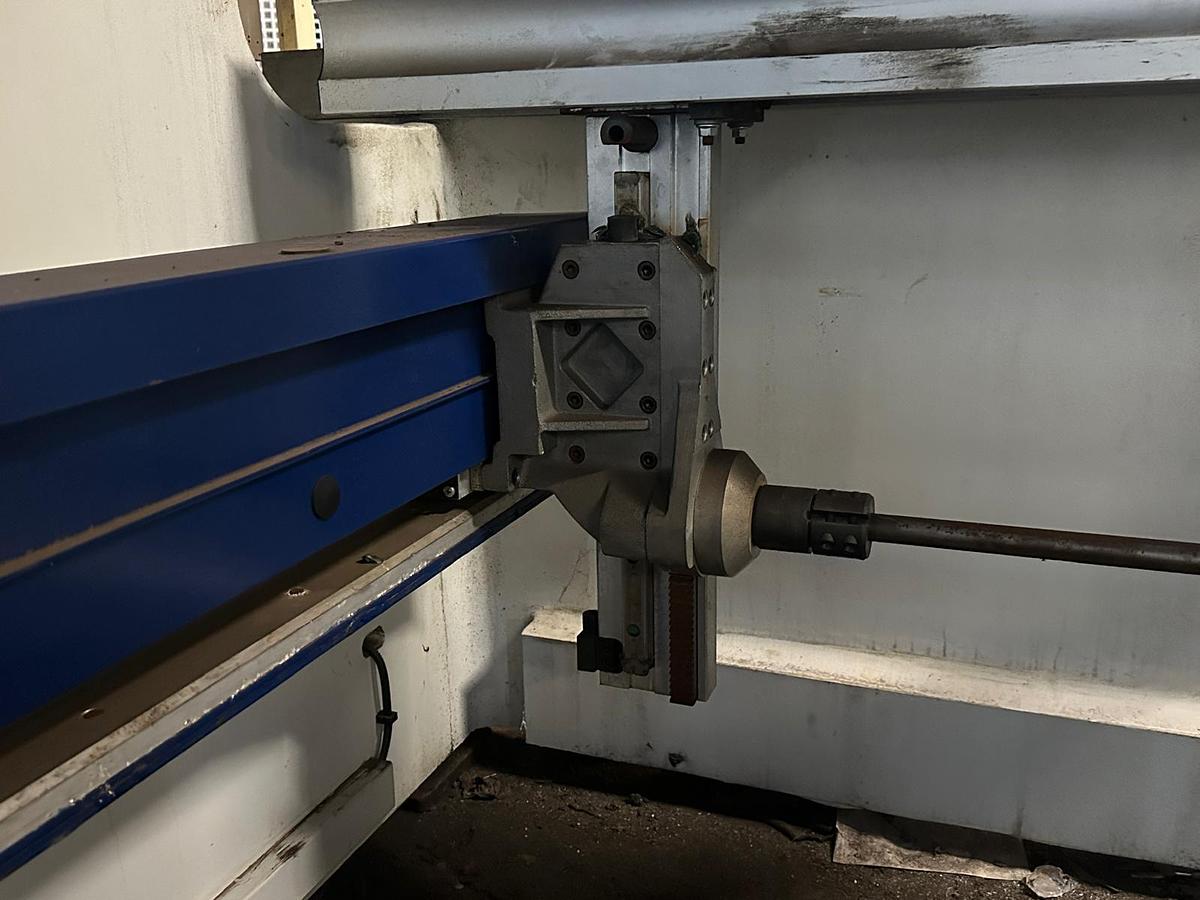

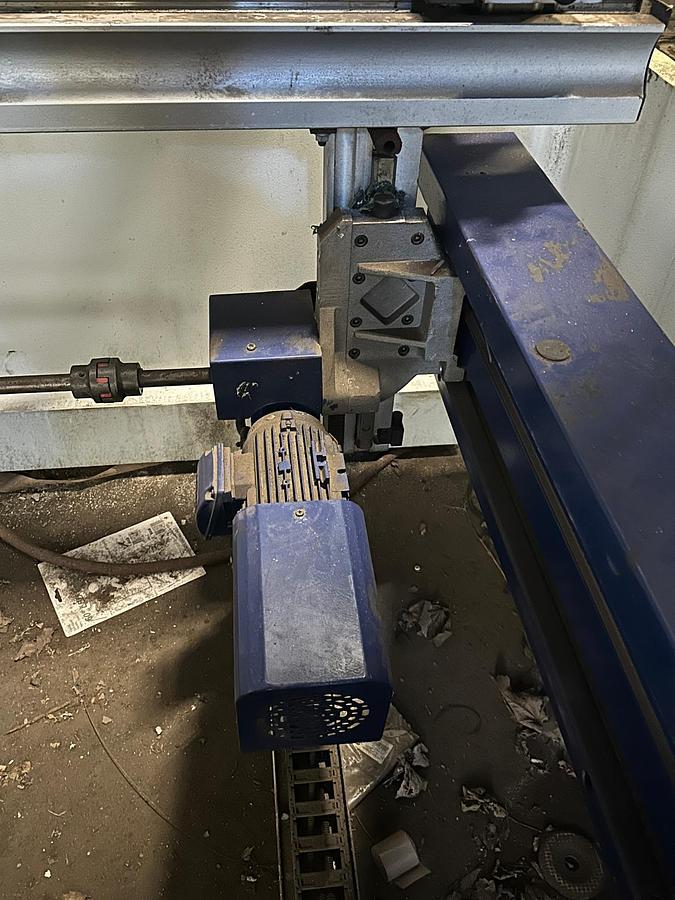

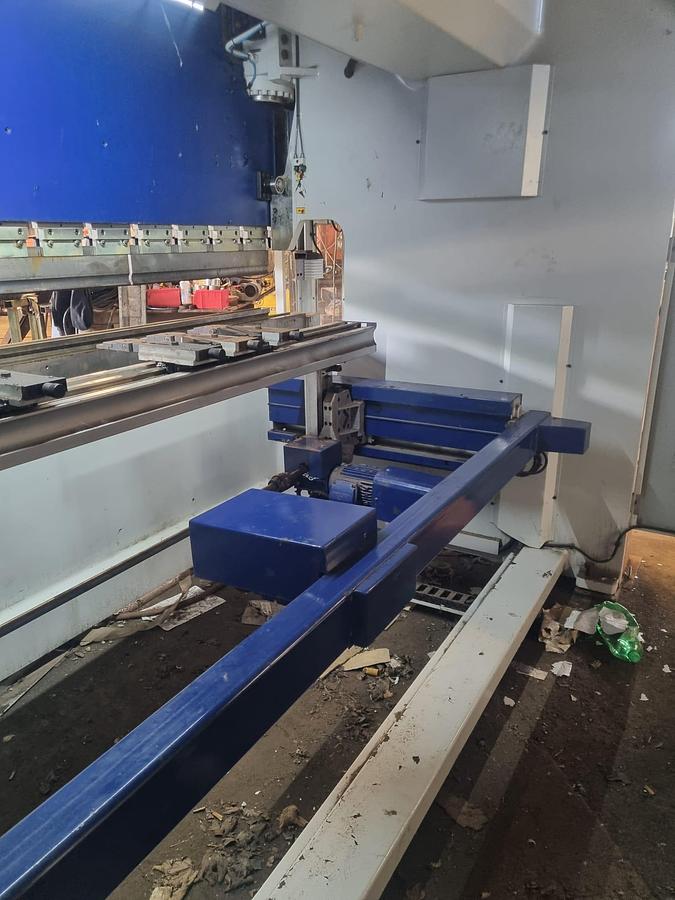

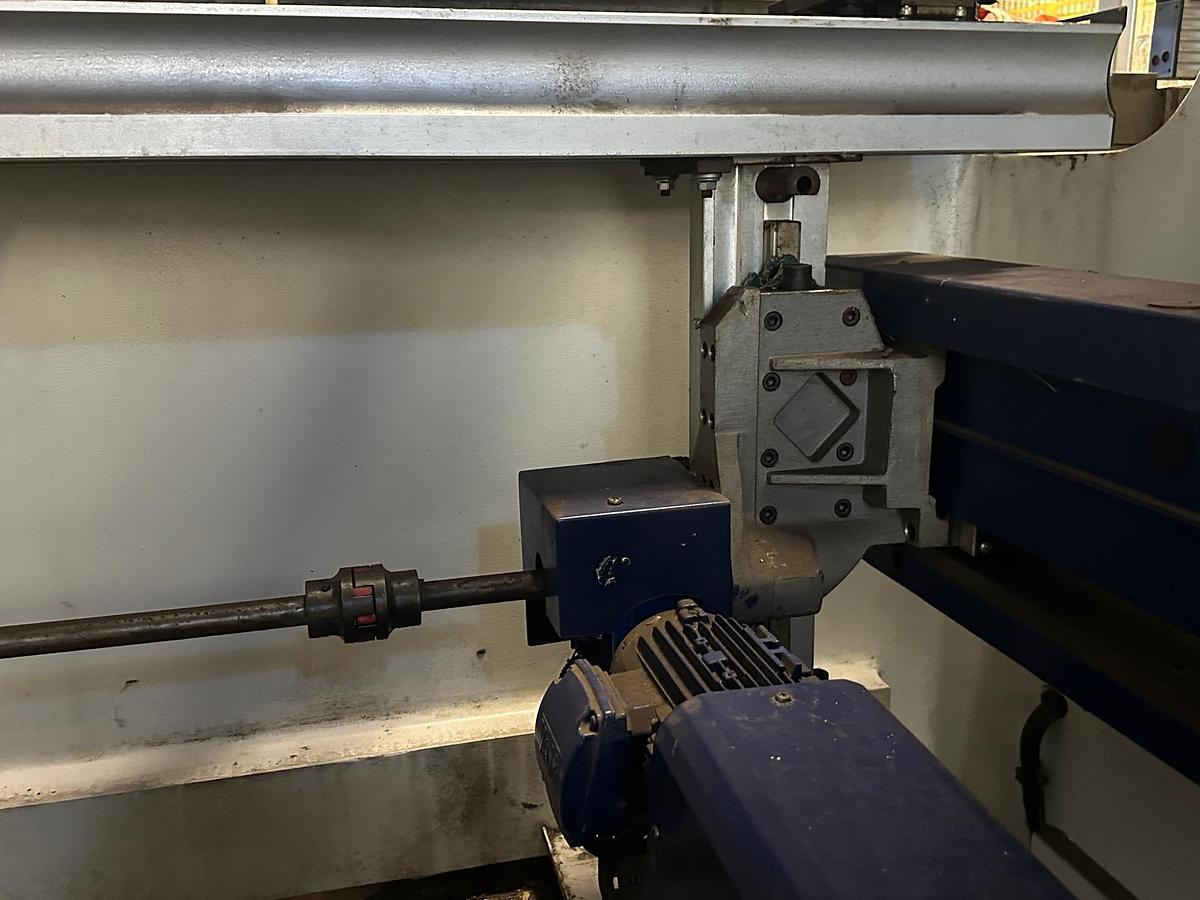

• Backgauge Travel: 750 mm
• Approach Speed: ~200 mm/s
• Bending Speed: ~10 mm/s
• Return Speed: ~160 mm/s
• Main Motor Power: 15 kW
• Machine Dimensions (L×W×H): ~4400 × 1800 × 2900 mm
• Weight: ~12,000 kg

🌍 Condition

• Year of Manufacture: 2021
• Control: ESA S660W Graphic CNC
• Axes: 4-axis (Y1, Y2, X, R)
• Condition: Very Good
• Ready for inspection and delivery

🔑 Summary

This 2021 MVD A175-3700 Hydraulic CNC Pressbrake with ESA S660W Graphic Control offers 175 tonnes of power, 3700 mm bending capacity, and advanced multi-axis CNC control for accurate and repeatable bending. An ideal choice for workshops and production facilities requiring a reliable, modern, and precise pressbrake.
