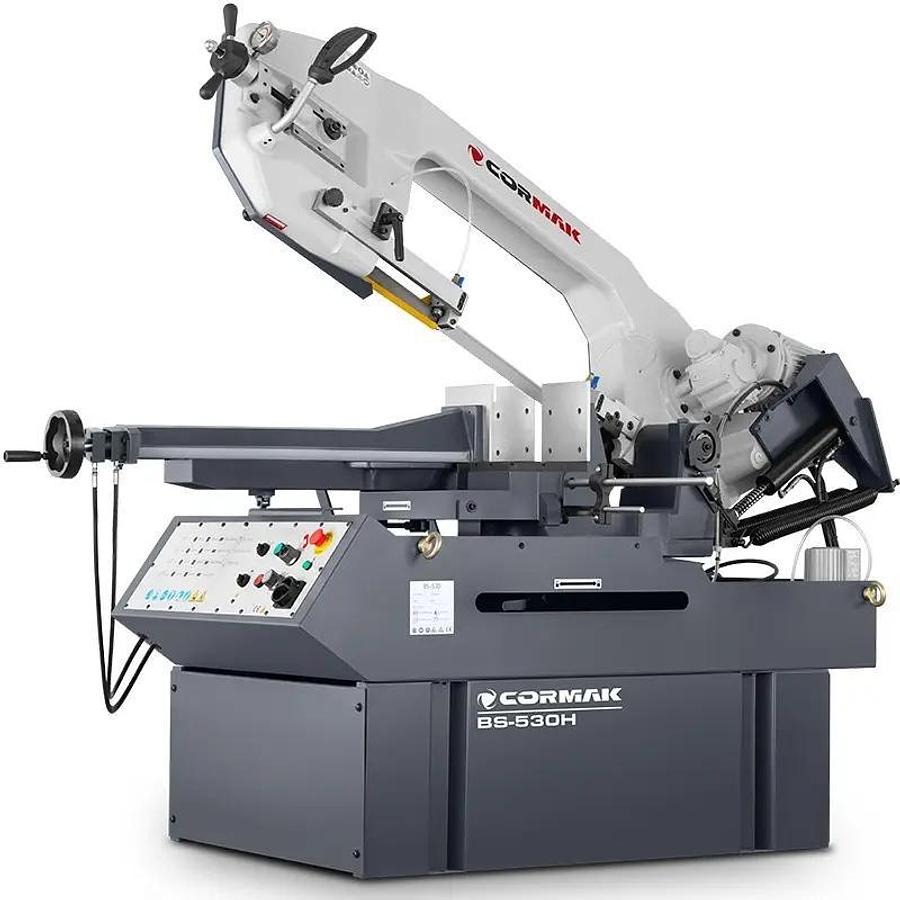

Cormak BS-530H Semi Automatic Bandsaw

Cormak BS-530H Semi Automatic Bandsaw

Machine Type: Semi-Automatic Bandsaw

Machine Description

Semi-automatic bandsaw - Cormak BS-530H - it is a proven product that enjoys great recognition.

It offers a wide range of features such as:

Cutting range from -45° to +60°.

Stepless cutting speed adjustment

Hydraulic vice ensuring maximum comfort of work.

A solid construction that allows precise cutting of various types of profiles, materials, including stainless steel, and much more. The maximum cutting length is 530 mm.

• The cutting band tensioner wheel is equipped with a dial strain gauge that indicates the appropriate band tension, which translates into optimal work results and blade durability.
• Stable sawing arm made of cast iron, resistant to torsion, with high-quality drive wheels.
• Precise power transmission thanks to high-quality hardened and ground gear.
• Powerful engine, adapted to cutting various materials of various sizes.
• High-quality hydraulic system that allows you to raise and lower the arm.
• Integrated roller-carbide system, ensuring safe guidance of the cutting band, with an adjustable guide adapted to the width of the cut detail.

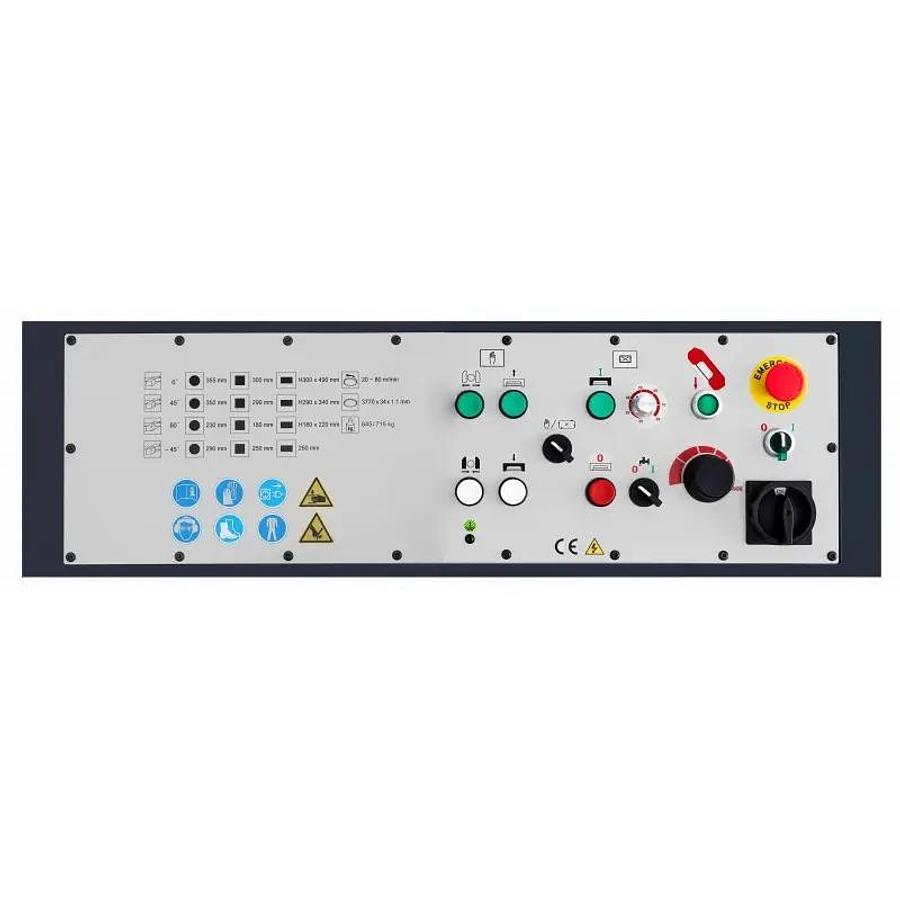

• Convenient control panel with clear buttons, including: main switch, on/off, cutting speed adjustment, clamp/vise and arm raise/lower. Additionally, the device is equipped with an emergency switch that meets the latest EU safety standards.
• Massive vice with quick opening adjustment, can be moved to both sides.

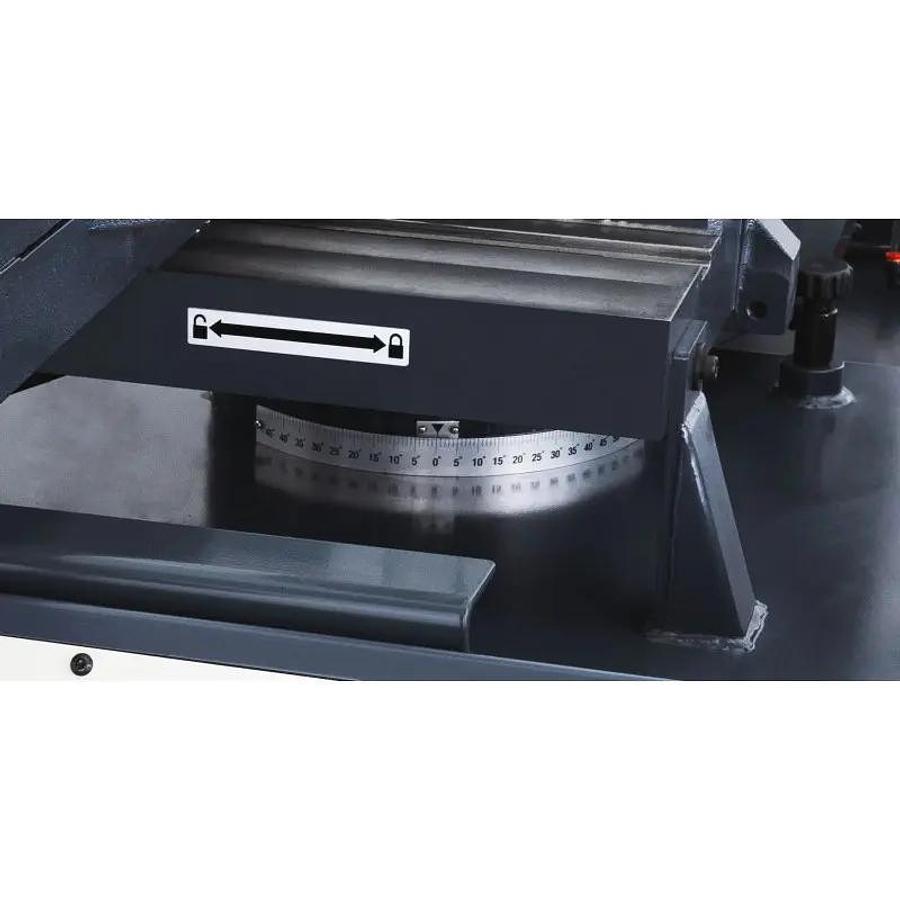

• The saw arm can be tilted from -45° to +60° with a reading on the scale.
• The set includes a removable roller that holds the workpieces in front of the vice, as well as strong springs supporting the movement of the saw arm and a material stop for cutting.
• Possibility of clamping the vice manually or hydraulically using the control panel.
• Solid body made of cast iron, which guarantees stiffness and the highest cutting quality.
• Effective cooling system built into the base of the saw.
• Cutting arm lock for extra safety.
• An additional panel allows smooth control of the saw arm lowering speed and is equipped with an additional safety switch.
• A stable base allows you to work at a comfortable height of approximately 95 cm.
• Stepless belt speed regulation (20 / 70 m/min).

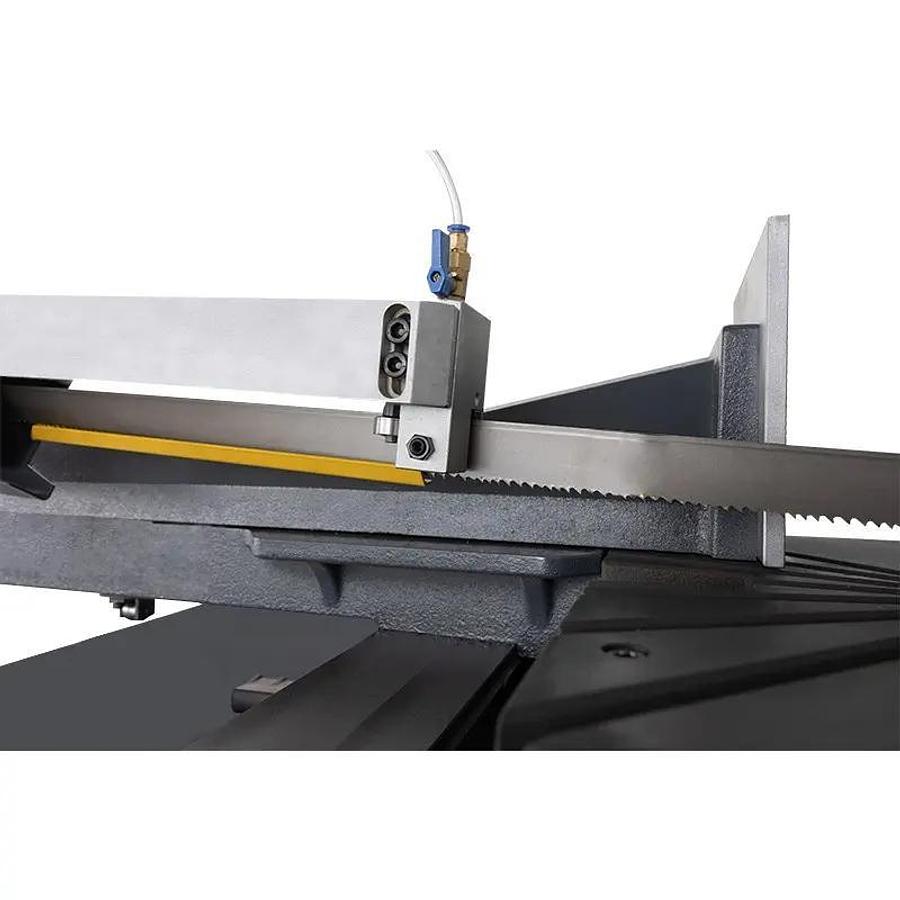

• The tape guides are equipped with special carbide plates and bearings, which guarantee high cutting precision.
• Semi-automatic mode, ideal for series production.
• Possibility to choose cutting mode, manual or semi-automatic.
• Quick-clamping vice adjustable manually or hydraulically.
• This is a professional device with an excellent price-quality ratio.
• The solid construction ensures precise and quiet operation without vibrations.
• A precise worm gear guarantees perfect power transmission.
• Saw arm adjustment using a hydraulic cylinder.

Semi-Automatic Mode: hydraulic vice clamping, hydraulic saw arm lowering and saw arm raising, which makes using this saw really convenient and efficient.

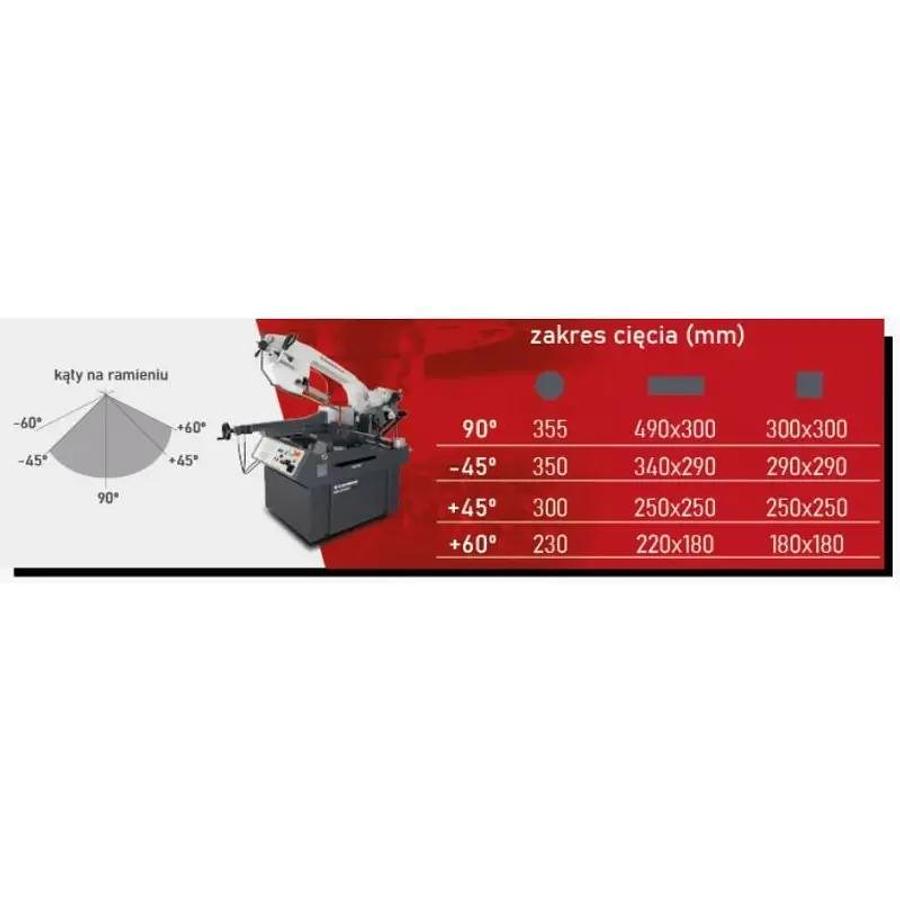

Cutting Capacity

Capacity 0º (Round): 355mm

Capacity 0º (Rectangular): 530 x 300mm

Capacity 0º (Square): 300 x 300mm

Capacity 45º R (Round): 355mm

Capacity 45º R (Rectangular): 360 x 290mm

Capacity 45º R (Square): 290 x 290mm

Capacity 45º L (Round): 300mm

Capacity 45º L (Rectangular): 270 x 270mm

Capacity 45º L (Square): 270 x 270mm

Capacity 60º (Round): 240mm

Capacity 60º (Square): 170 x 170mm

Technical Details

Arm Raising and Lowering: Hydraulic with arm lowering smooth control

Vice Clamp: Hydraulic

Band Speed: 20/70 m/min

Mitre Cutting: from -45° to +60°

Minimum Cutting Diameter: Ø 5 mm

Minimum Material Length in the Vice: 30 mm

Vice Base Height: 965 mm

Bandsaw Blade Dimensions: 3770 x 34 x 1.1 mm

Total Power: 3.0 kW

Dimensions (LxWxH): 2200×1400×2050 mm

Weight: 640 kg
