Cormak Q15-2 Electric Pallet Truck

Cormak Q15-2 Electric Pallet Truck

Machine Type: Electric Lifting & Driving Pallet Truck

Max Capacity: 1500kg

Battery Type: Li-Ion

Description

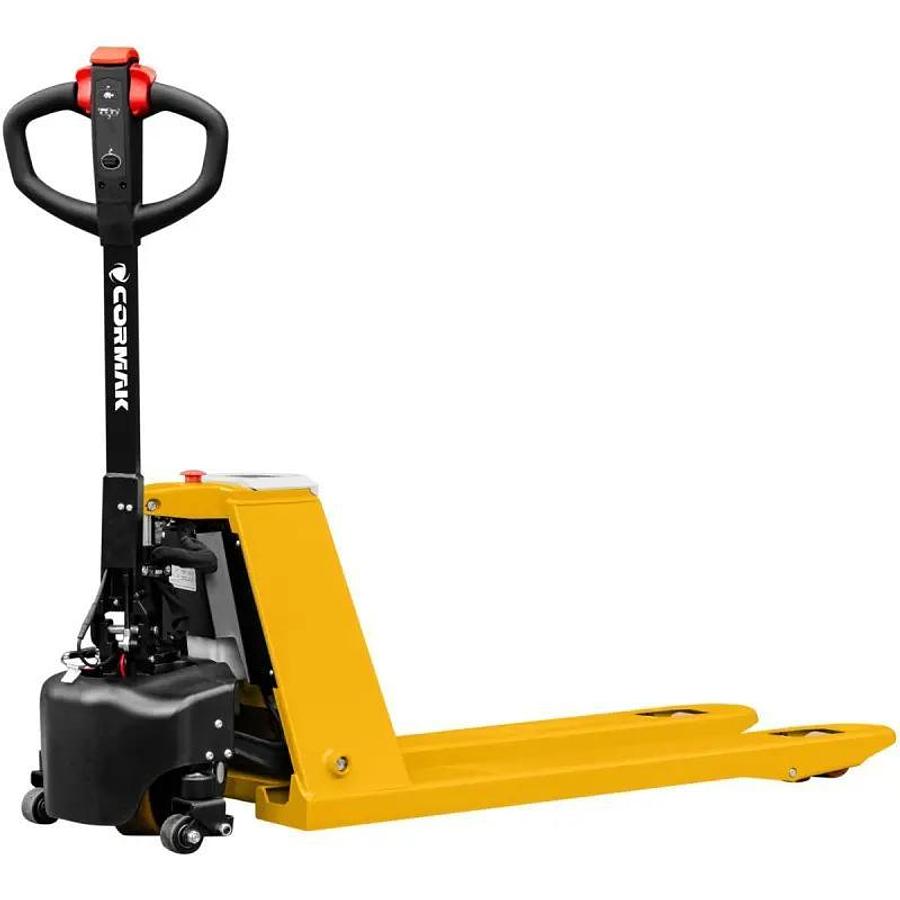

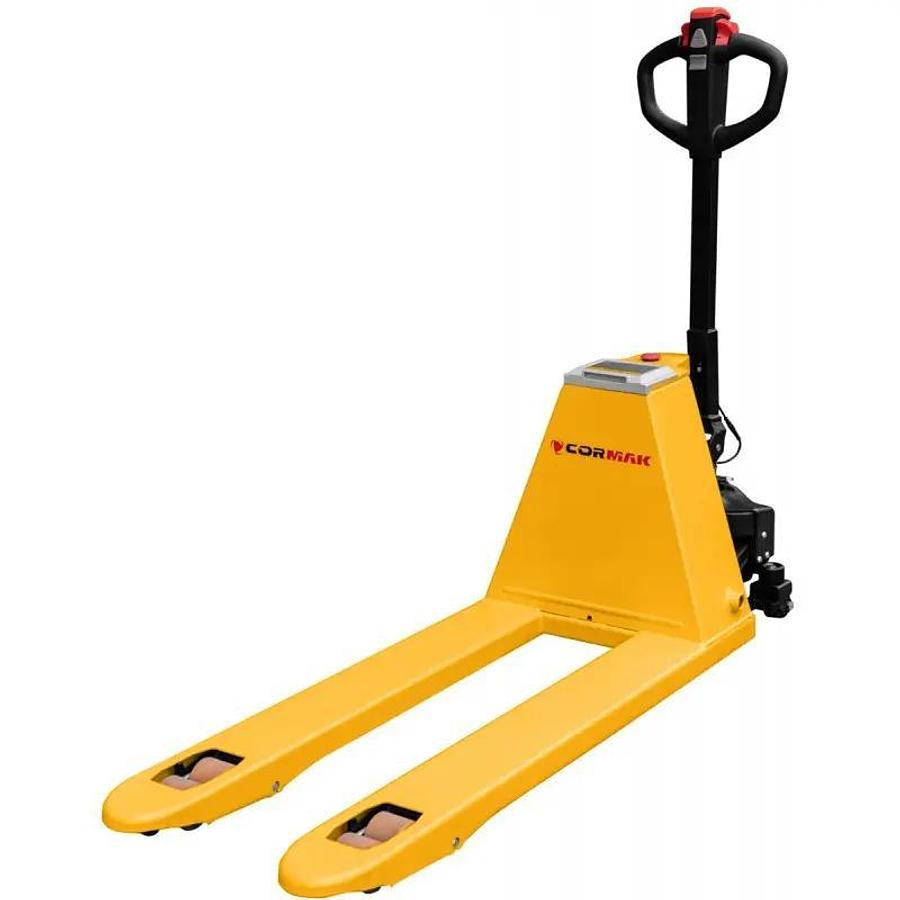

Pallet truck with electric drive and electric lifting of loads weighing 1500 kg. Thanks to its compact dimensions and light weight, it is perfect for narrow corridors and car platforms. An undoubted advantage is the removable, durable Li-ion battery, which can be charged without having to connect the entire trolley. The trolley is equipped with an electronic controller with an access code that prevents use by unauthorized persons.

Our electric pallet truck with a load capacity of 1,500 kg is an irreplaceable solution that allows easy and efficient moving of heavy pallets and loads in warehouses, production halls and other logistic places.

Thanks to advanced electric technology, both lifting and driving are easy and convenient. The electric lifting system allows for smooth lifting of loads to the right height, ensuring precision and safety. On the other hand, electric driving eliminates the need for physical effort and allows for efficient and quiet operation.

The 1500 kg capacity pallet truck is not only efficient, but also reliable. The solid construction and high-quality materials guarantee long-lasting and reliable operation, even in difficult conditions. Thanks to this, you can be sure that the truck will cope with even the most demanding tasks.

Our solution has many advantages, including ergonomic design, which ensures comfort and convenience for the operator. The intuitive control panel allows easy maneuvering and adjustment of the driving speed to the needs.

The built-in speed control potentiometer is an innovative feature that allows the operator to adjust the travel speed to specific needs. This allows precise control of the truck's speed, increasing safety and eliminating the risk of collisions or damage.

No matter the size of your warehouse or how crowded it is, our electric pallet truck offers smooth, precise maneuvering. Operators can easily maneuver around corners, avoid obstacles and precisely place loads exactly where they are needed. This increases efficiency and saves valuable time.

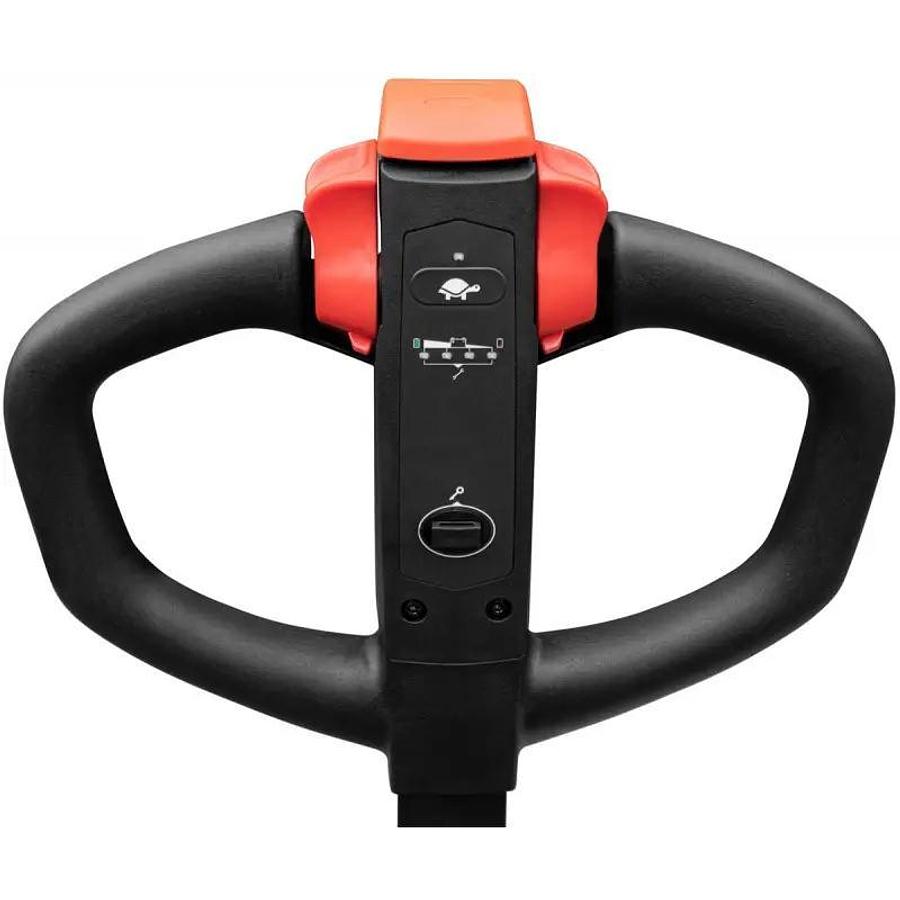

Turtle mode allows for slower, controlled movement of the truck, which is ideal for precision operations such as working in tight warehouse aisles or on loading platforms. Steering in the upright handle position also minimizes the risk of collisions and increases work efficiency by providing full control over the truck's movement even in difficult conditions.

Thanks to the vertical handle control function in "turtle" mode, the operator can precisely manoeuvre the truck even in narrow spaces, without having to fully extend the tiller.

Safety is our priority. Our electric pallet truck is equipped with safety systems such as electromagnetic brakes, a "belly" switch, a horn and protective features that minimize the risk of accidents and damage.

If you are looking for an efficient and reliable electric pallet truck with electric lifting and driving with a load capacity of 1500 kg, contact us today. We offer high quality, innovative solutions and comprehensive customer support that will allow you to optimize your logistics processes and increase productivity

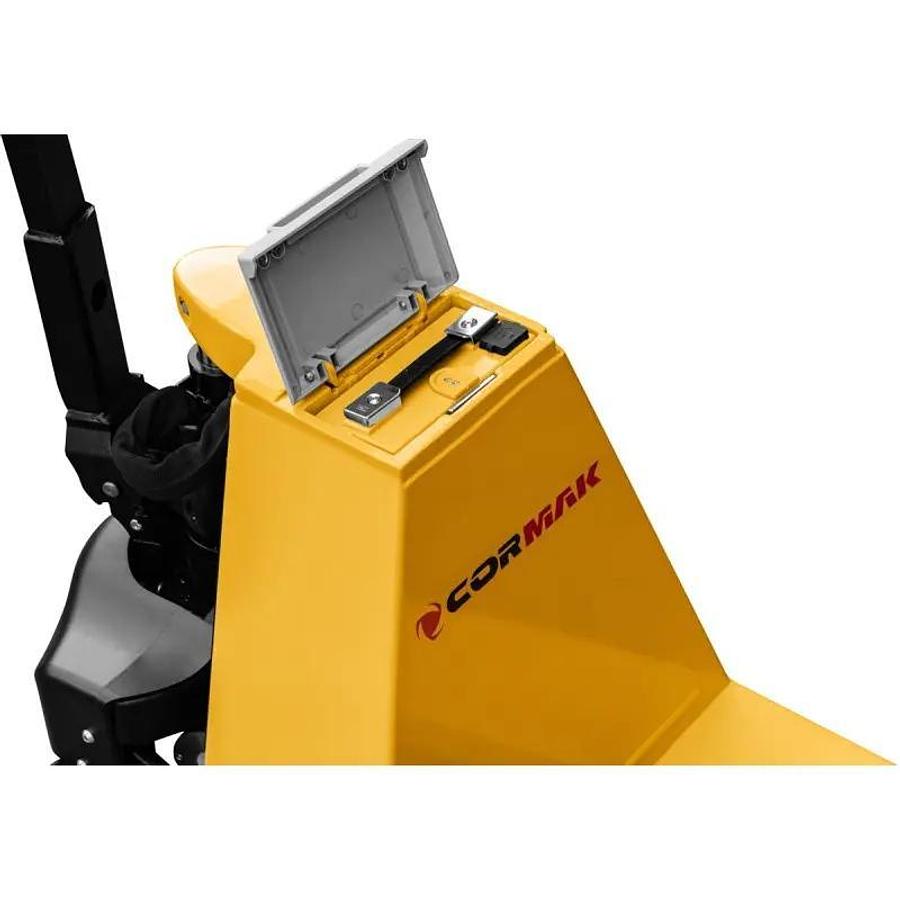

One of the key features of our pallet truck is the use of an easily replaceable battery. This means that when the battery runs out, you can easily remove it and connect it to the charger. This saves time and allows for continuous work without having to wait for the truck to be fully charged. Practicality and mobility are key in a dynamic warehouse environment.

The weatherproof battery cover is another innovative feature of our pallet truck. It protects the battery from moisture, dust and other external factors, which increases its durability and reliability. You can rest assured that your battery is adequately protected, even in difficult working conditions.

The charger is included in the basic equipment of the truck.

Technical Specifications

Capacity: 1500 kg

Turning radius: 1300mm

Fork height raised: 190mm

Fork lowered height: 85mm

Fork length: 800mm

Fork width: 550mm

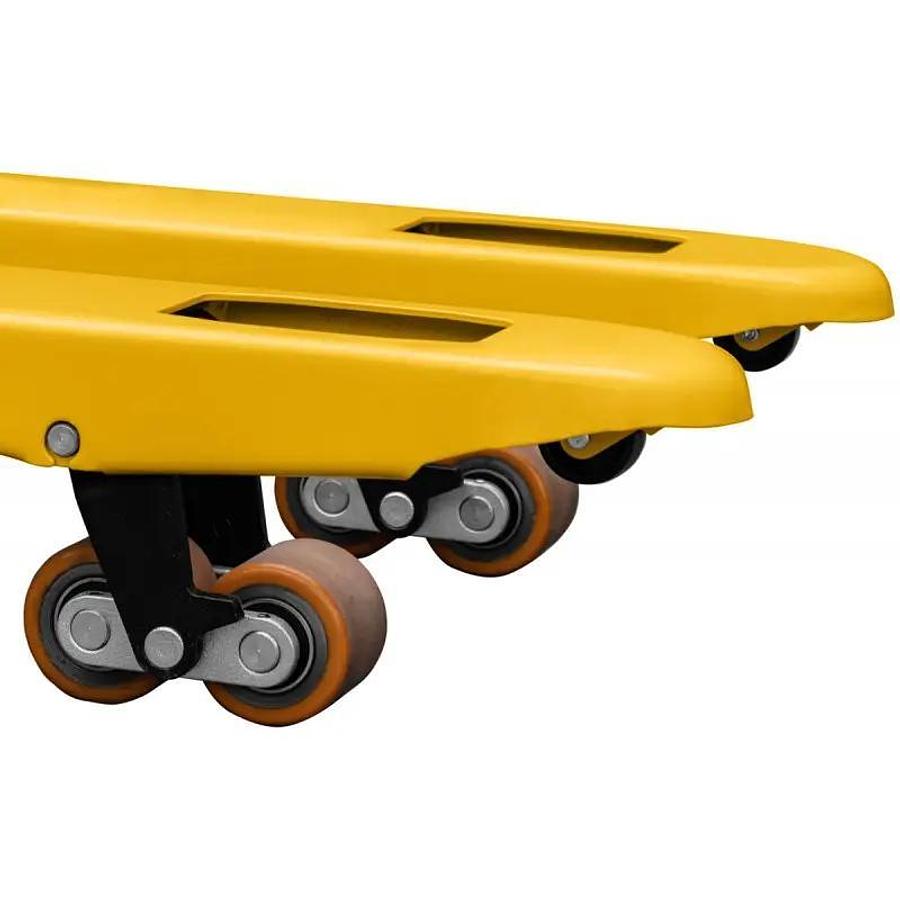

Wheel diameter: 80/210mm

Battery voltage/nominal capacity: 24V/20Ah Li-ion

Operating time on a charged battery: up to 3 hours

Charging time: 2.5 hours

Drive motor power: 0.75kW

Lifting motor power: 0.8kW

Brake: electromagnetic

Travel speed with/without load: 3.5 / 4.5 km/h

Weight: 130kg

Dimensions: 1300x550x1300mm
