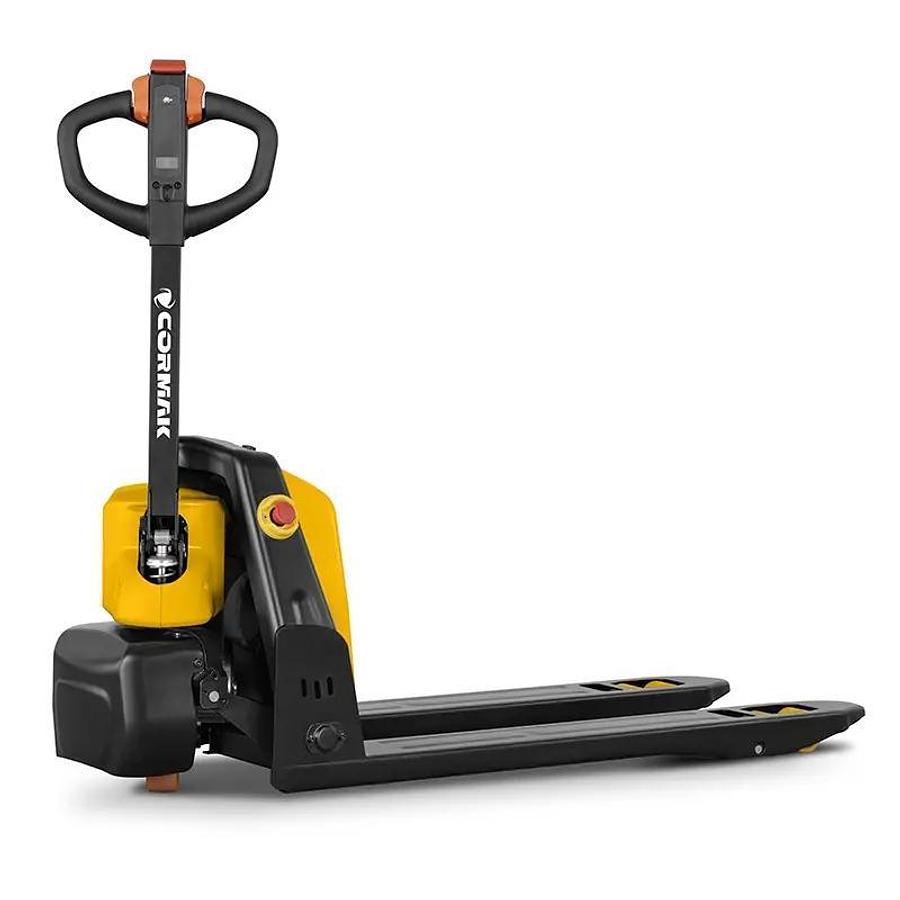

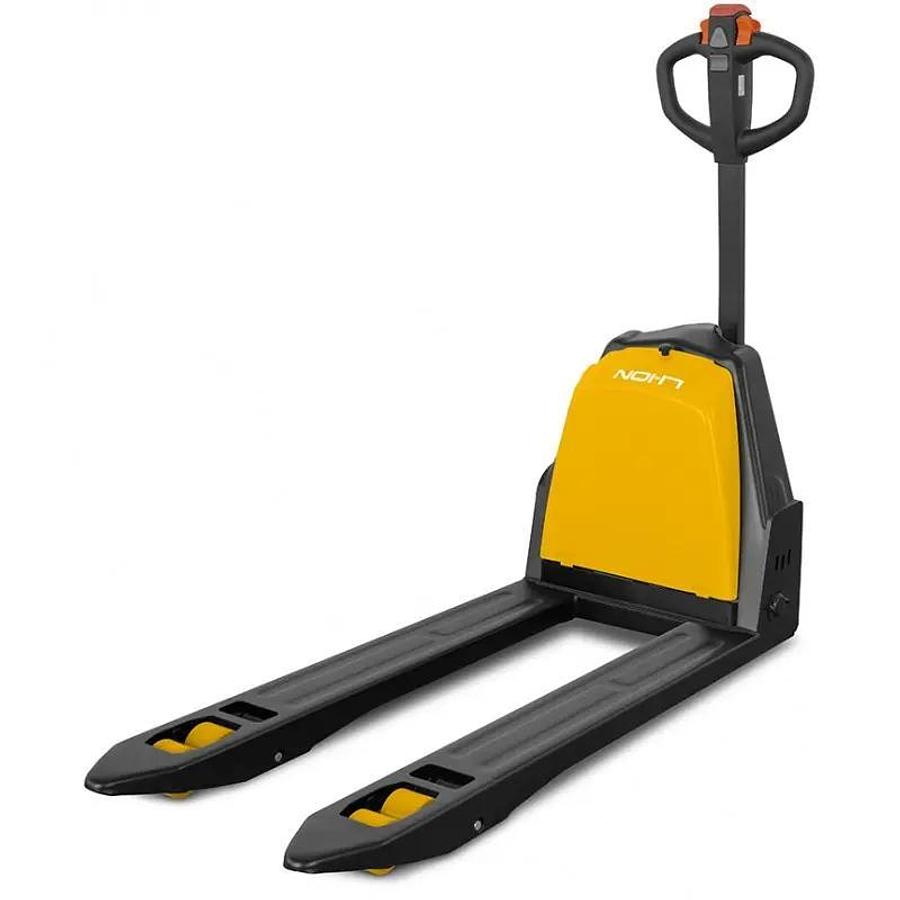

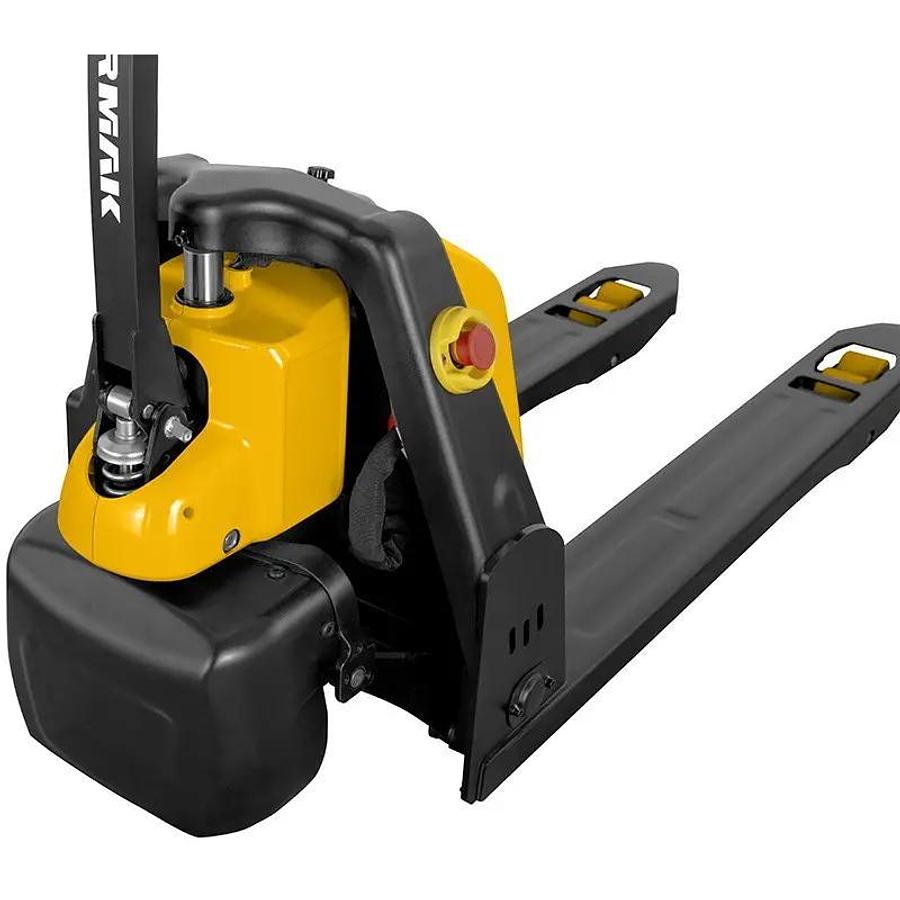

Cormak Q15-3 Electric Pallet Truck

Cormak Q15-3 Electric Pallet Truck

Machine Type: Electric Lifting & Driving Pallet Truck

Max Capacity: 1500kg

Battery Type: Li-Ion

Description

The electric pallet truck is a compact and efficient transport device with a load capacity of 1500 kg, ideal for work in warehouses and distribution centers. Equipped with a turtle mode and a removable battery. Solid construction and modern solutions make this truck a reliable tool for efficient logistics.

The electric pallet truck is a modern transport device that significantly improves logistics processes in warehouses, distribution centers and production plants. Thanks to its high load capacity of 1500 kg, it allows for efficient and safe movement of palletized loads over short and medium distances.

The truck is equipped with an efficient 0.75 kW drive motor and a 0.8 kW lifting motor, which ensures smooth operation and high transport efficiency. The travel speed is 4.5 km/h with a load and 5 km/h without a load, which guarantees fast movement around a warehouse or other facility. The device has an electromagnetic brake, which increases the safety of use and allows precise stopping of the pallet truck.

The reliable 48V 10Ah lithium-ion battery provides up to 3 hours of continuous operation. The efficient 48V 10Ah lithium battery (equivalent to a 24V 20Ah battery) has a lifespan of up to 2000 cycles when used correctly. Fast charging in 2.5 hours minimizes downtime, which is crucial in intensively used warehouses. The lithium-ion battery is characterized by a longer lifespan and greater efficiency.

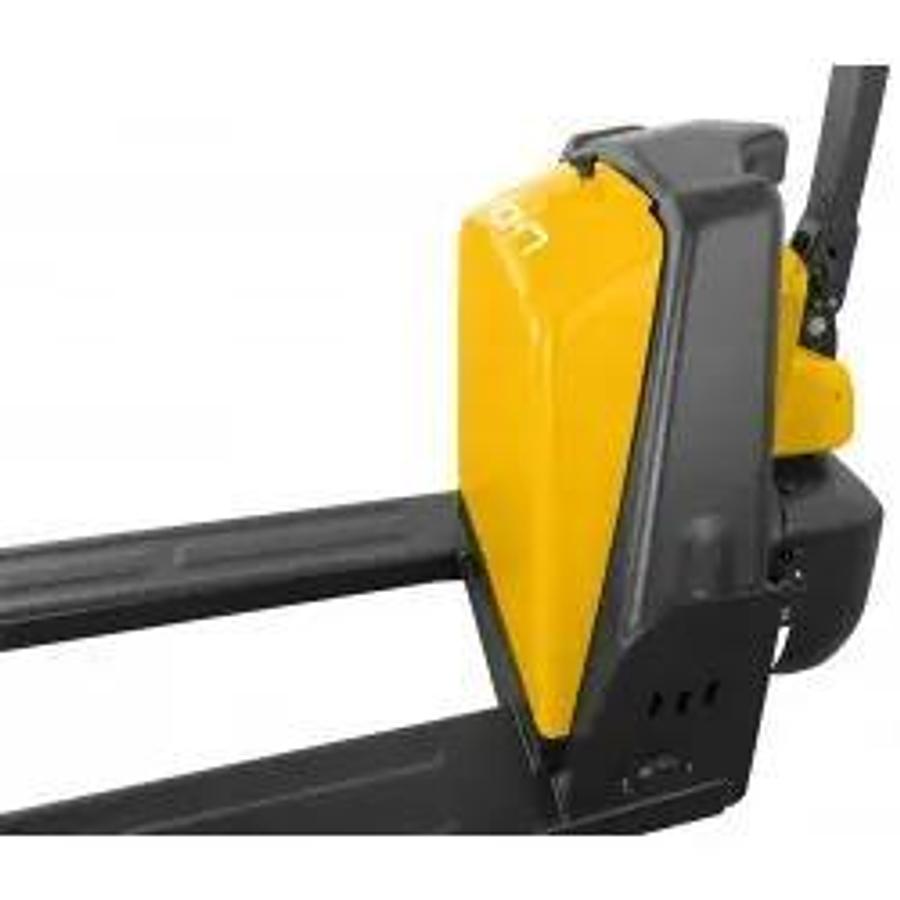

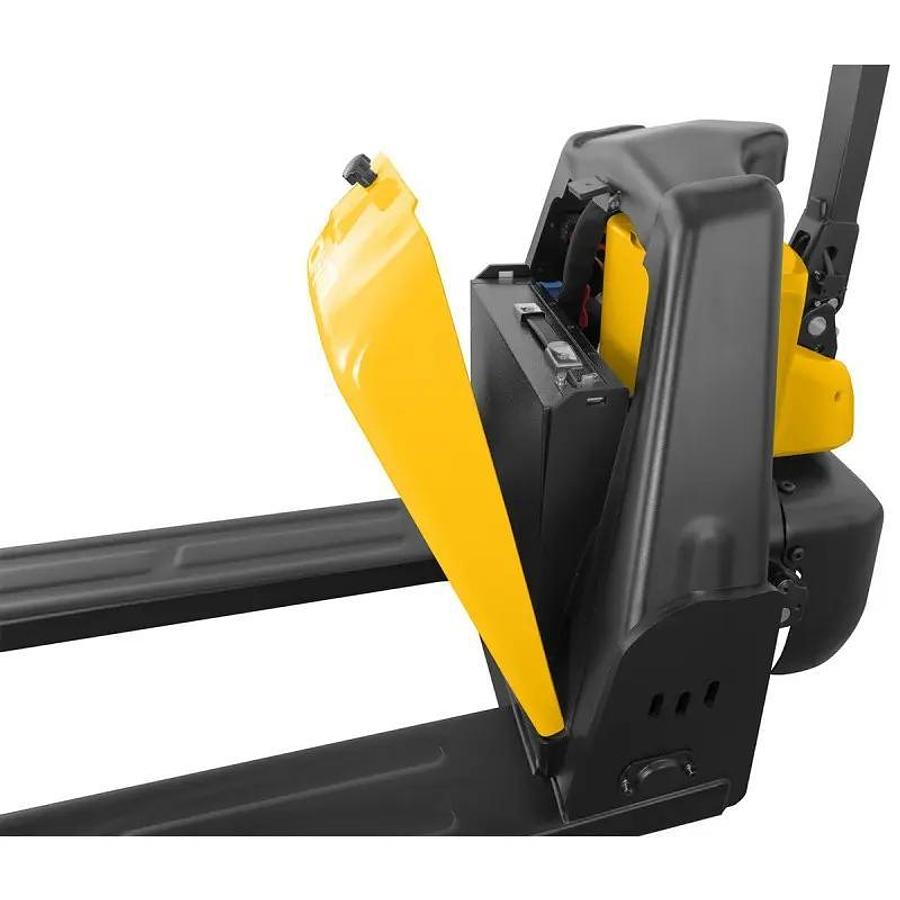

The battery is placed under a cover, which protects it from damage and dirt. The design of the trolley allows for easy removal of the battery, which significantly facilitates its replacement or charging outside the device. This solution allows for quick preparation of the trolley for further work, eliminating the need for long operational downtimes.

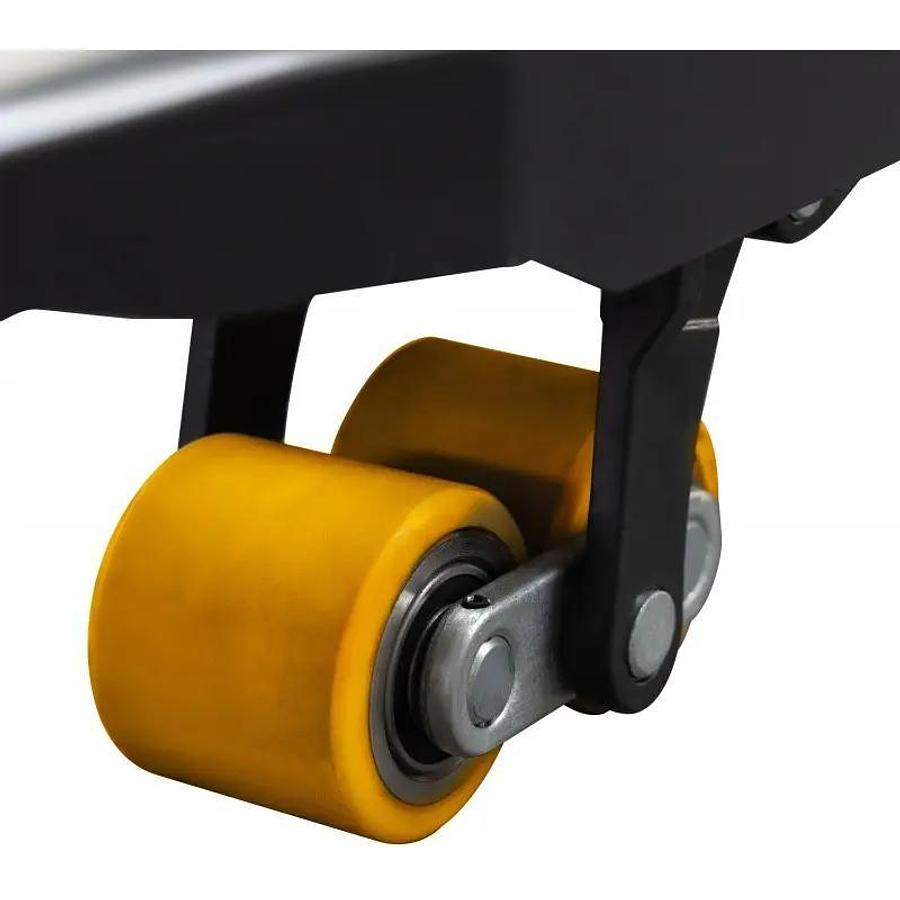

The electric pallet truck is equipped with polyurethane wheels, which are characterized by high abrasion resistance and excellent adhesion to the ground. Additionally, the polyurethane rollers used increase stability and smoothness of the ride, reducing noise and providing better traction properties, especially on smooth warehouse surfaces. The maximum slope of the terrain on which the device can move is 8% with a load and 16% without a load, which allows it to be used in various conditions.

With a weight of 115 kg, the electric pallet truck is stable, yet light enough to allow easy operation. The solid construction and high-quality materials used in production make the device durable and resistant to mechanical damage.

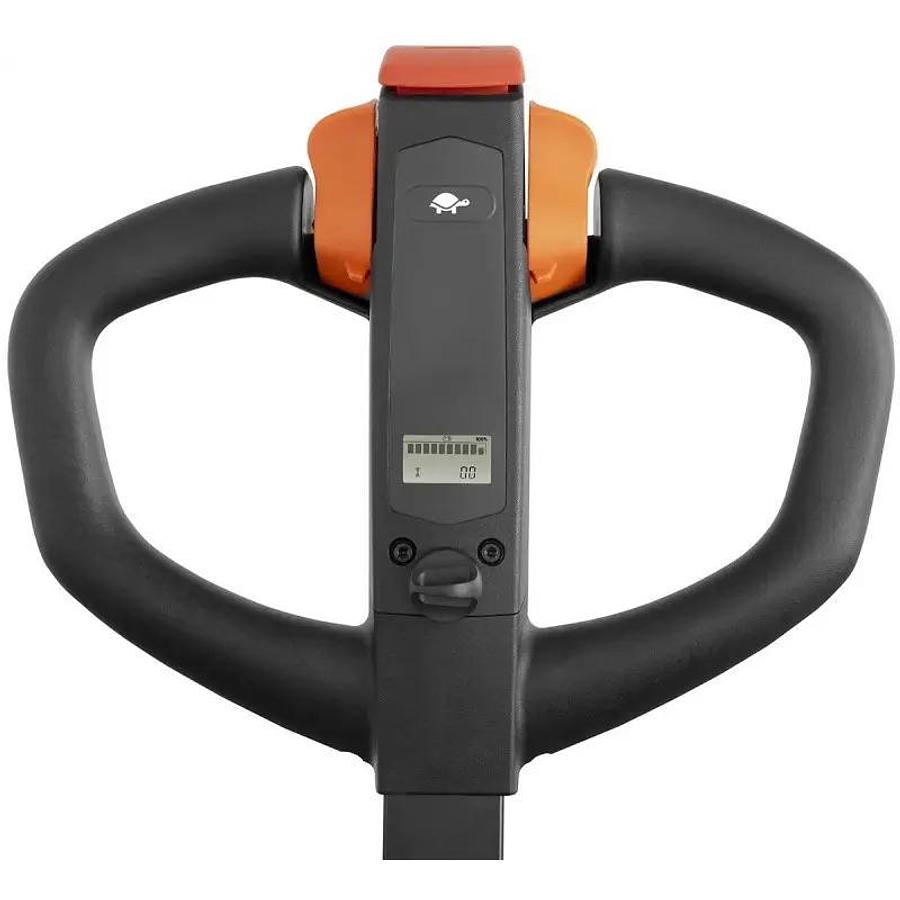

The standard equipment includes a turtle mode, which allows precise maneuvering in confined spaces. This function is particularly useful when working in narrow warehouse aisles, on loading docks and in places with limited freedom of movement. Turtle mode allows you to reduce the travel speed, which increases control over the truck and minimizes the risk of collisions. Importantly, when working in turtle mode, you can operate the truck with the handle in the vertical position, which makes it even easier to maneuver in hard-to-reach places, where the traditional position of the handle could limit the operator's freedom of movement. Thanks to this function, the electric pallet truck provides greater precision and additional safety in demanding operating conditions.

This modern transport trolley is perfect for intensively working warehouses, industrial plants and wholesalers, where the speed and safety of pallet transport are key. Thanks to the use of modern technology, the device combines high efficiency, compact dimensions and reliability, making it an ideal choice for companies looking for effective logistics solutions.

Technical Specifications

Capacity: 1500 kg

Turning radius: 1400mm

Fork height raised: 190mm

Fork lowered height: 80mm

Fork length: 1150mm

Fork width: 560mm

Wheel diameter: 80/190mm

Battery voltage/nominal capacity: 48/10 V/Ah Li-ion (equivalent to 24V/20Ah)

Operating time on a charged battery: up to 3 hours

Charging time: 2.5 hours

Drive motor power: 0.75kW

Lifting motor power: 0.8kW

Brake: electromagnetic

Travel speed with/without load: 4.5 / 5 km/h

Maximum ground gradient, loaded/unloaded: 8/16%

Type of wheels: polyurethane

Weight: 115kg

Dimensions: 1566x685x1200mm
