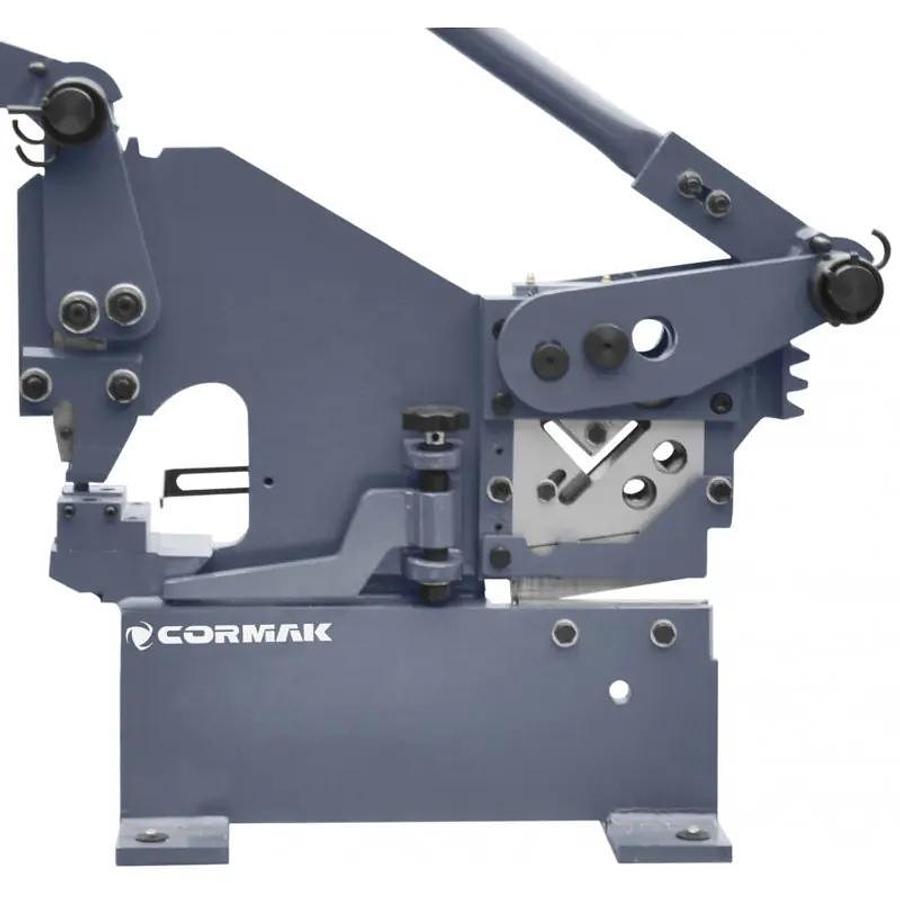

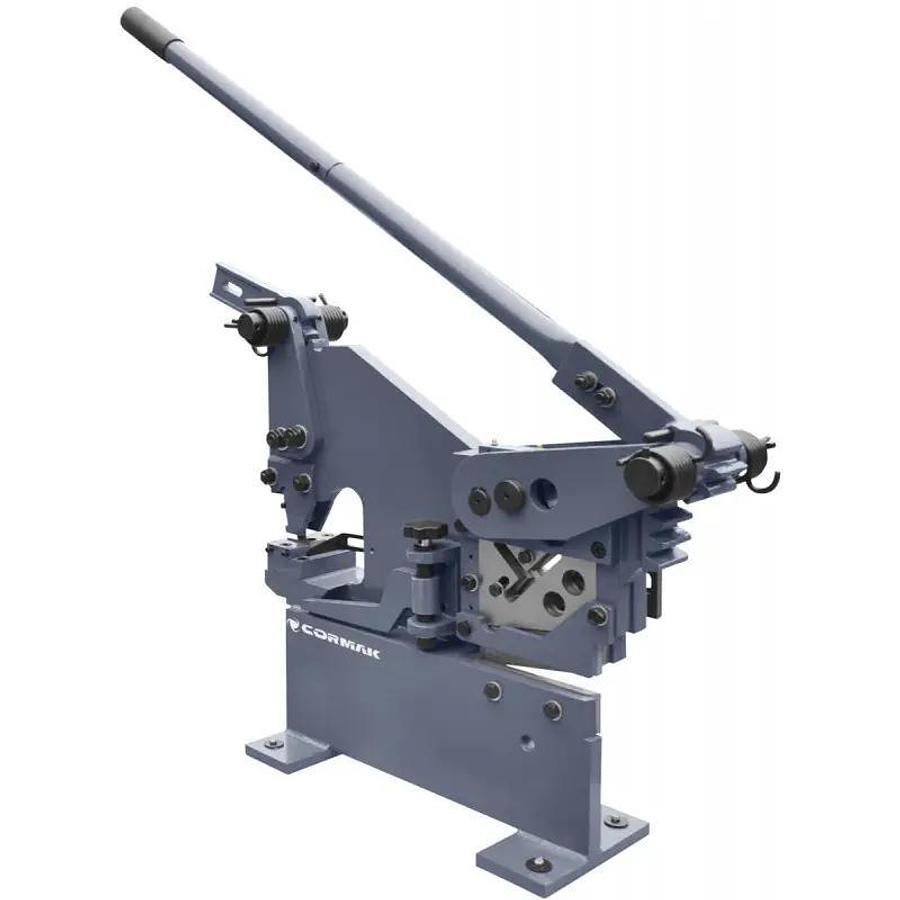

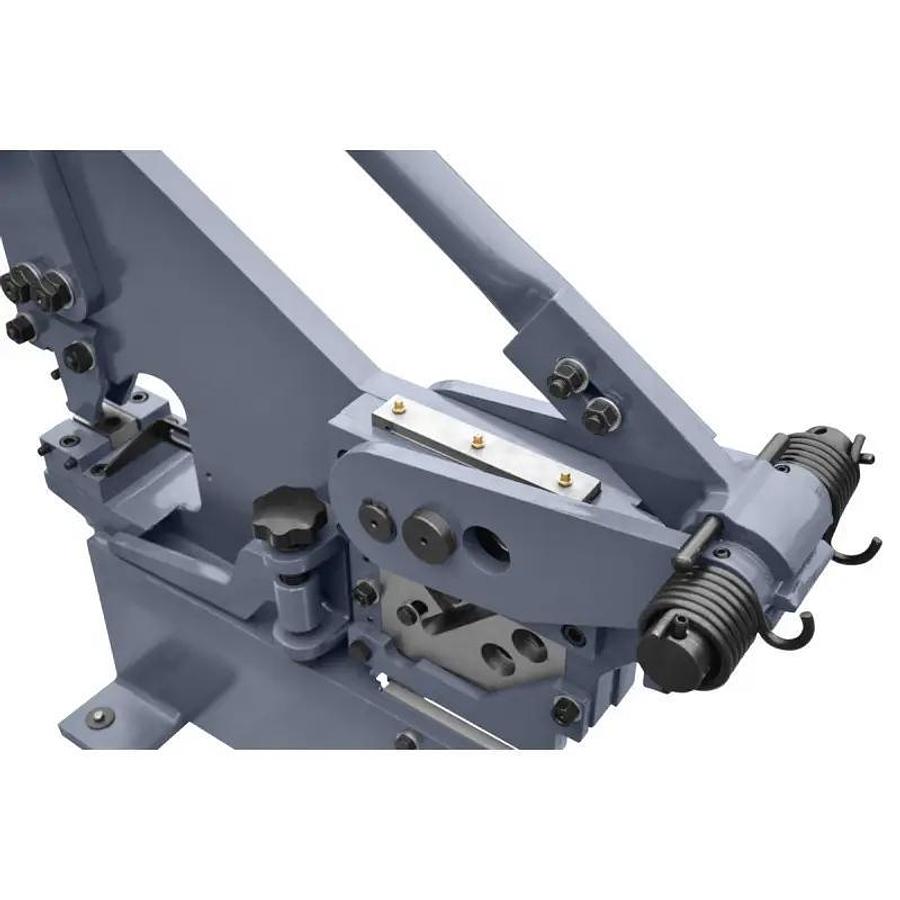

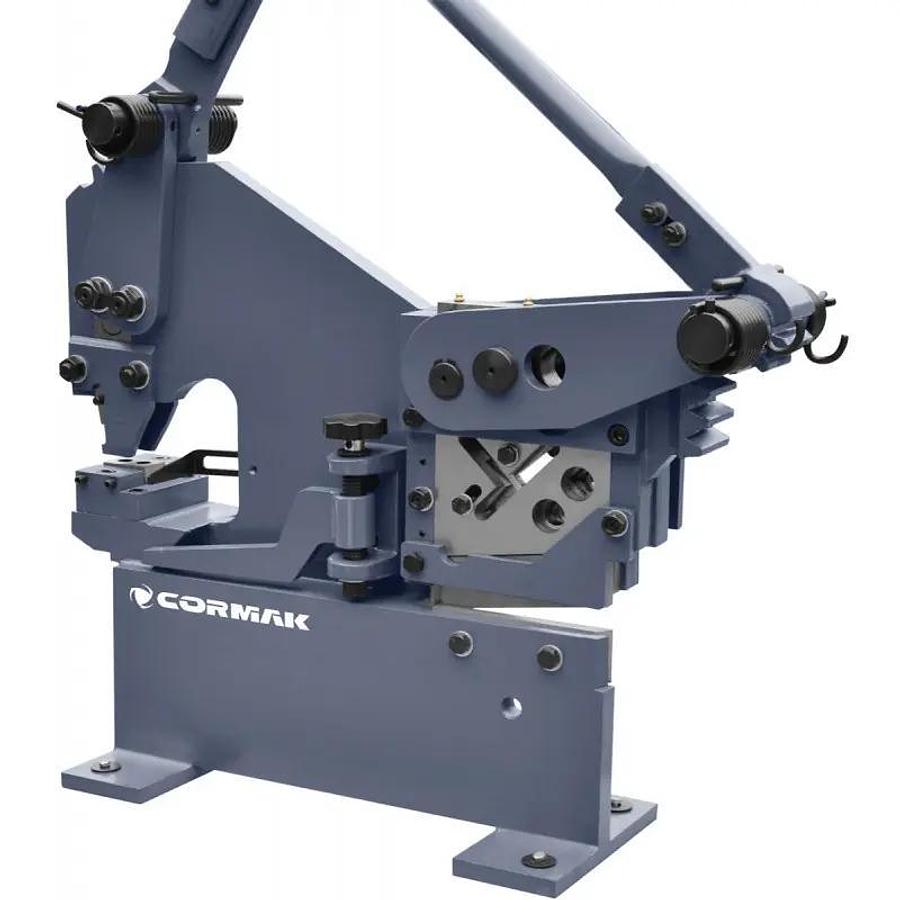

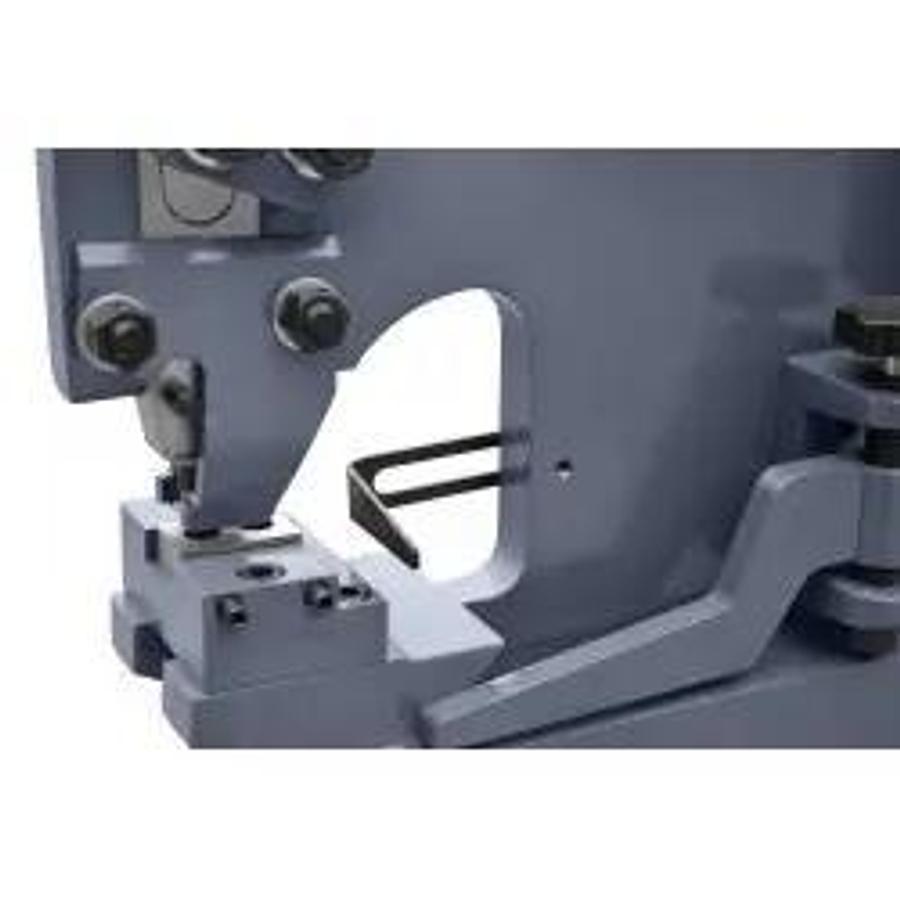

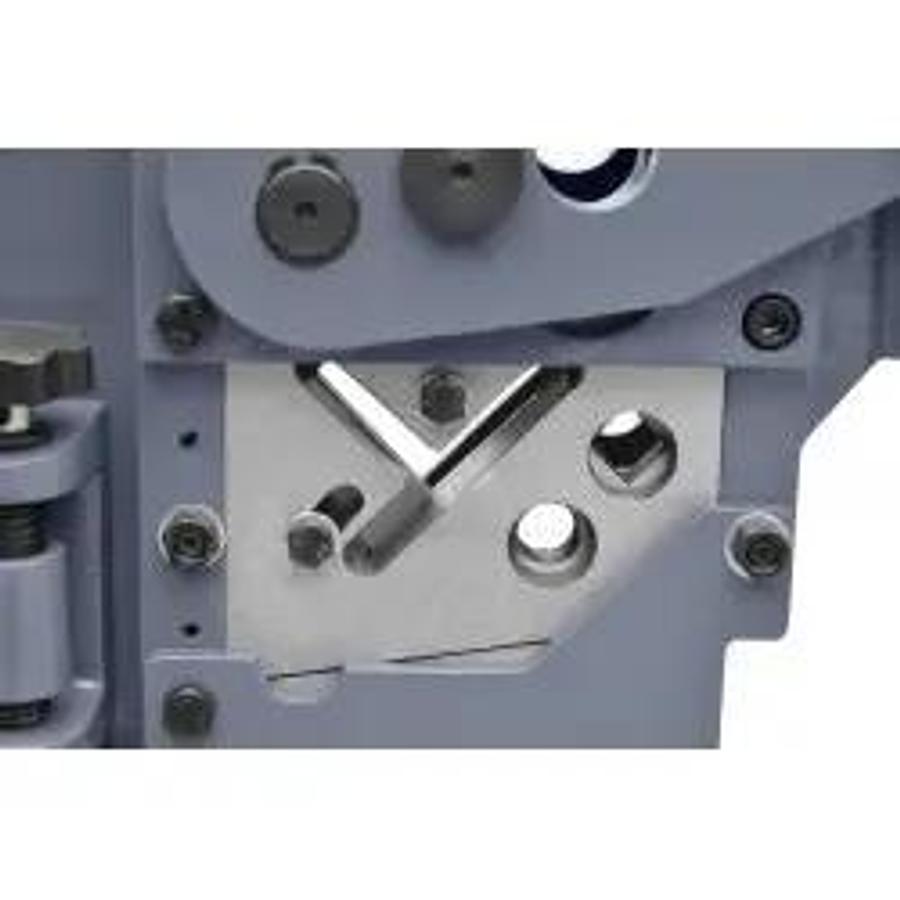

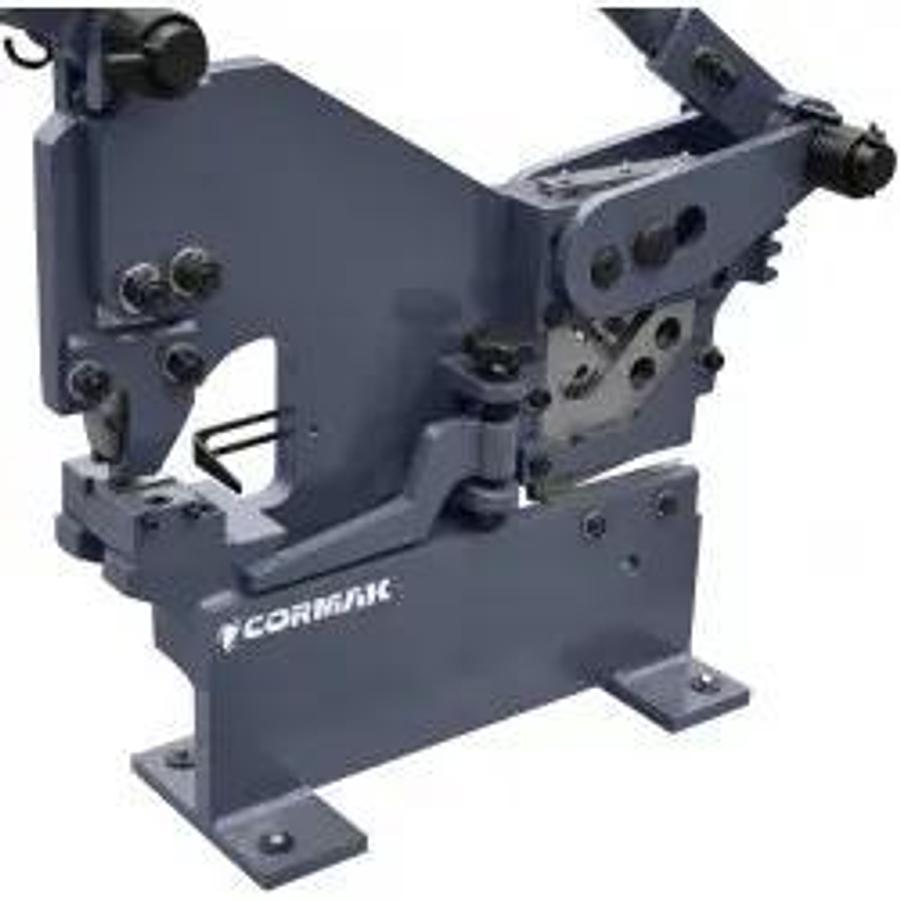

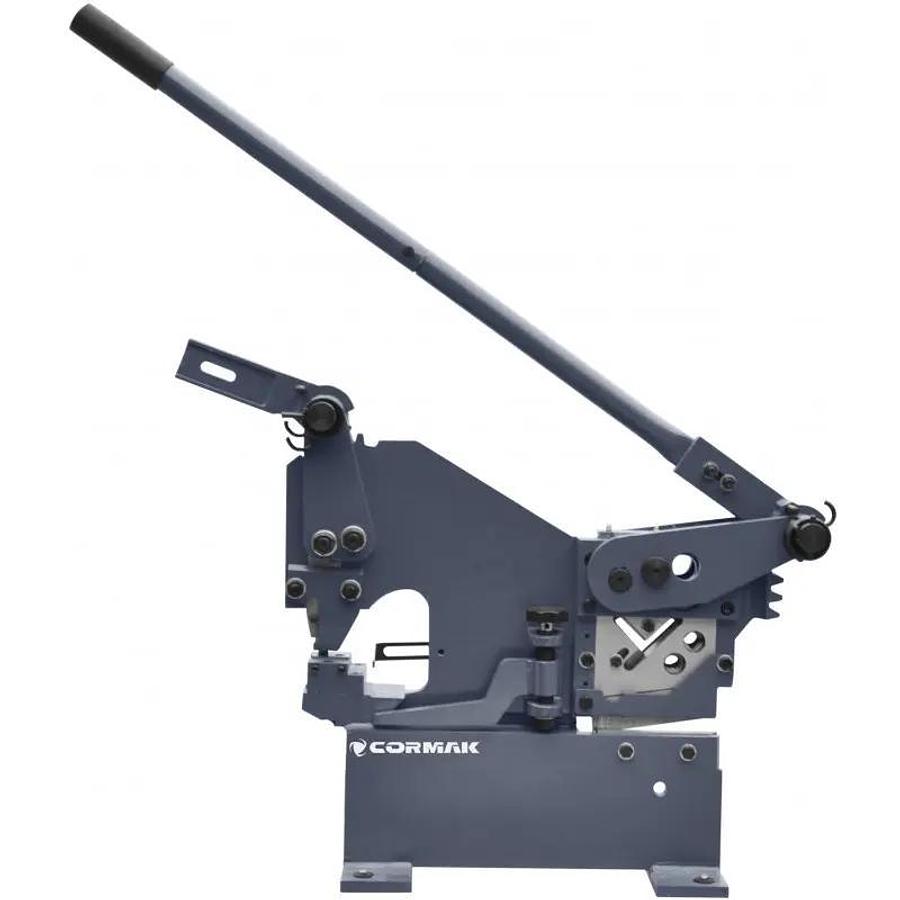

Cormak PBS-9 Guillotine Shears for Profiles and Rods

Machine Description

Hand shears for cutting plates, flat bars, round and rectangular as well as angle bars and T-bars. Its design construction makes it possible to cut thick materials without requiring a lot of force. The Cormak PBS-9 shears are also equipped with a punching machine.

Machine Characteristics

Universal hand shear for cutting plates, sections and bars

Makes it possible to cut effectively while not requiring a lot of physical force

Controllable pressure makes cutting easier

Cutter made of hardened tool steel

Good visibility of the whole cutting length

Frame made of solid steel plates

Technical Data

Model: PBS-9

Cutting Capacity - round bar: 22mm

Cutting Capacity - square bar: 20mm

Cutting Capacity - flat: 90 x 14mm

Cutting Capacity - angle: 60 x 7mm

Cutting Capacity - T-bar: 60 x 7mm

Cutting Capacity - Plate: 10mm

Cutting Capacity -sheet - thickness: 8mm

Blade Length: 178mm

Weight: 130kg

Dimensions (length x width x height): 1100x350x930mm
