€8,000 + VAT

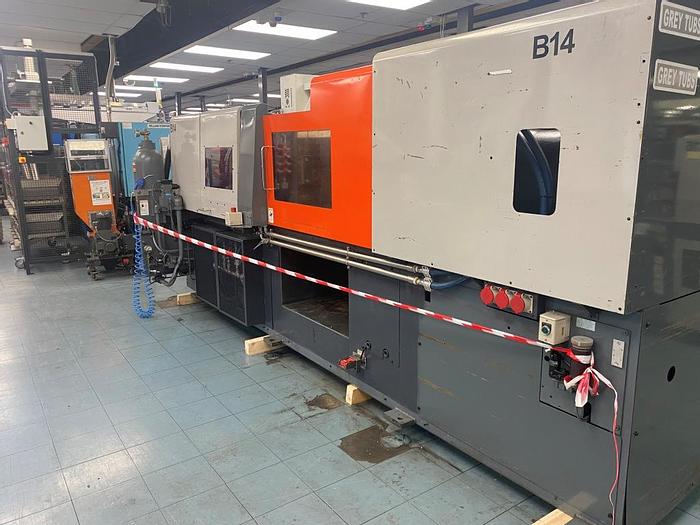

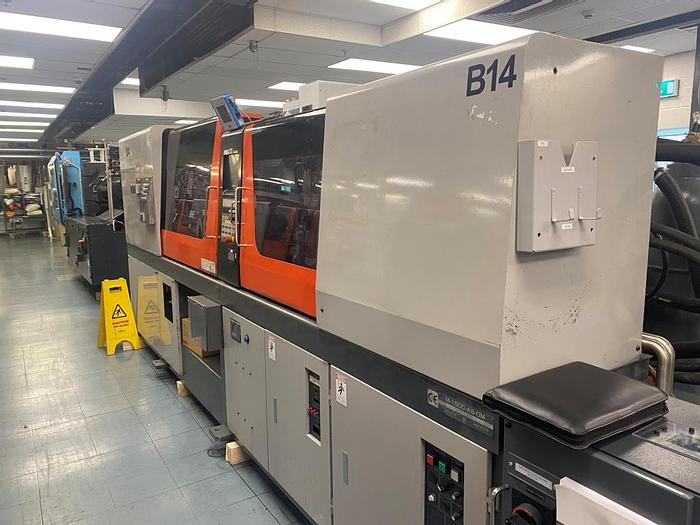

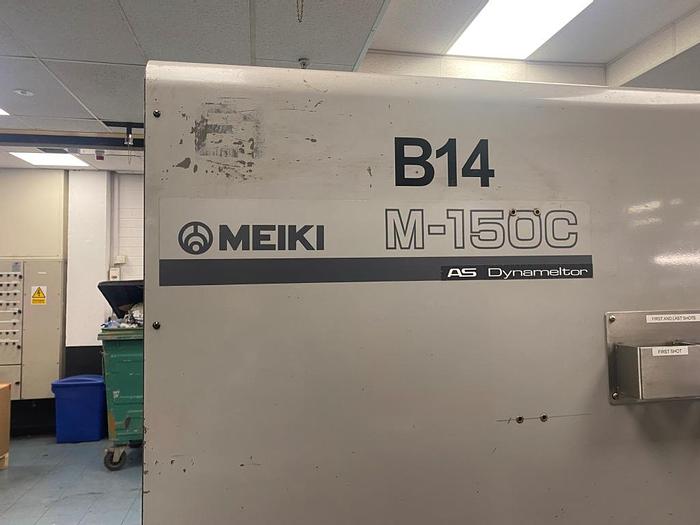

2002 Meiki M-150C-AS-DM Injection Moulding Machine

1

Ireland

orCall +353 838108745

Description

2002 Meiki M-150C-AS-DM Injection Moulding Machine


Machine Type: 150 Ton Injection Moulding Machine

Year: 2002


Technical Specifications

Screw Diameter: 36mm

Plasticizing Capacity: 59kg/h

Injection Pressure: 245MPa

Injection Capacity: 162cm3/154g

Injection Rate: 305cm3/s

Screw Speed: 350/min

Nozzle Touch Force: 27kN

Clamping Force: 1475kN

Opening Force: 95kN

Open Daylight: 800mm

Closing Stroke: 600mm

Minimum Mould Height: 200mm

Platen Size (H x V): 730 x 730mm

Distance Between Tie Bars (H x V): 515 x 515mm

Closing Speed: 591mm/s

Opening Speed: 583mm/s

Ejector Stroke: 100mm

Ejector Force: 39kN

Heating Capacity: 9kW

Motor Capacity: 30kW

Control Circuit Capacity: 0.5kW

Total Power Requirement: 61.5kVA

Max Hydraulic Pressure: 18.6MPa

Cooling Water: 57L/min

Oil Reservoir Capacity: 480L


Machine Dimensions: 5135 x 1720 x 1980mm

Machine Weight: 6100kg

Specifications

ManufacturerMeiki
ModelM-150C-AS-DM Injection Moulding Machine
Year2002
ConditionUsed

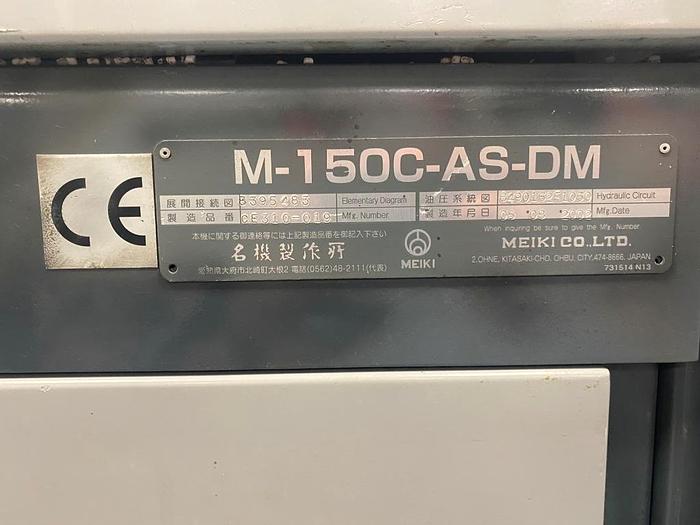

Serial NumberCE310-019
Year2002
Plasticizing Capacity59kg/h
Injection Pressure245MPa
Injection Capacity162cm3/154g
Injection Rate305cm3/s
Nozzle Touch Force27kN
Opening Force95kN
Open Daylight800mm
Closing Stroke600mm
Minimum Mould Height200mm
Closing Speed591mm/s
Opening Speed583mm/s
Heating Capacity9kW
Motor Capacity30kW
Control Circuit Capacity0.5kW
Total Power Requirement61.5kVA
Max Hydraulic Pressure18.6MPa
Cooling Water57L/min
Oil Reservoir Capacity480L
