1997 Demag ERGOtech System 500-200 Injection Moulding Machine
Description
1997 Demag ERGOtech System 500-200 Injection Moulding Machine
Machine Type: 50 Ton Injection Moulding Machine
Year: 1997

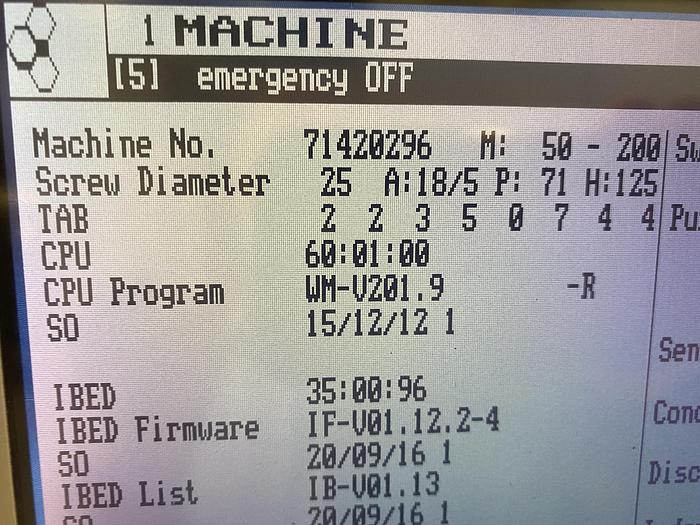

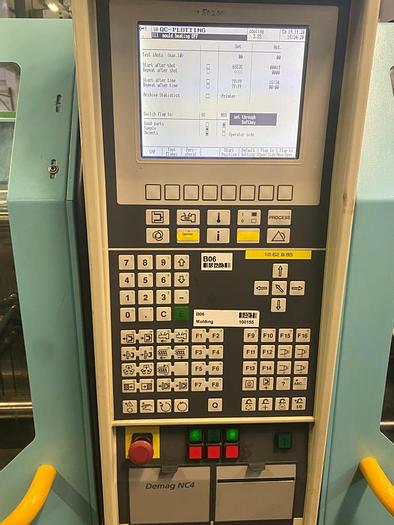

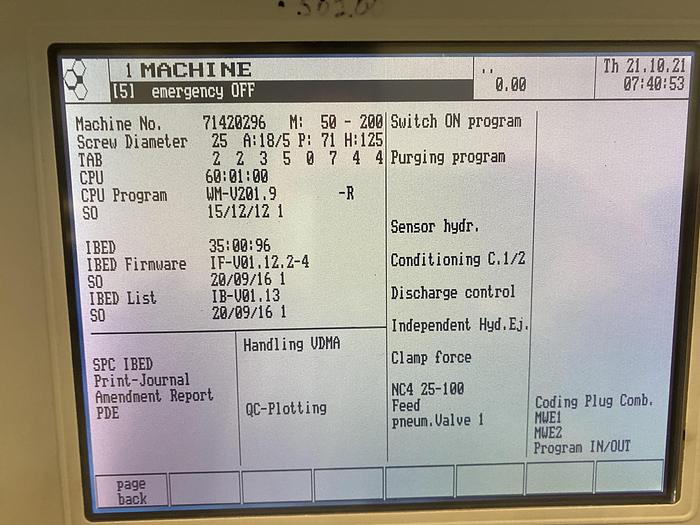

Control: Demag NC4
Technical Specifications
Clamping Force: 50 Ton (500kN)
Locking Force: 500kN
Size of Platens (H x V): 520 x 520mm
Distance Between Tie Bars (H x V): 355 x 355mm
Max Opening Stroke: 400mm
Min Mould Mounting Height: 210mm
Max Daylight: 610mm
Clamping Unit System: Single Clamp Cylinder
Intensification Ratio: 20.0
Ejection Stroke: 125mm
Ejection Force: 41.2kN
Ejector Retraction Force: 14.8kN
Screw Diameter: 25mm
L/D Ratio: 20
Injection Pressure (at 400C): 2400 Bar
Cylinder Head Volume: 61.3cm³
Shot Weight: 54g
Max Metering Stroke: 125mm
Max Nozzle Stroke: 200mm
Nozzle Dipping Depth(SVO): 40mm
Nozzle Sealing Force: 60kN
Heating Capacity of Screw Cylinder: 5.7kW
Oil Tank Capacity: 200L
Pump Motor Capacity: 15kW
Total Installed Power: 24.2kW
Machine Dimensions: 3600 x 1400 x 1800mm
Machine Weight: 2900kg
Specifications
| Manufacturer | Demag |
| Model | ERGOtech System 500-200 Injection Moulding Machine |
| Year | 1997 |
| Condition | Used |
| Year | 1997 |
| Control | Demag NC4 |
| Clamping Force | 50 Ton (500kN) |
| Mould Opening Stroke | 400mm |
| Mould Height | 210mm |
| Max Daylight | 610mm |
| Clamping Unit System | Single Clamp Cylinder |
| Intensification Ratio | 20.0 |
| Locking Force | 500kN |
| Max Opening Stroke | 400mm |
| Min Mould Mounting Height | 210mm |
| Nozzle Pressure | 60kN |
| Ejection Stroke | 125mm |
| Pump Motor Capacity | 15kW |
| Ejection Force | 41.2kN |
| Installer Heating Capacity | 8.3kW |
| Ejector Retraction Force | 14.8kN |
| L/D Ratio | 20 |
| Injection Pressure (at 400C) | 2400 Bar |
| Cylinder Head Volume | 61.3cm³ |
| Max Metering Stroke | 125mm |
| Max Nozzle Stroke | 200mm |
| Nozzle Dipping Depth(SVO) | 40mm |
| Nozzle Sealing Force | 60kN |
| Oil Tank Capacity | 200L |
| Total Installed Power | 24.2kW |
