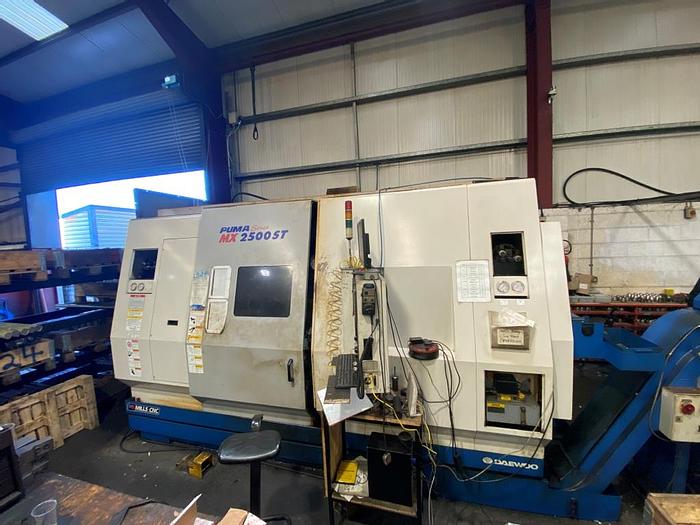

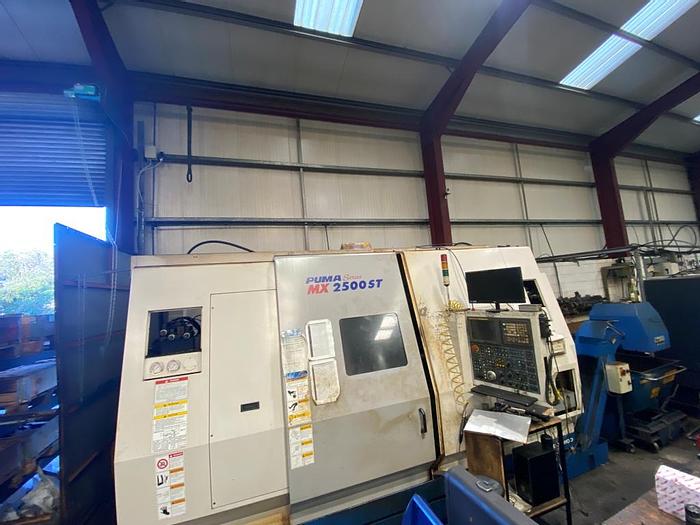

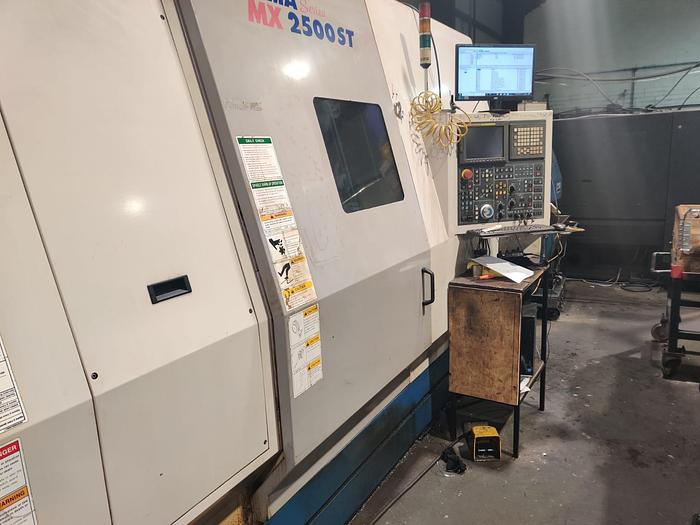

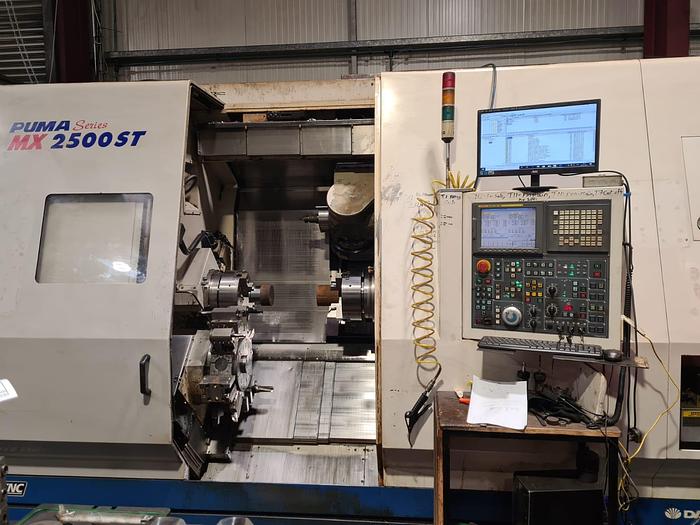

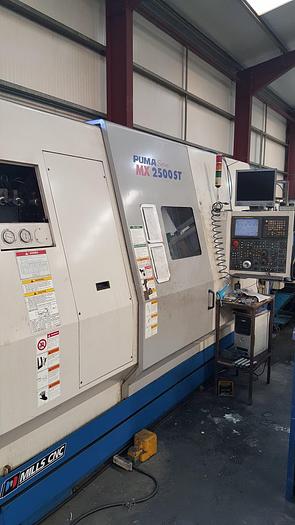

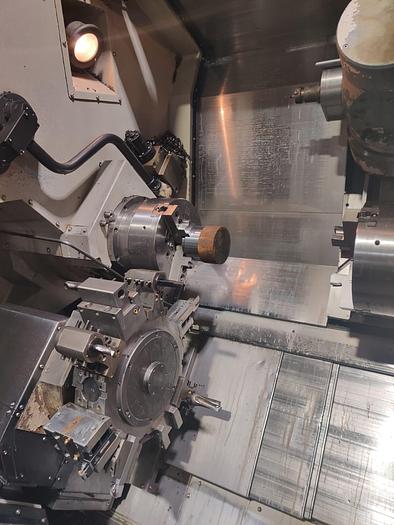

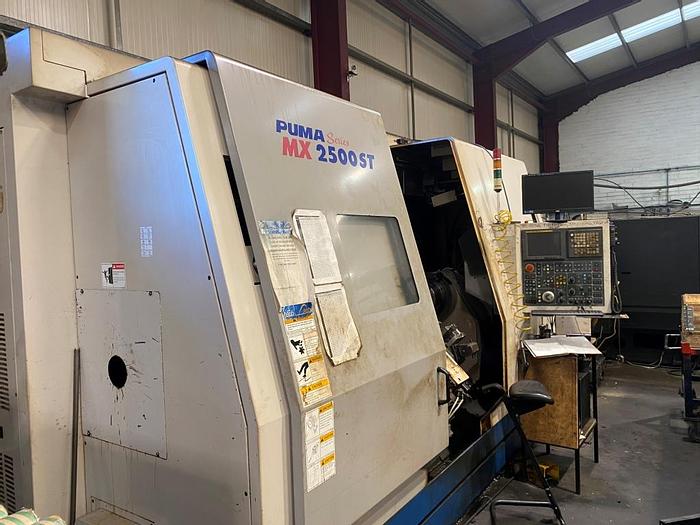

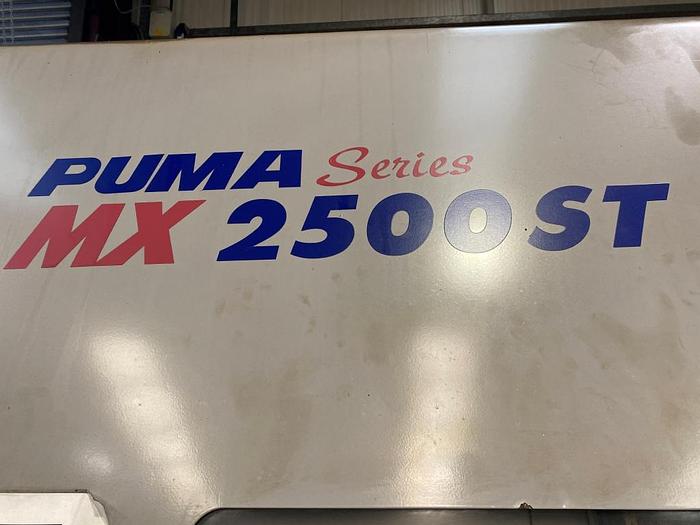

2004 Daewoo Puma MX2500ST Multi Axis Turning/Milling Center
Description
2004 Daewoo Puma MX2500ST Multi-Tasking Machine
Machine Type: Mill/Turn Multi-Tasking Machine
Year: 2004

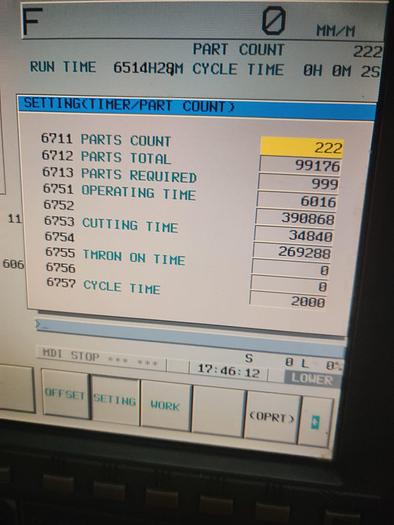

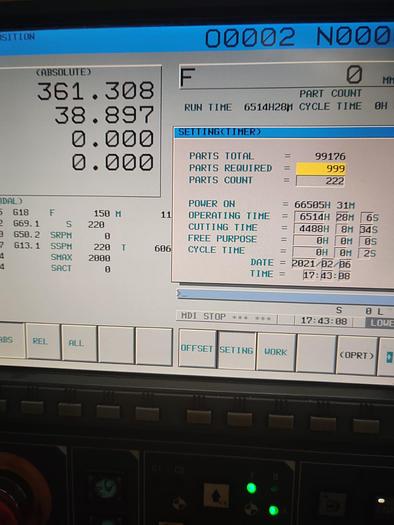

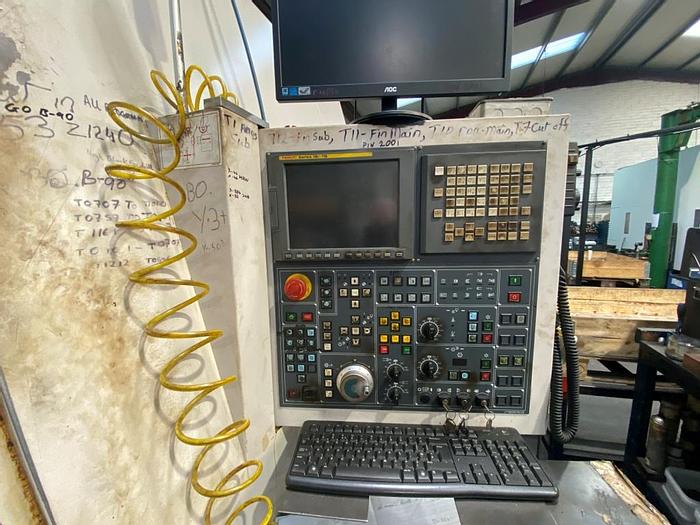

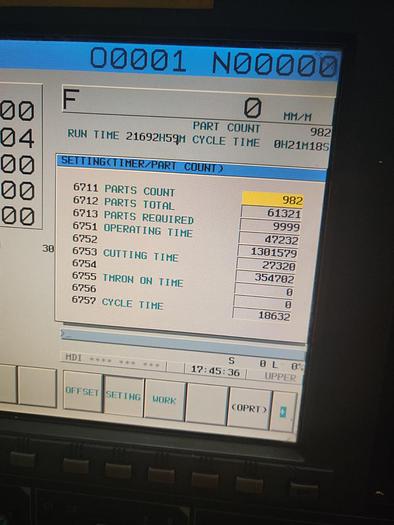

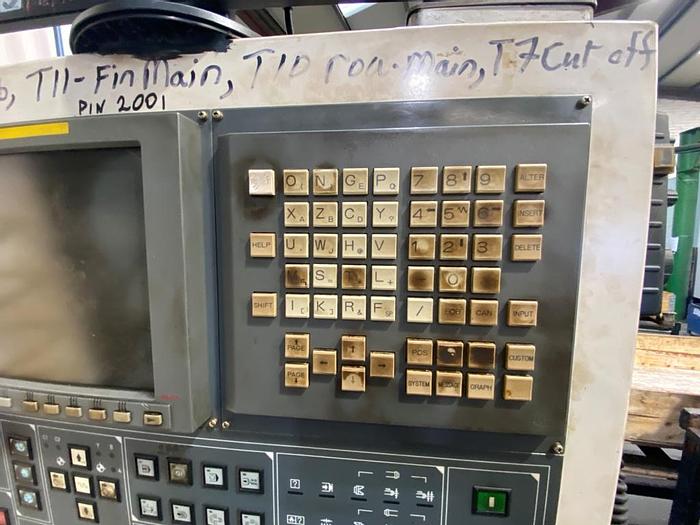

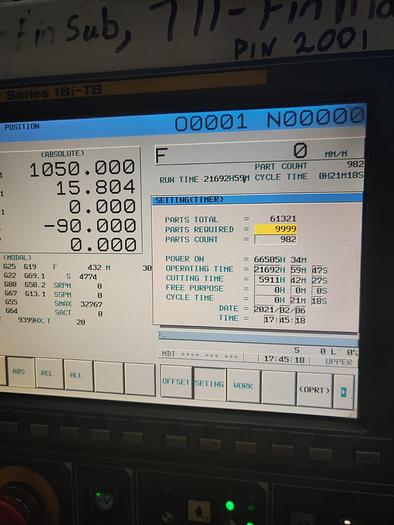

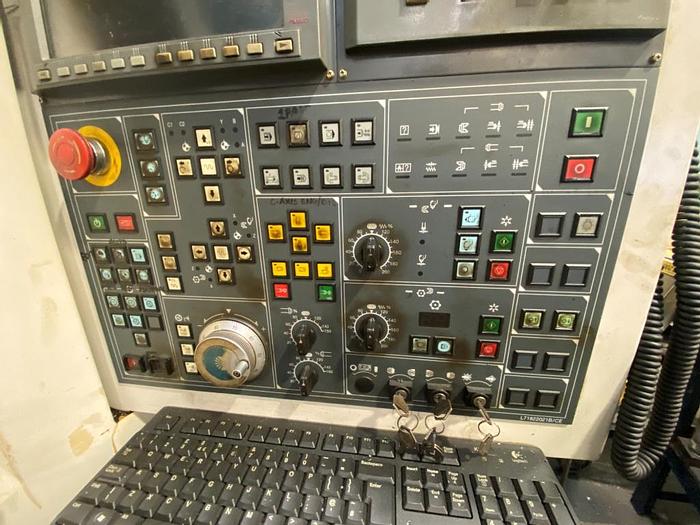

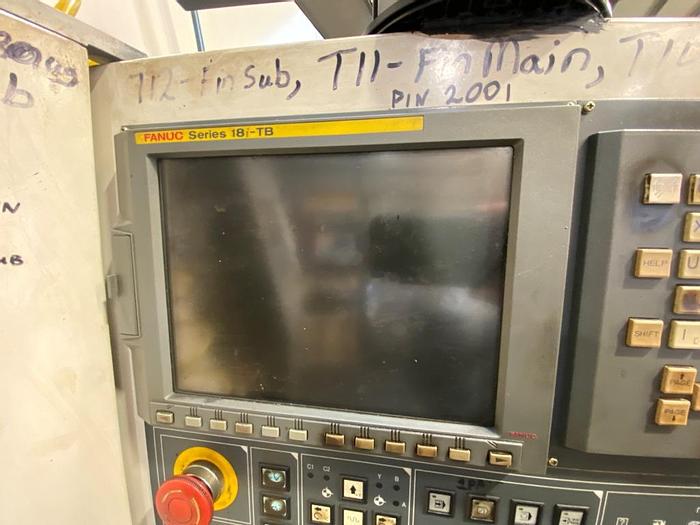

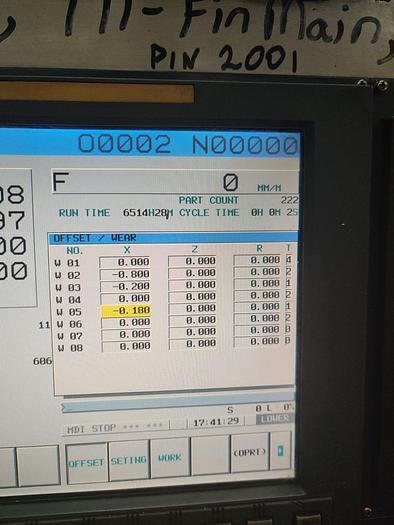

Control: Fanuc Series 18i-TB
Format: Spindle 1, Spindle, Milling Spindle, Lower Turret.
ATC for Milling Spindle: 40 Station
Axes: 9 Controlled Axes
Includes

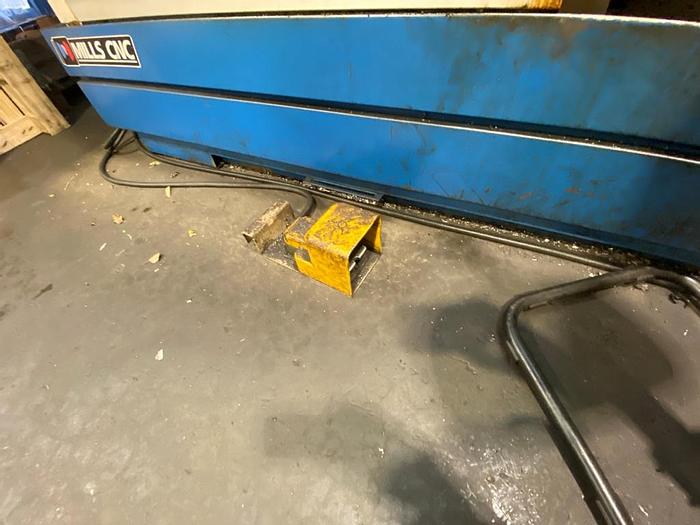

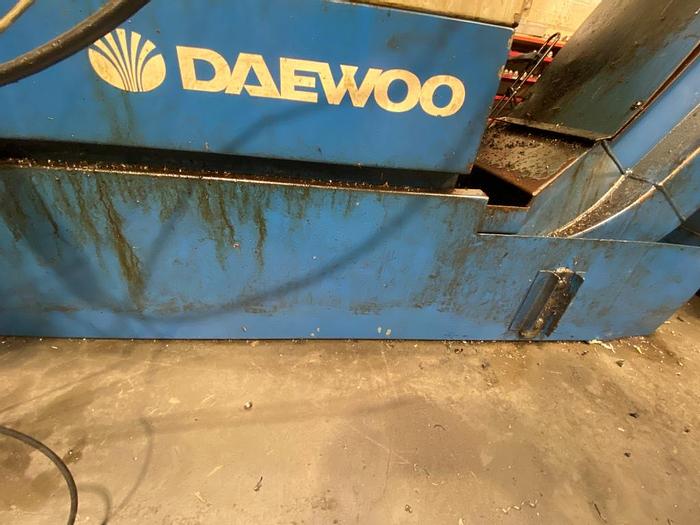

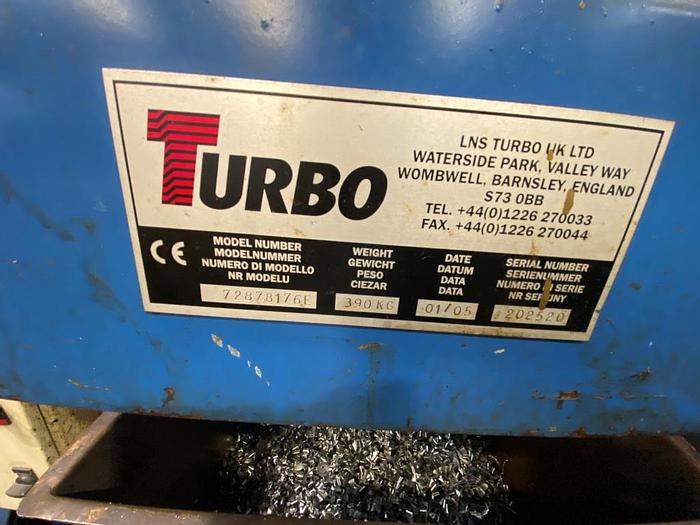

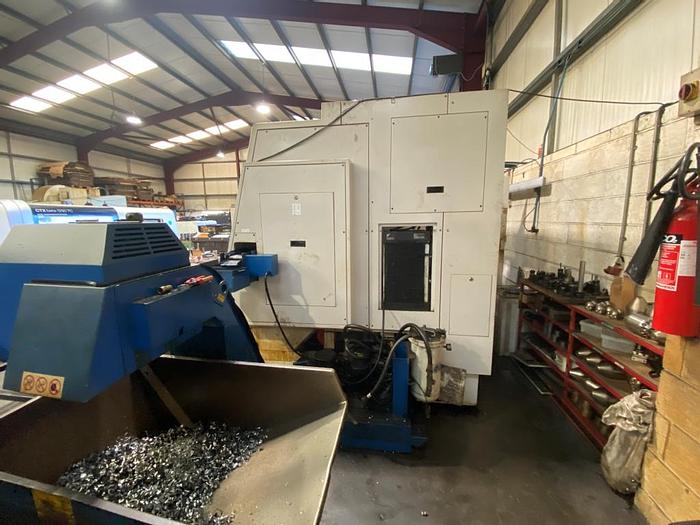

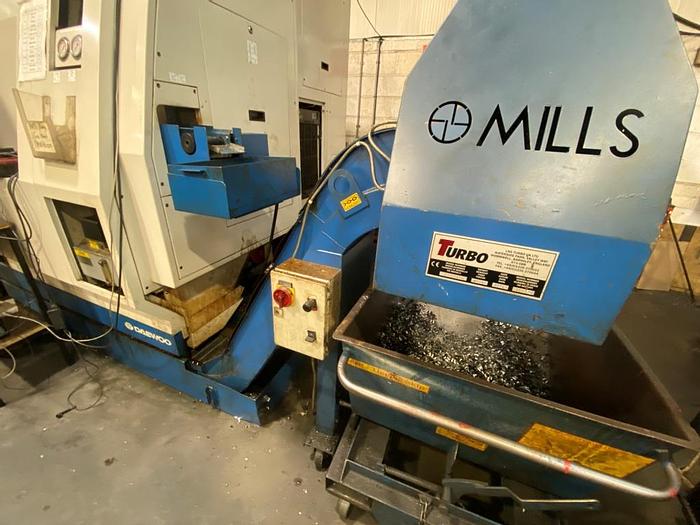

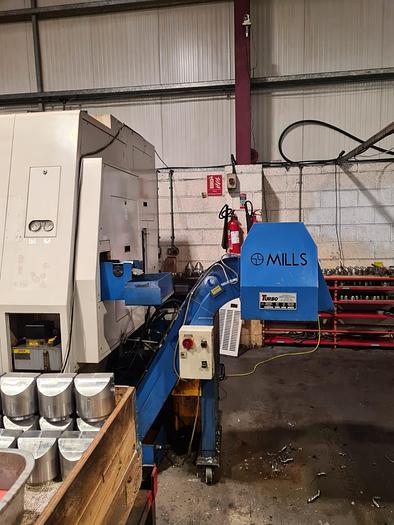

Swarf Conveyor
Specifications
Maximum swing over bed: 750mm
Recommended turning diameter: 250 mm
Maximum turning diameter: 550 mm
Maximum turning length: 1020 mm
Bar passage diameter: 76 mm
Travels
X axis travel: 555 mm
X2 axis travel: 185 mm
Z axis travel: 1095mm
Z2 axis travel: 1140mm
Y axis travel:160 mm (+/- 80)
A Axis stroke: 1065 mm
C1 axis/C2 Axis: 360°
B Axis: 240 ° (+/- 120°)
Axis B coupling: 15 °
Rapid Feeds
X1/X2: 24m/min
Z1/Z2: 24 m/min
Y axis: 16m/min
A Axis: 24m/min
C1 /C2 Axis: 200 rpm
B Axis: 27 rpm

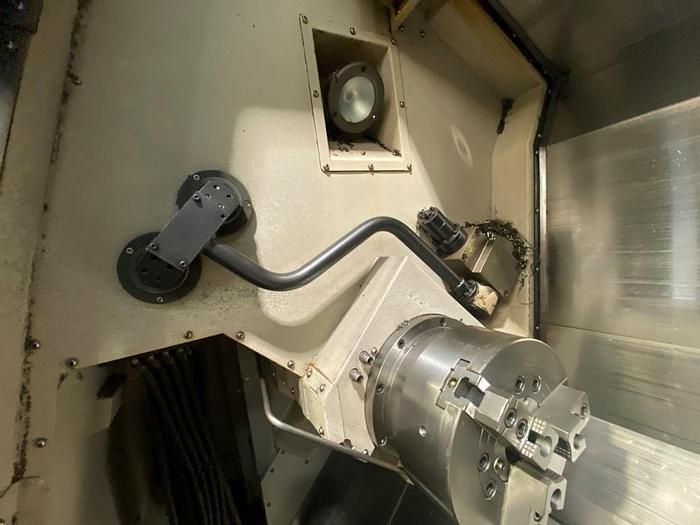

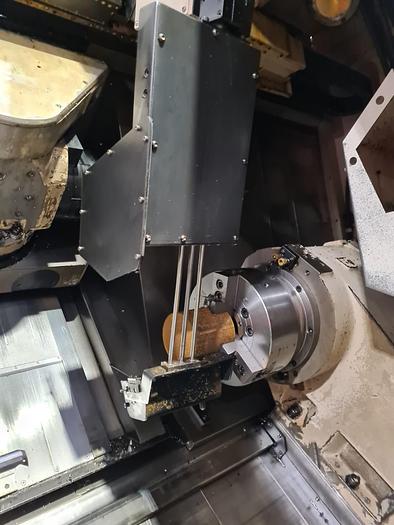

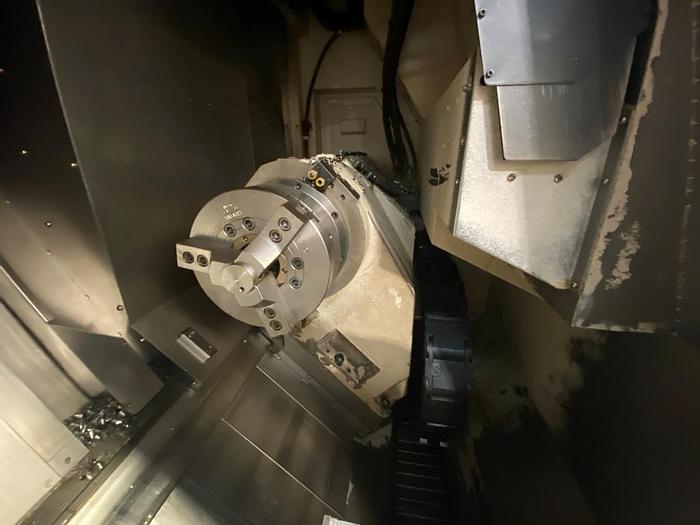

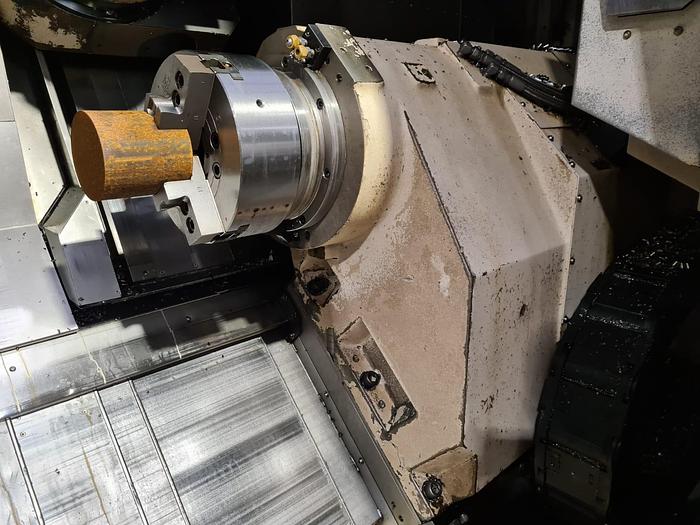

Chuck Spindles
Max spindle speed: 3500rpm
Spindle motor power: 26/22 Kw
Spindle diameter: 130 mm

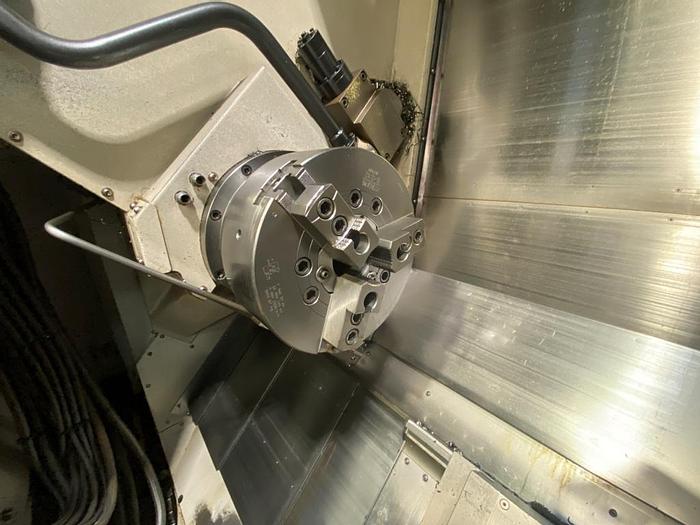

Chuck: 250 mm

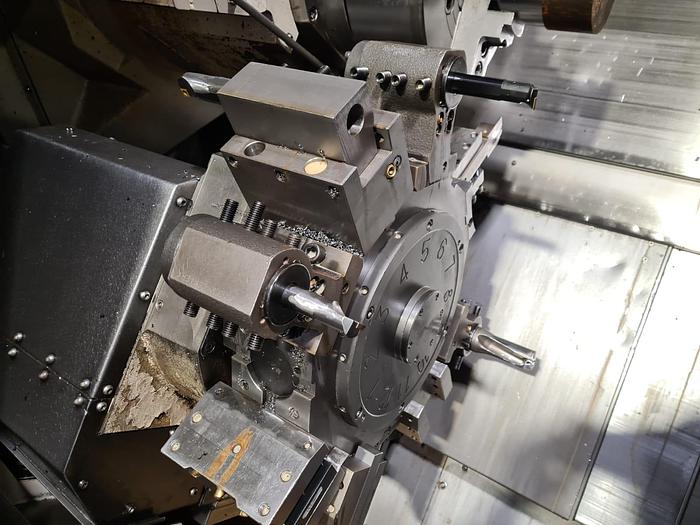

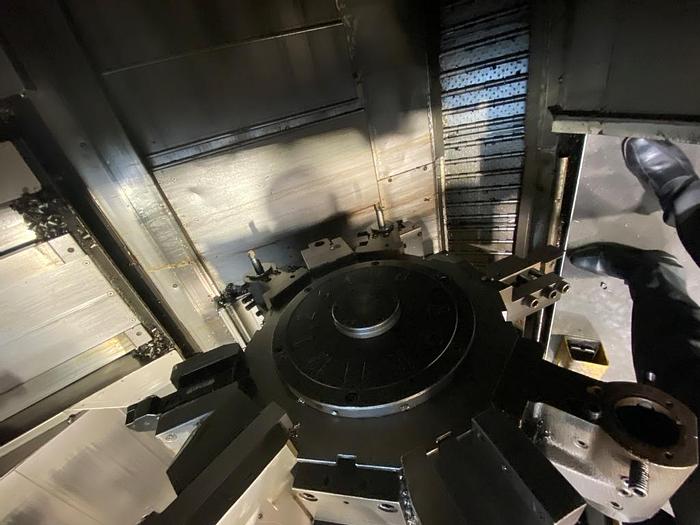

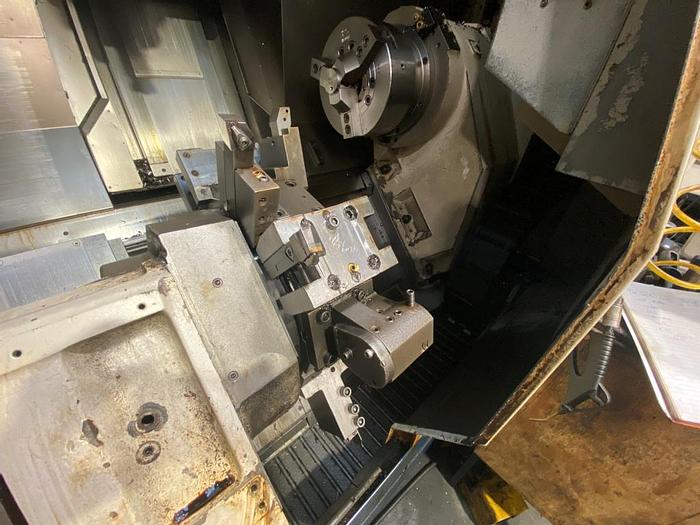

Turret
Stations: 12
Driven Stations: 12

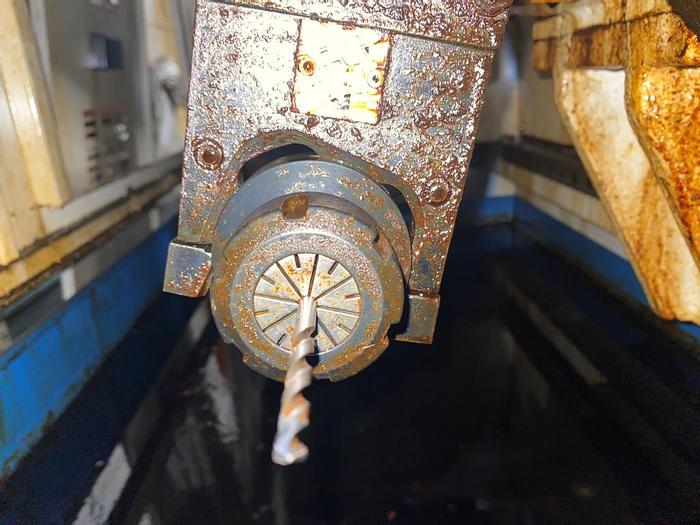

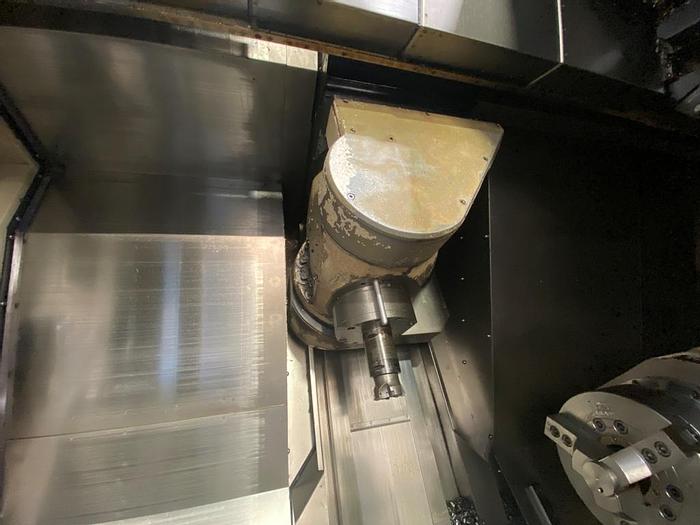

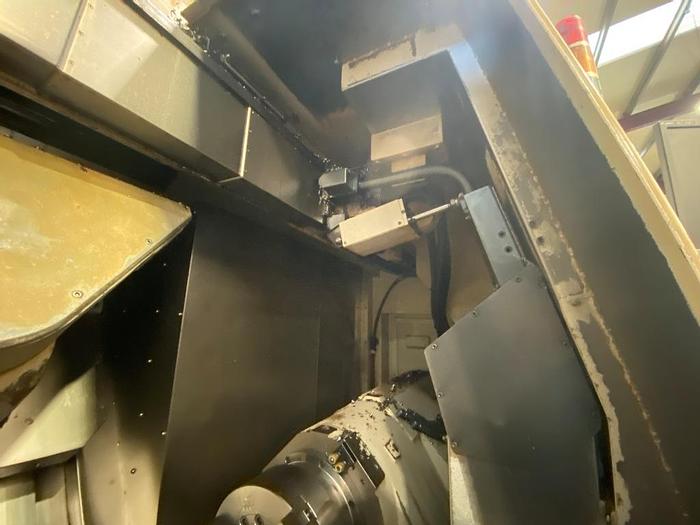

Milling Spindle
Spindle taper: CAPTO C6
Spindle diameter: 70 mm
Indexing: 360 °
Number of tools: 40
Motor power: 15/11 Kw
Electro-spindle speed: 10,000 rpm

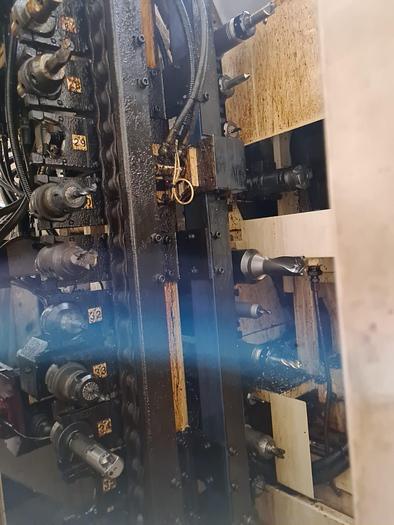

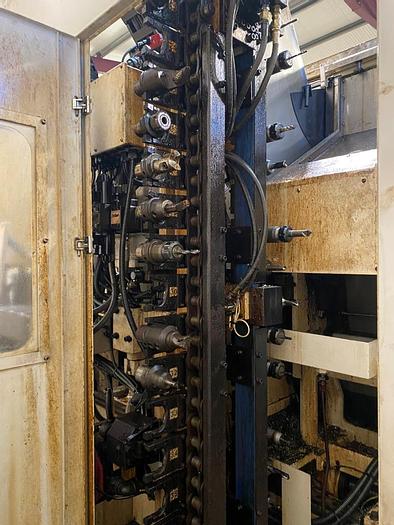

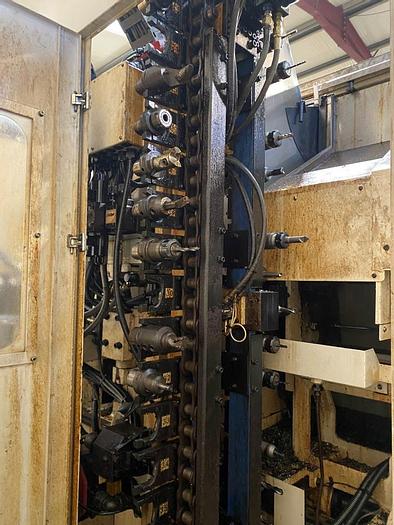

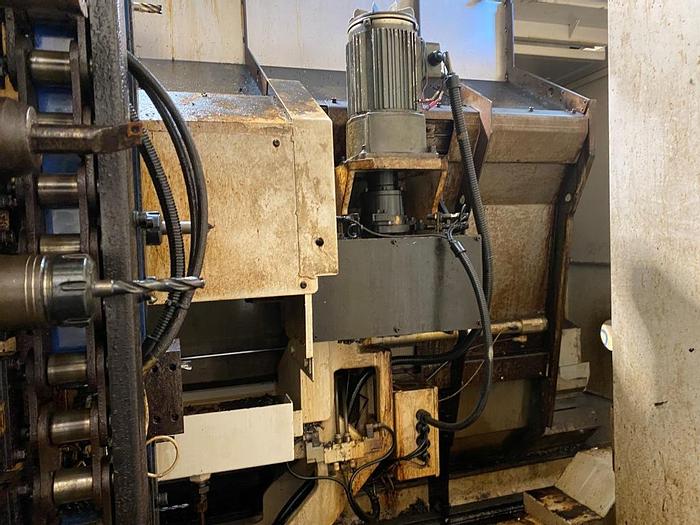

ATC: 40-place tool magazine
Tool Changer: Swing arm tool changer
Tool Selection: Fixed seat tool selection
Maximum tool length: 300 mm
Maximum tool weight: 8kg
Tool change speed: 1.5sec
Machine Dimensions: 4,520 x 2,495 x 2600mm
Approx. Weight: 12,500 kg
Specifications
| Manufacturer | Daewoo |
| Model | Puma MX2500ST Multi Axis Turning/Milling Center |
| Year | 2004 |
| Condition | Used |
| Machine Type | Mill/Turn Multi-Tasking Machine |
| Year | 2004 |
| Control | Fanuc Series 18i-TB |
| ATC for Milling Spindle | 40 Station |
| Axes | 9 Controlled Axes |
| Maximum swing over bed | 750mm |
| Recommended turning diameter | 250 mm |
| Maximum turning diameter | 550 mm |
| Maximum turning length | 1020 mm |
| Bar passage diameter | 76 mm |
| X axis travel | 555 mm |
| X2 axis travel | 185 mm |
| Z axis travel | 1095mm |
| Z2 axis travel | 1140mm |
| Y axis travel | 160 mm (+/- 80) |
| A Axis stroke | 1065 mm |
| C1 axis/C2 Axis | 360° |
| B Axis | 240 ° (+/- 120°) |
| Axis B coupling | 15 ° |
| X1/X2 | 24m/min |
| Z1/Z2 | 24 m/min |
| Y axis | 16m/min |
| A Axis | 24m/min |
| C1 /C2 Axis | 200 rpm |
| B Axis | 27 rpm |
| Max spindle speed | 3500rpm |
| Spindle motor power | 26/22 Kw |
| Spindle diameter | 130 mm |
| Chuck | 250 mm |
| Stations | 12 |
| Driven Stations | 12 |
| Spindle taper | CAPTO C6 |
| Spindle diameter | 70 mm |
| Indexing | 360 ° |
| Number of tools | 40 |
| Motor power | 15/11 Kw |
| Electro-spindle speed | 10,000 rpm |
| ATC | 40-place tool magazine |
| Tool Changer | Swing arm tool changer |
| Tool Selection | Fixed seat tool selection |
| Maximum tool length | 300 mm |
| Maximum tool weight | 8kg |
| Tool change speed | 1.5sec |
| Approx. Weight | 12,500 kg |
