€11,000 + VAT

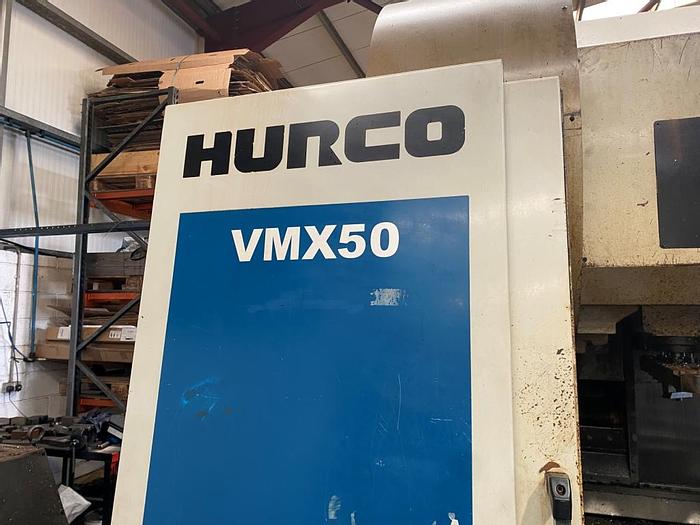

2002 Hurco VMX50/50T Vertical Machining Center

1

Ireland

orCall +353 838108745

Description

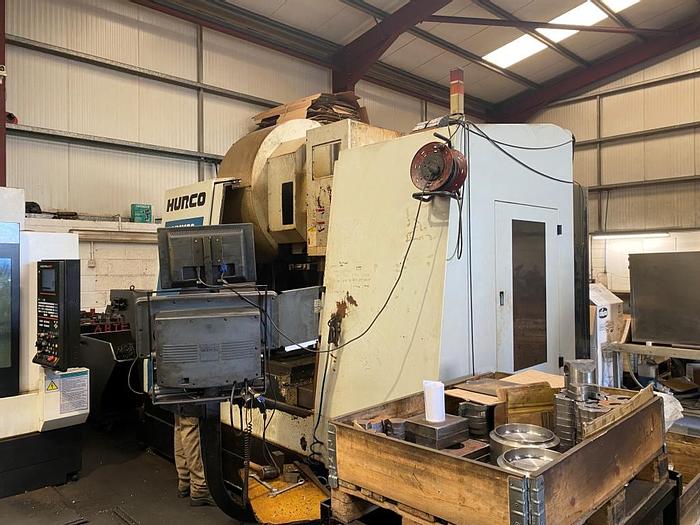

2002 Hurco VMX50/50T Vertical Machining Center


Machine Type: 3 Axis Machining Center

Year: 2002

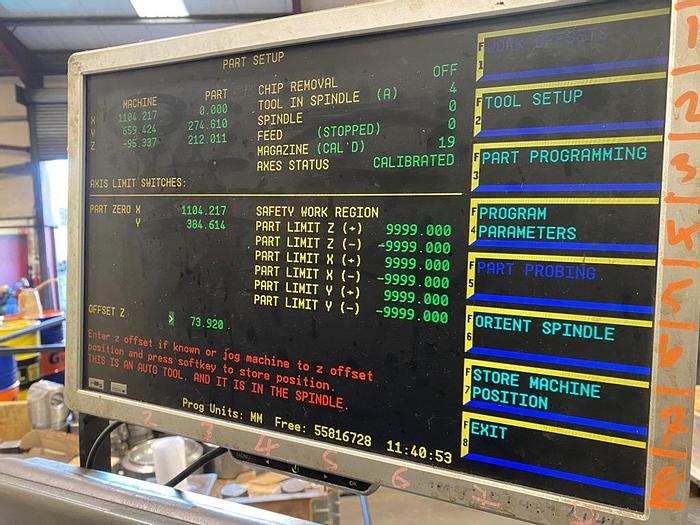

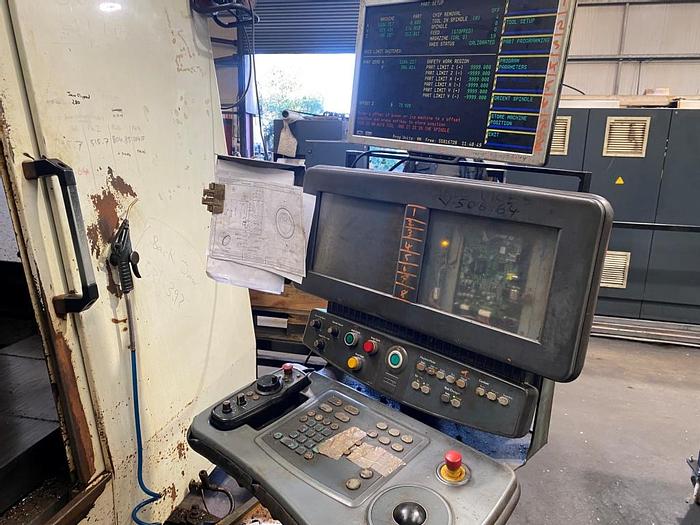

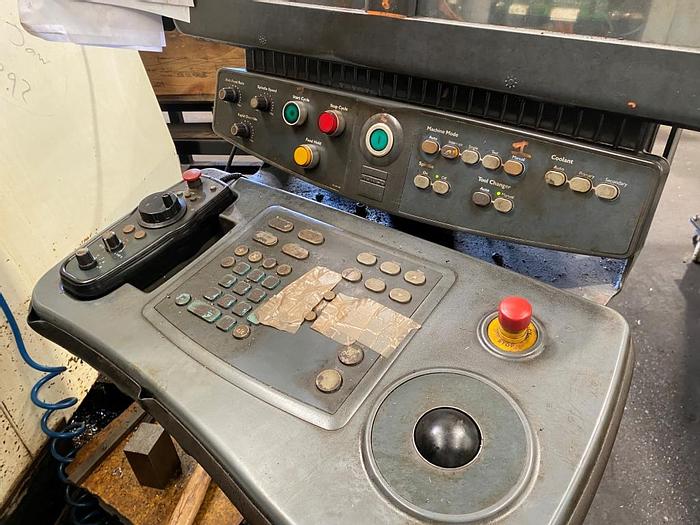

Control: Hurco ( Screens not working - substituted with external screen)

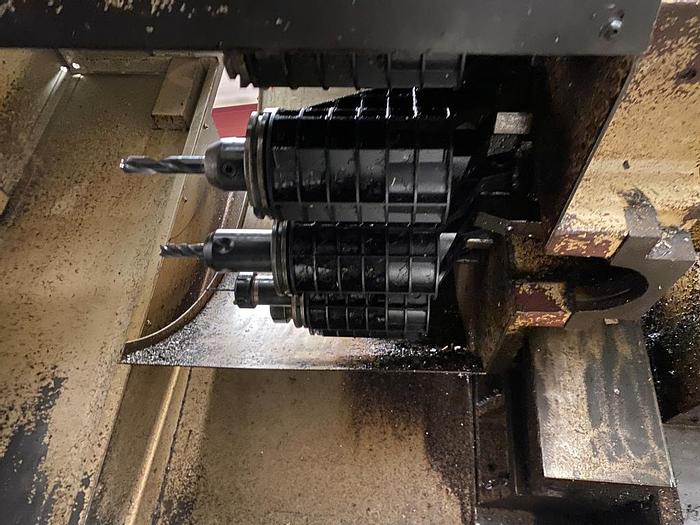

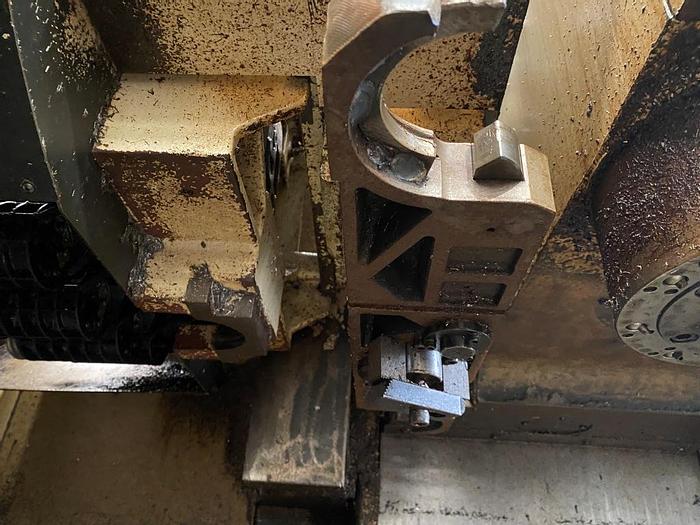

ATC: 30 Station


Includes

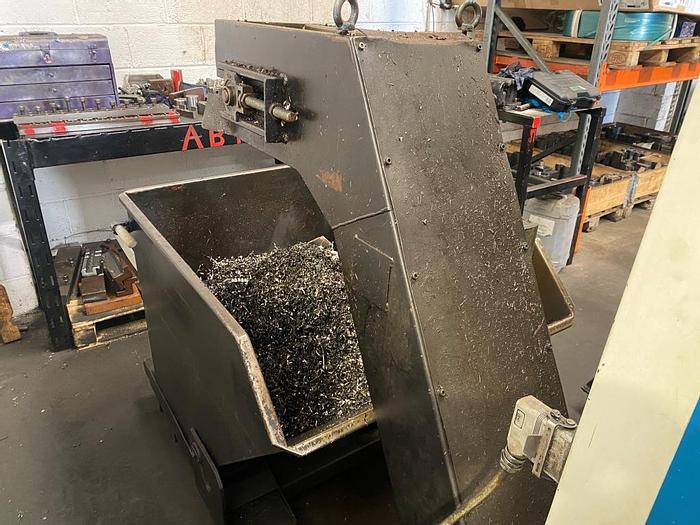

Swarf Conveyor

20 Bar Through Spindle Coolant

Air Blast

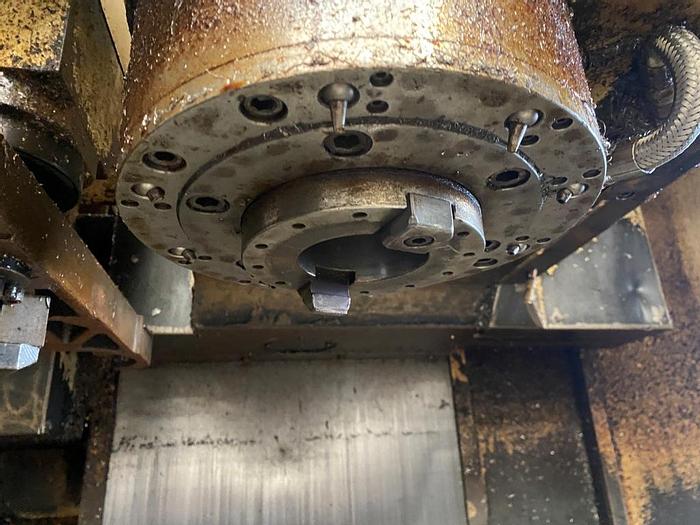

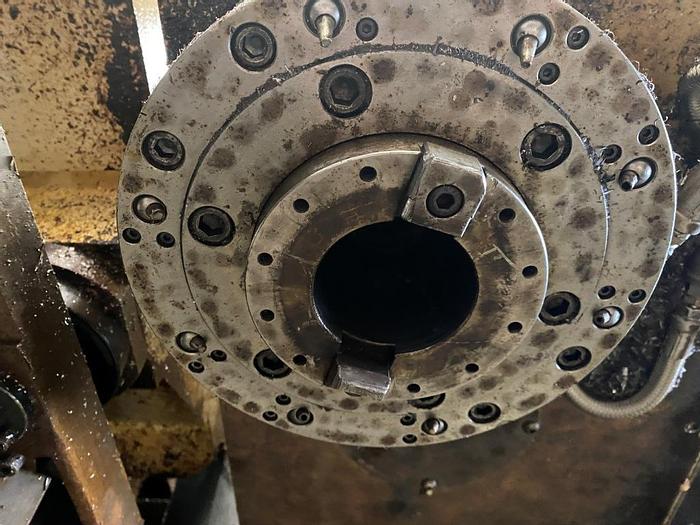

PTG 200mm Centre Height Pneumatic Indexer with Tailstock

Rigid Tapping


Specifications

Table Size: 1500 x 660mm

T Slots: 6 x 18mm on 100mm Centres

Max Table Load: 1360kg

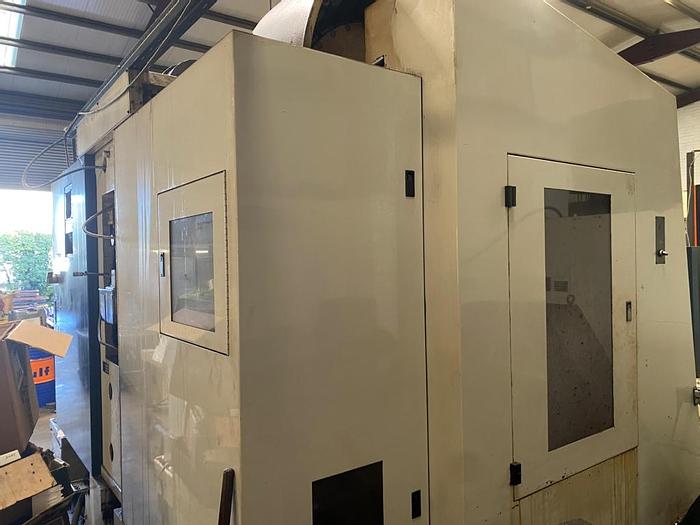

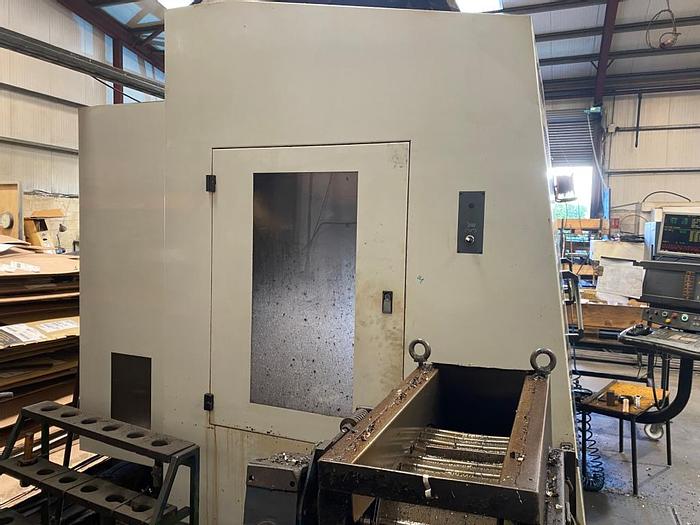

Enclosure Door Opening: 1350mm

Spindle Centre to Column: 745mm

Spindle Nose to Table: 152 - 762mm

Spindle Taper: ISO 50

Spindle Speeds: 0-8000rpm

Spindle Power: 15kW Continuous

X Axis Travel: 1270mm

Y Axis Travel: 660mm

Z Axis Travel: 610mm

Rapid Feeds (X/Y/Z): 30/30/20m/min

Cutting Feeds (X/Y/Z): 7./7.6/7.6m/min

ATC: 30 Station

Max Tool Diameter: 125mm

Max Tool Diameter with empty Adjacent Pockets: 220mm

Max Tool Length: 300mm

Max Tool Weight: 15kg

Tool Change Time: (C2C) 9secs


Machine Dimensions: 4875 x 4580 x 3000mm

Machine Weight: 9,150kg



Specifications

ManufacturerHurco
ModelVMX50/50T Vertical Machining Center
Year2002
ConditionUsed
Stock Number00236
Machine Type3 Axis Machining Center
Year2002
ATC30 Station
Table Size1500 x 660mm
Max Table Load1360kg
Enclosure Door Opening1350mm
Spindle Centre to Column745mm
Spindle Nose to Table152 - 762mm
Spindle TaperISO 50
Spindle Speeds0-8000rpm
Spindle Power15kW Continuous
X Axis Travel1270mm
Y Axis Travel660mm
Z Axis Travel610mm
Rapid Feeds (X/Y/Z)30/30/20m/min
Cutting Feeds (X/Y/Z)7./7.6/7.6m/min
Max Tool Diameter125mm
Max Tool Length300mm
Max Tool Weight15kg
Tool Change Time(C2C) 9secs
Machine Weight9,150kg
