2001 Bridgeport VMC 500XP Vertical Machining Center
Sold
Description

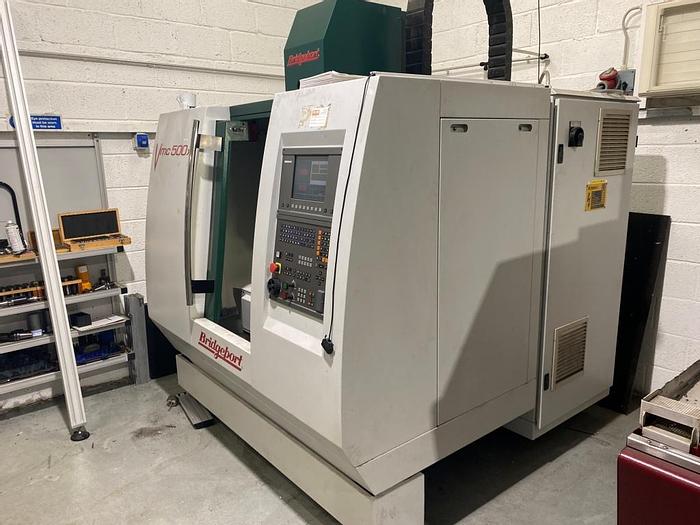

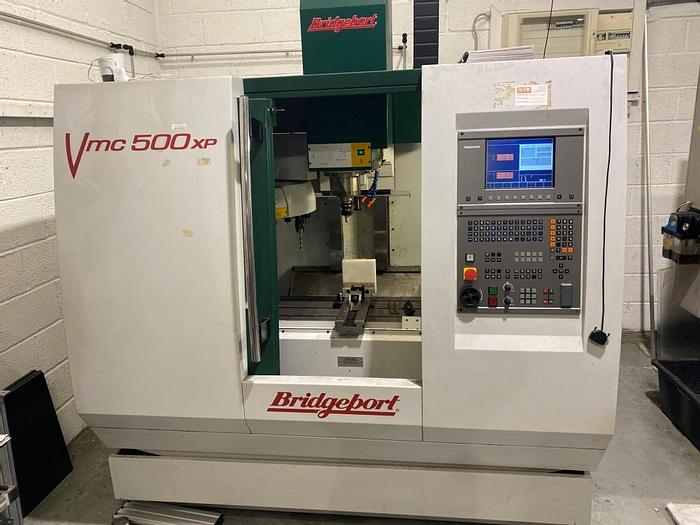

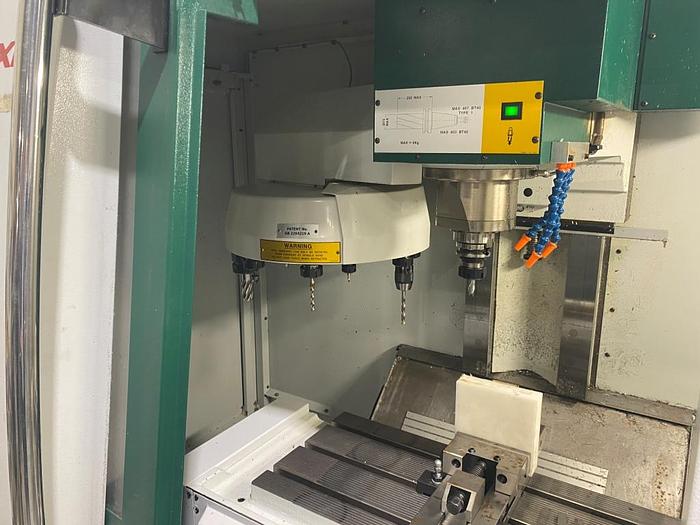

2001 Bridgeport VMC 500XP Vertical Machining Center
Machine rarely used and in excellent condition as seen in the photos.
Machine Type: 3 Axis CNC Machining Center
Year: 2001

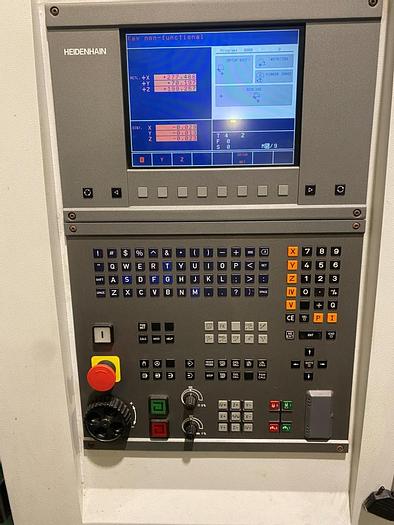

Control: Heidenhain TNC 410 Control

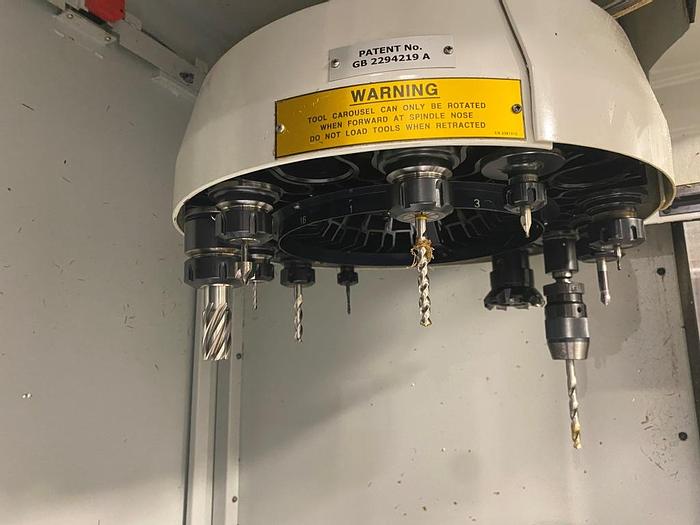

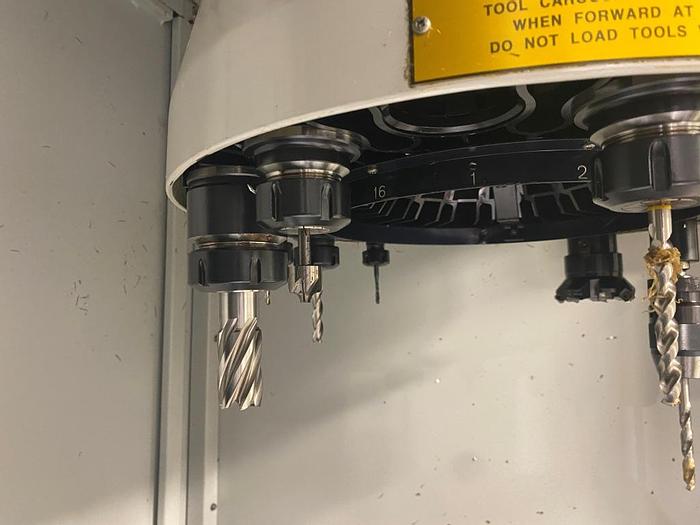

ATC: 16 Station
Includes
Tool Holders
Probe

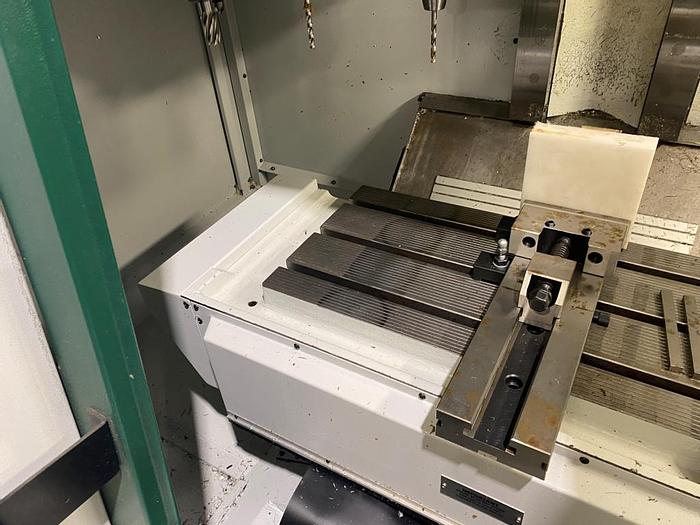

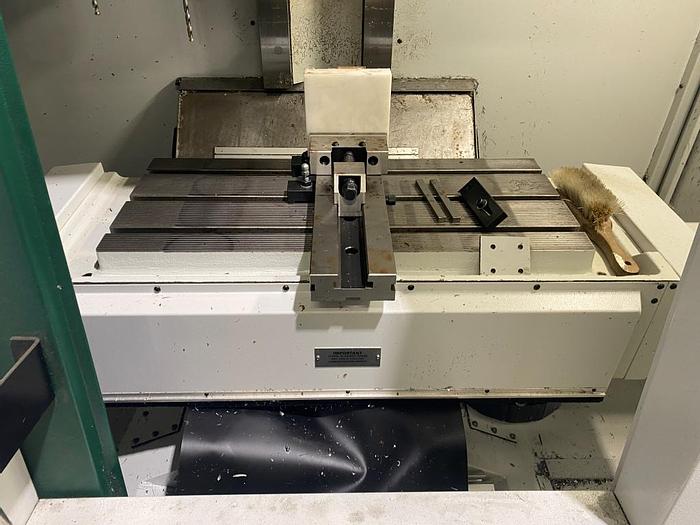

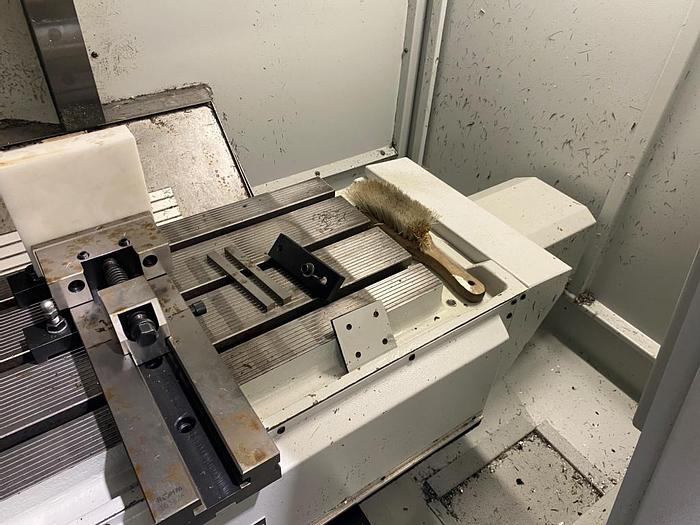

Machine Vice
Specifications
Table Size: 840 x 360mm
Max Workpiece Weight: 500kg
X Axis Travel: 500mm
Y Axis Travel: 340mm
Z Axis Travel: 520mm
Rapid Feeds (X/Y/Z): 20/20/16m/min
Min/Max Height Spindle to Table: 75 - 595mm
Spindle Motor Power: 10kW
Spindle Speeds: 40 - 7000rpm
ATC: 16 Station
Tool Change Time: (C to C) 8.5sec

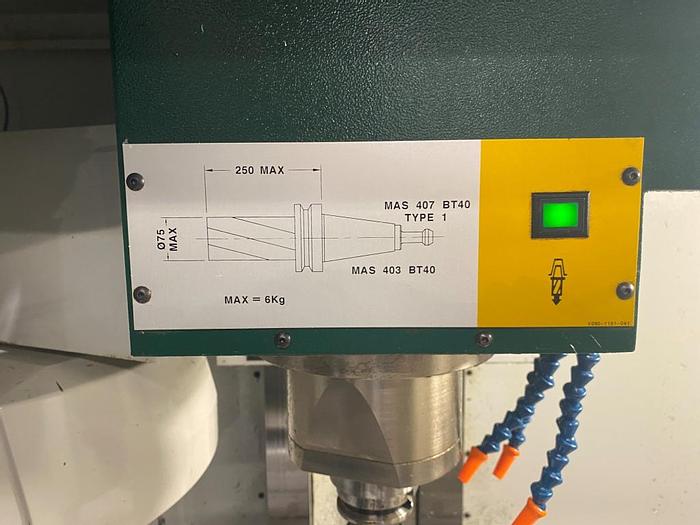

Tool Taper: BT40
Max Tool Length: 250mm
Max Tool Diameter: 75mm
Max Tool Weight: 6.5kg
Machine Dimensions: 2000 x 2020 x 2535mm
Approx Weight: 2500kg
Specifications
| Manufacturer | Bridgeport |
| Model | VMC 500XP Vertical Machining Center |
| Year | 2001 |
| Condition | Used |
| Year | 2001 |
| Control | Heidenhain TNC 410 Control |
| ATC | 16 Station |
| Table Size | 840 x 360mm |
| Max Workpiece Weight | 500kg |
| X Axis Travel | 500mm |
| Y Axis Travel | 340mm |
| Z Axis Travel | 520mm |
| Rapid Feeds (X/Y/Z) | 20/20/16m/min |
| Spindle Motor Power | 10kW |
| Spindle Speeds | 40 - 7000rpm |
| Tool Change Time | (C to C) 8.5sec |
| Tool Taper | BT40 |
| Max Tool Length | 250mm |
| Max Tool Diameter | 75mm |
| Max Tool Weight | 6.5kg |
| Approx Weight | 2500kg |
