€10,250 + VAT

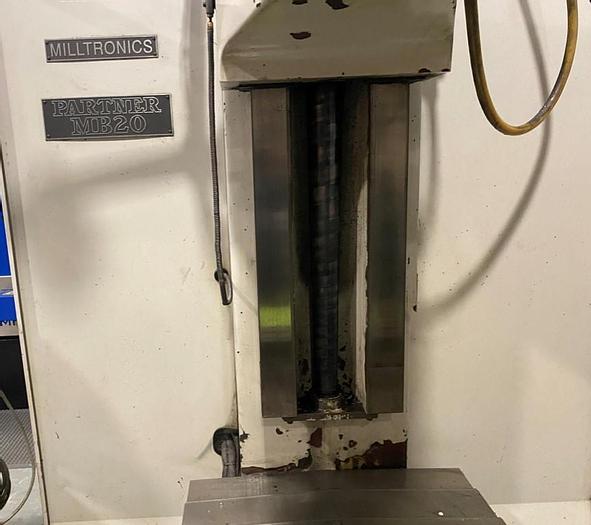

2000 Milltronics Partner MB20-A CNC Milling Machine

1

Ireland

orCall +353 838108745

Description

2000 Milltronics Partner MB20-A CNC Milling Machine


Machine Type: 3 Axis CNC Milling Machine

Year: 2000

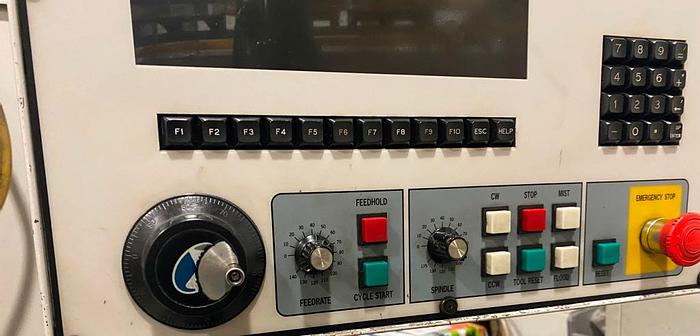

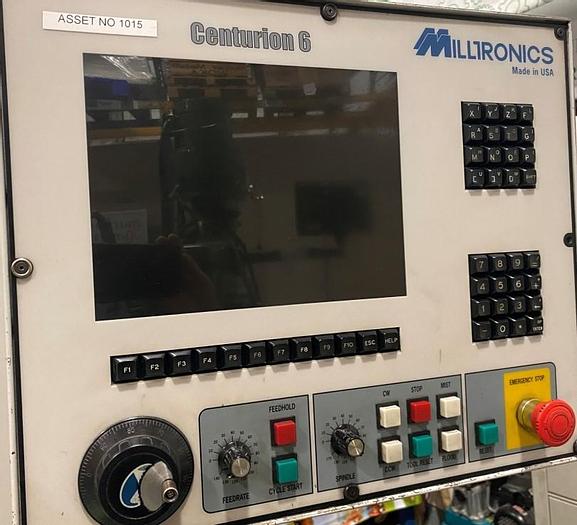

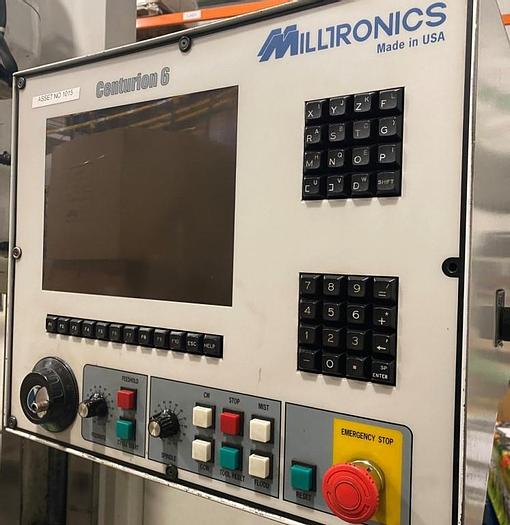

Control: Centurion 6 (with upgraded software)


Includes:

Power Drawbar


Technical Specification

X Axis Travel: 1016mm

Y Axis Travel: 508mm

Z Axis Travel: 609mm

Spindle Quill Travel: 150mm

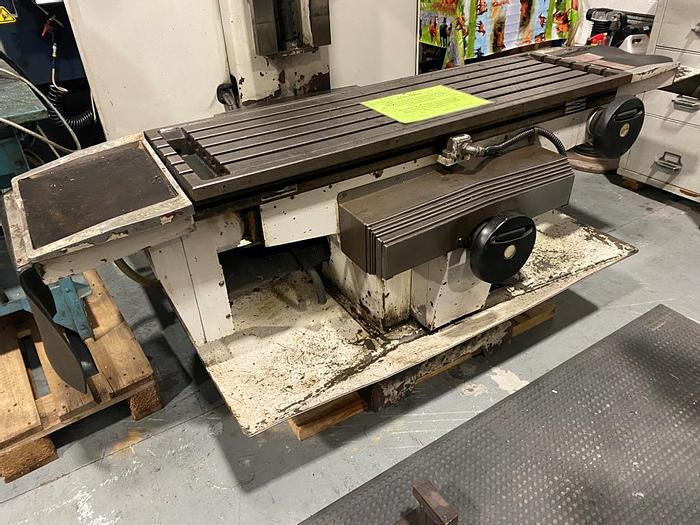

Table Size: 1370 x 400mm

Type of Tool Holder: BT 40

Spindle Quill Diameter: 105mm

Distance Spindle to Column: 508mm

Distance Spindle to Table: 50 - 660mm

Max Table Load: 900kg

Spindle Speeds: 60 - 4,000rpm

Feeds: 0 - 5000mm/min

Rapids: 6350mm/min

Motor Power: 10 HP


Machine Dimensions: 2235 x 2030 x 2515mm

Machine Weight: 2750kg



Specifications

ManufacturerMilltronics
ModelPartner MB20-A CNC Milling Machine
Year2000
ConditionUsed
Year2000
X Axis Travel1016mm
Y Axis Travel508mm
Z Axis Travel609mm
Spindle Quill Travel150mm
Table Size1370 x 400mm
Type of Tool HolderBT 40
Spindle Quill Diameter105mm
Distance Spindle to Column508mm
Distance Spindle to Table50 - 660mm
Max Table Load900kg
Spindle Speeds60 - 4,000rpm
Feeds0 - 5000mm/min
Rapids6350mm/min
Motor Power10 HP
Machine Weight2750kg
