🔧 2003 Victor H500 Horizontal Machining Centre – Full 4th Axis | Fanuc Control | Tooling Included

🏭 For Sale: Victor H500 Horizontal CNC Machining Centre – 2003 Model | Excellent Condition

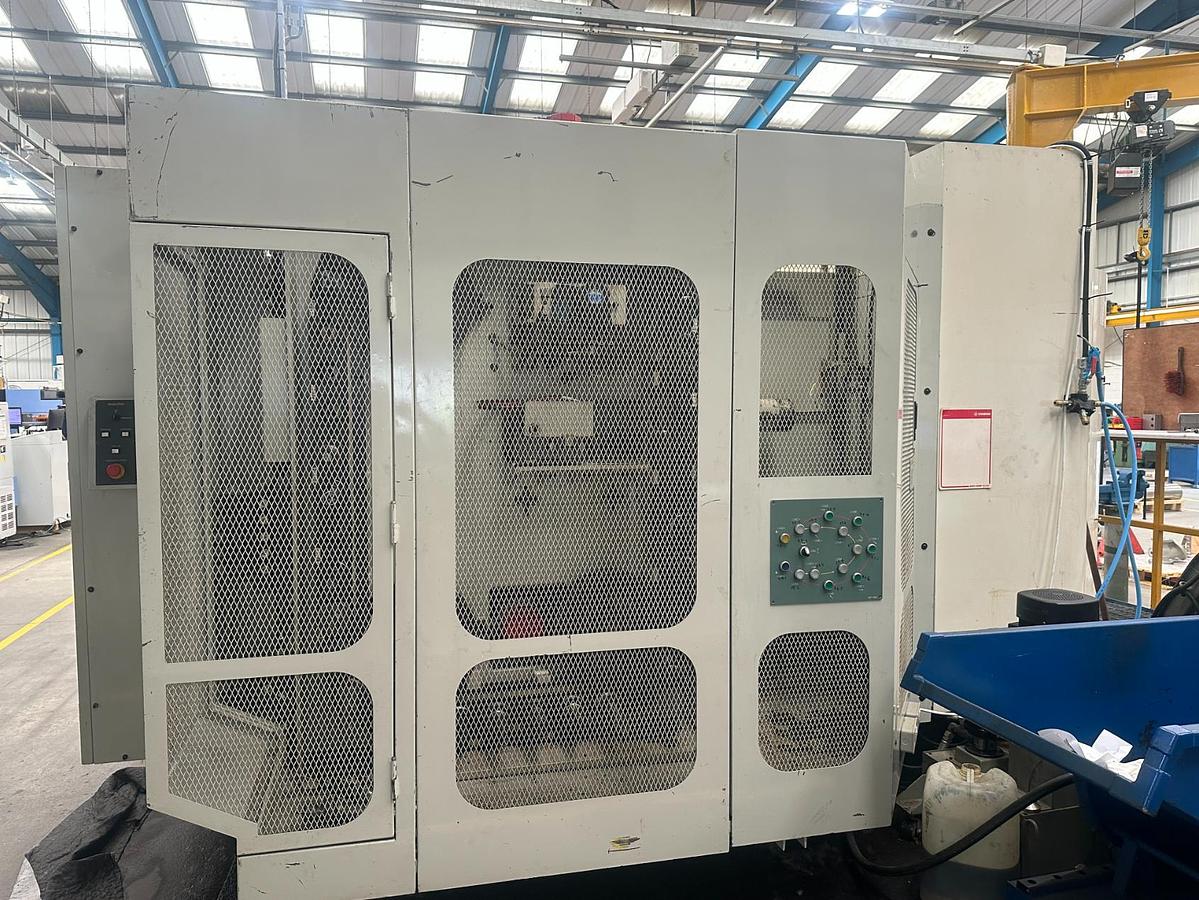

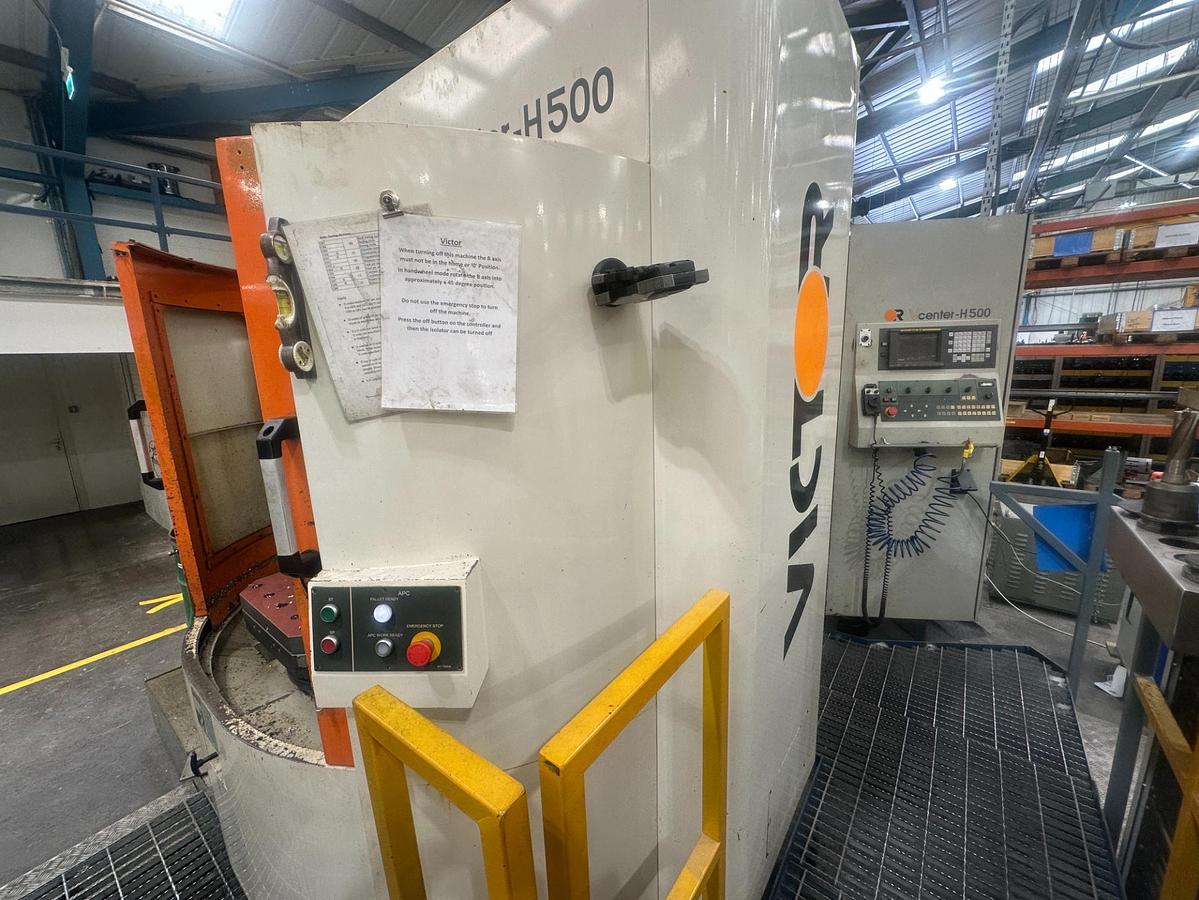

Available now is this high-performance Victor H500 Horizontal Machining Centre, equipped with a Full 4th Axis (B-Axis), Fanuc 18-M CNC control, dual pallet system, and an extensive list of features ideal for high-precision and high-volume manufacturing.

This 2003 model is in very good condition, well-maintained, and includes a large selection of BT50 tool holders, making it a turnkey solution for production environments seeking power, accuracy, and reliability.

✅ Key Specifications:

• Model: Victor H500
• Year: 2003

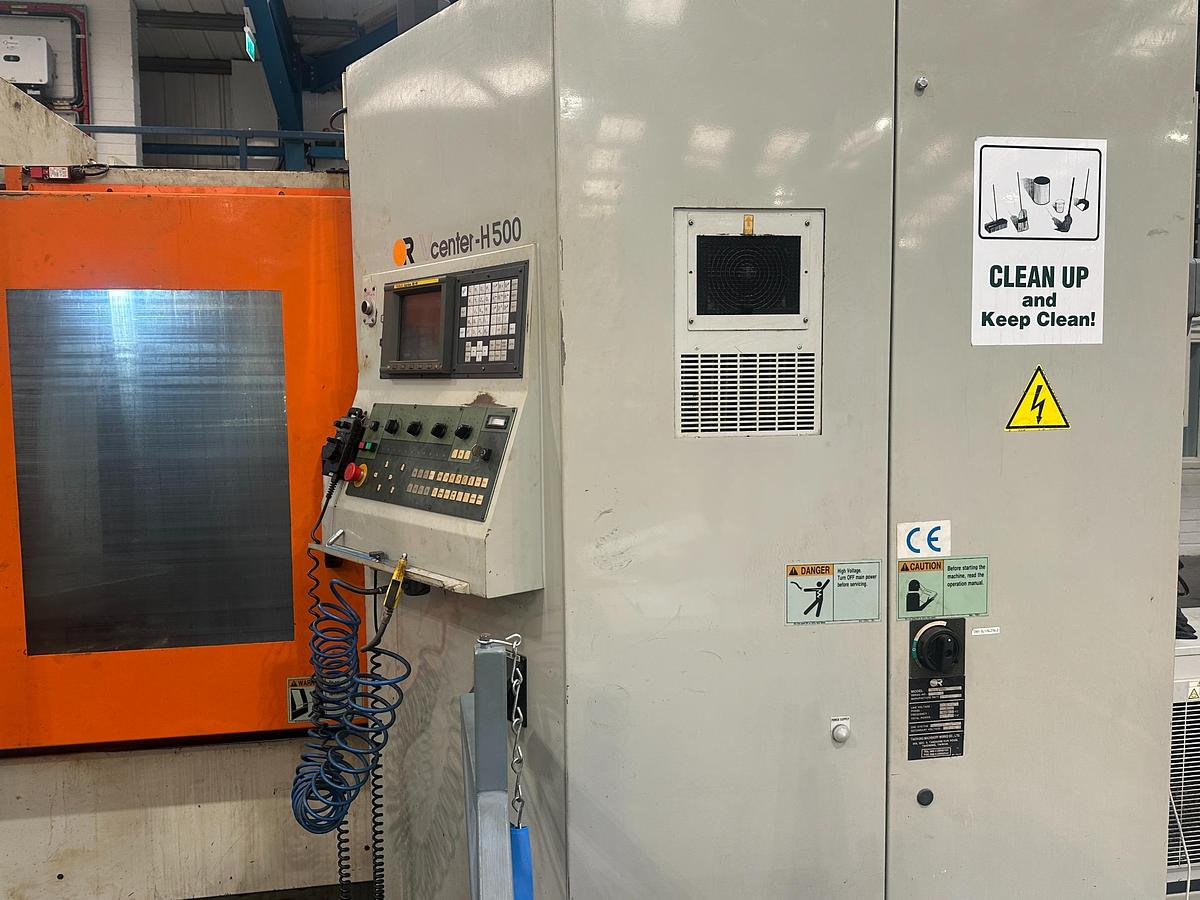

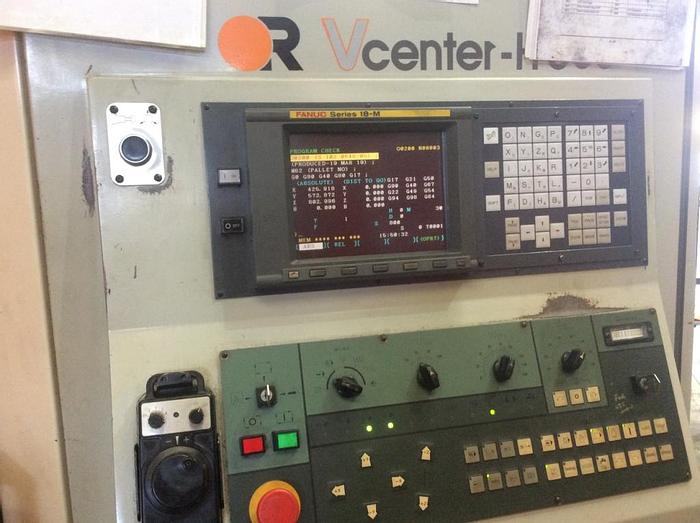

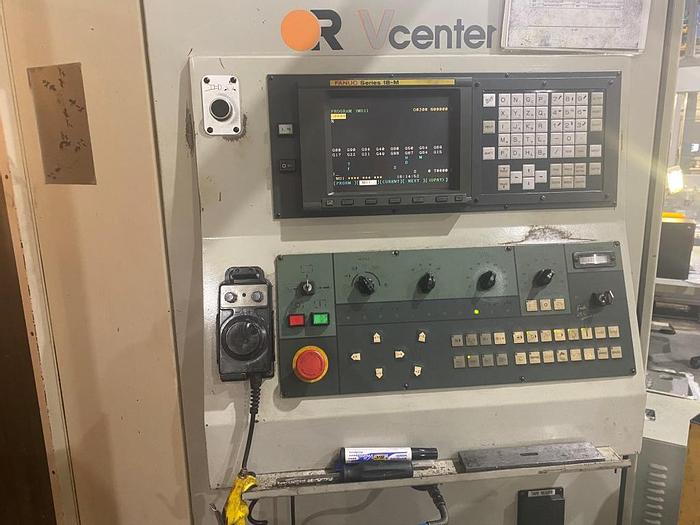

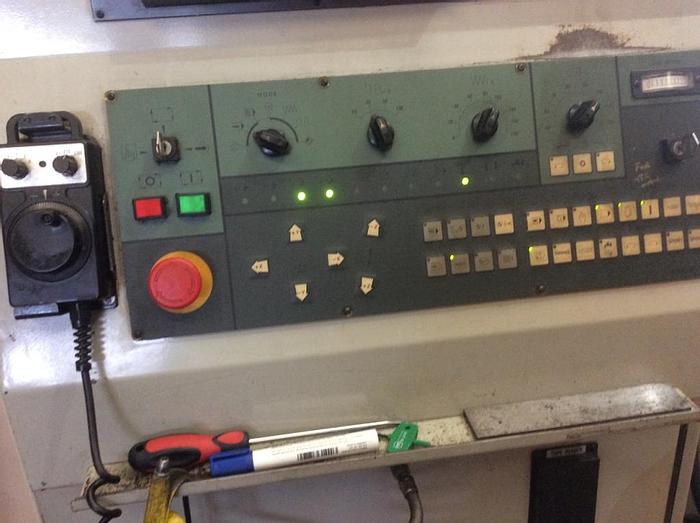

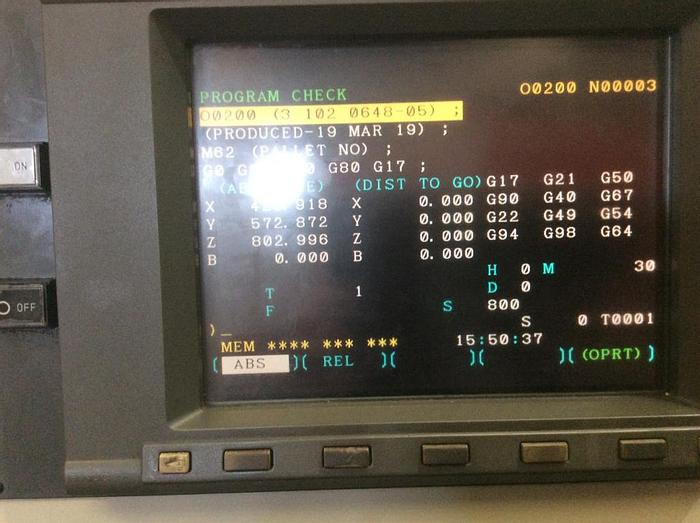

• CNC Control: Fanuc 18-M
• Axes: 4 (X, Y, Z, Full B Axis – 0.001° Indexing)
• Pallets: 2 × 500 × 500 mm

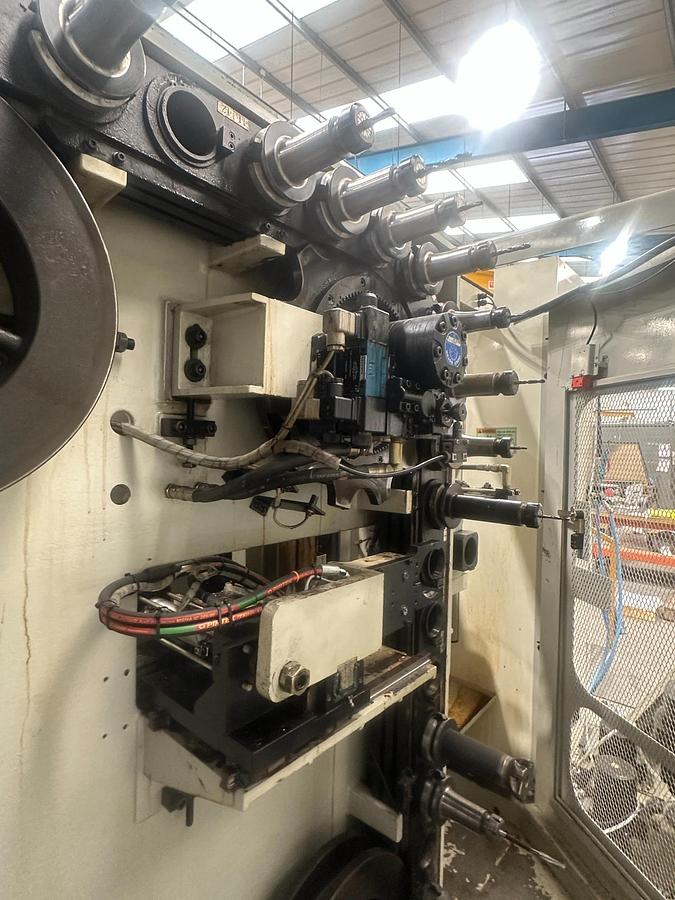

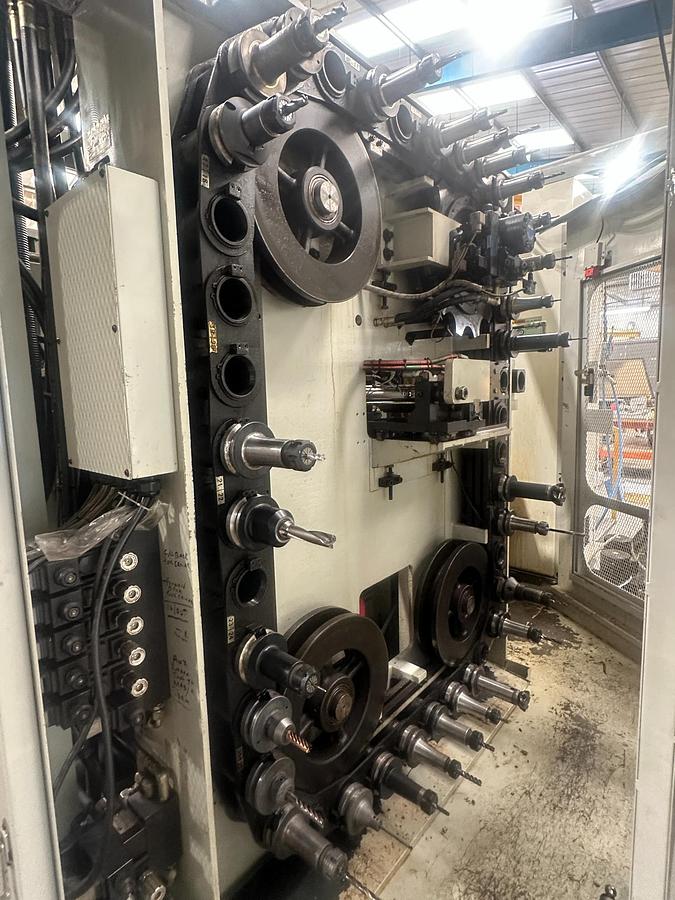

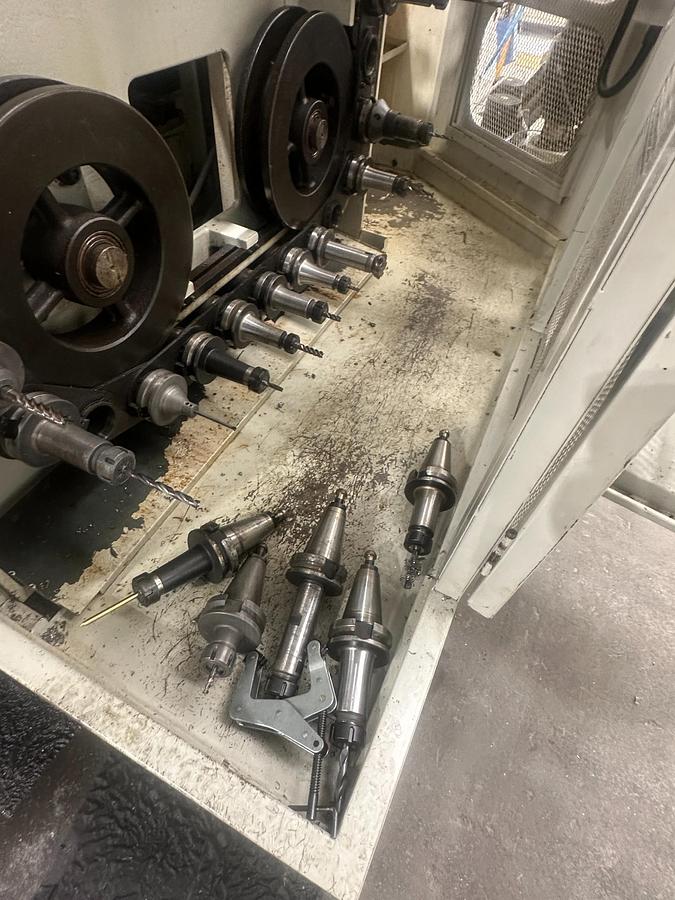

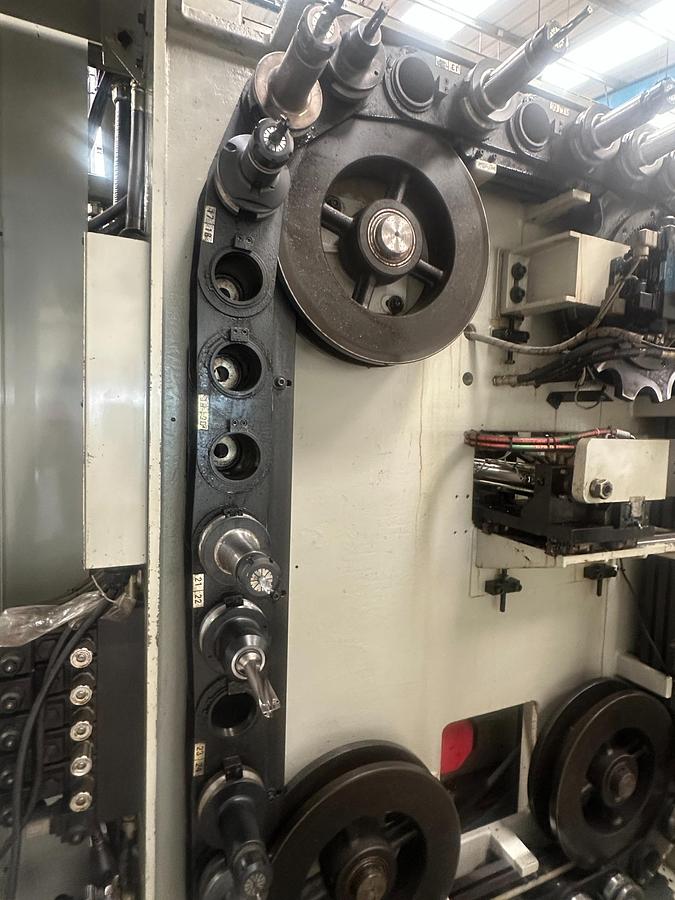

• ATC: 40-Station Automatic Tool Changer
• Tool Taper: BT50

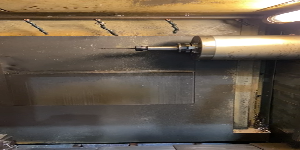

• Spindle Speed: 8,500 RPM
• High-Pressure Coolant (Through Spindle): 20 Bar HPC
• Spindle Motor Power: 11/15 kW DDS Spindle

📐 Machine Travels:

• X-Axis Travel: 720 mm
• Y-Axis Travel: 650 mm
• Z-Axis Travel: 720 mm
•

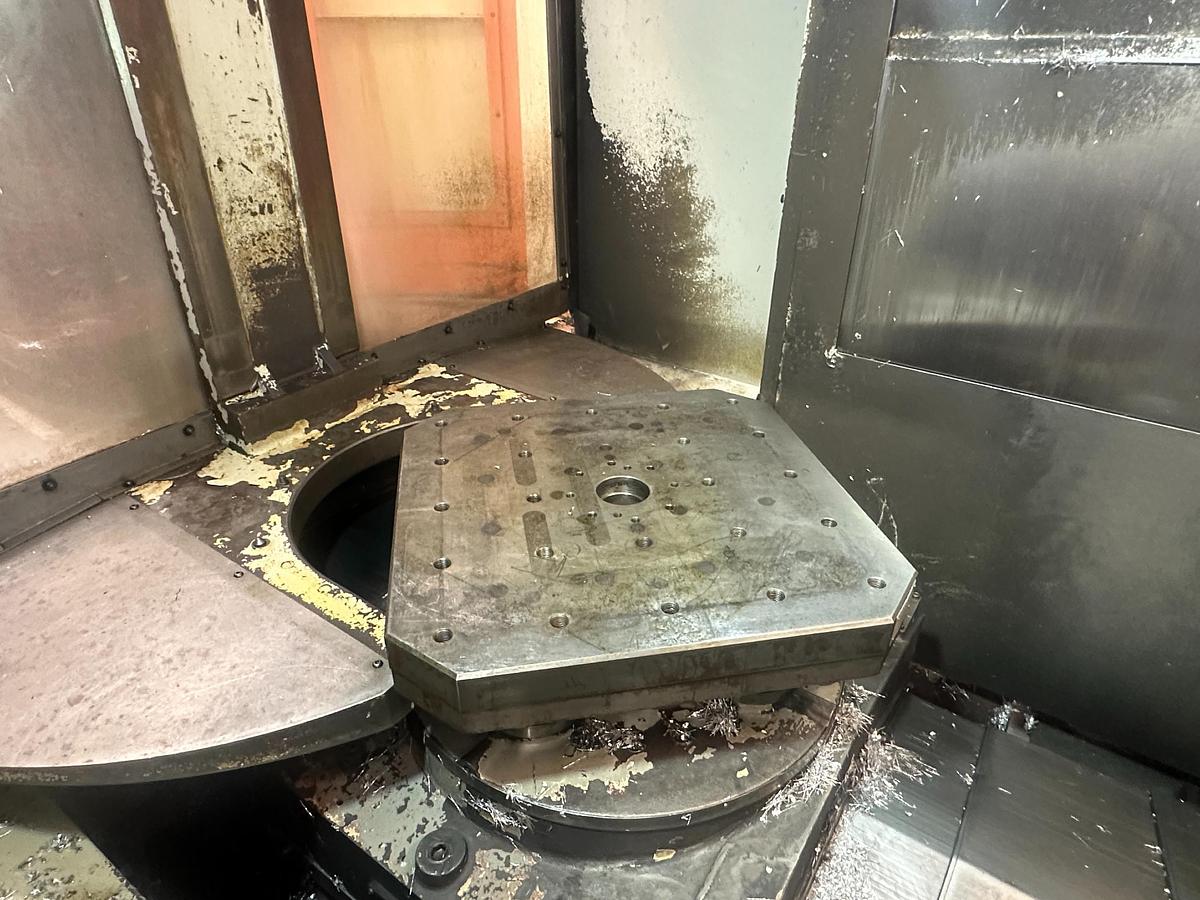

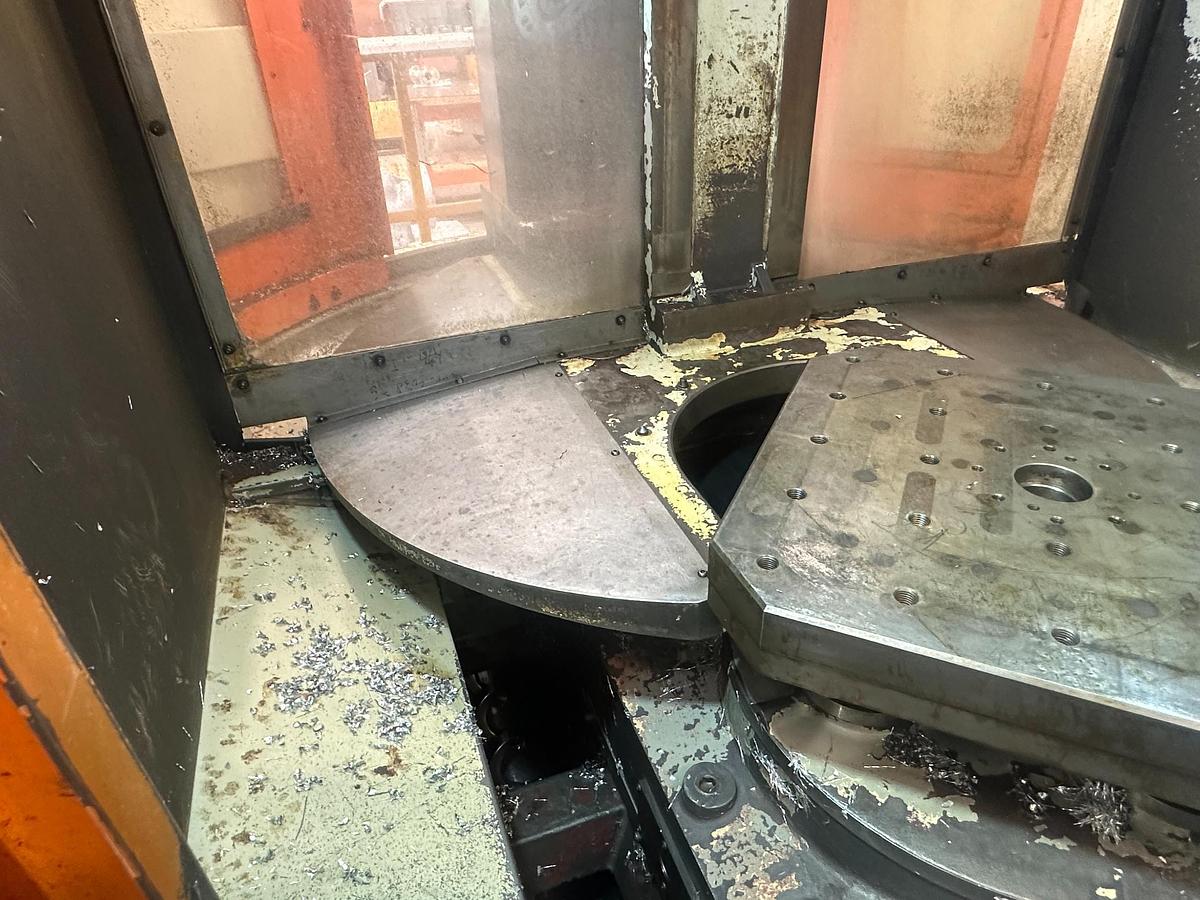

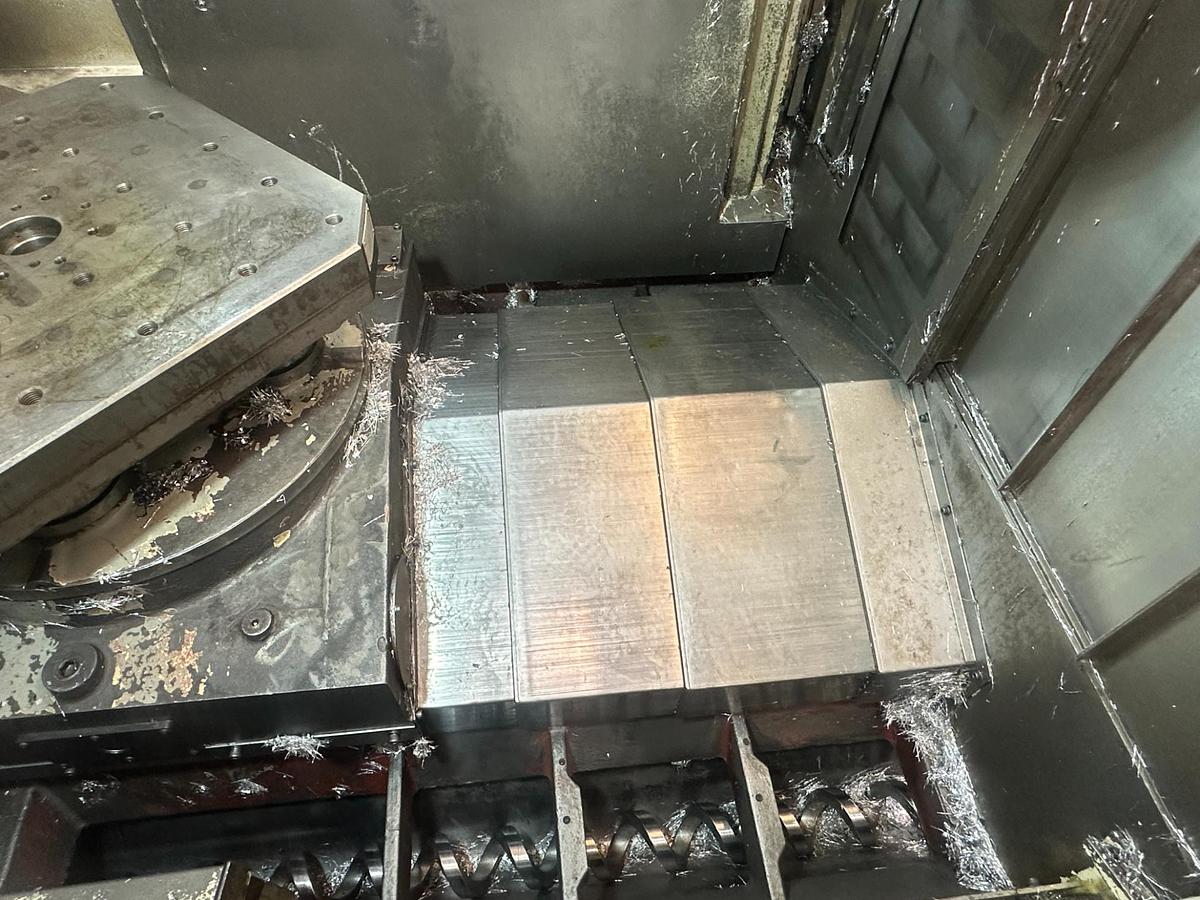

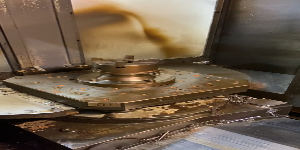

🔄 Pallet Specs & Table Details:

• Pallet Size: 500 × 500 mm
• Machining Area Capacity: Ø720 mm × 750 mm height
• Pallet Load Capacity: 800 kg
• Pallet Change Type: Rotary
• Pallet Change Times:
• • 3 sec (Pallet-to-Pallet)
• • 11 sec (Cut-to-Cut)
• Indexing Accuracy: 0.001° Full B Axis
• Indexing Time:
• • 90° in 3 sec
• • 180° in 5 sec

⚙️ Performance Details:

• Spindle Center to Table Surface: 50–700 mm
• Spindle Nose to Table Center: 160–880 mm
• Max Tool Weight: 20 kg
• Max Tool Diameter / Length: 120 mm / 400 mm
• Tool Change Time: 3.5 sec (Tool-to-Tool)
• Cutting Feed Rate: 10,000 mm/min
• Rapid Traverse (X/Y/Z): 24,000 mm/min
• Ballscrews: Ø45 mm × 12 mm pitch

🧰 Included Features & Accessories:

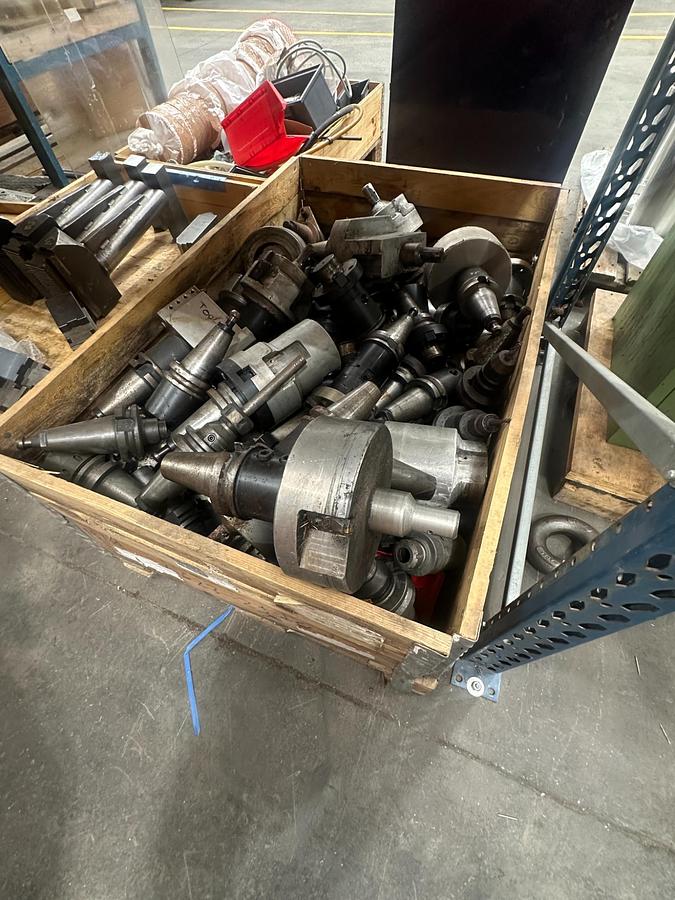

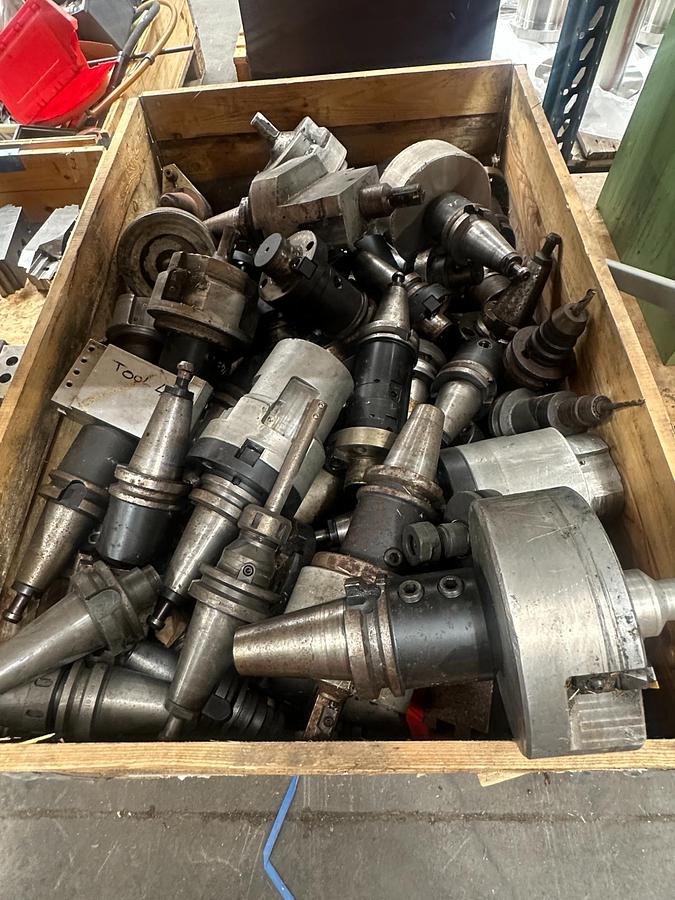

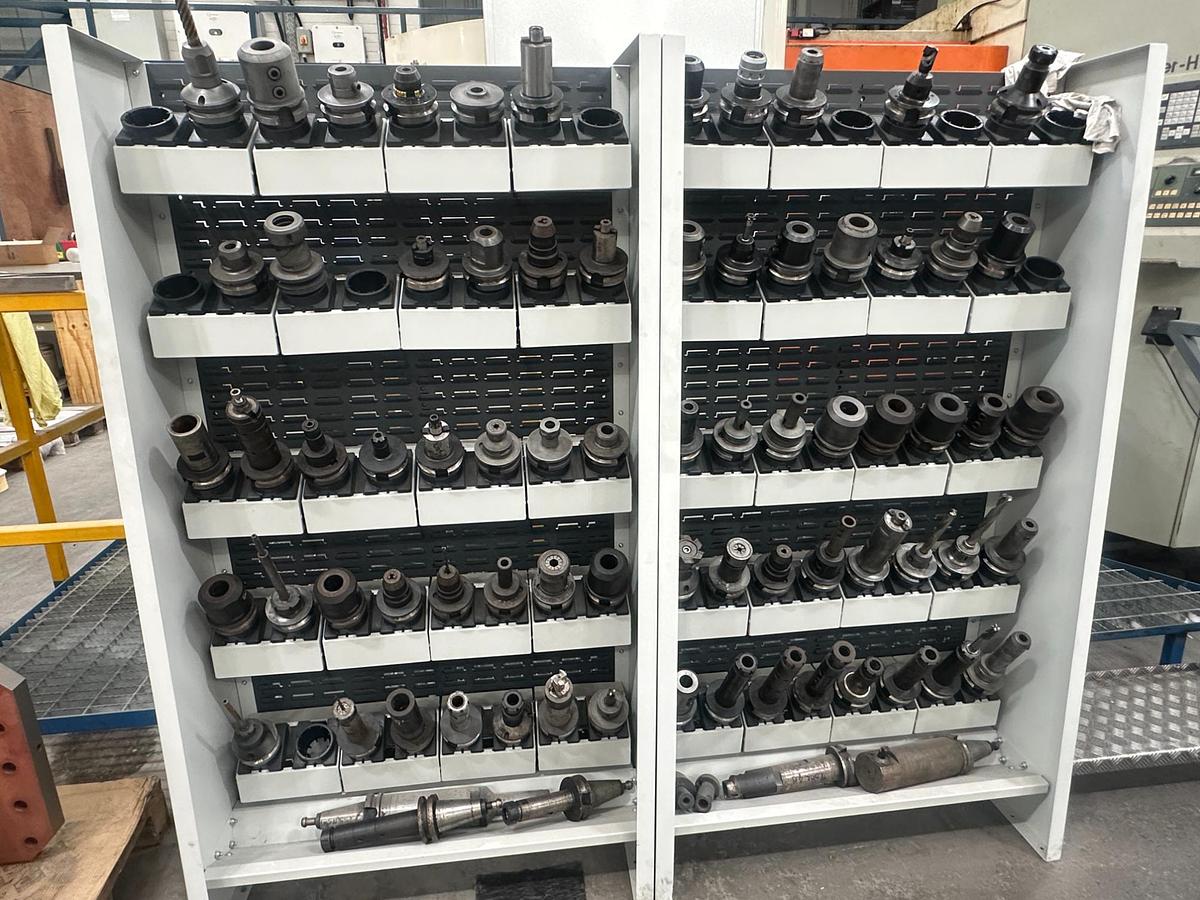

• ✔️ Large selection of BT50 tool holders
• ✔️ 20 Bar Through Spindle Coolant

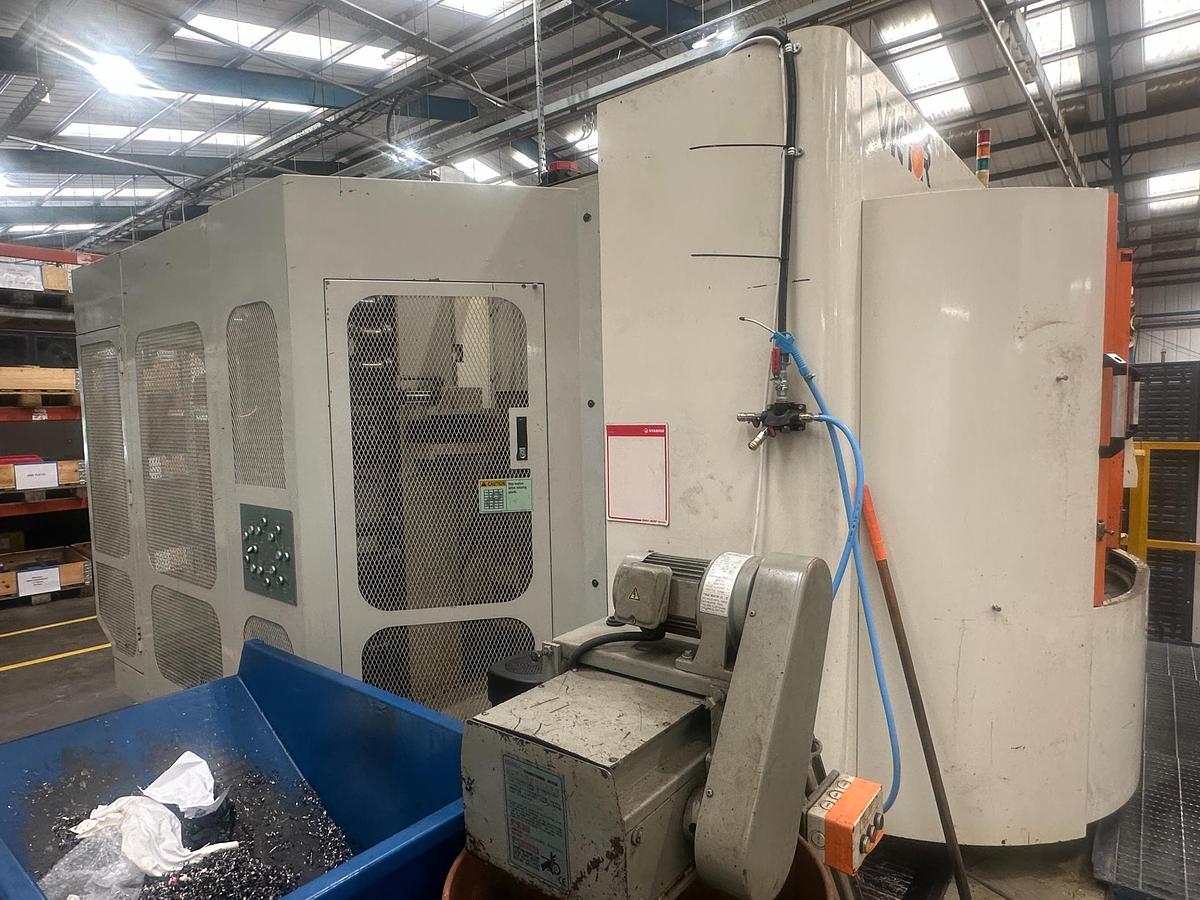

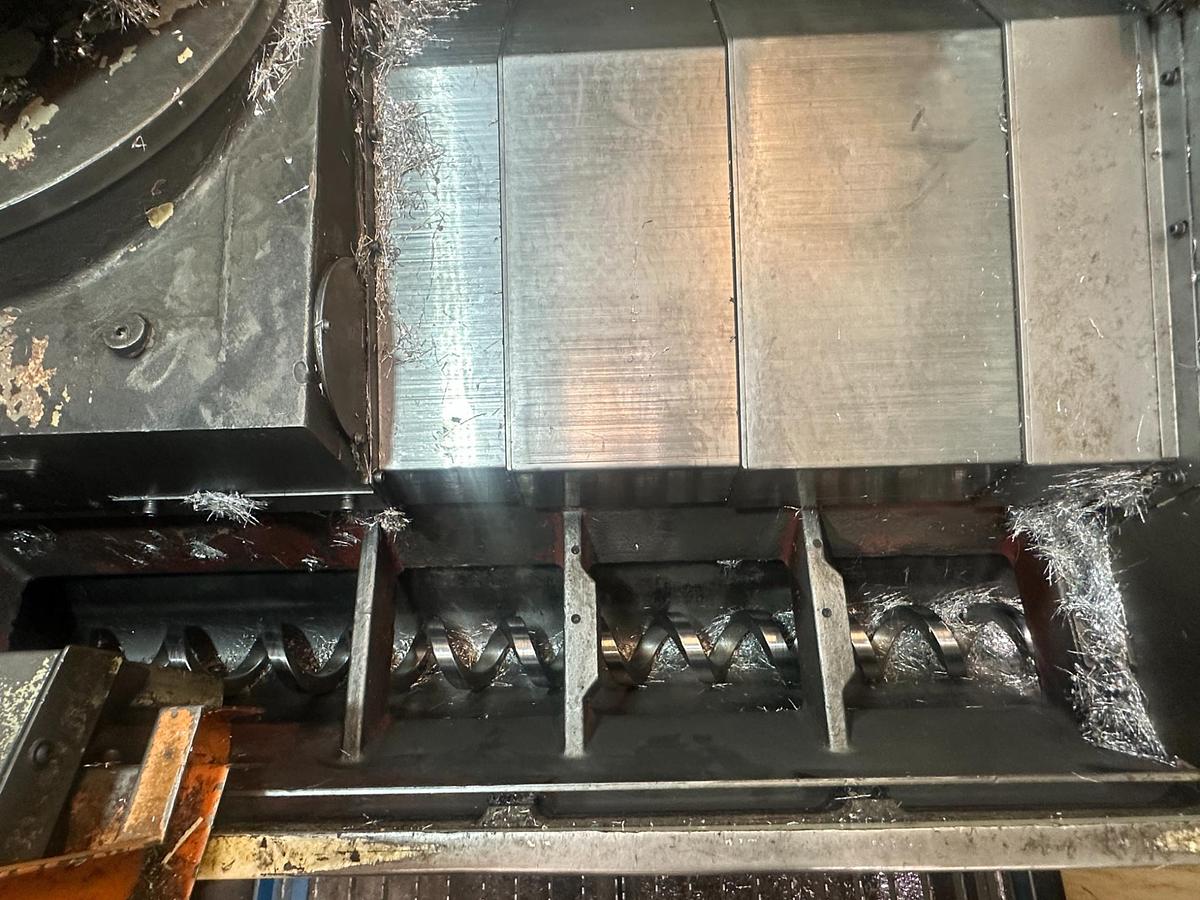

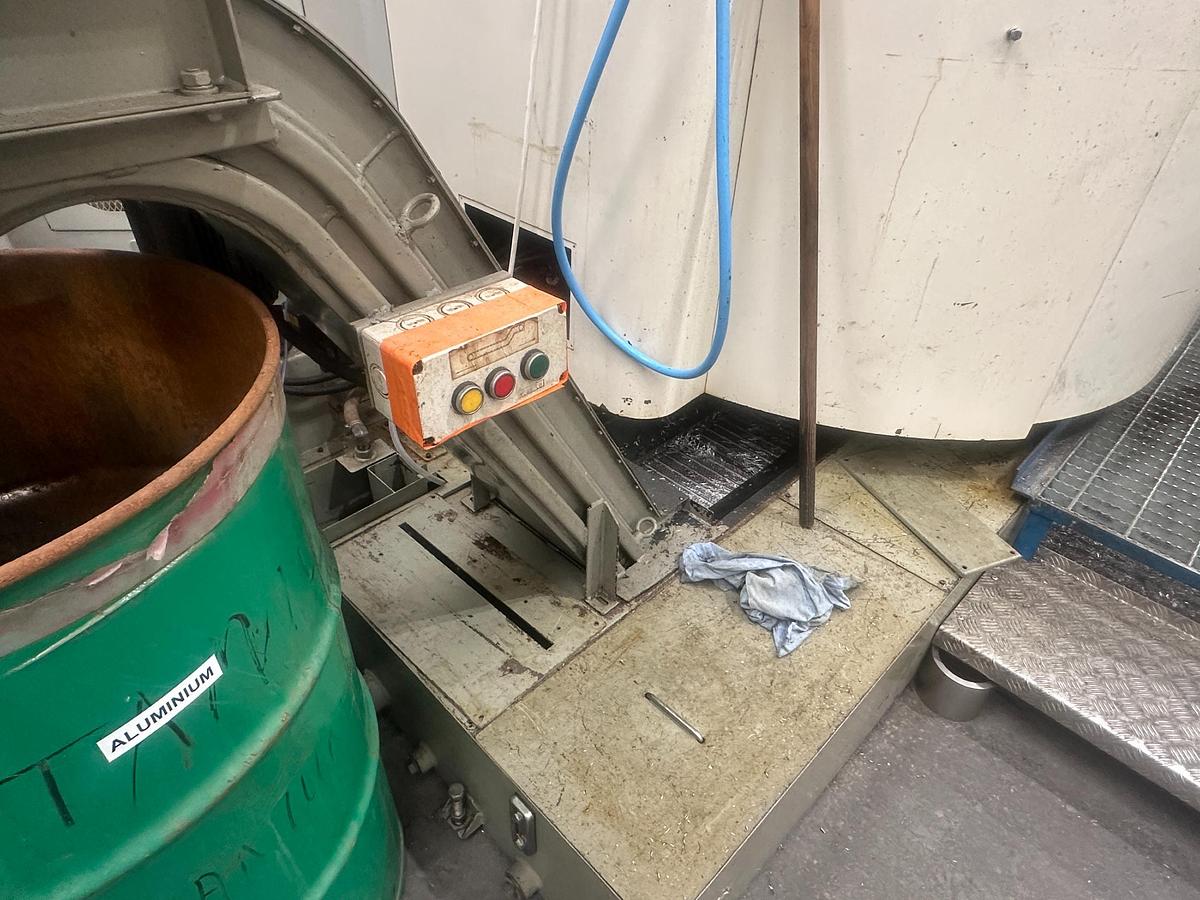

• ✔️ Chip Conveyor
• ✔️ Steel Walkway Platform
• ✔️ Hydraulic System – 3.75 kW

📦 Machine Dimensions & Weight:

• Overall Dimensions: 4,395 × 5,393 × 2,937 mm
• Machine Weight: 12,500 kg
