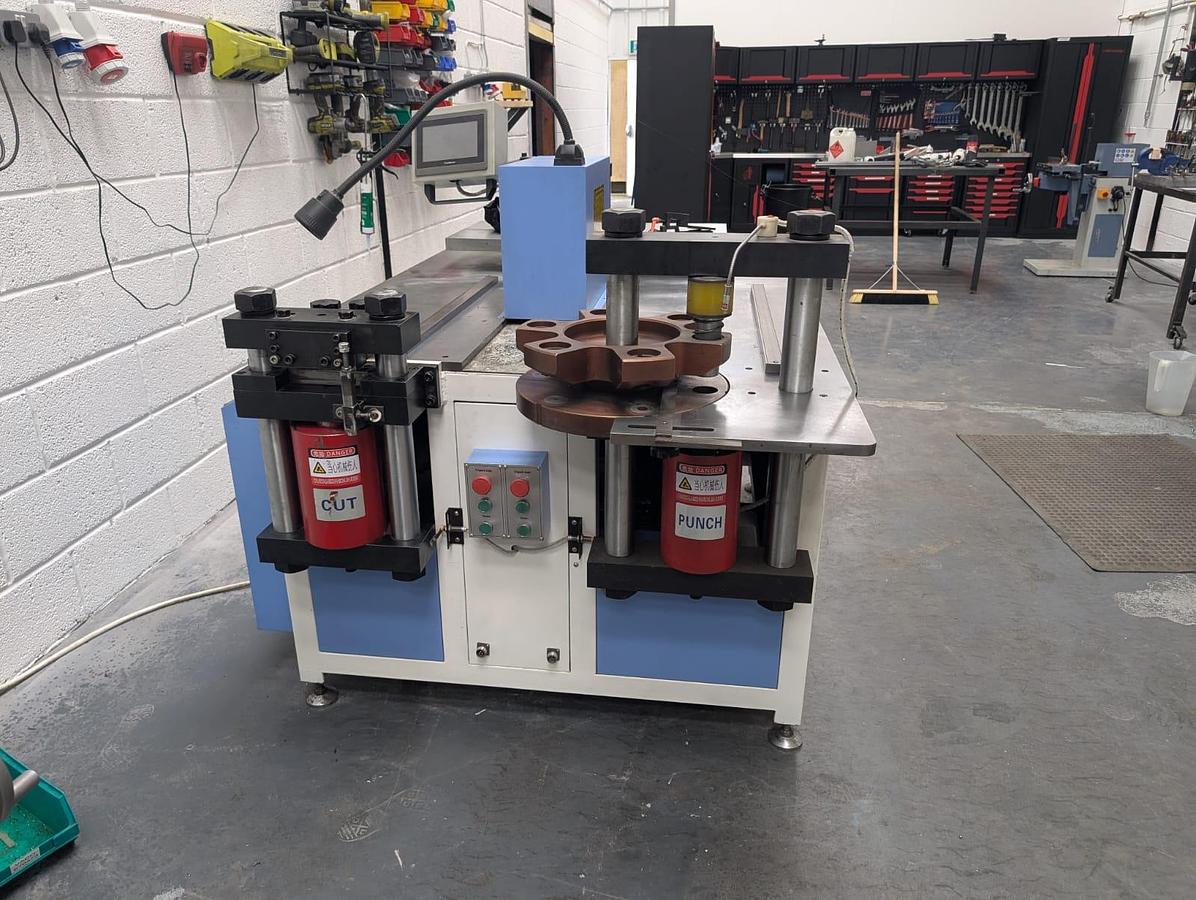

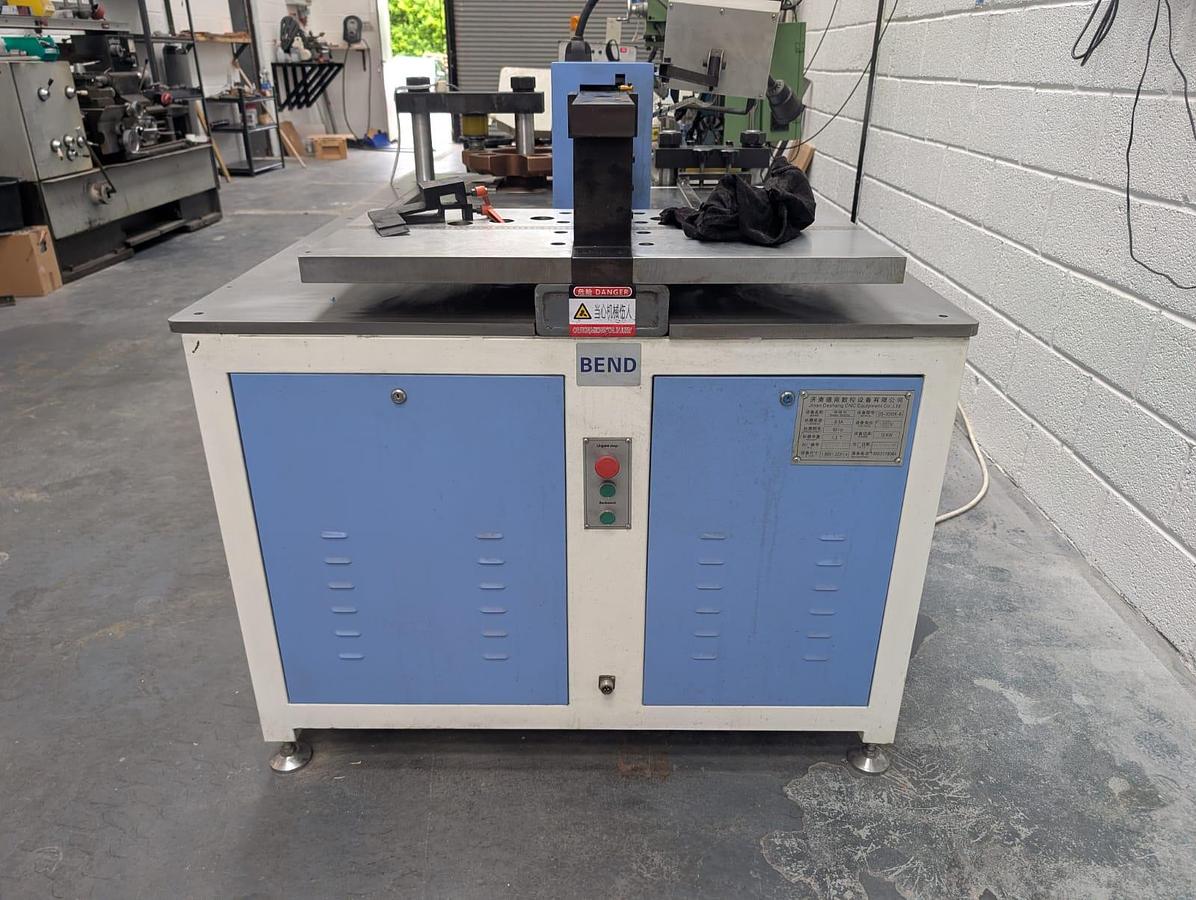

2022 Jinan Deshang DS-303SK-B CNC 3-in-1 Busbar Processing Machine – Excellent Condition
Description
2022 Jinan Deshang DS-303SK-B 3-in-1 CNC Busbar Processing Machine – High Precision, Multi-Function, Excellent Condition
Used Machine Tools Ireland is proud to offer this 2022 Jinan Deshang DS-303SK-B CNC Busbar Processing Machine, combining punching, shearing, and bending in one versatile unit. This machine has been in use within a medical device manufacturing facility, ensuring light usage, excellent maintenance, and precision performance.

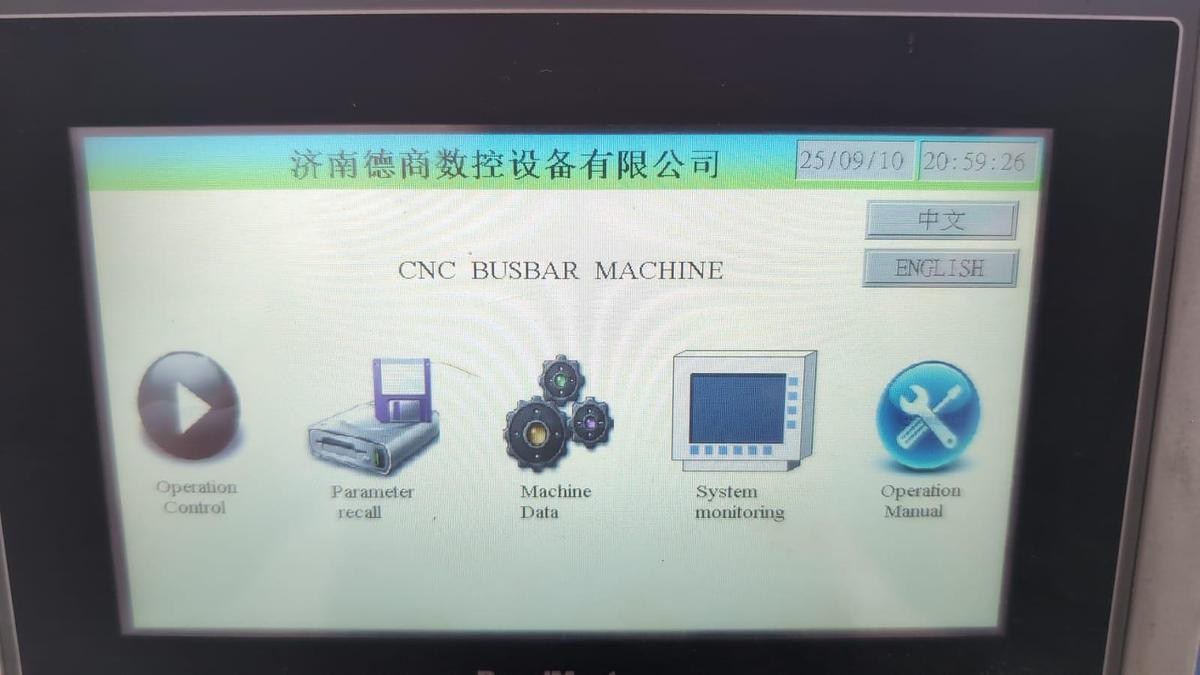

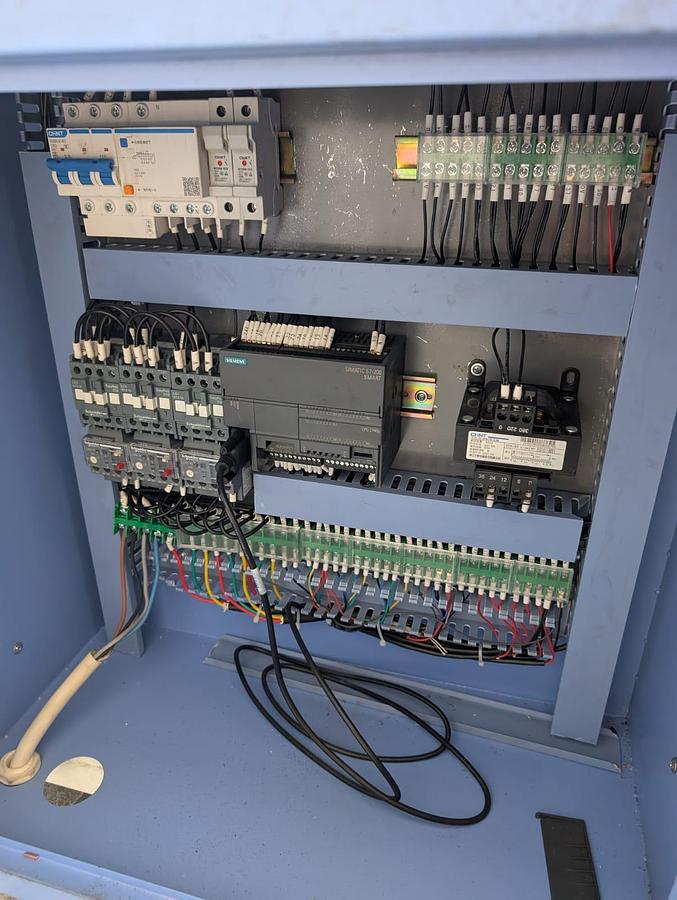

Equipped with Siemens PLC control for accurate CNC input, this machine delivers high repeatability, exceptional build quality, and maximum production efficiency for busbar fabrication and related operations.
Machine Make: Jinan Deshang
Machine Model: DS-303SK-B
Machine Type: 3 in 1 CNC Busbar Processing Machine (Bending,Cutting,Punching)
Year: 2022
Key Features & Benefits:

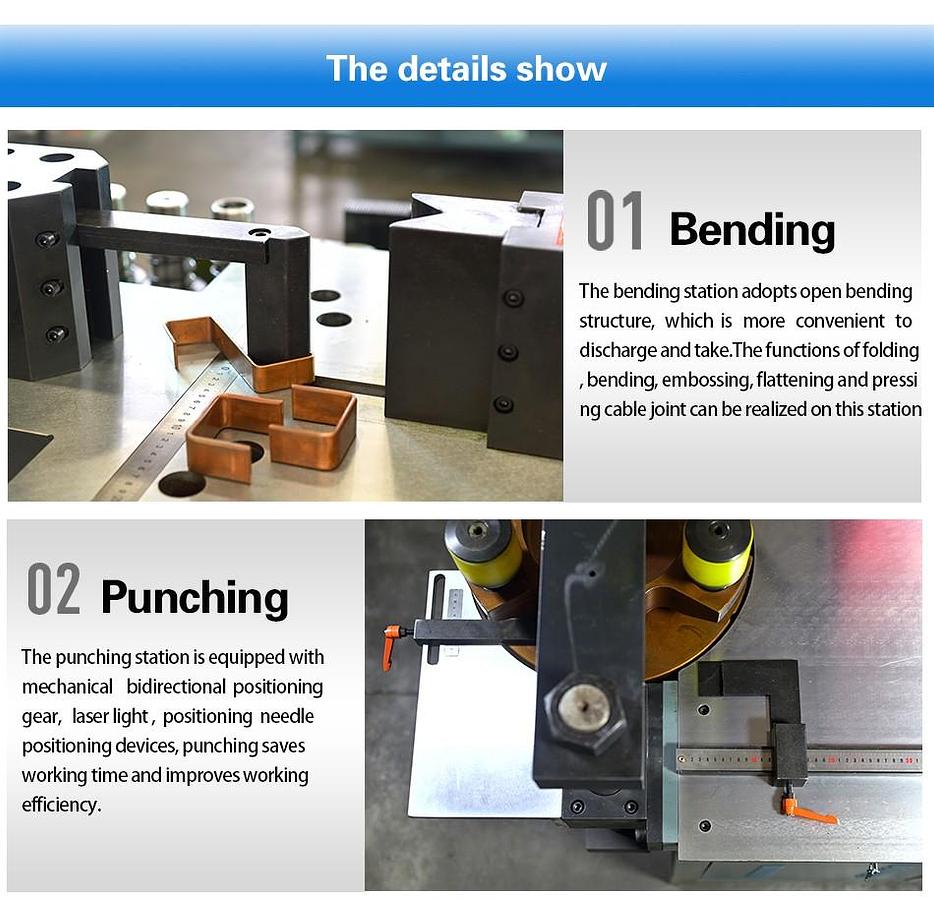

- 3-in-1 Functionality – Punching, Shearing, and Bending in one compact, high-performance machine.

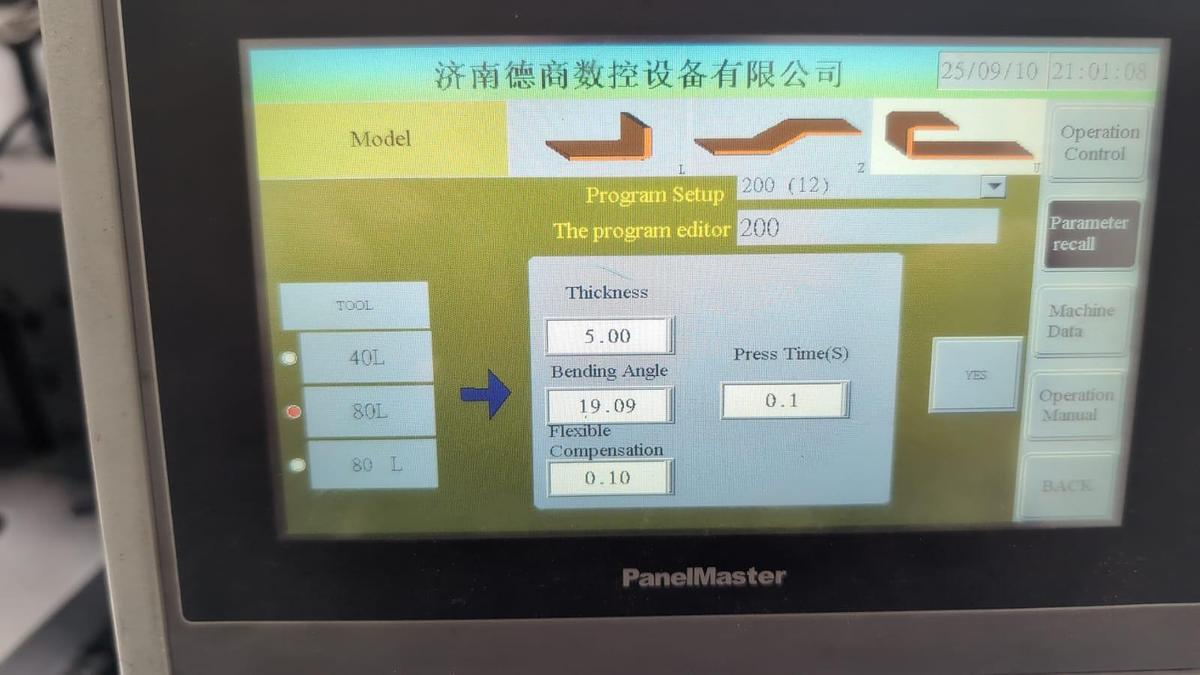

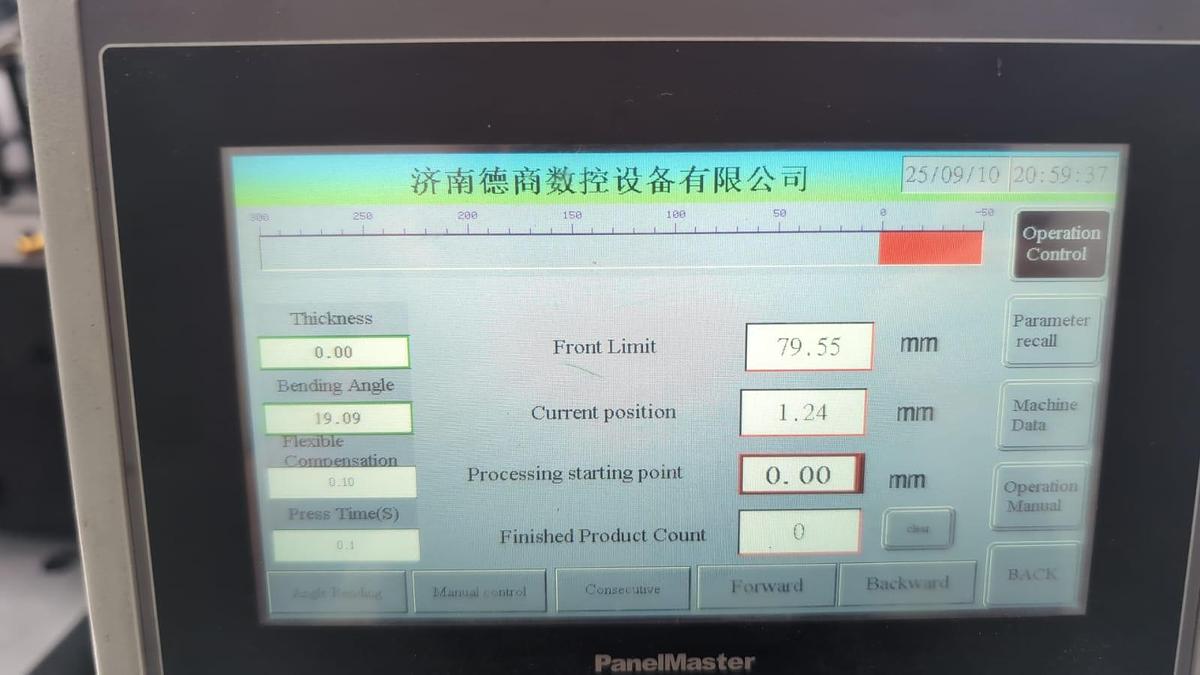

- CNC Control – Siemens PLC system with direct input for angles, ±1° accuracy, and ±0.5° repetition.
- Simultaneous Processing – Perform multiple tasks at once to boost throughput.

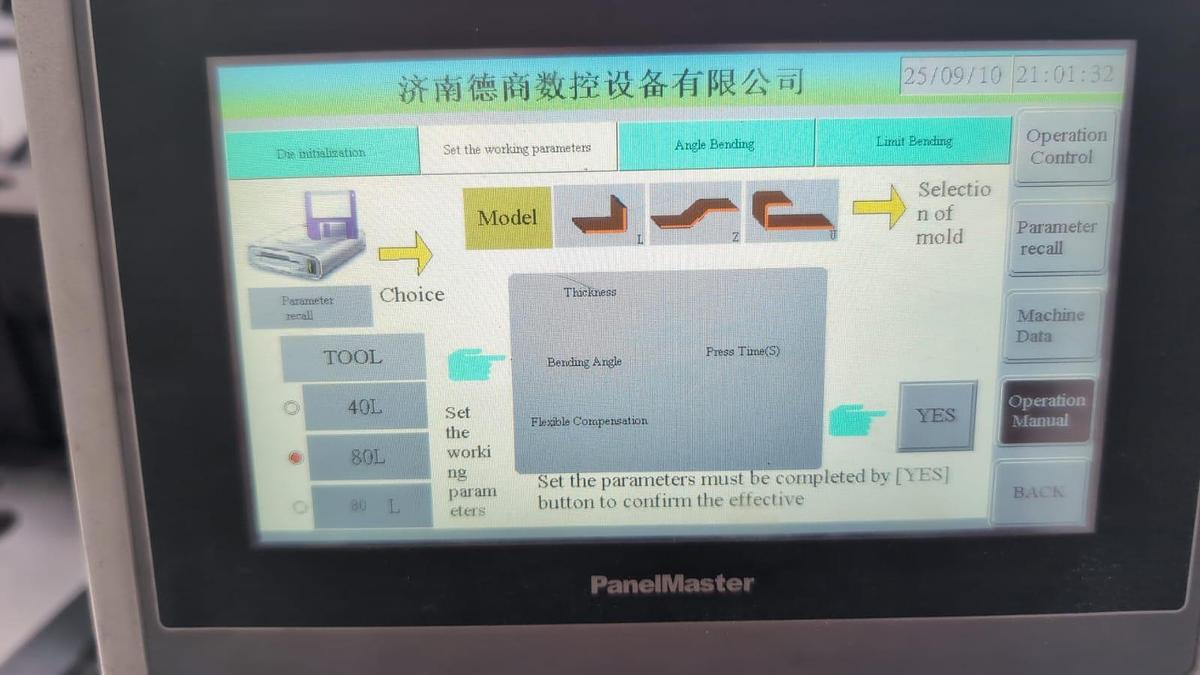

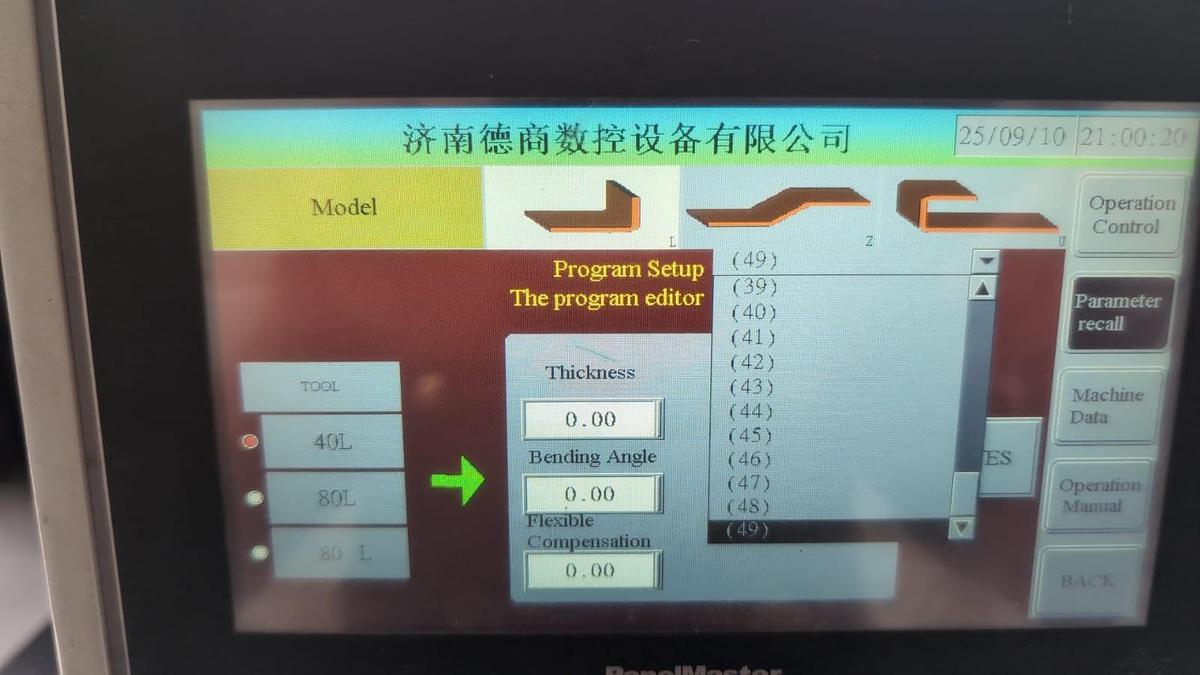

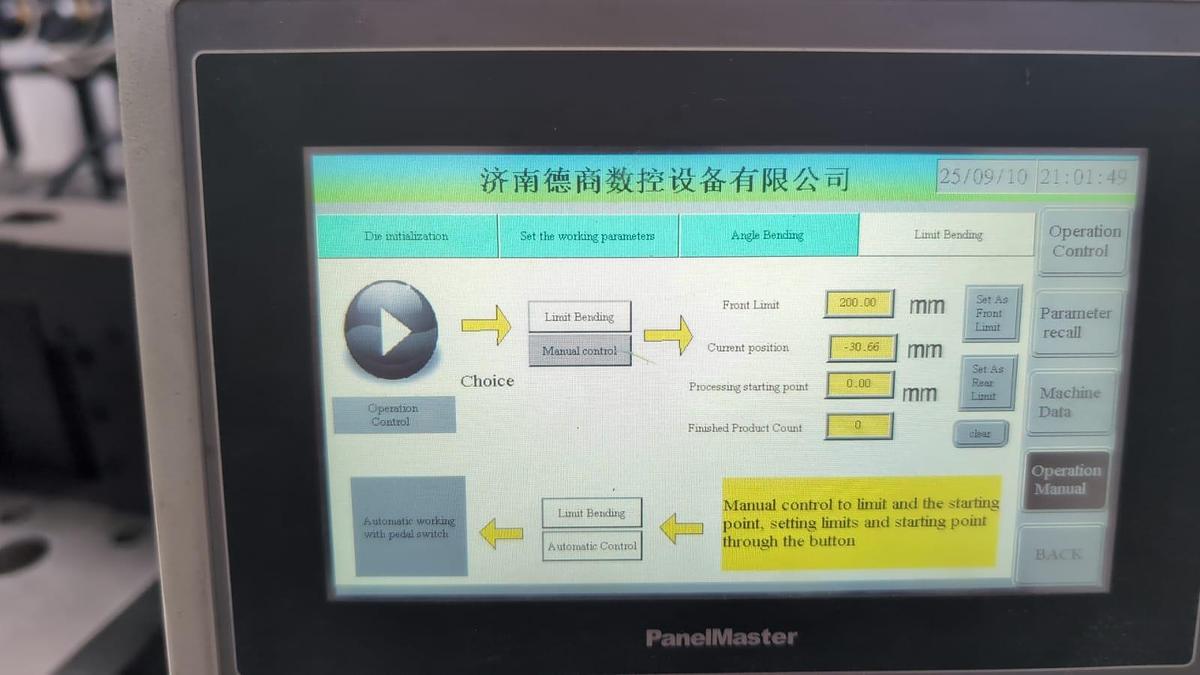

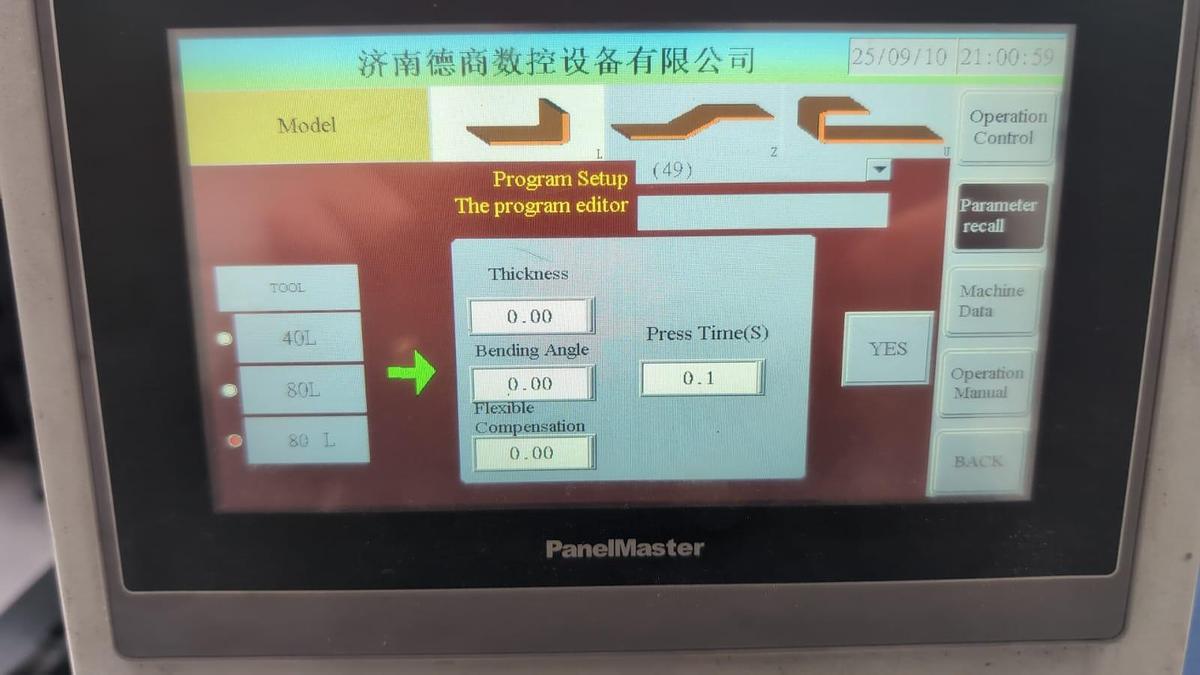

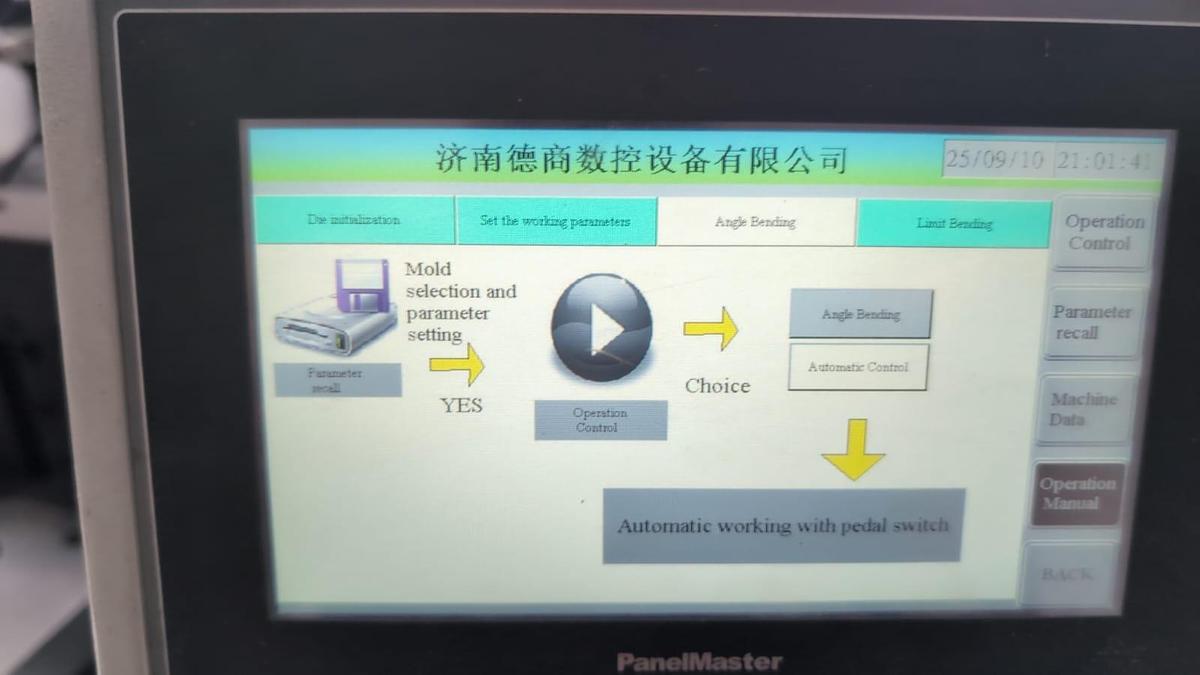

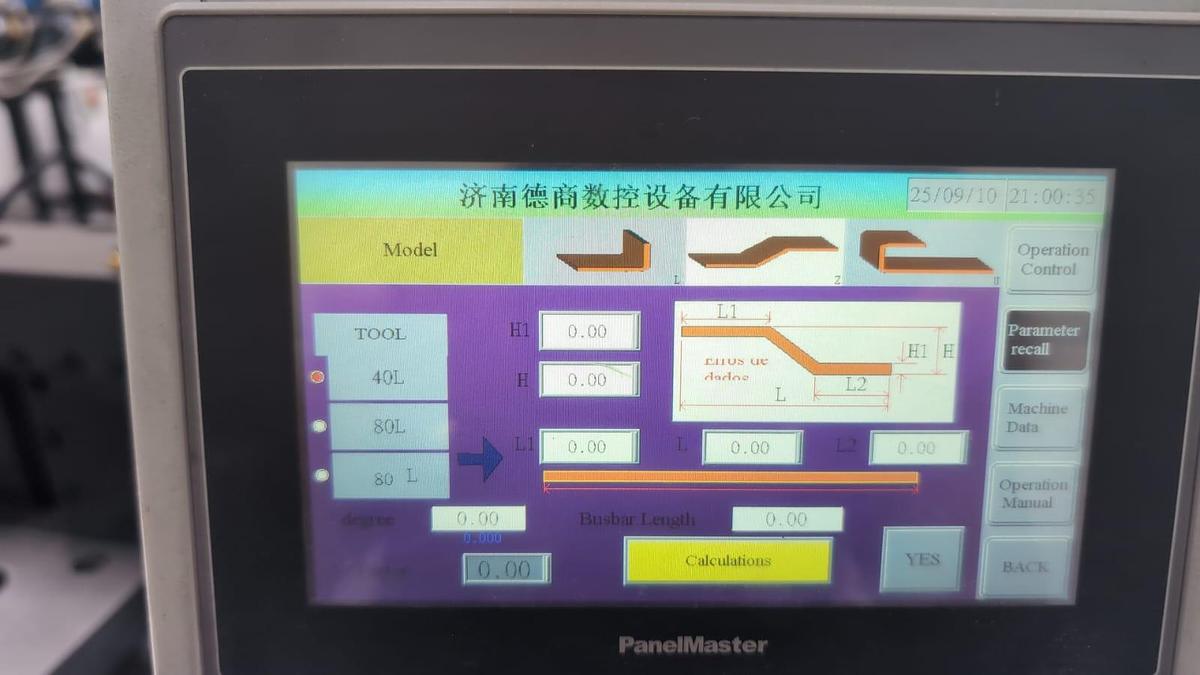

- Easy Programming – Input height and length for automatic workpiece calculation, including Z-bends.
- Medical Facility Maintenance – Lightly used, meticulously maintained, ready for immediate production.

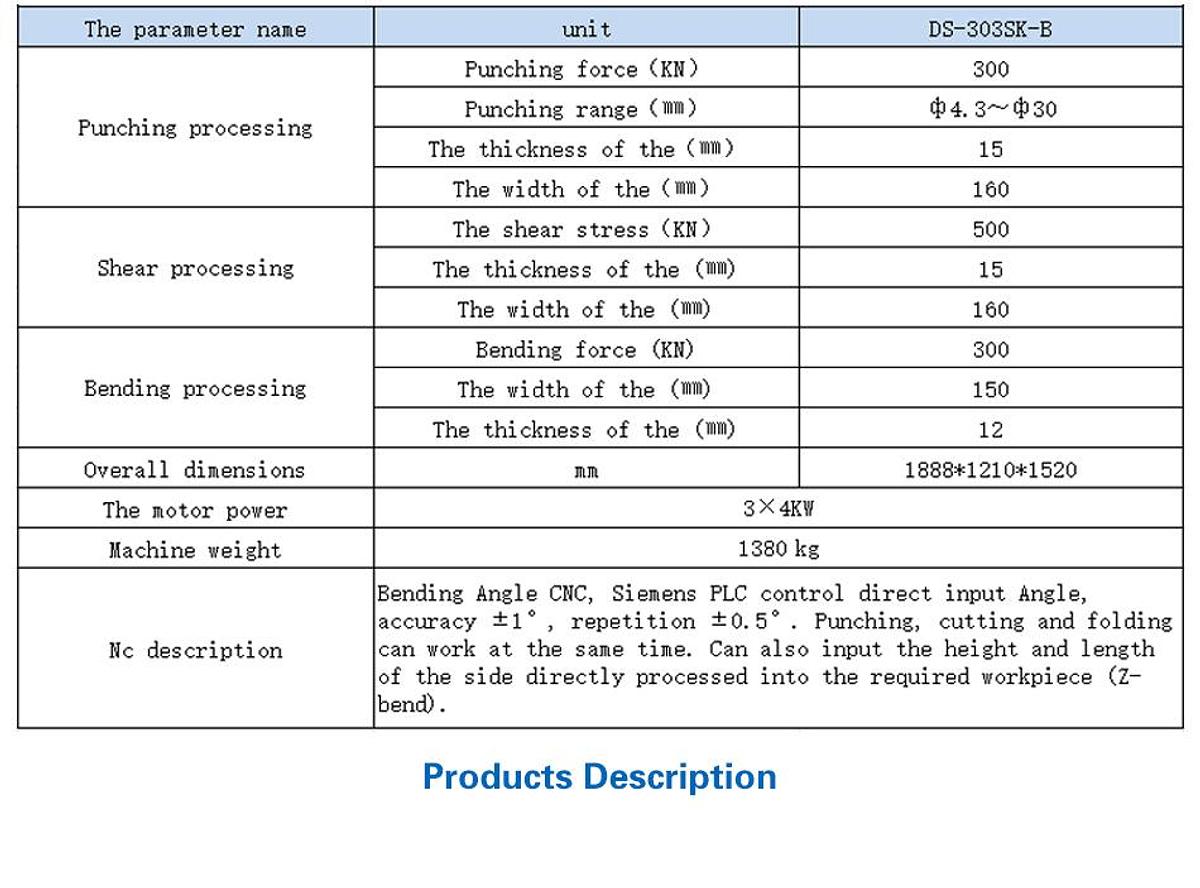

Technical Specifications
Punching Processing
- Punching Force: 300 kN
- Punching Range: Φ4.3 – Φ30 mm
- Max Material Thickness: 15 mm
- Max Material Width: 160 mm
Shear Processing
- Shear Force: 500 kN
- Max Material Thickness: 15 mm
- Max Material Width: 160 mm
Bending Processing
- Bending Force: 300 kN
- Max Bending Width: 150 mm
- Max Material Thickness: 12 mm
Machine Data
- Overall Dimensions: 1888 × 1210 × 1520 mm
- Motor Power: 3 × 4 kW
- Machine Weight: 1380 kg
Applications
Ideal for manufacturing and electrical industries requiring precision busbar fabrication, including punching, cutting, bending, embossing, flattening, and cable joint pressing. Perfect for switchgear, control panels, transformers, and electrical distribution systems.
Specifications
| Manufacturer | Jinan Deshang |
| Model | DS-303SK-B |
| Year | 2022 |
| Condition | Used |
| Serial Number | 2022011003 |
| Stock Number | 968978 |
| Machine Make | Jinan Deshang |
| Machine Model | DS-303SK-B |
| Year | 2022 |
| * Punching Force | 300 kN |
| * Punching Range | Φ4.3 – Φ30 mm |
| * Punch & Shear Max Material Thickness | 15 mm |
| * Max Material Width | 160 mm |
| * Shear Force | 500 kN |
| * Bending Force | 300 kN |
| * Max Bending Width | 150 mm |
| * Max Material Thickness | 12 mm |
| * Motor Power | 3 × 4 kW |
| * Machine Weight | 1380 kg |
