€1,375 + Vat
Cormak HBS450N Vertical Bandsaw
or
Call +353 838108745
Description

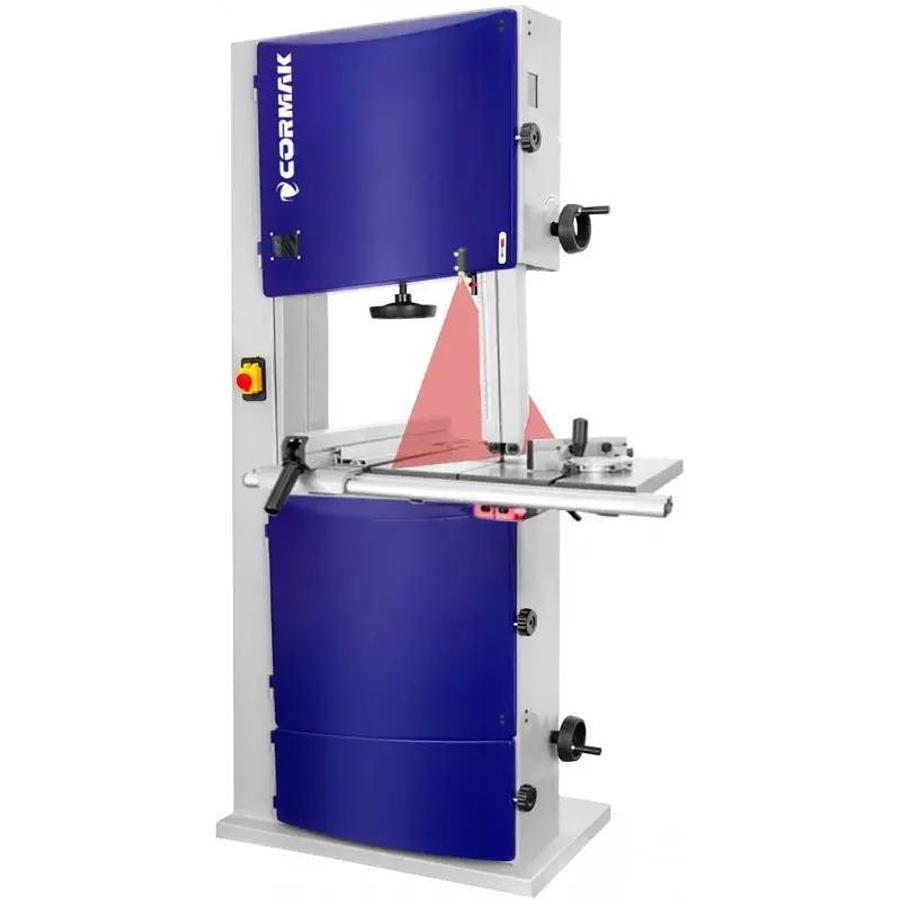

Cormak HBS450N Vertical Bandsaw
Machine Description
Simple in handling band saw of durable design. Allows for precise work parameters setting, directly influencing cutting efficiency.
- Rapid tension / band release lever is also used for quick band removal
- Made of cast iron, precise table of ground and polished surface

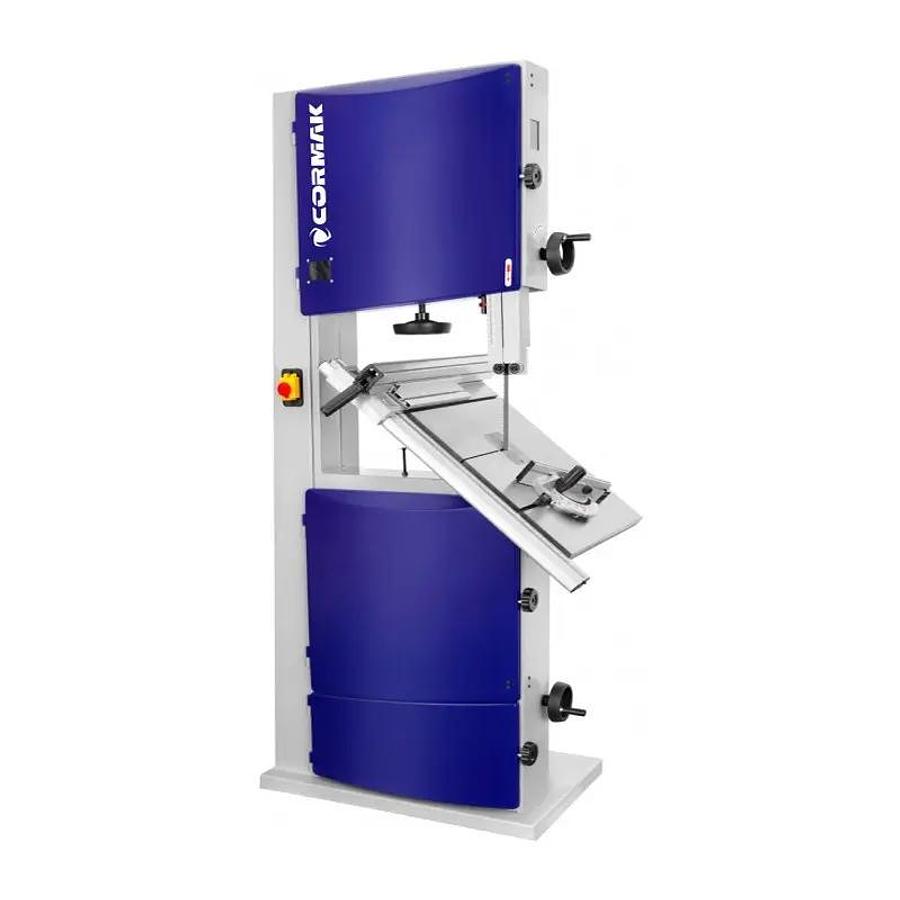

- 0°–45° worktable tilting
- A window for a band tension indicator readout
- Two cutting speeds chosen through a belt pulley
Includes
- On/off switch with an overload release
- 2×100 mm extracting connector
- Precise T-square
- 3605×20 t 8 blade
Technical Specification
Band Wheels Diameter: 480 mm
Maximum Cutting Height: 280 mm
Maximum Cutting Width: 465 mm
Worktable Dimensions (L×W): 630 x 480 mm
Worktable Tilt: -10° to +45°
Blade Width: 9.5 to 38.1 mm
Blade Length:3605 mm
Blade Speed: 600/720 m/min
Dimensions (L×W×H): 830×550×2070 mm
Weight: 162 kg
Motor Power: 2.2 kW
Voltage: 400V/3 Phase
Specifications
| Manufacturer | Cormak |
| Model | HBS450N Vertical Bandsaw |
| Condition | New |
| Stock Number | 968971 |
| Band Wheels Diameter | 480 mm |
| Maximum Cutting Height | 280 mm |
| Maximum Cutting Width | 465 mm |
| Worktable Dimensions (L×W) | 630 x 480 mm |
| Worktable Tilt | -10° to +45° |
| Blade Width | 9.5 to 38.1 mm |
| Blade Length | 3605 mm |
| Blade Speed | 600/720 m/min |
| Dimensions (L×W×H) | 830×550×2070 mm |
| Motor Power | 2.2 kW |
| Weight | 162 kg |
| Voltage | 400V/3 Phase |
