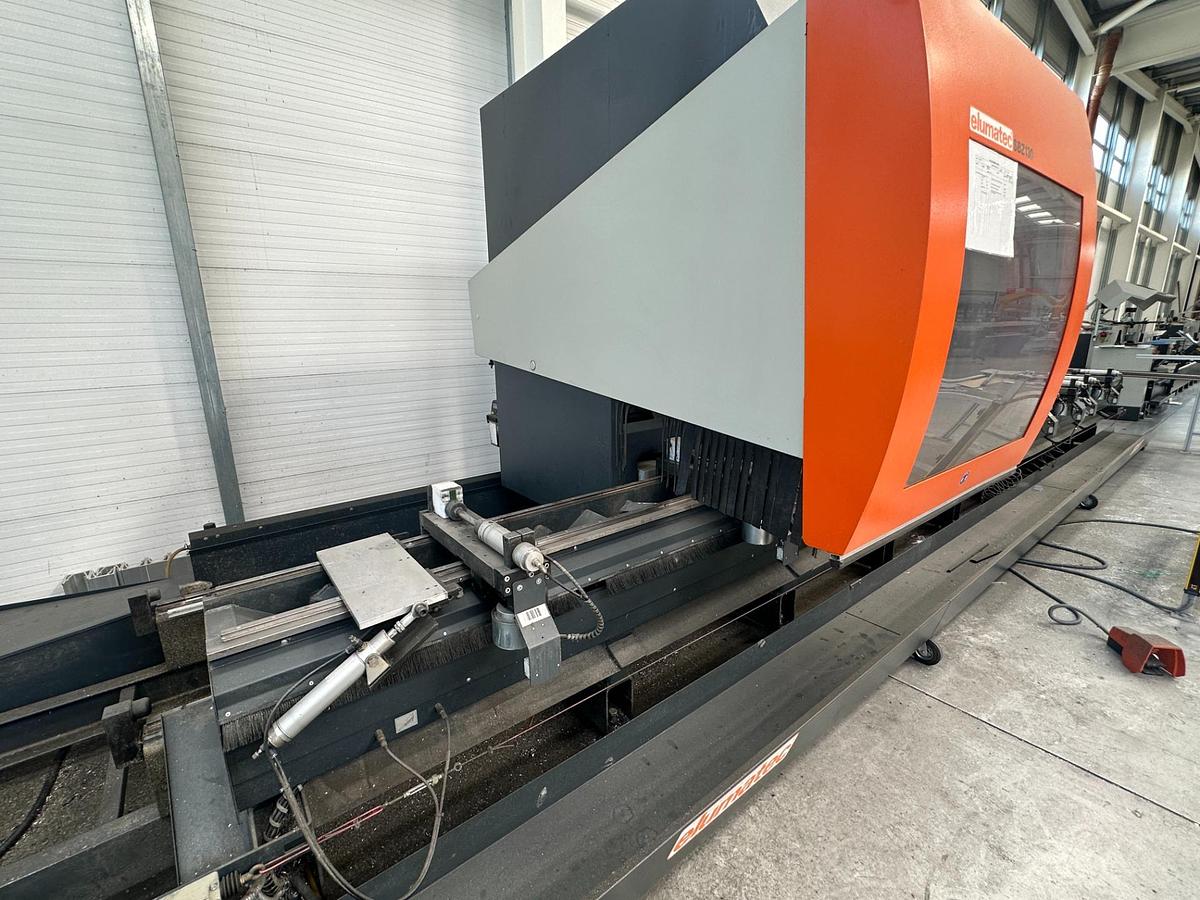

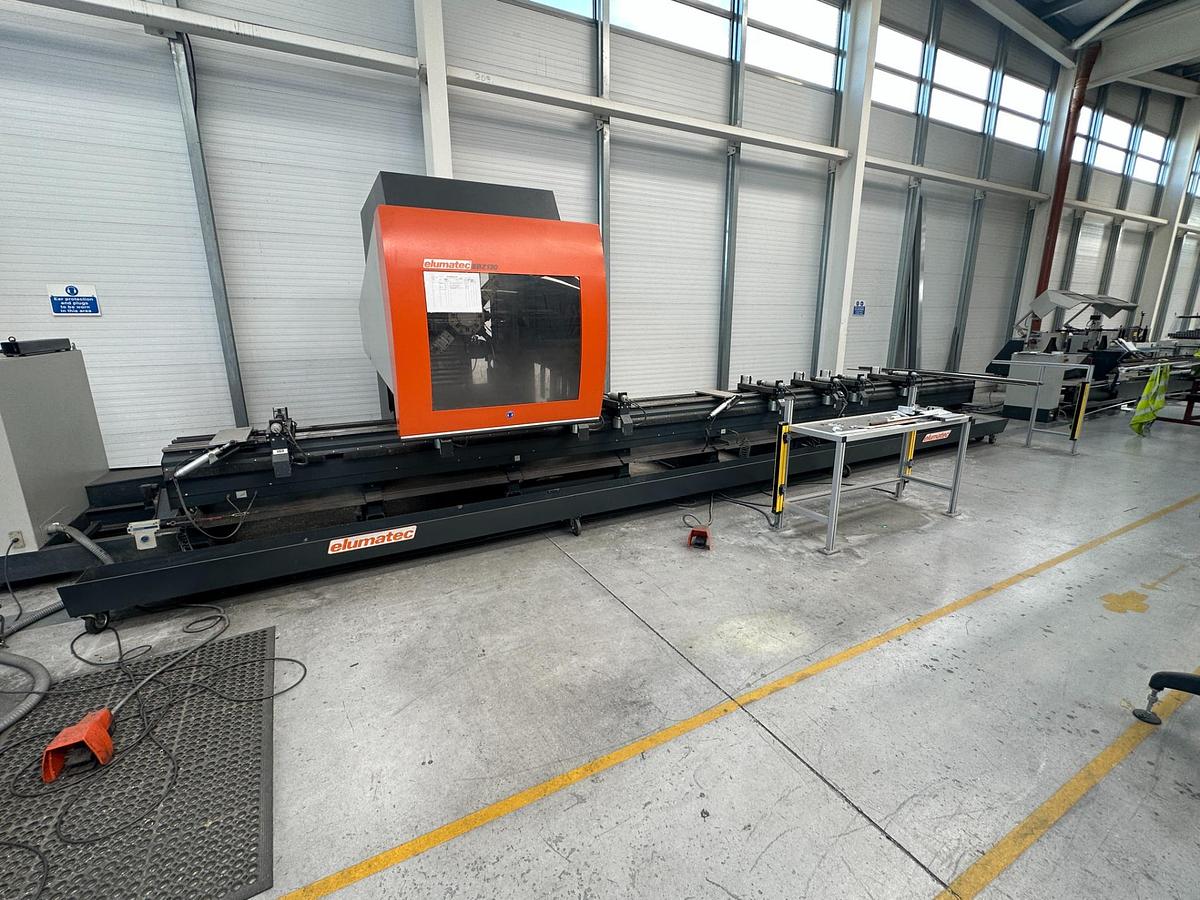

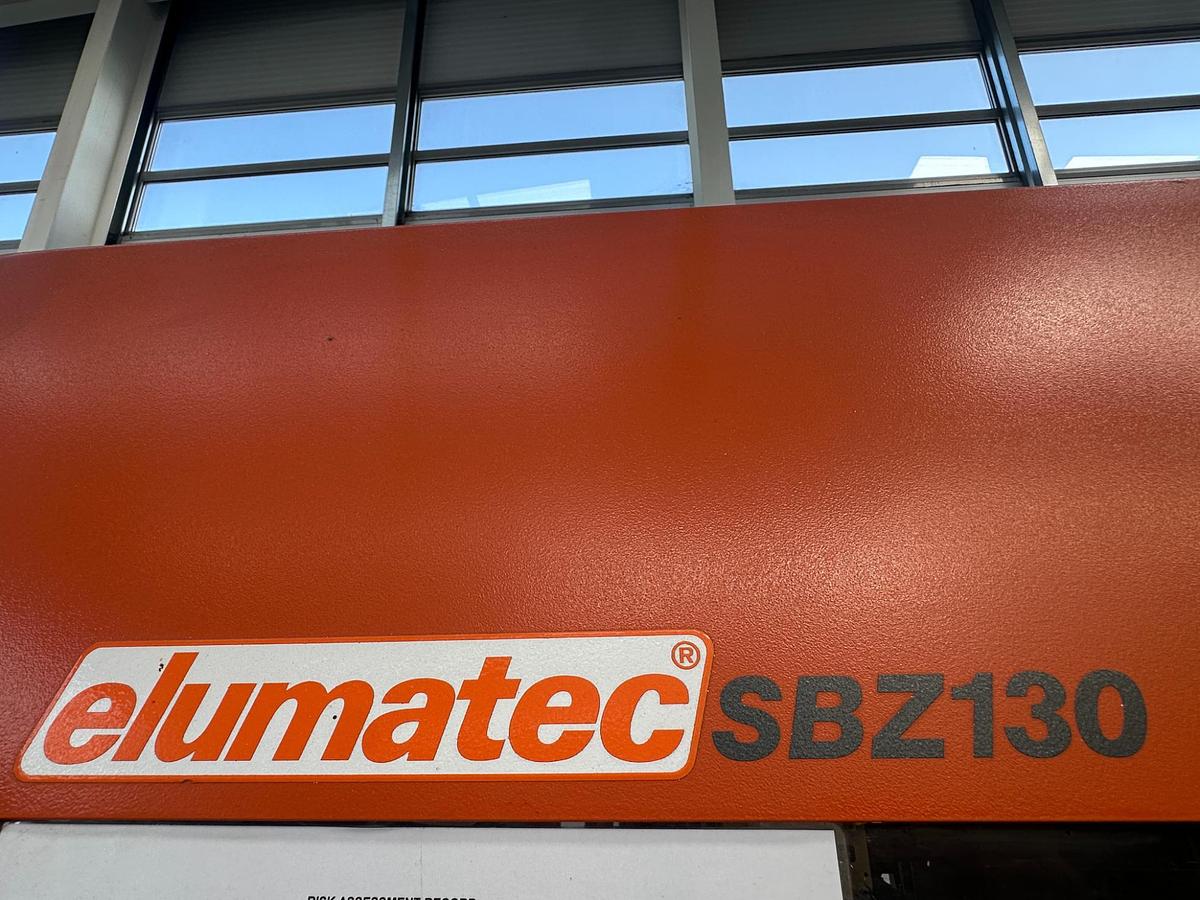

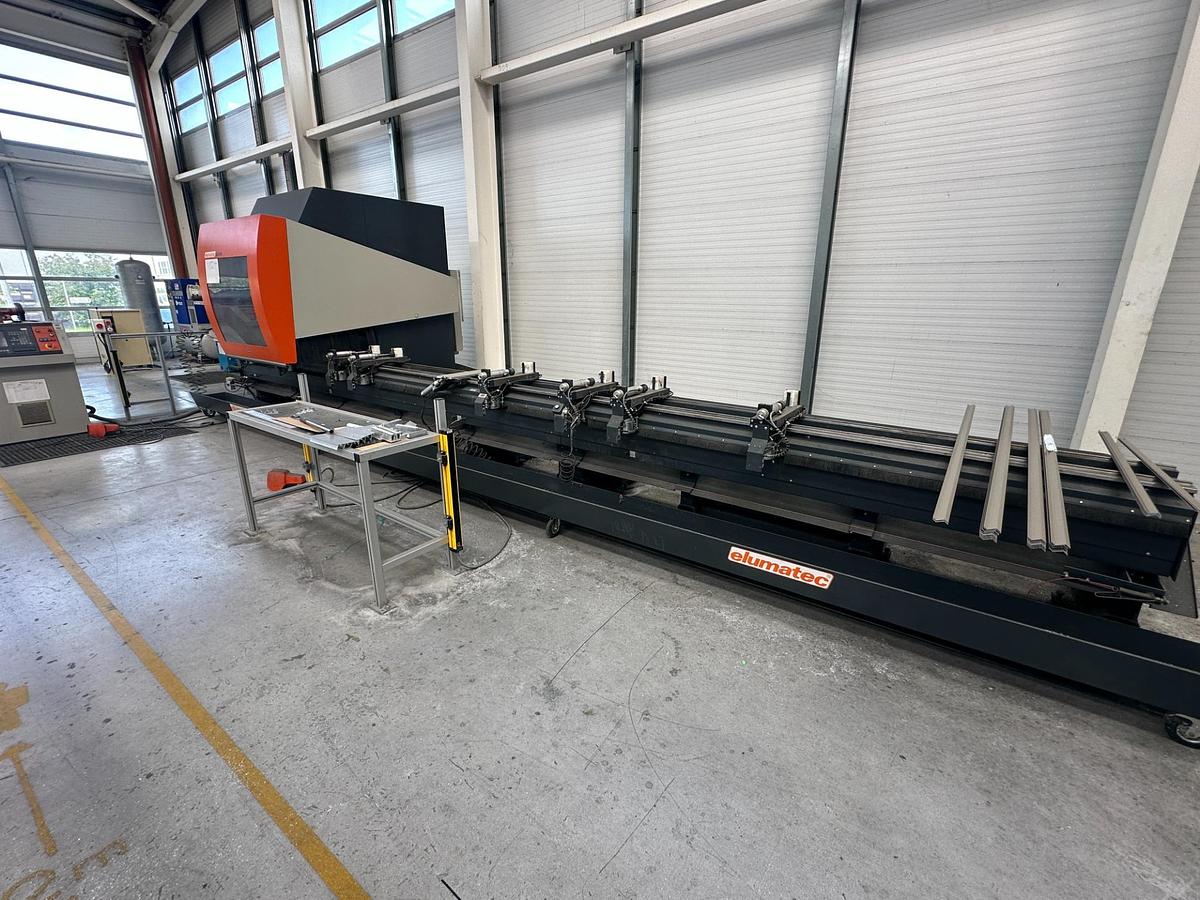

2006 Elumatec SBZ 130 CNC Profile Machining Centre

2006 Elumatec SBZ 130 Profile Machining Centre – High-Performance Aluminium CNC Machine

📍 Location: Ireland

🛠️ Machine Type: 3-Axis CNC Profile Machining Centre

📅 Year of Manufacture: 2006

✅ Condition: Very Good / Fully Operational

🔧 Brand: Elumatec – German Engineering Excellence

🔧 Machine Description:

The Elumatec SBZ 130 is a high-precision CNC profile machining centre designed for efficient and versatile processing of aluminium, steel, and stainless steel profiles. With fully automatic 3-axis control and flexible machining capabilities, it's ideal for manufacturers in the window, door, façade, and industrial profile fabrication sectors.

🧰 Included Features & Equipment:

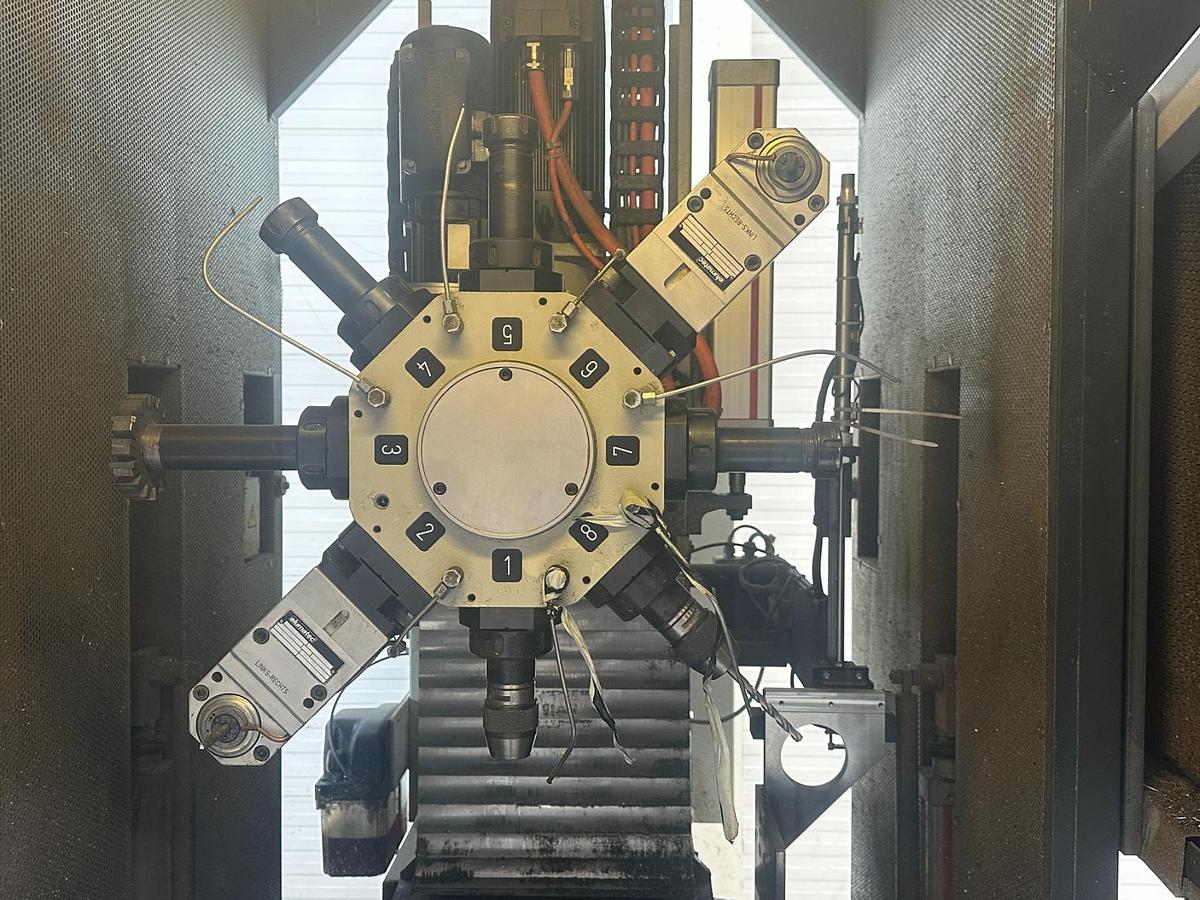

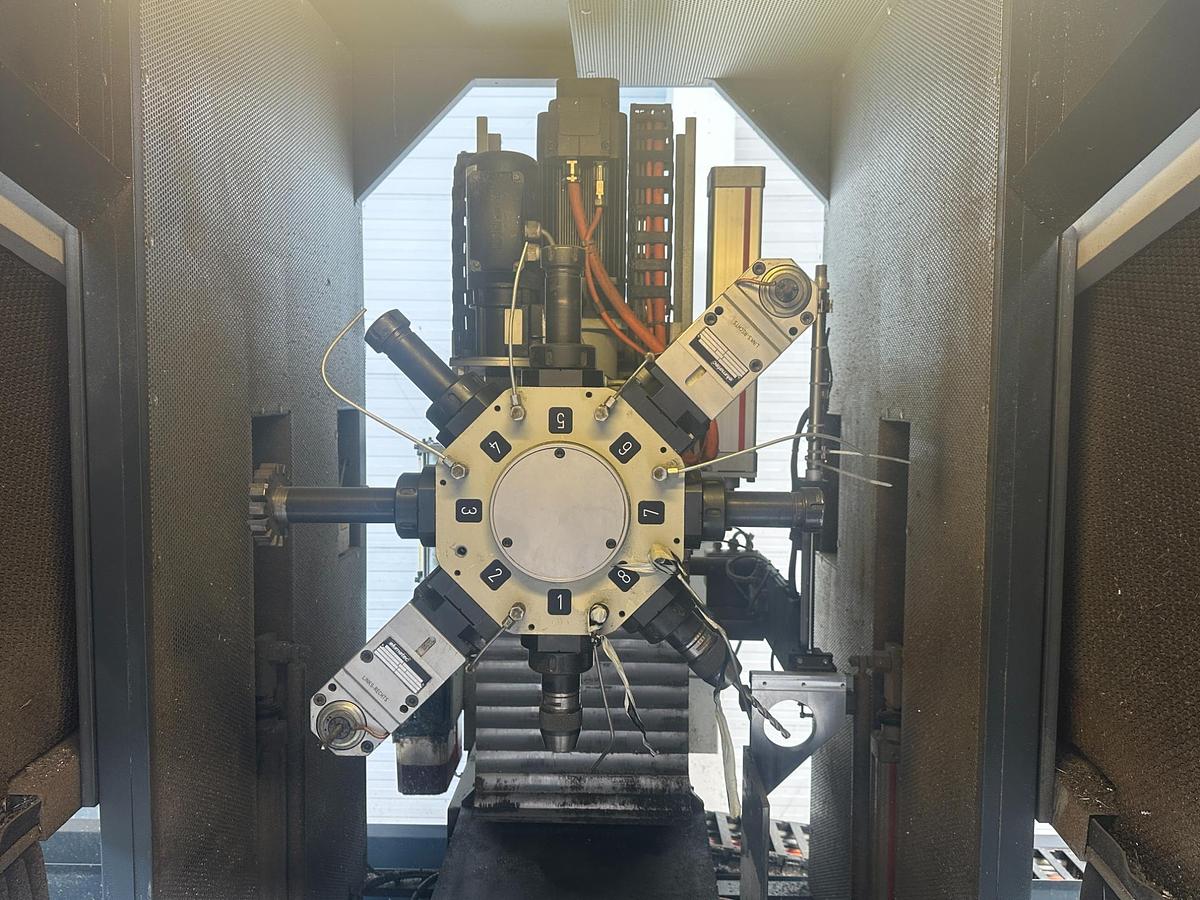

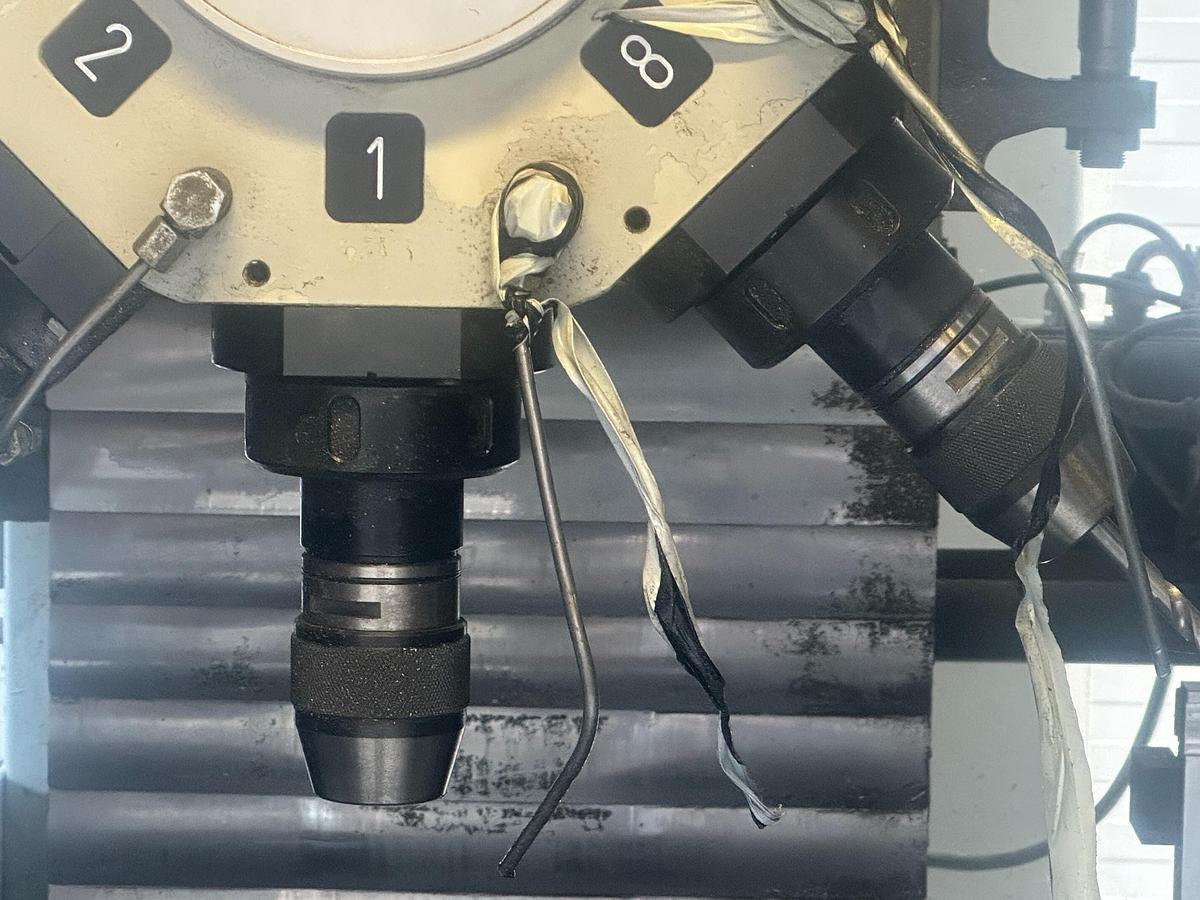

• Automatic Tool Turret with 8 Tool Positions
• • Holds standard tools or angle milling heads
• • Rapid rotation ensures minimal tool change times

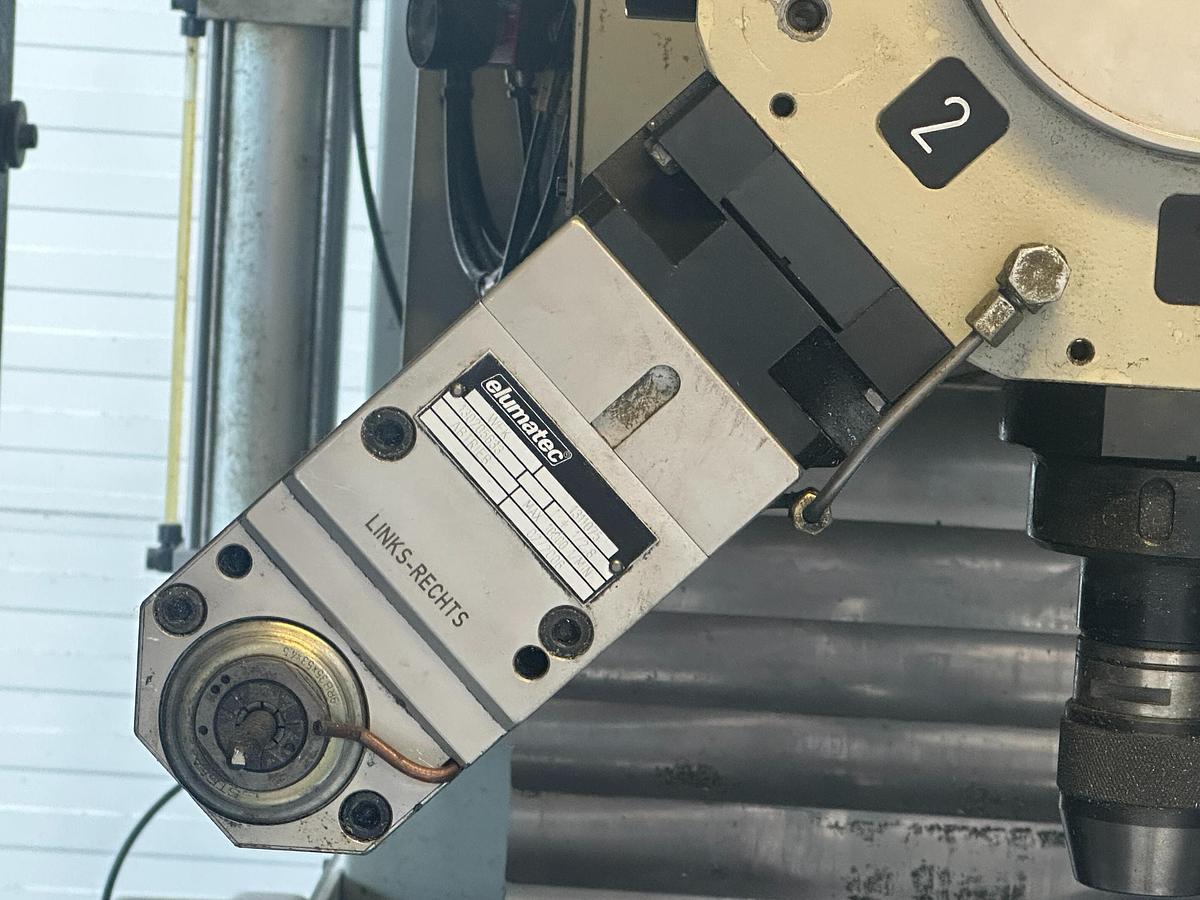

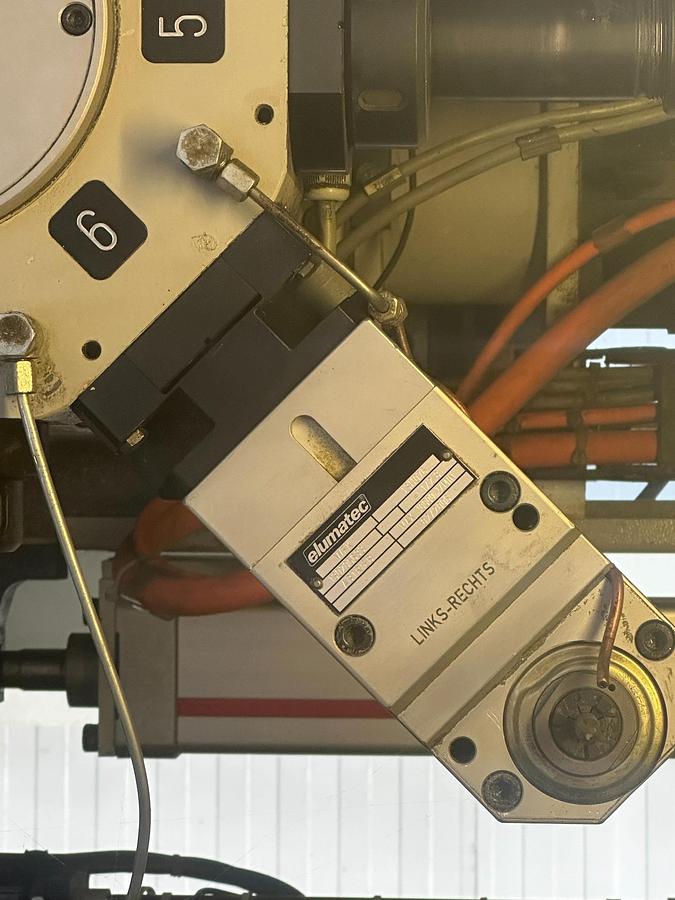

• 2 x Angle Milling Heads – included for advanced profile cutting
• Automatic Length Measurement – improves precision and workflow
• Two Independent Machining Zones – for pendulum operation and non-stop production

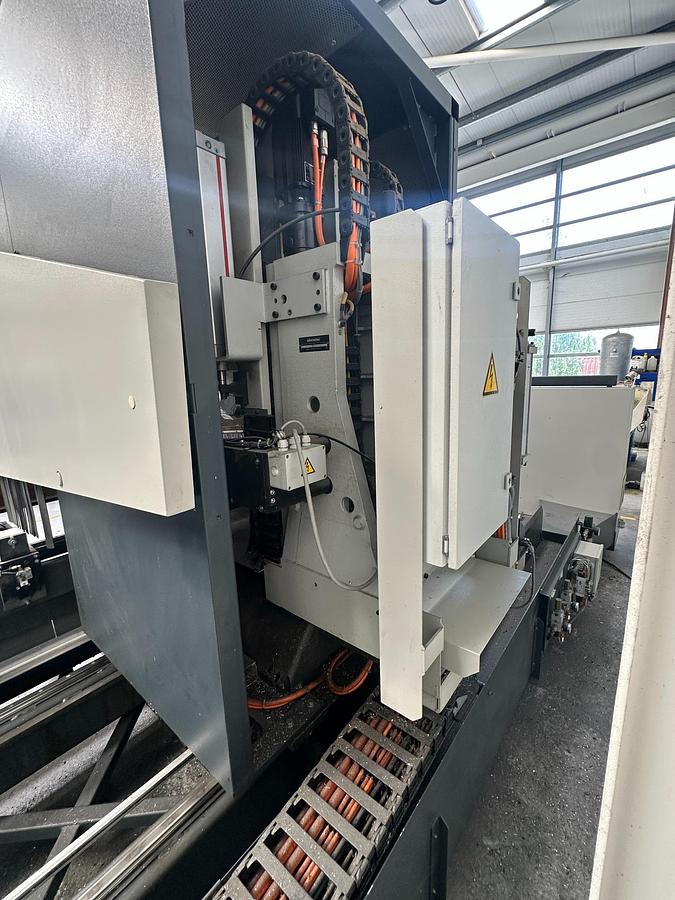

• Tool Spindle with Additional Axis Functionality – enhances machining flexibility

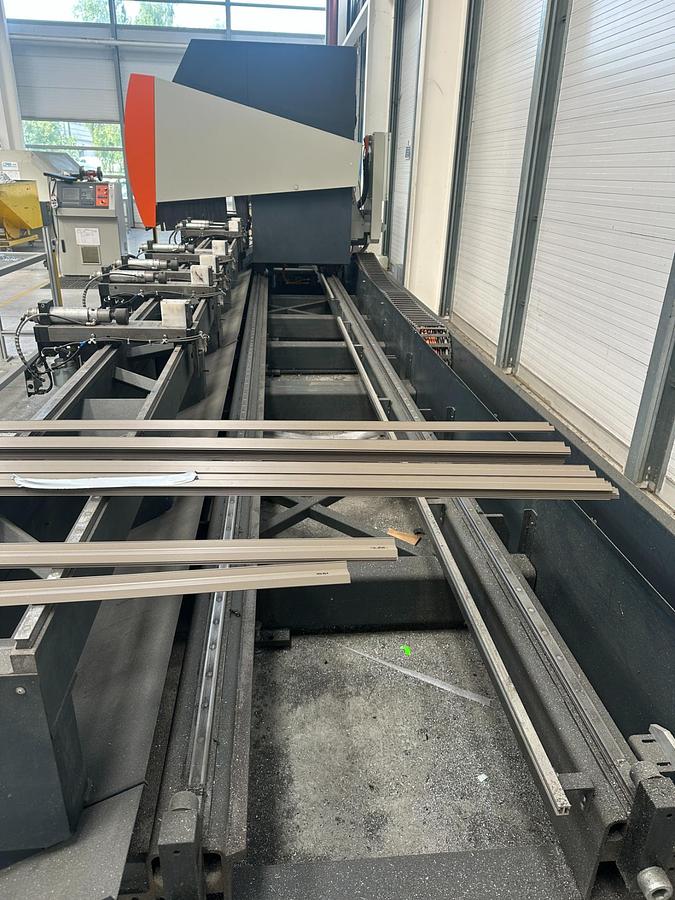

• All Operations Performed with Stationary Profile Bar
• • Protects profile surface during milling, drilling, and threading

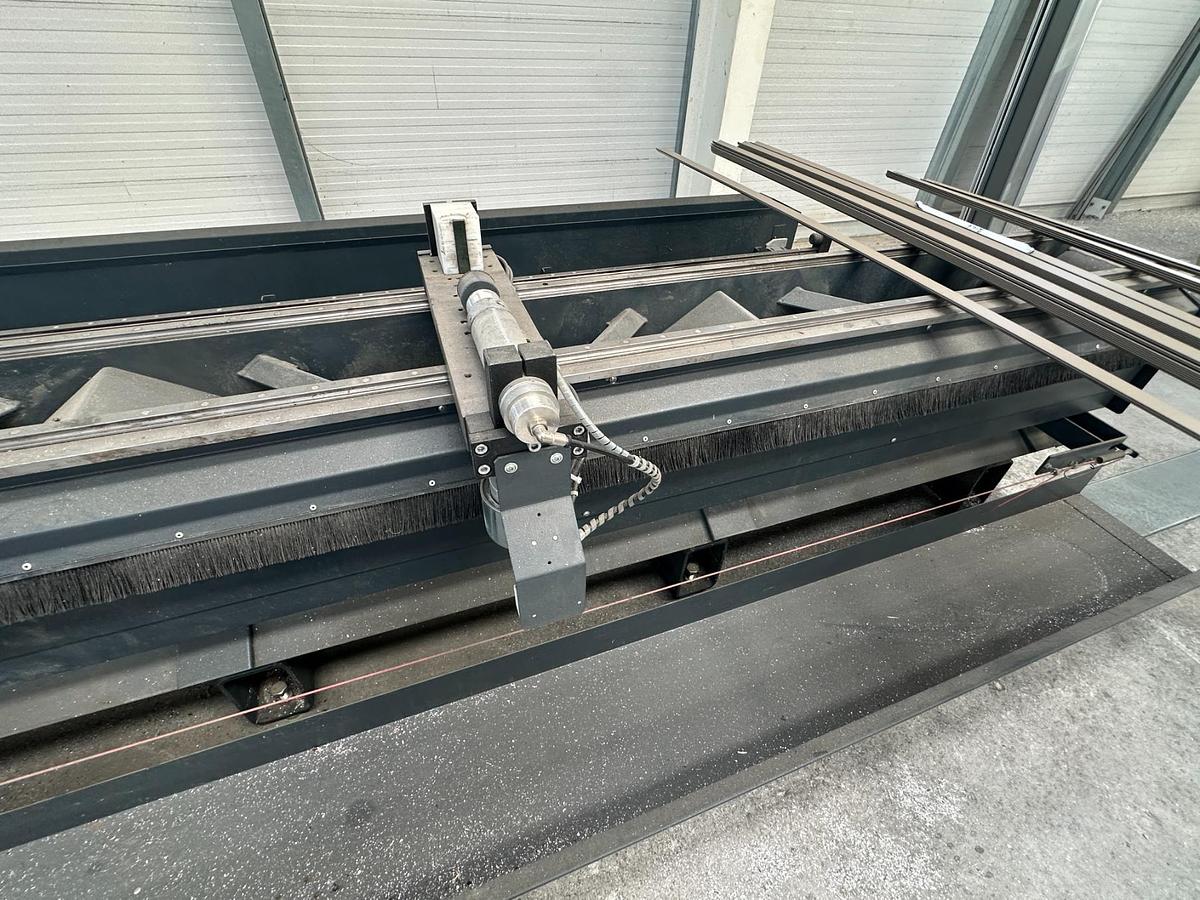

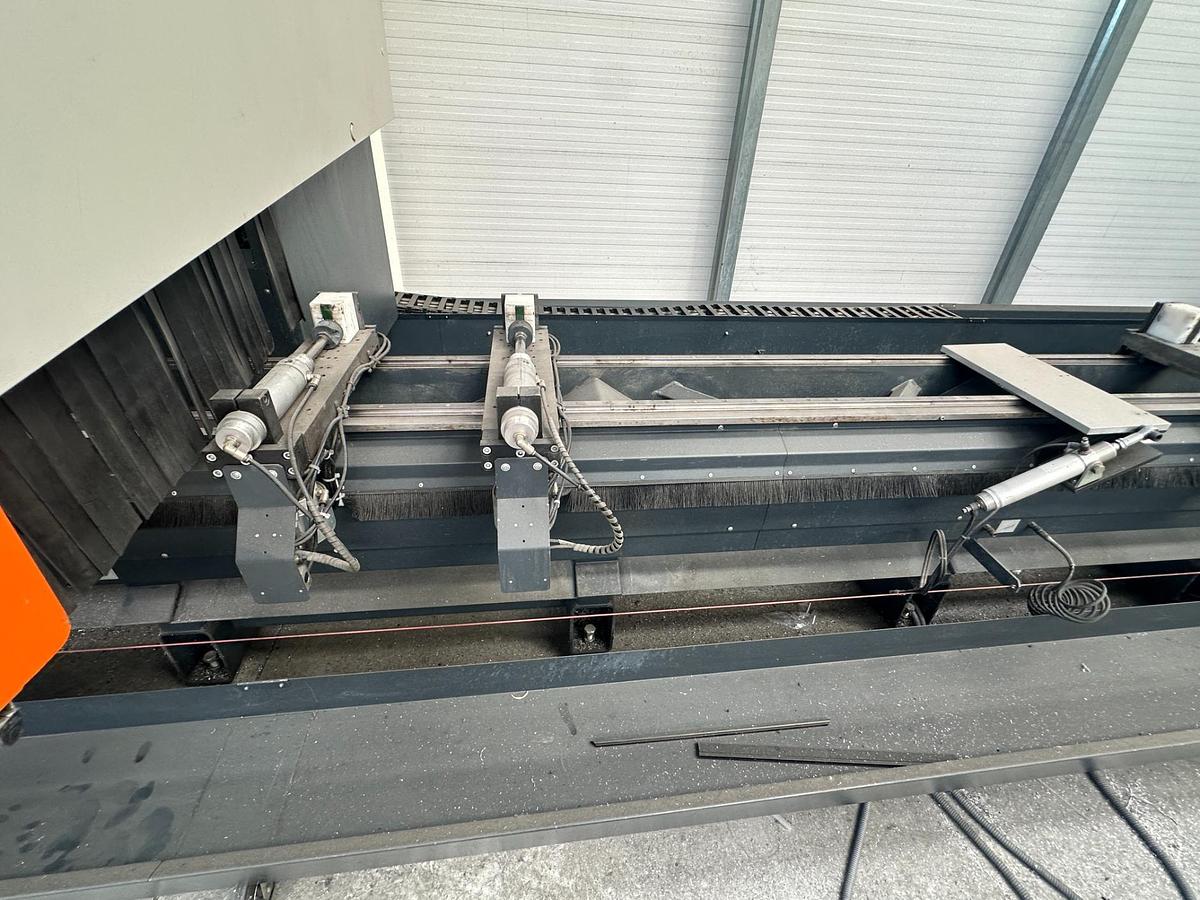

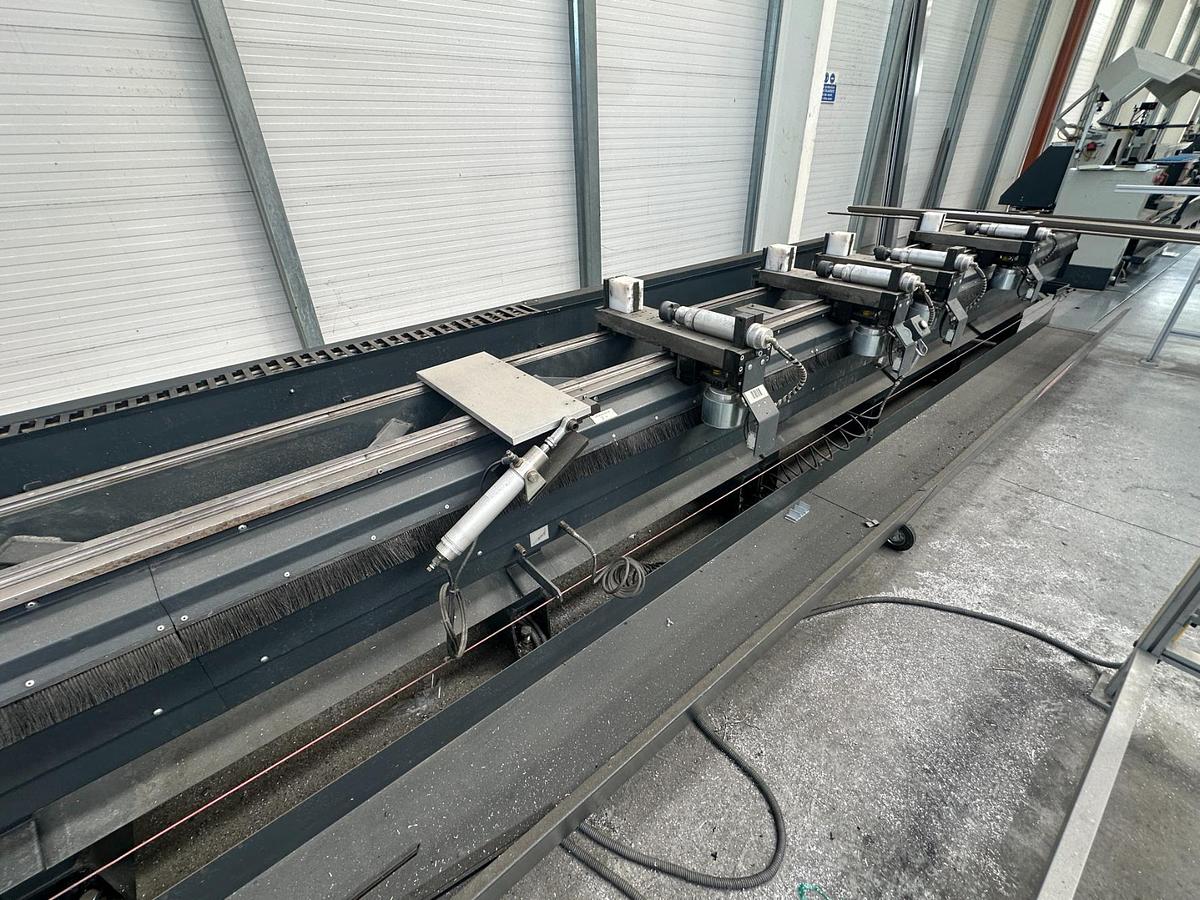

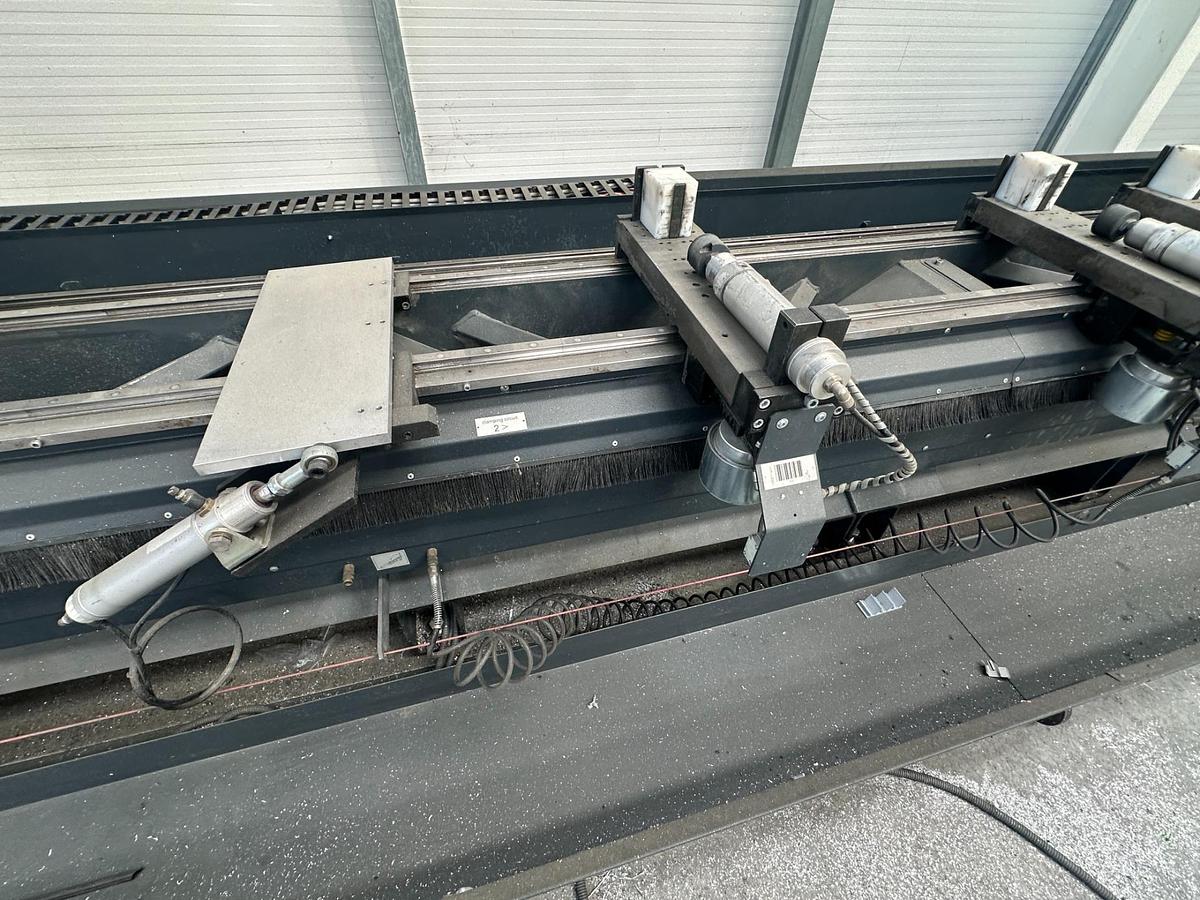

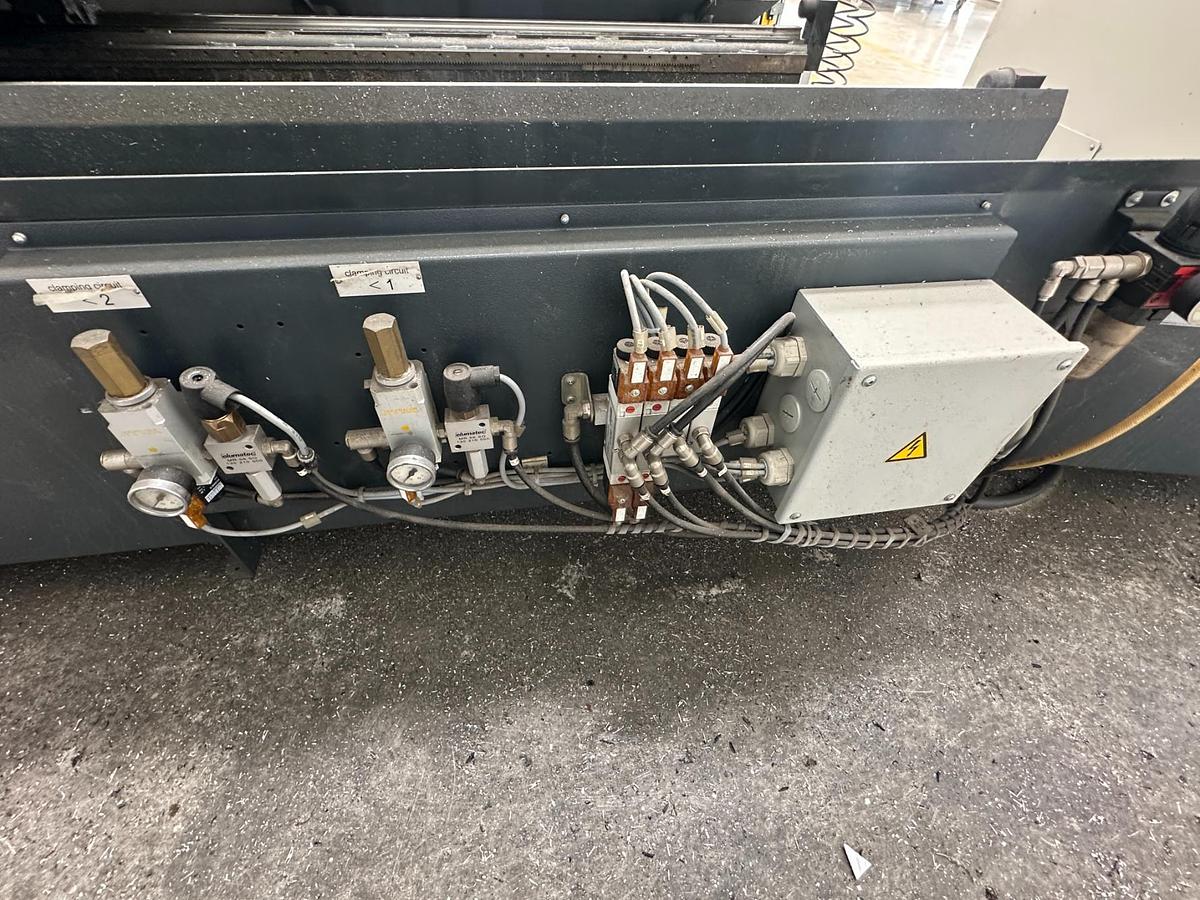

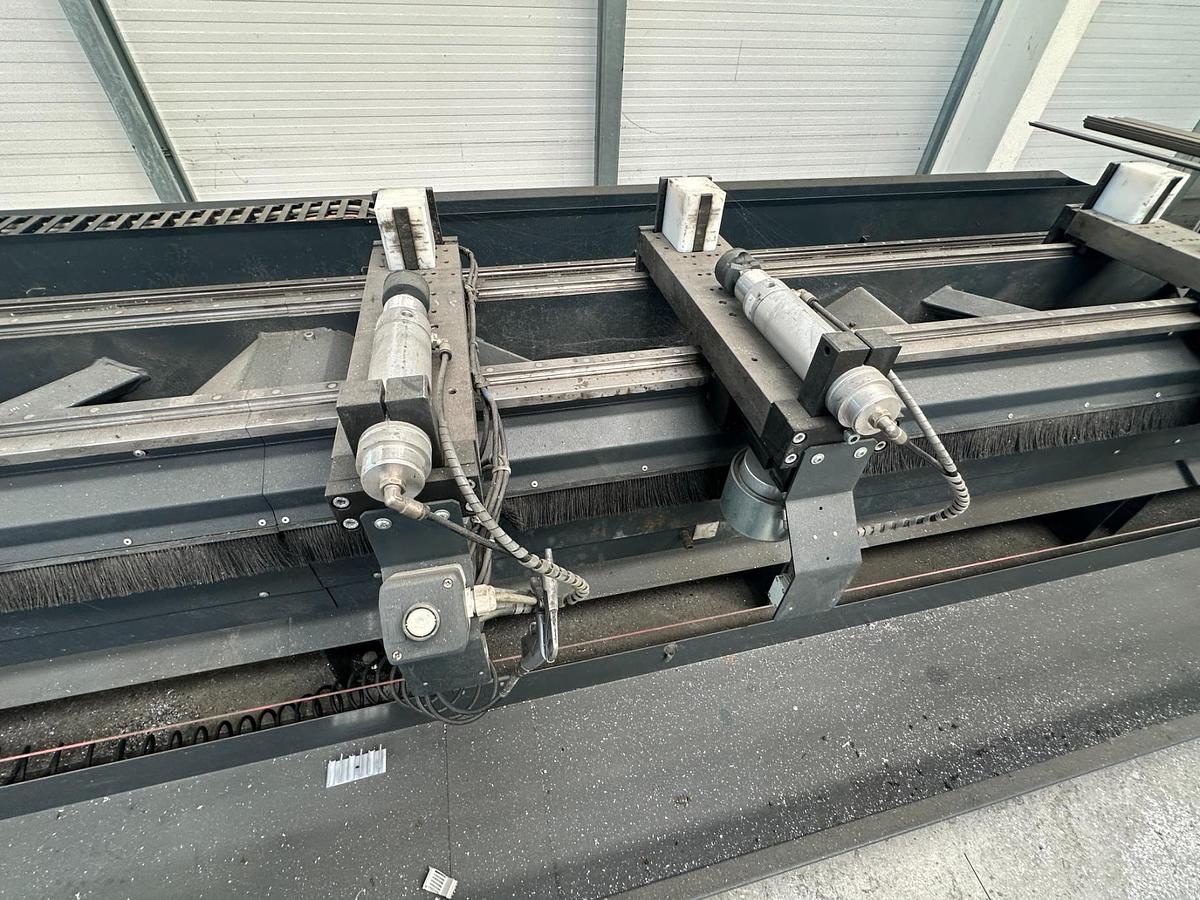

• Multi-position Pneumatic Clamping System

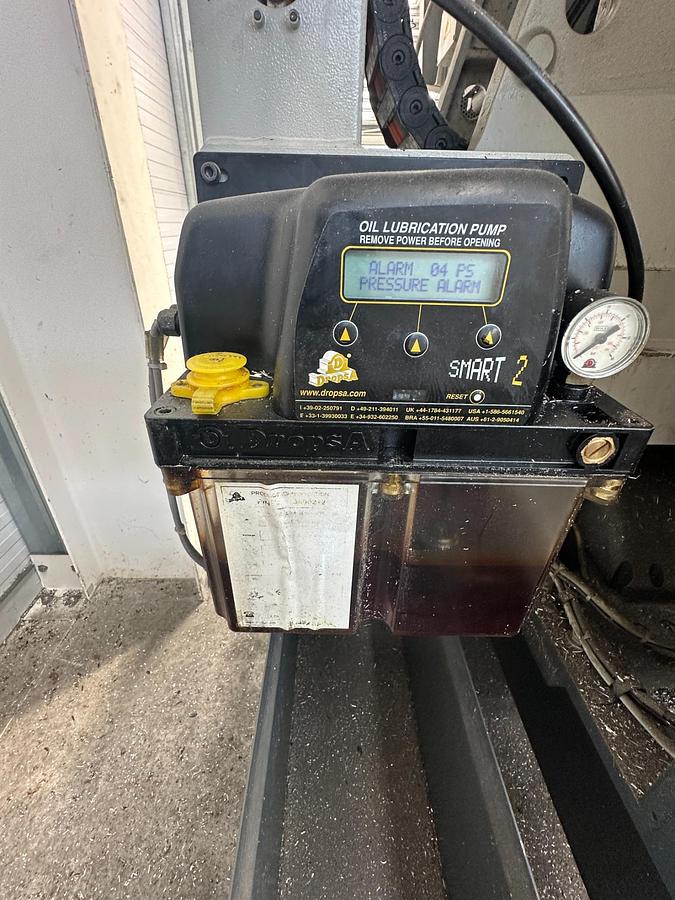

• Coolant & Minimum Quantity Lubrication System (MQL)
• Tool Holders in photos Included

This 2006 model is in very good condition, fully functional, and ready to be put into service.

📐 Technical Specifications:

• X-axis Travel (Longitudinal): 7,200 mm
• Y-axis Travel (Transverse): 480 mm
• Z-axis Travel (Vertical): 325 mm
• Spindle Power: 5.5 kW
• Max Spindle Speed: 6,000 rpm
• X Axis Rapid Traverse: 60 m/min
• Y Axis Rapid Traverse: 30 m/min
• Z Axis Rapid Traverse: 30 m/min
• Tool Changer: Automatic 8 position magazine
• Angle Milling Heads: 2
• Angle Milling Heads Speed: 10,000 rpm

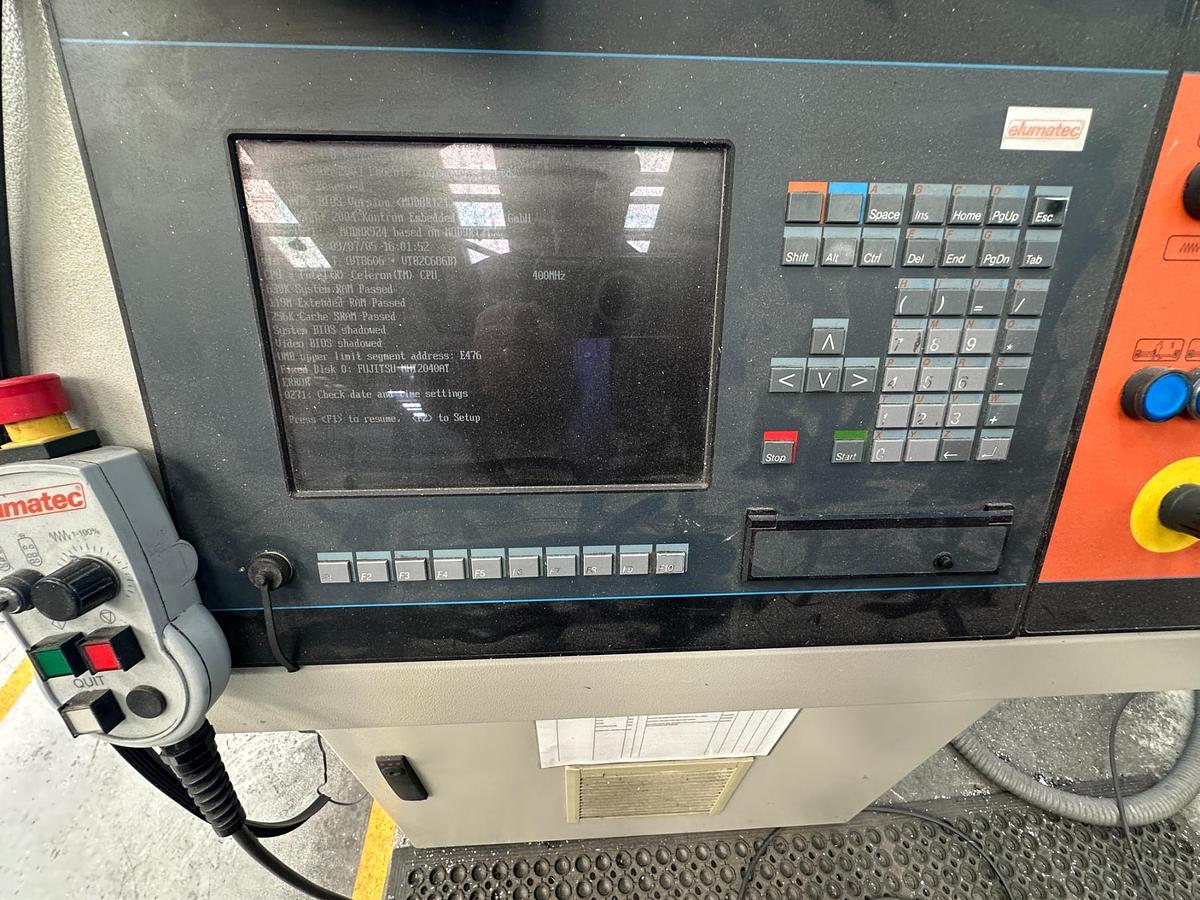

• Control System: Elumatec ELMU with full NC control
• Machining Capabilities:
• • Drilling, Routing, Tapping, Notching, Slotting
• • Machining on 3 sides of the profile without repositioning

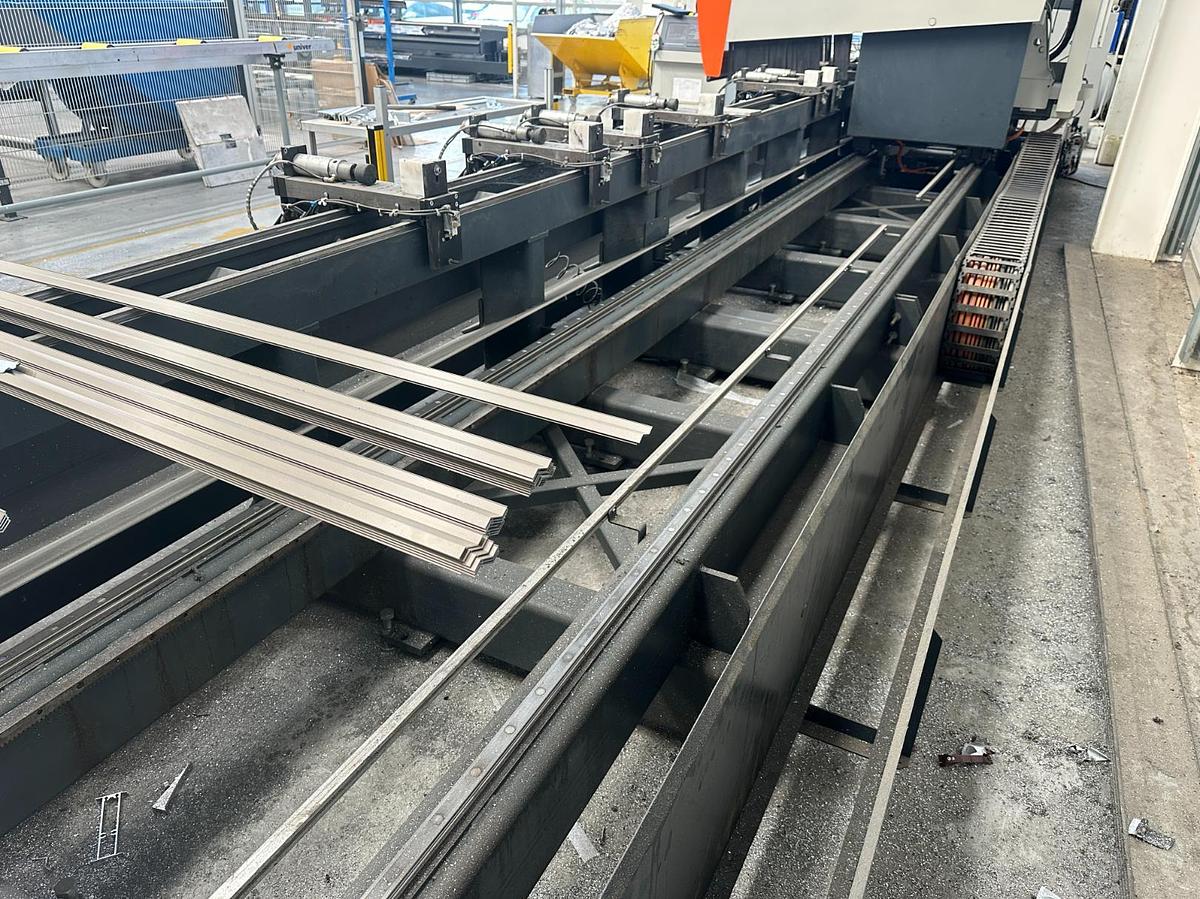

• Clamping System: Pneumatic profile clamps (movable and programmable)
• Compressed Air Connection: 7 Bar
• Compressed Air Consumption: 75 L/min with spraying
• Cooling/Lubrication: Minimum quantity lubrication (MQL) system

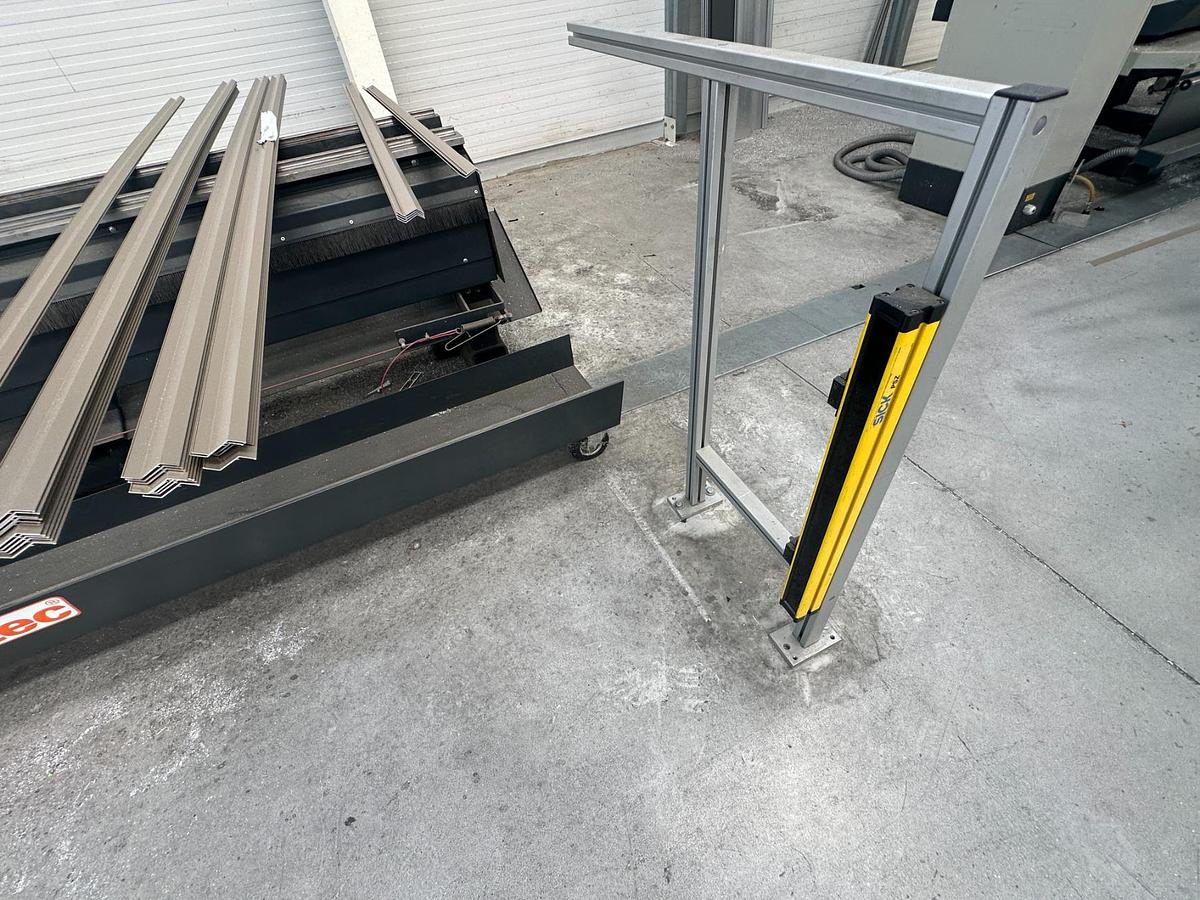

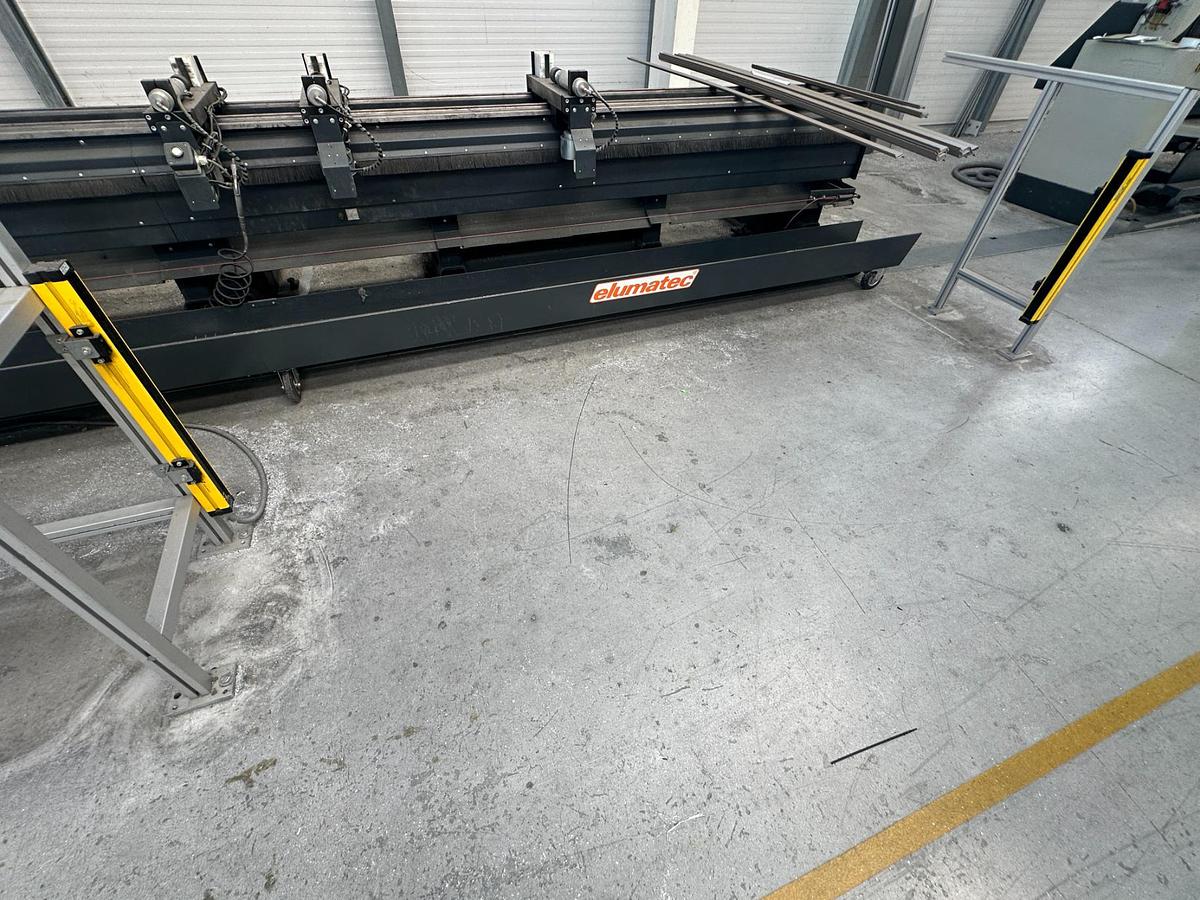

• Operation: Front-loading with safety light curtain

🧰 Machine Includes:

• Multi-position automatic tool changer
• Angle Milling Heads x 2
• Pneumatic profile clamping system
• Cooling/lubrication system

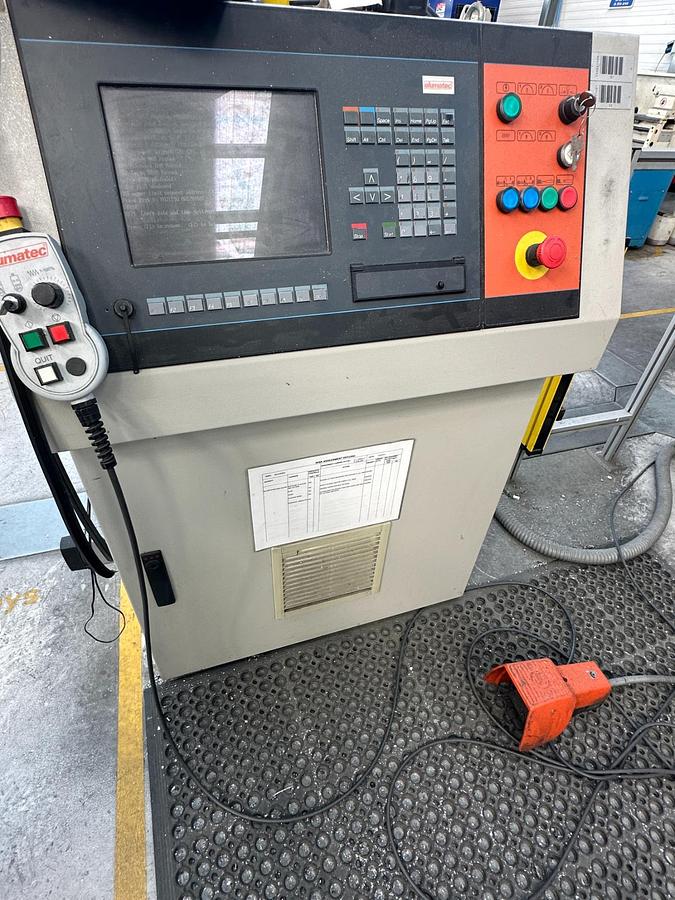

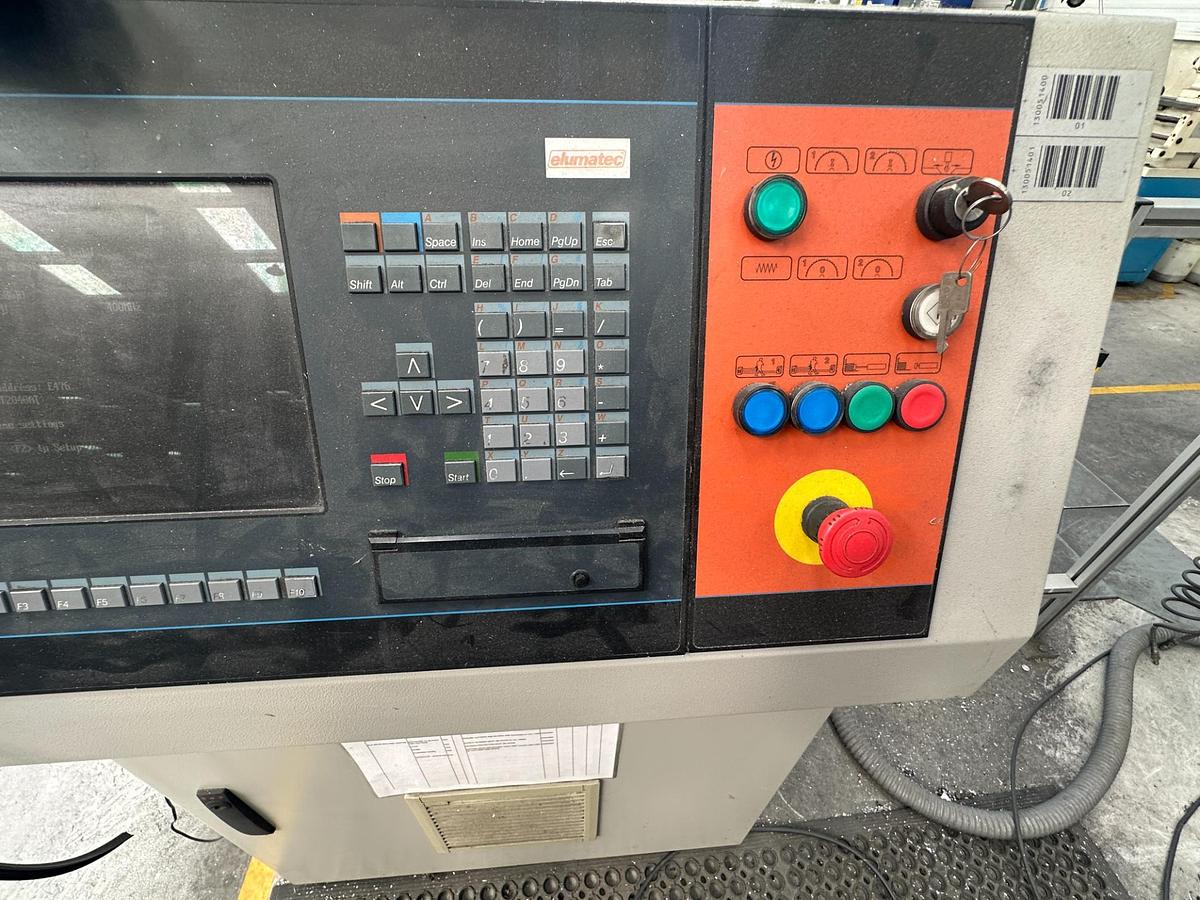

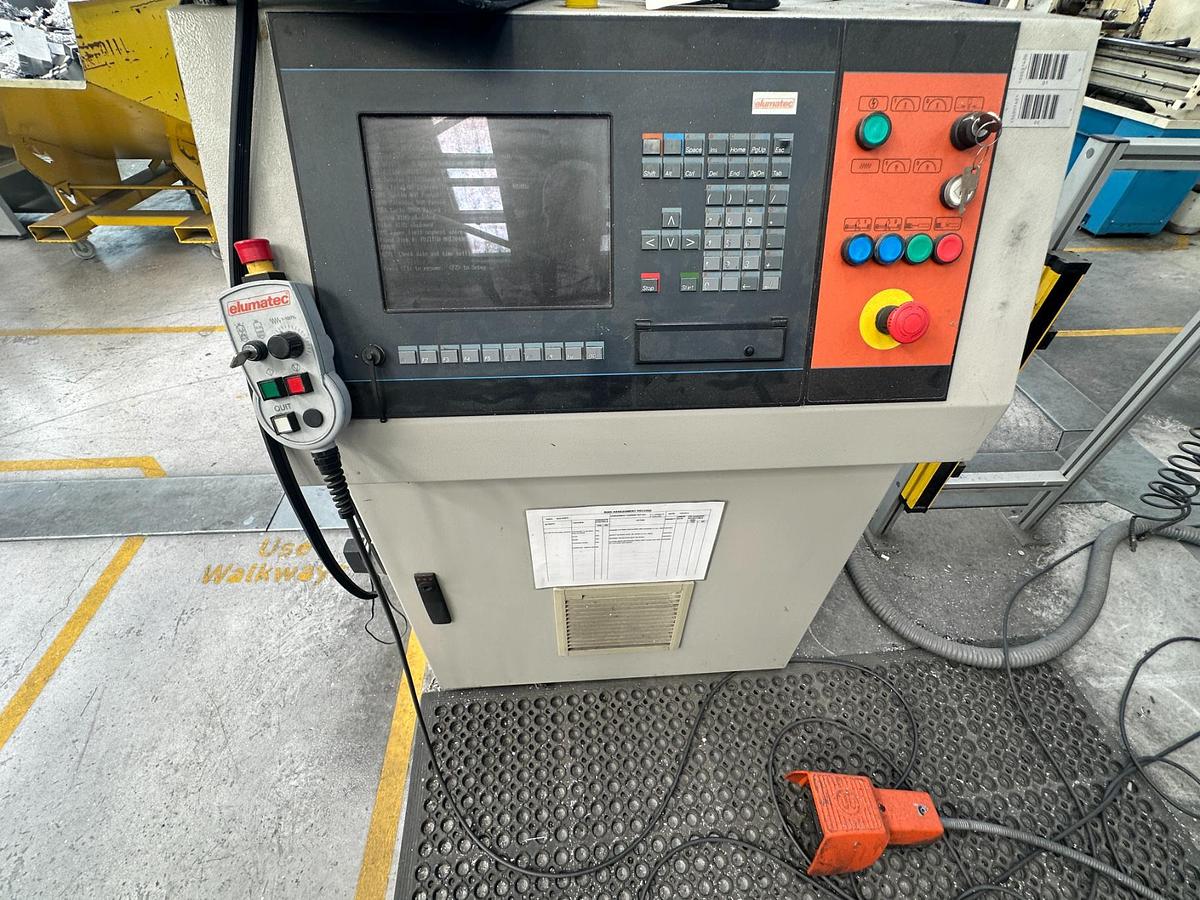

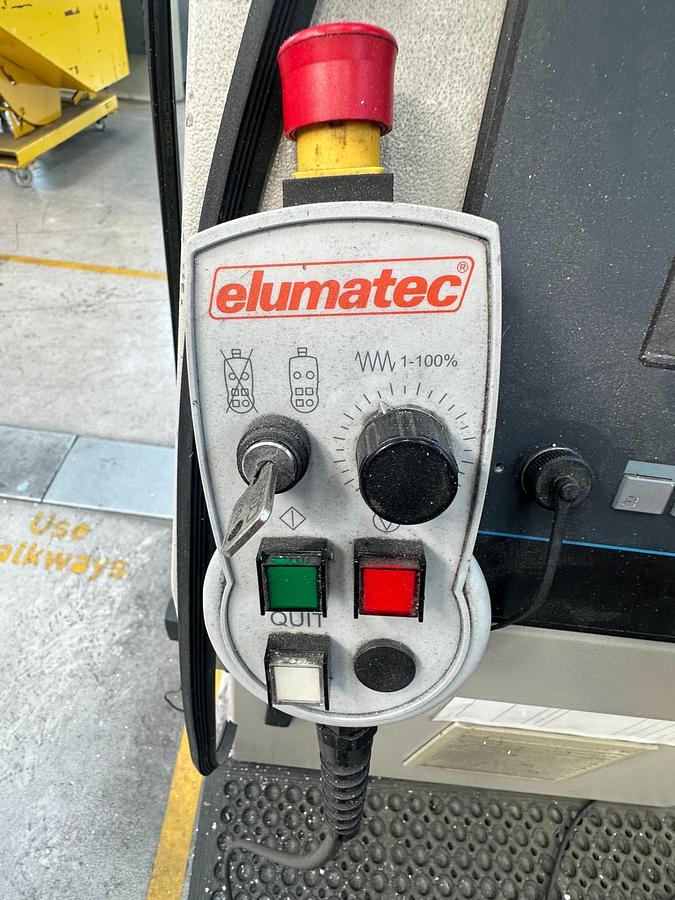

• Operator control console
• Selection of tool holders as seen in photos

💡 Key Features & Benefits:

• German-built machine with exceptional reliability
• High-speed 3-axis control for complex machining tasks
• Machining without profile repositioning – improved productivity
• Perfect for aluminium window & door fabrication, curtain wall profiles, industrial extrusion machining
• Can be integrated into automated production lines
• Ready to work – tested
