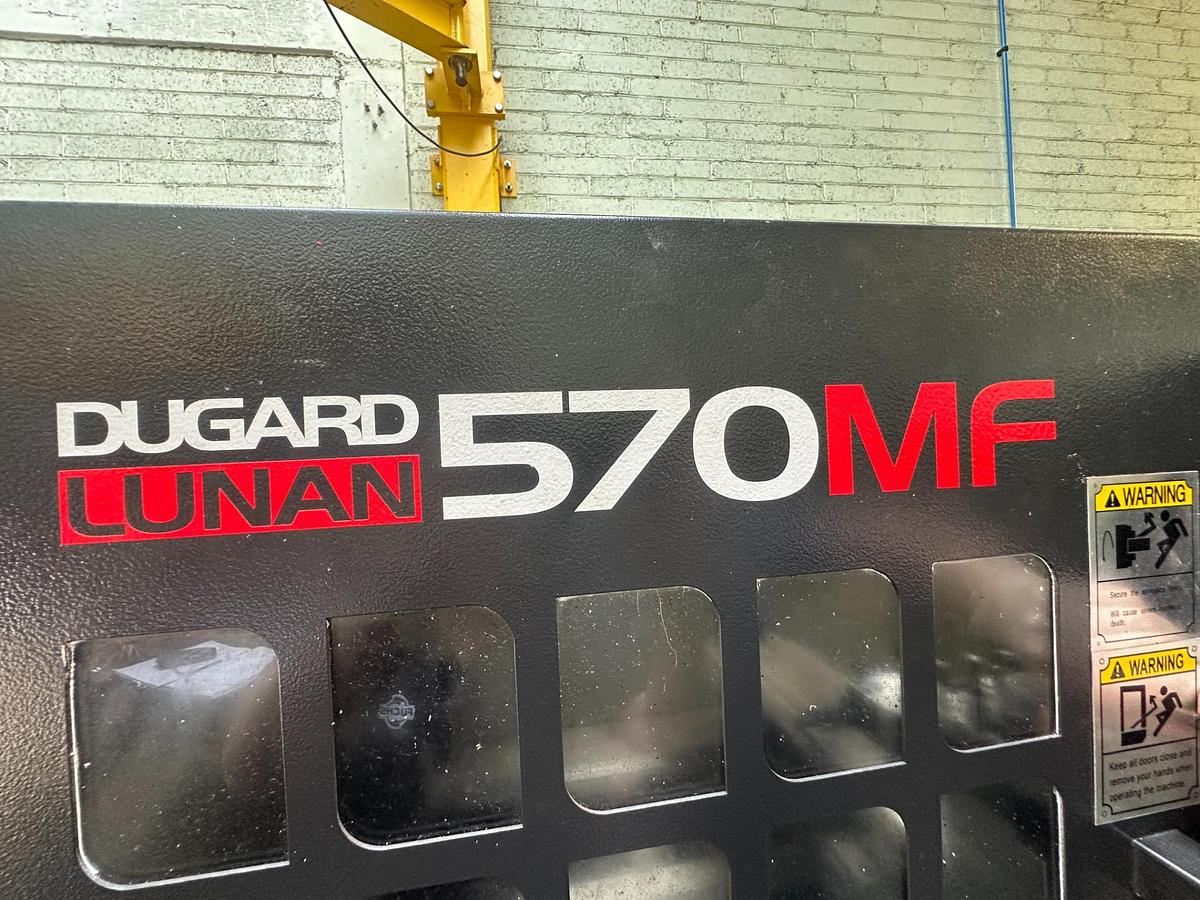

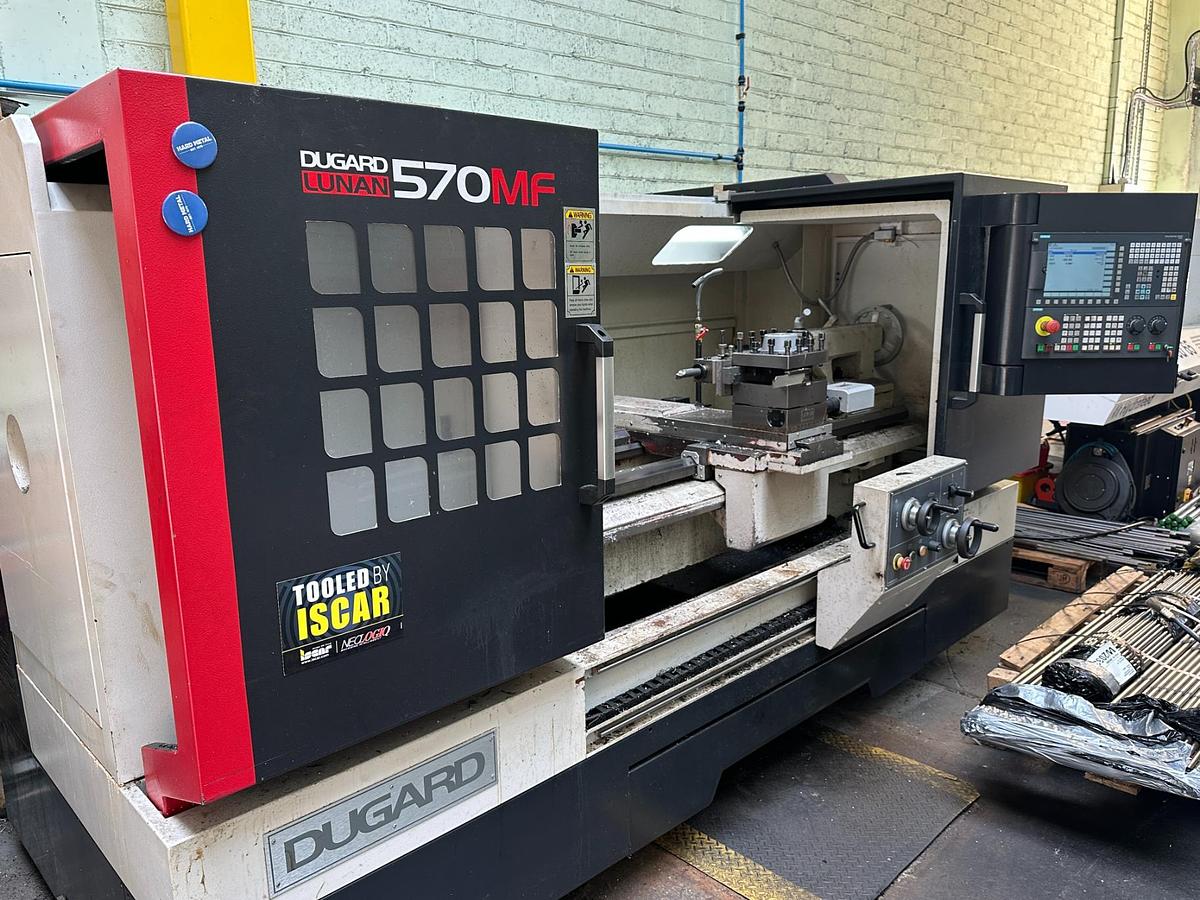

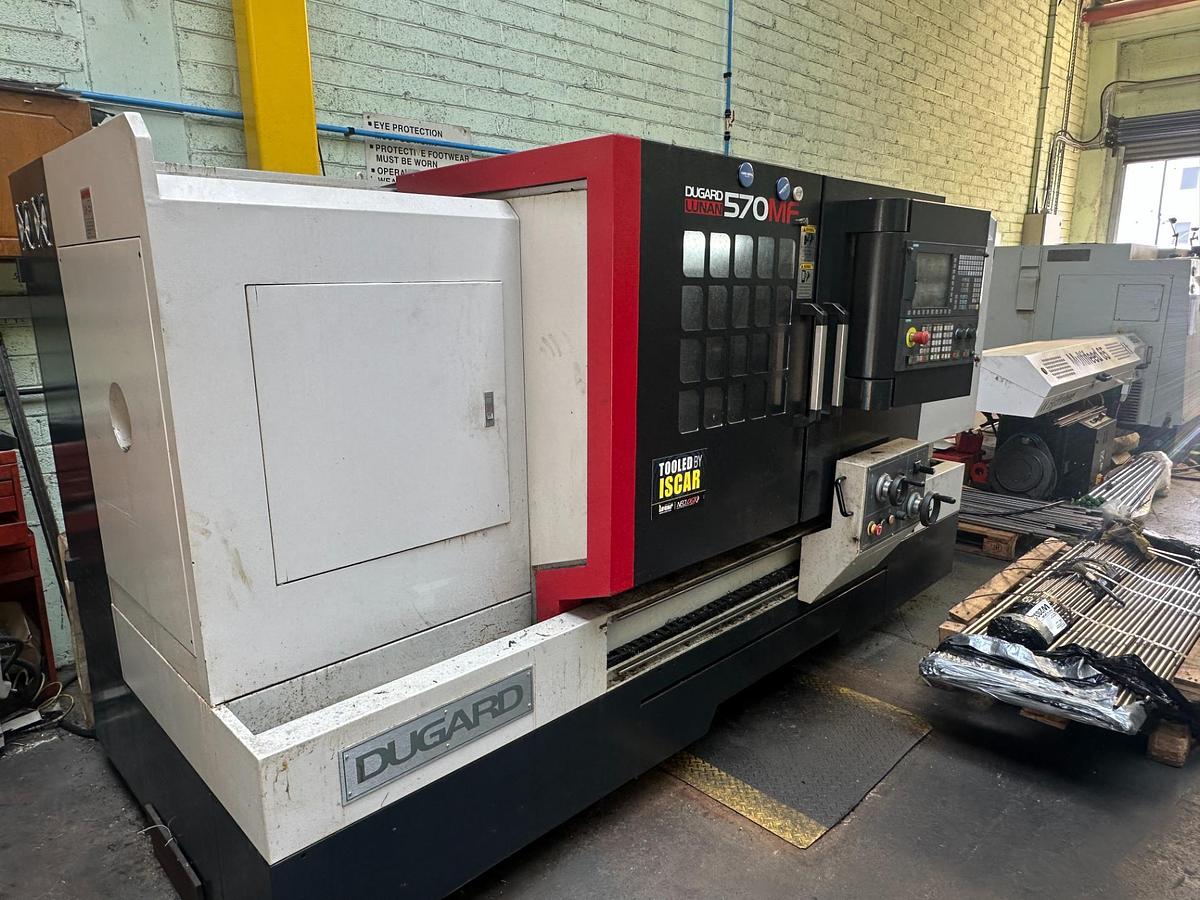

2018 Dugard Lunan 570MF CNC Lathe – Used CNC Lathe for Sale

2018 Dugard Lunan 570MF CNC Lathe – Excellent Condition

📍 Location: Ireland

🔧 Machine Type: CNC Lathe

🛠️ Manufacturer: Dugard

📅 Year of Manufacture: 2018

⏱️ Machine Hours: Only 2,300

✅ Condition: Very Good / Fully Functional

💡 Why Choose This Machine?

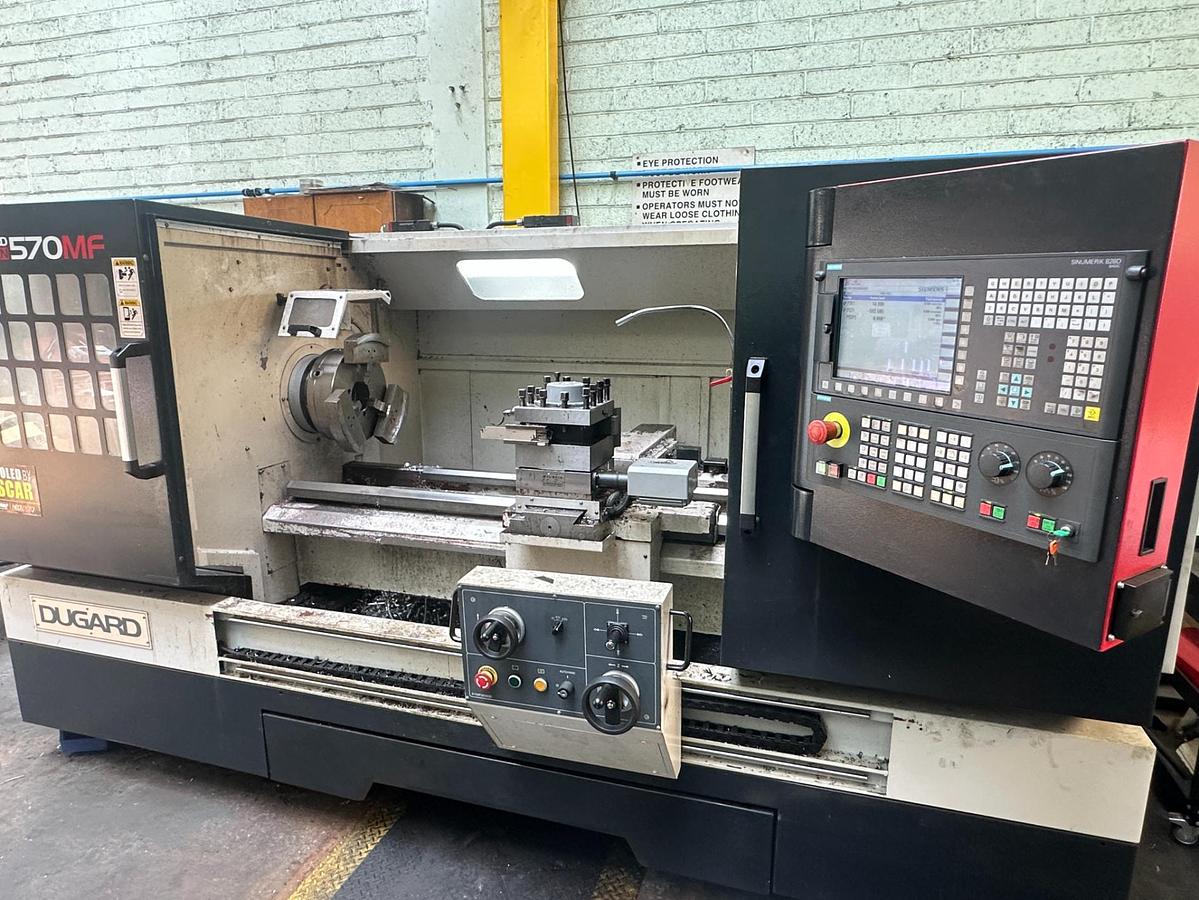

The Dugard Lunan 570MF is a solid, well-built CNC lathe designed for medium to heavy-duty turning applications. With Siemens 828D control, only 2300 working hours, and a complete set of chucks, steadies, and accessories, this machine is ideal for general precision engineering, subcontractors, and educational/training use. It’s well maintained, ready to work, and represents excellent value.

Buy a 2018 Dugard Lunan 570MF CNC Lathe in excellent condition. Featuring 570mm swing, Ø80mm spindle bore, 400mm chuck, and 7.5kW power. Available now from Used Machine Tools Ireland. International delivery available.

🧰 Machine Includes:

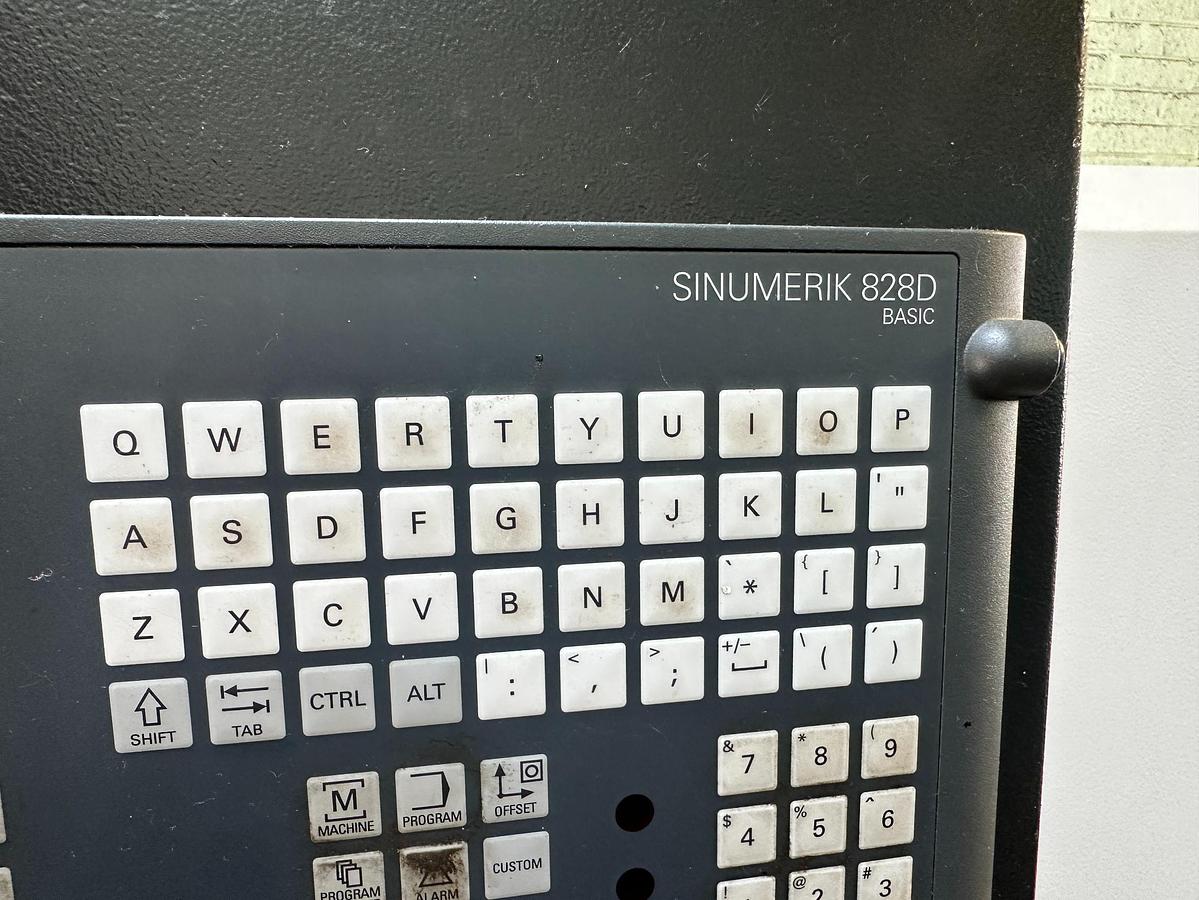

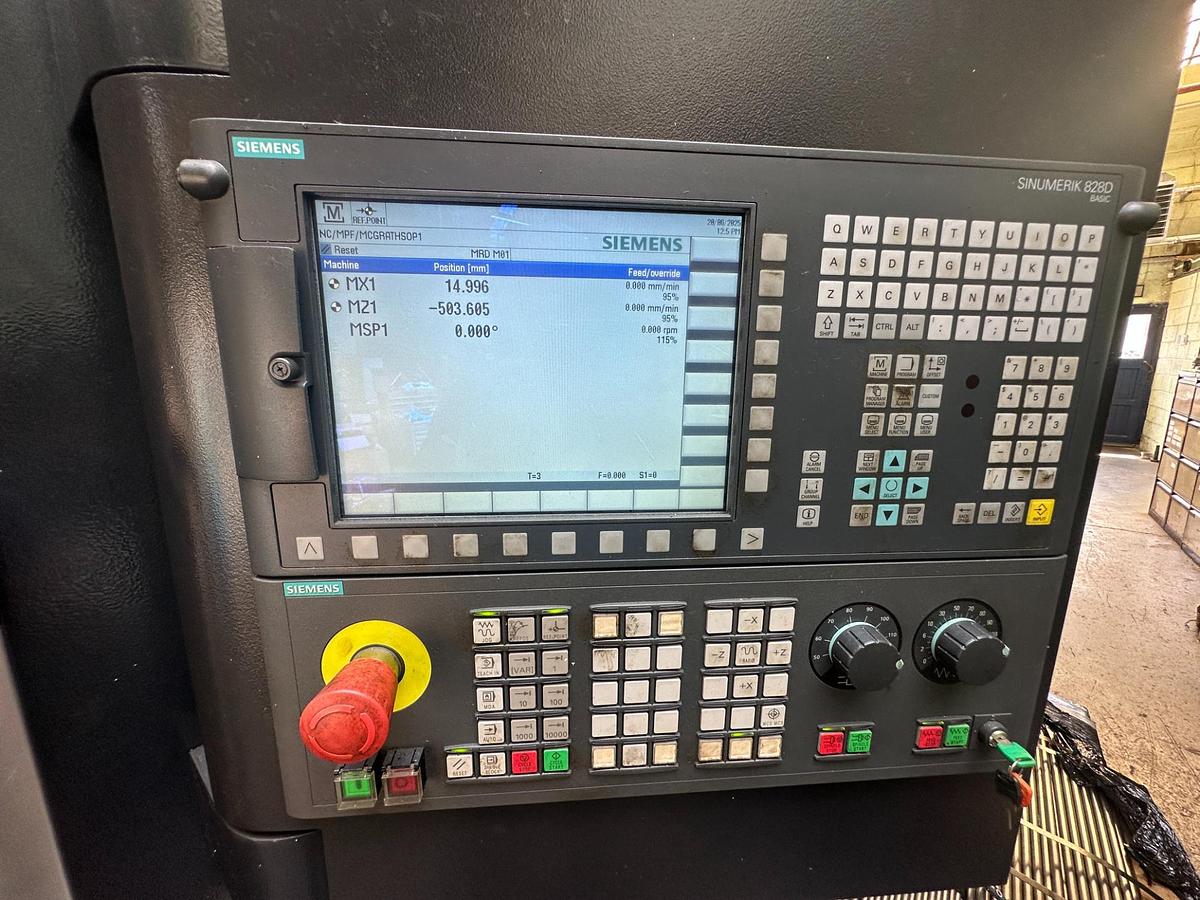

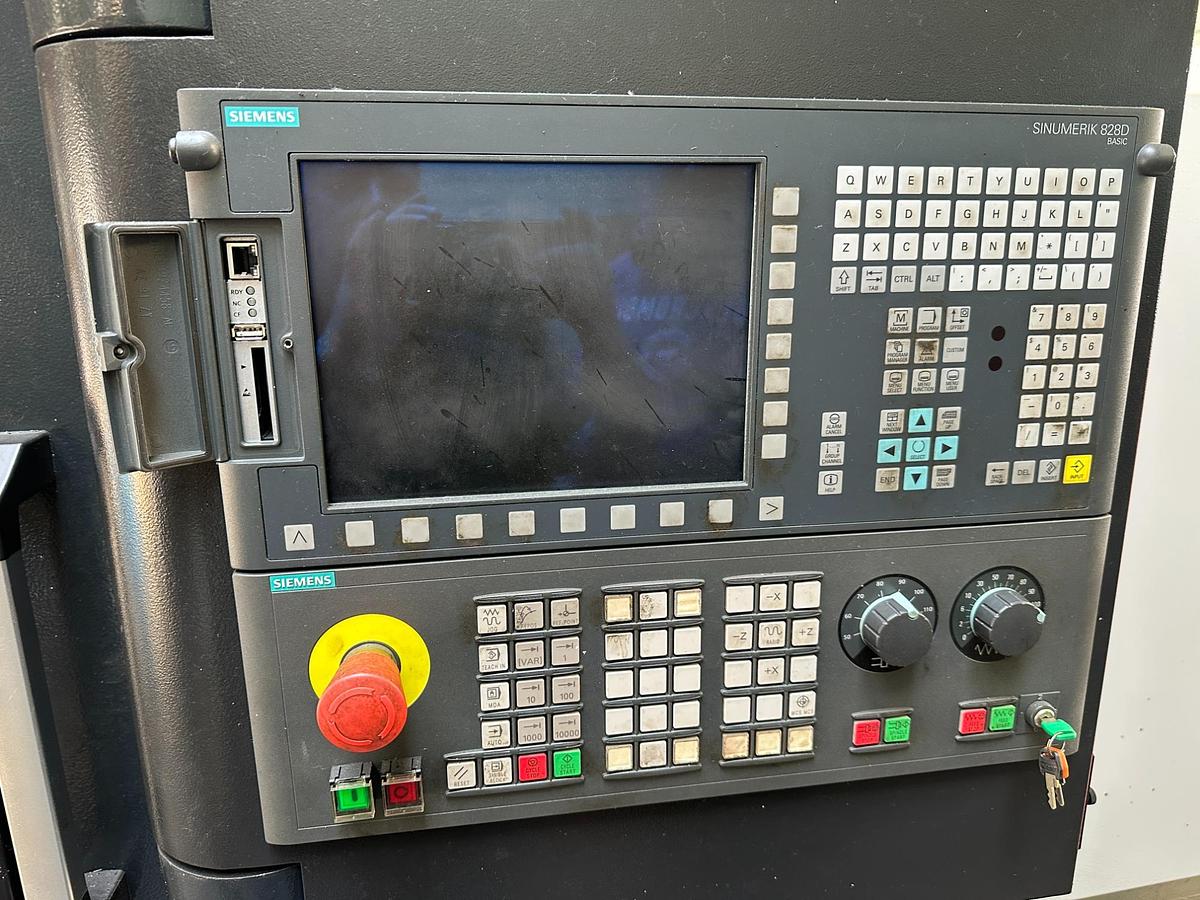

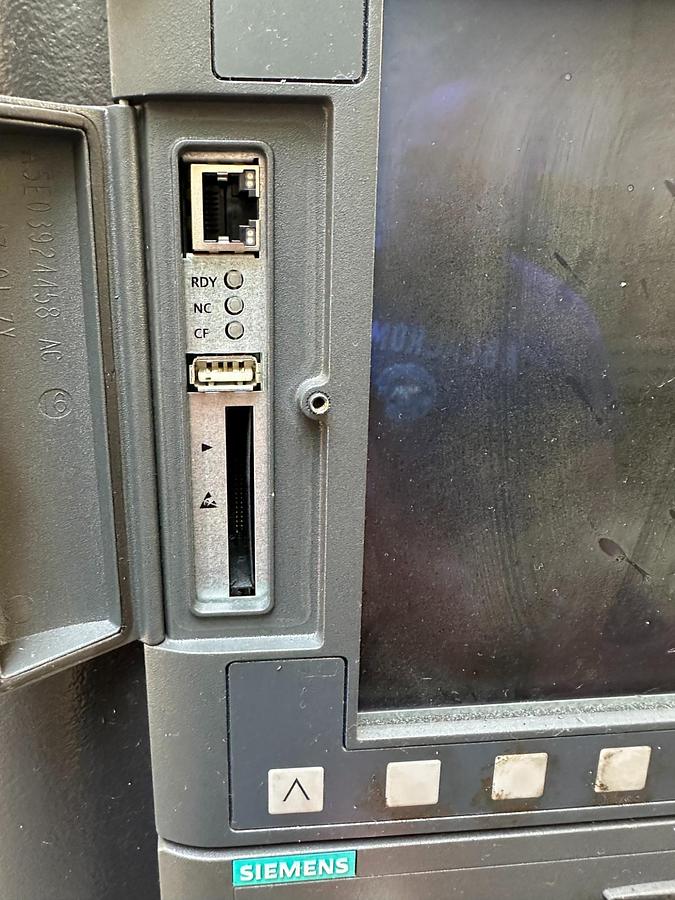

• Siemens 828D CNC Control System

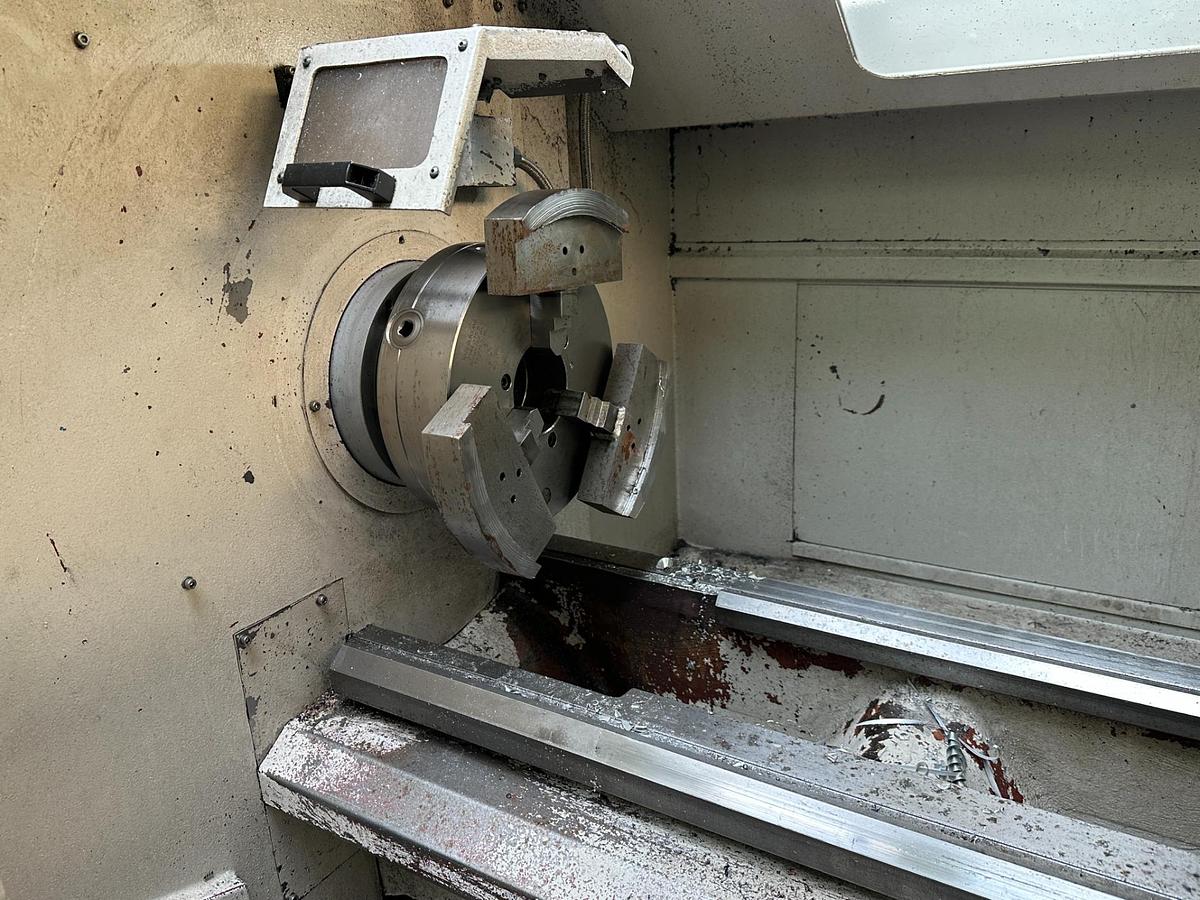

• 320 mm 3-Jaw Chuck

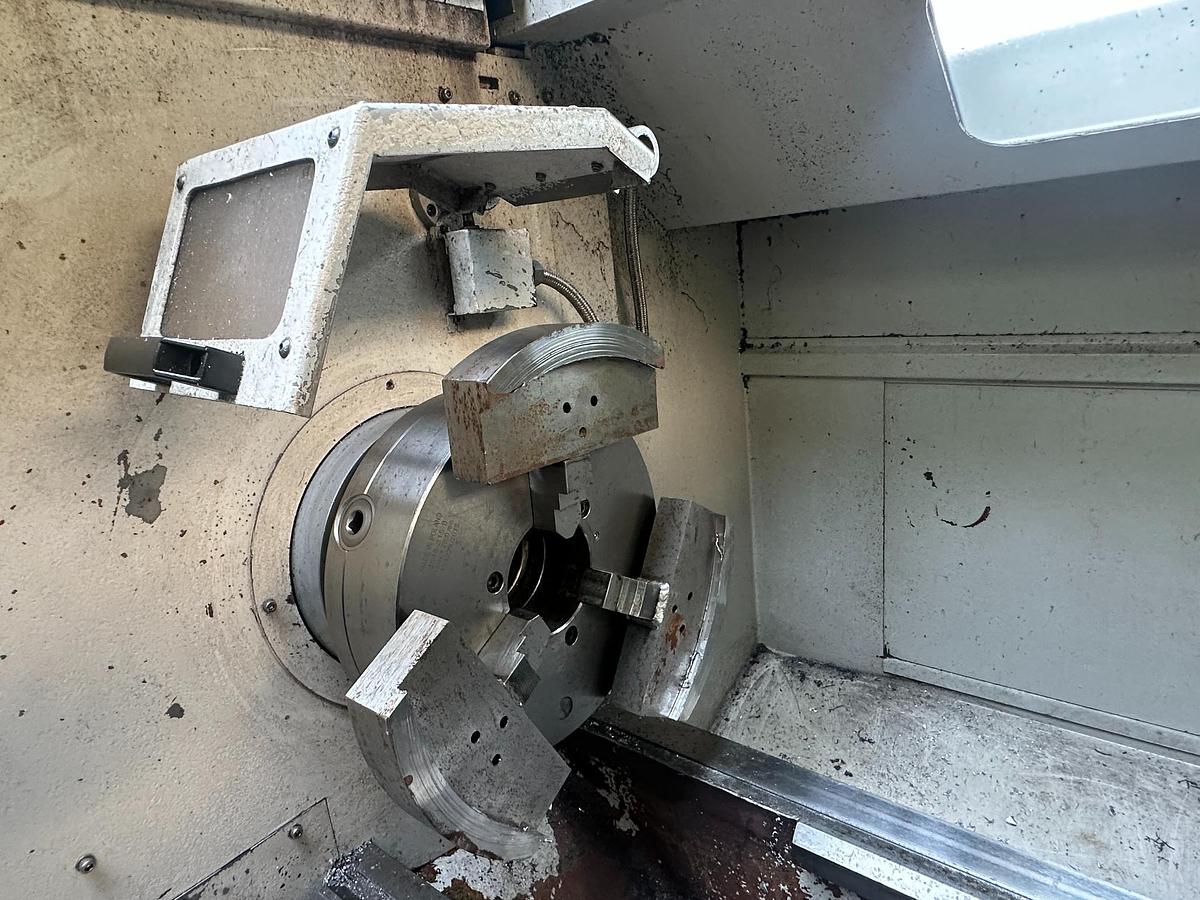

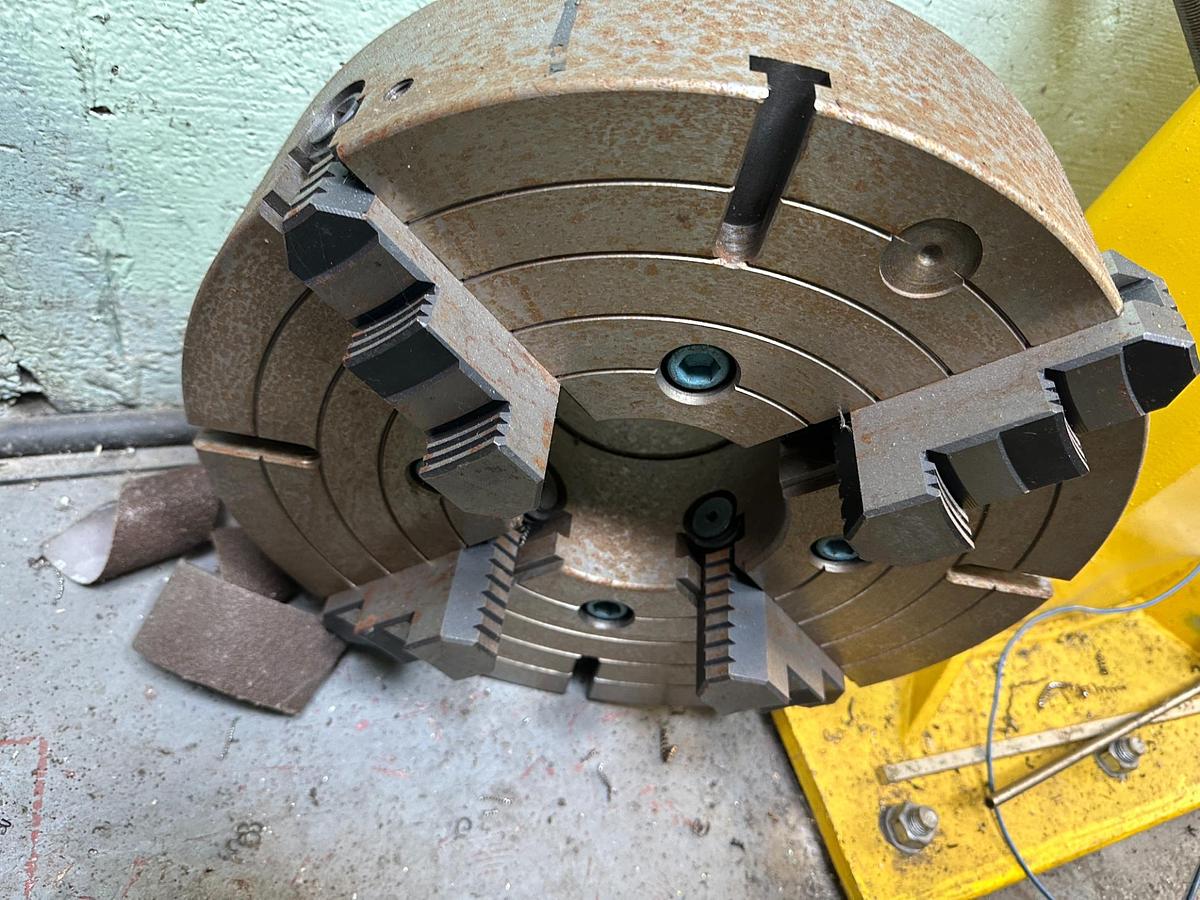

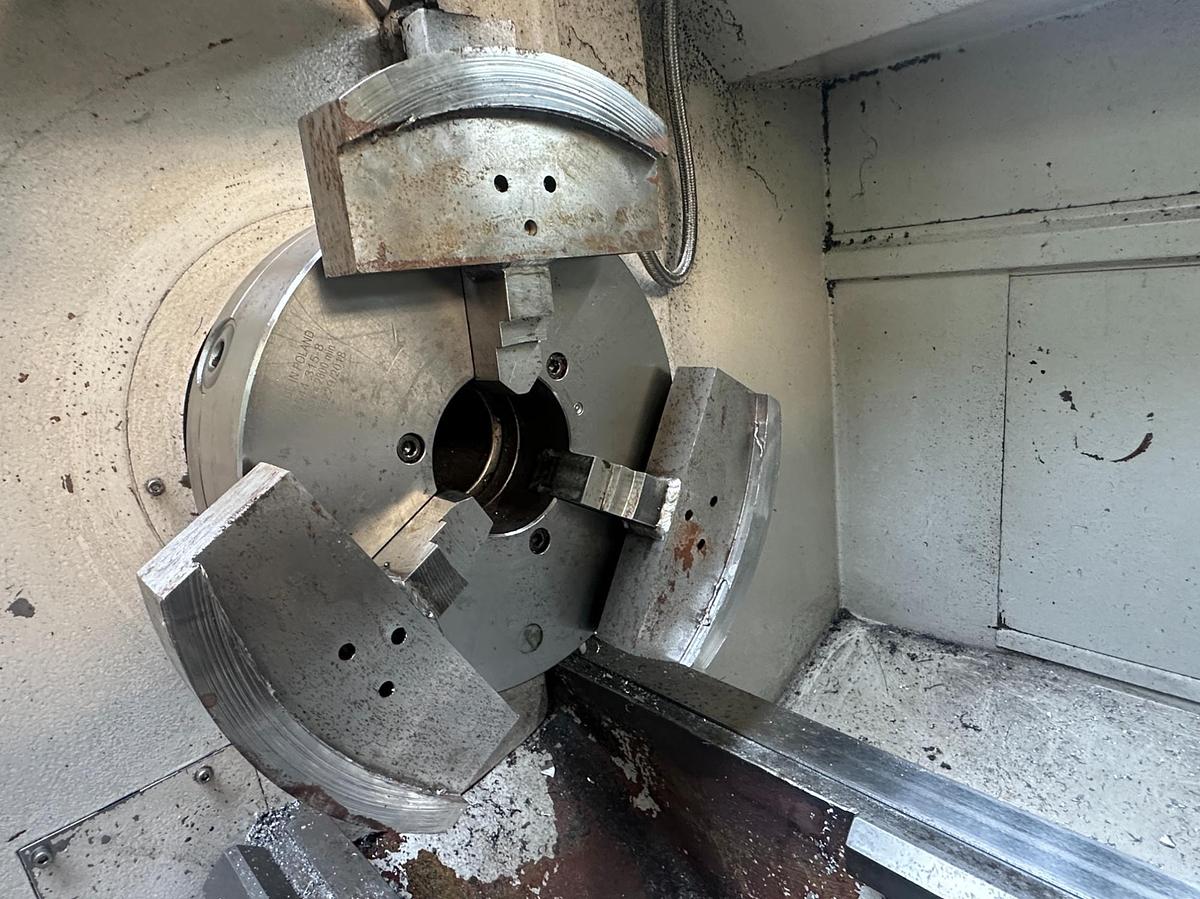

• 400 mm 4-Jaw Chuck

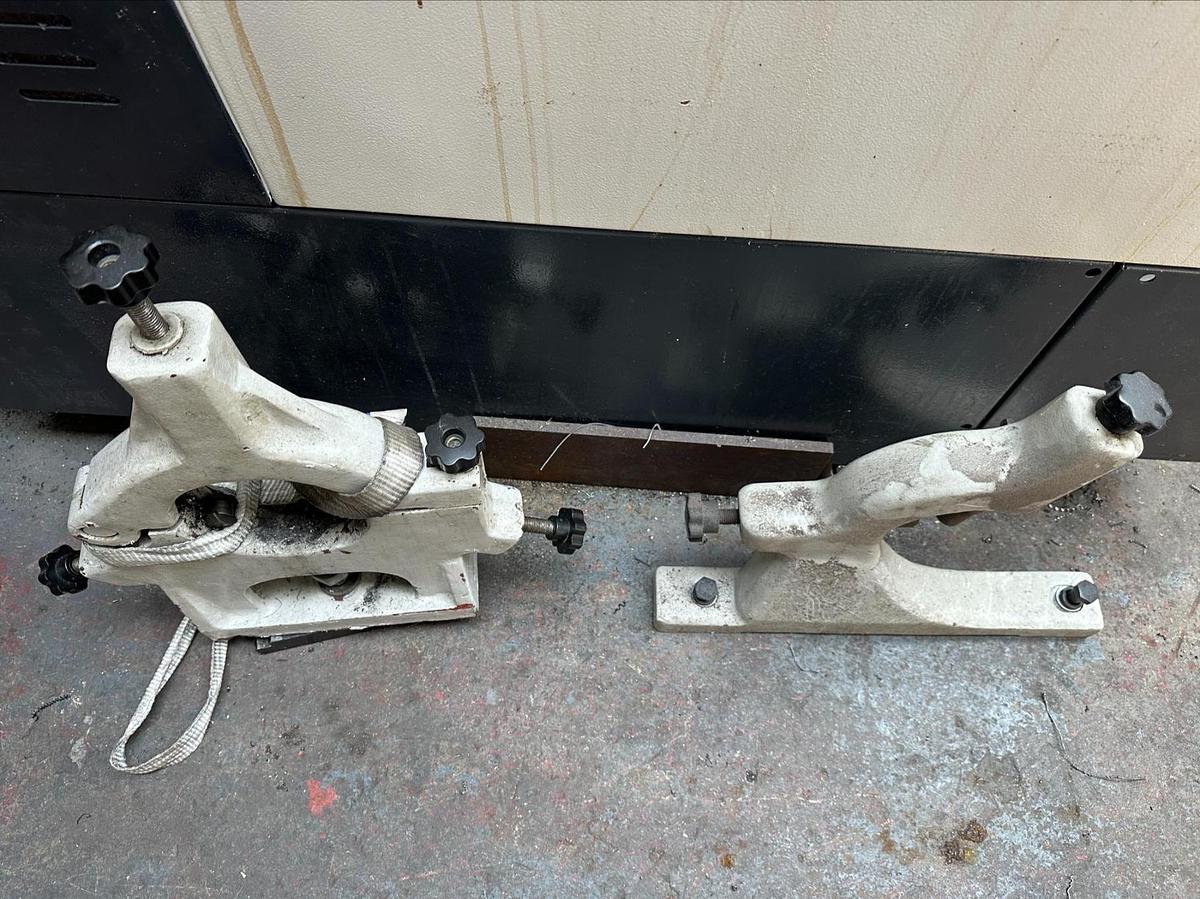

• Travelling Steady

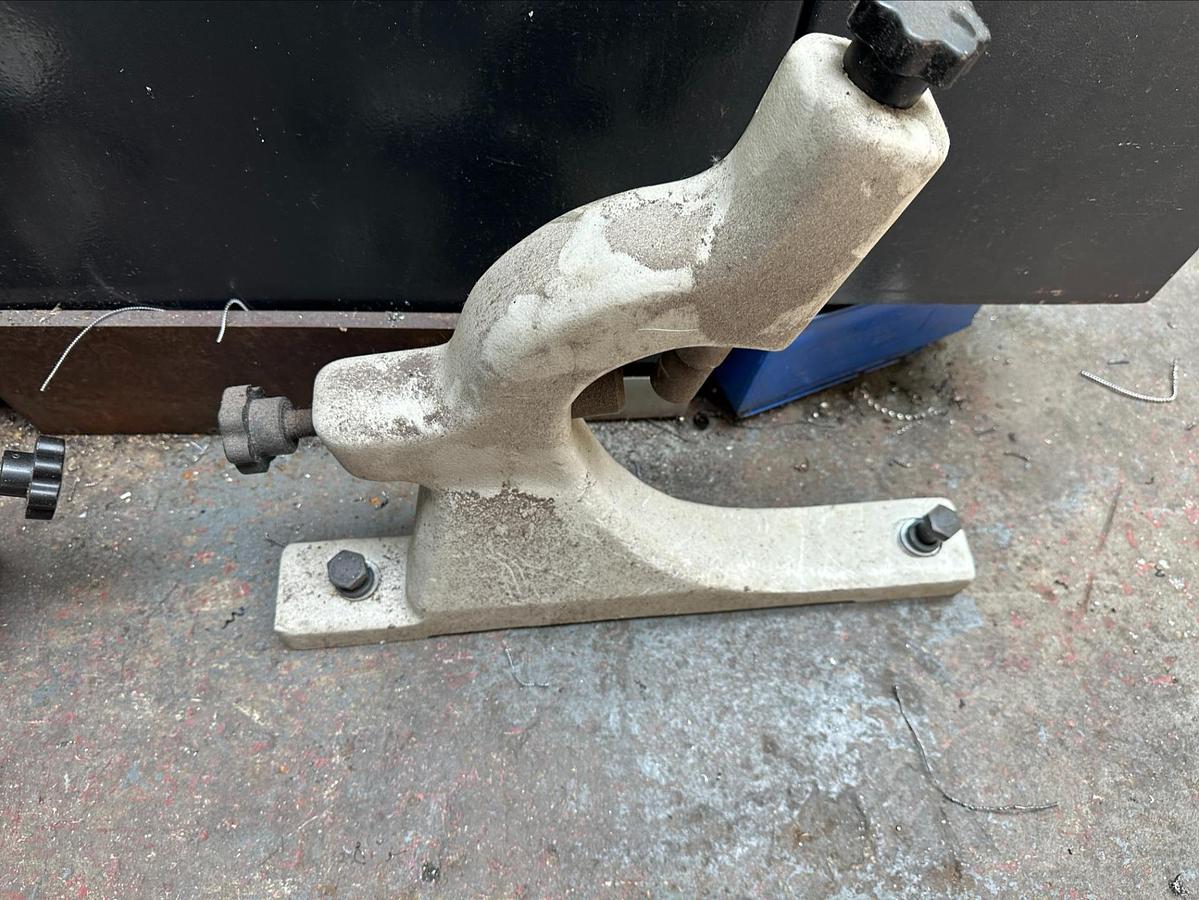

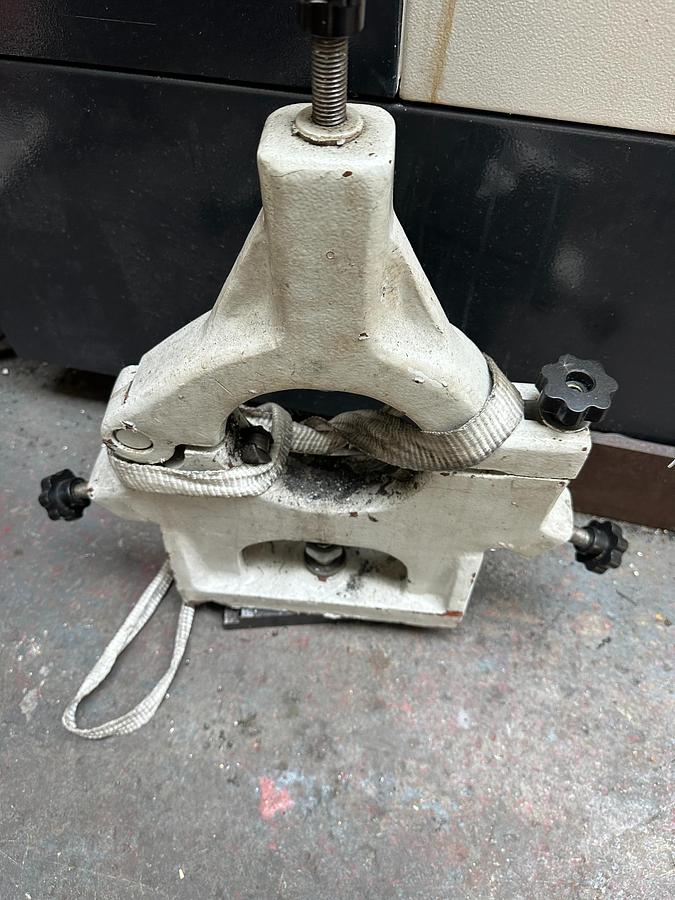

• Fixed Steady

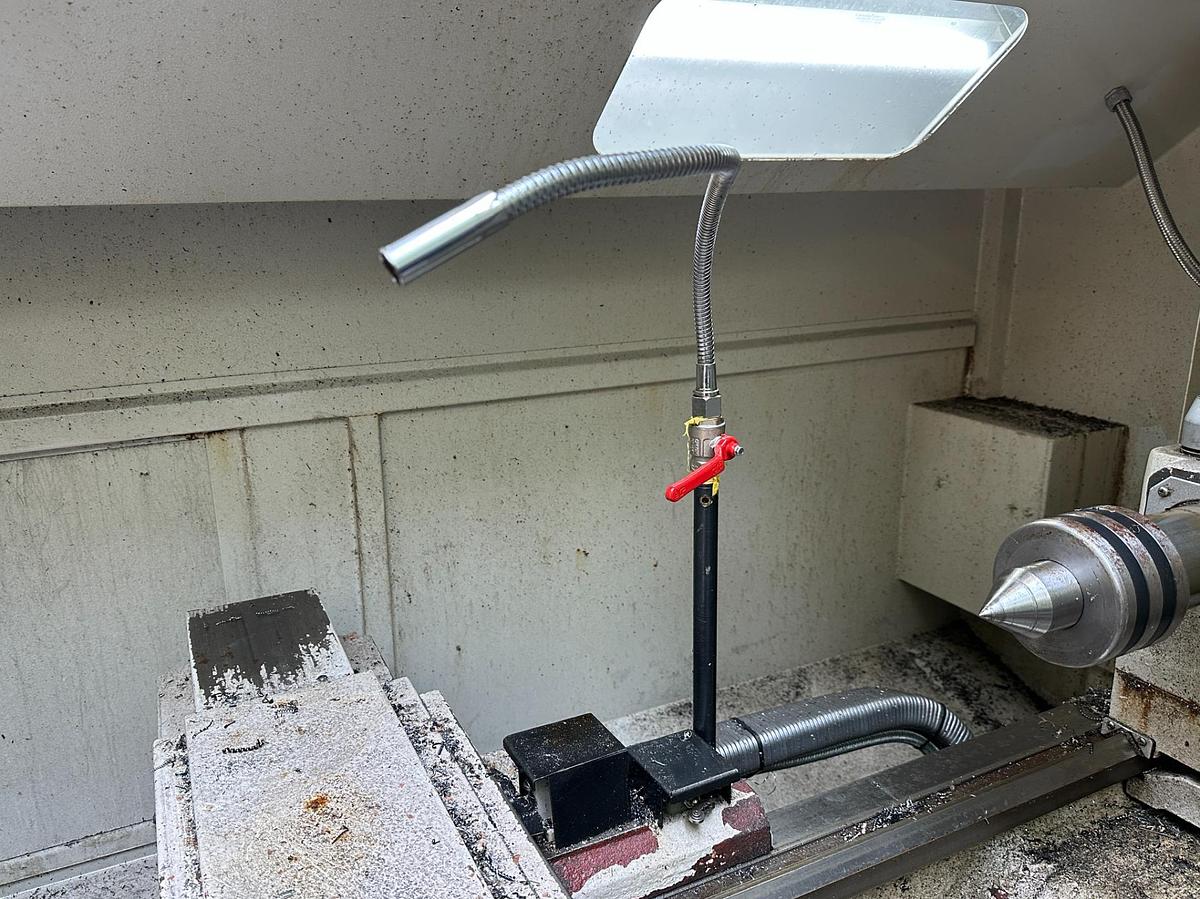

• Coolant Equipment

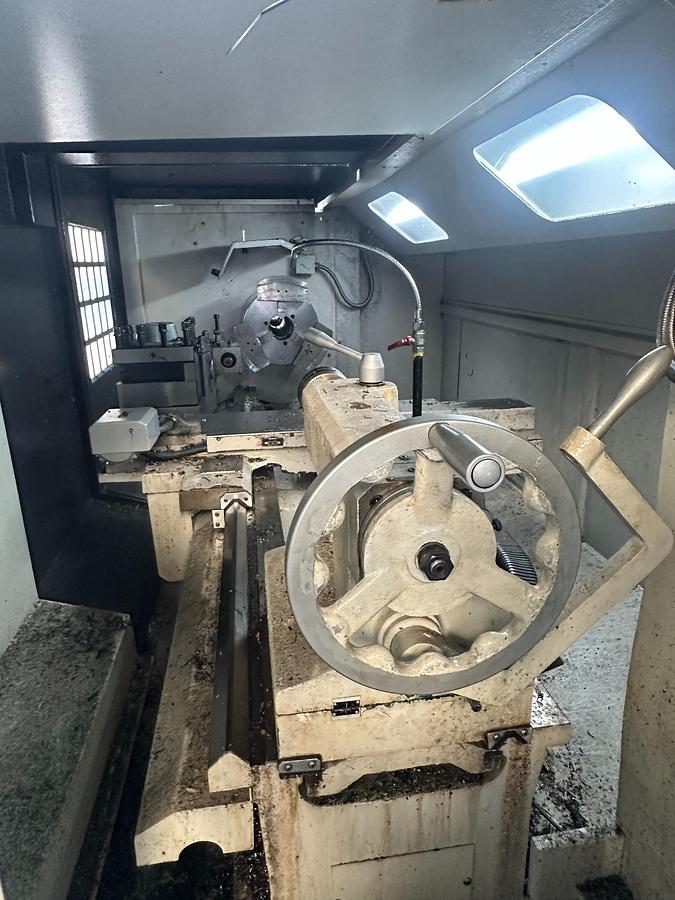

• Tailstock

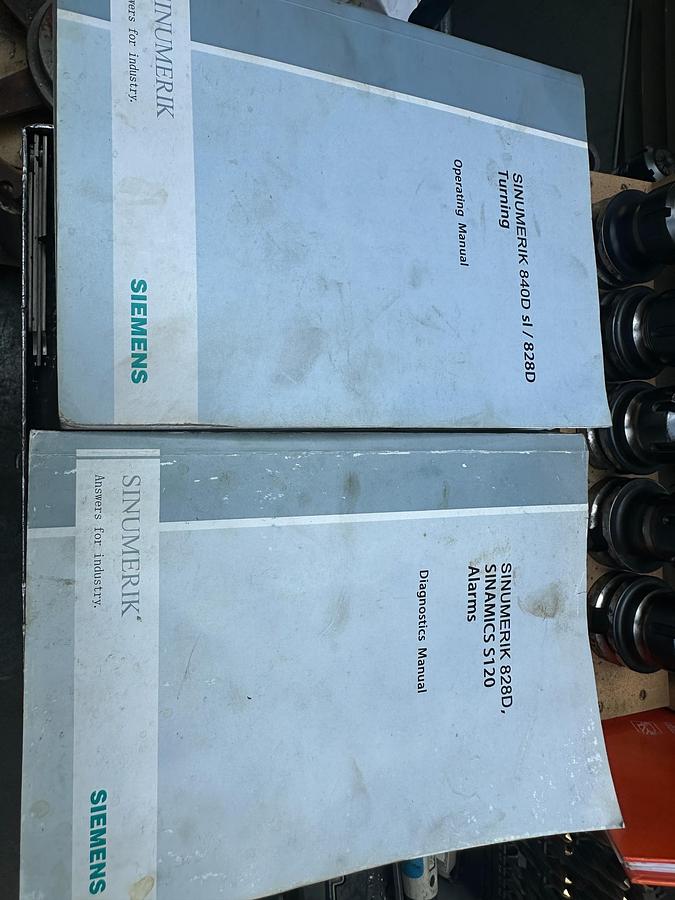

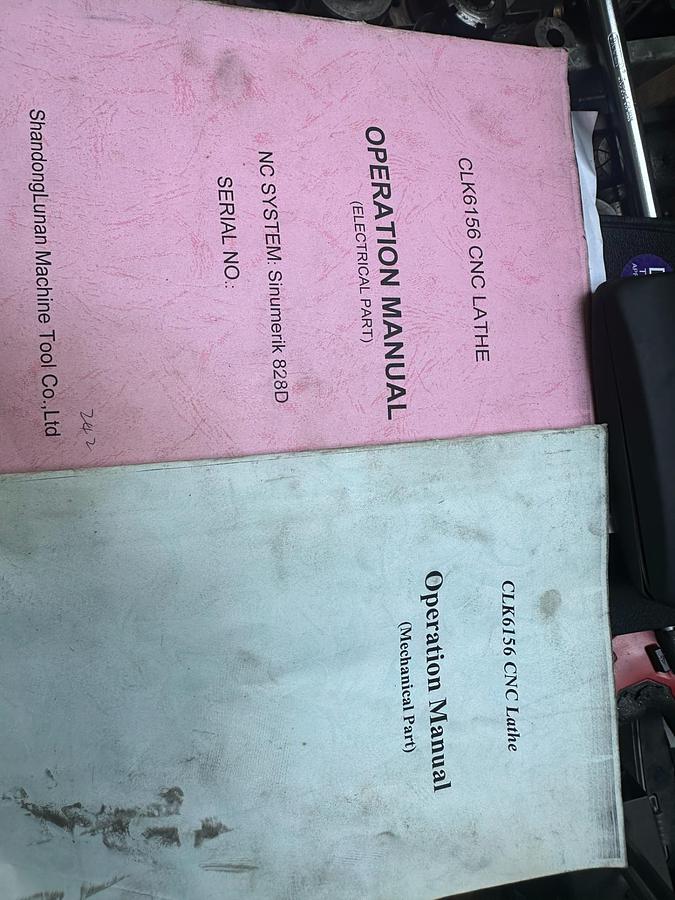

• Operator Manuals
• Selection of Tool Holders & Chuck Jaws

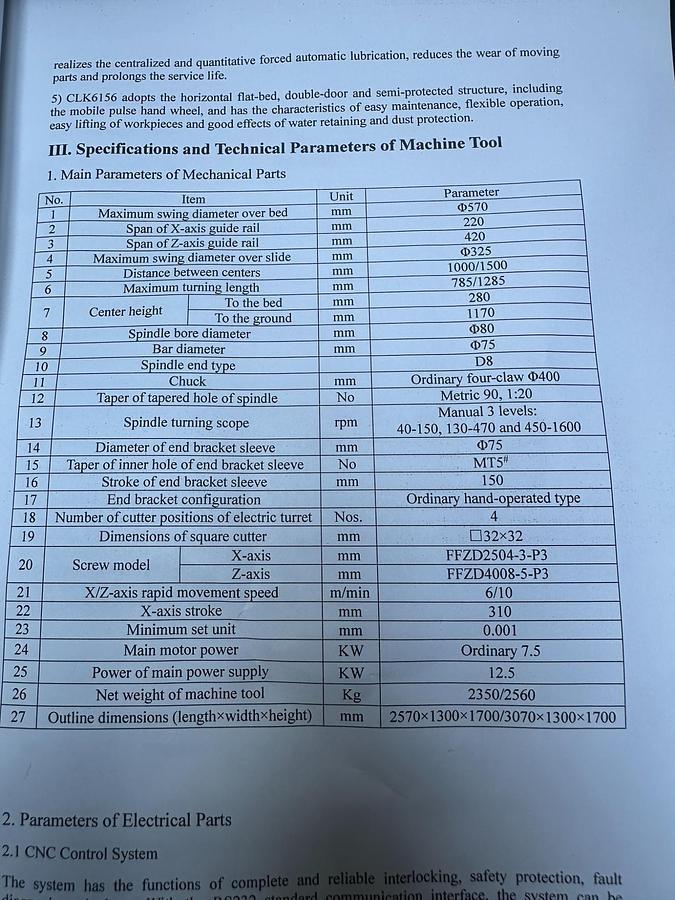

🔹 Technical Specifications

Max Swing Diameter Over Bed: Ø570 mm

Max Swing Diameter Over Slide: 325 mm

Distance Between Centres: 1500 mm

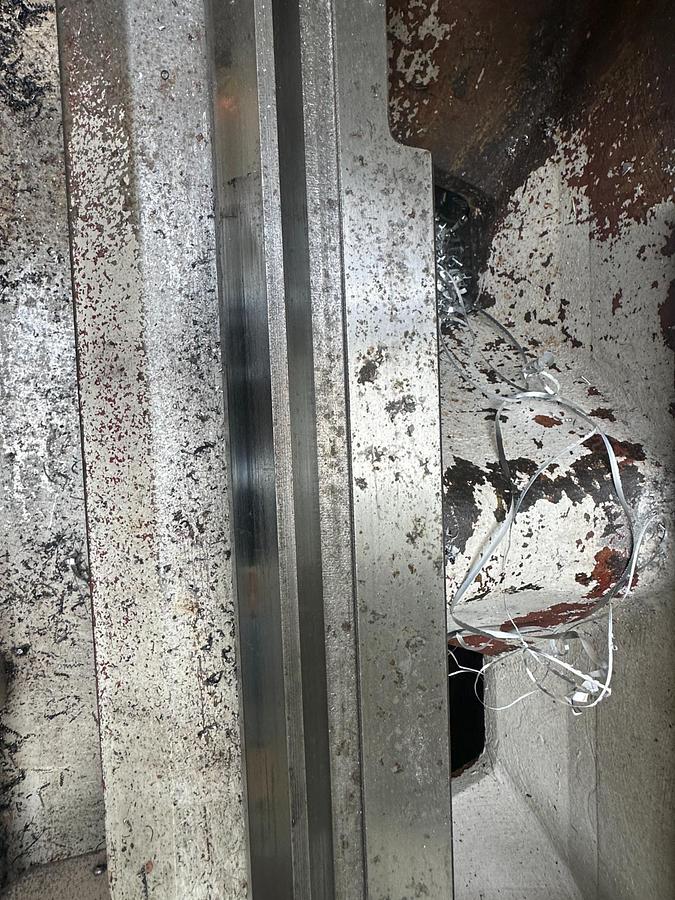

Span of X/Z Axis Guide Rails: 420 mm

Max Turning Length: 1285 mm

Center Height:

• To Bed: 280 mm

• To Ground: 1170 mm

Spindle Bore Diameter: Ø80 mm

Bar Capacity: Ø75 mm

Spindle End Type: D8

Chuck Size: Ø300 mm or Ø400 mm

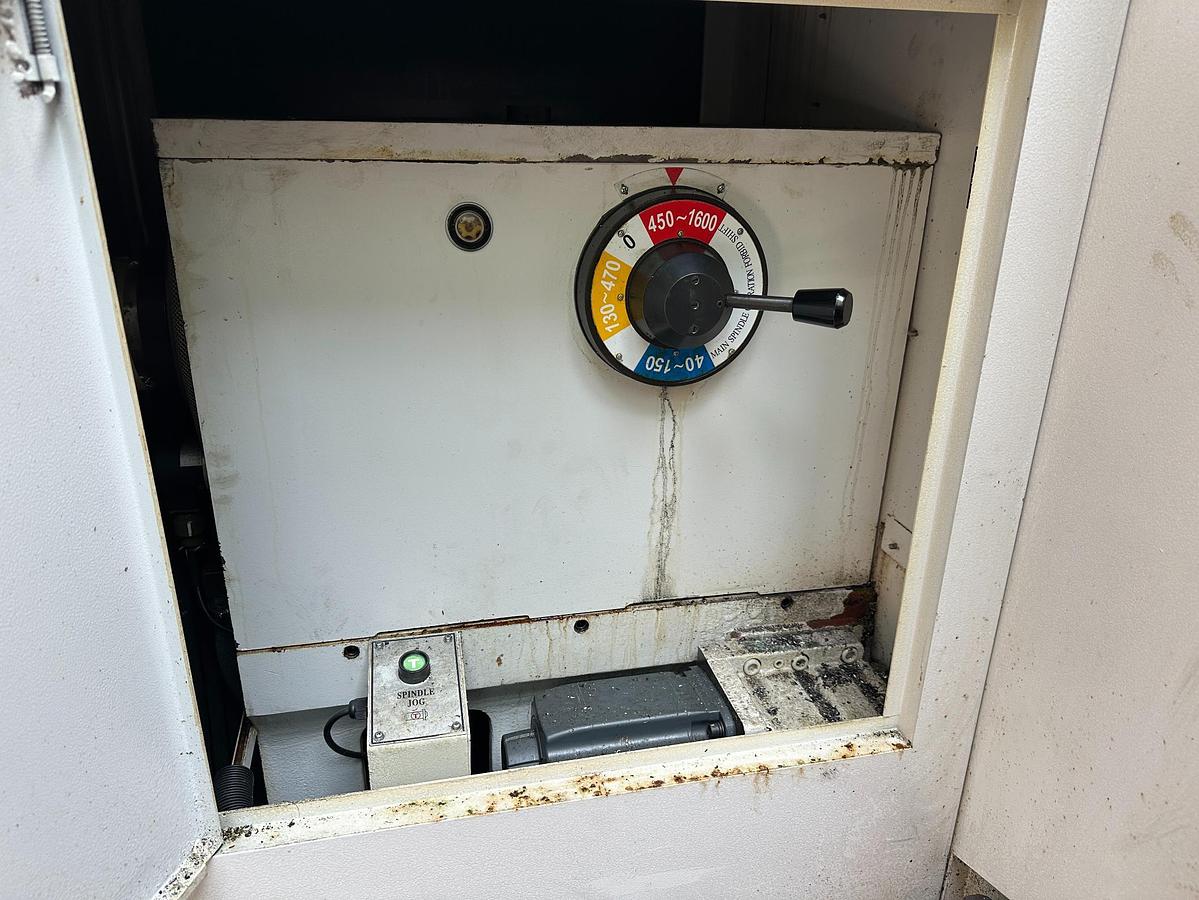

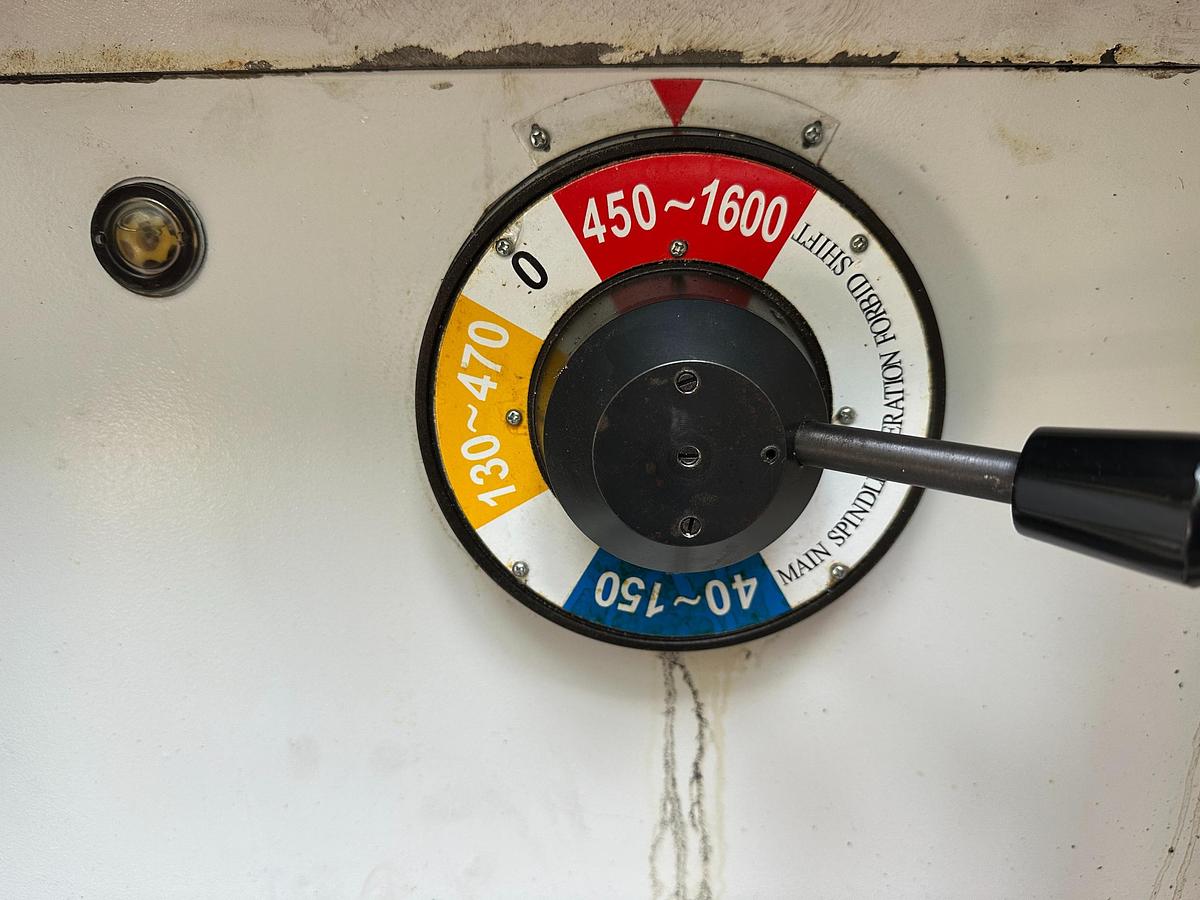

Spindle Speeds: 3-Speed Manual Ranges:

• 40–150 rpm

• 130–470 rpm

• 450–1600 rpm

Taper of Spindle: Metric 90, 1:20

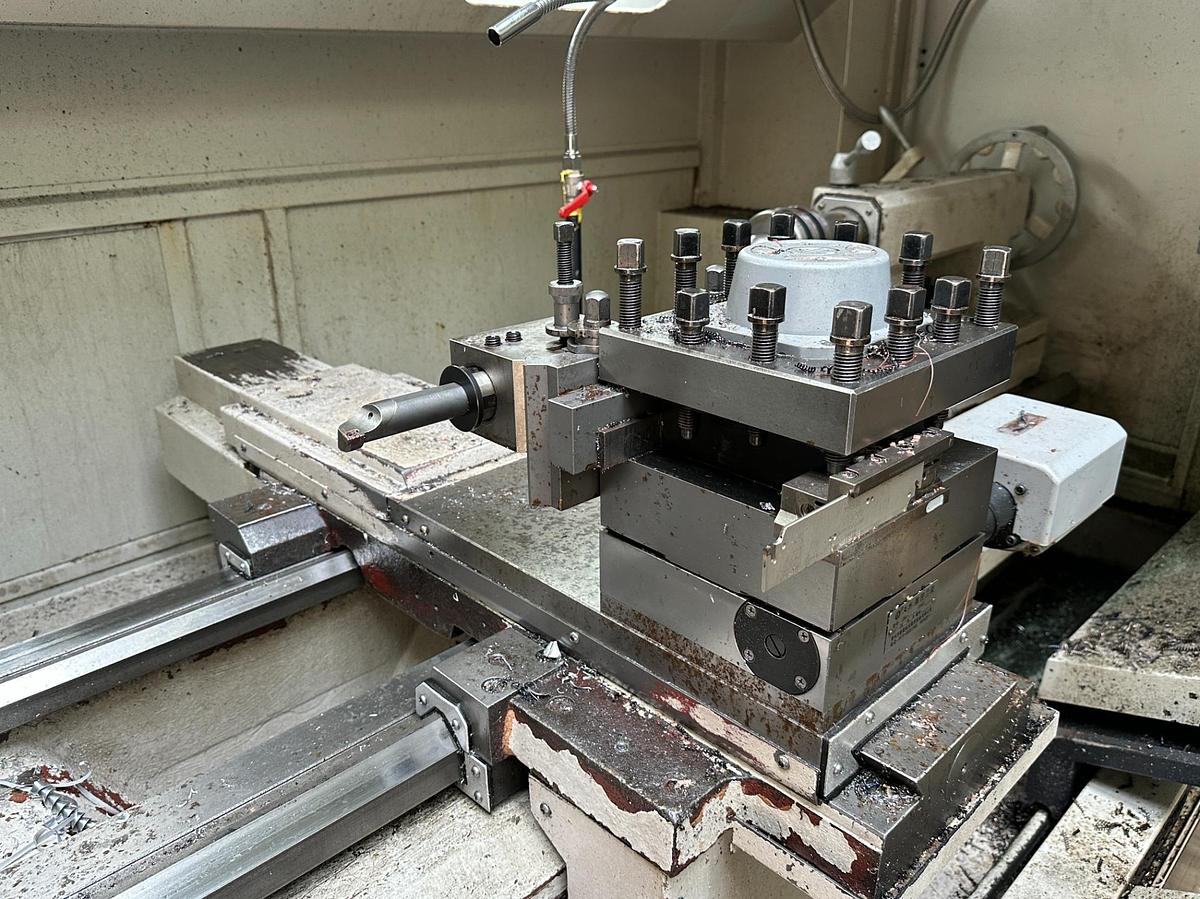

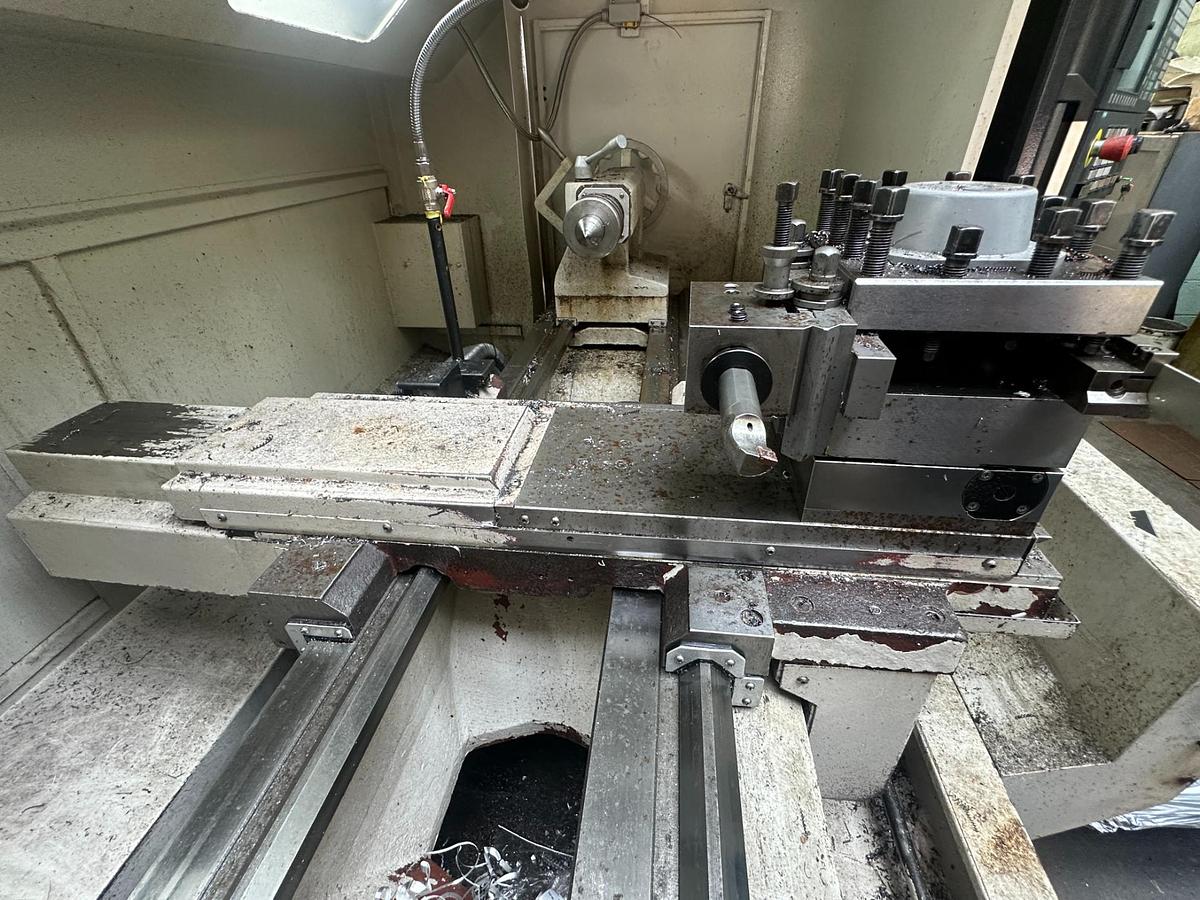

Turret: 4-Position Electric Turret

Tool Size: 32 × 32 mm

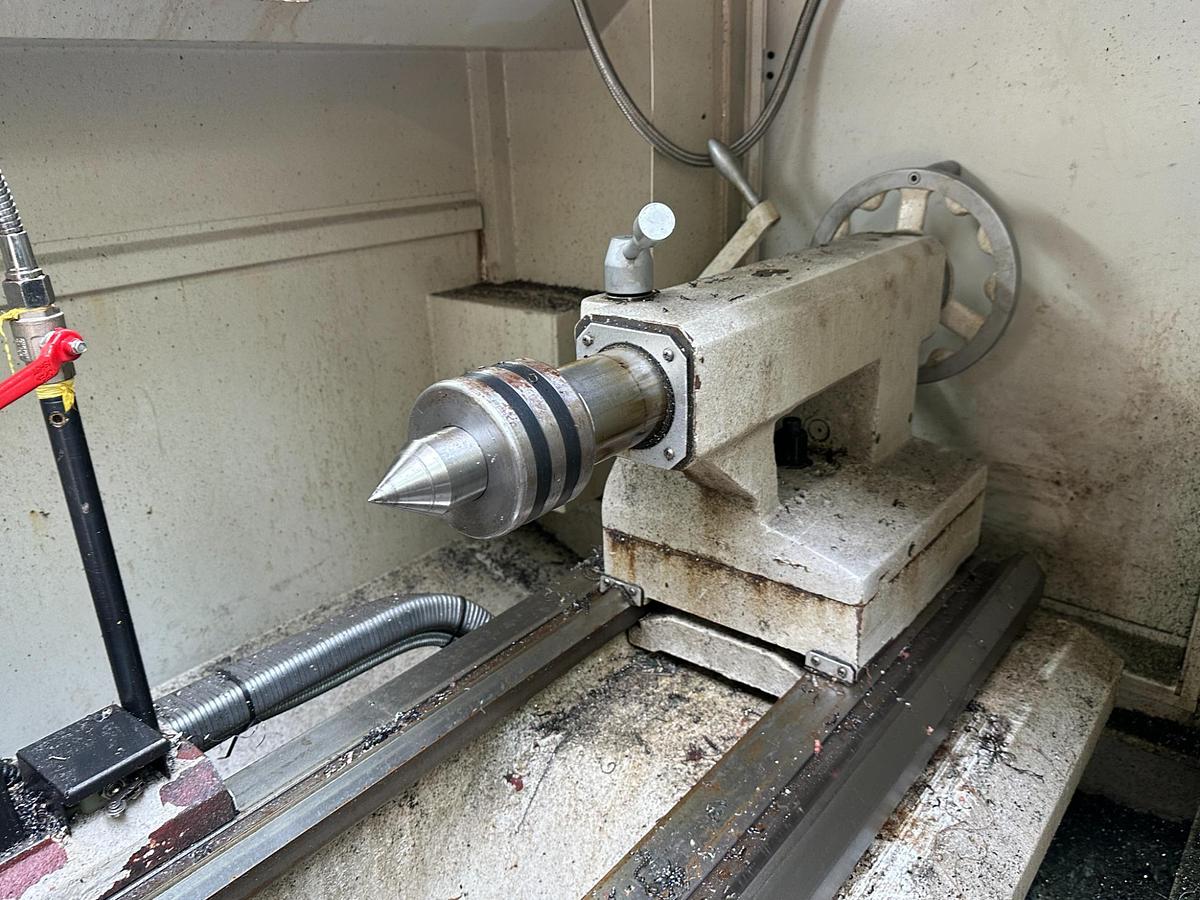

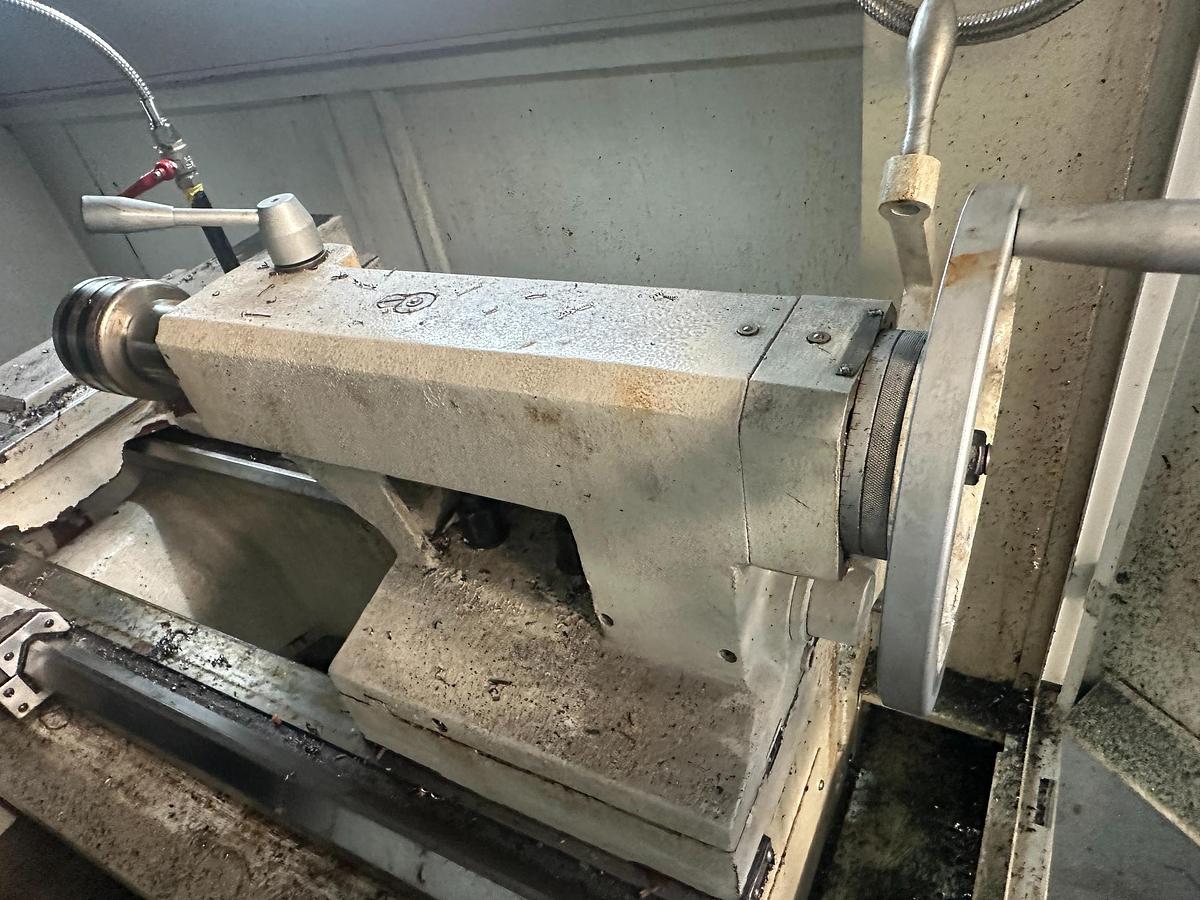

Tailstock:

• Quill Diameter: Ø75 mm

• Stroke: 150 mm

• Taper: MT5

End Bracket: Hand-operated type

Screw Model:

• X-Axis: FFZD2504-3-P3

• Z-Axis: FFZD4008-5-P3

Rapid Traverse (X/Z): 6 / 10 m/min

X-Axis Stroke: 310 mm

Minimum Set Unit: 0.001 mm

Main Motor Power: 7.5 kW

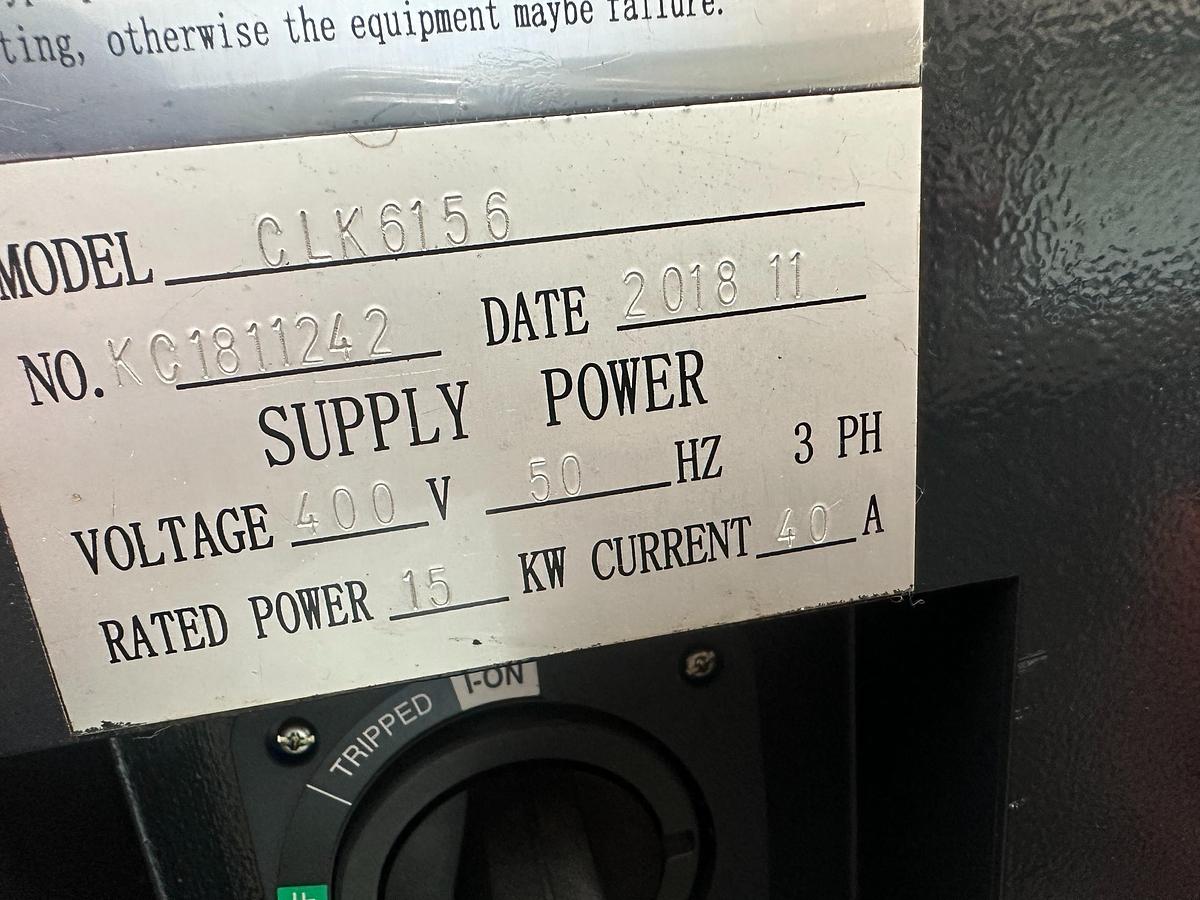

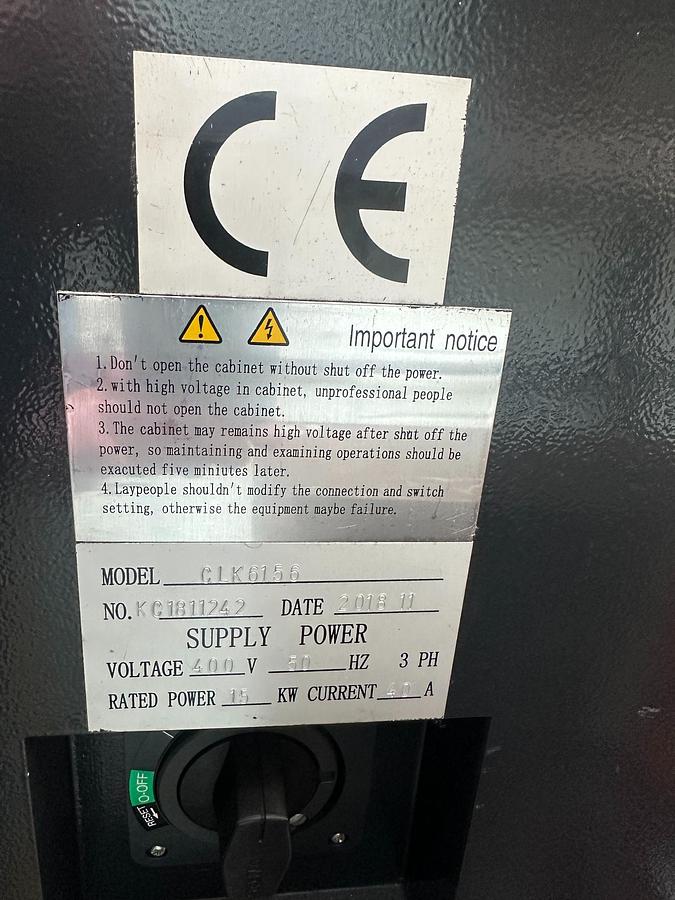

Power of Main Supply: 12.5 kW

Net Weight: 2560 kg

Dimensions (L×W×H): 3070×1300×1700 mm

💡 Features & Benefits:

• Robust and versatile CNC lathe ideal for medium to heavy-duty turning
• High-torque spindle and large bore suitable for tough materials
• Reliable FANUC control system with user-friendly interface
• Well maintained and fully serviced – ready to run
• Ideal for sub-contract machine shops, tool rooms, and general precision engineering

🚚 Delivery Options Available

We offer nationwide & International delivery
