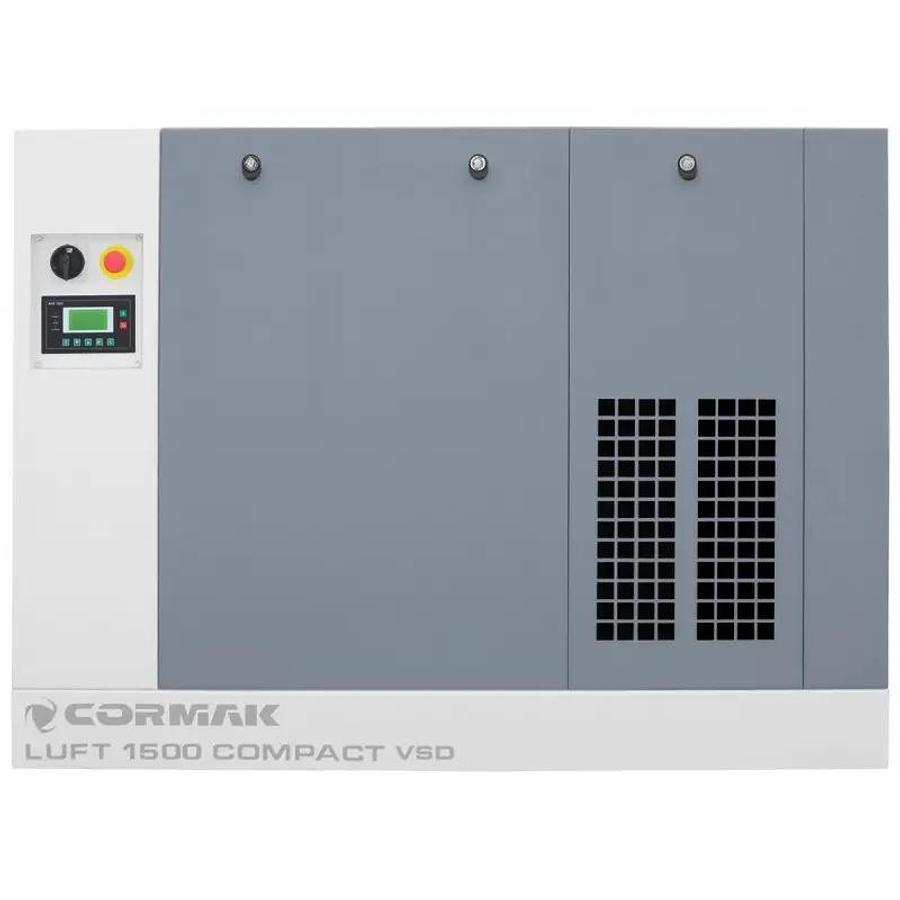

Cormak LUFT 1500 VSD COMPACT Screw compressor + Air dryer N10S
Description
Cormak LUFT 1500 VSD COMPACT Screw compressor + Air dryer N10S
Machine Type: 11kW Air Compressor with Dryer
Condition: New
Includes
Luft 1500 VSD Compressor
N10S Air Dryer
Set including LUFT 1500 VSD screw compressor, N10S refrigeration air dryer. The screw compressor of the Polish brand CORMAK, the LUFT series, is the most modern solutions used in pneumatics in combination with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction as well as high efficiency of the device guarantee effective and trouble-free operation.
Additional double filtration at the dehumidifier!
Description
VSD is an abbreviation for variable speed drive. This is an advanced technological solution that dynamically adjusts the compressor engine speed to the current demand for compressed air. Thanks to this innovative approach, it is possible to save a significant amount of energy, which translates into real savings.
- strong, compact design of a screw compressor from a European manufacturer

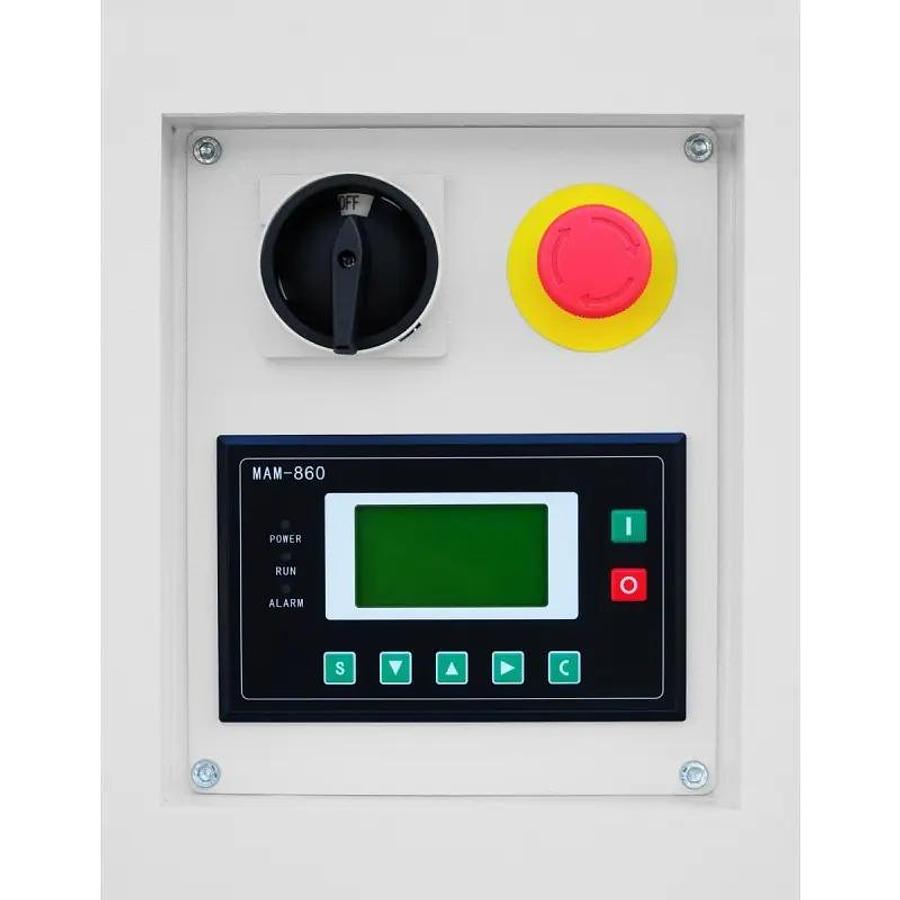

- automation based on modern and quality-tested components to ensure safe and effective work
- a specially designed cooler ensures optimal operating conditions even when the device is heavily loaded
- connection of the radiator to the module through good quality hydraulic lines
- the VSD technology used allows for significant energy savings
- special air outlet design for more effective work
- an efficient and solid pump is installed in the compressor
- unique filtration system with three-fold separation to ensure effective operation
- the compressor uses a reliable and reliable drive system using a belt transmission, which ensures high effective efficiency
- low noise of the screw compressor thanks to a specially designed soundproof housing
Technical Specifications
Compressor Motor power: 11 kW
Air dryer Motor power: 0,29kW
Capacity at 0-6 bar: 1420 l/min
Capacity at 6 bar: 1380 l/min
Capacity at 8 bar: 1150 l/min
Capacity at 10 bar: 1030 l/min
Outlet: G 1"
Overall dimensions: 1550 x 740 x 1150 mm
Weight: 500 kg
Specifications
| Manufacturer | Cormak |
| Model | LUFT 1500 VSD COMPACT Screw compressor + Air dryer N10S |
| Condition | New |
| Stock Number | 968954 |
| Machine Type | Air Compressor with Dryer |
| Condition | New |
| Compressor Motor power | 11 kW |
| Air dryer Motor power | 0,29kW |
| Capacity at 0-6 bar | 1420 l/min |
| Capacity at 6 bar | 1380 l/min |
| Capacity at 8 bar | 1150 l/min |
| Capacity at 10 bar | 1030 l/min |
| Outlet | G 1" |
| Weight | 500 kg |
