Cormak 540 x 250 Surface Grinder

Cormak 540 x 250 Semi Automatic Surface Grinder

Machine Type: Semi Automatic Surface Grinder

Year: New

Capacity: 540 x 240mm

Description

Surface Grinding machine for continuous operation in production, tool shops and renovation departments. The machine has a modern, sturdy design. Its headstock operates on two pairs of guides. Hydraulic feeds for 2 axes, by default comes with a digital display.

Machine Features

Double V-shaped guide

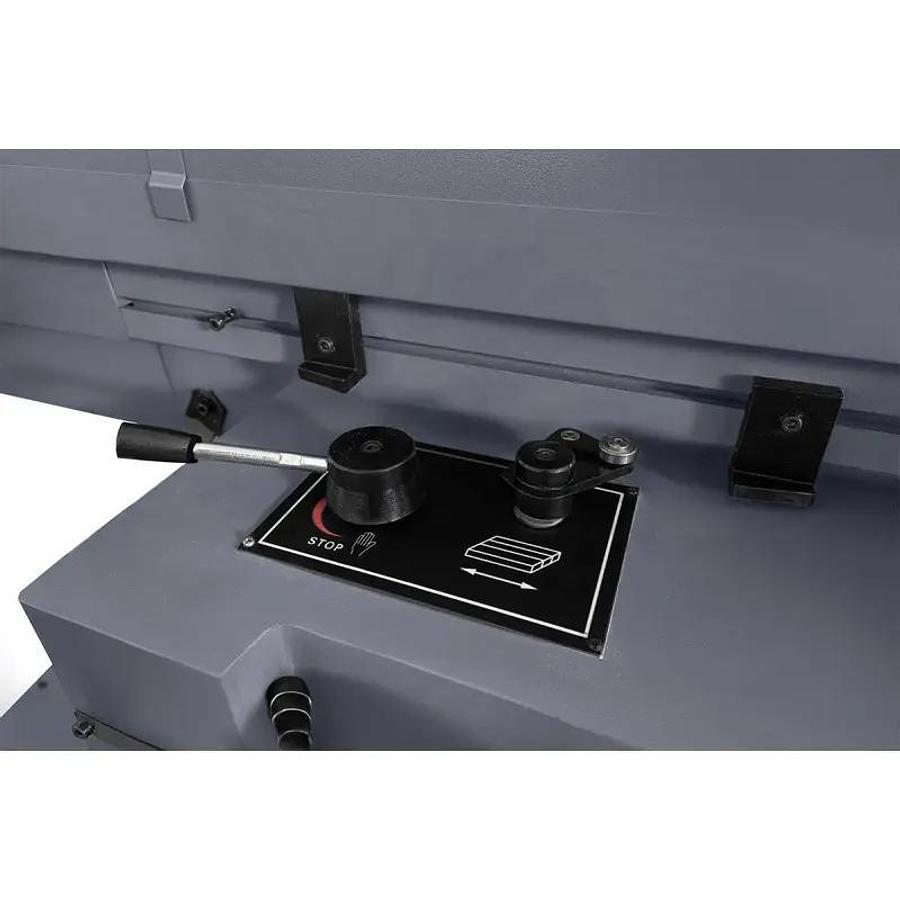

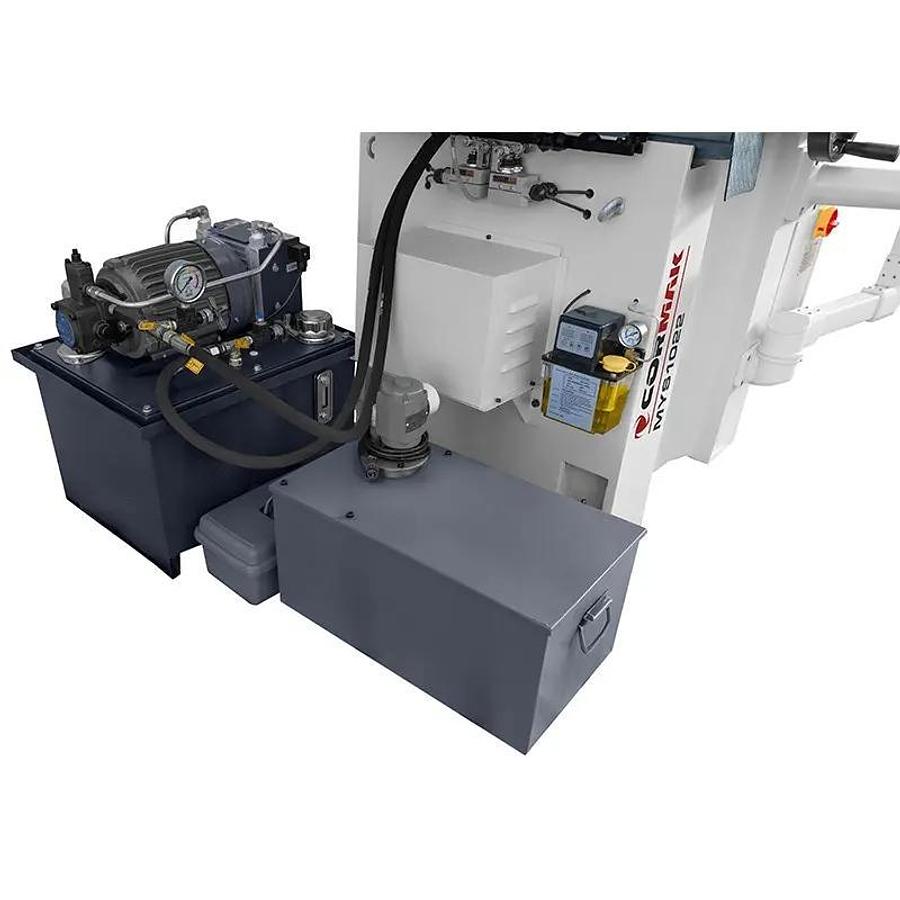

Hydraulic feed in 2 axes

Tempered and precisely ground linear feeding guides

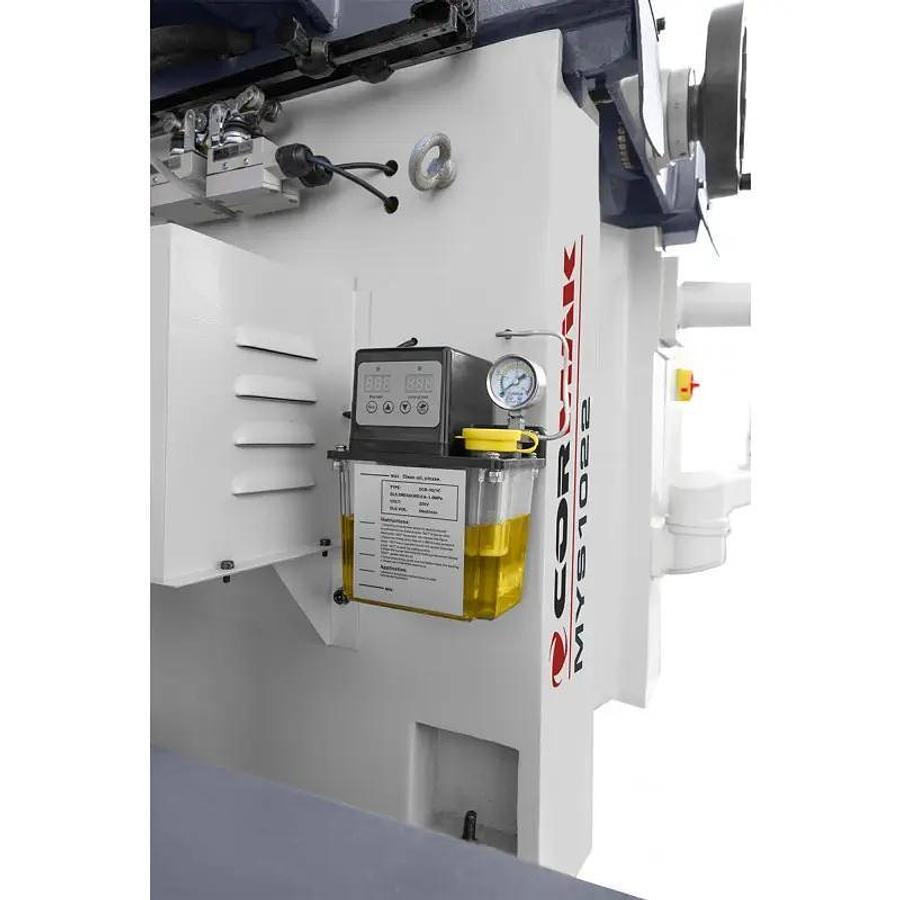

Central lubrication of guides

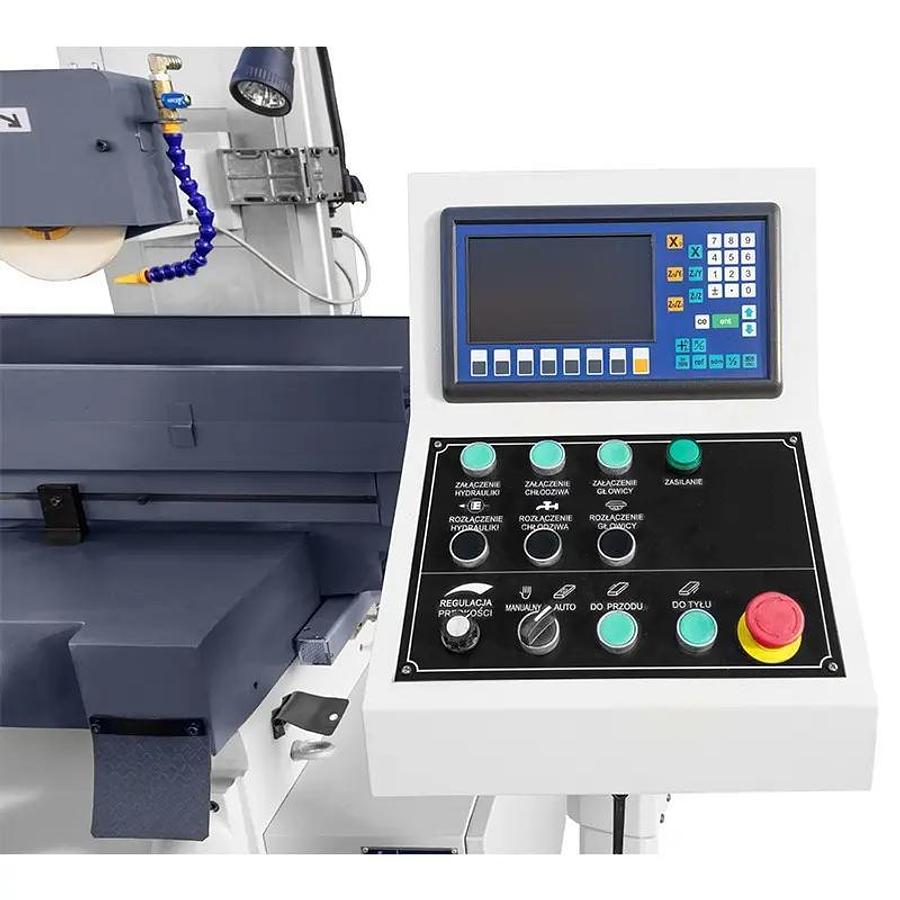

Digital display

Sturdy design

High machining accuracy

Technical Specifications

Table dimensions: 500×250 mm

Maximum table feed: 560×260 mm

Max Grinding Surface: 540 x 240 mm

Distance from table surface to spindle axis: 490 mm

Min Cross Travel: 0.02 mm

Cross Travel per Revolution: 2 mm

Min Vertical Travel: 0.01 mm

Vertical Travel per Revolution: 1.25 mm

Grinding wheel dimensions: 200×20×32 mm

Grinding wheel speed: 2850 rpm

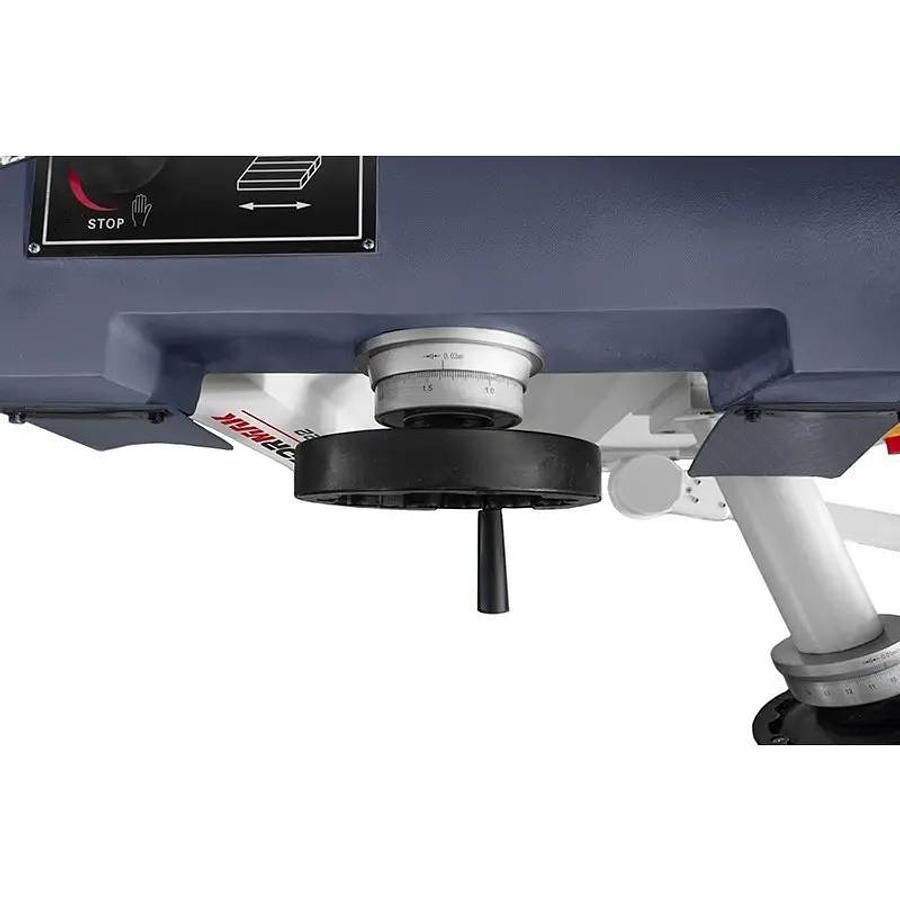

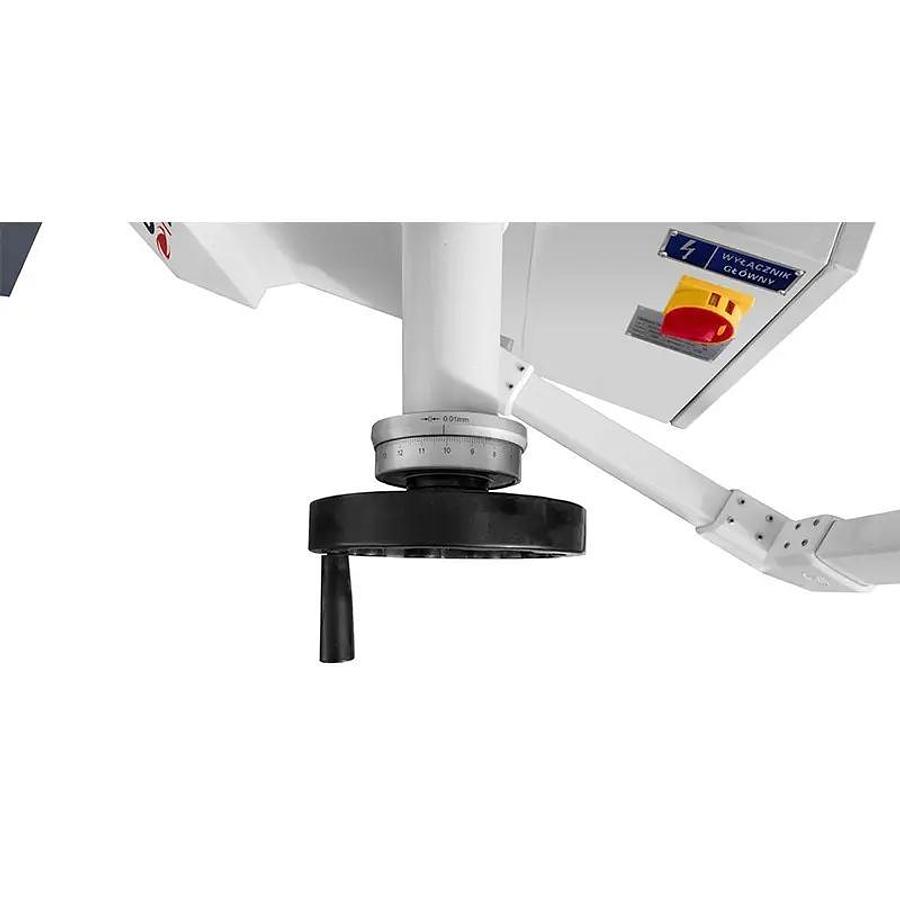

Manual vertical travel equal to 1 grade on the vernier scale: 0.01 mm

Main motor power: 1,5 kW

Flood coolant pump motor power: 40 W

Oil Tank Capacity: 80 L

Dimensions: 1800×1400×1800mm

Weight: 900 kg
