2005 Demag System 110/470-430 Injection Moulding Machine | 40mm Screw | For Sale Ireland

🟢 For Sale: 2005 Demag System 110/470-430 Injection Moulding Machine – 40mm Screw

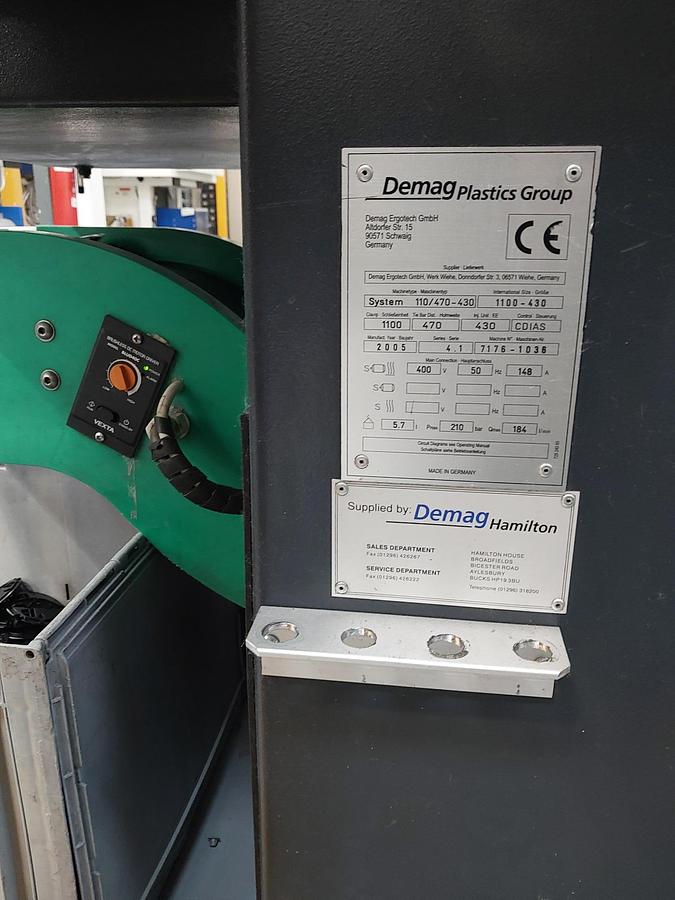

Make & Model: Demag System 110/470-430

Year: 2005

Injection Unit: 430 B – 40mm Screw

Clamping Force: 1100 kN (110 ton)

Condition: Very Good

Location: Ireland

Status: In Stock – Available Immediately

🔍 Machine Description

Available now is a high-performance 2005 Demag System 110/470-430 injection moulding machine, fitted with the powerful Injection Unit B and a 40mm screw. Ideal for demanding applications in the automotive, medical, packaging, electronics, and industrial plastics sectors, this compact, efficient and versatile machine delivers outstanding injection speed, precision, and repeatability.

This machine is part of Demag's reliable Ergotech Series, known for modular design, energy efficiency, and long-term operational reliability.

🔧 Technical Specifications

Injection Unit 430 B (40mm Screw)

Screw Diameter: 40 mm

L/D Ratio: 20

Specific Injection Pressure: 2020 bar

Cylinder Head Volume: 231.2 cm³

Max Shot Weight (PS): 205 g

Max Metering Stroke: 184 mm

Max Nozzle Stroke: 300 mm

Nozzle Dipping Depth: 40 mm

Nozzle Sealing Force: 60 kN

Heating Capacity of Screw Cylinder: 11.1kW

Plasticising Rate (PS): ~28 g/s

Max Screw Speed: 300 rpm

Nozzle Contact Force: 30 kN

Nozzle Retraction Stroke: 300 mm

Heating Capacity: 6.4 kW

Clamping Unit

Clamping Force: 110 T (1100 kN)

Locking Force: 110 T (1100 kN)

Tie Bar Distance (H × V): 470 x 470 mm

Min Mould Height: 250 mm

Daylight Opening: 950 mm

Mould Opening Stroke: 600 mm

Ejector Force / Stroke: 27 kN / 125 mm

Platen Size: 670 x 670 mm

Max Mould Weight: 1000 kg

Hydraulic Ejector

Ejection Stroke: 180 mm

Ejection Force: 41.2 kN

Ejector Retraction Force: 14.8 kN

General Data

Oil Tank Capacity: 220 L

Pump Unit: 30 kW

Total Installed Power: 41.1 kW

Machine Dimensions: 4700 x 1500 x 2000 mm

Machine Weight: 5650 kg

✅ Features & Benefits

• Ergotech Modular Design for space efficiency
• Precise Shot Control with high injection pressure
• Reliable Hydraulic Clamping System
• Energy-Efficient Heating Zones

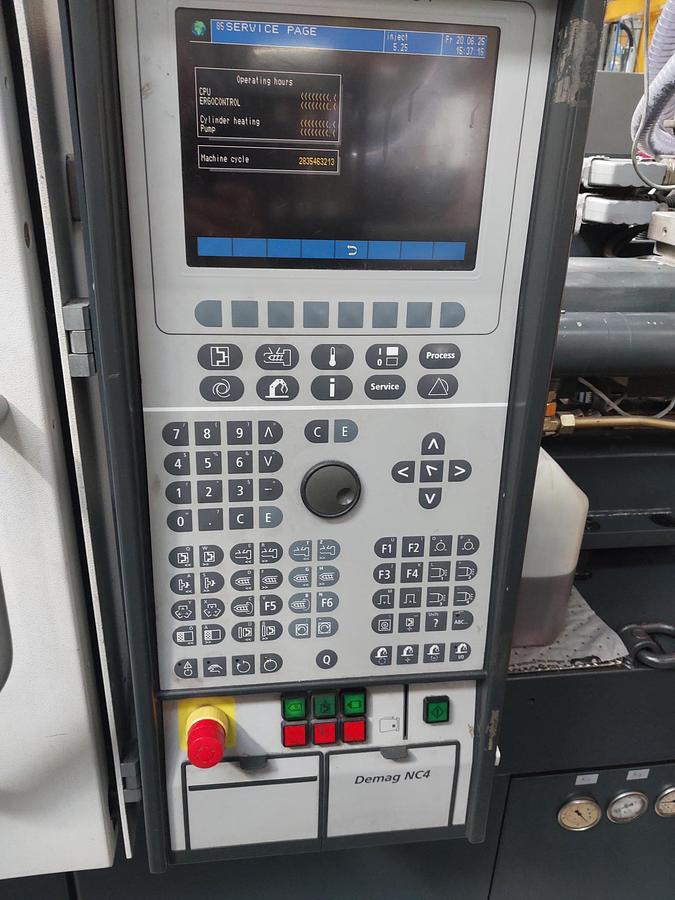

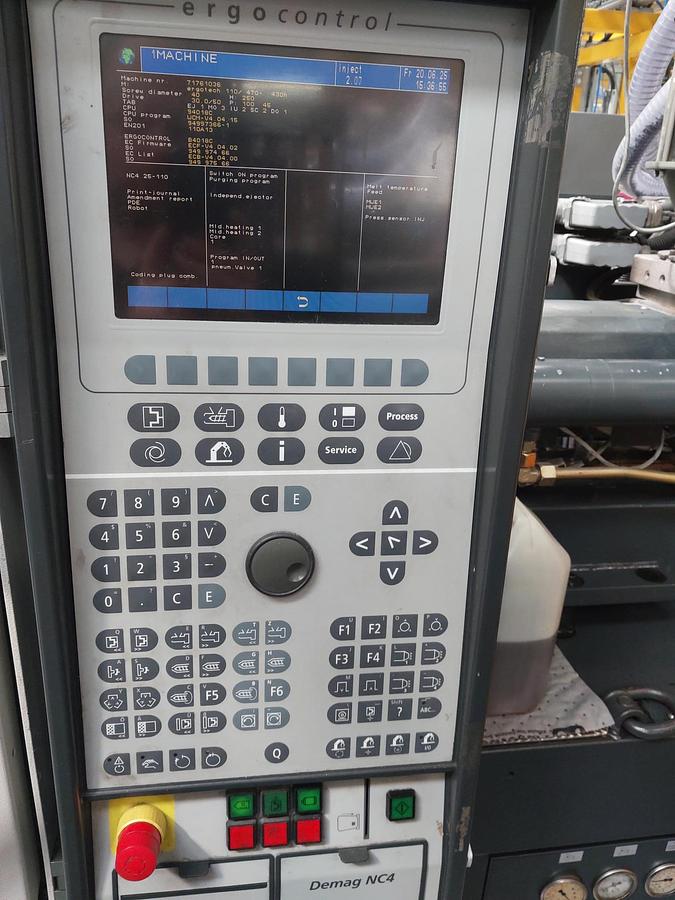

• User-Friendly Control Interface
• Robust design ideal for continuous production cycles
• Suitable for thermoplastics, elastomers, and technical materials

📦 Includes

• Conveyors
• Manuals
