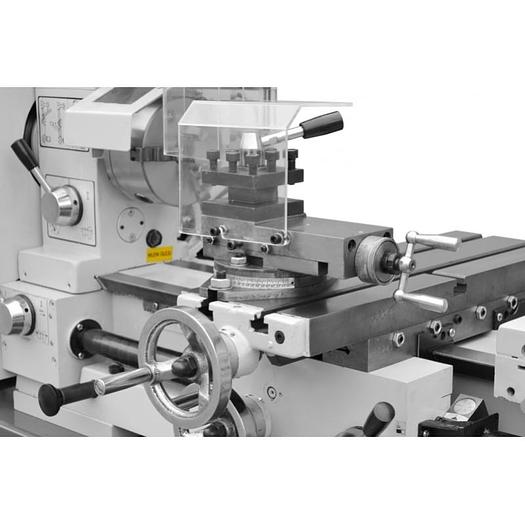

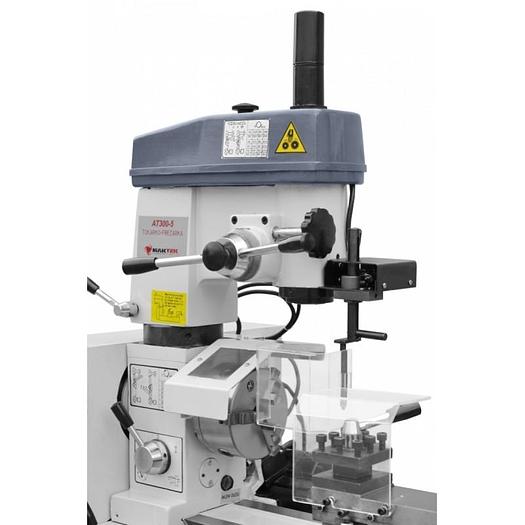

Cormak AT300 Milling, Drilling and Turning Machine
Description
Cormak AT300 Combination Milling & Turning Machine
This machine meets expectations where accuracy is key, perfect for school and industrial training workshops. Drilling, milling and turning done taking only a small amount of space. 2 x autofeed- longitudinal and cross. Characteristics • Swivel milling head • Spindle bore 26mm • Induction-hardened and ground bed guides • Automatic longitudinal and transversal feed • Threading capability Included Equipment
- Dead centre
- set of gears
- set of soft jaws

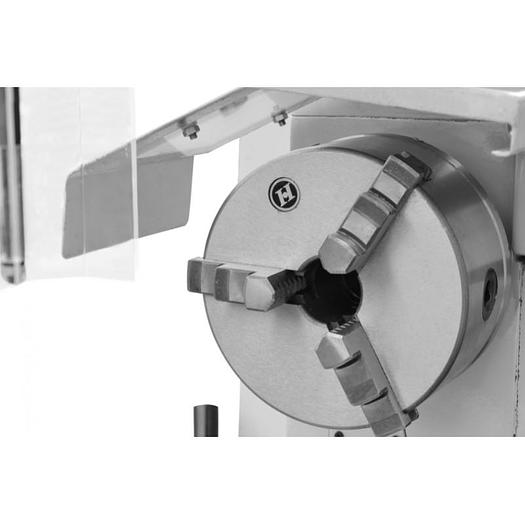

- 3-jaw lathe chuck
- tools Technical Details - Turning
Max. Turning diameter (swing): 300 mm
Max. Work length: 500 mm
Max. Turning diameter over cross-slide: 140 mm
Spindle bore: 26 mm
Spindle taper: MT4
Metric thread selection: 14
Metric thread pitch: 0.5-3 mm
Imperial thread selection: 20
Imperial thread pitch: 11-40 1 / n ''
Carriage feedrate: 0.05-0.50 mm / rev
Tailstock quill travel: 50 mm
Tailstock taper: MT3
Number of spindle speeds: 6
Spindle speed: 150-1600 rpm Technical Details - Milling & Drilling
Max Drilling Diameter: 20mm
Distance from spindle nose to table: 240-320mm
Spindle taper: MT3
Number of spindle speeds: 12
Spindle speed: 125-1600 rpm
Motor power: 370 W
Swivel head: 360°
Max Spindle Stroke: 80mm
Machine Dimensions: 1100 x 550 x 740mm
Base Dimensions: 1050 x 500 x 720mm
Total Weight: 275 kg
Specifications
Manufacturer | Cormak |
Model | AT300 Milling, Drilling and Turning Machine |
Condition | New |
Max. Turning diameter (swing) | 300 mm |
Max. Work length | 500 mm |
Spindle bore | 26 mm |
Spindle taper | MT4 |
Metric thread selection | 14 |
Metric thread pitch | 0.5-3 mm |
Imperial thread selection | 20 |
Carriage feedrate | 0.05-0.50 mm / rev |
Tailstock quill travel | 50 mm |
Tailstock taper | MT3 |
Number of spindle speeds | 6 |
Max Drilling Diameter | 20mm |
Spindle taper | MT3 |
Number of spindle speeds | 12 |
Spindle speed | 125-1600 rpm |
Motor power | 370 W |
Swivel head | 360° |
Max Spindle Stroke | 80mm |
Total Weight | 275 kg |
