€700 + VAT

Cormak BH35M Hinge Drilling Machine


orCall +353 838108745

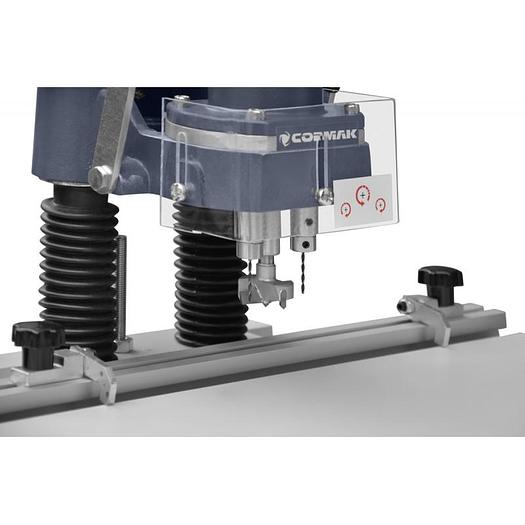

Cormak BH35M Hinge Drilling Machine


The lightweight compact design of the device allows you to take the drill to work at the client's. The powerful 750 W motor allows for quick and precise work. Standard equipped with a head for BLUM holes.

Standard Equipment

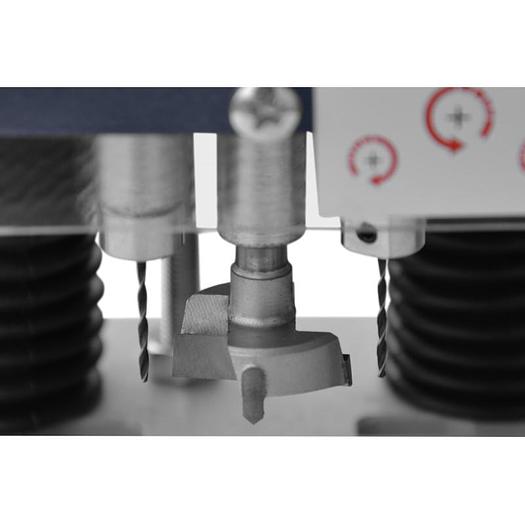

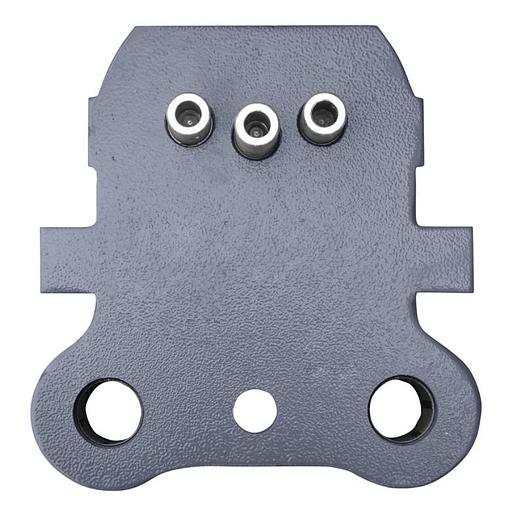

  • Head for BLUM holes
  • Set of drills (2 drills Ø 2 mm + drill for cup hinges Ø 35 mm)
  • Worktable

Optional Equipment

  • Head for HETTICH holes

Technical Details

Drilling diameter: 35 mm

Spindle number: 3

Control: manual

Workpiece mounting: manual

Maximum distance from spindle to table: 85 mm

Maximum distance from drill to table: 50 mm

Table dimensions: 500 x 350 mm

Rotational speed: 3000 rpm

Motor power: 0.75 kW

Voltage: 230V

Machine dimensions: 500 x 500 x 520 mm

Weight: 22 kg


ModelBH35M Hinge Drilling Machine
Drilling diameter35 mm
Spindle number3
Workpiece mountingmanual
Table dimensions500 x 350 mm
Rotational speed3000 rpm
Motor power0.75 kW
Weight22 kg
