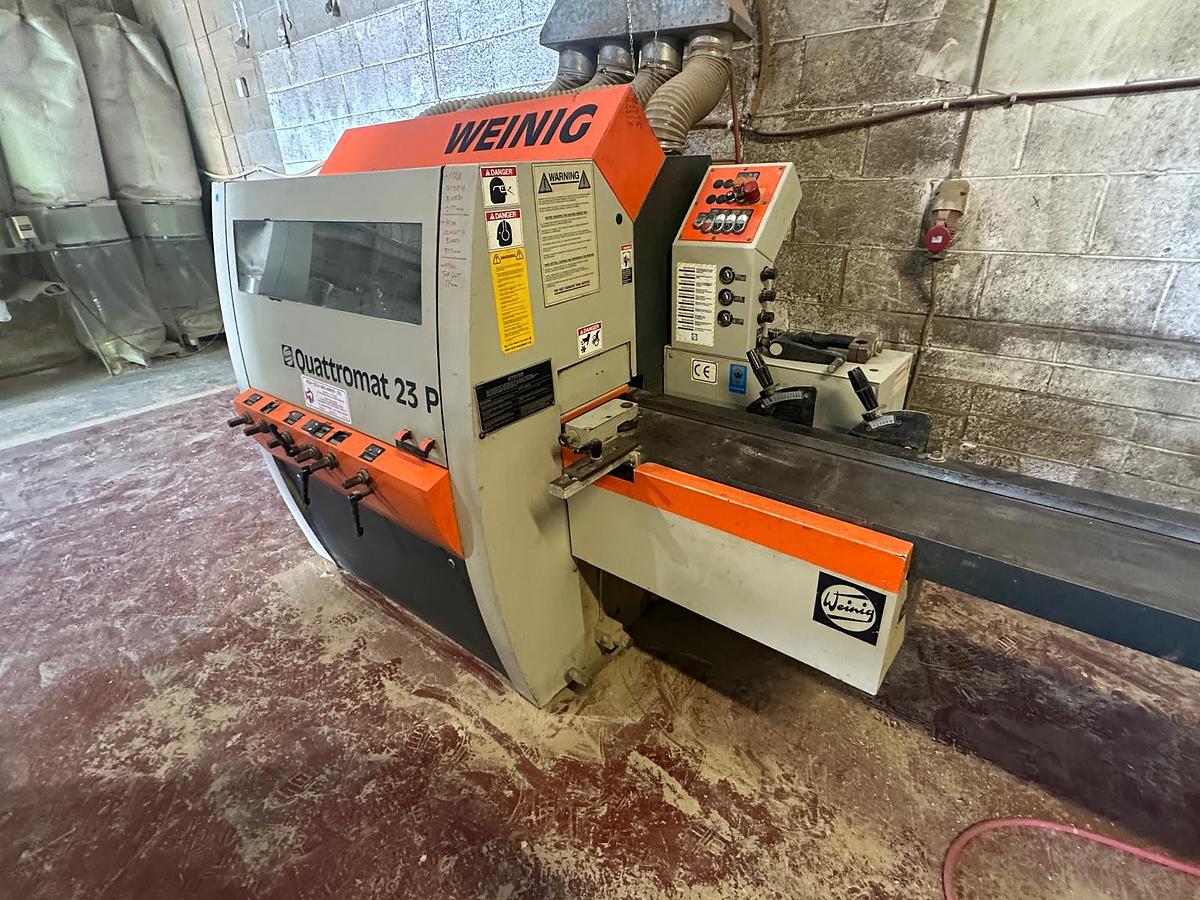

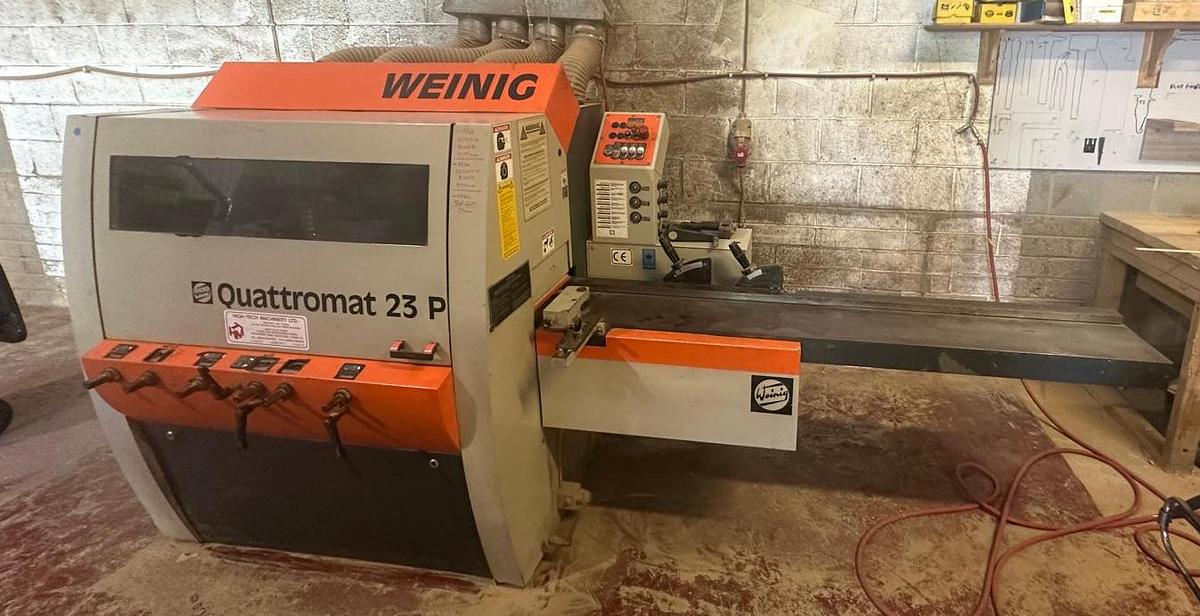

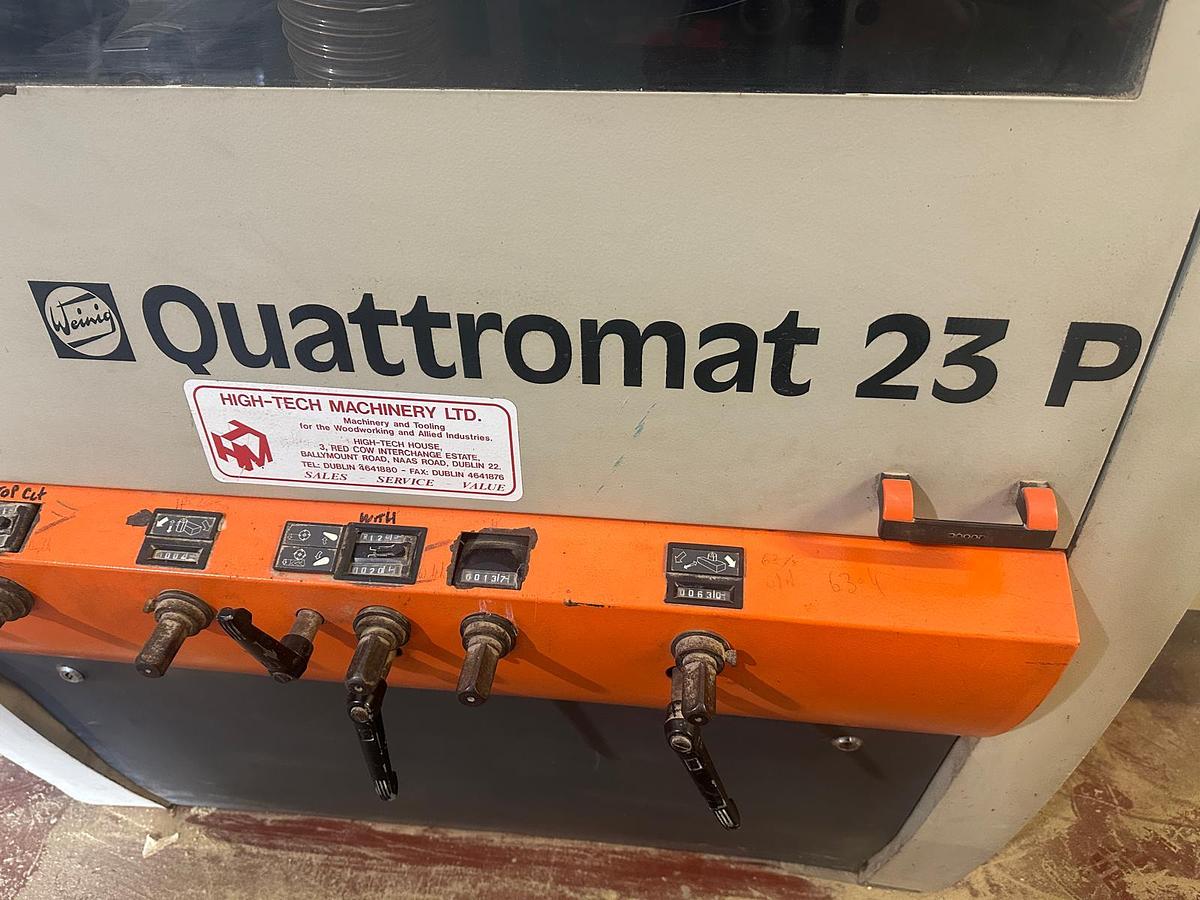

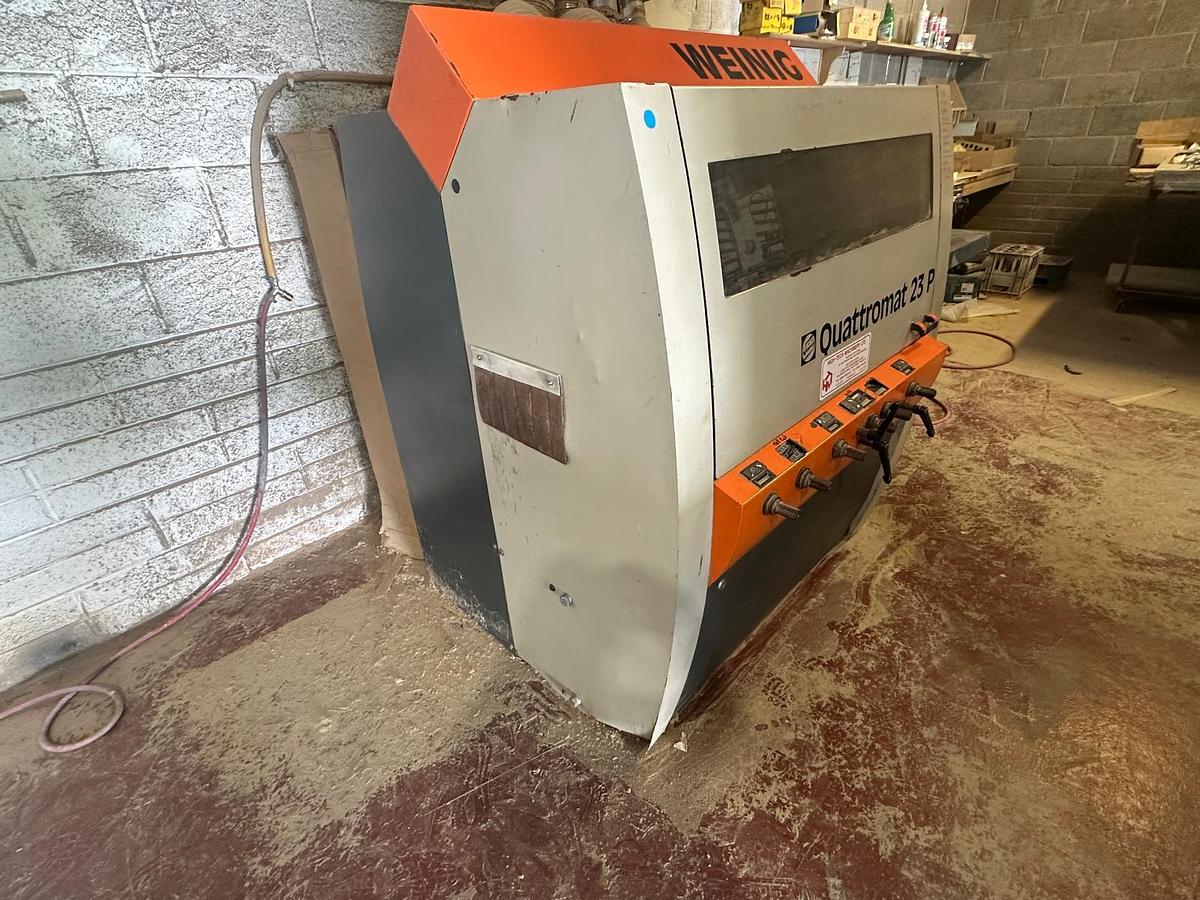

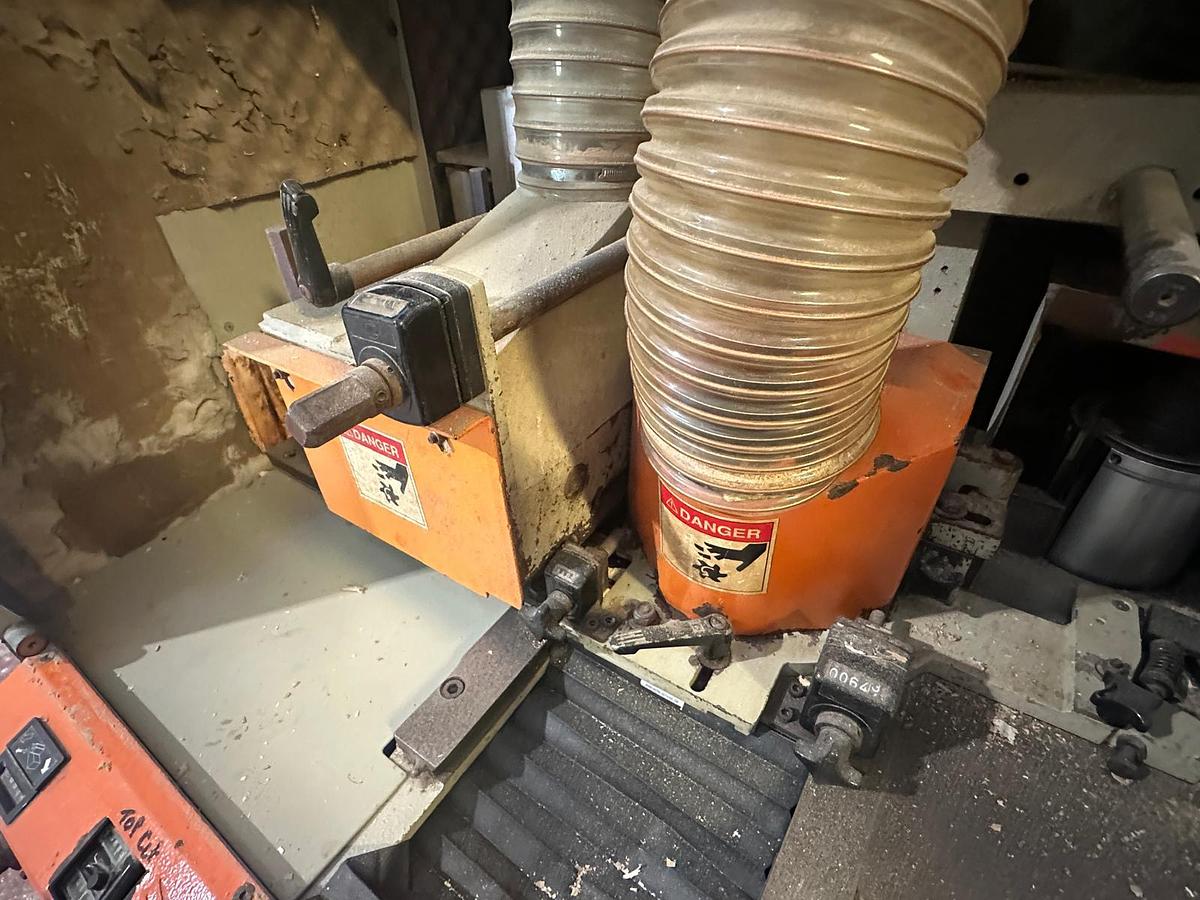

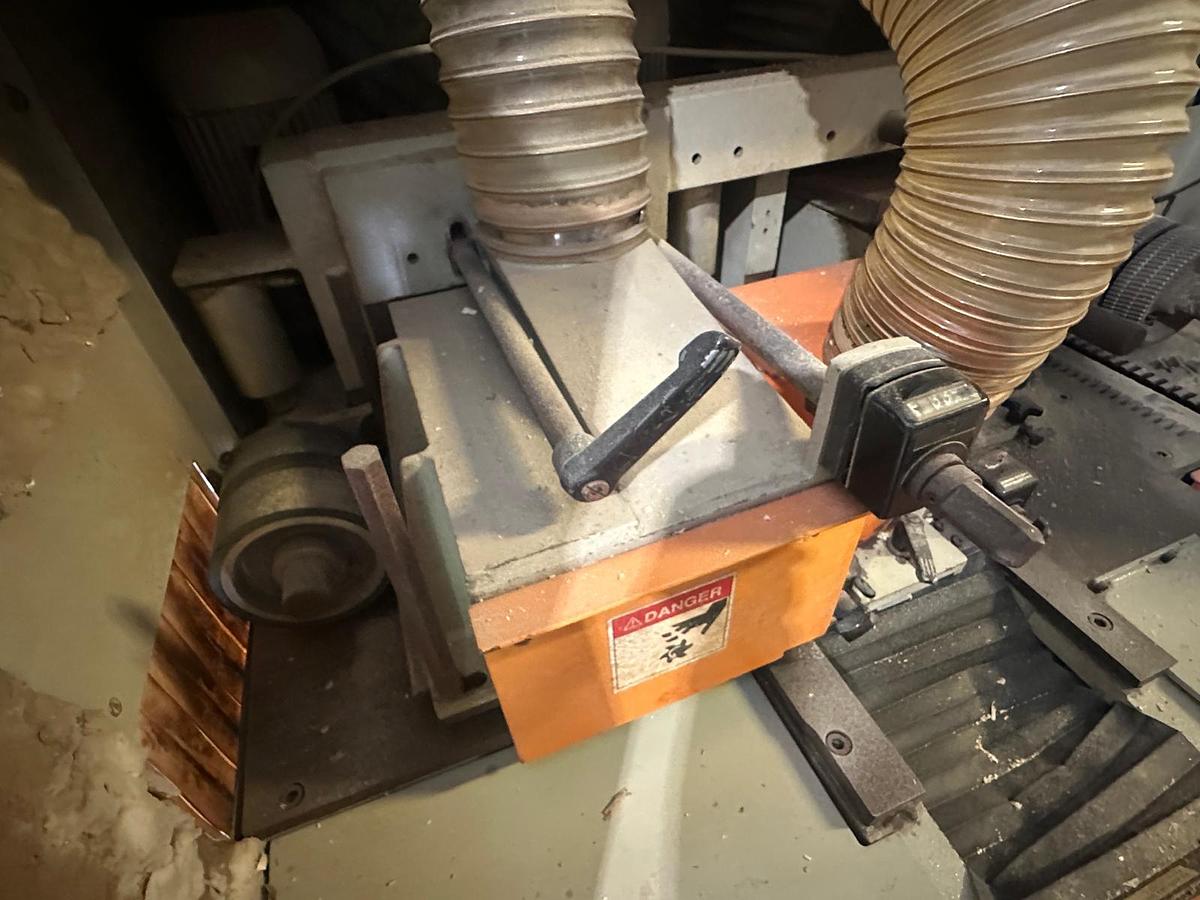

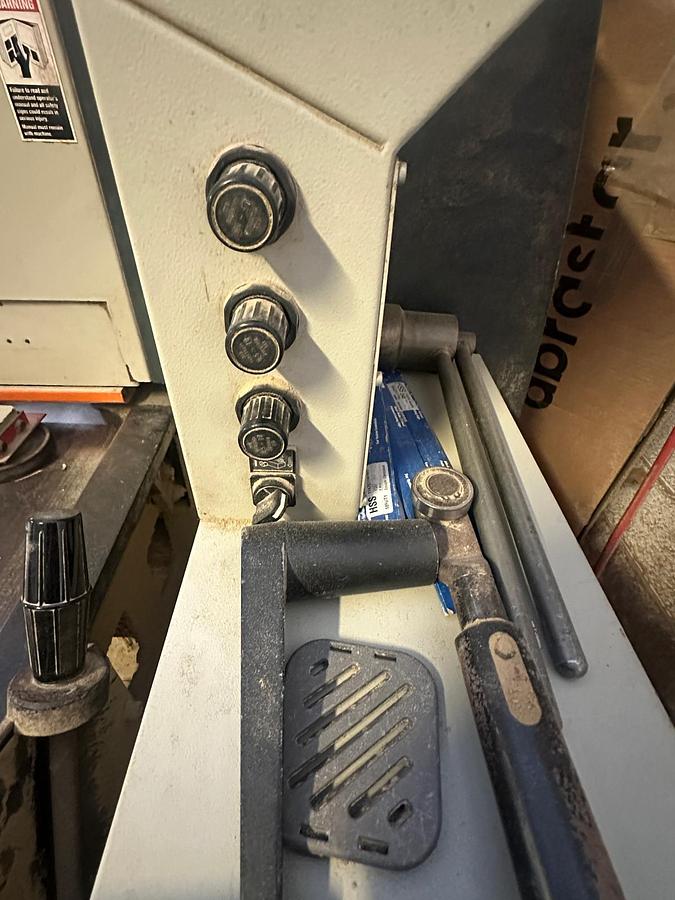

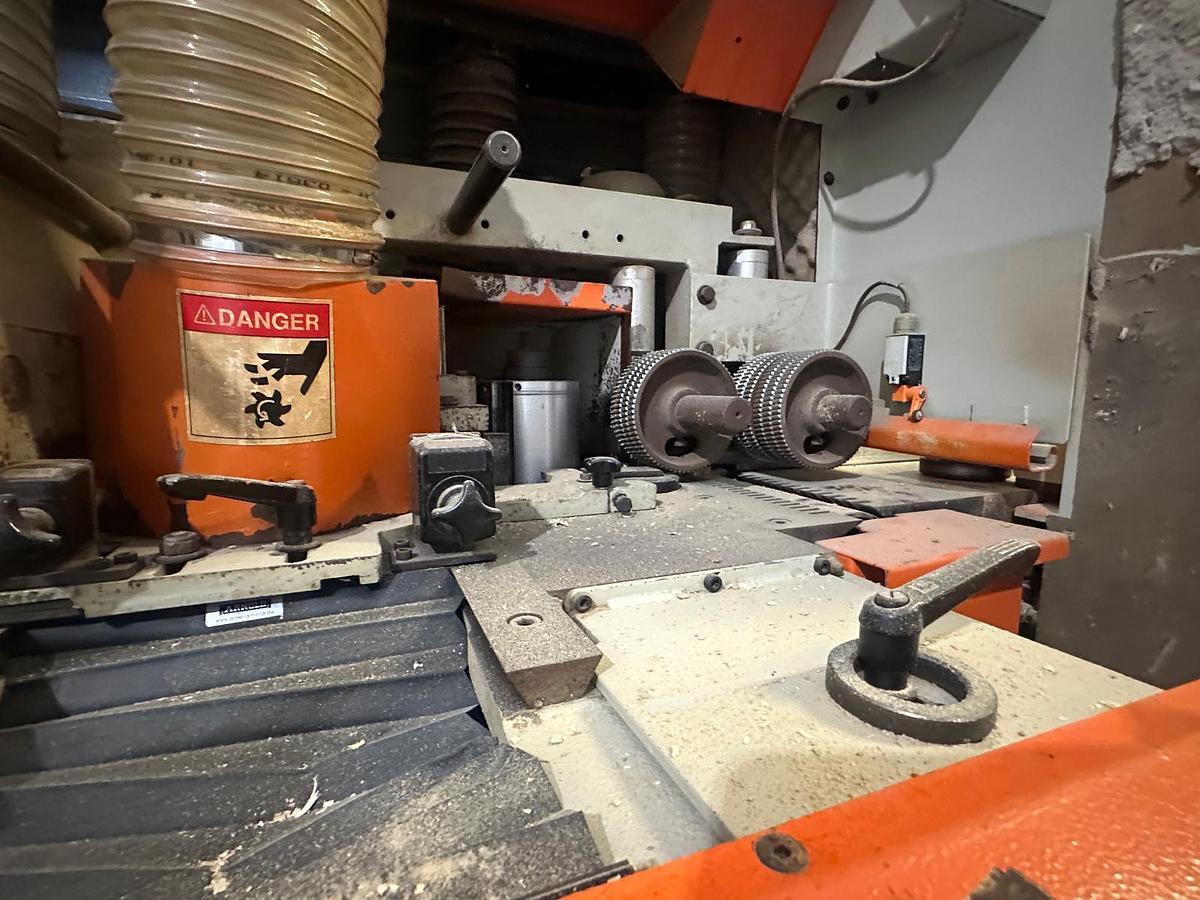

Weinig Quattromat 23P Planing & Moulding Machine

Weinig Quattromat 23 P Planer Moulder

Machine Type: Planer Moulder for Woodworking

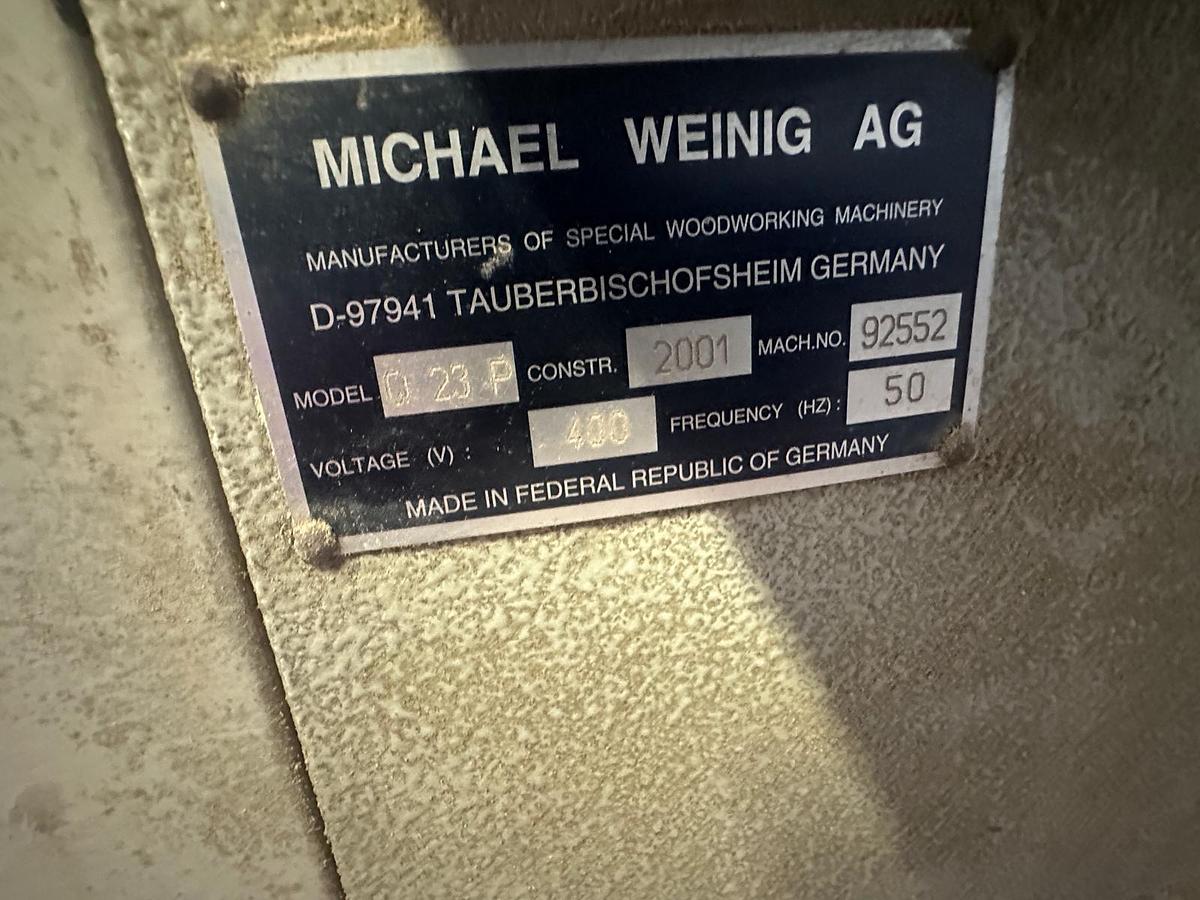

Year: 2001

Condition: Very Good

Description

Small moulder for the use in the areas artisanry and low volume production.

In contrast to the Quattromat 23 the model 23P's standard equipment is an axial adjustment of the cutter blocks of 30mm that enables the setting of the planing tools for the moulding.

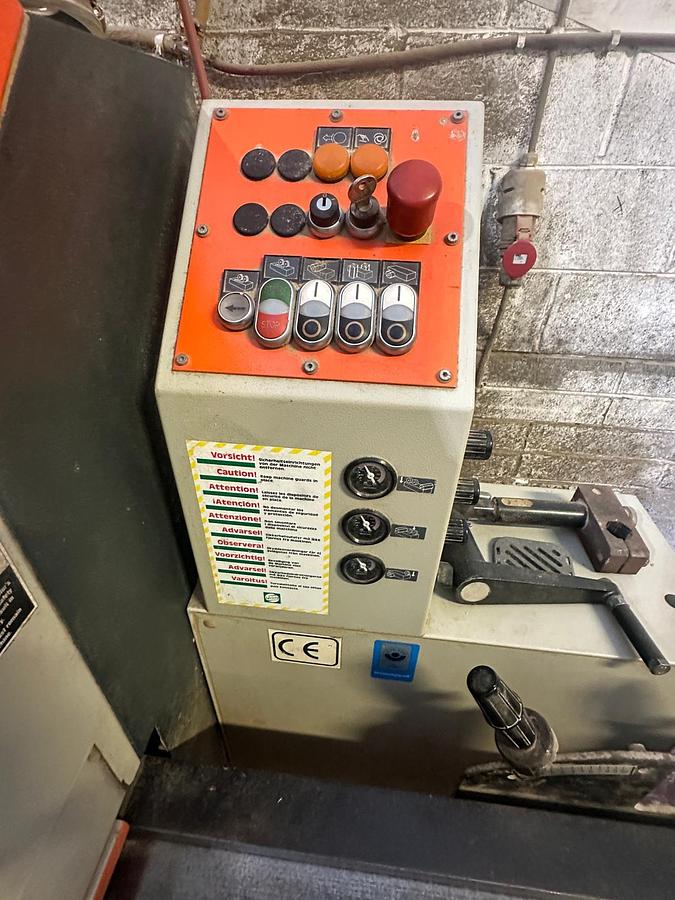

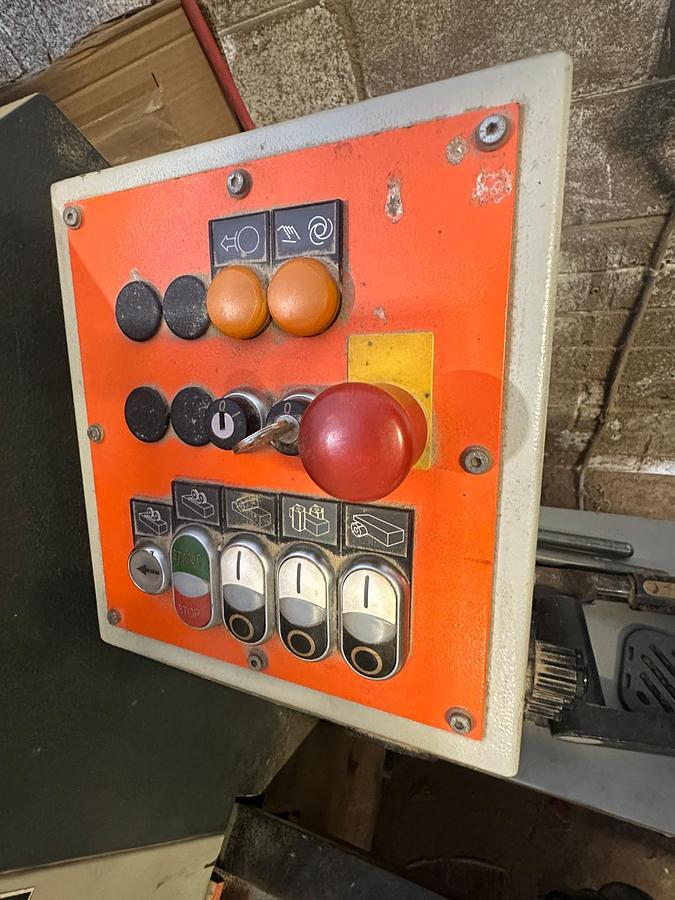

Technical Specification

Working width: 13 - 230 mm

Working height: 6 - 120 mm

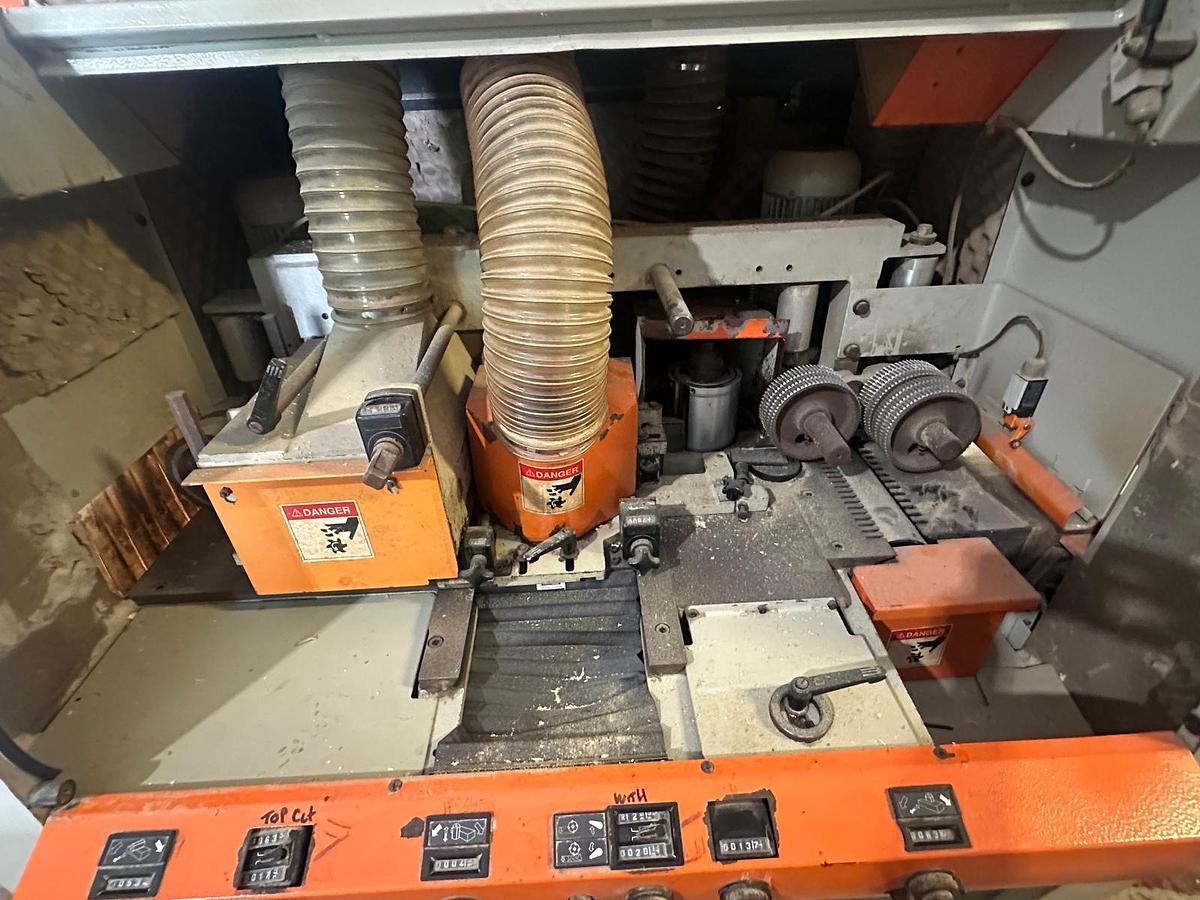

Number of spindles: 4

Straightening spindle motor: 4 - 7.5 KW (5.5 - 10 HP)

Vertical spindles motor: 5.5 - 11 KW (7.5 - 15 HP)

Top spindle motor: 4 - 11 KW (5.5 - 15 HP)

Feed motor: 1.5 KW (2 HP)

Spindle speed: 6,000 rpm

Spindle diameter: 40 mm

Tool cutting circles of moulding spindles: 125 - 200 mm

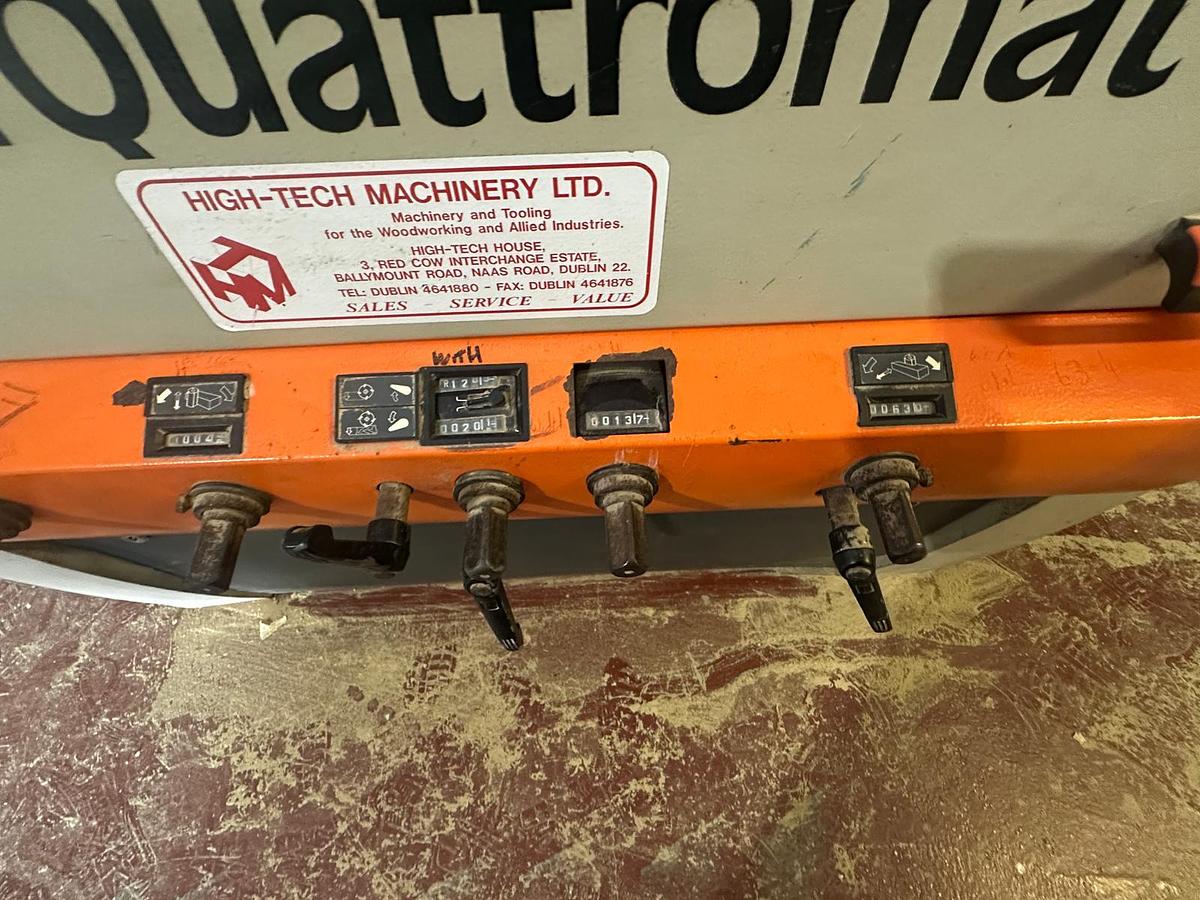

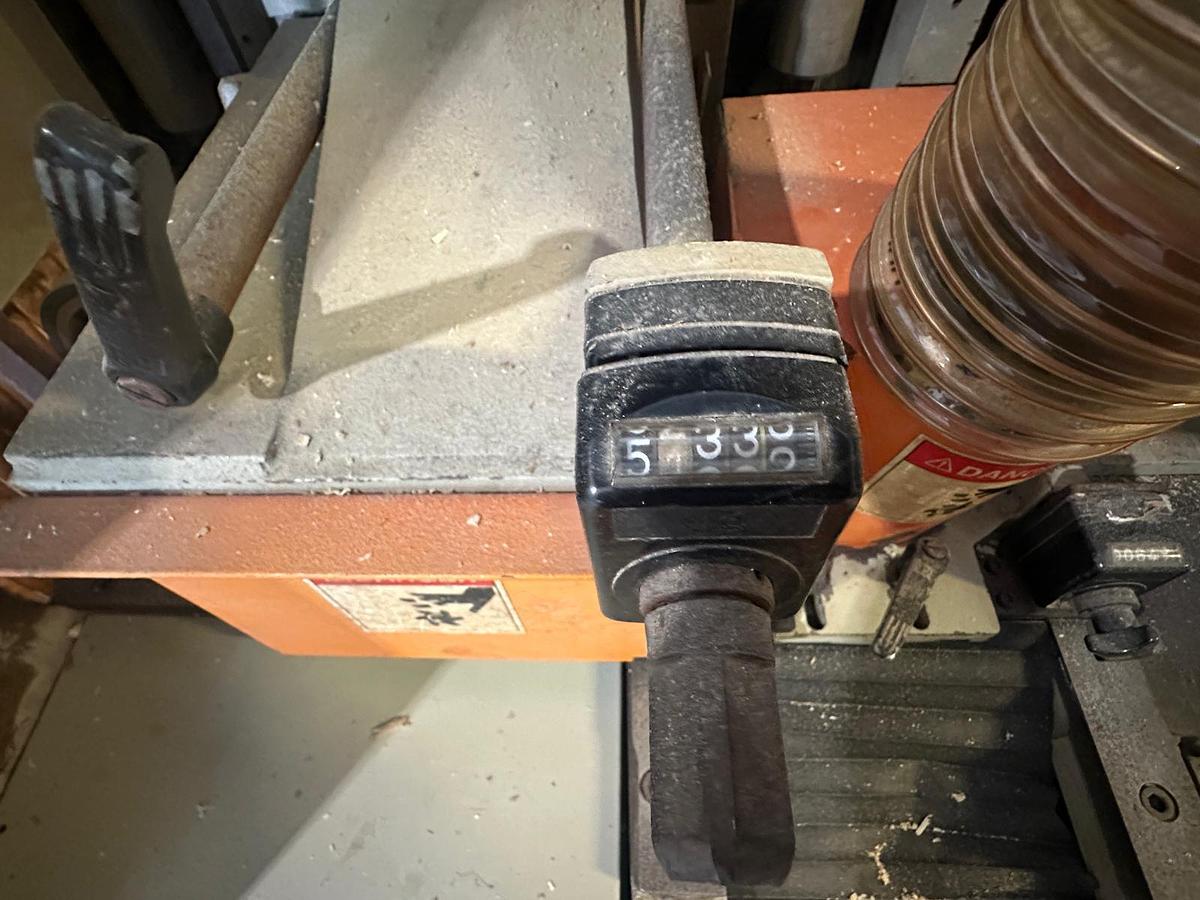

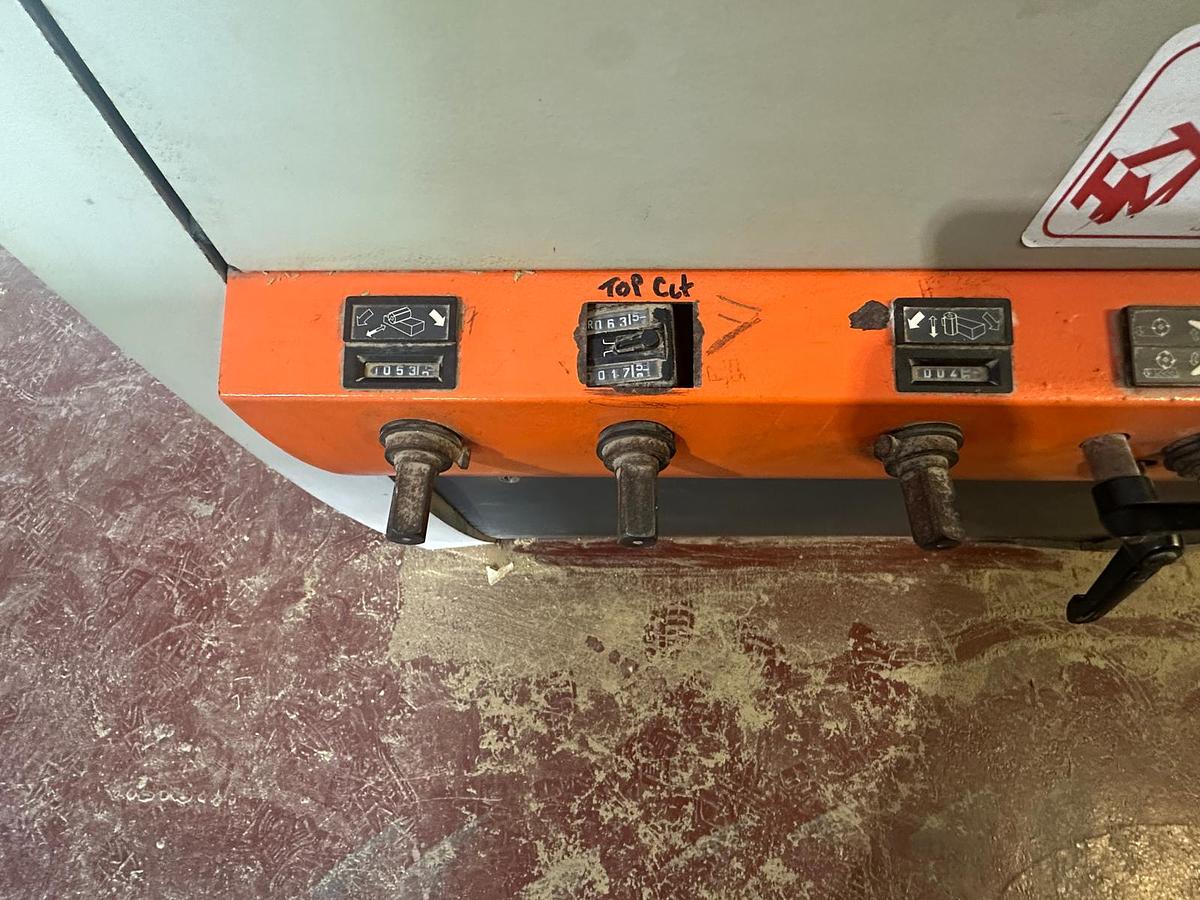

Adjustment range of spindles (axial): 30 mm

Adjustment range of straightening spindle: 5 mm

Feed speed: 8 m/min.

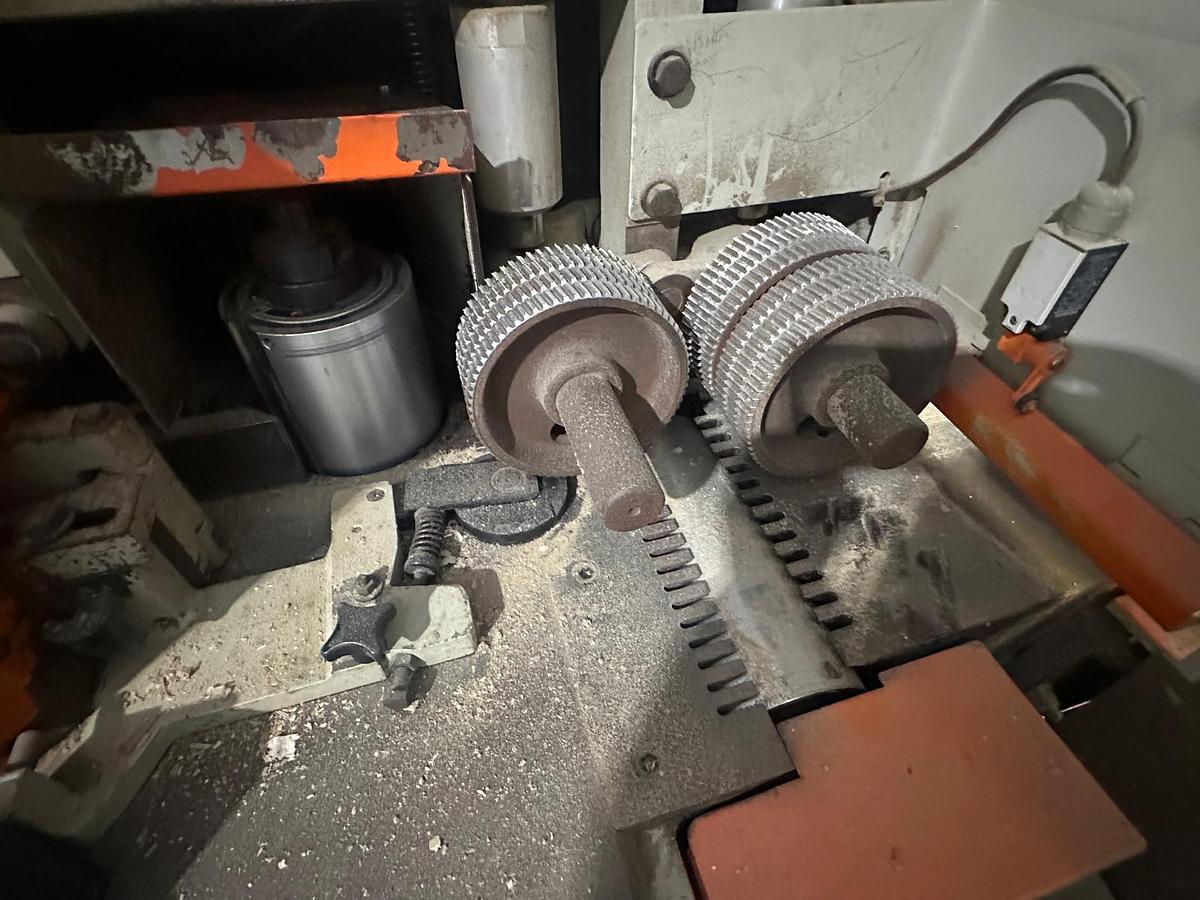

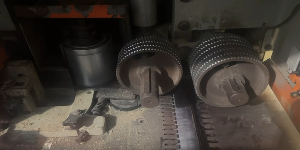

Feed roller diameter: 140 mm

Feed roller width: 2 x 50 mm

Width of roller in the outfeed table: 50 mm

Adjustment range of straightening table and edge-jointing fence: 10 mm

Height of right fences: 60 mm

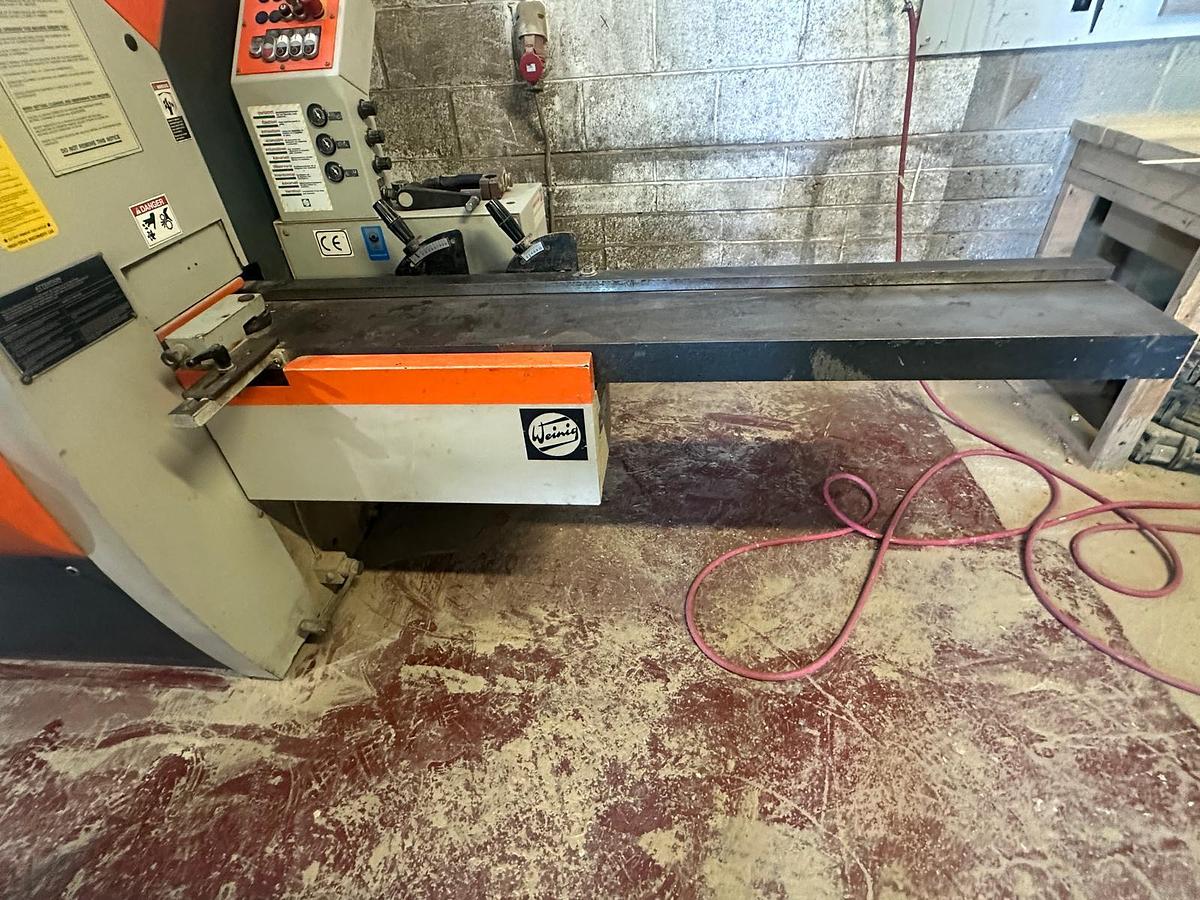

Length of straightening table: 2 m

Reference engraver with cutter: Yes

Pneumatic pressure for feed rollers: Yes

Pneumatic adjustment of infeed roller in front of 1st bottom spindle: Yes

Pressure roller from above and left in front of machine infeed: Yes
