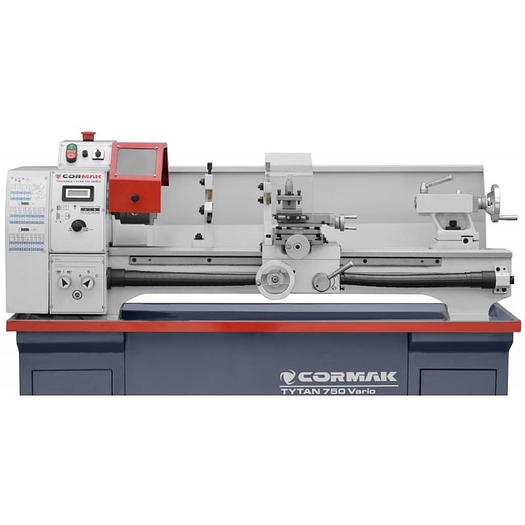

Cormak Tytan 750 Universal Lathe

Cormak Tytan 750 Universal Manual Lathe

Machine Description

The TYTAN 750 VARIO 230V metal lathe features smooth spindle speed control. Working parameters: 250 × 750 mm, DC motor: 1.1kW / 230V. Designed for machining external and internal cylindrical surfaces, threading, drilling, countersinking, and reaming. Ideal for small industrial plants, workshops, or home garages.

Universal lathe TYTAN 750 PRO (VARIO) 230V with smooth spindle speed regulation is an ergonomic machine tailored to user needs. Shortened setup time for machining parts of various dimensions increases efficiency and ease of operation.

VARIO version – electronic, stepless spindle speed control via DC motor and voltage regulator ensures excellent rotational accuracy of the chuck, resulting in a higher surface quality of machined components.

Main advantages:

• Modern DC motor with variable spindle speed control provides convenience and shortens setup time.

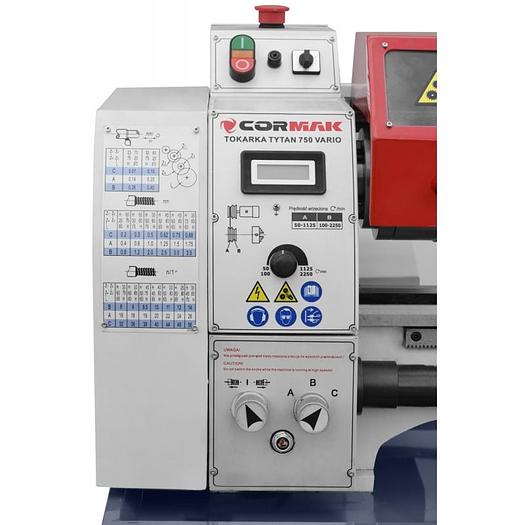

• LCD display showing spindle speed allows quick adjustments during cutting and threading.
• Two spindle speed ranges: low (50–1125 rpm) for machining hard steels and high (100–2250 rpm) for precise finishing operations.
• Thread cutting: metric – 18 steps (0.2–3.5 mm), inch – 21 steps (8–56 TPI); capability for both right- and left-hand threads.
• Automatic longitudinal feed with 6 speed settings (0.07–0.40 mm/rev) reduces machining time without compromising quality during long-part turning.
• Fully compliant with EU directives (CE) and DIN industrial standards.

This lathe is compliant with all European regulations and standards.

Technical Details

Chuck Diameter: 125mm

Swing over bed: 250 mm

Swing over cross slide: 150 mm

Centre width: 750 mm

Max workpiece length: 700mm (Chuck/Tailstock)

Bed width: 135 mm

Spindle bore: 30 mm

Spindle taper: MT4

Spindle speed (smooth adjustment): 50–2250 rpm

Metric thread: (18) 0.2–3.5 mm/rev

Inch thread: (21) 8–56 threads/inch

Longitudinal feed: 0.07 -0.4mm/rev

Tool post: 4-Way

Tool post dimensions: 65x65x20mm

Tool holder Dimensions: 12 x 12mm

Maximum cross support travel: 70 mm

Maximum transverse support travel: 135 mm

Maximum longitudinal support travel: 650 mm

Tailstock Quill Diameter: 30 mm

Tailstock spindle travel: 60 mm

Tailstock quill taper: MT2

Motor power: 1.1kW / 230V

Dimensions (with base): 1350×560×1250 mm

Weight: 180 kg

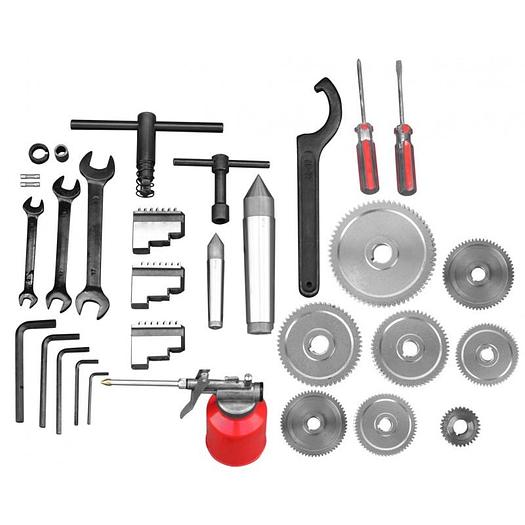

Standard Equipment

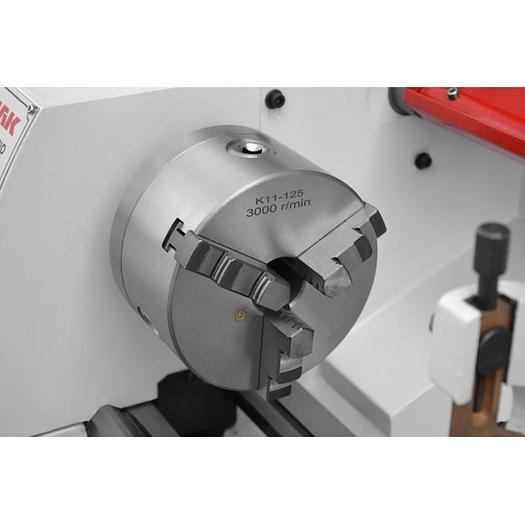

125mm 3 Jaw Chuck

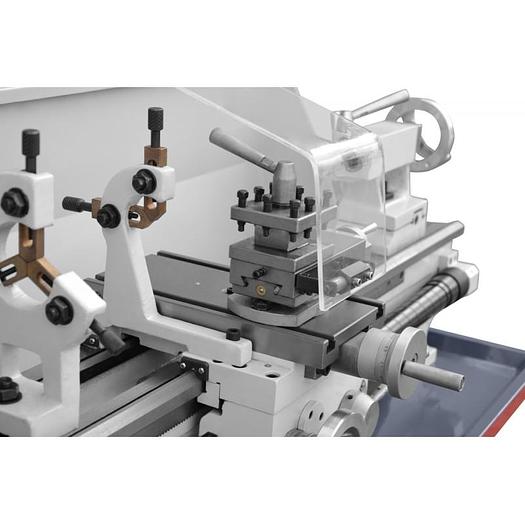

4 Way Toolpost

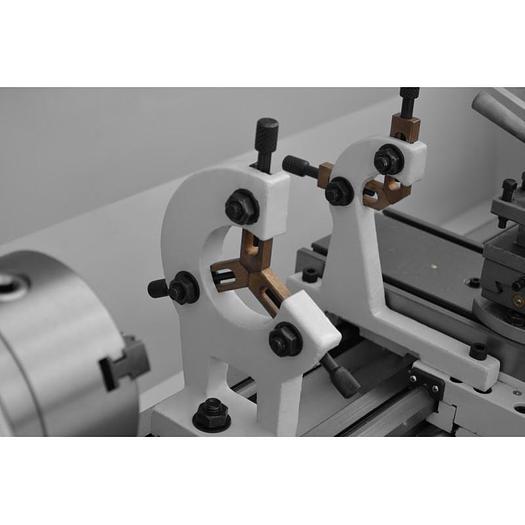

Travelling Steady

Fixed Steady

Dead Centres

Left/right Jaws

Spanners

Tools

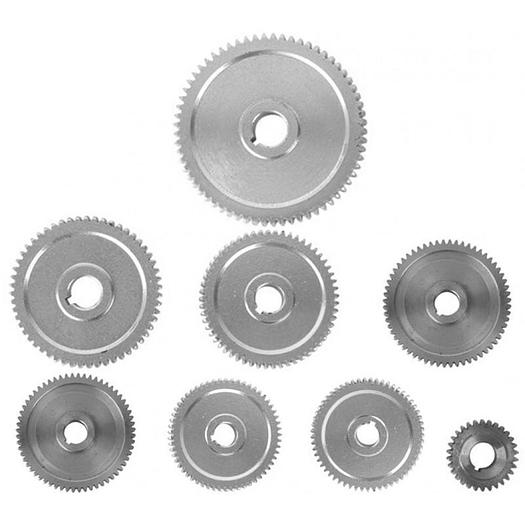

Change Gears

Machine Base
