Cormak ZX 7045 B1 Milling & Drilling Machine



orCall +353 838108745

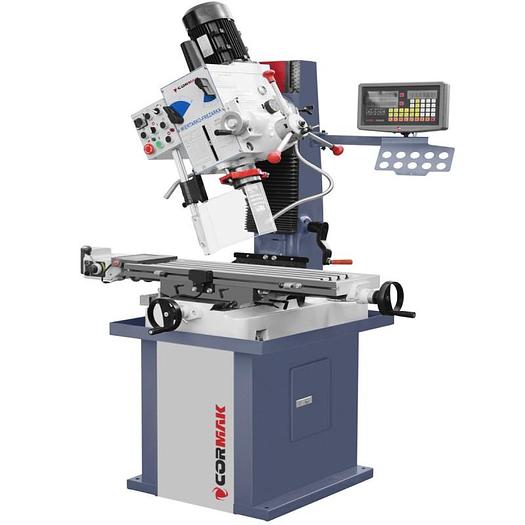

Cormak ZX 7045 B1 Milling & Drilling Machine

This machine can be used for drilling, reaming and expanding holes up to 45/40 mm in cast iron and threading screws for M12 mm, milling up to 80 mm width, and counter boring up to 22 mm. It is also suitable for cutting and face milling.

SPECIFICATION Heavy stable cast iron

Large cross table with precisely ground surface

Automatic Quill Feed

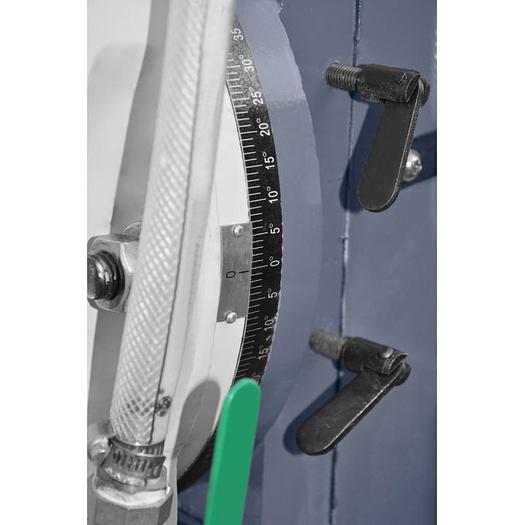

Flood Coolant System Vee Guides Quiet operation thanks to ground gear wheels Left and right rotation Rotating head +/- 90 degrees

Height adjustable head

TECHNICAL DATA Maximum drilling size (Cast Iron):45 mm Maximum drilling size (Mild Steel): 32mm Maximum face milling: 80 mm Maximum end milling: 28 mm Spindle taper: MT4 Spindle speed 50 - 3024 rpm Max. Distance of spindle nose from the table: 475 mm Dimensions Of Work Table: 820 X 240 mm

Spindle Auto Feed: 110mm Travel (x): 550mm Travel (y): 170mm Motor: 1800W, 1400 min-1 Packing Size: 1140 x 800 x 1040 mm Power: 400V Net Weight: 360 Kg INCLUDED EQUIPMENT: MT4 / B18 Drill Chuck Shank Hand tools Drill Chuck 3-16 mm / B18 MT4 / MT3 reduction sleeve MT3 / MT2 reduction sleeve Instruction manual OPTIONAL EQUIPMENT


MT4 Starter Tools Kit

Machine Base

Machine Vice Rotary Vices Tilting Vices Precision Vices Dividing Table Dividing Head Clamping Set

*NB Some Images Show Machine with Optional Extras Fitted


ModelZX 7045 B1 Milling & Drilling Machine
