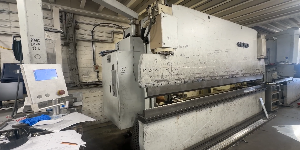

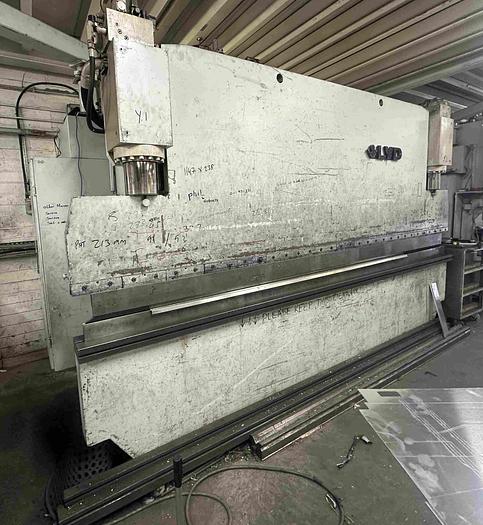

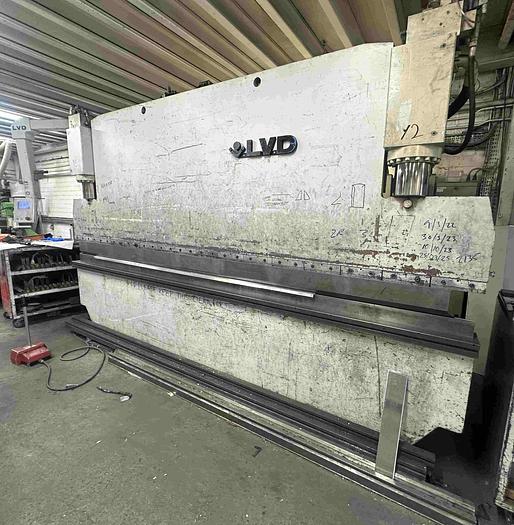

LVD 4m x 135T CNC Pressbrake
Sold
Description
LVD 4m x 135T CNC Pressbrake
Machine Type: 3 Axis CNC Pressbrake

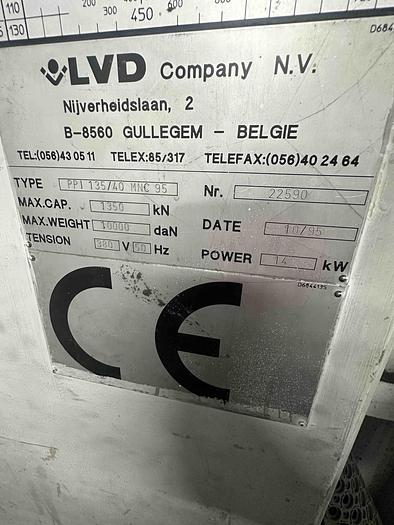

Model No: PPI 135/40

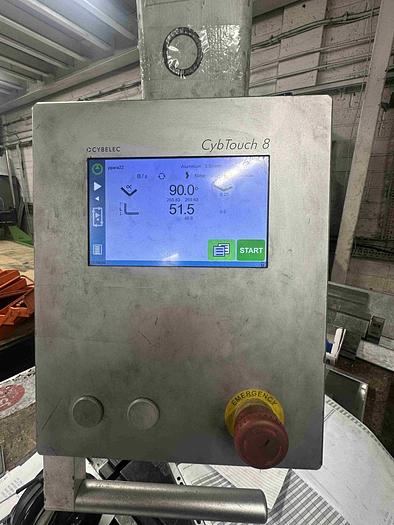

Control: Cybelec Cybtouch 8
Year: 1995
Condition: Good
PRICED TO SELL!!!
Includes
Gooseneck Top Tool

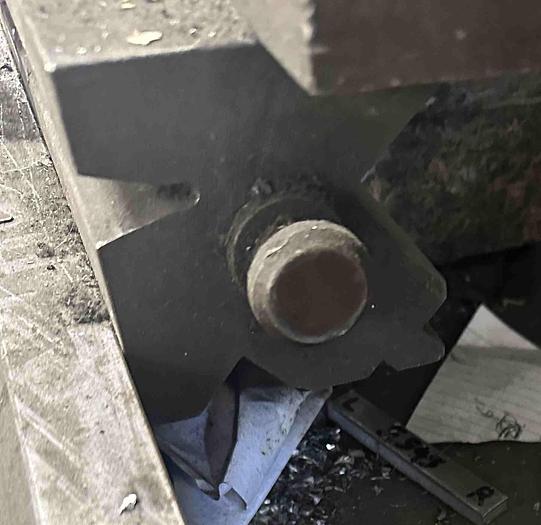

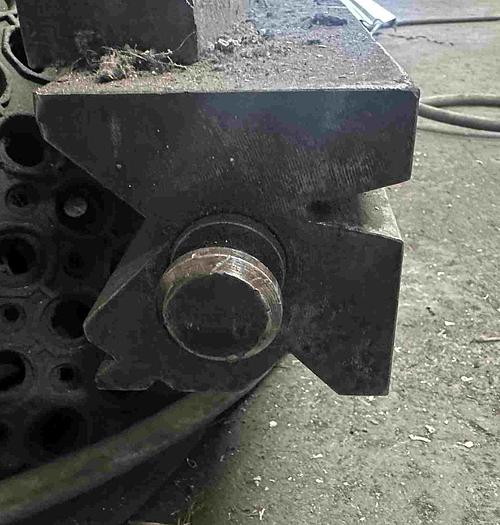

Multi-Vee Bottom Tool

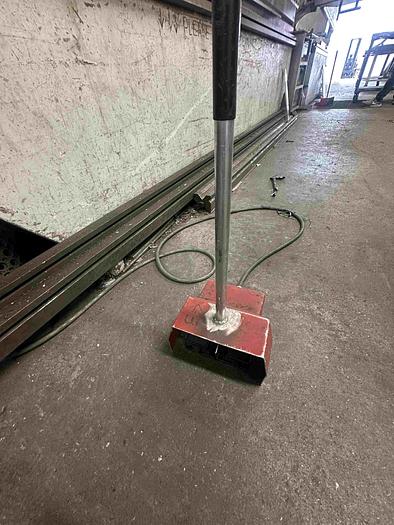

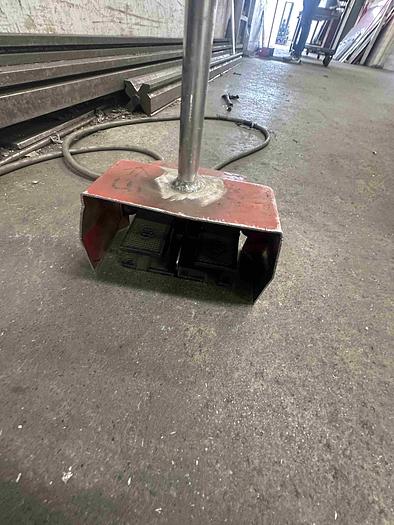

Wanderer Type Foot Pedal
Manual

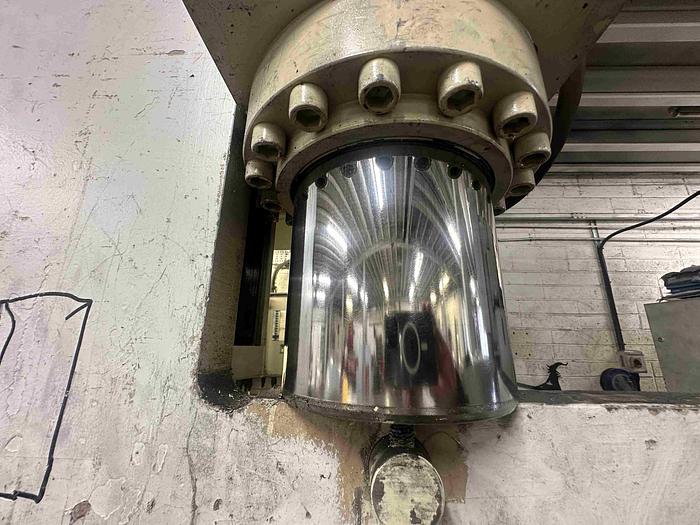

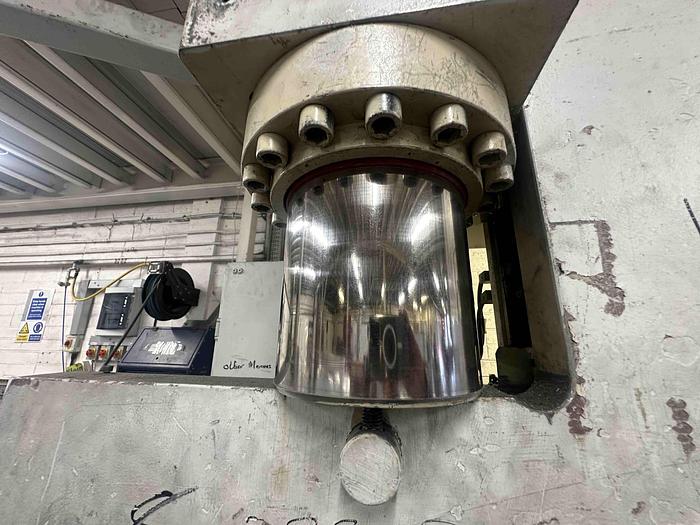

Note: Covers for cylinders available with the machine
Technical Specification
Bending Length: 4000mm
Distance Between Side Frames: 3150mm
Bending Force: 135T
Max Ram Stroke: 200mm
Max Distance Between Table & Ram: 400mm

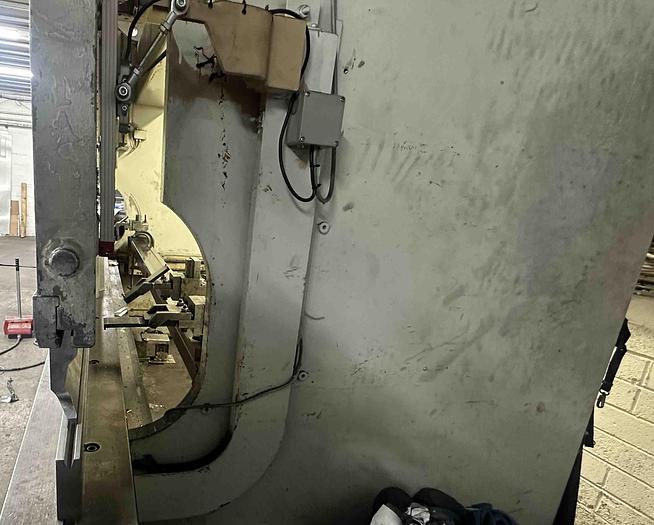

Gap Depth: 250mm
Width of Table: 180mm
Working Speed: 9.3mm/s
Motor Power: 11kW
Light Guards: No

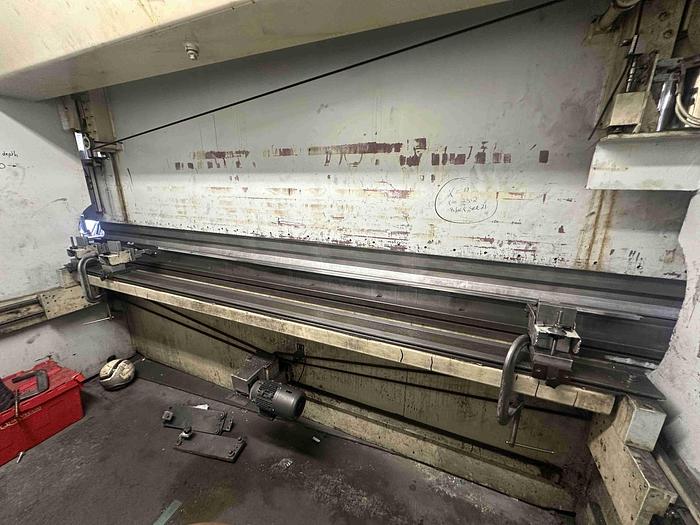

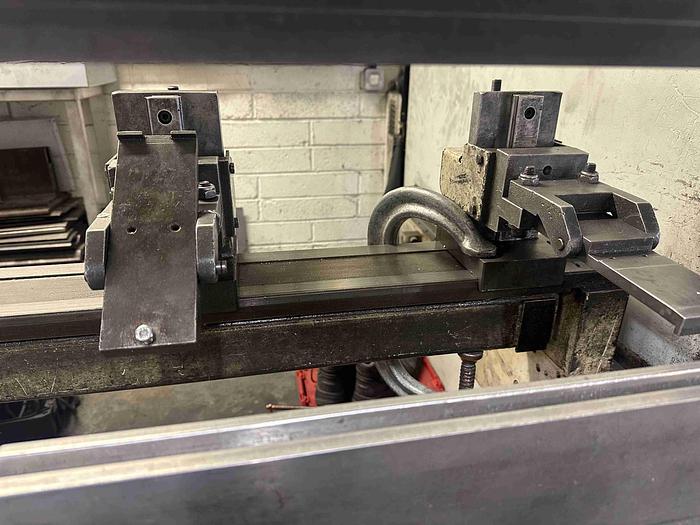

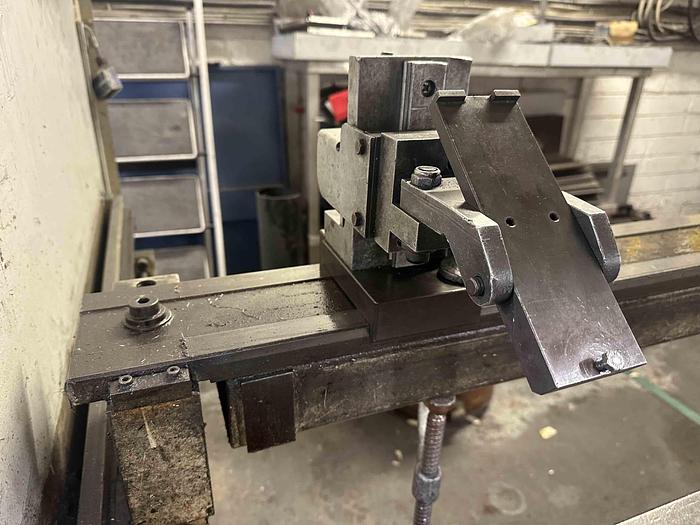

Motorised Back Gauge: Yes
Back Gauge Fingers: 3
Oil Tank Capacity: 180L
Oil Pressure: 280bar
Machine Dimensions: 4100 x 1530 x 2510mm
Machine Weight: 10,000kg
Specifications
| Manufacturer | LVD |
| Model | 4m x 135T CNC Pressbrake |
| Year | 1995 |
| Condition | Used |
| Stock Number | 968903 |
| Machine Type | 3 Axis CNC Pressbrake |
| Model No | PPI 135/40 |
| Control | Cybelec Cybtouch 8 |
| Year | 1995 |
| Condition | Good |
| Bending Length | 4000mm |
| Distance Between Side Frames | 3150mm |
| Bending Force | 135T |
| Max Ram Stroke | 200mm |
| Gap Depth | 250mm |
| Width of Table | 180mm |
| Working Speed | 9.3mm/s |
| Motor Power | 11kW |
| Light Guards | No |
| Motorised Back Gauge | Yes |
| Back Gauge Fingers | 3 |
| Oil Tank Capacity | 180L |
| Oil Pressure | 280bar |
| Machine Weight | 10,000kg |
