€4,750 + VAT

Cormak WS35BGP Pedestal Drill

5

Poland

orCall +353 838108745

Description

Cormak WS35BGP Pedestal Drill


Machine Features

Autofeed

Tapping capability

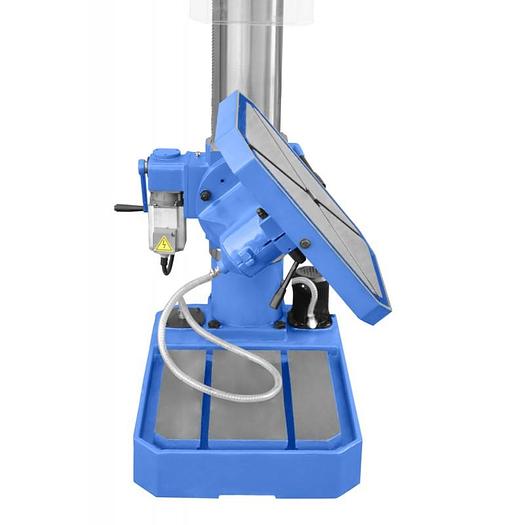

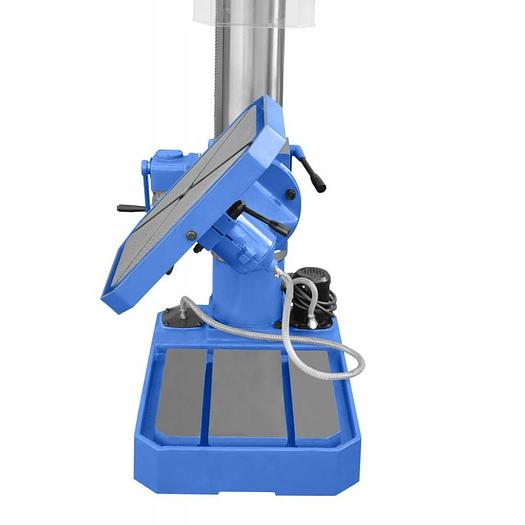

-/+45° swivel table

Drilling depth indicator

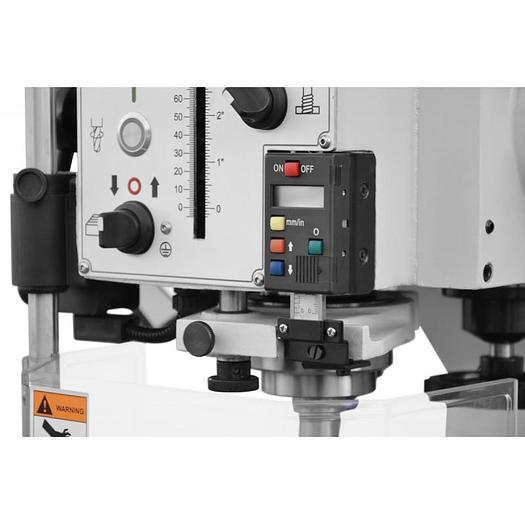

Spindle speed and feed electronic indicator

Sturdy spindle

Tapping done through the automatic left rotation switching

Left rotation switch

Headstock, column, table and column base made of the highest quality components

Spindle and gearbox shafts made of hardened and thermally processed steel

Large spindle stroke

Readable control panel

U-type spindle guard with a limiting switch, EC regulation compliant

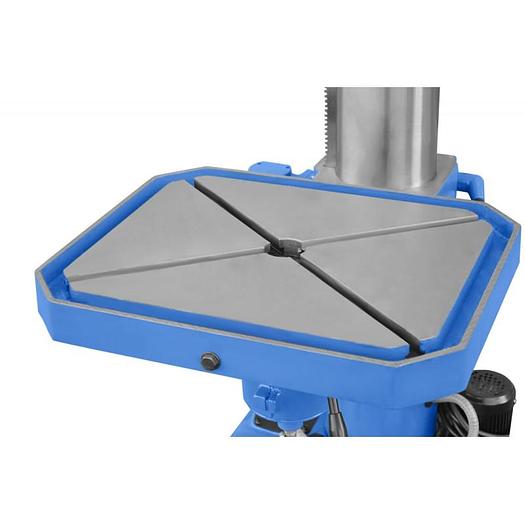

Manually raised worktable with T-slots

CE certification


Technical Data

Maximum steel drilling diameter: 35 mm

Maximum steel tapping diameter:M22

Distance from spindle centre to column axis: 340 mm

Maximum distance from spindle tip to worktable surface: 590 mm

Maximum distance from spindle tip to base: 1175 mm

Maximum spindle stroke: 190 mm

Spindle taper: MT4

Spindle speeds: (12) 43–2355 rpm

Spindle feeds: (4) 0.1–0.4 mm/r

Maximum stroke of moving table and its support: 530 (410)

Worktable dimensions: 540×450 mm

Base dimensions: 445×435 mm

Column diameter: Ø160 mm

Main motor power: 1.8 kW

Machine dimensions: 945 × 670 × 2230 mm

Gross weight: 550 kg


Specifications

ManufacturerCormak
ModelWS35BGP Pedestal Drill
ConditionNew
Stock Number00233
Maximum steel drilling diameter35 mm
Maximum steel tapping diameterM22
Maximum spindle stroke190 mm
Spindle taperMT4
Spindle speeds(12) 43–2355 rpm
Spindle feeds(4) 0.1–0.4 mm/r
Worktable dimensions540×450 mm
Base dimensions445×435 mm
Column diameterØ160 mm
Main motor power1.8 kW
Machine dimensions945 × 670 × 2230 mm
Gross weight550 kg
