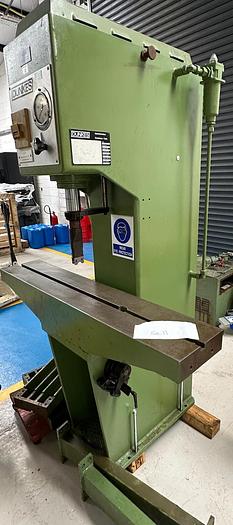

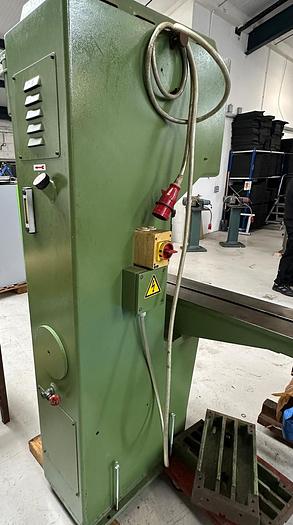

Dunkes HR10 Straightening Press
Sold
Description

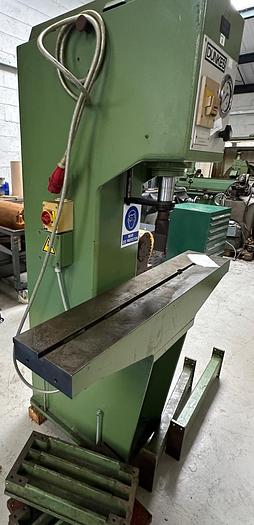

Dunkes HR10 Hydraulic Straightening Press
Machine Type: Hydraulic Straightening Press
Year: 1989
Condition: Good
Includes

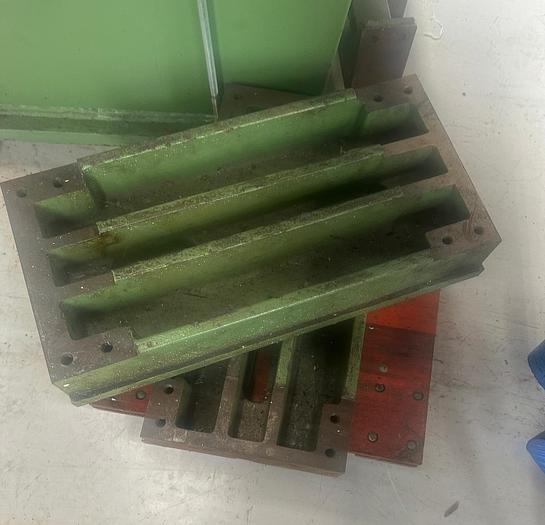

Table Extensions

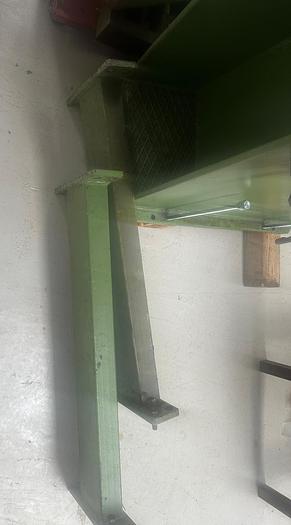

Table Supports
Technical Specifications

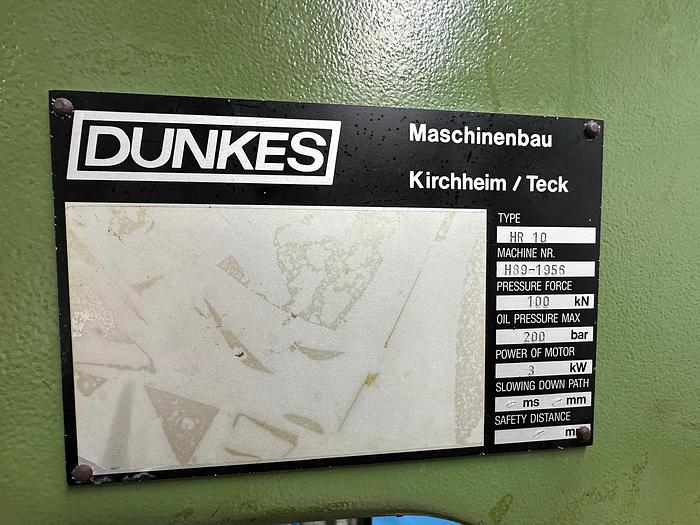

Pressing Force: 10T (100kN)
Stroke: 170mm
Straightening Stroke: 60mm
Max Distance from Table to Ram Face: 220mm

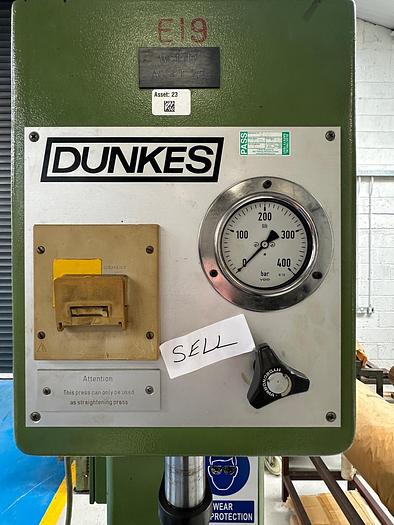

Oil Pressure(max): 200bar

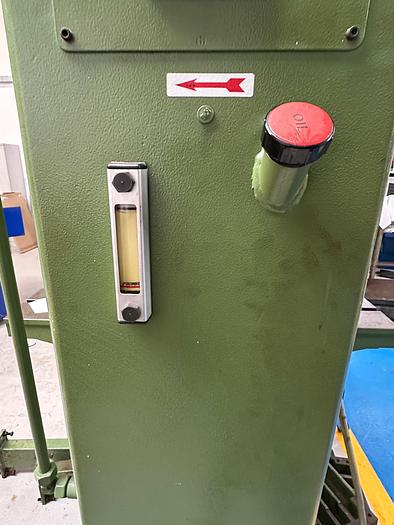

Hydraulic Oil Capacity: 70L
Motor Power: 3kW
Table Length: 1300mm
Table Width: 250mm
Extensions: 2

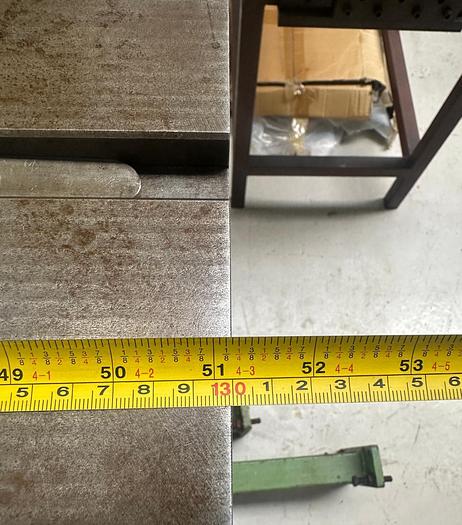

Extension Lengths: 507mm
Table Supports: 2
Total Table Length including Extensions: 2314mm
Table Height: 935mm
Machine Dimensions(without extensions): 1300x1000x2000mm
Machine Weight: 980kg approx.
Specifications
| Manufacturer | Dunkes |
| Model | HR10 Straightening Press |
| Year | 1989 |
| Condition | Used |
| Stock Number | 968886 |
| Machine Type | Hydraulic Straightening Press |
| Year | 1989 |
| Condition | Good |
| Pressing Force | 10T (100kN) |
| Stroke | 170mm |
| Straightening Stroke | 60mm |
| Oil Pressure(max) | 200bar |
| Hydraulic Oil Capacity | 70L |
| Motor Power | 3kW |
| Table Length | 1300mm |
| Table Width | 250mm |
| Extensions | 2 |
| Extension Lengths | 507mm |
| Table Supports | 2 |
| Table Height | 935mm |
| Machine Dimensions(without extensions) | 1300x1000x2000mm |
| Machine Weight | 980kg approx. |
