€5,000 + Vat

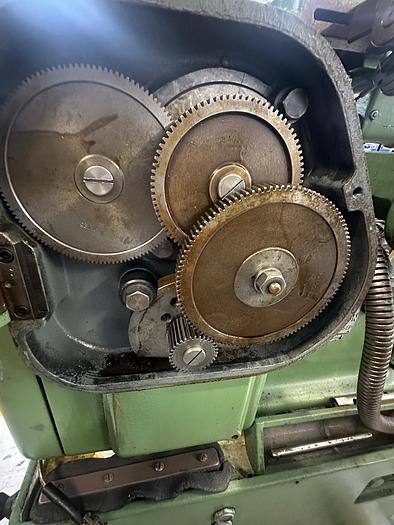

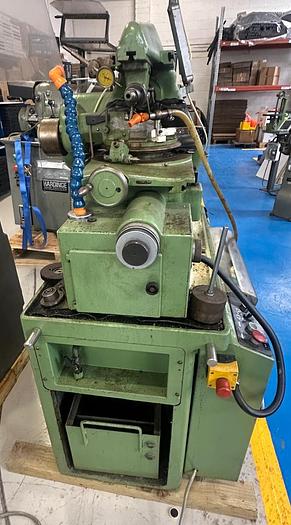

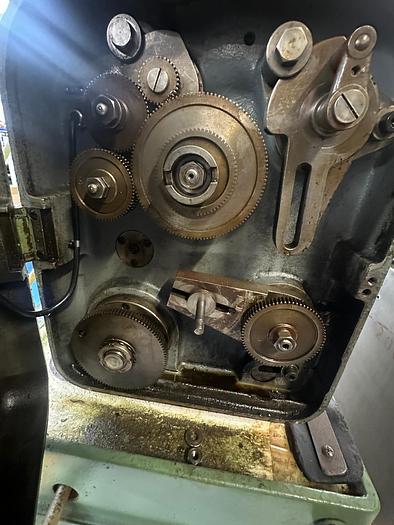

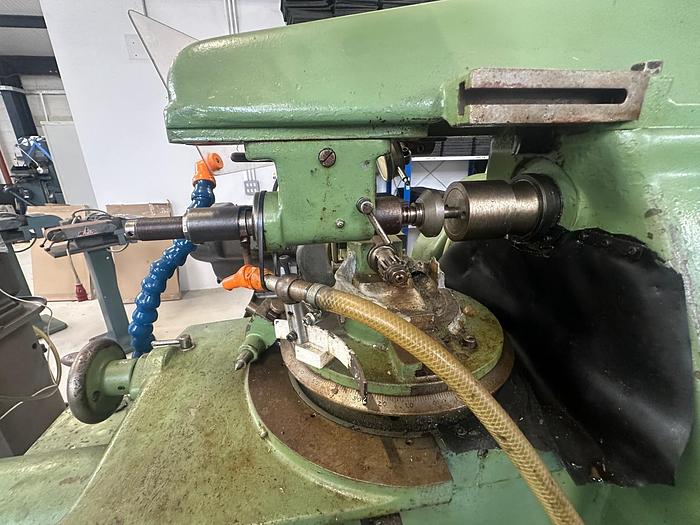

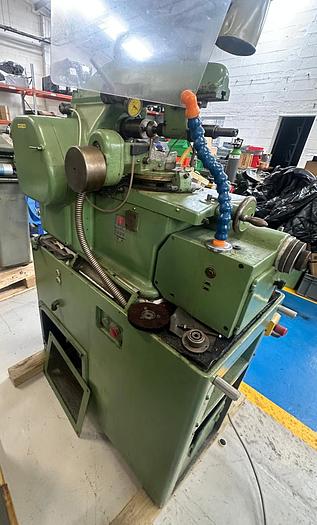

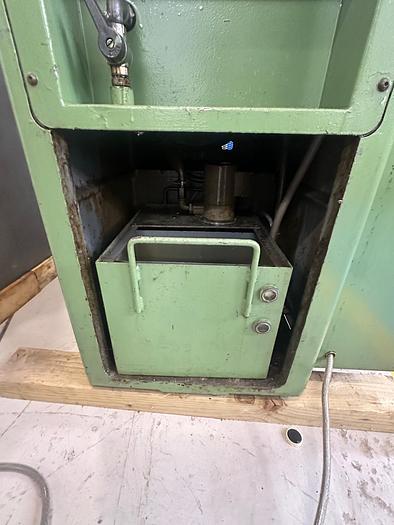

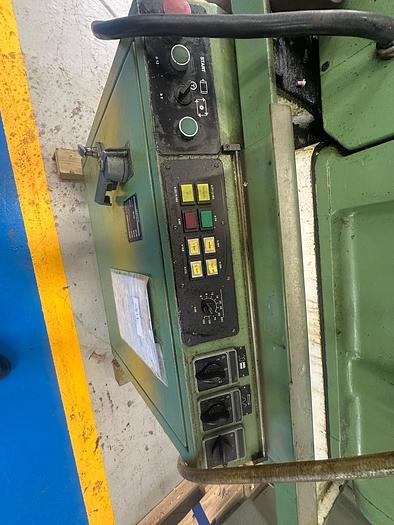

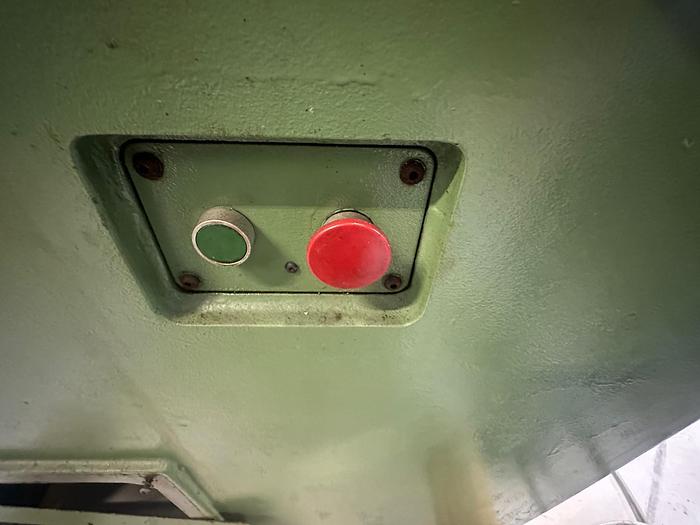

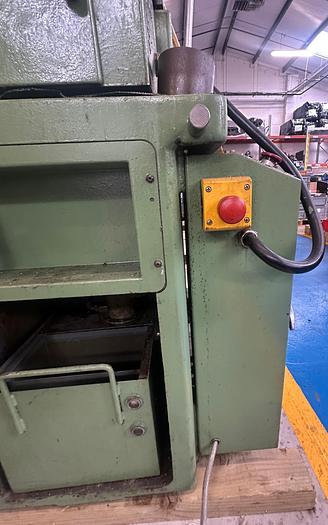

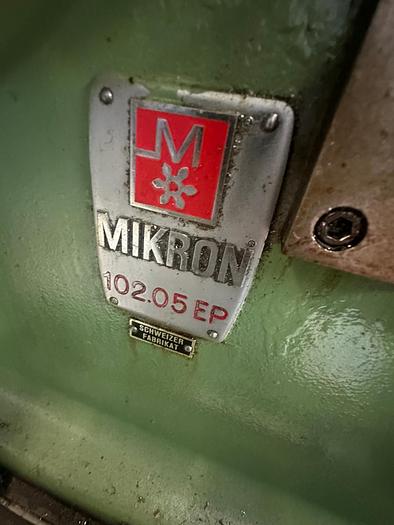

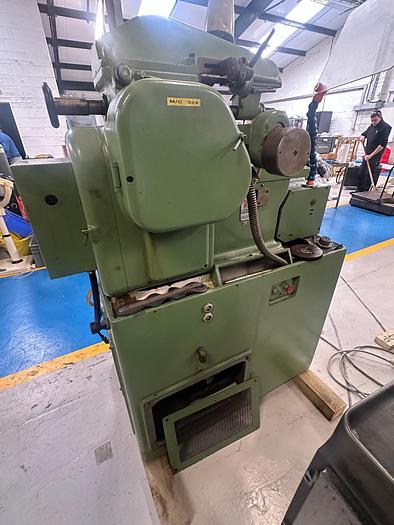

Mikron Type 102.05 (102MPS) Gear Hobbing Machine
or
Call +353 838108745
Description
Mikron Type 102.05 (102MPS) Gear Hobbing Machine
Machine Type: Hydraulic Gear Hobbing Machine with multi-program control.
Condition: Good
Technical Specifications
Max Diameter: 120mm
Max Length: 130mm
Max Cutting Thickness: 130mm
Number of Teeth: 6-400
Max Pitch: 12 D.P.
Max Module: 2
Collet Attachment: 20W
Angle Adjustment: 0 - 90 °
Max Pitch in Steel: 15 D.P.
Max Pitch in Brass & Light Metal: 12 D.P.
Cutter Speed: 140-1870rpm
No. of Speed Selections: 14
Feed: Horizontal or Plunge-Cutting
Feed Speed: 0.05 mm to 0.6 mm per rev.
Main Motor: 1.5hp
Dimensions: 1200x700x1600mm
Machine Weight: 800kg
Specifications
| Manufacturer | Mikron |
| Model | Type 102.05 (102MPS) Gear Hobbing Machine |
| Condition | Used |
| Stock Number | 968861 |
| Condition | Good |
| Max Diameter | 120mm |
| Max Length | 130mm |
| Max Cutting Thickness | 130mm |
| Number of Teeth | 6-400 |
| Max Pitch | 12 D.P. |
| Max Module | 2 |
| Collet Attachment | 20W |
| Angle Adjustment | 0 - 90 ° |
| Max Pitch in Steel | 15 D.P. |
| Cutter Speed | 140-1870rpm |
| No. of Speed Selections | 14 |
| Feed | Horizontal or Plunge-Cutting |
| Main Motor | 1.5hp |
| Dimensions | 1200x700x1600mm |
| Machine Weight | 800kg |
