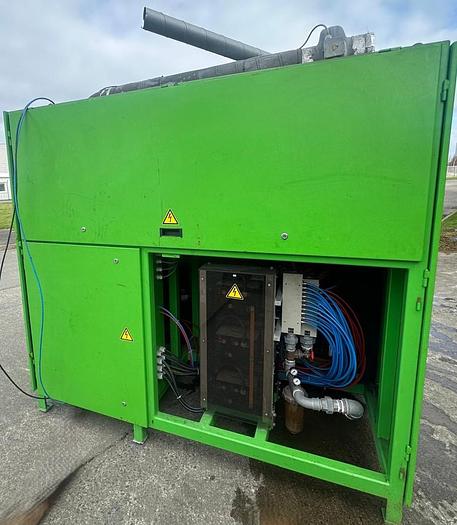

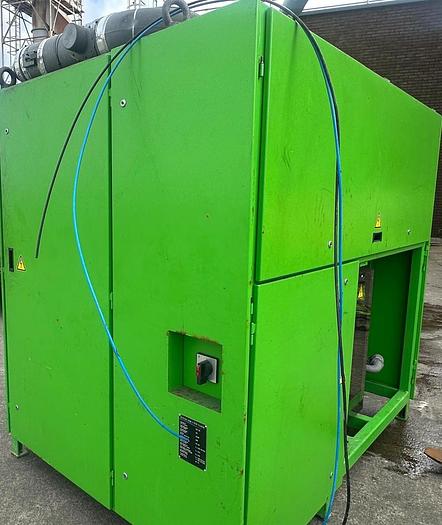

DR. Fritsch DSP 515 Pressure Sintering Press

DR. Fritsch DSP 515 Pressure Sintering Press

Machine Type: Pressure Sintering Press

Year: 2008

Condition: Very Good. Decommissioned

Includes

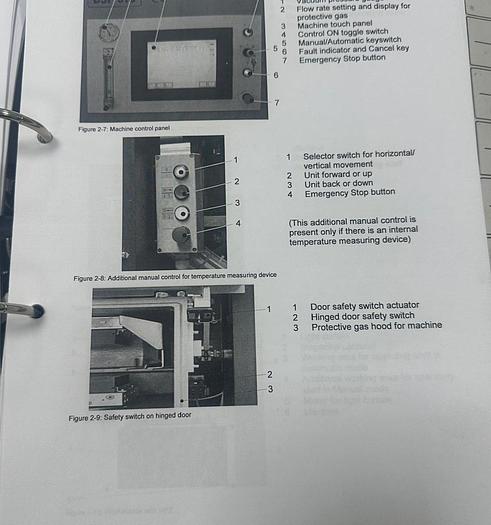

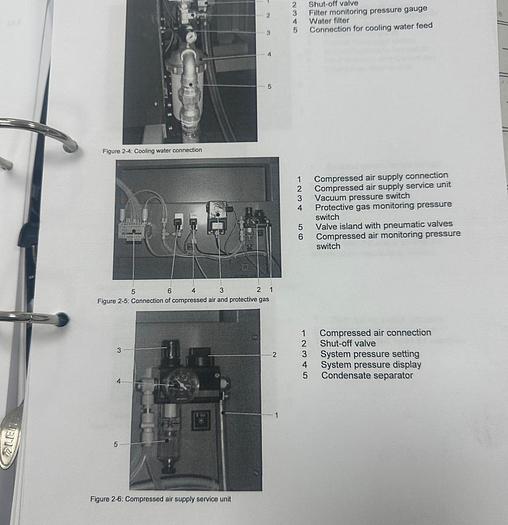

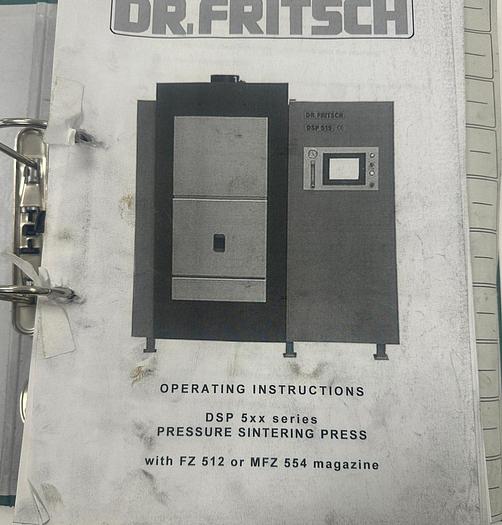

Manual

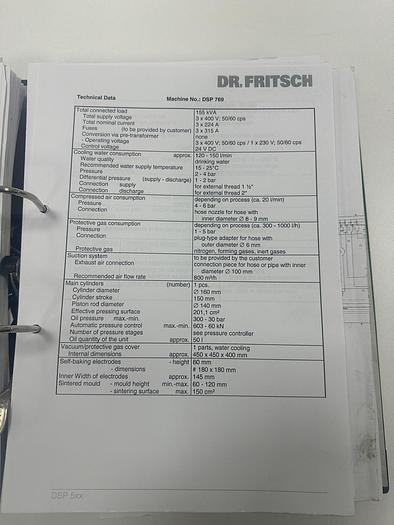

Technical Specification

Main Cylinders: 1

Cylinder Diameter: 160mm

Cylinder Stroke: 150mm

Piston Rod Diameter: 140mm

Effective Pressing Surface: 201.1cm2

Auto Pressure Control: 60-603kN

Internal Dimensions: 450 x 450 x 400mm

Self Baking Electrodes Dimensions: 180 x 180 x 60mm

Inner Width of Electrodes: 145mm

Temperature Range: 0-1,100 Deg C

Sintering Mould Height: 60-120mm

Sintering Surface: 150cm2

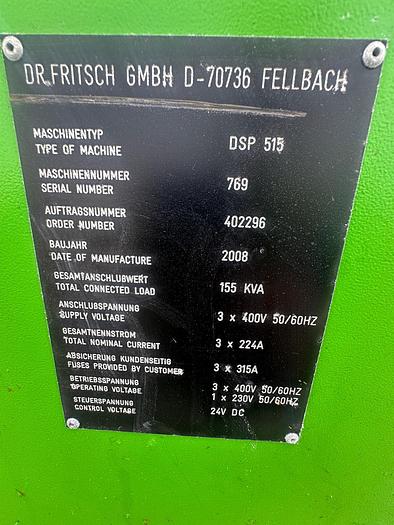

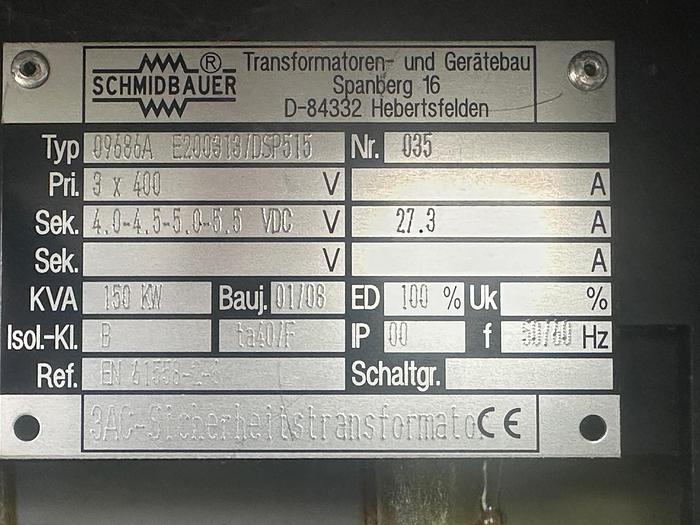

Total Connected Load: 155kVA

Total Supply Voltage: 3 x 400V 50/60cps

Total Nominal Current: 3 x 224A

Operating Voltage: 3 x 400V 50/60cps/ 1 x 230V 50/60cps

Control Voltage: 24V DC

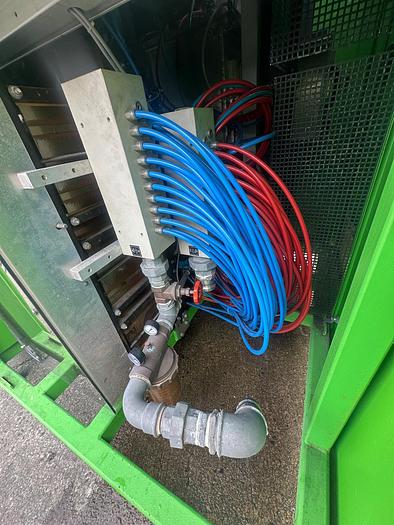

Cooling Water Consumption: 120-150L/min

Water Quality: Drinking Water

Recommended Water Supply Temp: 15 - 25 Deg C

Water Pressure: 2-4 Bar

Differential Pressure: 1-2 Bar

Compressed Air Consumption: Approx. 20L/min

Air Pressure: 4-6 Bar

Protective Gas Consumption: Approx. 300-1000L/h

Gas Pressure: 1-5 Bar

Dimensions: 2240x1620x2300mm

Weight: 3800kg
