Cincinnati Arrow 750 Machining Centre
Sold
Description

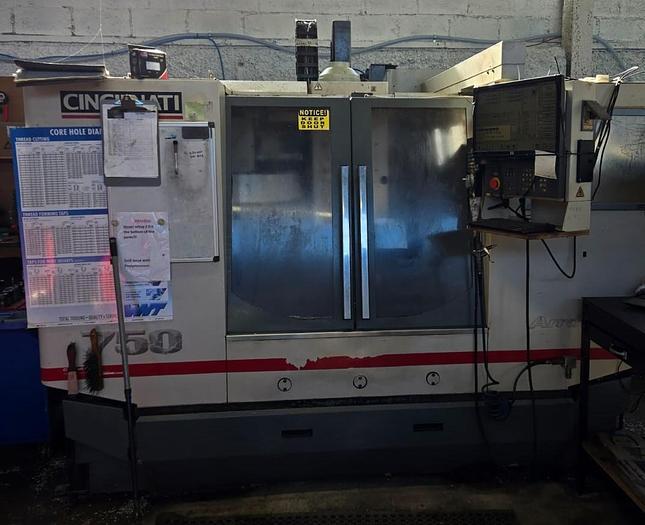

Cincinnati Arrow 750 Vertical Machining Centre
Machine Type: 3 Axis Vertical Machining Centre

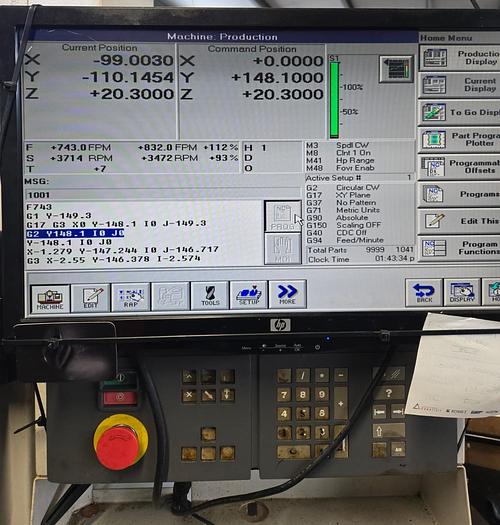

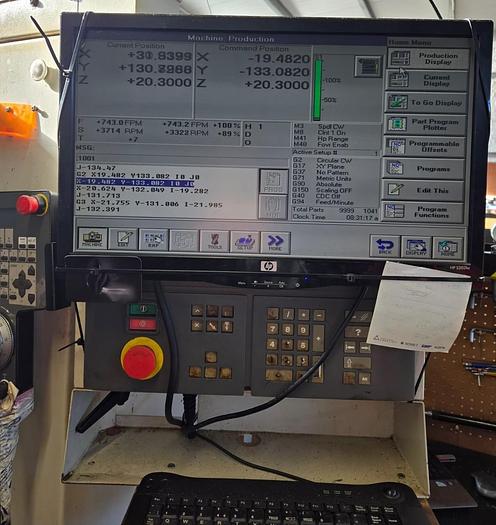

Control: Acramatic 2100
Year: 2001
Condition: Good
Includes
Selection of Tool Holders
Technical Specifications
Table Size: 950 x 520mm
Table Load: 455kg
X Axis Travel: 762mm
Y Axis Travel: 510mm
Z Axis Travel: 510mm
Spindle Speed: 8000rpm
Spindle Taper: SK40
Spindle Motor Power: 7.5kW
ATC Storage: 21 Tools
Max Tool Diameter: 160mm
Max Tool Length: 305mm
Max Tool Weight: 6.8kg
Machine Dimensions: 2795x2110x2700mm
Machine Weight: 3300kg
Specifications
| Manufacturer | Cincinnati |
| Model | Arrow 750 Machining Centre |
| Year | 2001 |
| Condition | Used |
| Stock Number | 968849 |
| Control | Acramatic 2100 |
| Year | 2001 |
| Condition | Good |
| Table Size | 950 x 520mm |
| Table Load | 455kg |
| X Axis Travel | 762mm |
| Y Axis Travel | 510mm |
| Z Axis Travel | 510mm |
| Spindle Speed | 8000rpm |
| Spindle Taper | SK40 |
| Spindle Motor Power | 7.5kW |
| ATC Storage | 21 Tools |
| Max Tool Diameter | 160mm |
| Max Tool Length | 305mm |
| Max Tool Weight | 6.8kg |
| Machine Dimensions | 2795x2110x2700mm |
| Machine Weight | 3300kg |
