Cormak ESR 2020 x 3.5mm Plate Rolls

Cormak ESR-2020 x 3.5mm Mechanical Plate Rolls

Machine Type: 3 Roll Mechanical Plate Rolls

Machine Description

The ESR 2020 x 3.5 mm three-roll electromechanical plate rolls with asymmetric shafts is used to produce cylindrical and cones of various diameters. This machine is designed for bending sheets with a thickness of up to 3.5 mm, length up to 2020 mm, diameter of the upper roll is 125 mm. The most popular are three-roll bending machines from this series, due to their relatively simple and functional design. Most suitable for those customers who are looking for equipment with medium performance and low cost.

Machine Advantages

Asymmetric arrangement of the rollers

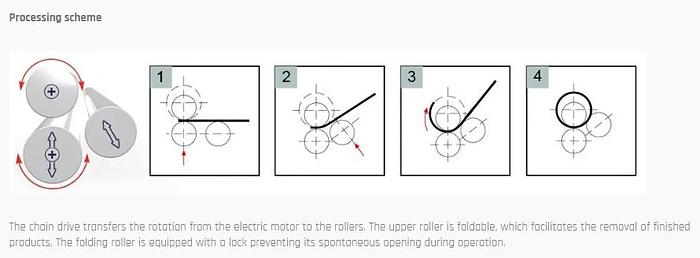

The lower and upper rollers rotate through a system of gears and a chain drive from an electric motor

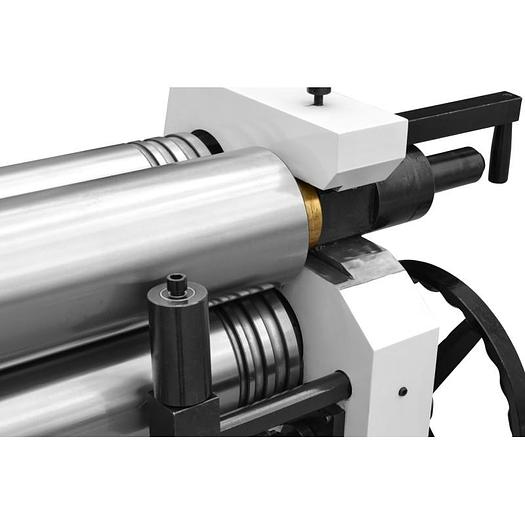

The upper roller rotates in both directions, equipped with a tilt and turn mechanism

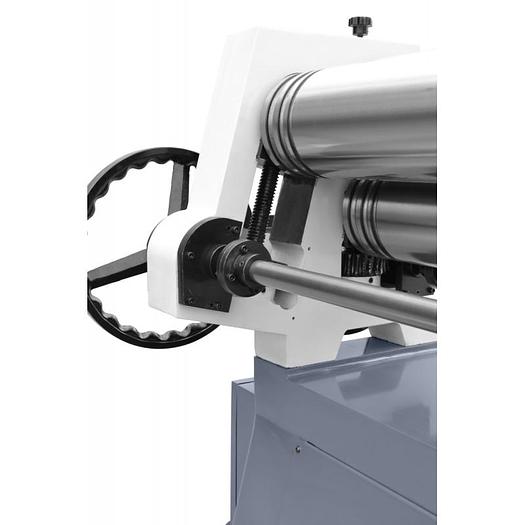

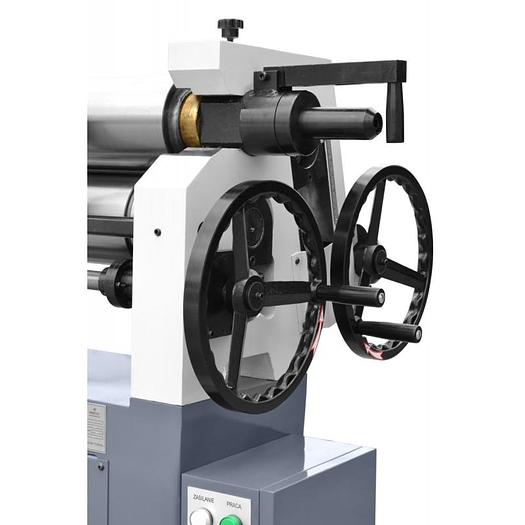

Height adjustable lower and side rollers (manually adjustable)

Cone bending possible

Foot control with emergency stop button

Technical Specification

Maximum working width: 2020mm

Maximum material thickness: 3.5mm

Top Roll Diameter: 125mm

Rotation Speed: 22 rpm

Motor power: 3kW

Machine dimensions (L x W x H): 2530 x 640 x 1050mm

Machine weight: 1230kg
