€24,000 + Vat

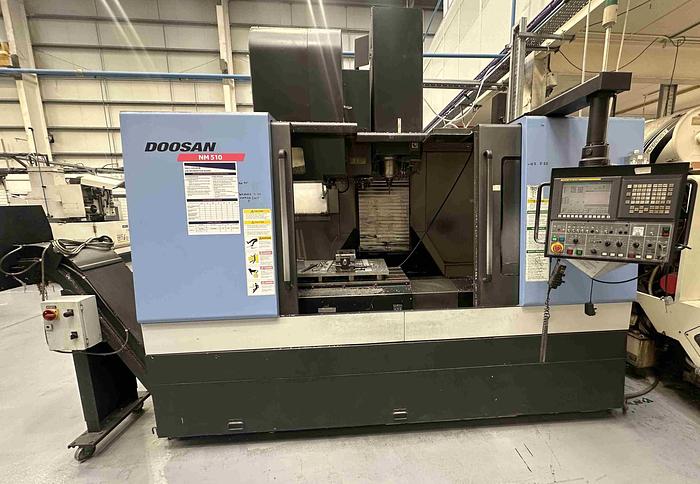

Doosan NM510 Vertical Machining Centre

1

Cork, Ireland

or
Call +353 838108745

Description

Doosan NM510 Vertical Machining Centre


Machine Type: 3 Axis Vertical Machining Centre

Year: 2008

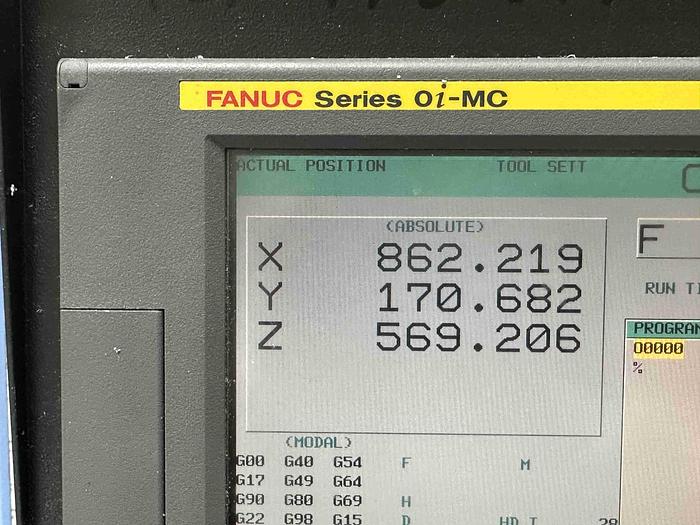

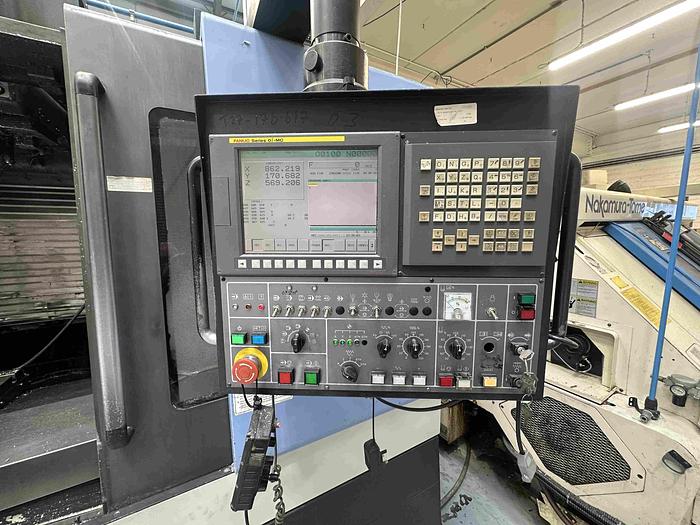

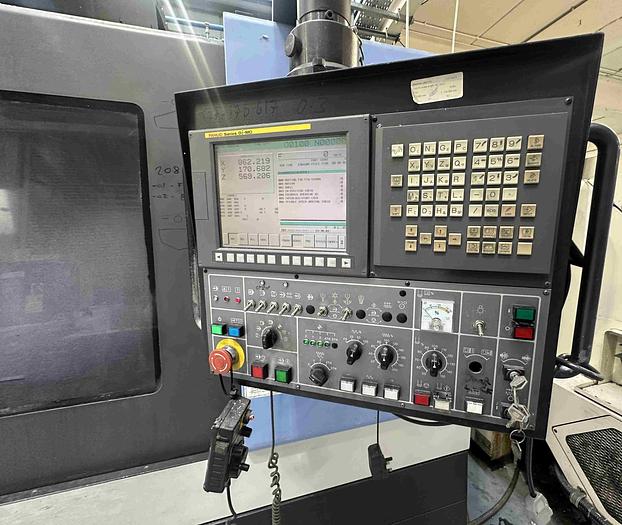

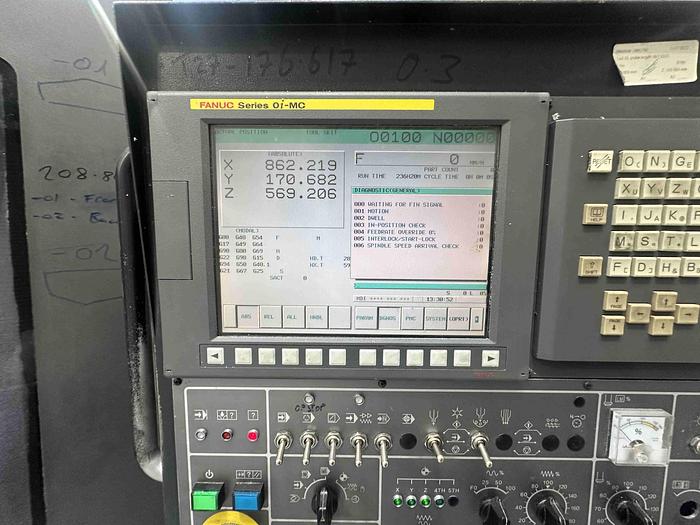

Control: Fanuc Series Oi-MC

Condition: Very Good


Includes

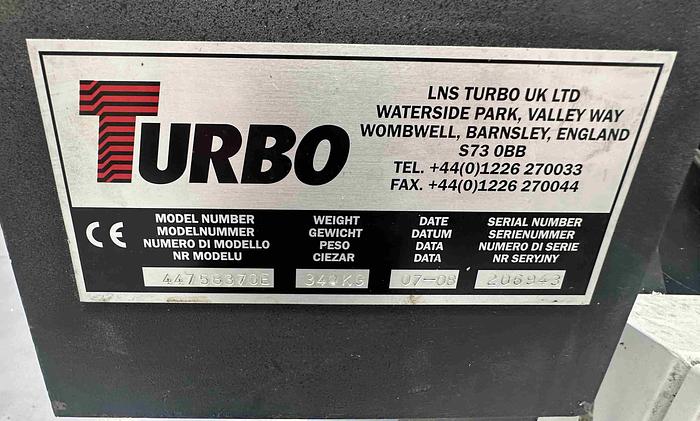

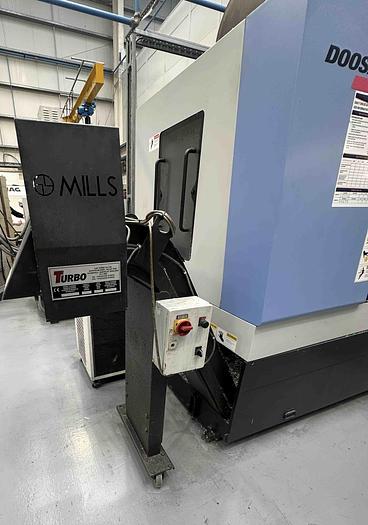

Swarf Conveyor

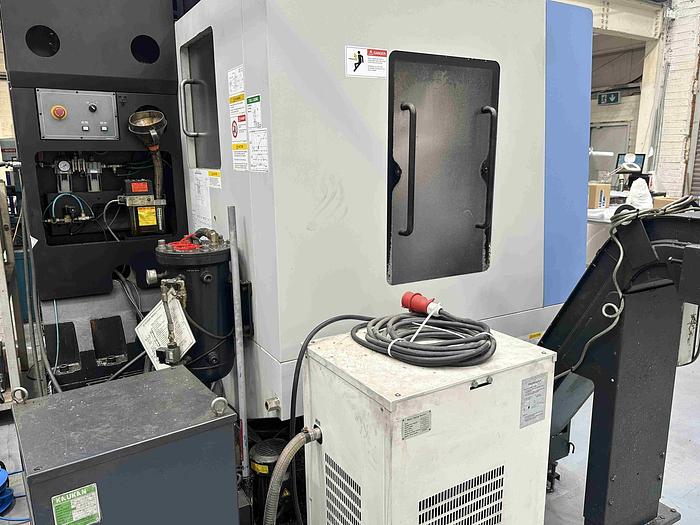

Chiller

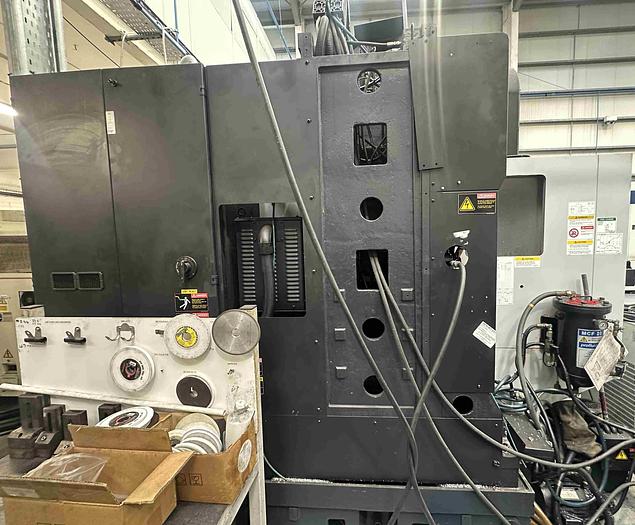

MCF20 Coolant Filter

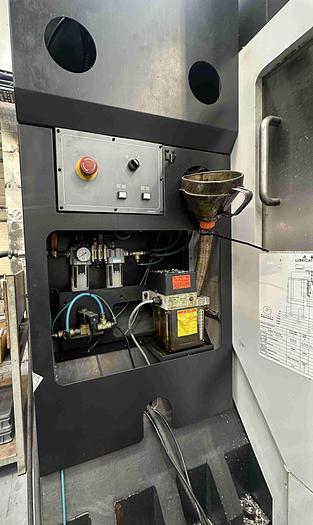

Autolube

6 x Tool Holders


Notes

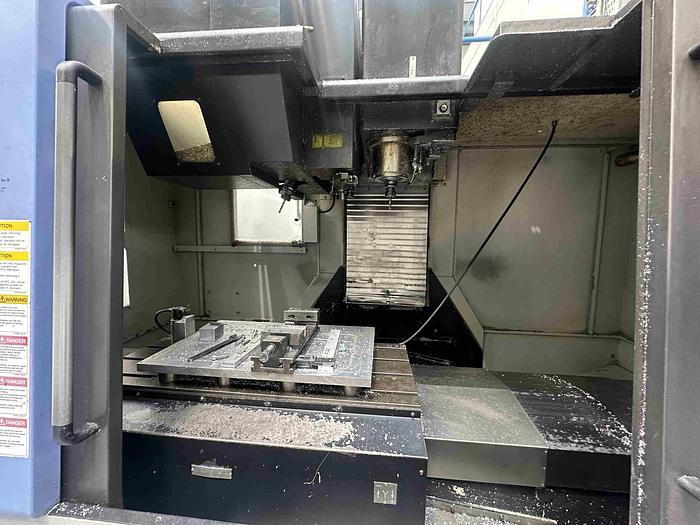

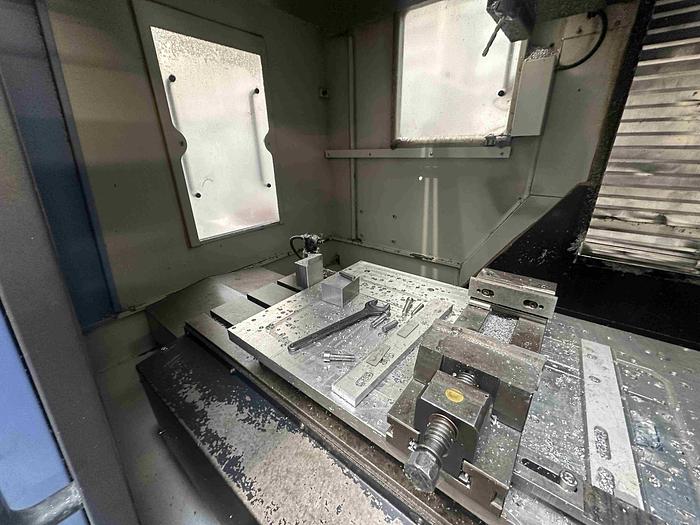

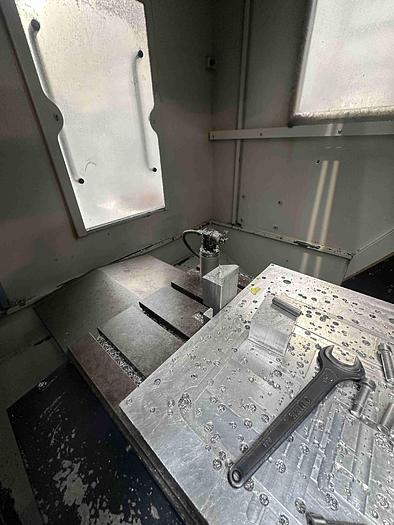

Vice and clamping block in photos not included


Technical Specifications

Table Size: 1200 x 510mm

Table Load: 800kg

Travel (X-Axis): 1020mm

Travel (Y-Axis): 510mm

Travel (Z-Axis): 510mm

Max Spindle Speed: 12,000rpm

Spindle Power: 18.5/15/11kW

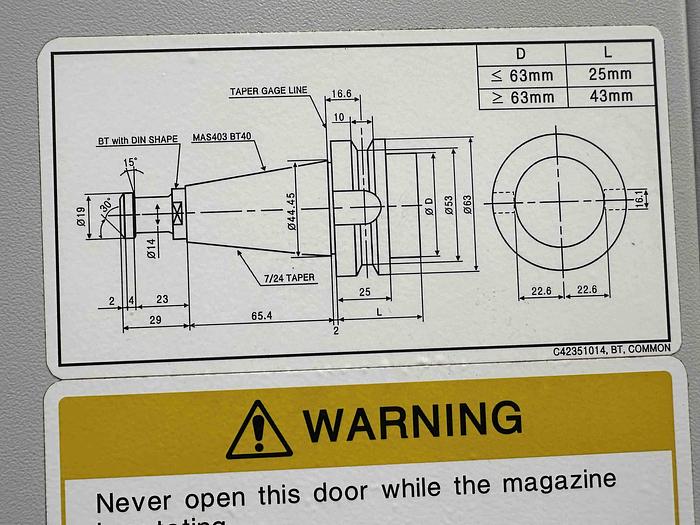

Spindle Taper: BT 40

Rapid Traverse (X/Y/Z): 36/36/30m/min

Tool Storage Capacity: 30 tools

Tool Change Time (T-T/C-C): 1.7/3.5sec

Machine Dimensions: 4080 x 2400 x 2700mm

Machine Weight: 7,000kg


Show All

Specifications

ManufacturerDoosan
ModelNM510 Vertical Machining Centre
Year2008
ConditionUsed
Stock Number968838
Year2008
ControlFanuc Series Oi-MC
ConditionVery Good
Table Size1200 x 510mm
Table Load800kg
Travel (X-Axis)1020mm
Travel (Y-Axis)510mm
Travel (Z-Axis)510mm
Max Spindle Speed12,000rpm
Spindle Power18.5/15/11kW
Spindle TaperBT 40
Rapid Traverse (X/Y/Z)36/36/30m/min
Tool Storage Capacity30 tools
Tool Change Time (T-T/C-C)1.7/3.5sec
Machine Weight7,000kg
