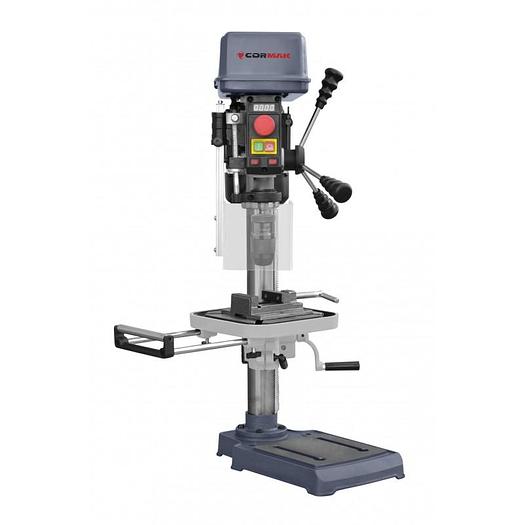

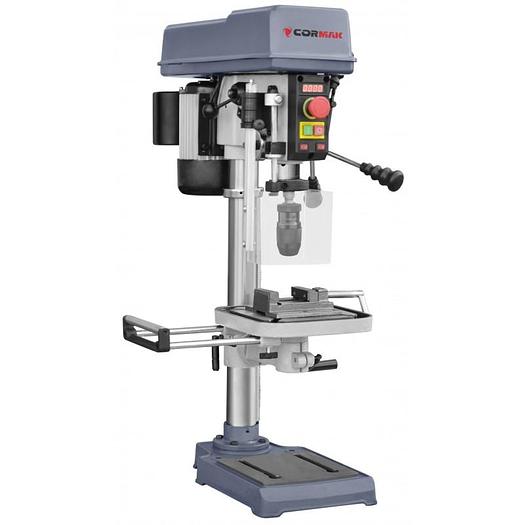

Cormak Z7016 Vario Bench Drilling Machine

Cormak Z7016 Vario Bench Drilling Machine

Power: Single Phase/230V

Machine Description

This drilling machine provides perfect quality drilling due to its sturdy design. Swiveling table ensures wide range of machining. This device is also equipped with spindle speed electronic indicator and a drilling depth indicator. Machine Features

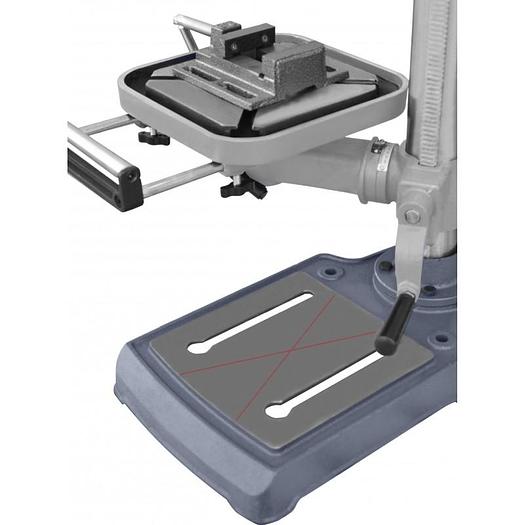

-/+ 45° swiveling table

Sturdy machine design

Adjustable table height through a gear rack

Three-armed lever

Drilling depth indicator

Drilling speed electronic indicator

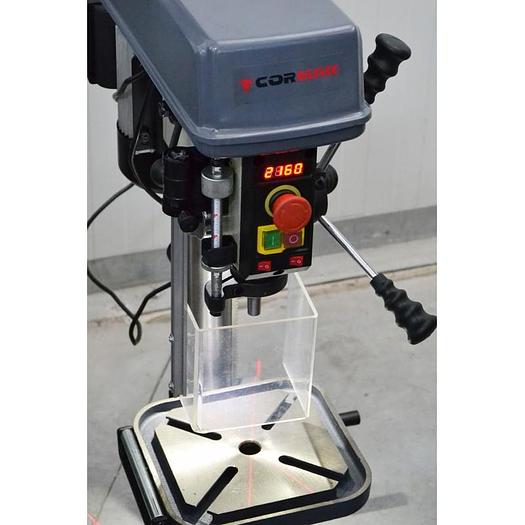

Laser indicator

Technical Specifications

Max. Diameter of drilling (steel): 16 mm

Diameter column: 60 mm

Distance to column: 150 mm

Max. Distance to base: 430 mm

Quill Stroke: 90mm

Mounting spindle: MT2

Spindle speeds: 350-2400rpm

Table dimensions: 240 x 240mm

Dimensions of the base: 400 x 232mm

Table Height Adjustment: 335mm

Height of machine: 910mm

Motor power: 700W

Power: 230V

Net weight: 46kg

Optional Extras

Machine Vice

Coolant Equipment

Clamping Kit
