DMU 50 eVo 5-Axis CNC Machining Centre – Plastics Only – For Sale in Ireland

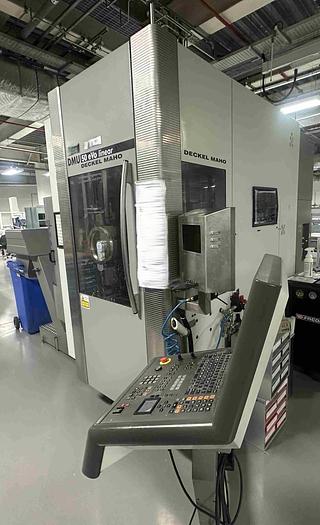

🔹 For Sale: 2006 Deckel Maho DMU 50 eVo Linear 5-Axis Machining Centre – Excellent Condition – Only Used for Plastics 🔹

Make: Deckel Maho

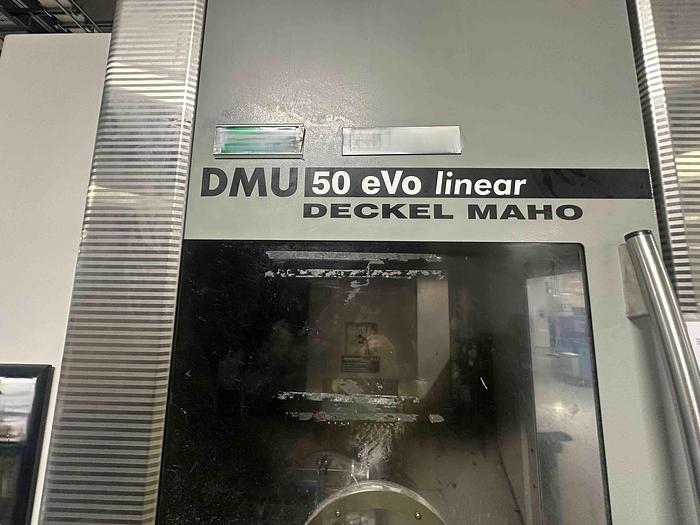

Model: DMU 50 eVo Linear

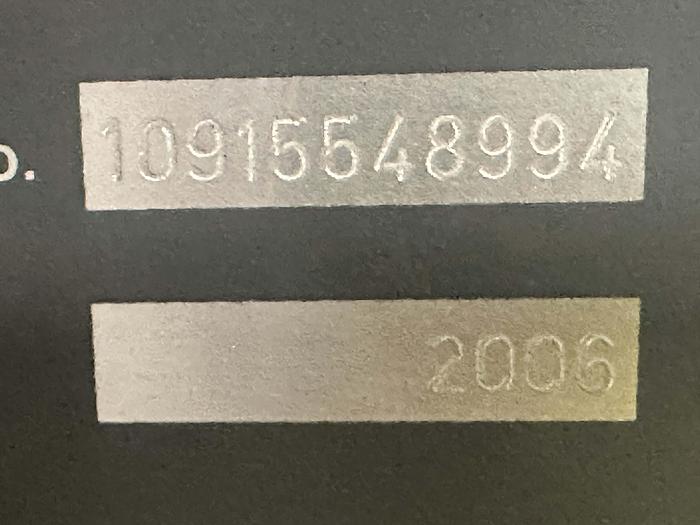

Year: 2006

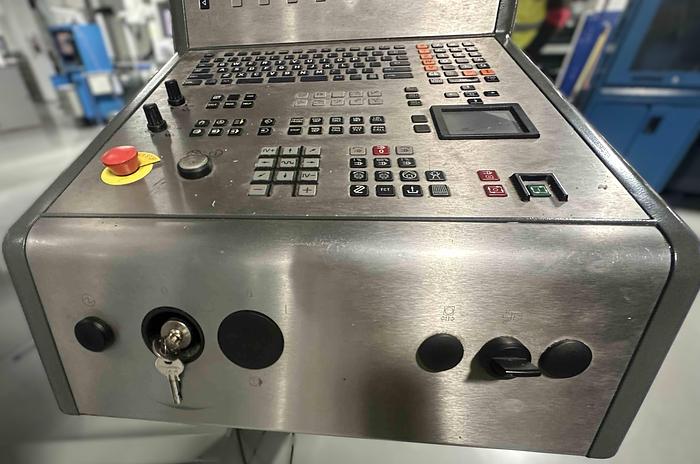

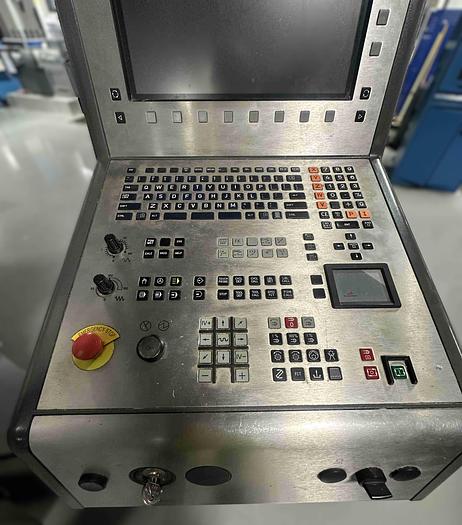

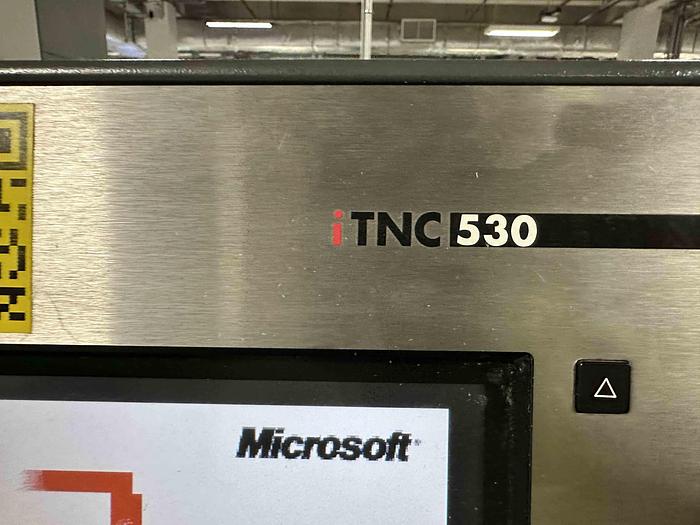

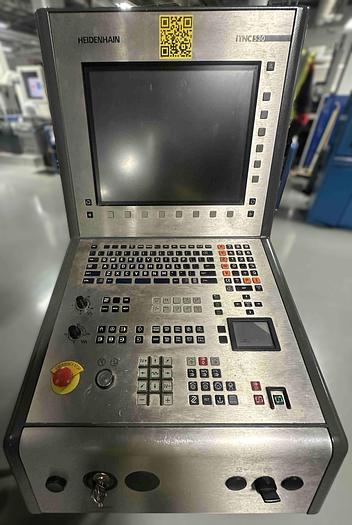

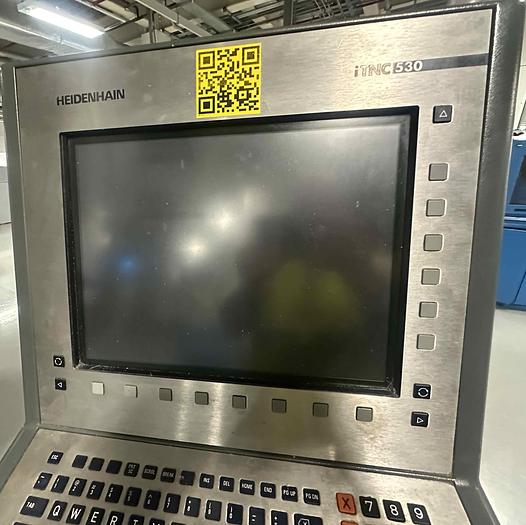

Control System: Heidenhain iTNC530

Machine Type: 5-Axis CNC Machining Centre

Condition: Very Good

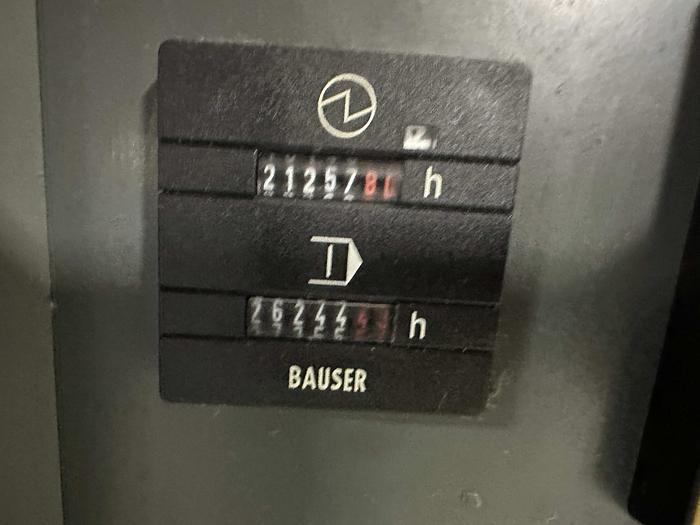

Spindle Hours: 21,257 hrs

Location: Ireland

Cooling System: Air Cooling (No Fluid Coolant Used)

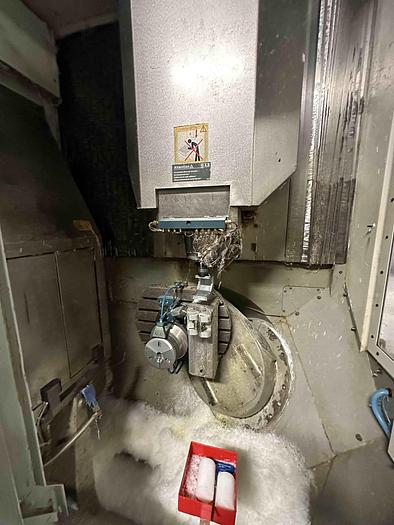

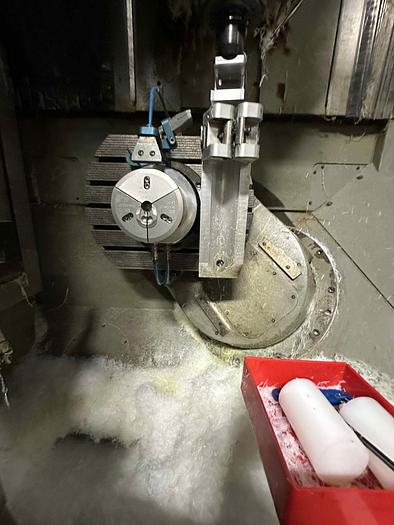

Application History: Exclusively used for plastics machining

📌 Description:

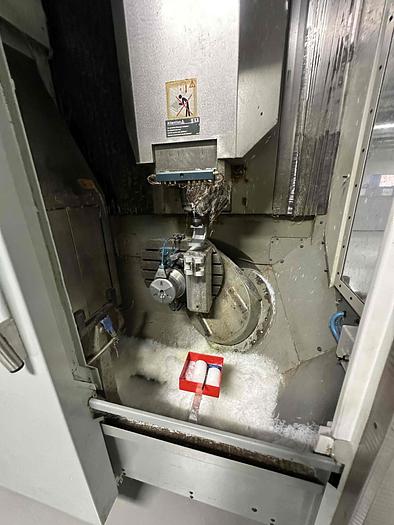

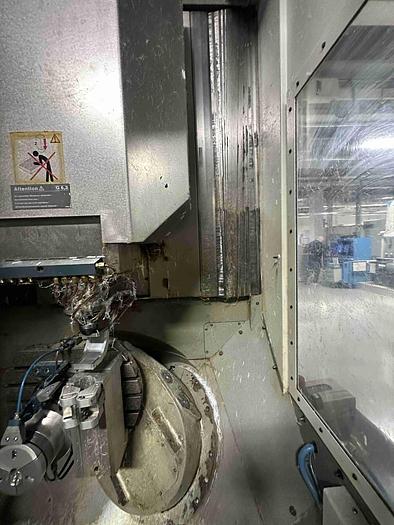

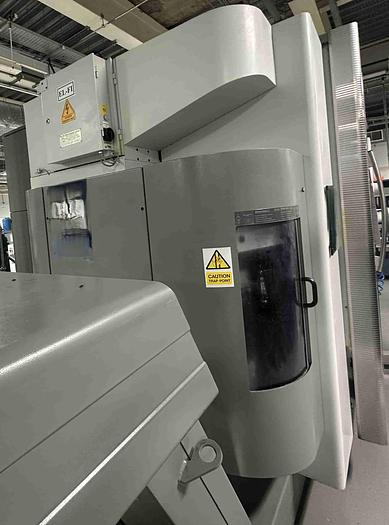

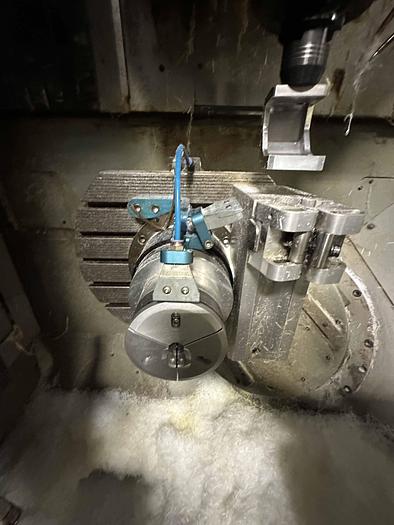

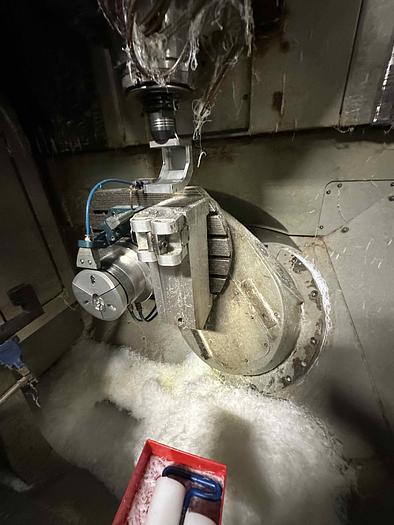

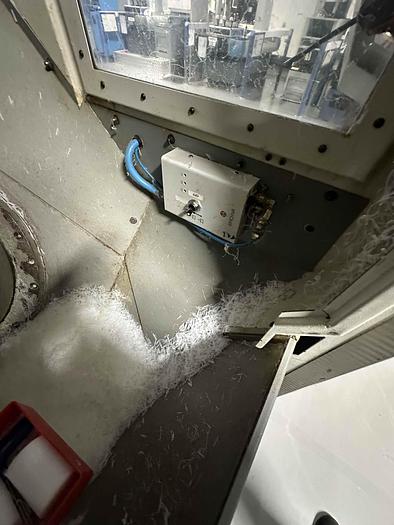

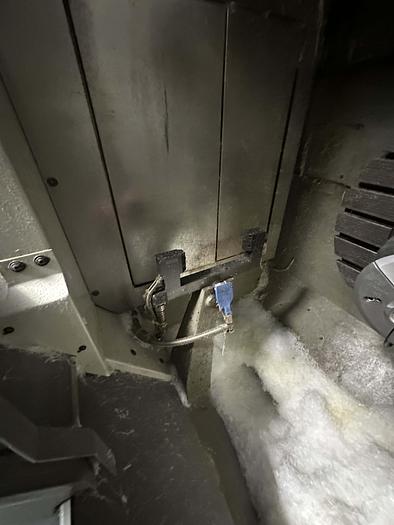

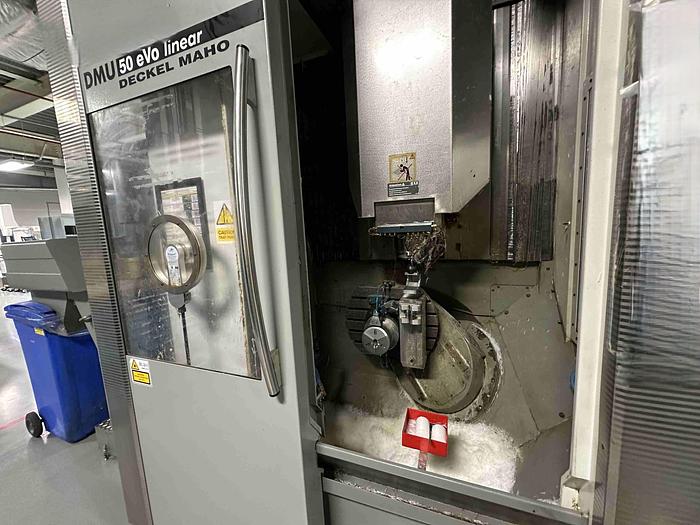

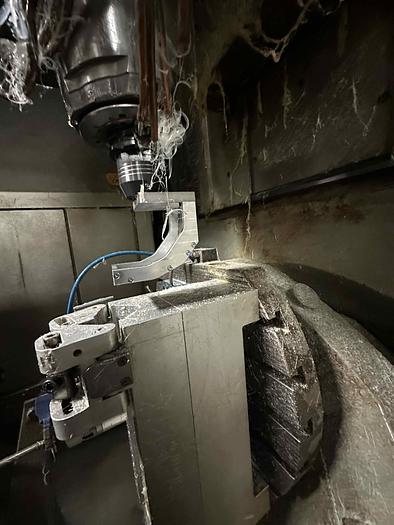

Available now is a Deckel Maho DMU 50 eVo Linear 5-Axis Machining Centre, in very good condition, used solely for light-duty plastics machining. This high-precision CNC machine offers dynamic simultaneous 5-axis control, ideal for complex geometries and multi-face machining in one setup. Unlike machines that have run metal with heavy coolant use, this unit has been air-cooled only, ensuring reduced wear and exceptional cleanliness.

Perfect for manufacturers working with composites, plastics, and non-ferrous materials looking for a clean, reliable, and precision-focused 5-axis solution.

🧰 Included Equipment:

• Selection of BT40 Tool Holders

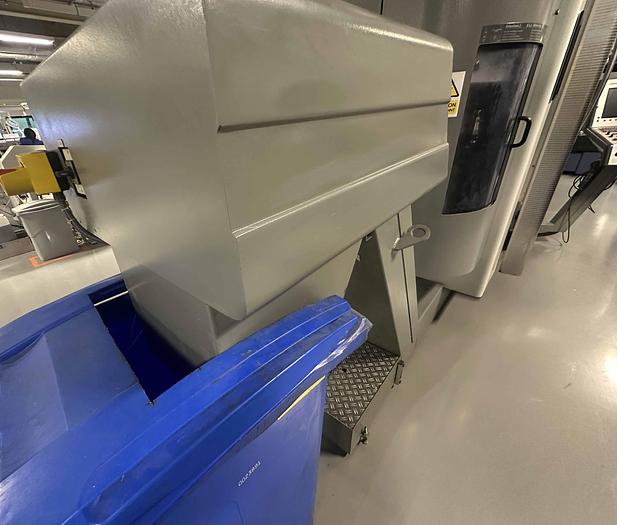

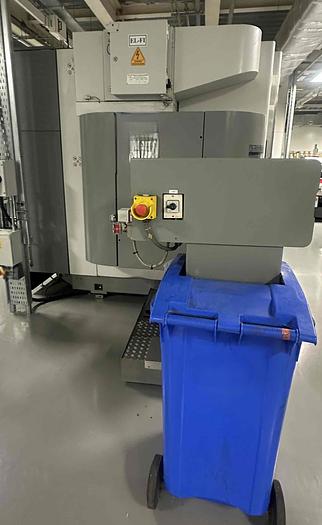

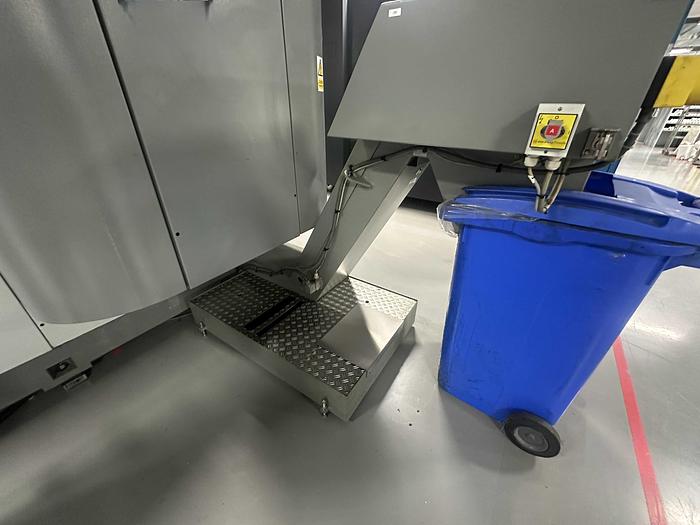

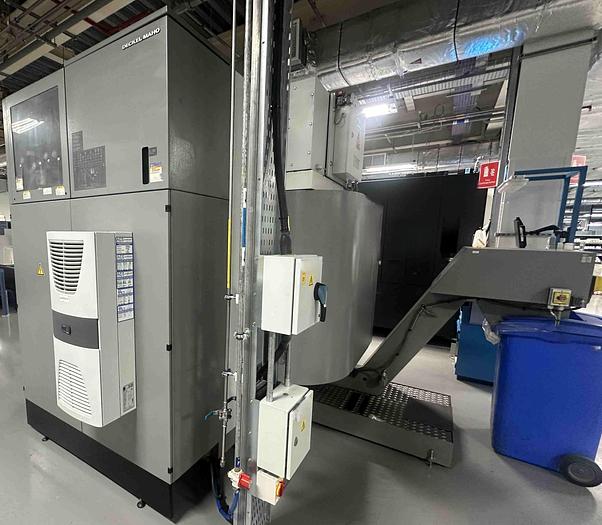

• Swarf Conveyor

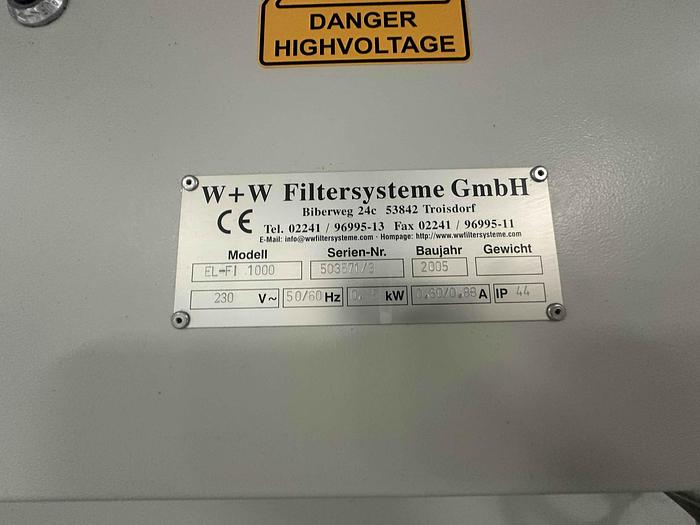

• Electrostatic Oil Mist Filter

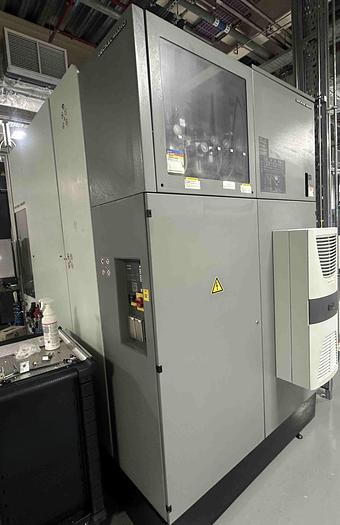

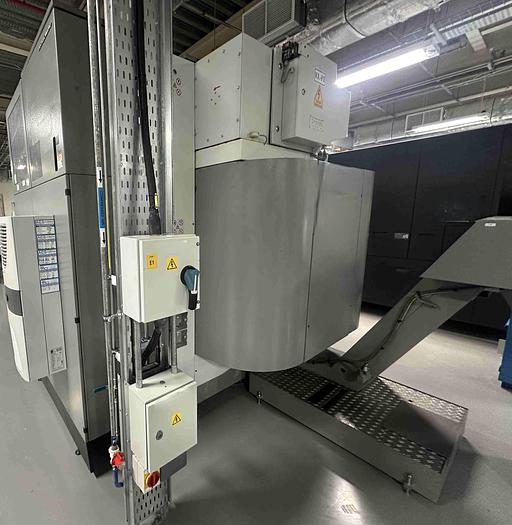

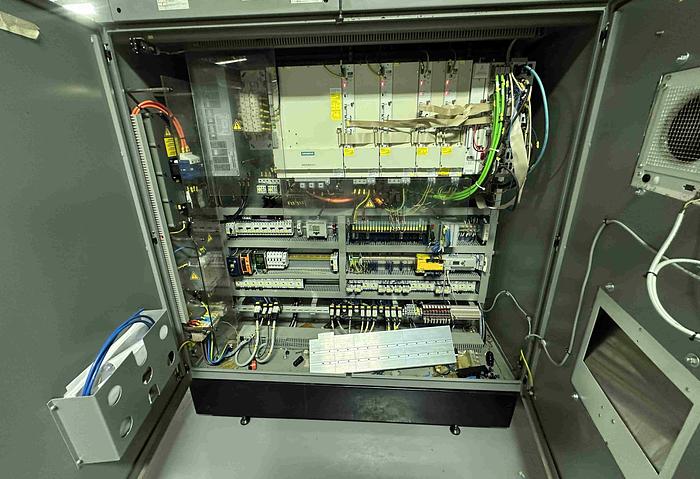

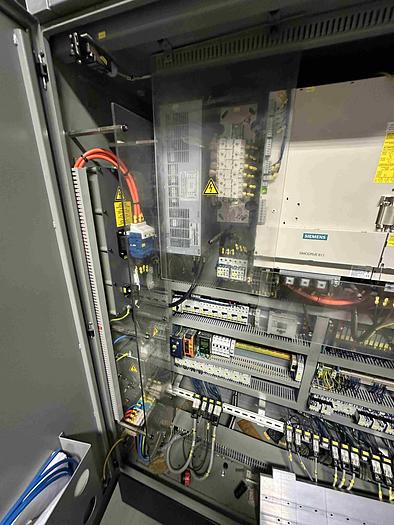

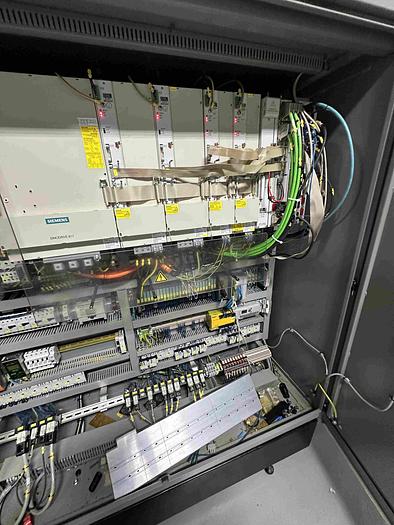

• Rittal Climate-Controlled Electrical Cabinet (A/C Unit)

🔧 Technical Specifications:

• Table Dimensions: 500 x 380 mm
• Max Table Load: 200 kg
• X Axis Travel: 500 mm
• Y Axis Travel: 450 mm
• Z Axis Travel: 400 mm

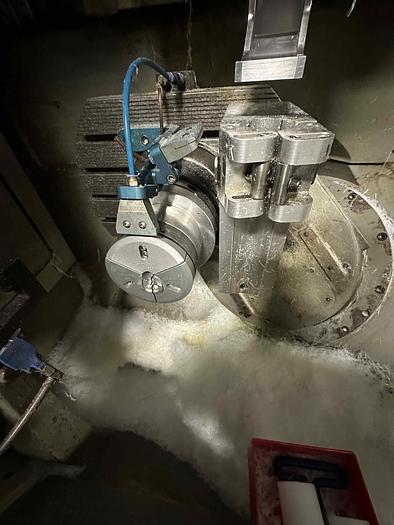

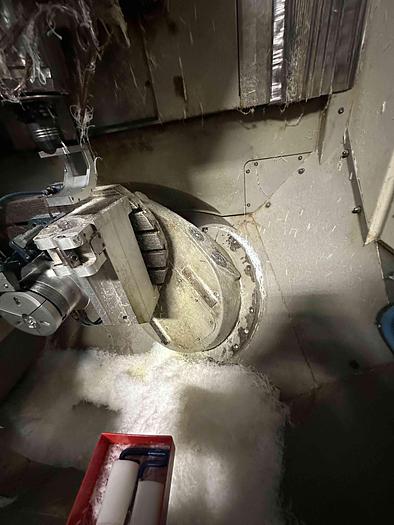

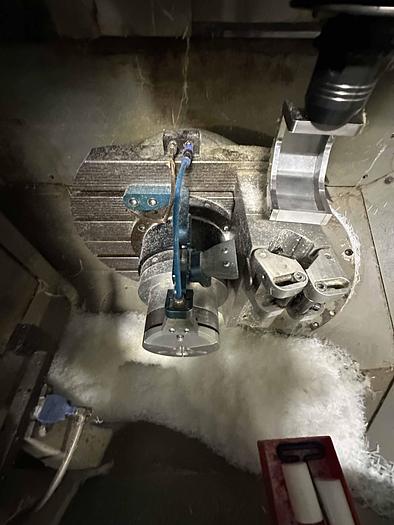

• B Axis Travel (Tilting): 180°

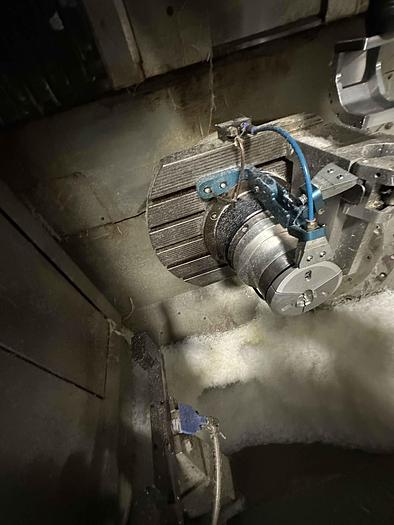

• C Axis Travel (Rotary): 360°

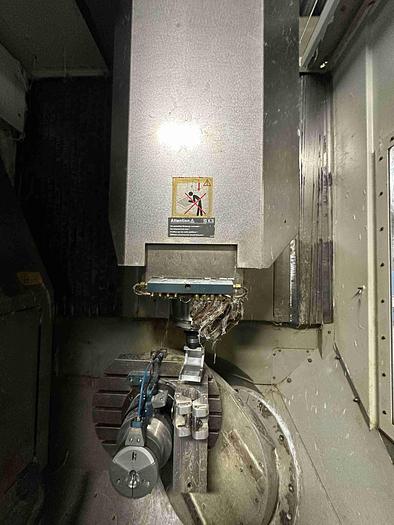

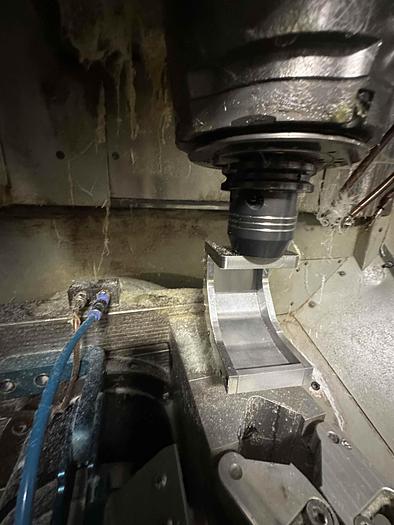

• Spindle Speed: Up to 18,000 rpm
• Spindle Taper: BT40

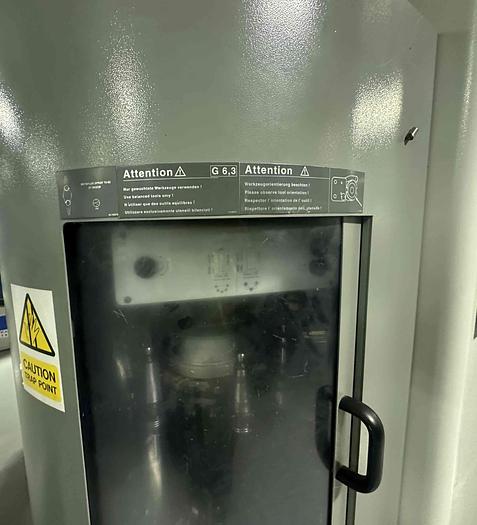

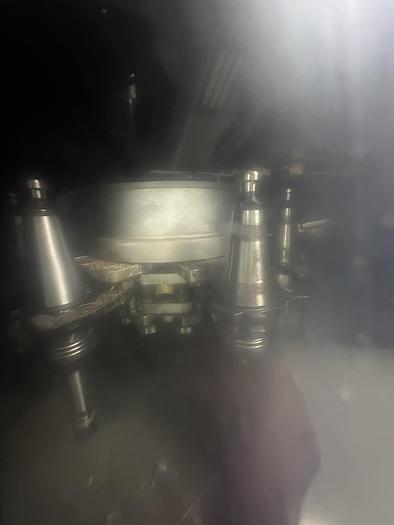

• ATC Capacity: 30 Tools
• Max Tool Diameter: Ø130 mm
• Max Tool Length: 315 mm
• Max Tool Weight: 8 kg
• Machine Dimensions (LxWxH): 2800 x 2200 x 2500 mm
• Machine Weight: Approx. 6,500 kg

✅ Highlights:

• Clean machine – never used for metal
• Air-cooled spindle – no fluid coolant contamination
• High-speed 18,000 rpm BT40 spindle
• Dynamic 5-axis simultaneous machining
• Equipped with electrostatic mist extraction and climate control
• Ideal for high-precision plastics or light material applications
• Located in Ireland

📈 Ideal Applications:

• Plastics & composite part machining
• Medical device manufacturing
• Aerospace models & non-ferrous components
• Education, prototyping & R&D machining
