€7,000 + Vat @ 23%

1992 Ohio Broach & Machine Co. VSHD-536-C Heavy Duty Vertical Surface Broaching Machine

1

Ireland

orCall +353 838108745

Description

1992 Ohio Broach & Machine Co. VSHD-536 Heavy Duty Vertical Surface Broaching Machine


Heavy Duty Broaching Machine


Year: 1992


Technical Specifications

Tonnage: 5 Ton

Stroke: 36"

Normal Cut Capacity: 10,000lbs

Broaching Speed: 100fpm

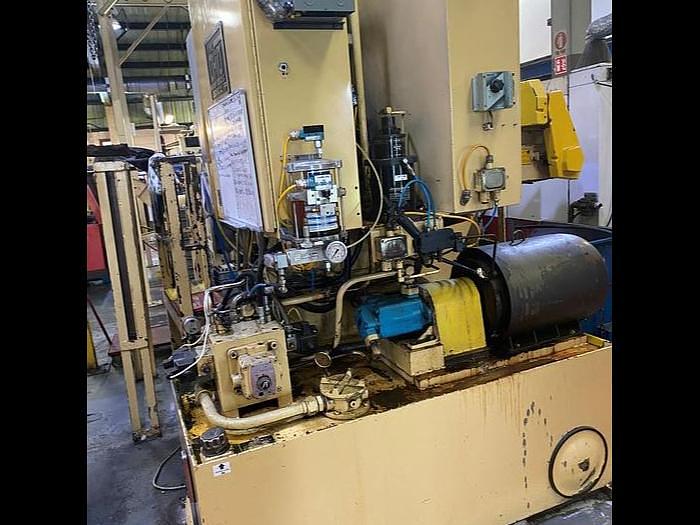

Hydraulic Pump Type: Vickers Vane

Main Hydraulic Motor Power: 30HP

Main Hydraulic Motor Speed: 120rpm

Coolant Motor Power: 1/2HP

Coolant Motor Speed: 1800rpm


Voltage: 380V, 3 Phase


Machine Dimensions: 2845 x 1955 x 2815mm



Specifications

ManufacturerOhio Broach & Machine Co.

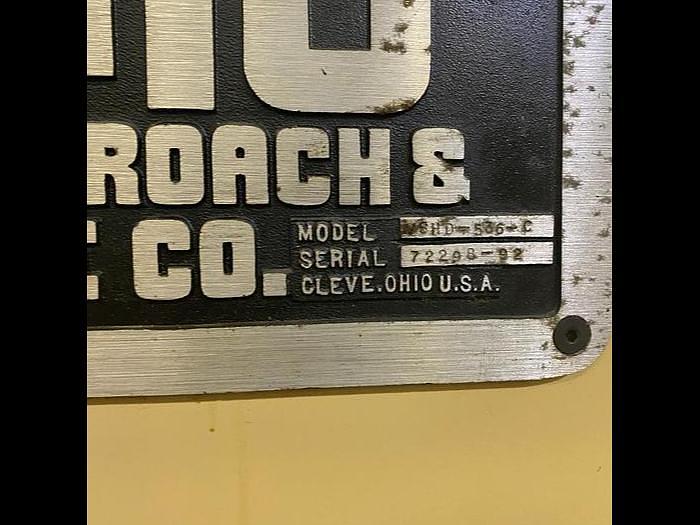

ModelVSHD-536-C Heavy Duty Vertical Surface Broaching Machine
Year1992
ConditionUsed

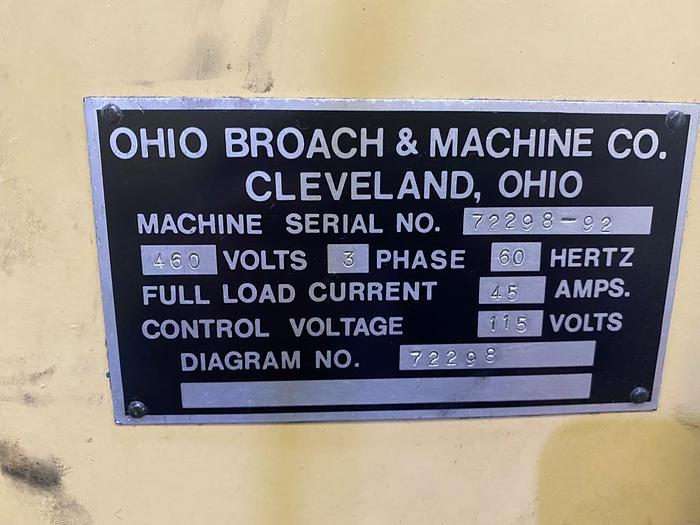

Serial Number72298-92
Tonnage5 Ton
Stroke36"
Normal Cut Capacity10,000lbs
Broaching Speed100fpm
Hydraulic Pump TypeVickers Vane
Main Hydraulic Motor Power30HP
Main Hydraulic Motor Speed120rpm
Coolant Motor Power1/2HP
Coolant Motor Speed1800rpm
Voltage380V, 3 Phase
