€69,000 + Vat

2000 Studer S30 Lean Pro CNC ID/OD Cylindrical Grinder



orCall +353 838108745

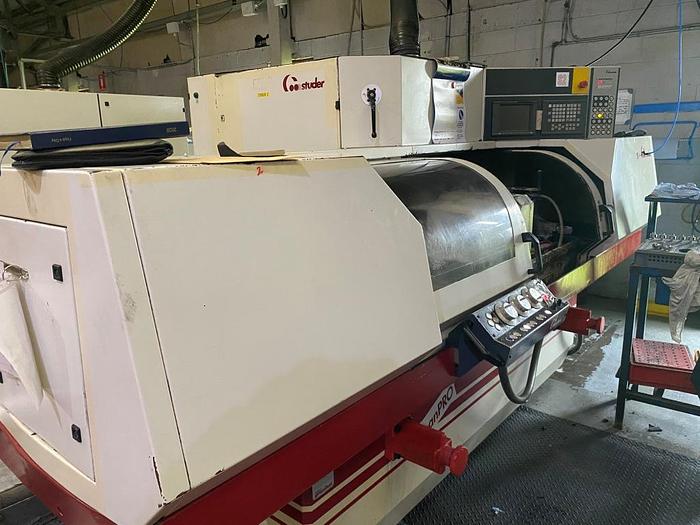

2000 Studer S30 Lean Pro ID/OD CNC Cylindrical Grinder

This machine went through a complete refurbishment in 2018

Year: 2000

Manufacturer: Studer

Model: S30 Lean Pro

Control: Fanuc Series 16-T

Technical Specifications

Swing - Max: 350mm

Centre Distance: 1000mm

Grinding length - Max: 960mm

Workpiece Weight - Max: 130kg

Z Axis (Longitudinal Slide)

Travel - Max: 1051mm

Speed - Infinitely Variable: 0.000001 to 10m/min

Resolution: 0.0001mm

Turret Wheelhead

Swivel Range: -15 to 195 Degrees

Left Grinding Wheel Size: 19.7" Dia. x 3.15" Wide x 5" Bore

Right Grinding Wheel Size: 15.75" Dia. x 1.6" Wide x 5" Bore

ID Spindle Diameter: 100mm

ID Spindle Speed: 20000rpm

C Axis: Yes - Standard


Taper: MT 3

Barrel Travel: 35mm

Main Spindle Motor: 10HP

Machine Dimensions: 3710 x 2160 x 2290mm

Machine Weight: 6000kg


ModelS30 Lean Pro CNC ID/OD Cylindrical Grinder
Serial Number022.0247.90.041
Swing - Max350mm
Centre Distance1000mm
Grinding length - Max960mm
Workpiece Weight - Max130kg
Travel - Max1051mm
Speed - Infinitely Variable0.000001 to 10m/min
Swivel Range-15 to 195 Degrees
ID Spindle Diameter100mm
ID Spindle Speed20000rpm
C AxisYes - Standard
Barrel Travel35mm
TaperMT 3
Main Spindle Motor10HP
Machine Weight6000kg
